LIGMAN VEKTER 26 VK-90052.

VEKTER 26VK-90052VEKTER

Send us an E-Mail or use the contact form:

I have read the privacy policy and agree to the processing of my data *

The fields marked with an * must be correctly filled.
Your request was successfully sent.

Send us an E-Mail or use the contact form:

I have read the privacy policy and agree to the processing of my data *

The fields marked with an * must be correctly filled.
Your request was successfully sent.

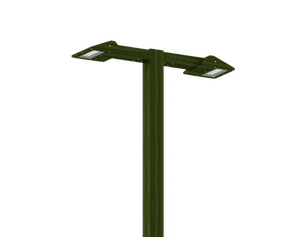

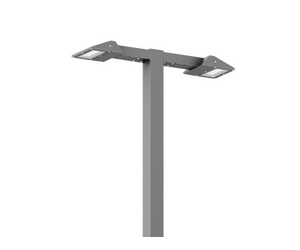

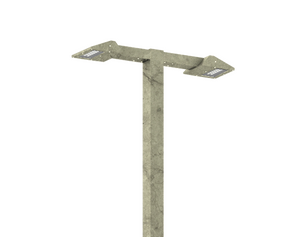

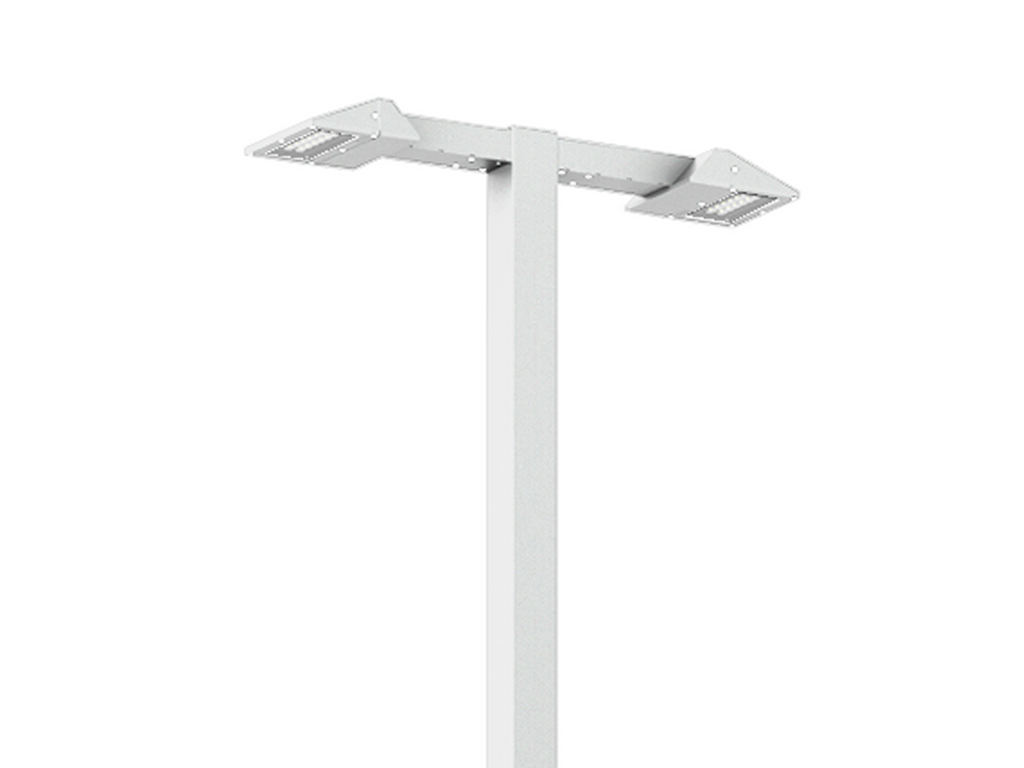

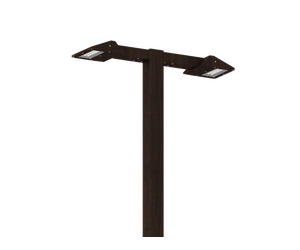

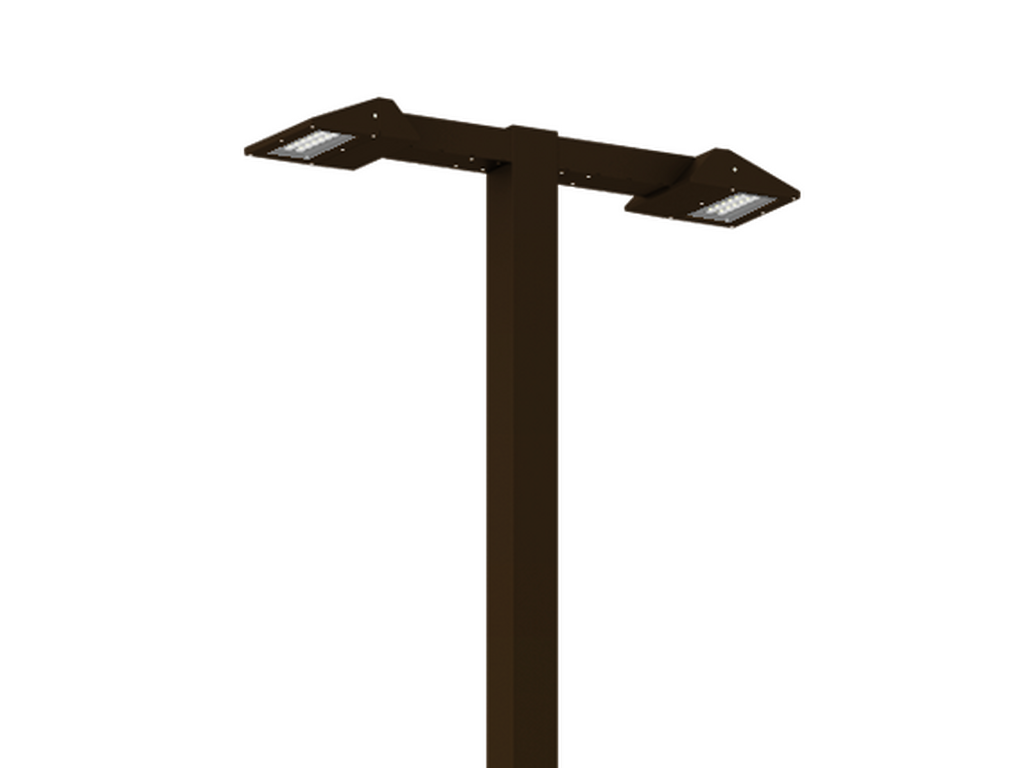

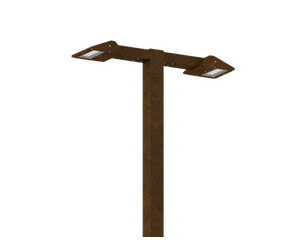

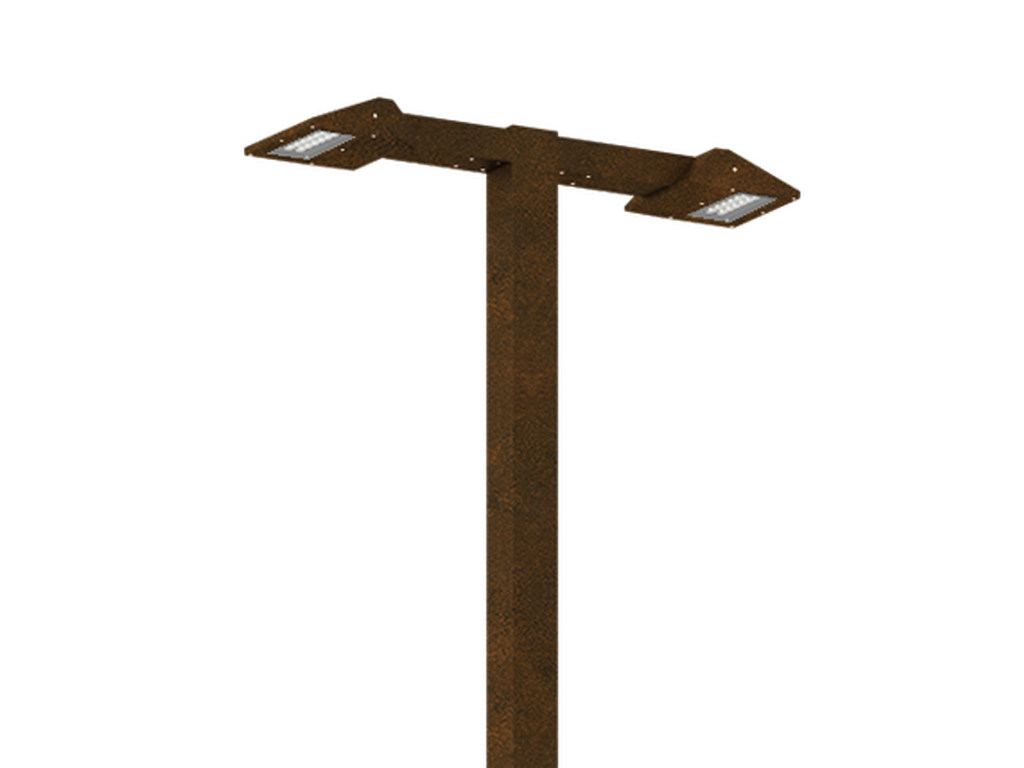

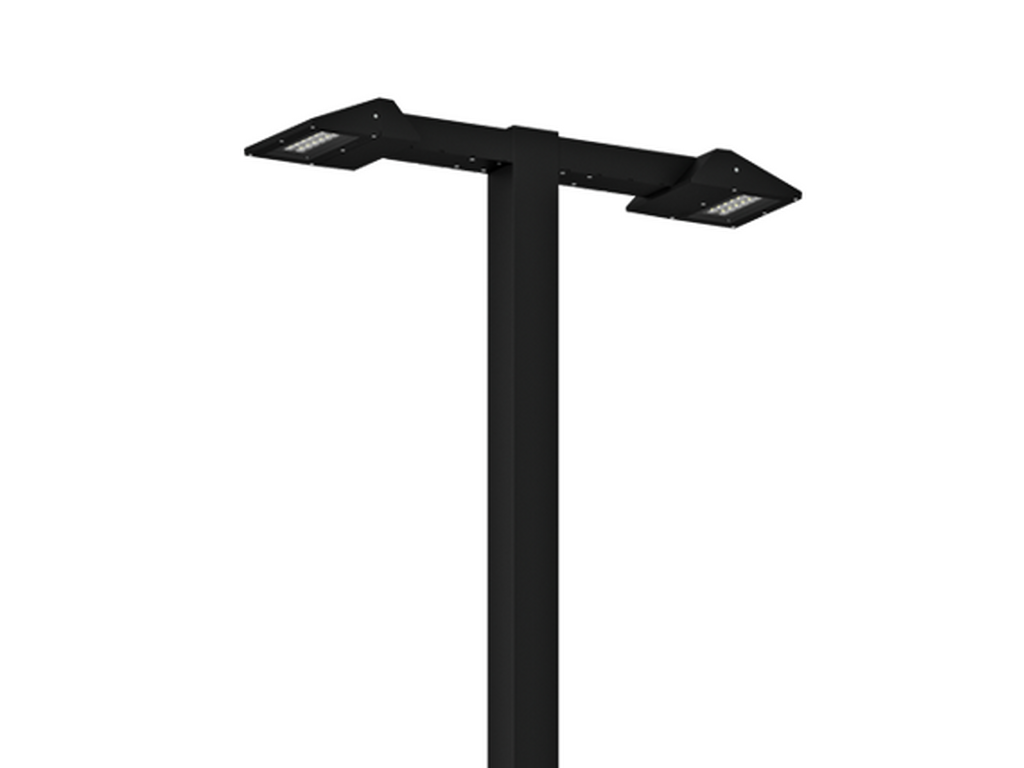

VEKTER 26Black
VEKTER 26Dark Grey

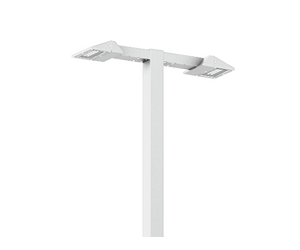

VEKTER 26White
VEKTER 26Matt Silver
VEKTER 26Bronze
VEKTER 26Concrete - Urban
VEKTER 26Softscape - Urban

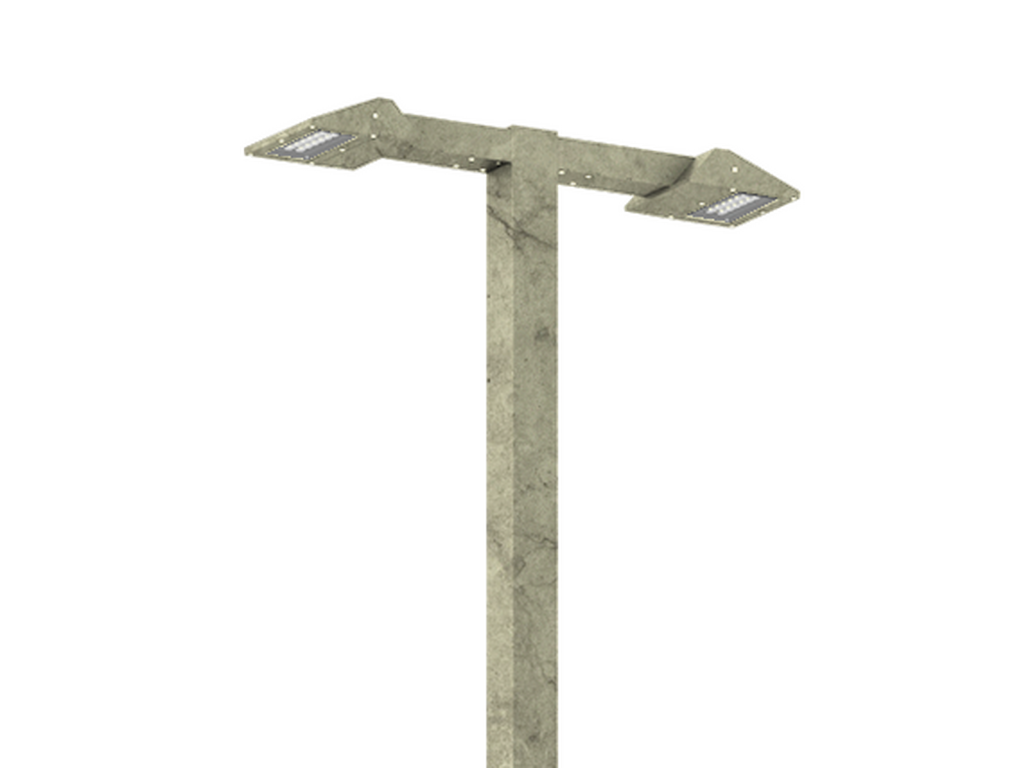

VEKTER 26Stone - Urban

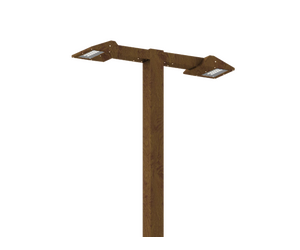

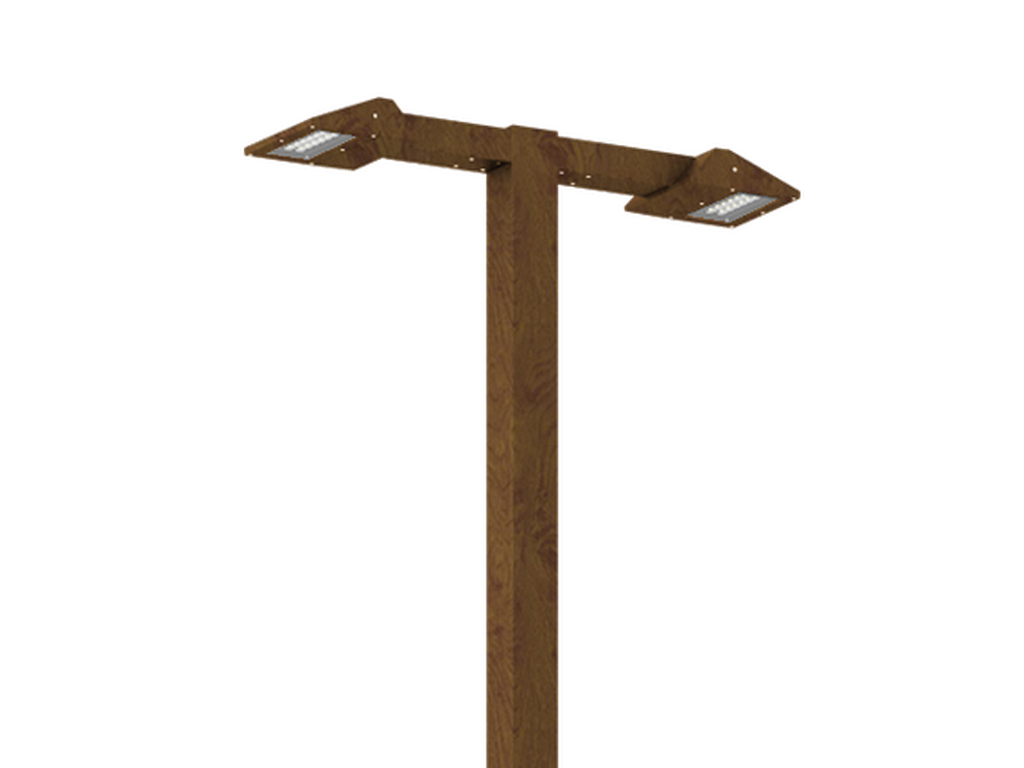

VEKTER 26Corten - Urban

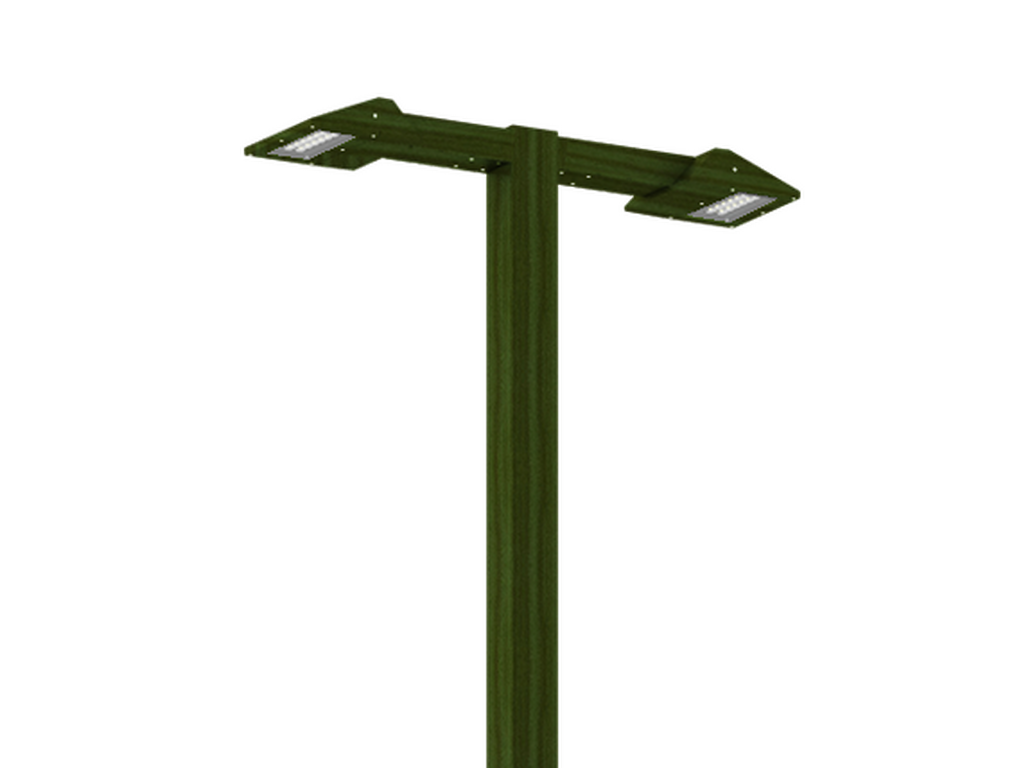

VEKTER 26Oak - Woodland

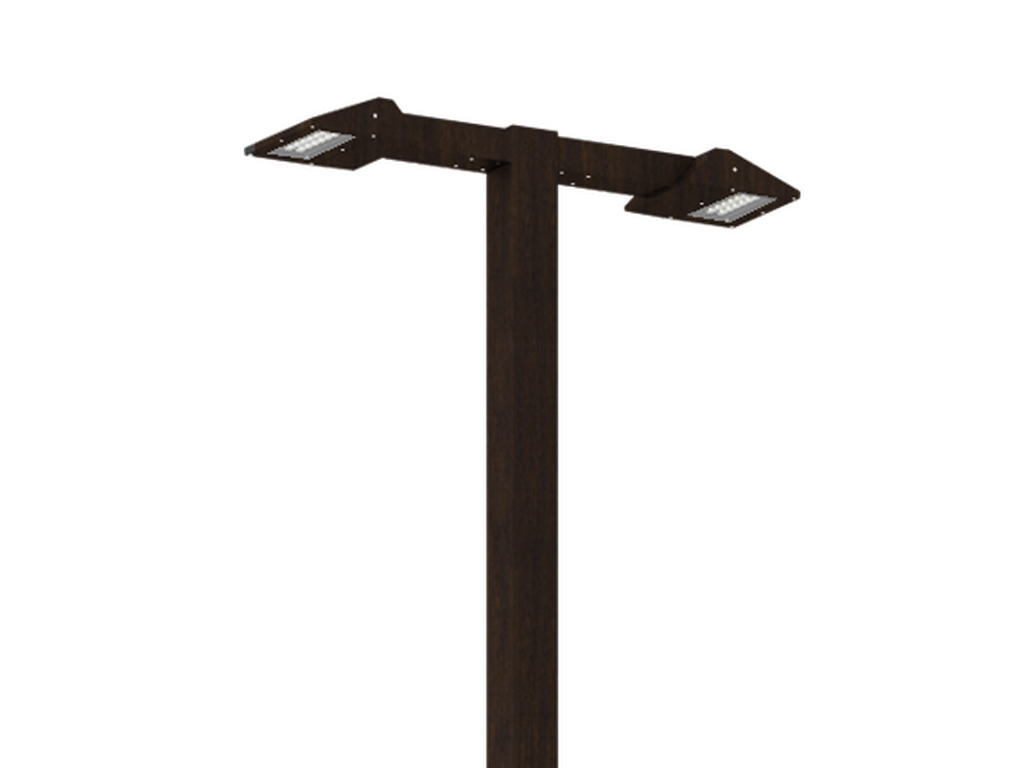

VEKTER 26Walnut - Woodland
VEKTER 26Pine - Woodland
VEKTER 26Black
VEKTER 26Dark Grey
VEKTER 26White
VEKTER 26Matt Silver
VEKTER 26Bronze
VEKTER 26Concrete - Urban
VEKTER 26Softscape - Urban
VEKTER 26Stone - Urban
VEKTER 26Corten - Urban
VEKTER 26Oak - Woodland
VEKTER 26Walnut - Woodland
VEKTER 26Pine - Woodland
2 sides - Supplied with specific 4 m square, straight aluminium pole: APC240102-VK
CEClass IIP65IK08

TECHNICAL SPECIFICATIONS

Material
Aluminium
Light source
2 x 12 LED
Power (W)
56 W
Lumen (lm)
6344 - 7488 lm
Efficacy (lm/W)
117 - 139 lm/W
Driver option
Integral control gear
Driver
Constant current (CC)
Input voltage
220-240 V 50/60 Hz
Optic
M, W, EW, T2, T3, T4, ME
Optic value
30°, 56°, 109°, 139°x60°, 123°x87°, 106°x72°, 140°x62°
CCT / CRI
2700K CRI80, 3000K CRI80, 4000K CRI80
Bug
B1-U0-G0, B1-U0-G1, B2-U0-G0, B3-U0-G0
ULR
0%, <1%
ULOR
0%, <1%
CIE flux code nº3
97, 99
Dimming type
On/Off, DALI
Product colours
Black, Dark Grey, White, Matt Silver, Bronze, Concrete - Urban, Softscape - Urban, Stone - Urban, Corten - Urban, Oak - Woodland, Walnut - Woodland, Pine - Woodland
Weight
18.0 kg
Operating temperature
-20 °C to 50 °C
EPA (m2)
0.076
Cable
One cable gland supplied with 0.5 m of 3x1.0 sqmm outdoor cable
Through wiring
Single cable entry
Lens / Reflector / Optic
Clear toughened glass, High-efficiency PMMA lens
Variants (On/Off, DALI)
Compatible with EN/ IEC 60598-2-22: Suitable for emergency installations as central supply, non-maintained (Z0)

LIGHT EFFECT

Optic

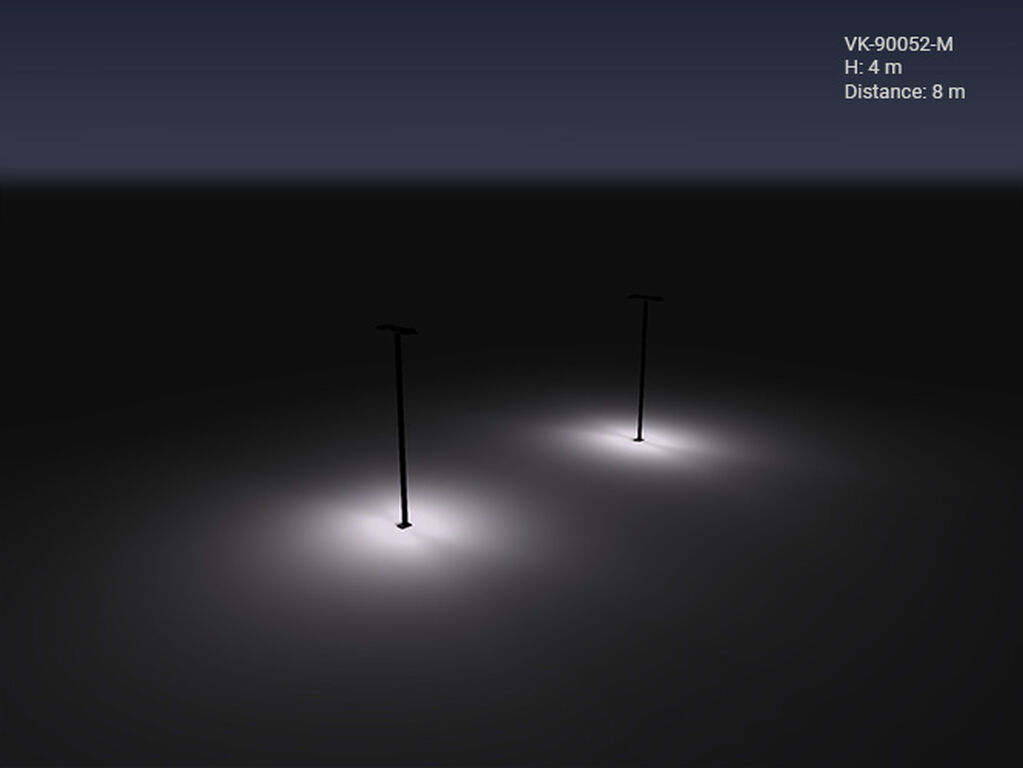

M (30°)
W (56°)
EW (109°)
T2 (139°x60°)
T3 (123°x87°)
T4 (106°x72°)
ME (140°x62°)

CODE FINDER

Lumen (lm)
Optic
Optic value
Optic (2nd)
Optic (2nd) Value
CCT / CRI
Dimming type
Product colour
Variant code
Lumen (lm)
Optic
Optic value
Optic (2nd)
Optic (2nd) Value
CCT / CRI
Dimming type
Product colour

ACCESSORY

Pole (required)
