Discontinued - 11/2023
VIENNA 1
600x600 mm
CEClass IIIP40

TECHNICAL SPECIFICATIONS

Material
Aluminium
Light source
2 x 91 LED
Power (W)
24 W
Lumen (lm)
2900 - 3300 lm
Efficacy (lm/W)
121 - 138 lm/W
Driver option
Integral control gear
Driver
Constant current (CC)
Input voltage
220-240 V 50/60 Hz
Optic
O, P
Optic value
Opal, Micro-prismatic
CCT / CRI
3000K CRI90, 4000K CRI90
Dimming type
On/Off, DALI
Product colours
White
Weight
5.0 kg
Operating temperature
-20 °C to 40 °C

LIGHT EFFECT

Optic
O (Opal)
P (Micro-prismatic)

CODE FINDER

Lumen (lm)
Optic
Optic value
CCT / CRI
Dimming type
Product colour
Variant code
Lumen (lm)
Optic
Optic value
CCT / CRI
Dimming type
Product colour
Variant code: VIE-80001-O-9030-ND-03
Lumen (lm): 2900 lm
Optic: O
Optic value: Opal
CCT / CRI: 3000K CRI90
Dimming type: On/Off
Product colour: White
Variant code: VIE-80001-O-9040-ND-03
Lumen (lm): 2900 lm
Optic: O
Optic value: Opal
CCT / CRI: 4000K CRI90
Dimming type: On/Off
Product colour: White
Variant code: VIE-80001-O-9030-DA-03
Lumen (lm): 2900 lm
Optic: O
Optic value: Opal
CCT / CRI: 3000K CRI90
Dimming type: DALI
Product colour: White
Variant code: VIE-80001-O-9040-DA-03
Lumen (lm): 2900 lm
Optic: O
Optic value: Opal
CCT / CRI: 4000K CRI90
Dimming type: DALI
Product colour: White
Variant code: VIE-80001-P-9030-ND-03
Lumen (lm): 3300 lm
Optic: P
Optic value: Micro-prismatic
CCT / CRI: 3000K CRI90
Dimming type: On/Off
Product colour: White
Variant code: VIE-80001-P-9040-ND-03
Lumen (lm): 3300 lm
Optic: P
Optic value: Micro-prismatic
CCT / CRI: 4000K CRI90
Dimming type: On/Off
Product colour: White
Variant code: VIE-80001-P-9030-DA-03
Lumen (lm): 3300 lm
Optic: P
Optic value: Micro-prismatic
CCT / CRI: 3000K CRI90
Dimming type: DALI
Product colour: White
Variant code: VIE-80001-P-9040-DA-03
Lumen (lm): 3300 lm
Optic: P
Optic value: Micro-prismatic
CCT / CRI: 4000K CRI90
Dimming type: DALI
Product colour: White

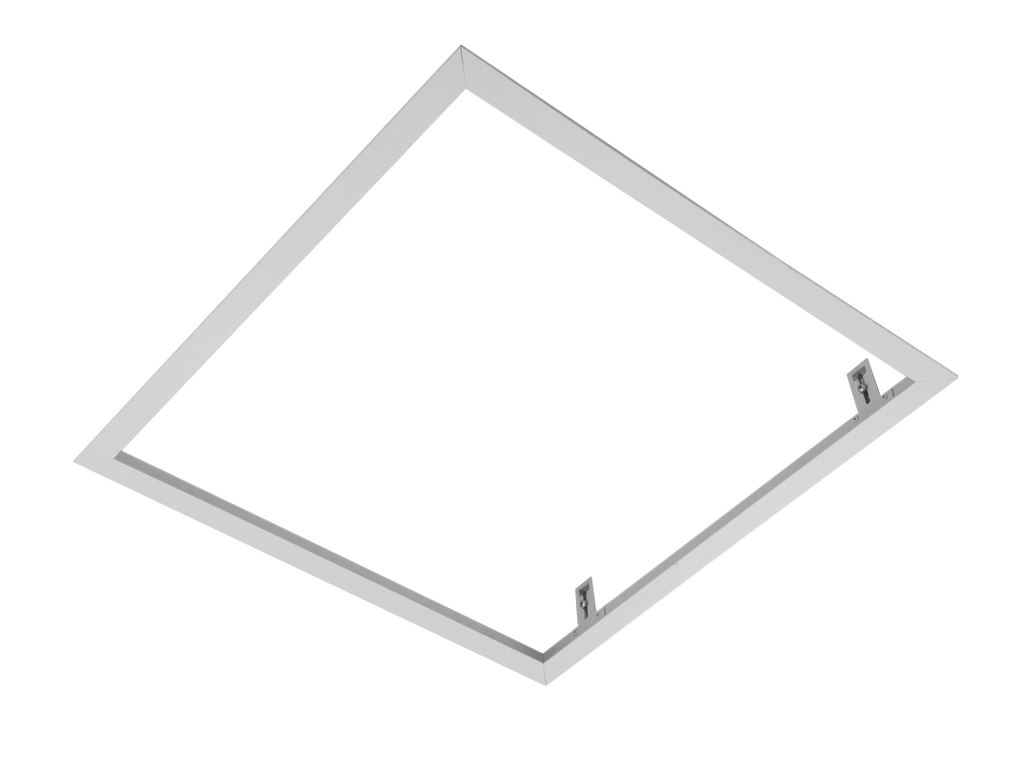

ACCESSORY
