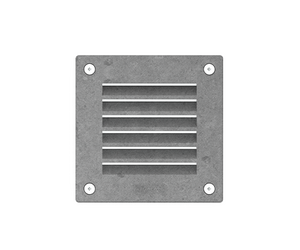

LIGMAN VIOS 3S VI-40327.

VIOS 3SVI-40327VIOS

Send us an E-Mail or use the contact form:

I have read the privacy policy and agree to the processing of my data *

The fields marked with an * must be correctly filled.
Your request was successfully sent.

Send us an E-Mail or use the contact form:

I have read the privacy policy and agree to the processing of my data *

The fields marked with an * must be correctly filled.
Your request was successfully sent.

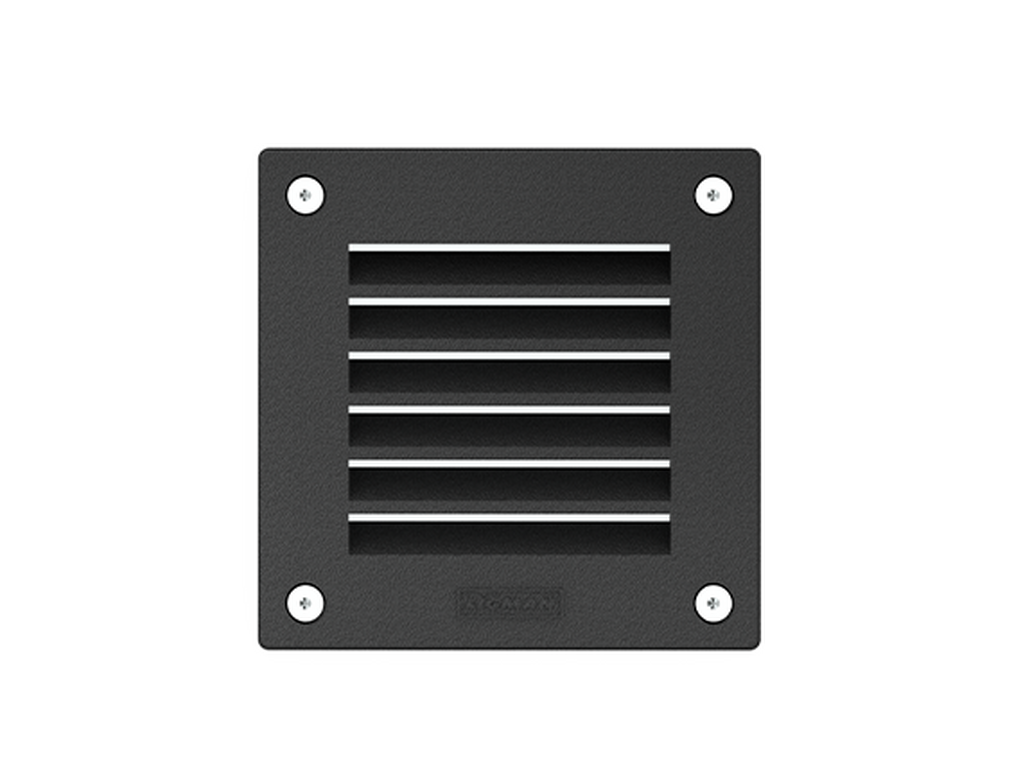

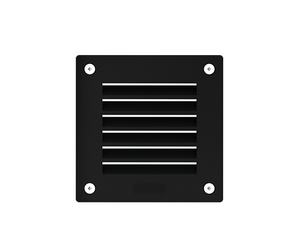

VIOS 3SBlack

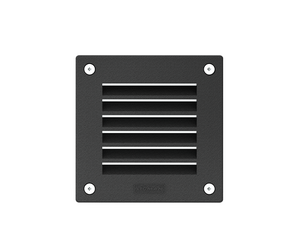

VIOS 3SDark Grey

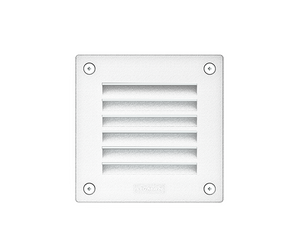

VIOS 3SWhite

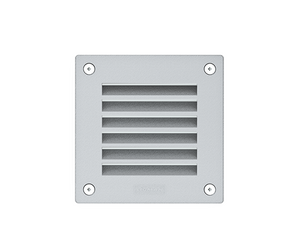

VIOS 3SMatt Silver

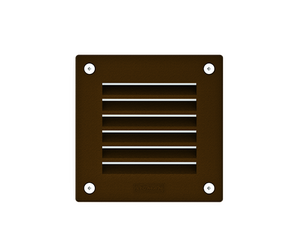

VIOS 3SBronze
VIOS 3SConcrete - Urban
VIOS 3SSoftscape - Urban

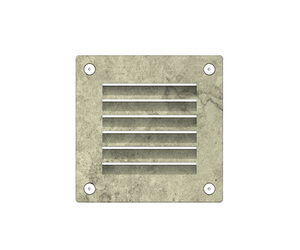

VIOS 3SStone - Urban

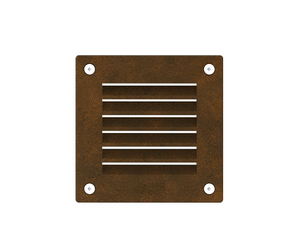

VIOS 3SCorten - Urban

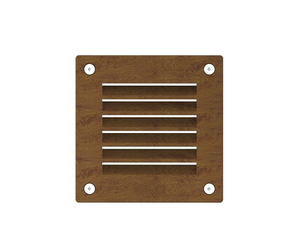

VIOS 3SOak - Woodland

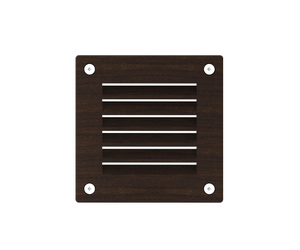

VIOS 3SWalnut - Woodland

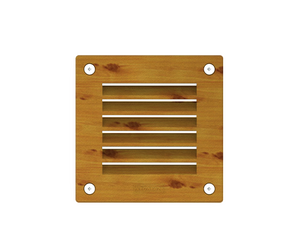

VIOS 3SPine - Woodland
VIOS 3SBlack
VIOS 3SDark Grey
VIOS 3SWhite
VIOS 3SMatt Silver
VIOS 3SBronze
VIOS 3SConcrete - Urban
VIOS 3SSoftscape - Urban
VIOS 3SStone - Urban
VIOS 3SCorten - Urban
VIOS 3SOak - Woodland
VIOS 3SWalnut - Woodland
VIOS 3SPine - Woodland

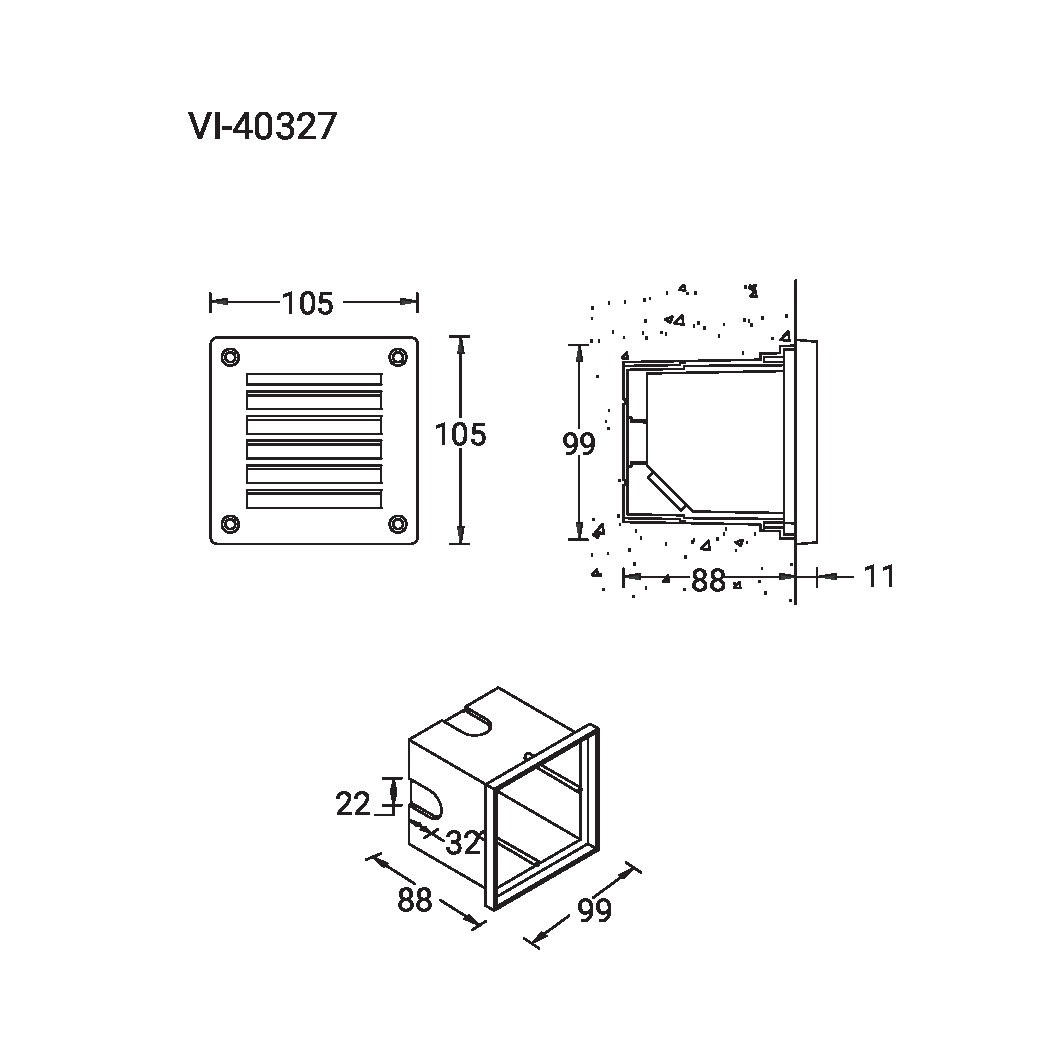

With recessing box - Square - Shielded frame - IK07
CERETILAPClass IIP65IK07

TECHNICAL SPECIFICATIONS

Material
Aluminium
Light source
1 COB
Power (W)
5 W
Lumen (lm)
40 - 43 lm
Efficacy (lm/W)
8 - 9 lm/W
Driver option
Integral control gear
Driver
Constant current (CC)
Input voltage
220-240 V 50/60 Hz
Optic
G
Optic value
75°x55°
CCT / CRI
3000K CRI80, 4000K CRI80
Bug
B0-U1-G0
ULOR
12%
CIE flux code nº3
72%
Dimming type
On/Off
Product colours
Black, Dark Grey, White, Matt Silver, Bronze, Concrete - Urban, Softscape - Urban, Stone - Urban, Corten - Urban, Oak - Woodland, Walnut - Woodland, Pine - Woodland
Weight
0.6 kg
Operating temperature
-20 °C to 40 °C
Through wiring
Two cable entries for through wiring
Lens / Reflector / Optic
Frosted toughened glass
MacAdam Ellipse
3 SDCM
Lifetime L90B10 (hours)
> 50,000
Variants (On/Off)
Compatible with EN/ IEC 60598-2-22: Suitable for emergency installations as central supply, non-maintained (Z0)

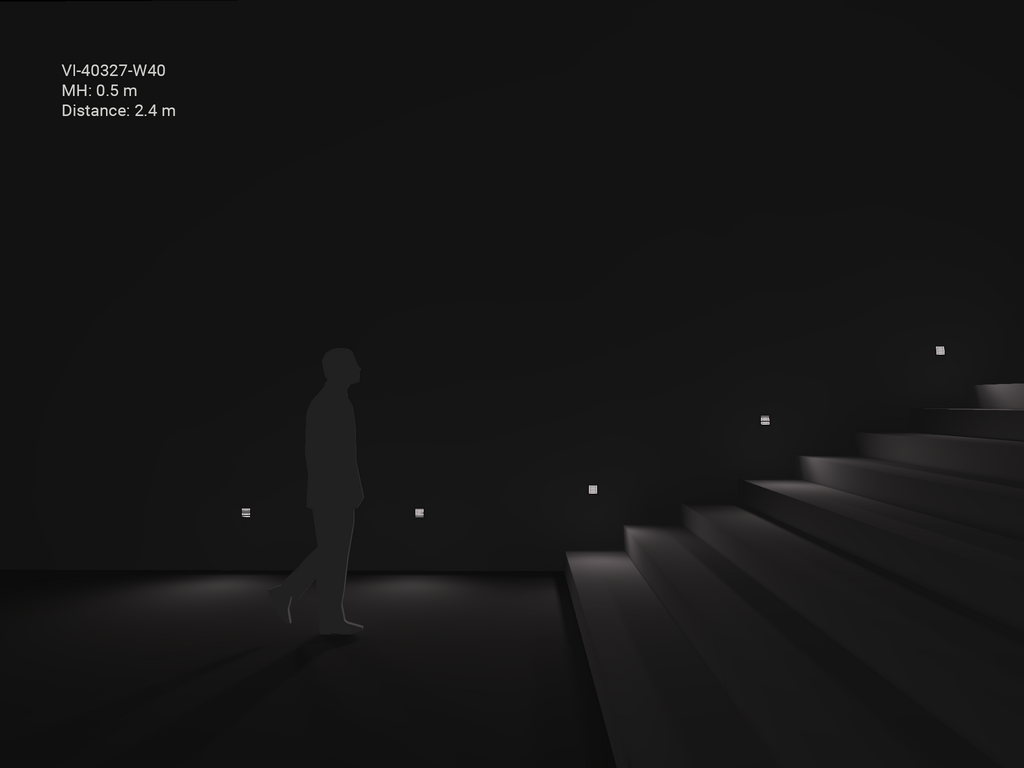

LIGHT EFFECT

Optic
G (75°x55°)

CODE FINDER

Lumen (lm)
Optic
Optic value
CCT / CRI
Dimming type
Product colour
Variant code
Lumen (lm)
Optic
Optic value
CCT / CRI
Dimming type
Product colour
Variant code: VI-40327-8030-ND-01
Lumen (lm): 40 lm
Optic: G
Optic value: 75°x55°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Black
Variant code: VI-40327-8030-ND-02
Lumen (lm): 40 lm
Optic: G
Optic value: 75°x55°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Dark Grey
Variant code: VI-40327-8030-ND-03
Lumen (lm): 40 lm
Optic: G
Optic value: 75°x55°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: White
Variant code: VI-40327-8030-ND-05
Lumen (lm): 40 lm
Optic: G
Optic value: 75°x55°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Matt Silver
Variant code: VI-40327-8030-ND-06
Lumen (lm): 40 lm
Optic: G
Optic value: 75°x55°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Bronze
Variant code: VI-40327-8030-ND-SU01
Lumen (lm): 40 lm
Optic: G
Optic value: 75°x55°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Concrete - Urban
Variant code: VI-40327-8030-ND-SU02
Lumen (lm): 40 lm
Optic: G
Optic value: 75°x55°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Softscape - Urban
Variant code: VI-40327-8030-ND-SU03
Lumen (lm): 40 lm
Optic: G
Optic value: 75°x55°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Stone - Urban
Variant code: VI-40327-8030-ND-SU04
Lumen (lm): 40 lm
Optic: G
Optic value: 75°x55°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Corten - Urban
Variant code: VI-40327-8030-ND-SW01
Lumen (lm): 40 lm
Optic: G
Optic value: 75°x55°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Oak - Woodland
Variant code: VI-40327-8030-ND-SW02
Lumen (lm): 40 lm
Optic: G
Optic value: 75°x55°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Walnut - Woodland
Variant code: VI-40327-8030-ND-SW03
Lumen (lm): 40 lm
Optic: G
Optic value: 75°x55°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Pine - Woodland
Variant code: VI-40327-8040-ND-01
Lumen (lm): 43 lm
Optic: G
Optic value: 75°x55°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Black
Variant code: VI-40327-8040-ND-02
Lumen (lm): 43 lm
Optic: G
Optic value: 75°x55°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Dark Grey
Variant code: VI-40327-8040-ND-03
Lumen (lm): 43 lm
Optic: G
Optic value: 75°x55°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: White
Variant code: VI-40327-8040-ND-05
Lumen (lm): 43 lm
Optic: G
Optic value: 75°x55°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Matt Silver
Variant code: VI-40327-8040-ND-06
Lumen (lm): 43 lm
Optic: G
Optic value: 75°x55°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Bronze
Variant code: VI-40327-8040-ND-SU01
Lumen (lm): 43 lm
Optic: G
Optic value: 75°x55°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Concrete - Urban
Variant code: VI-40327-8040-ND-SU02
Lumen (lm): 43 lm
Optic: G
Optic value: 75°x55°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Softscape - Urban
Variant code: VI-40327-8040-ND-SU03
Lumen (lm): 43 lm
Optic: G
Optic value: 75°x55°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Stone - Urban
Variant code: VI-40327-8040-ND-SU04
Lumen (lm): 43 lm
Optic: G
Optic value: 75°x55°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Corten - Urban
Variant code: VI-40327-8040-ND-SW01
Lumen (lm): 43 lm
Optic: G
Optic value: 75°x55°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Oak - Woodland
Variant code: VI-40327-8040-ND-SW02
Lumen (lm): 43 lm
Optic: G
Optic value: 75°x55°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Walnut - Woodland
Variant code: VI-40327-8040-ND-SW03
Lumen (lm): 43 lm
Optic: G
Optic value: 75°x55°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Pine - Woodland

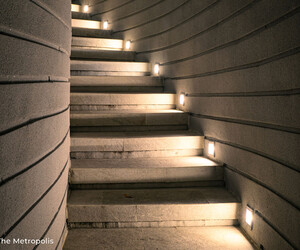

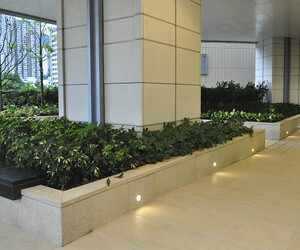

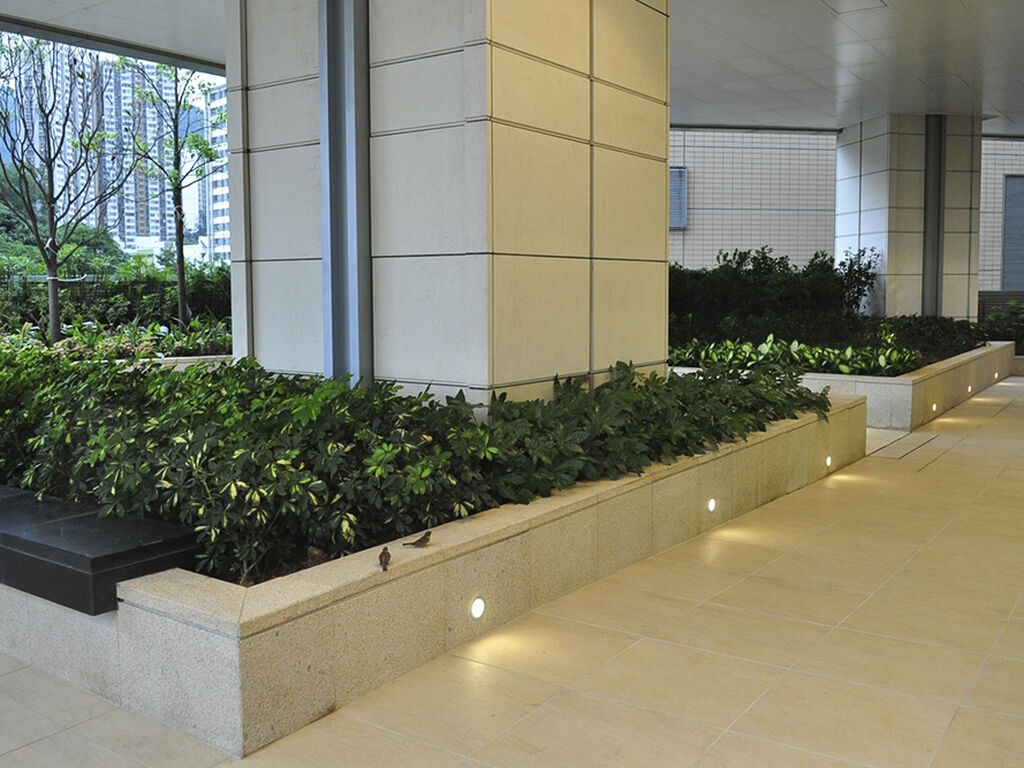

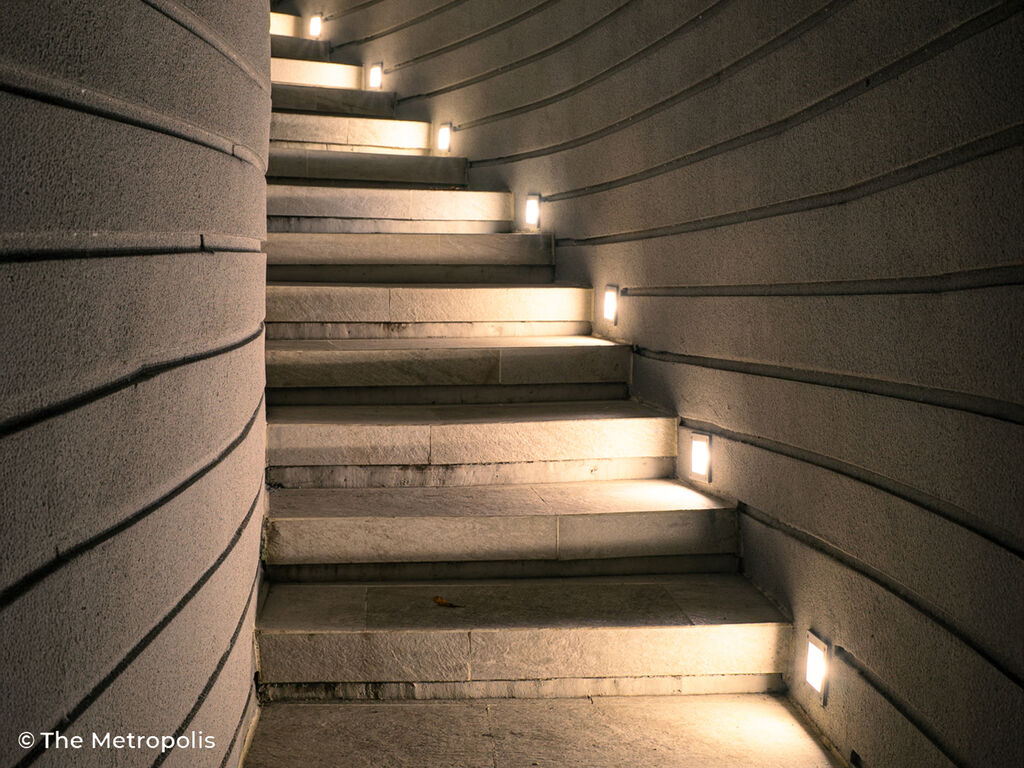

PROJECT REFERENCE (VIOS Recessed luminaires)
