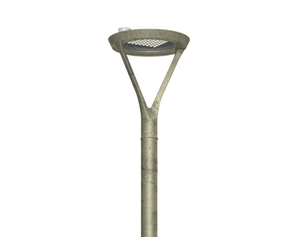

LIGMAN WELLINGTON 1 WEL-20001-LC.

WELLINGTON 1WEL-20001-LCWELLINGTON

Send us an E-Mail or use the contact form:

I have read the privacy policy and agree to the processing of my data *

The fields marked with an * must be correctly filled.
Your request was successfully sent.

Send us an E-Mail or use the contact form:

I have read the privacy policy and agree to the processing of my data *

The fields marked with an * must be correctly filled.
Your request was successfully sent.
NEW
WELLINGTON 1Black

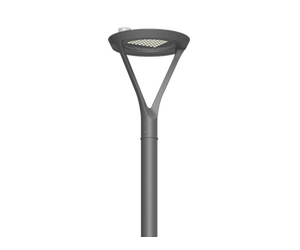

WELLINGTON 1Dark Grey
WELLINGTON 1White
WELLINGTON 1Matt Silver

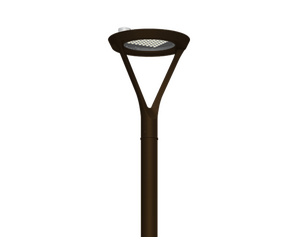

WELLINGTON 1Bronze

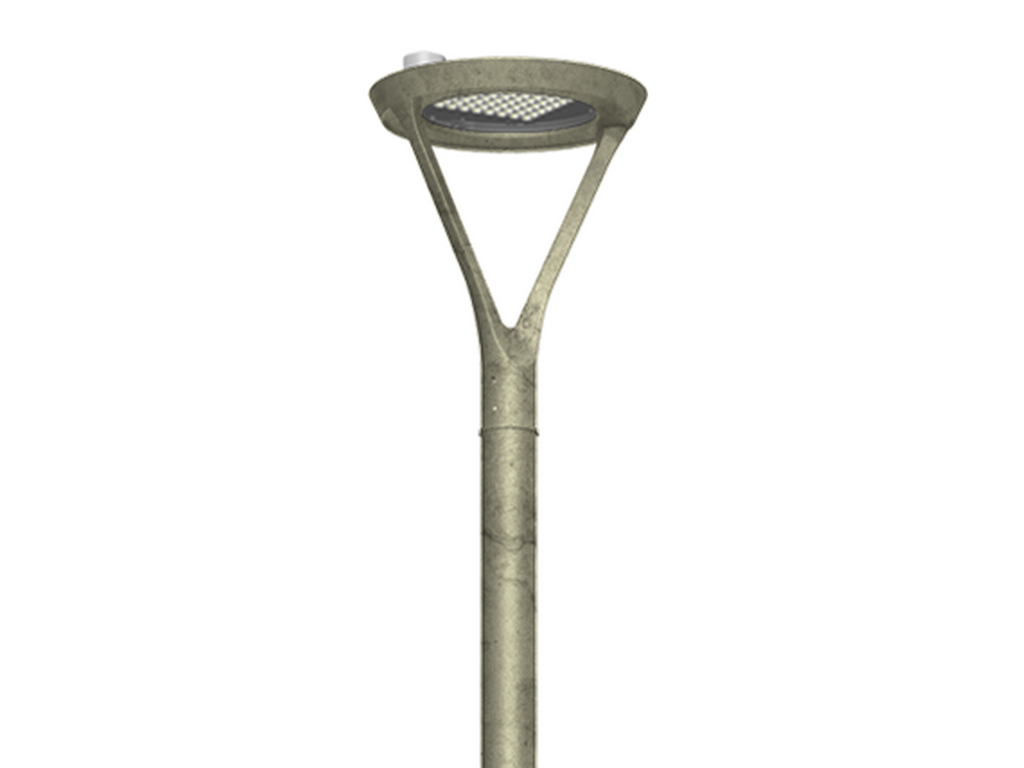

WELLINGTON 1Concrete - Urban
WELLINGTON 1Softscape - Urban
WELLINGTON 1Stone - Urban

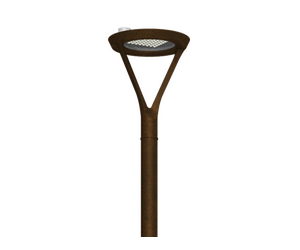

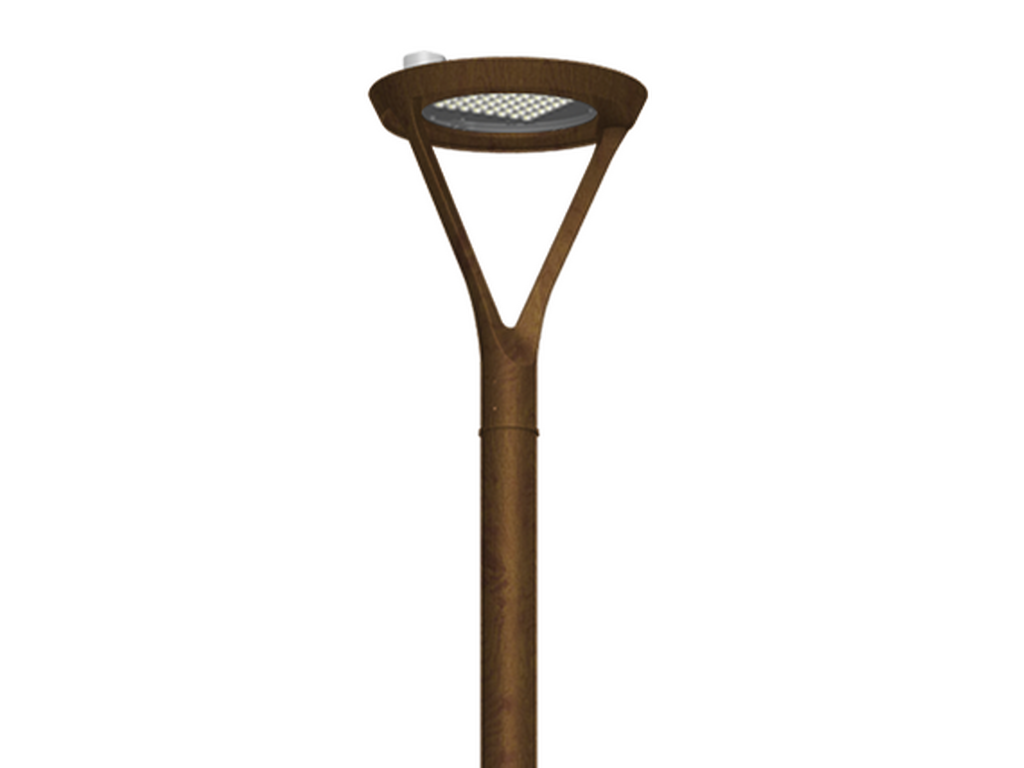

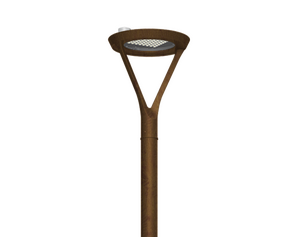

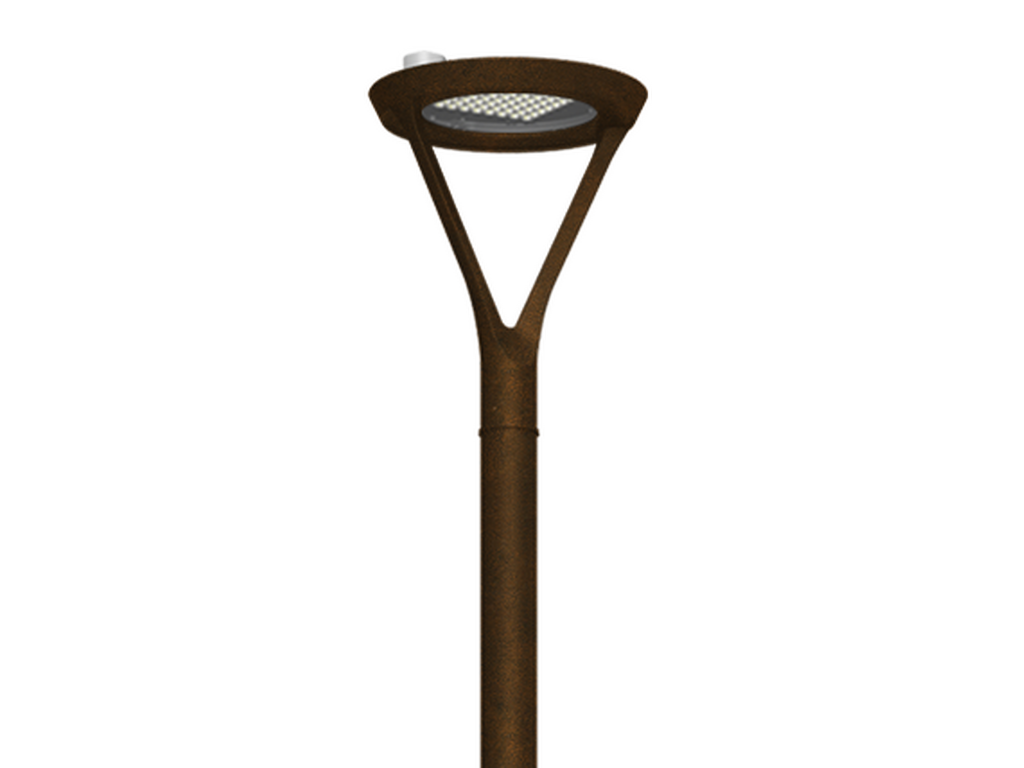

WELLINGTON 1Corten - Urban

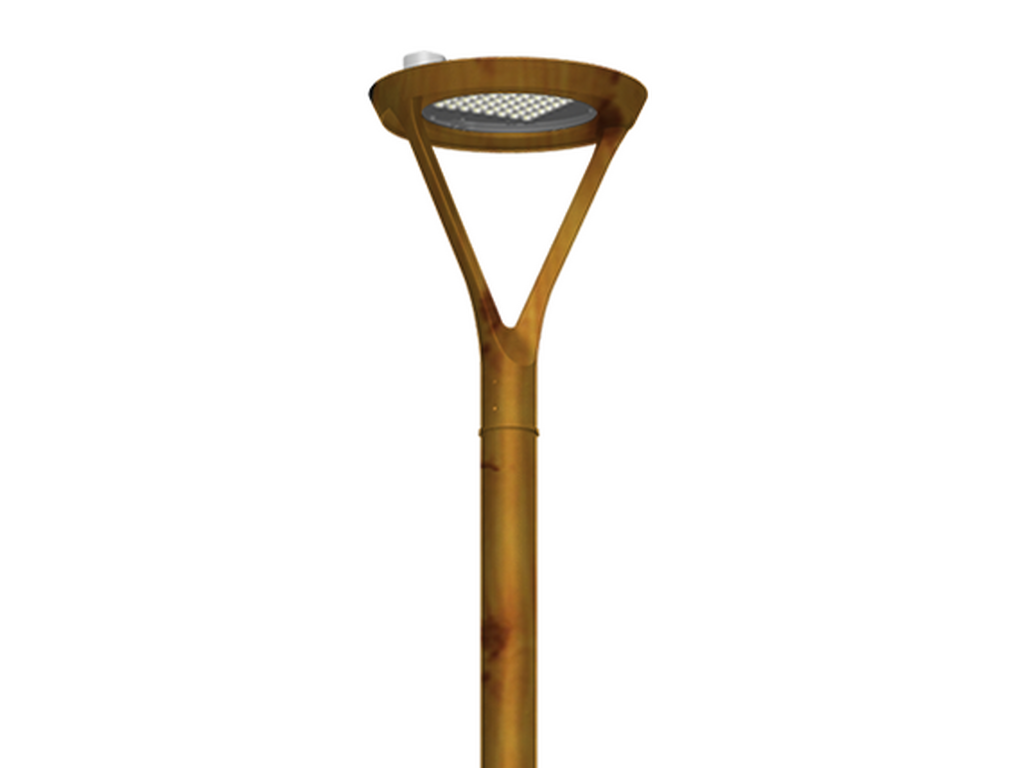

WELLINGTON 1Oak - Woodland

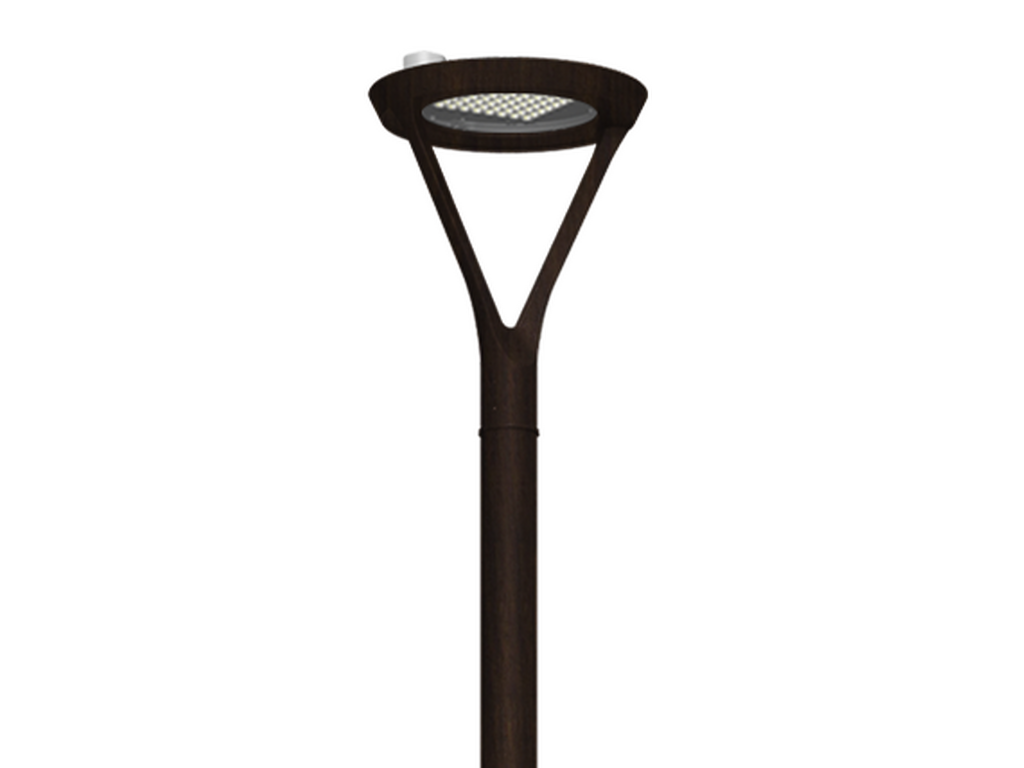

WELLINGTON 1Walnut - Woodland

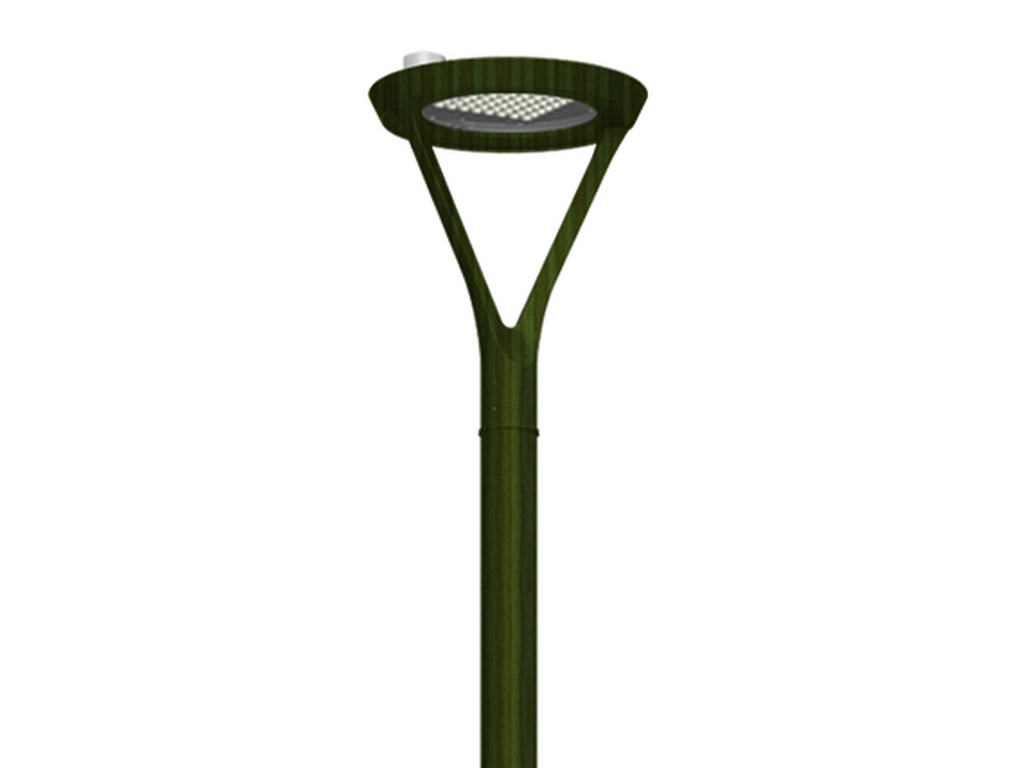

WELLINGTON 1Pine - Woodland
WELLINGTON 1Black
WELLINGTON 1Dark Grey
WELLINGTON 1White
WELLINGTON 1Matt Silver
WELLINGTON 1Bronze
WELLINGTON 1Concrete - Urban
WELLINGTON 1Softscape - Urban
WELLINGTON 1Stone - Urban
WELLINGTON 1Corten - Urban
WELLINGTON 1Oak - Woodland
WELLINGTON 1Walnut - Woodland
WELLINGTON 1Pine - Woodland
LIGHTCONNECT™
CEBISClass IIP66IK08

TECHNICAL SPECIFICATIONS

Material
Aluminium
Light source
64 LED
Power (W)
39 W
Lumen (lm)
4460 - 5323 lm
Efficacy (lm/W)
114 - 136 lm/W
Driver option
Integral control gear
Driver
Constant current (CC)
Input voltage
220-240V 50/60Hz
Optic
W, EW, T2, T3, T4, ME
Optic value
51°x64°, 111°x106°, 116°x37°, 142°x67°, 129°x56°, 142°x43°
CCT / CRI
2700K CRI80, 3000K CRI80, 4000K CRI80
Bug
B1-U1-G1, B1-U2-G1, B2-U1-G0, B2-U1-G1, B3-U2-G0
ULR
<1%
ULOR
<1%
CIE flux code nº3
97, 98, 99
Dimming type
1-10V, DALI
Product colours
Black, Dark Grey, White, Matt Silver, Bronze, Concrete - Urban, Softscape - Urban, Stone - Urban, Corten - Urban, Oak - Woodland, Walnut - Woodland, Pine - Woodland
Weight
14.0 kg
Operating temperature
-20 °C to 50 °C
EPA (m2)
0.070
Cable
One IP68 connector supplied with 0.2 m of 3x1.0 sqmm outdoor cable
Through wiring
Single cable entry
Lens / Reflector / Optic
Clear toughened glass, High-efficiency PMMA lens
MacAdam Ellipse
3 SDCM
Lifetime L90B10 (hours)
> 44,000
Lifetime L80B10 (hours)
> 110,000
Lifetime L80B50 (hours)
> 120,000
Variants (1-10V, DALI)
Compatible with EN/ IEC 60598-2-22: Suitable for emergency installations as central supply, non-maintained (Z0)

LIGHT EFFECT

Optic

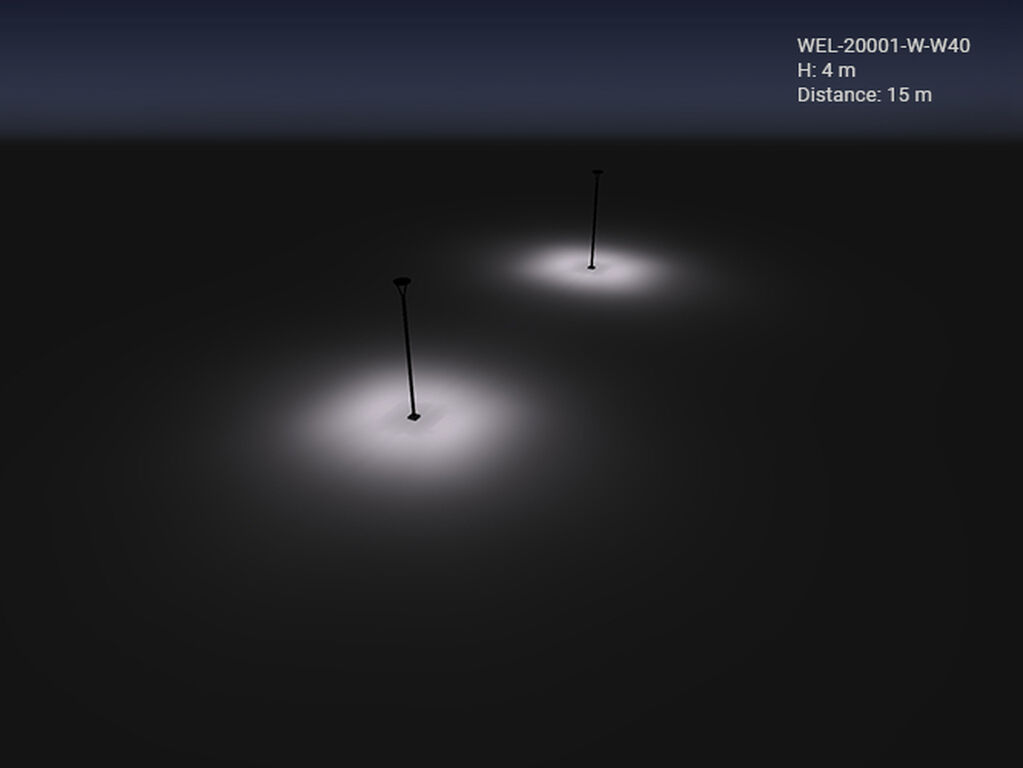

W (51°x64°)
EW (111°x106°)
T2 (116°x37°)
T3 (142°x67°)
T4 (129°x56°)
ME (142°x43°)

CODE FINDER

Lumen (lm)
Optic
Optic value
CCT / CRI
Dimming type
Product colour
Variant code
Lumen (lm)
Optic
Optic value
CCT / CRI
Dimming type
Product colour

ACCESSORY
