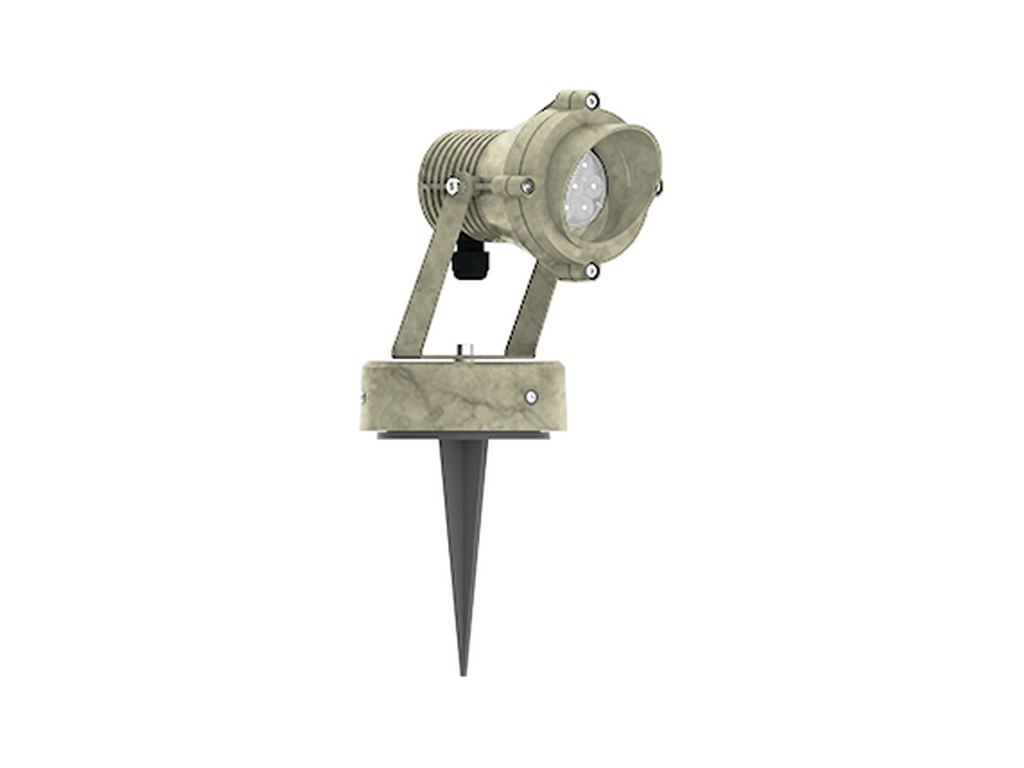

LIGMAN ZEAT 2 ZE-50030.

ZEAT 2ZE-50030Floodlights, projectors

Send us an E-Mail or use the contact form:

I have read the privacy policy and agree to the processing of my data *

The fields marked with an * must be correctly filled.
Your request was successfully sent.

Send us an E-Mail or use the contact form:

I have read the privacy policy and agree to the processing of my data *

The fields marked with an * must be correctly filled.
Your request was successfully sent.

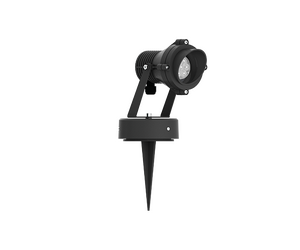

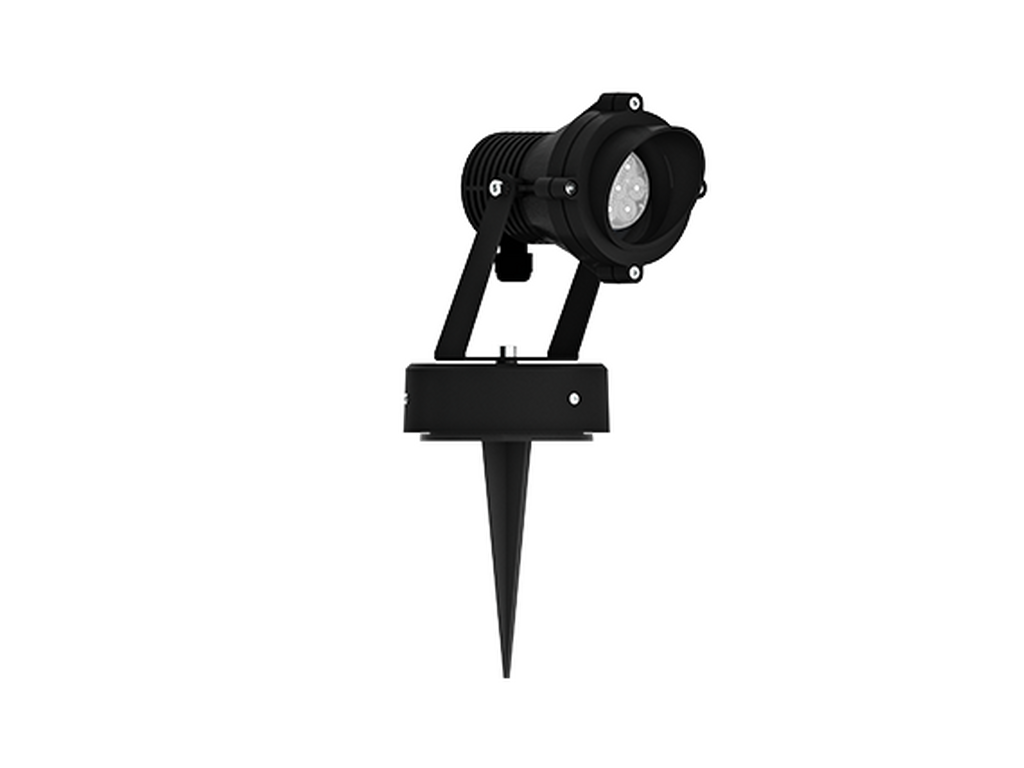

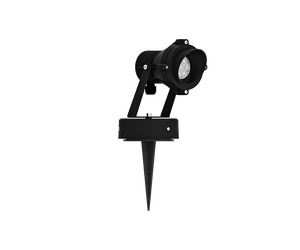

ZEAT 2Black
ZEAT 2Dark Grey
ZEAT 2White
ZEAT 2Matt Silver
ZEAT 2Bronze
ZEAT 2Concrete - Urban
ZEAT 2Softscape - Urban
ZEAT 2Stone - Urban

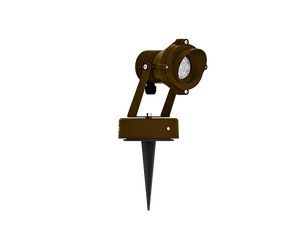

ZEAT 2Corten - Urban
ZEAT 2Oak - Woodland
ZEAT 2Walnut - Woodland
ZEAT 2Pine - Woodland
ZEAT 2Black
ZEAT 2Dark Grey
ZEAT 2White
ZEAT 2Matt Silver
ZEAT 2Bronze
ZEAT 2Concrete - Urban
ZEAT 2Softscape - Urban
ZEAT 2Stone - Urban
ZEAT 2Corten - Urban
ZEAT 2Oak - Woodland
ZEAT 2Walnut - Woodland
ZEAT 2Pine - Woodland
Without remote box IP-rated - With remote driver / spike - Constant current (CC) 700 mA - Class III
CEClass IIIIP65IK07

TECHNICAL SPECIFICATIONS

Material
Aluminium
Light source
1 LED
Power (W)
11 W
Lumen (lm)
644 - 758 lm
Efficacy (lm/W)
59 - 69 lm/W
Driver option
Remote driver (included)
Driver
Constant current (CC)
Input voltage
700 mA, 12 VDC
Optic
VN
Optic value
8°
CCT / CRI
3000K CRI80, 4000K CRI80
Dimming type
On/Off, 1-10V, DALI
Product colours
Black, Dark Grey, White, Matt Silver, Bronze, Concrete - Urban, Softscape - Urban, Stone - Urban, Corten - Urban, Oak - Woodland, Walnut - Woodland, Pine - Woodland
Weight
1.2 kg
Operating temperature
-20 °C to 40 °C
Through wiring
Single cable entry
Lens / Reflector / Optic
High-efficiency PMMA lens, Clear toughened glass
MacAdam Ellipse
3 SDCM
Lifetime L90B10 (hours)
> 109,000
Lifetime L80B10 (hours)
> 109,000
Lifetime L80B50 (hours)
> 109,000
Variants (On/Off, 1-10V, DALI)
Compatible with EN/ IEC 60598-2-22: Suitable for emergency installations as central supply, non-maintained (Z0)

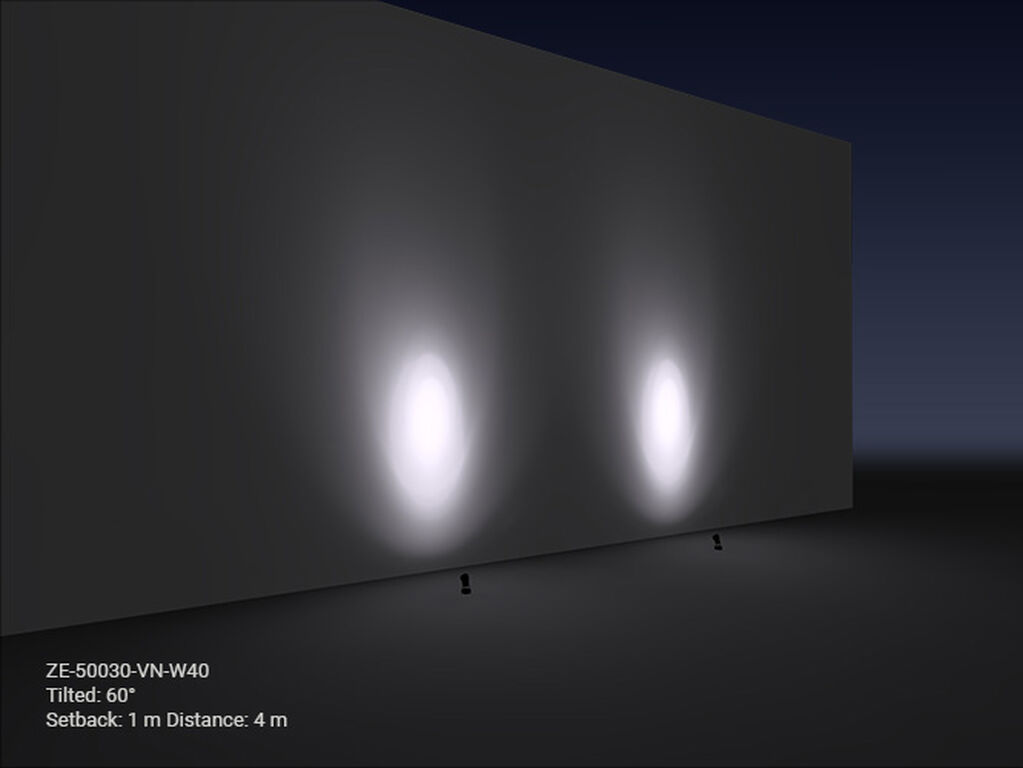

LIGHT EFFECT

Optic
VN (8°)

CODE FINDER

Lumen (lm)
Optic
Optic value
CCT / CRI
Dimming type
Product colour
Variant code
Lumen (lm)
Optic
Optic value
CCT / CRI
Dimming type
Product colour
Variant code: ZE-50030-VN-8030-ND-01
Lumen (lm): 644 lm
Optic: VN
Optic value: 8°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Black
Variant code: ZE-50030-VN-8030-ND-02
Lumen (lm): 644 lm
Optic: VN
Optic value: 8°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Dark Grey
Variant code: ZE-50030-VN-8030-ND-03
Lumen (lm): 644 lm
Optic: VN
Optic value: 8°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: White
Variant code: ZE-50030-VN-8030-ND-05
Lumen (lm): 644 lm
Optic: VN
Optic value: 8°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Matt Silver
Variant code: ZE-50030-VN-8030-ND-06
Lumen (lm): 644 lm
Optic: VN
Optic value: 8°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Bronze
Variant code: ZE-50030-VN-8030-ND-SU01
Lumen (lm): 644 lm
Optic: VN
Optic value: 8°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Concrete - Urban
Variant code: ZE-50030-VN-8030-ND-SU02
Lumen (lm): 644 lm
Optic: VN
Optic value: 8°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Softscape - Urban
Variant code: ZE-50030-VN-8030-ND-SU03
Lumen (lm): 644 lm
Optic: VN
Optic value: 8°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Stone - Urban
Variant code: ZE-50030-VN-8030-ND-SU04
Lumen (lm): 644 lm
Optic: VN
Optic value: 8°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Corten - Urban
Variant code: ZE-50030-VN-8030-ND-SW01
Lumen (lm): 644 lm
Optic: VN
Optic value: 8°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Oak - Woodland
Variant code: ZE-50030-VN-8030-ND-SW02
Lumen (lm): 644 lm
Optic: VN
Optic value: 8°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Walnut - Woodland
Variant code: ZE-50030-VN-8030-ND-SW03
Lumen (lm): 644 lm
Optic: VN
Optic value: 8°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Pine - Woodland
Variant code: ZE-50030-VN-8040-ND-01
Lumen (lm): 758 lm
Optic: VN
Optic value: 8°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Black
Variant code: ZE-50030-VN-8040-ND-02
Lumen (lm): 758 lm
Optic: VN
Optic value: 8°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Dark Grey
Variant code: ZE-50030-VN-8040-ND-03
Lumen (lm): 758 lm
Optic: VN
Optic value: 8°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: White
Variant code: ZE-50030-VN-8040-ND-05
Lumen (lm): 758 lm
Optic: VN
Optic value: 8°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Matt Silver
Variant code: ZE-50030-VN-8040-ND-06
Lumen (lm): 758 lm
Optic: VN
Optic value: 8°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Bronze
Variant code: ZE-50030-VN-8040-ND-SU01
Lumen (lm): 758 lm
Optic: VN
Optic value: 8°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Concrete - Urban
Variant code: ZE-50030-VN-8040-ND-SU02
Lumen (lm): 758 lm
Optic: VN
Optic value: 8°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Softscape - Urban
Variant code: ZE-50030-VN-8040-ND-SU03
Lumen (lm): 758 lm
Optic: VN
Optic value: 8°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Stone - Urban
Variant code: ZE-50030-VN-8040-ND-SU04
Lumen (lm): 758 lm
Optic: VN
Optic value: 8°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Corten - Urban
Variant code: ZE-50030-VN-8040-ND-SW01
Lumen (lm): 758 lm
Optic: VN
Optic value: 8°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Oak - Woodland
Variant code: ZE-50030-VN-8040-ND-SW02
Lumen (lm): 758 lm
Optic: VN
Optic value: 8°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Walnut - Woodland
Variant code: ZE-50030-VN-8040-ND-SW03
Lumen (lm): 758 lm
Optic: VN
Optic value: 8°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Pine - Woodland
Variant code: ZE-50030-VN-8030-DI-01
Lumen (lm): 644 lm
Optic: VN
Optic value: 8°
CCT / CRI: 3000K CRI80
Dimming type: 1-10V
Product colour: Black
Variant code: ZE-50030-VN-8030-DI-02
Lumen (lm): 644 lm
Optic: VN
Optic value: 8°
CCT / CRI: 3000K CRI80
Dimming type: 1-10V
Product colour: Dark Grey
Variant code: ZE-50030-VN-8030-DI-03
Lumen (lm): 644 lm
Optic: VN
Optic value: 8°
CCT / CRI: 3000K CRI80
Dimming type: 1-10V
Product colour: White
Variant code: ZE-50030-VN-8030-DI-05
Lumen (lm): 644 lm
Optic: VN
Optic value: 8°
CCT / CRI: 3000K CRI80
Dimming type: 1-10V
Product colour: Matt Silver
Variant code: ZE-50030-VN-8030-DI-06
Lumen (lm): 644 lm
Optic: VN
Optic value: 8°
CCT / CRI: 3000K CRI80
Dimming type: 1-10V
Product colour: Bronze
Variant code: ZE-50030-VN-8030-DI-SU01
Lumen (lm): 644 lm
Optic: VN
Optic value: 8°
CCT / CRI: 3000K CRI80
Dimming type: 1-10V
Product colour: Concrete - Urban
Variant code: ZE-50030-VN-8030-DI-SU02
Lumen (lm): 644 lm
Optic: VN
Optic value: 8°
CCT / CRI: 3000K CRI80
Dimming type: 1-10V
Product colour: Softscape - Urban
Variant code: ZE-50030-VN-8030-DI-SU03
Lumen (lm): 644 lm
Optic: VN
Optic value: 8°
CCT / CRI: 3000K CRI80
Dimming type: 1-10V
Product colour: Stone - Urban
Variant code: ZE-50030-VN-8030-DI-SU04
Lumen (lm): 644 lm
Optic: VN
Optic value: 8°
CCT / CRI: 3000K CRI80
Dimming type: 1-10V
Product colour: Corten - Urban
Variant code: ZE-50030-VN-8030-DI-SW01
Lumen (lm): 644 lm
Optic: VN
Optic value: 8°
CCT / CRI: 3000K CRI80
Dimming type: 1-10V
Product colour: Oak - Woodland
Variant code: ZE-50030-VN-8030-DI-SW02
Lumen (lm): 644 lm
Optic: VN
Optic value: 8°
CCT / CRI: 3000K CRI80
Dimming type: 1-10V
Product colour: Walnut - Woodland
Variant code: ZE-50030-VN-8030-DI-SW03
Lumen (lm): 644 lm
Optic: VN
Optic value: 8°
CCT / CRI: 3000K CRI80
Dimming type: 1-10V
Product colour: Pine - Woodland
Variant code: ZE-50030-VN-8040-DI-01
Lumen (lm): 758 lm
Optic: VN
Optic value: 8°
CCT / CRI: 4000K CRI80
Dimming type: 1-10V
Product colour: Black
Variant code: ZE-50030-VN-8040-DI-02
Lumen (lm): 758 lm
Optic: VN
Optic value: 8°
CCT / CRI: 4000K CRI80
Dimming type: 1-10V
Product colour: Dark Grey
Variant code: ZE-50030-VN-8040-DI-03
Lumen (lm): 758 lm
Optic: VN
Optic value: 8°
CCT / CRI: 4000K CRI80
Dimming type: 1-10V
Product colour: White
Variant code: ZE-50030-VN-8040-DI-05
Lumen (lm): 758 lm
Optic: VN
Optic value: 8°
CCT / CRI: 4000K CRI80
Dimming type: 1-10V
Product colour: Matt Silver
Variant code: ZE-50030-VN-8040-DI-06
Lumen (lm): 758 lm
Optic: VN
Optic value: 8°
CCT / CRI: 4000K CRI80
Dimming type: 1-10V
Product colour: Bronze
Variant code: ZE-50030-VN-8040-DI-SU01
Lumen (lm): 758 lm
Optic: VN
Optic value: 8°
CCT / CRI: 4000K CRI80
Dimming type: 1-10V
Product colour: Concrete - Urban
Variant code: ZE-50030-VN-8040-DI-SU02
Lumen (lm): 758 lm
Optic: VN
Optic value: 8°
CCT / CRI: 4000K CRI80
Dimming type: 1-10V
Product colour: Softscape - Urban
Variant code: ZE-50030-VN-8040-DI-SU03
Lumen (lm): 758 lm
Optic: VN
Optic value: 8°
CCT / CRI: 4000K CRI80
Dimming type: 1-10V
Product colour: Stone - Urban
Variant code: ZE-50030-VN-8040-DI-SU04
Lumen (lm): 758 lm
Optic: VN
Optic value: 8°
CCT / CRI: 4000K CRI80
Dimming type: 1-10V
Product colour: Corten - Urban
Variant code: ZE-50030-VN-8040-DI-SW01
Lumen (lm): 758 lm
Optic: VN
Optic value: 8°
CCT / CRI: 4000K CRI80
Dimming type: 1-10V
Product colour: Oak - Woodland
Variant code: ZE-50030-VN-8040-DI-SW02
Lumen (lm): 758 lm
Optic: VN
Optic value: 8°
CCT / CRI: 4000K CRI80
Dimming type: 1-10V
Product colour: Walnut - Woodland
Variant code: ZE-50030-VN-8040-DI-SW03
Lumen (lm): 758 lm
Optic: VN
Optic value: 8°
CCT / CRI: 4000K CRI80
Dimming type: 1-10V
Product colour: Pine - Woodland
Variant code: ZE-50030-VN-8030-DA-01
Lumen (lm): 644 lm
Optic: VN
Optic value: 8°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Black
Variant code: ZE-50030-VN-8030-DA-02
Lumen (lm): 644 lm
Optic: VN
Optic value: 8°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Dark Grey
Variant code: ZE-50030-VN-8030-DA-03
Lumen (lm): 644 lm
Optic: VN
Optic value: 8°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: White
Variant code: ZE-50030-VN-8030-DA-05
Lumen (lm): 644 lm
Optic: VN
Optic value: 8°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Matt Silver
Variant code: ZE-50030-VN-8030-DA-06
Lumen (lm): 644 lm
Optic: VN
Optic value: 8°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Bronze
Variant code: ZE-50030-VN-8030-DA-SU01
Lumen (lm): 644 lm
Optic: VN
Optic value: 8°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Concrete - Urban
Variant code: ZE-50030-VN-8030-DA-SU02
Lumen (lm): 644 lm
Optic: VN
Optic value: 8°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Softscape - Urban
Variant code: ZE-50030-VN-8030-DA-SU03
Lumen (lm): 644 lm
Optic: VN
Optic value: 8°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Stone - Urban
Variant code: ZE-50030-VN-8030-DA-SU04
Lumen (lm): 644 lm
Optic: VN
Optic value: 8°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Corten - Urban
Variant code: ZE-50030-VN-8030-DA-SW01
Lumen (lm): 644 lm
Optic: VN
Optic value: 8°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Oak - Woodland
Variant code: ZE-50030-VN-8030-DA-SW02
Lumen (lm): 644 lm
Optic: VN
Optic value: 8°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Walnut - Woodland
Variant code: ZE-50030-VN-8030-DA-SW03
Lumen (lm): 644 lm
Optic: VN
Optic value: 8°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Pine - Woodland
Variant code: ZE-50030-VN-8040-DA-01
Lumen (lm): 758 lm
Optic: VN
Optic value: 8°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Black
Variant code: ZE-50030-VN-8040-DA-02
Lumen (lm): 758 lm
Optic: VN
Optic value: 8°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Dark Grey
Variant code: ZE-50030-VN-8040-DA-03
Lumen (lm): 758 lm
Optic: VN
Optic value: 8°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: White
Variant code: ZE-50030-VN-8040-DA-05
Lumen (lm): 758 lm
Optic: VN
Optic value: 8°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Matt Silver
Variant code: ZE-50030-VN-8040-DA-06
Lumen (lm): 758 lm
Optic: VN
Optic value: 8°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Bronze
Variant code: ZE-50030-VN-8040-DA-SU01
Lumen (lm): 758 lm
Optic: VN
Optic value: 8°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Concrete - Urban
Variant code: ZE-50030-VN-8040-DA-SU02
Lumen (lm): 758 lm
Optic: VN
Optic value: 8°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Softscape - Urban
Variant code: ZE-50030-VN-8040-DA-SU03
Lumen (lm): 758 lm
Optic: VN
Optic value: 8°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Stone - Urban
Variant code: ZE-50030-VN-8040-DA-SU04
Lumen (lm): 758 lm
Optic: VN
Optic value: 8°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Corten - Urban
Variant code: ZE-50030-VN-8040-DA-SW01
Lumen (lm): 758 lm
Optic: VN
Optic value: 8°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Oak - Woodland
Variant code: ZE-50030-VN-8040-DA-SW02
Lumen (lm): 758 lm
Optic: VN
Optic value: 8°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Walnut - Woodland
Variant code: ZE-50030-VN-8040-DA-SW03
Lumen (lm): 758 lm
Optic: VN
Optic value: 8°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Pine - Woodland

ACCESSORY

PROJECT REFERENCE (ZEAT Floodlights, projectors)

SOCIAL

Facebook-f Instagram Youtube Linkedin-in Twitter Pinterest Line

NEWSLETTER

Sign up to our newsletter

Copyright © LIGMAN Lighting Co., Ltd.

Privacy Policy      Privacy Policy CCTV      Terms of use      Terms of sales
