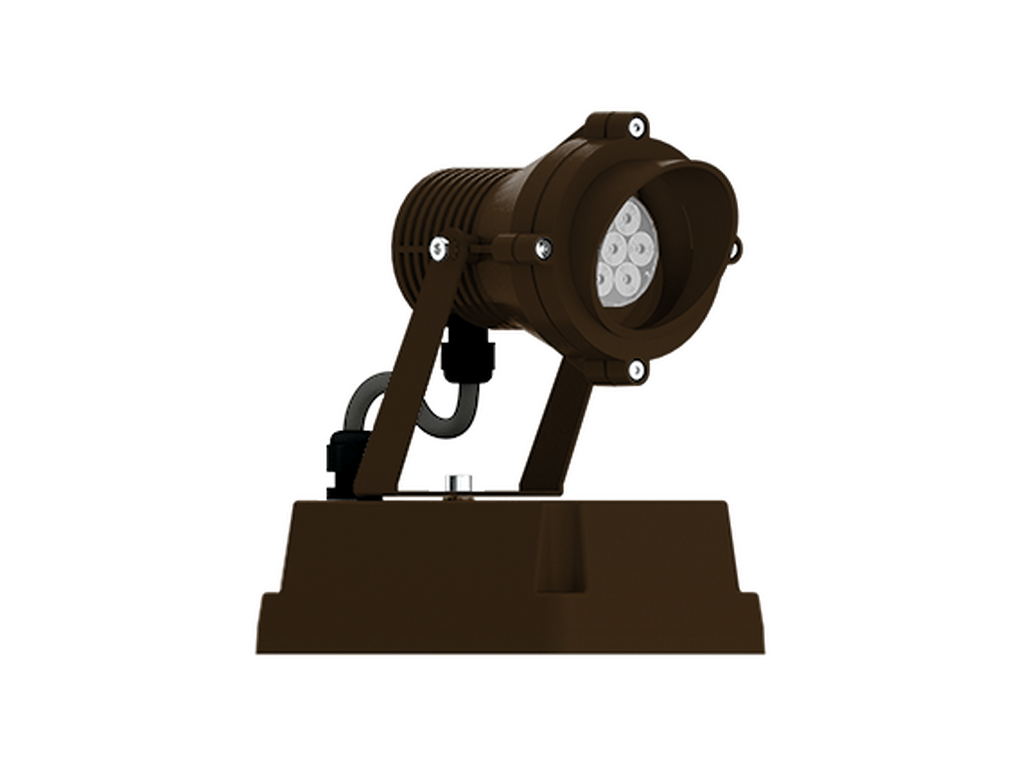

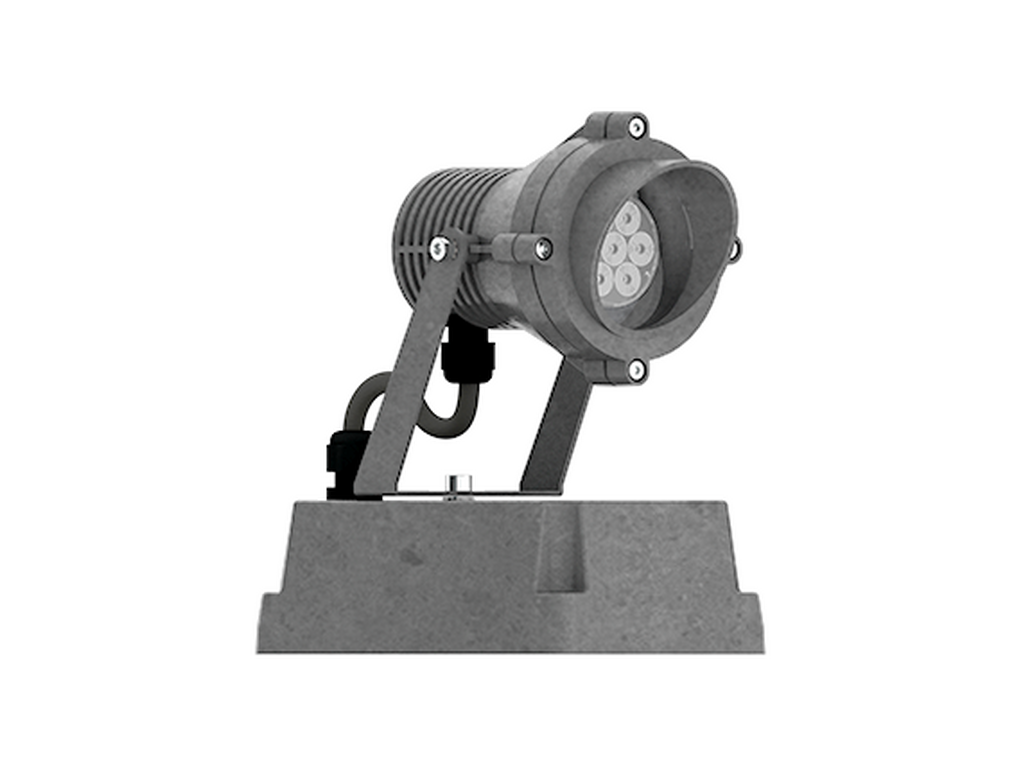

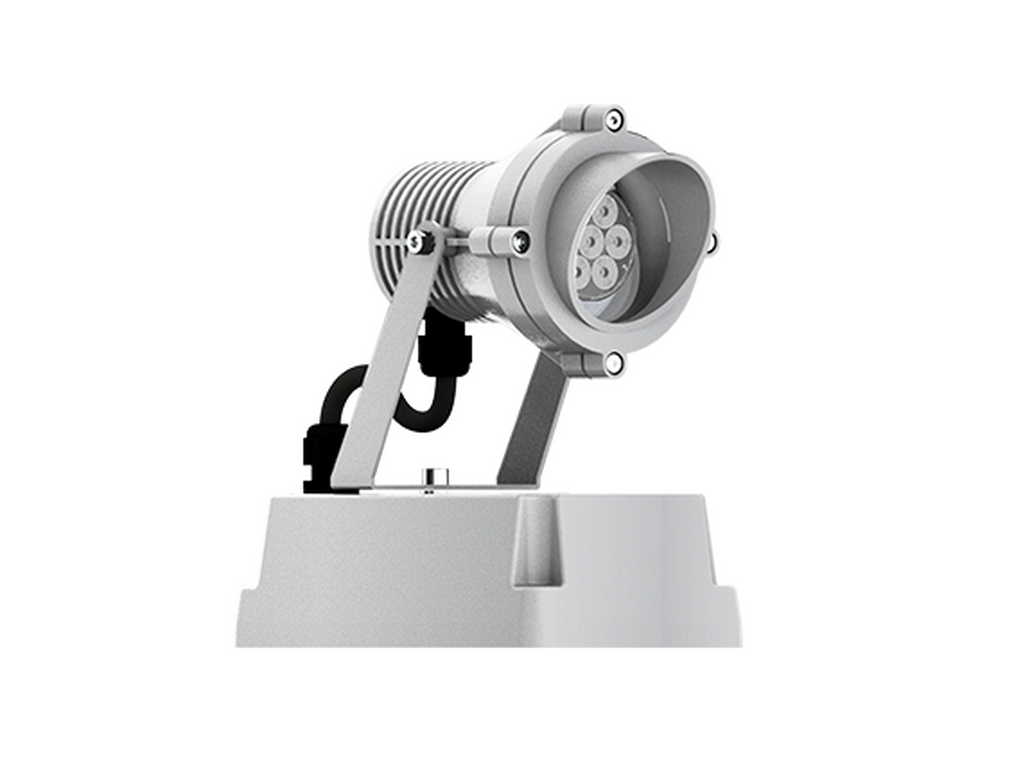

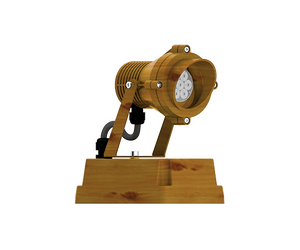

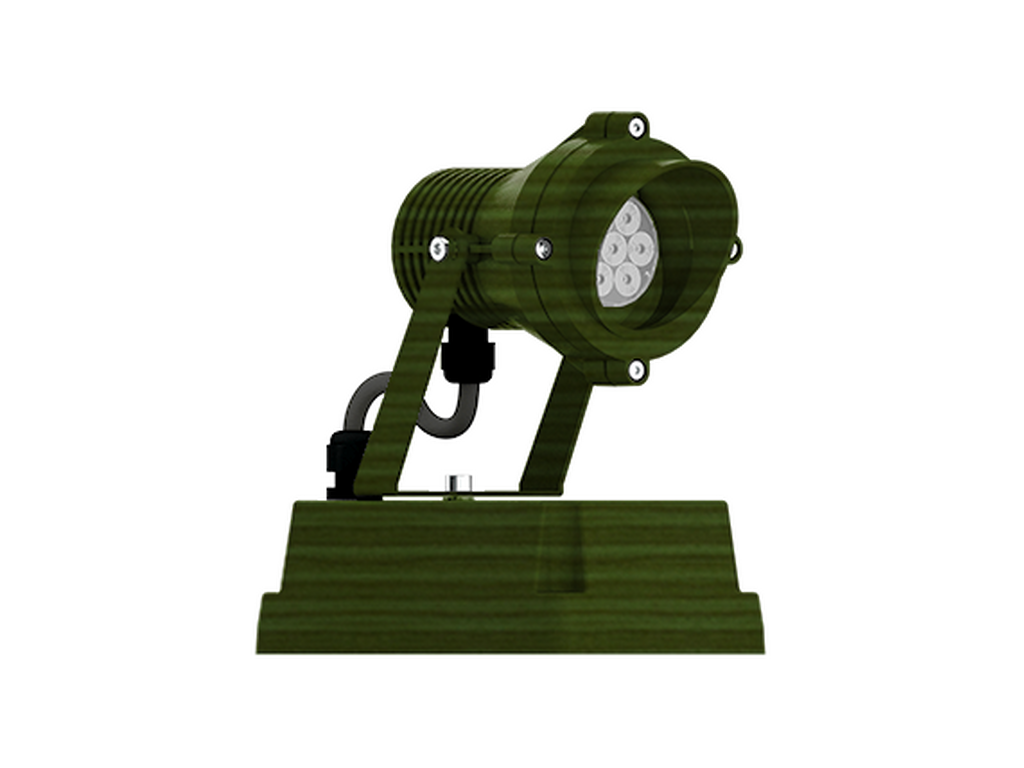

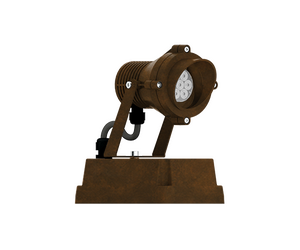

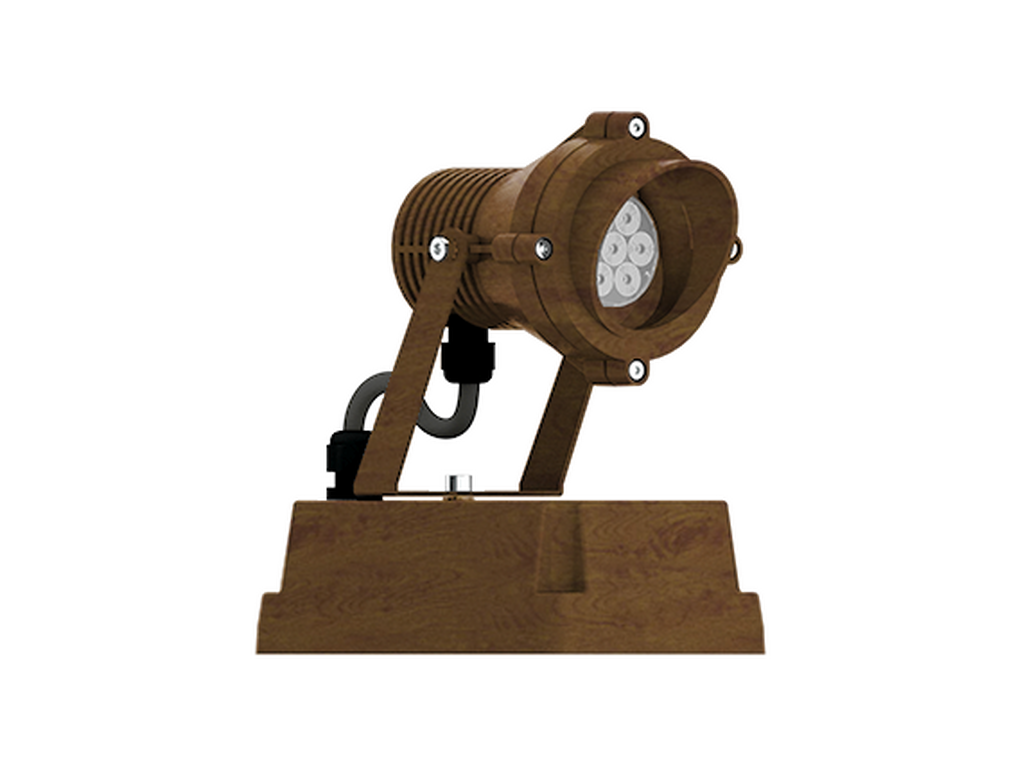

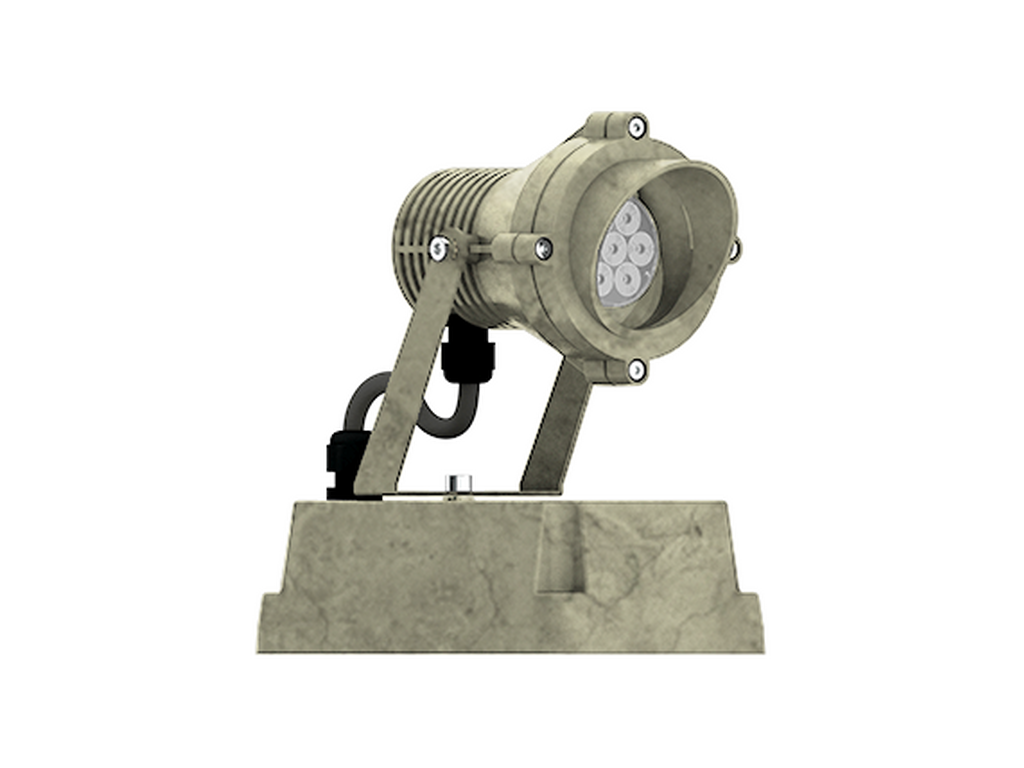

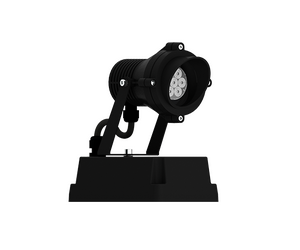

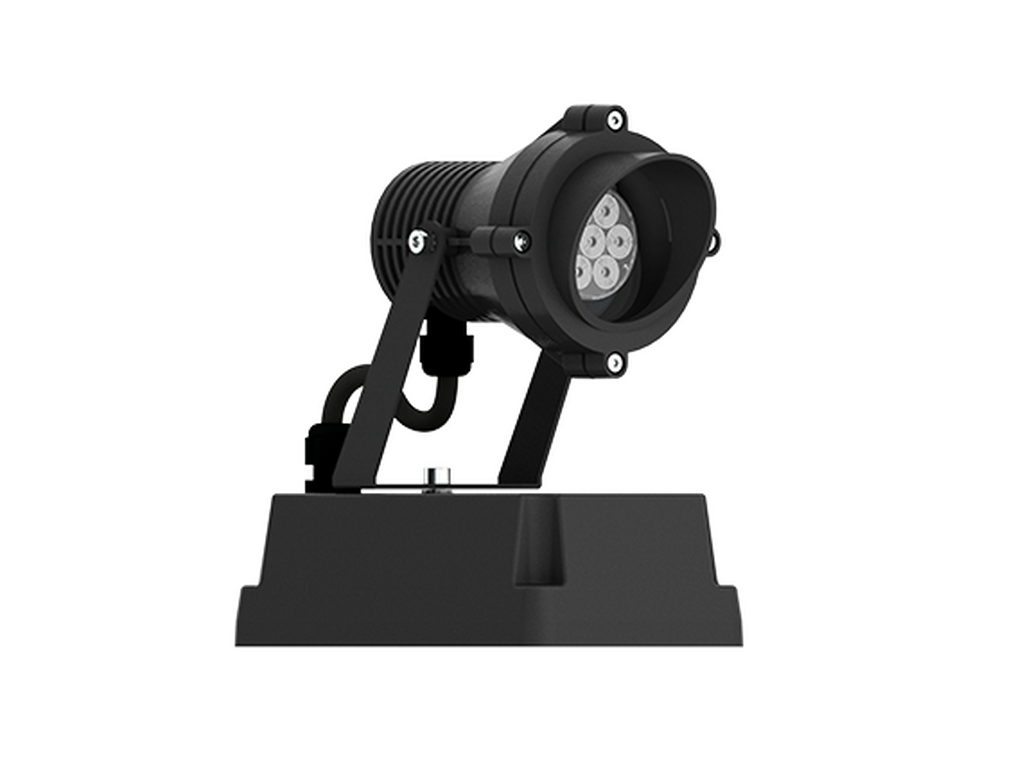

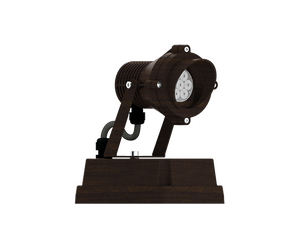

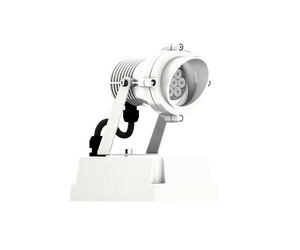

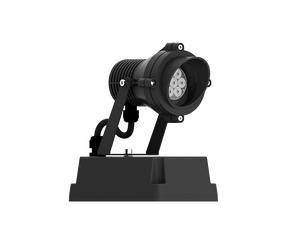

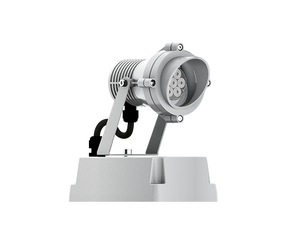

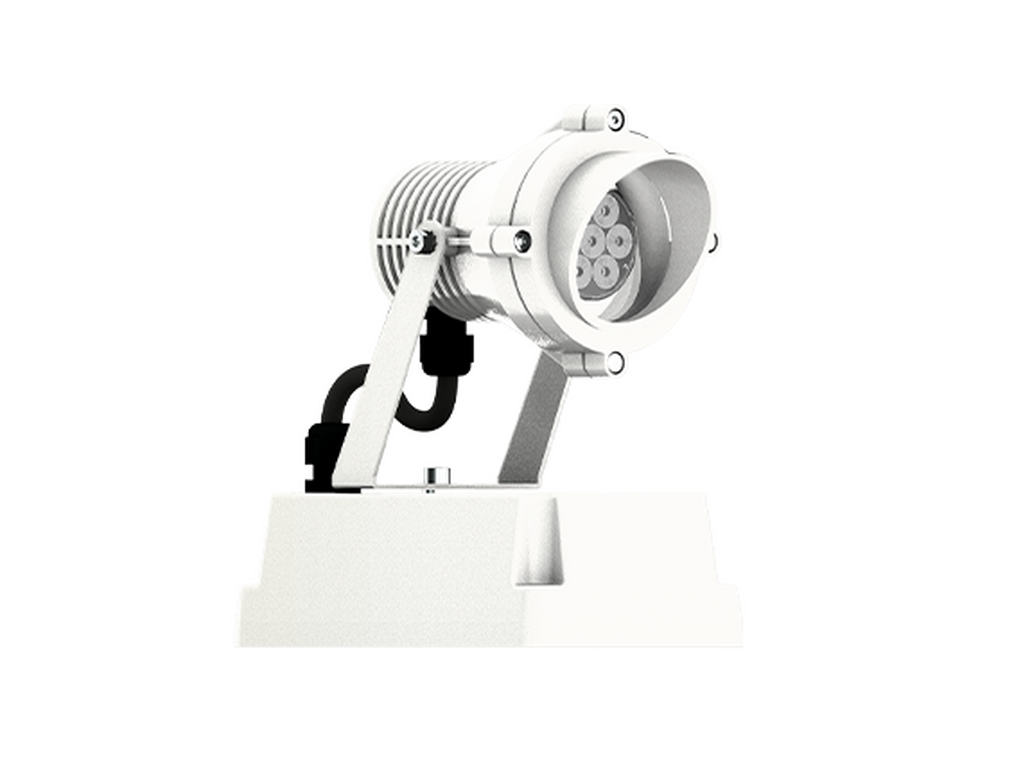

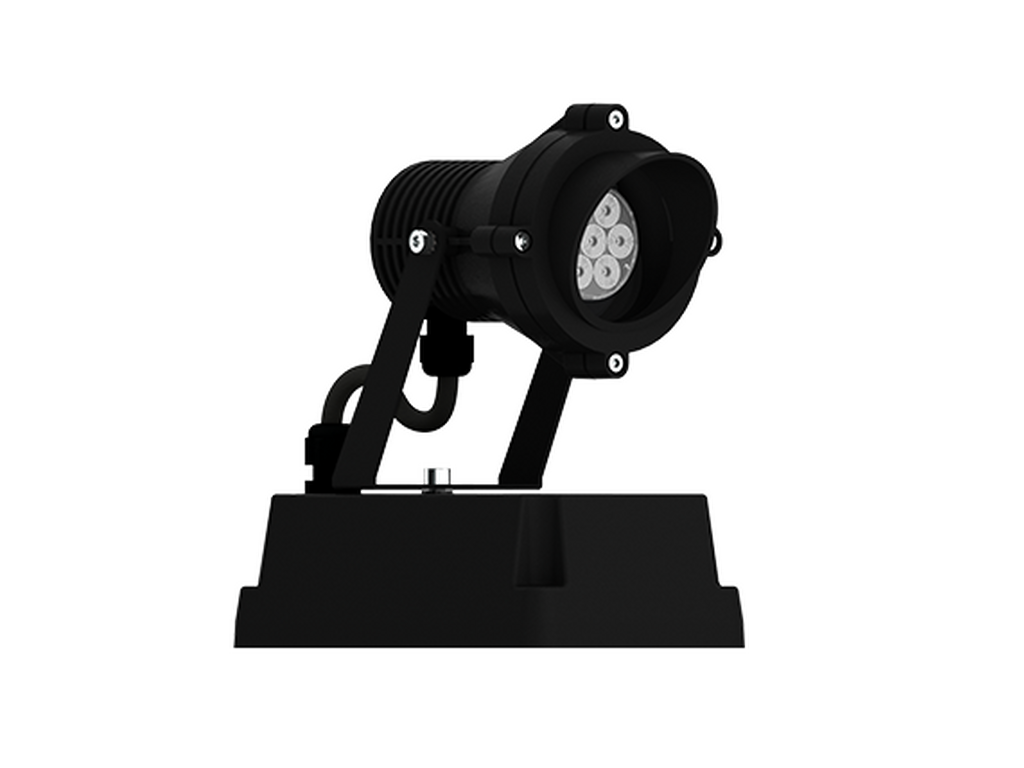

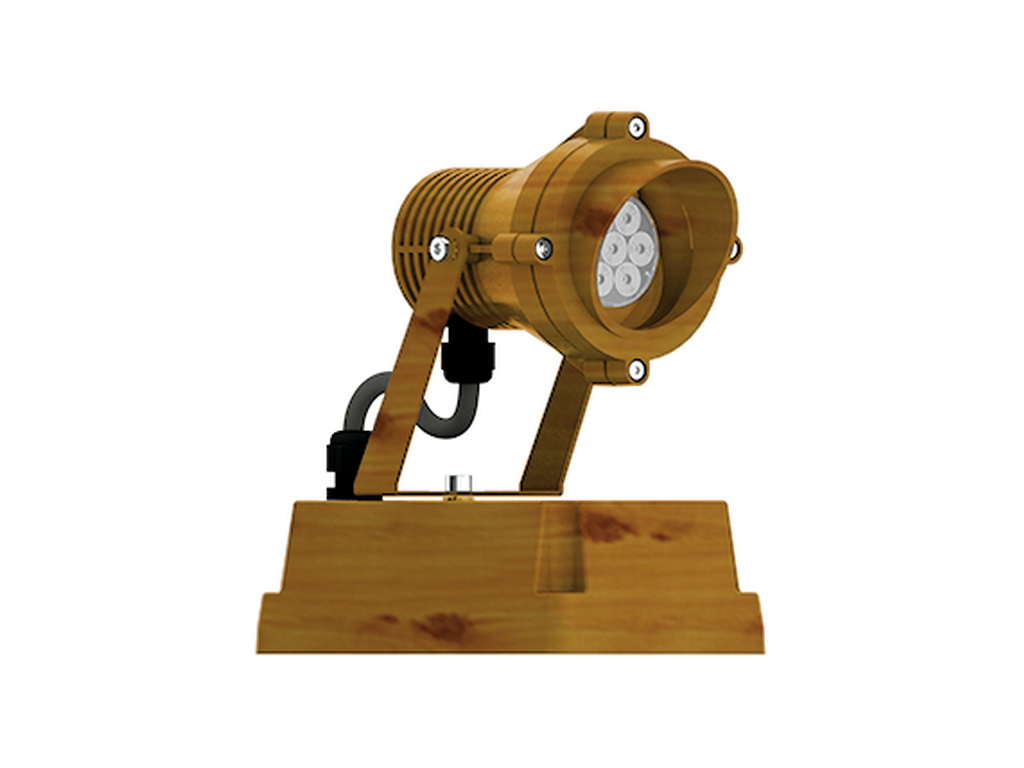

ZEAT 3ZE-50391Floodlights, projectors
Black
Dark Grey
White
Matt Silver
Bronze
Concrete - Urban
Softscape - Urban
Stone - Urban
Corten - Urban
Oak - Woodland
Walnut - Woodland
Pine - Woodland
Black
Dark Grey
White
Matt Silver
Bronze
Concrete - Urban
Softscape - Urban
Stone - Urban
Corten - Urban
Oak - Woodland
Walnut - Woodland
Pine - WoodlandIntegral control gear - Class I
TECHNICAL SPECIFICATIONS
Material
Aluminium
Light source
1 COB
Power (W)
14 W
Lumen (lm)
1048 - 1274 lm
Efficacy (lm/W)
75 - 91 lm/W
Driver option
Integral control gear
Driver
Constant current (CC)
Input voltage
220-240 V 50/60 Hz
Optic
M, W, VW, EW
Optic value
24°, 31°, 48°, 62°x58°
CCT / CRI
3000K CRI80, 4000K CRI80
Bug
B1-U1-G1, B1-U2-G1, B2-U1-G1
ULR
0.75%, 0.85%, 0.92%, 1.30%
ULOR
0.75%, 0.85%, 0.92%, 1.30%
CIE flux code nº3
97, 98
Dimming type
On/Off, 1-10V, DALI
Product colours
Black, Dark Grey, White, Matt Silver, Bronze, Concrete - Urban, Softscape - Urban, Stone - Urban, Corten - Urban, Oak - Woodland, Walnut - Woodland, Pine - Woodland
Weight
1.5 kg
Operating temperature
-20 °C to 40 °C
Through wiring
Single cable entry, through wiring upon request
Lens / Reflector / Optic
High-efficiency PMMA lens, Clear toughened glass
MacAdam Ellipse
3 SDCM
Lifetime L90B10 (hours)
> 61,000
Variants (On/Off, 1-10V, DALI)
Compatible with EN/ IEC 60598-2-22: Suitable for emergency installations as central supply, non-maintained (Z0)
