LIGMAN ABACUS 5 AB-10041.

ABACUS 5AB-10041ABACUS

Send us an E-Mail or use the contact form:

I have read the privacy policy and agree to the processing of my data *

The fields marked with an * must be correctly filled.
Your request was successfully sent.

Send us an E-Mail or use the contact form:

I have read the privacy policy and agree to the processing of my data *

The fields marked with an * must be correctly filled.
Your request was successfully sent.

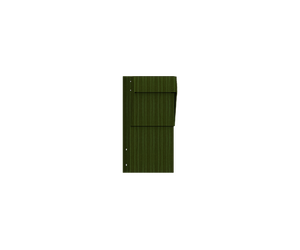

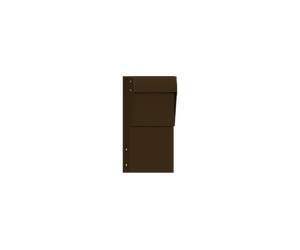

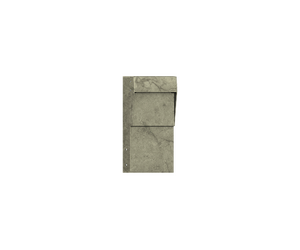

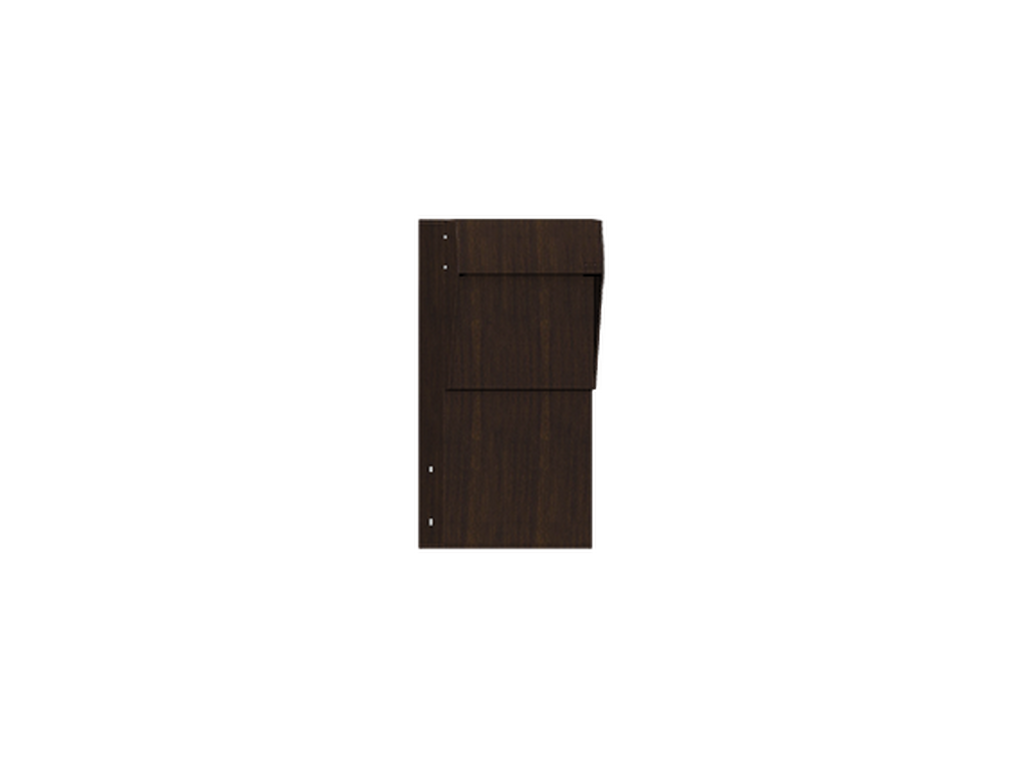

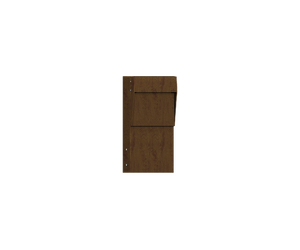

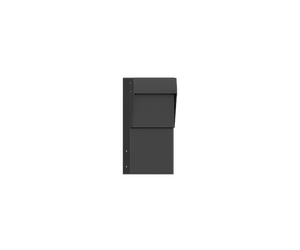

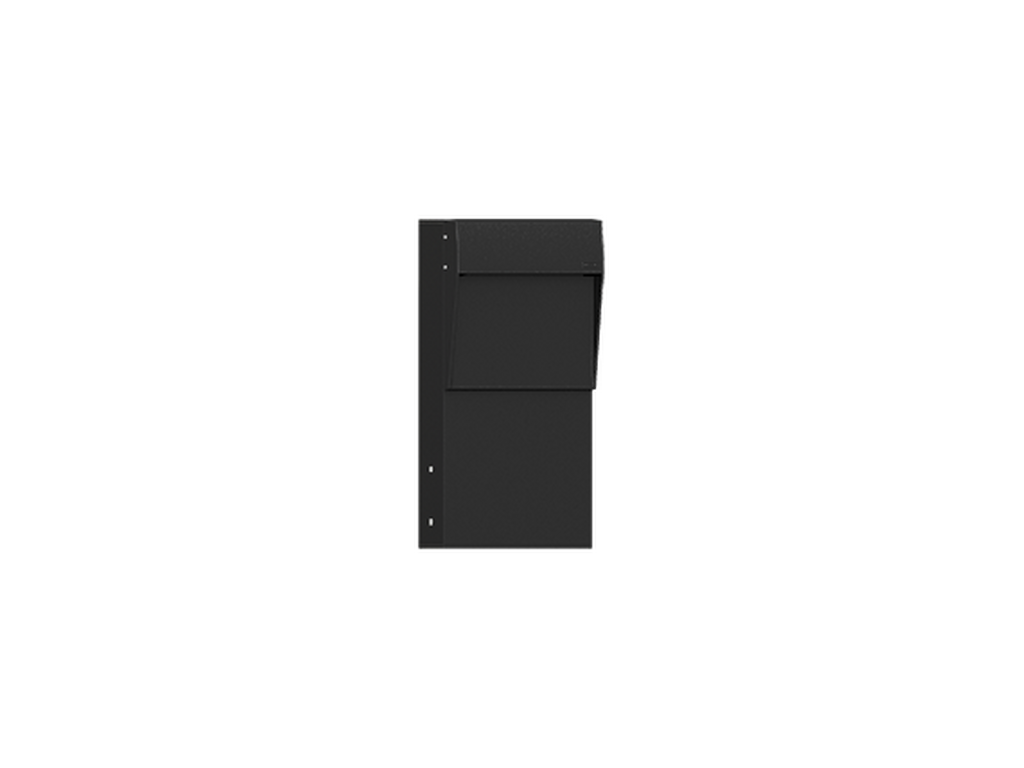

ABACUS 5Black

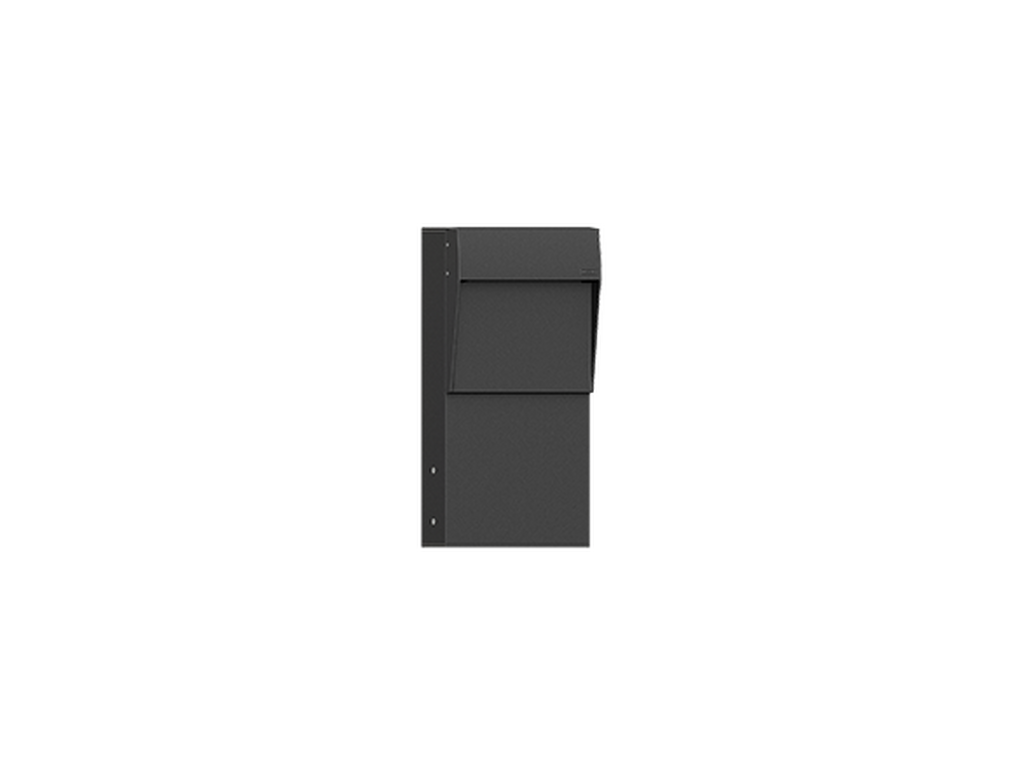

ABACUS 5Dark Grey

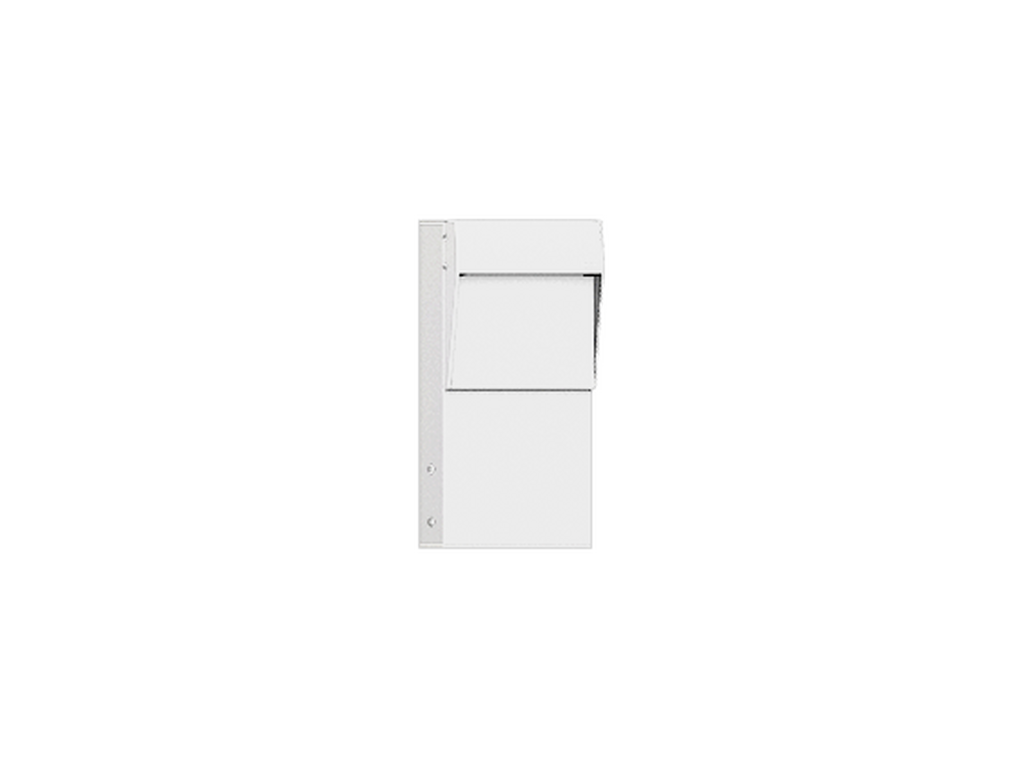

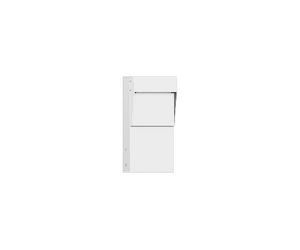

ABACUS 5White
ABACUS 5Matt Silver

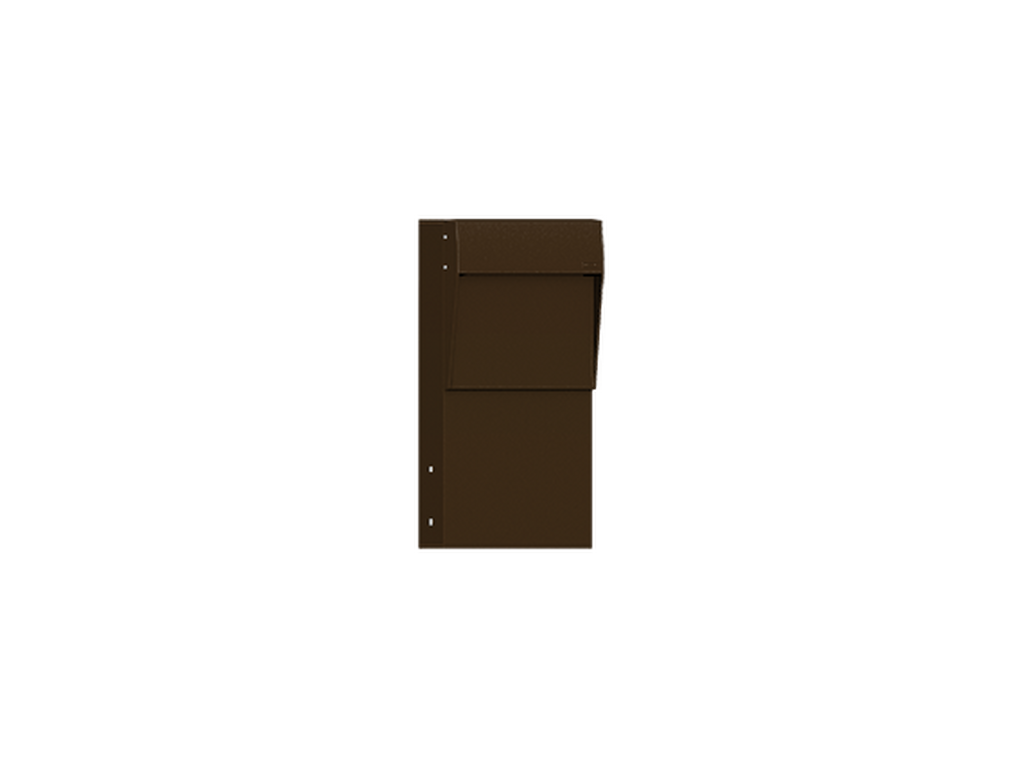

ABACUS 5Bronze

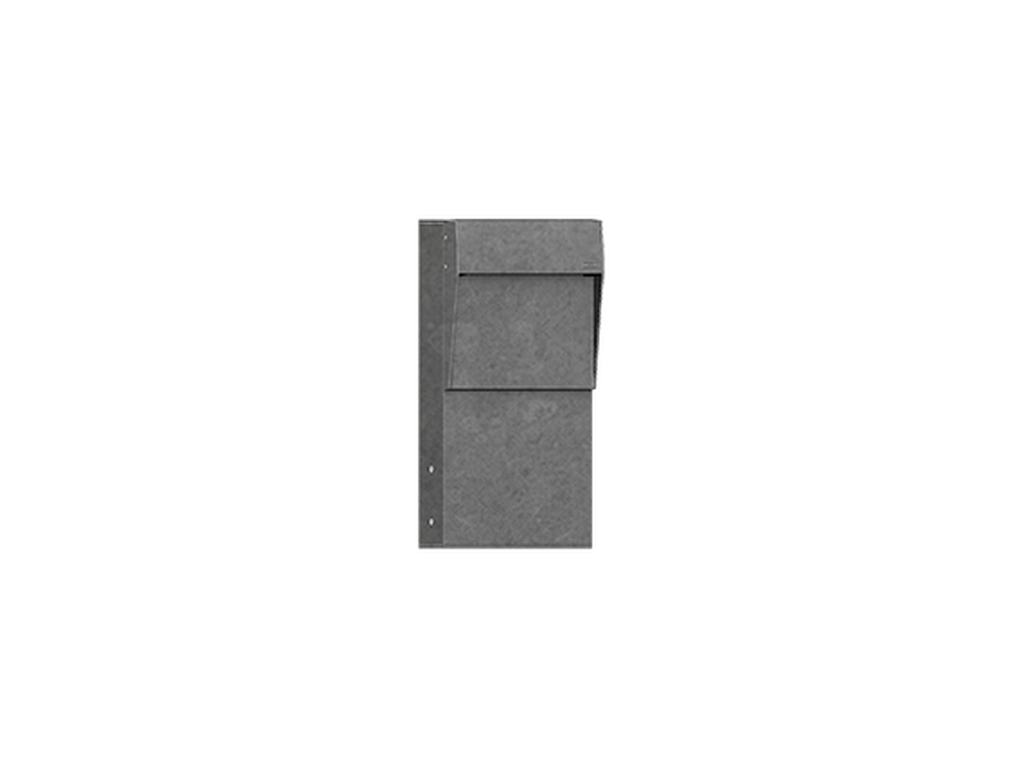

ABACUS 5Concrete - Urban
ABACUS 5Softscape - Urban
ABACUS 5Stone - Urban
ABACUS 5Corten - Urban
ABACUS 5Oak - Woodland
ABACUS 5Walnut - Woodland

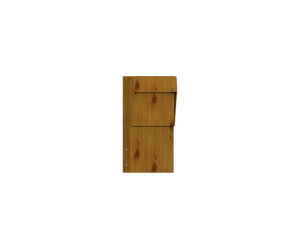

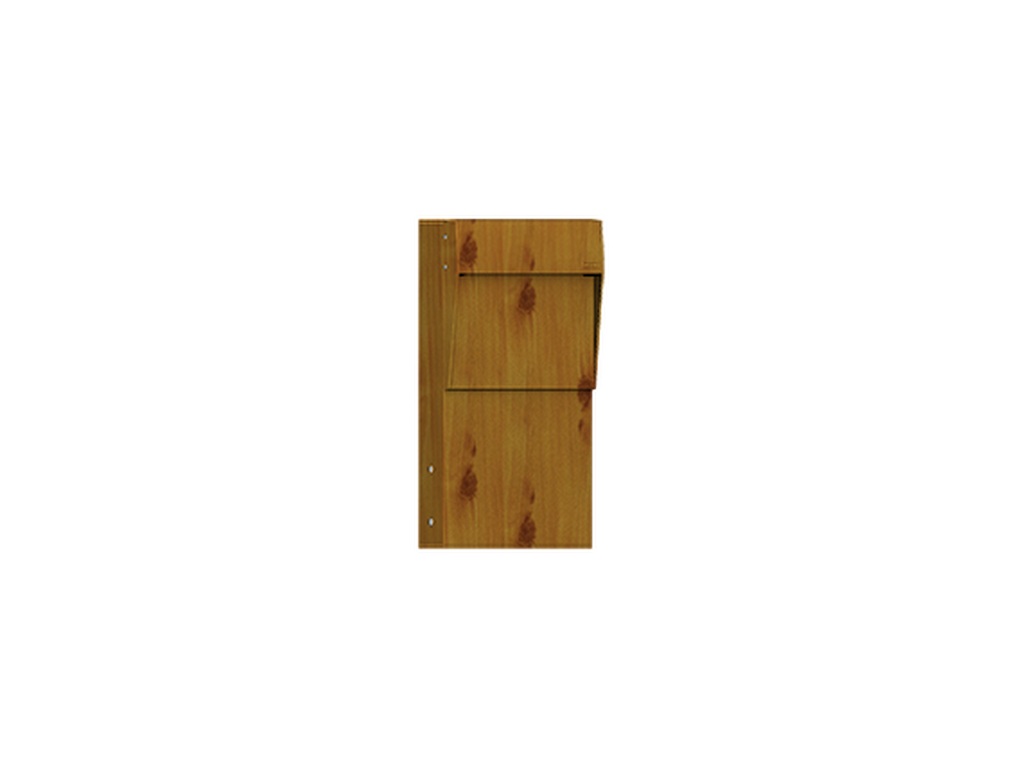

ABACUS 5Pine - Woodland
ABACUS 5Black
ABACUS 5Dark Grey
ABACUS 5White
ABACUS 5Matt Silver
ABACUS 5Bronze
ABACUS 5Concrete - Urban
ABACUS 5Softscape - Urban
ABACUS 5Stone - Urban
ABACUS 5Corten - Urban
ABACUS 5Oak - Woodland
ABACUS 5Walnut - Woodland
ABACUS 5Pine - Woodland
260x75 mm - 500 mm - 1 side
CERETILAPClass IIP65IK09

Technical information

Material
Aluminium
Light source
30 LED
Power (W)
11 W
Lumen (lm)
765 - 783 lm
Efficacy (lm/W)
70 - 71 lm/W
Driver option
Integral control gear
Driver
Constant current (CC)
Input voltage
220-240 V 50/60 Hz
Optic
G
Optic value
102°x 70°
CCT / CRI
3000K CRI80, 4000K CRI80
Bug
B1-U2-G1
ULR
2%
ULOR
2%
CIE flux code nº3
96
Dimming type
On/Off
Product colours
Black, Dark Grey, White, Matt Silver, Bronze, Concrete - Urban, Softscape - Urban, Stone - Urban, Corten - Urban, Oak - Woodland, Walnut - Woodland, Pine - Woodland
Weight
6.2 kg
Operating temperature
-20 °C to 40 °C
Cable
One IP68 connector supplied with 0.2 m of 3x1.0 sqmm outdoor cable
Through wiring
Single cable entry
Lens / Reflector / Optic
Frosted glass diffuser
MacAdam Ellipse
3 SDCM
Lifetime L90B10 (hours)
> 23,000
Lifetime L80B10 (hours)
> 45,000
Lifetime L80B50 (hours)
> 49,000
Variants (On/Off)
Compatible with EN/ IEC 60598-2-22: Suitable for emergency installations as central supply, non-maintained (Z0)

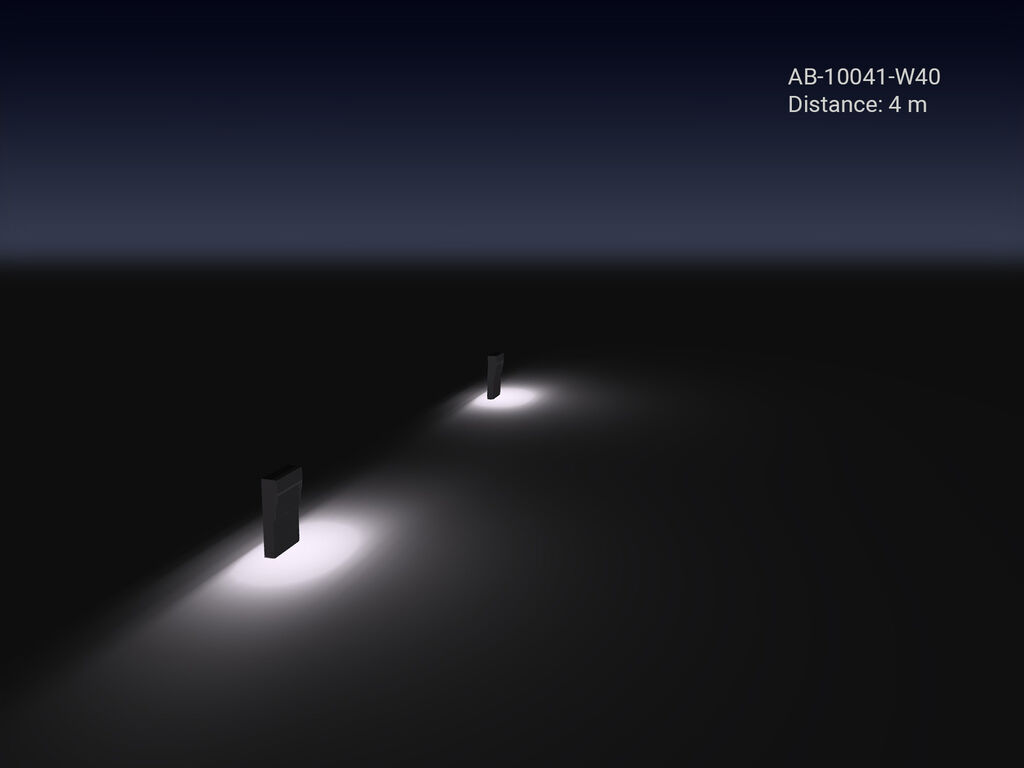

Light effect

Optic
G (102°x 70°)

Code finder

Lumen (lm)
Optic
Optic value
CCT / CRI
Dimming type
Product colour
Variant code
Lumen (lm)
Optic
Optic value
CCT / CRI
Dimming type
Product colour
Variant code: AB-10041-G-8030-ND-01
Lumen (lm): 765 lm
Optic: G
Optic value: 102°x 70°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Black
Variant code: AB-10041-G-8030-ND-02
Lumen (lm): 765 lm
Optic: G
Optic value: 102°x 70°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Dark Grey
Variant code: AB-10041-G-8030-ND-03
Lumen (lm): 765 lm
Optic: G
Optic value: 102°x 70°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: White
Variant code: AB-10041-G-8030-ND-05
Lumen (lm): 765 lm
Optic: G
Optic value: 102°x 70°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Matt Silver
Variant code: AB-10041-G-8030-ND-06
Lumen (lm): 765 lm
Optic: G
Optic value: 102°x 70°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Bronze
Variant code: AB-10041-G-8030-ND-SU01
Lumen (lm): 765 lm
Optic: G
Optic value: 102°x 70°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Concrete - Urban
Variant code: AB-10041-G-8030-ND-SU02
Lumen (lm): 765 lm
Optic: G
Optic value: 102°x 70°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Softscape - Urban
Variant code: AB-10041-G-8030-ND-SU03
Lumen (lm): 765 lm
Optic: G
Optic value: 102°x 70°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Stone - Urban
Variant code: AB-10041-G-8030-ND-SU04
Lumen (lm): 765 lm
Optic: G
Optic value: 102°x 70°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Corten - Urban
Variant code: AB-10041-G-8030-ND-SW01
Lumen (lm): 765 lm
Optic: G
Optic value: 102°x 70°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Oak - Woodland
Variant code: AB-10041-G-8030-ND-SW02
Lumen (lm): 765 lm
Optic: G
Optic value: 102°x 70°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Walnut - Woodland
Variant code: AB-10041-G-8030-ND-SW03
Lumen (lm): 765 lm
Optic: G
Optic value: 102°x 70°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Pine - Woodland
Variant code: AB-10041-G-8040-ND-01
Lumen (lm): 783 lm
Optic: G
Optic value: 102°x 70°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Black
Variant code: AB-10041-G-8040-ND-02
Lumen (lm): 783 lm
Optic: G
Optic value: 102°x 70°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Dark Grey
Variant code: AB-10041-G-8040-ND-03
Lumen (lm): 783 lm
Optic: G
Optic value: 102°x 70°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: White
Variant code: AB-10041-G-8040-ND-05
Lumen (lm): 783 lm
Optic: G
Optic value: 102°x 70°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Matt Silver
Variant code: AB-10041-G-8040-ND-06
Lumen (lm): 783 lm
Optic: G
Optic value: 102°x 70°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Bronze
Variant code: AB-10041-G-8040-ND-SU01
Lumen (lm): 783 lm
Optic: G
Optic value: 102°x 70°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Concrete - Urban
Variant code: AB-10041-G-8040-ND-SU02
Lumen (lm): 783 lm
Optic: G
Optic value: 102°x 70°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Softscape - Urban
Variant code: AB-10041-G-8040-ND-SU03
Lumen (lm): 783 lm
Optic: G
Optic value: 102°x 70°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Stone - Urban
Variant code: AB-10041-G-8040-ND-SU04
Lumen (lm): 783 lm
Optic: G
Optic value: 102°x 70°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Corten - Urban
Variant code: AB-10041-G-8040-ND-SW01
Lumen (lm): 783 lm
Optic: G
Optic value: 102°x 70°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Oak - Woodland
Variant code: AB-10041-G-8040-ND-SW02
Lumen (lm): 783 lm
Optic: G
Optic value: 102°x 70°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Walnut - Woodland
Variant code: AB-10041-G-8040-ND-SW03
Lumen (lm): 783 lm
Optic: G
Optic value: 102°x 70°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Pine - Woodland

Accessory

Project reference (ABACUS Bollards)
