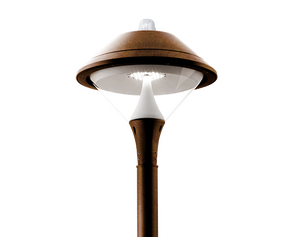

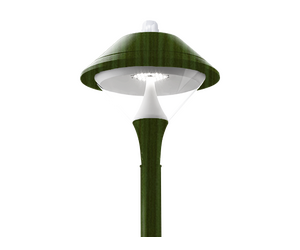

LIGMAN ABERDEEN 1 ABA-20001-LC.

ABERDEEN 1ABA-20001-LCABERDEEN

Send us an E-Mail or use the contact form:

I have read the privacy policy and agree to the processing of my data *

The fields marked with an * must be correctly filled.
Your request was successfully sent.

Send us an E-Mail or use the contact form:

I have read the privacy policy and agree to the processing of my data *

The fields marked with an * must be correctly filled.
Your request was successfully sent.

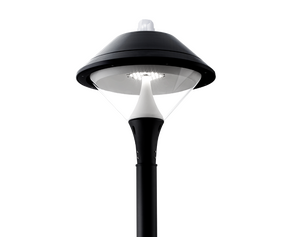

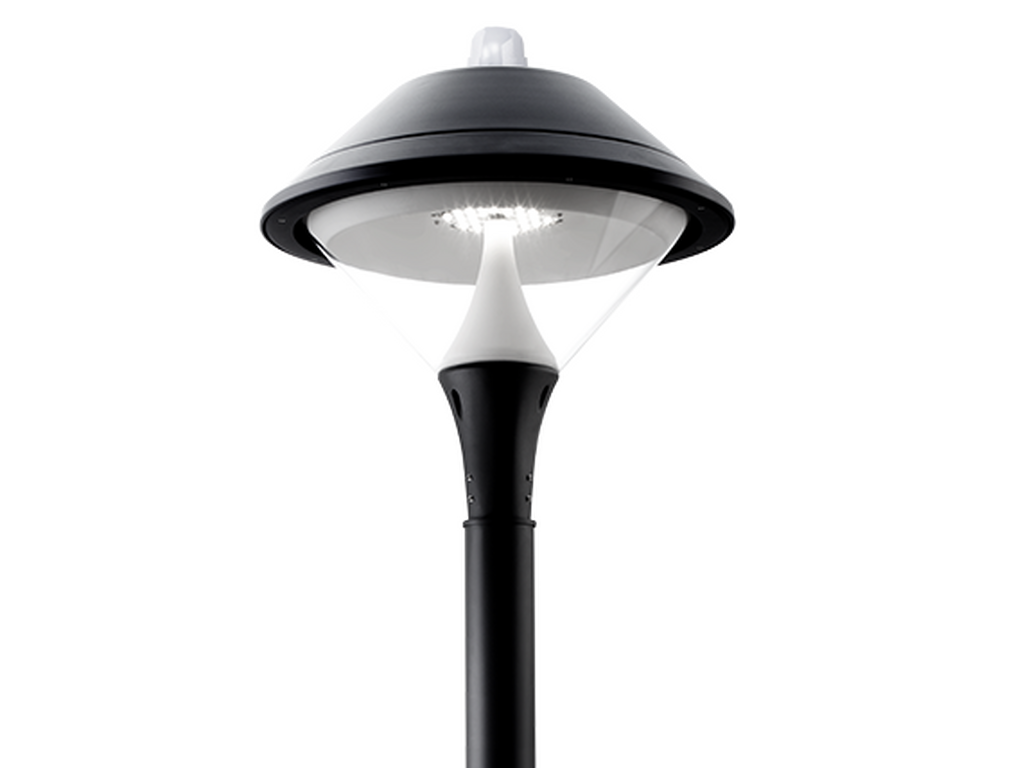

ABERDEEN 1Black

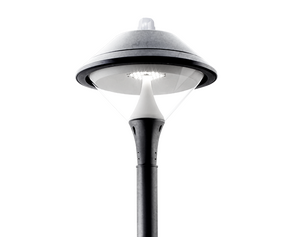

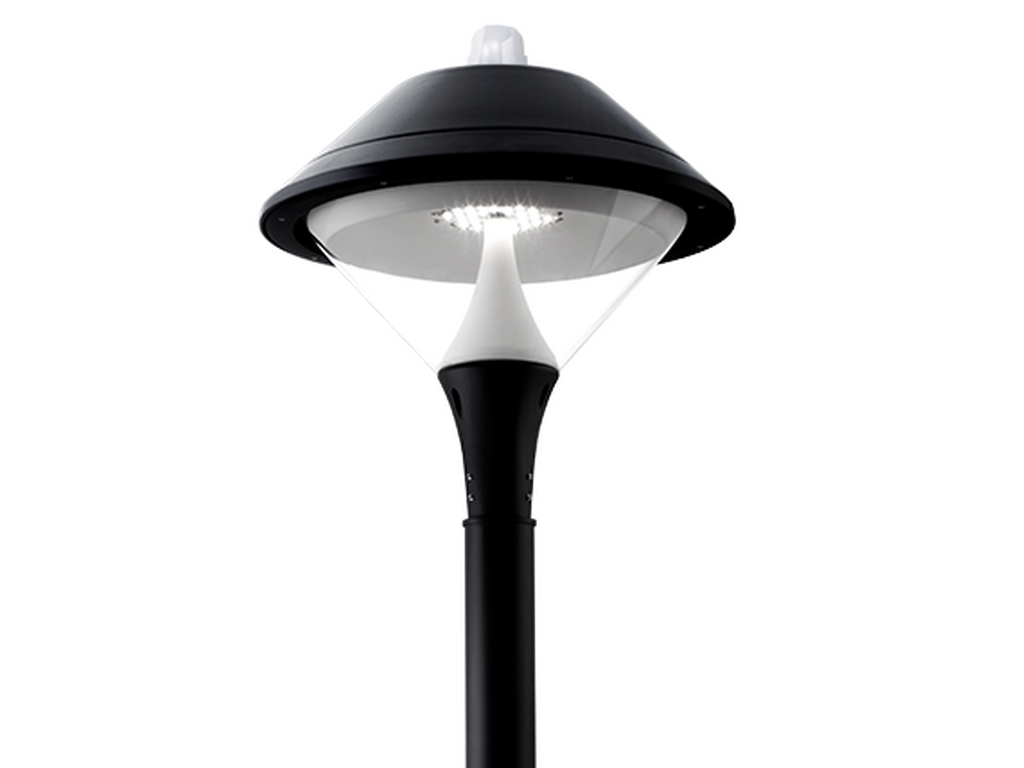

ABERDEEN 1Dark Grey

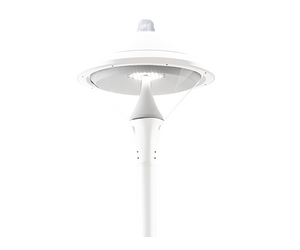

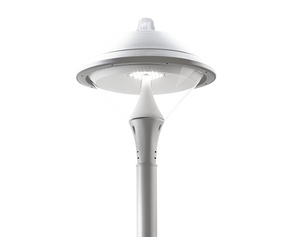

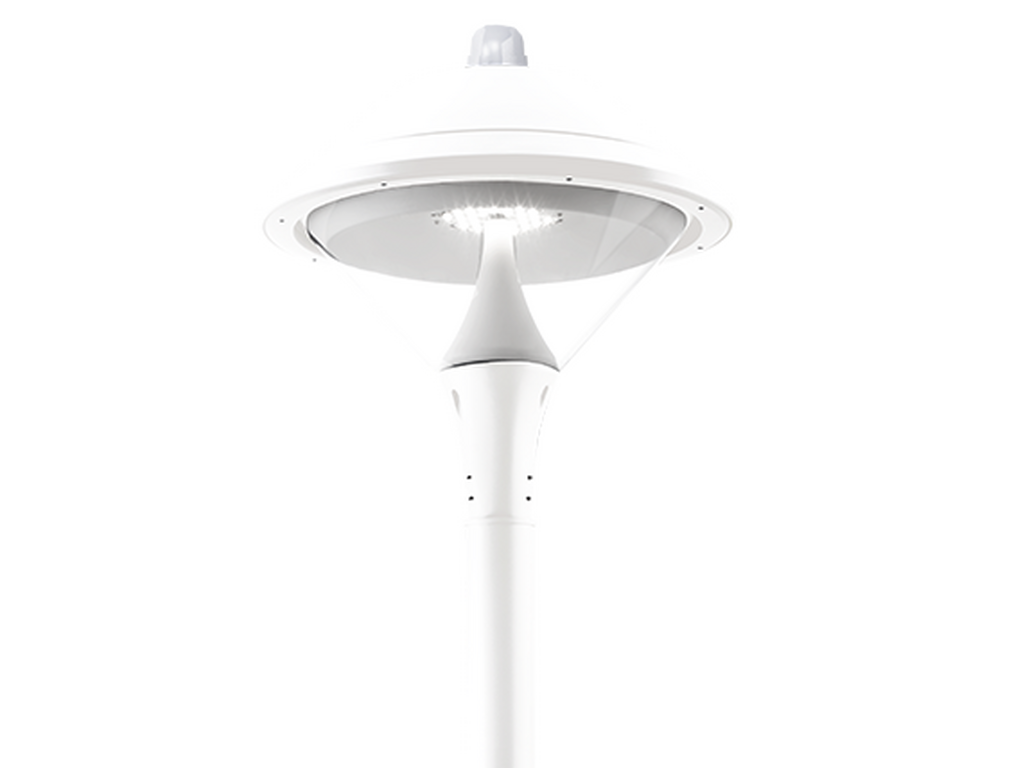

ABERDEEN 1White

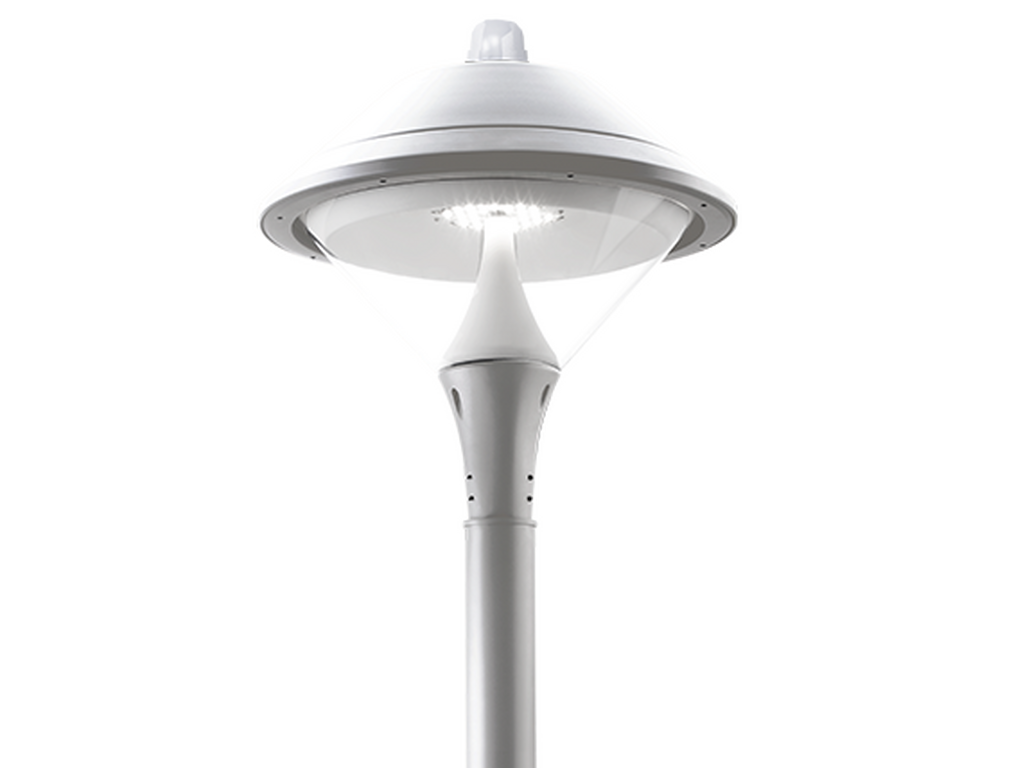

ABERDEEN 1Matt Silver

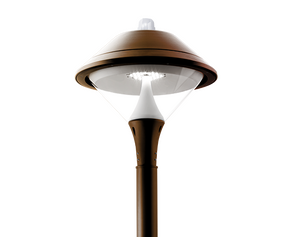

ABERDEEN 1Bronze
ABERDEEN 1Concrete - Urban
ABERDEEN 1Softscape - Urban

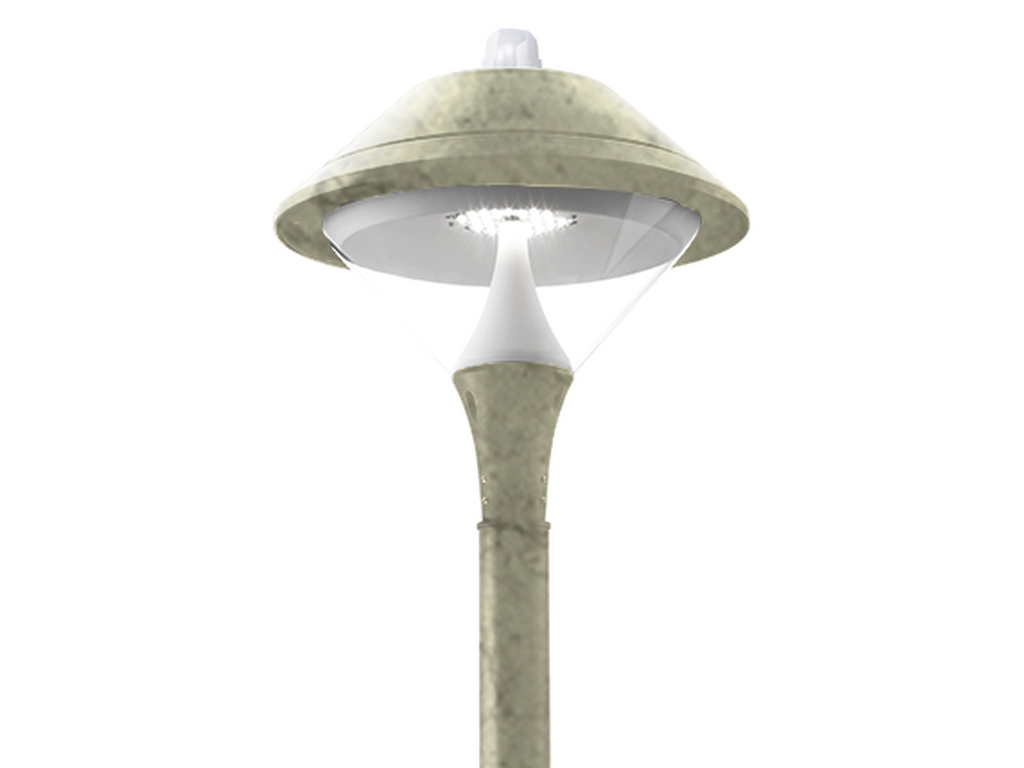

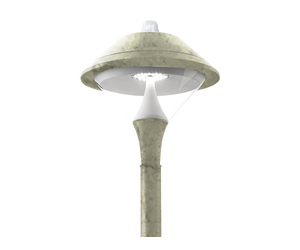

ABERDEEN 1Stone - Urban

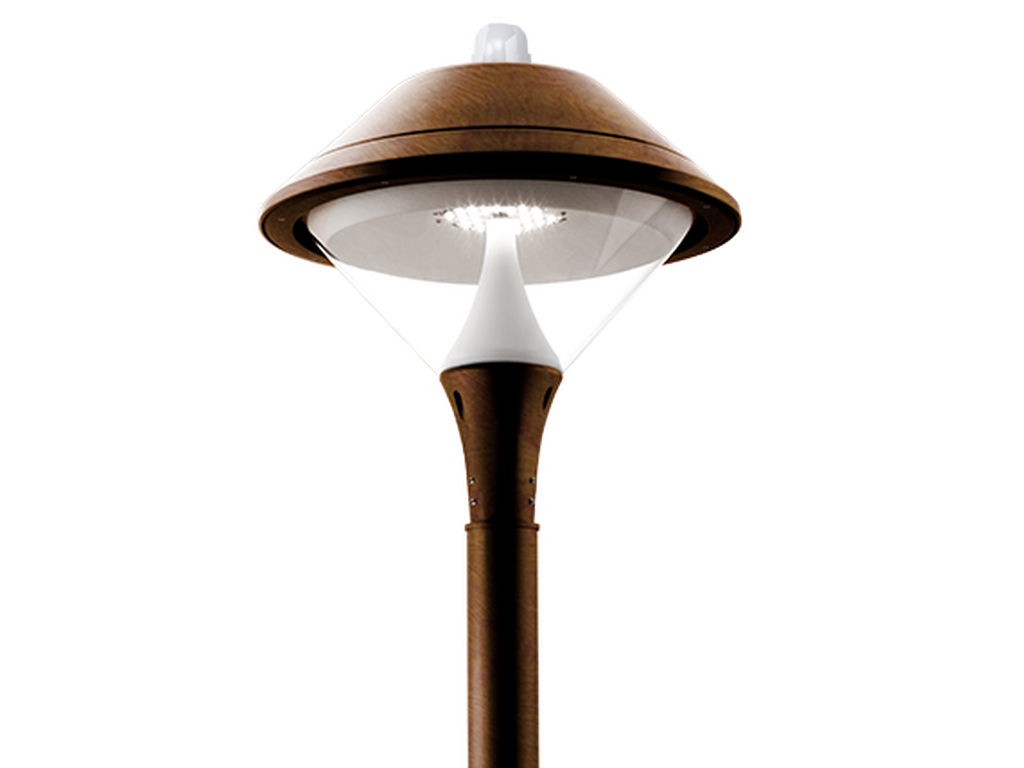

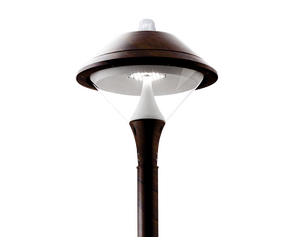

ABERDEEN 1Corten - Urban

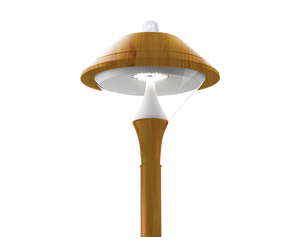

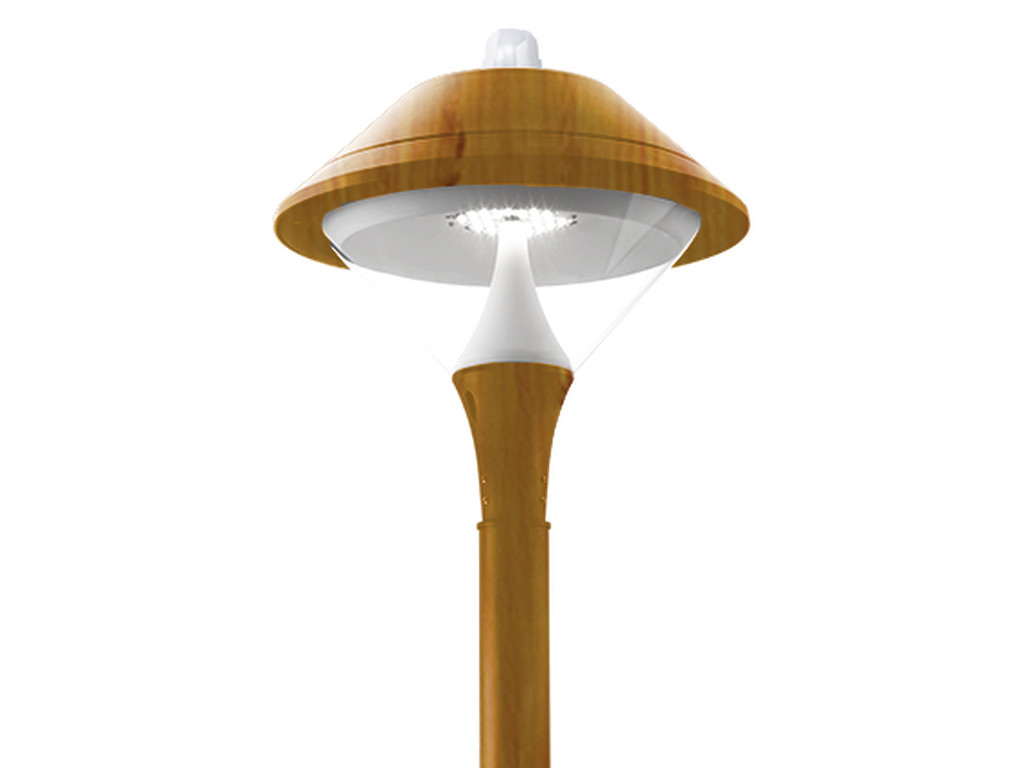

ABERDEEN 1Oak - Woodland
ABERDEEN 1Walnut - Woodland
ABERDEEN 1Pine - Woodland
ABERDEEN 1Black
ABERDEEN 1Dark Grey
ABERDEEN 1White
ABERDEEN 1Matt Silver
ABERDEEN 1Bronze
ABERDEEN 1Concrete - Urban
ABERDEEN 1Softscape - Urban
ABERDEEN 1Stone - Urban
ABERDEEN 1Corten - Urban
ABERDEEN 1Oak - Woodland
ABERDEEN 1Walnut - Woodland
ABERDEEN 1Pine - Woodland
Top Ø700 - LIGHTCONNECT™
CEClass IIP65IK08

TECHNICAL SPECIFICATIONS

Material
Aluminium
Light source
24 LED
Power (W)
45 W
Lumen (lm)
5627 - 6228 lm
Efficacy (lm/W)
125 - 138 lm/W
Driver option
Integral control gear
Driver
Constant current (CC)
Input voltage
220-240 V 50/60 Hz
Optic
T2, T3, T4, T5
Optic value
142°x59°, 142°x72°, 102°x63°, 119°x147°
CCT / CRI
3000K CRI80, 4000K CRI80
Bug
B1-U3-G1, B2-U3-G2, B3-U2-G1
ULR
1%, 2%
ULOR
1%, 2%
CIE flux code nº3
94
Dimming type
DALI
Product colours
Black, Dark Grey, White, Matt Silver, Bronze, Concrete - Urban, Softscape - Urban, Stone - Urban, Corten - Urban, Oak - Woodland, Walnut - Woodland, Pine - Woodland
Weight
16.50 kg
Operating temperature
-20 °C to 40 °C
Cable
One IP68 connector supplied with 0.2 m of 3x1.0 sqmm outdoor cable
Through wiring
Single cable entry
Lens / Reflector / Optic
High-efficiency PMMA lens, Clear acrylic PMMA diffuser
MacAdam Ellipse
3 SDCM
Lifetime L90B10 (hours)
> 90,000
Lifetime L80B10 (hours)
> 90,000
Lifetime L80B50 (hours)
> 90,000
Variants (DALI)
Compatible with EN/ IEC 60598-2-22: Suitable for emergency installations as central supply, non-maintained (Z0)

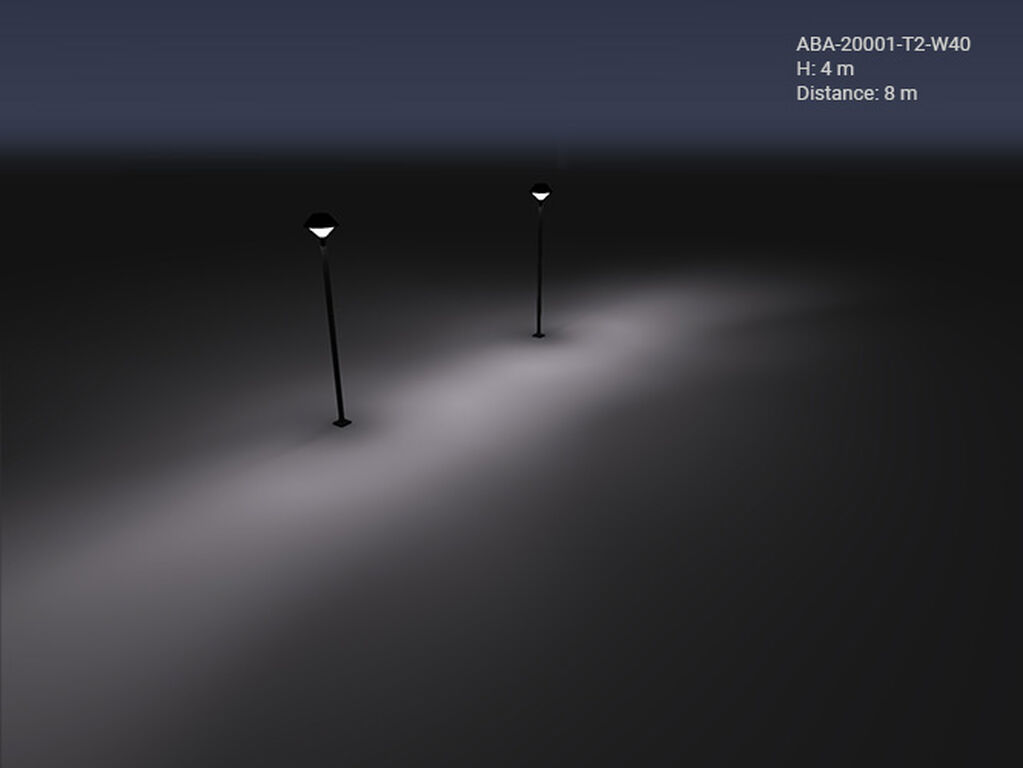

LIGHT EFFECT

Optic
T2 (142°x59°)
T3 (142°x72°)
T4 (102°x63°)
T5 (119°x147°)

CODE FINDER

Lumen (lm)
Optic
Optic value
CCT / CRI
Dimming type
Product colour
Variant code
Lumen (lm)
Optic
Optic value
CCT / CRI
Dimming type
Product colour
Variant code: ABA-20001-LC-T2-8030-DA-01
Lumen (lm): 5627 lm
Optic: T2
Optic value: 142°x59°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Black
Variant code: ABA-20001-LC-T2-8030-DA-02
Lumen (lm): 5627 lm
Optic: T2
Optic value: 142°x59°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Dark Grey
Variant code: ABA-20001-LC-T2-8030-DA-03
Lumen (lm): 5627 lm
Optic: T2
Optic value: 142°x59°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: White
Variant code: ABA-20001-LC-T2-8030-DA-05
Lumen (lm): 5627 lm
Optic: T2
Optic value: 142°x59°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Matt Silver
Variant code: ABA-20001-LC-T2-8030-DA-06
Lumen (lm): 5627 lm
Optic: T2
Optic value: 142°x59°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Bronze
Variant code: ABA-20001-LC-T2-8030-DA-SU01
Lumen (lm): 5627 lm
Optic: T2
Optic value: 142°x59°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Concrete - Urban
Variant code: ABA-20001-LC-T2-8030-DA-SU02
Lumen (lm): 5627 lm
Optic: T2
Optic value: 142°x59°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Softscape - Urban
Variant code: ABA-20001-LC-T2-8030-DA-SU03
Lumen (lm): 5627 lm
Optic: T2
Optic value: 142°x59°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Stone - Urban
Variant code: ABA-20001-LC-T2-8030-DA-SU04
Lumen (lm): 5627 lm
Optic: T2
Optic value: 142°x59°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Corten - Urban
Variant code: ABA-20001-LC-T2-8030-DA-SW01
Lumen (lm): 5627 lm
Optic: T2
Optic value: 142°x59°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Oak - Woodland
Variant code: ABA-20001-LC-T2-8030-DA-SW02
Lumen (lm): 5627 lm
Optic: T2
Optic value: 142°x59°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Walnut - Woodland
Variant code: ABA-20001-LC-T2-8030-DA-SW03
Lumen (lm): 5627 lm
Optic: T2
Optic value: 142°x59°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Pine - Woodland
Variant code: ABA-20001-LC-T2-8040-DA-01
Lumen (lm): 6021 lm
Optic: T2
Optic value: 142°x59°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Black
Variant code: ABA-20001-LC-T2-8040-DA-02
Lumen (lm): 6021 lm
Optic: T2
Optic value: 142°x59°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Dark Grey
Variant code: ABA-20001-LC-T2-8040-DA-03
Lumen (lm): 6021 lm
Optic: T2
Optic value: 142°x59°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: White
Variant code: ABA-20001-LC-T2-8040-DA-05
Lumen (lm): 6021 lm
Optic: T2
Optic value: 142°x59°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Matt Silver
Variant code: ABA-20001-LC-T2-8040-DA-06
Lumen (lm): 6021 lm
Optic: T2
Optic value: 142°x59°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Bronze
Variant code: ABA-20001-LC-T2-8040-DA-SU01
Lumen (lm): 6021 lm
Optic: T2
Optic value: 142°x59°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Concrete - Urban
Variant code: ABA-20001-LC-T2-8040-DA-SU02
Lumen (lm): 6021 lm
Optic: T2
Optic value: 142°x59°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Softscape - Urban
Variant code: ABA-20001-LC-T2-8040-DA-SU03
Lumen (lm): 6021 lm
Optic: T2
Optic value: 142°x59°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Stone - Urban
Variant code: ABA-20001-LC-T2-8040-DA-SU04
Lumen (lm): 6021 lm
Optic: T2
Optic value: 142°x59°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Corten - Urban
Variant code: ABA-20001-LC-T2-8040-DA-SW01
Lumen (lm): 6021 lm
Optic: T2
Optic value: 142°x59°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Oak - Woodland
Variant code: ABA-20001-LC-T2-8040-DA-SW02
Lumen (lm): 6021 lm
Optic: T2
Optic value: 142°x59°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Walnut - Woodland
Variant code: ABA-20001-LC-T2-8040-DA-SW03
Lumen (lm): 6021 lm
Optic: T2
Optic value: 142°x59°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Pine - Woodland
Variant code: ABA-20001-LC-T3-8030-DA-01
Lumen (lm): 5639 lm
Optic: T3
Optic value: 142°x72°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Black
Variant code: ABA-20001-LC-T3-8030-DA-02
Lumen (lm): 5639 lm
Optic: T3
Optic value: 142°x72°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Dark Grey
Variant code: ABA-20001-LC-T3-8030-DA-03
Lumen (lm): 5639 lm
Optic: T3
Optic value: 142°x72°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: White
Variant code: ABA-20001-LC-T3-8030-DA-05
Lumen (lm): 5639 lm
Optic: T3
Optic value: 142°x72°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Matt Silver
Variant code: ABA-20001-LC-T3-8030-DA-06
Lumen (lm): 5639 lm
Optic: T3
Optic value: 142°x72°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Bronze
Variant code: ABA-20001-LC-T3-8030-DA-SU01
Lumen (lm): 5639 lm
Optic: T3
Optic value: 142°x72°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Concrete - Urban
Variant code: ABA-20001-LC-T3-8030-DA-SU02
Lumen (lm): 5639 lm
Optic: T3
Optic value: 142°x72°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Softscape - Urban
Variant code: ABA-20001-LC-T3-8030-DA-SU03
Lumen (lm): 5639 lm
Optic: T3
Optic value: 142°x72°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Stone - Urban
Variant code: ABA-20001-LC-T3-8030-DA-SU04
Lumen (lm): 5639 lm
Optic: T3
Optic value: 142°x72°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Corten - Urban
Variant code: ABA-20001-LC-T3-8030-DA-SW01
Lumen (lm): 5639 lm
Optic: T3
Optic value: 142°x72°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Oak - Woodland
Variant code: ABA-20001-LC-T3-8030-DA-SW02
Lumen (lm): 5639 lm
Optic: T3
Optic value: 142°x72°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Walnut - Woodland
Variant code: ABA-20001-LC-T3-8030-DA-SW03
Lumen (lm): 5639 lm
Optic: T3
Optic value: 142°x72°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Pine - Woodland
Variant code: ABA-20001-LC-T3-8040-DA-01
Lumen (lm): 6033 lm
Optic: T3
Optic value: 142°x72°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Black
Variant code: ABA-20001-LC-T3-8040-DA-02
Lumen (lm): 6033 lm
Optic: T3
Optic value: 142°x72°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Dark Grey
Variant code: ABA-20001-LC-T3-8040-DA-03
Lumen (lm): 6033 lm
Optic: T3
Optic value: 142°x72°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: White
Variant code: ABA-20001-LC-T3-8040-DA-05
Lumen (lm): 6033 lm
Optic: T3
Optic value: 142°x72°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Matt Silver
Variant code: ABA-20001-LC-T3-8040-DA-06
Lumen (lm): 6033 lm
Optic: T3
Optic value: 142°x72°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Bronze
Variant code: ABA-20001-LC-T3-8040-DA-SU01
Lumen (lm): 6033 lm
Optic: T3
Optic value: 142°x72°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Concrete - Urban
Variant code: ABA-20001-LC-T3-8040-DA-SU02
Lumen (lm): 6033 lm
Optic: T3
Optic value: 142°x72°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Softscape - Urban
Variant code: ABA-20001-LC-T3-8040-DA-SU03
Lumen (lm): 6033 lm
Optic: T3
Optic value: 142°x72°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Stone - Urban
Variant code: ABA-20001-LC-T3-8040-DA-SU04
Lumen (lm): 6033 lm
Optic: T3
Optic value: 142°x72°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Corten - Urban
Variant code: ABA-20001-LC-T3-8040-DA-SW01
Lumen (lm): 6033 lm
Optic: T3
Optic value: 142°x72°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Oak - Woodland
Variant code: ABA-20001-LC-T3-8040-DA-SW02
Lumen (lm): 6033 lm
Optic: T3
Optic value: 142°x72°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Walnut - Woodland
Variant code: ABA-20001-LC-T3-8040-DA-SW03
Lumen (lm): 6033 lm
Optic: T3
Optic value: 142°x72°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Pine - Woodland
Variant code: ABA-20001-LC-T4-8030-DA-01
Lumen (lm): 5656 lm
Optic: T4
Optic value: 102°x63°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Black
Variant code: ABA-20001-LC-T4-8030-DA-02
Lumen (lm): 5656 lm
Optic: T4
Optic value: 102°x63°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Dark Grey
Variant code: ABA-20001-LC-T4-8030-DA-03
Lumen (lm): 5656 lm
Optic: T4
Optic value: 102°x63°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: White
Variant code: ABA-20001-LC-T4-8030-DA-05
Lumen (lm): 5656 lm
Optic: T4
Optic value: 102°x63°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Matt Silver
Variant code: ABA-20001-LC-T4-8030-DA-06
Lumen (lm): 5656 lm
Optic: T4
Optic value: 102°x63°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Bronze
Variant code: ABA-20001-LC-T4-8030-DA-SU01
Lumen (lm): 5656 lm
Optic: T4
Optic value: 102°x63°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Concrete - Urban
Variant code: ABA-20001-LC-T4-8030-DA-SU02
Lumen (lm): 5656 lm
Optic: T4
Optic value: 102°x63°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Softscape - Urban
Variant code: ABA-20001-LC-T4-8030-DA-SU03
Lumen (lm): 5656 lm
Optic: T4
Optic value: 102°x63°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Stone - Urban
Variant code: ABA-20001-LC-T4-8030-DA-SU04
Lumen (lm): 5656 lm
Optic: T4
Optic value: 102°x63°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Corten - Urban
Variant code: ABA-20001-LC-T4-8030-DA-SW01
Lumen (lm): 5656 lm
Optic: T4
Optic value: 102°x63°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Oak - Woodland
Variant code: ABA-20001-LC-T4-8030-DA-SW02
Lumen (lm): 5656 lm
Optic: T4
Optic value: 102°x63°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Walnut - Woodland
Variant code: ABA-20001-LC-T4-8030-DA-SW03
Lumen (lm): 5656 lm
Optic: T4
Optic value: 102°x63°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Pine - Woodland
Variant code: ABA-20001-LC-T4-8040-DA-01
Lumen (lm): 6051 lm
Optic: T4
Optic value: 102°x63°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Black
Variant code: ABA-20001-LC-T4-8040-DA-02
Lumen (lm): 6051 lm
Optic: T4
Optic value: 102°x63°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Dark Grey
Variant code: ABA-20001-LC-T4-8040-DA-03
Lumen (lm): 6051 lm
Optic: T4
Optic value: 102°x63°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: White
Variant code: ABA-20001-LC-T4-8040-DA-05
Lumen (lm): 6051 lm
Optic: T4
Optic value: 102°x63°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Matt Silver
Variant code: ABA-20001-LC-T4-8040-DA-06
Lumen (lm): 6051 lm
Optic: T4
Optic value: 102°x63°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Bronze
Variant code: ABA-20001-LC-T4-8040-DA-SU01
Lumen (lm): 6051 lm
Optic: T4
Optic value: 102°x63°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Concrete - Urban
Variant code: ABA-20001-LC-T4-8040-DA-SU02
Lumen (lm): 6051 lm
Optic: T4
Optic value: 102°x63°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Softscape - Urban
Variant code: ABA-20001-LC-T4-8040-DA-SU03
Lumen (lm): 6051 lm
Optic: T4
Optic value: 102°x63°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Stone - Urban
Variant code: ABA-20001-LC-T4-8040-DA-SU04
Lumen (lm): 6051 lm
Optic: T4
Optic value: 102°x63°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Corten - Urban
Variant code: ABA-20001-LC-T4-8040-DA-SW01
Lumen (lm): 6051 lm
Optic: T4
Optic value: 102°x63°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Oak - Woodland
Variant code: ABA-20001-LC-T4-8040-DA-SW02
Lumen (lm): 6051 lm
Optic: T4
Optic value: 102°x63°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Walnut - Woodland
Variant code: ABA-20001-LC-T4-8040-DA-SW03
Lumen (lm): 6051 lm
Optic: T4
Optic value: 102°x63°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Pine - Woodland
Variant code: ABA-20001-LC-T5-8030-DA-01
Lumen (lm): 5822 lm
Optic: T5
Optic value: 119°x147°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Black
Variant code: ABA-20001-LC-T5-8030-DA-02
Lumen (lm): 5822 lm
Optic: T5
Optic value: 119°x147°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Dark Grey
Variant code: ABA-20001-LC-T5-8030-DA-03
Lumen (lm): 5822 lm
Optic: T5
Optic value: 119°x147°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: White
Variant code: ABA-20001-LC-T5-8030-DA-05
Lumen (lm): 5822 lm
Optic: T5
Optic value: 119°x147°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Matt Silver
Variant code: ABA-20001-LC-T5-8030-DA-06
Lumen (lm): 5822 lm
Optic: T5
Optic value: 119°x147°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Bronze
Variant code: ABA-20001-LC-T5-8030-DA-SU01
Lumen (lm): 5822 lm
Optic: T5
Optic value: 119°x147°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Concrete - Urban
Variant code: ABA-20001-LC-T5-8030-DA-SU02
Lumen (lm): 5822 lm
Optic: T5
Optic value: 119°x147°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Softscape - Urban
Variant code: ABA-20001-LC-T5-8030-DA-SU03
Lumen (lm): 5822 lm
Optic: T5
Optic value: 119°x147°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Stone - Urban
Variant code: ABA-20001-LC-T5-8030-DA-SU04
Lumen (lm): 5822 lm
Optic: T5
Optic value: 119°x147°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Corten - Urban
Variant code: ABA-20001-LC-T5-8030-DA-SW01
Lumen (lm): 5822 lm
Optic: T5
Optic value: 119°x147°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Oak - Woodland
Variant code: ABA-20001-LC-T5-8030-DA-SW02
Lumen (lm): 5822 lm
Optic: T5
Optic value: 119°x147°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Walnut - Woodland
Variant code: ABA-20001-LC-T5-8030-DA-SW03
Lumen (lm): 5822 lm
Optic: T5
Optic value: 119°x147°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Pine - Woodland
Variant code: ABA-20001-LC-T5-8040-DA-01
Lumen (lm): 6228 lm
Optic: T5
Optic value: 119°x147°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Black
Variant code: ABA-20001-LC-T5-8040-DA-02
Lumen (lm): 6228 lm
Optic: T5
Optic value: 119°x147°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Dark Grey
Variant code: ABA-20001-LC-T5-8040-DA-03
Lumen (lm): 6228 lm
Optic: T5
Optic value: 119°x147°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: White
Variant code: ABA-20001-LC-T5-8040-DA-05
Lumen (lm): 6228 lm
Optic: T5
Optic value: 119°x147°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Matt Silver
Variant code: ABA-20001-LC-T5-8040-DA-06
Lumen (lm): 6228 lm
Optic: T5
Optic value: 119°x147°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Bronze
Variant code: ABA-20001-LC-T5-8040-DA-SU01
Lumen (lm): 6228 lm
Optic: T5
Optic value: 119°x147°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Concrete - Urban
Variant code: ABA-20001-LC-T5-8040-DA-SU02
Lumen (lm): 6228 lm
Optic: T5
Optic value: 119°x147°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Softscape - Urban
Variant code: ABA-20001-LC-T5-8040-DA-SU03
Lumen (lm): 6228 lm
Optic: T5
Optic value: 119°x147°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Stone - Urban
Variant code: ABA-20001-LC-T5-8040-DA-SU04
Lumen (lm): 6228 lm
Optic: T5
Optic value: 119°x147°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Corten - Urban
Variant code: ABA-20001-LC-T5-8040-DA-SW01
Lumen (lm): 6228 lm
Optic: T5
Optic value: 119°x147°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Oak - Woodland
Variant code: ABA-20001-LC-T5-8040-DA-SW02
Lumen (lm): 6228 lm
Optic: T5
Optic value: 119°x147°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Walnut - Woodland
Variant code: ABA-20001-LC-T5-8040-DA-SW03
Lumen (lm): 6228 lm
Optic: T5
Optic value: 119°x147°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Pine - Woodland

ACCESSORY

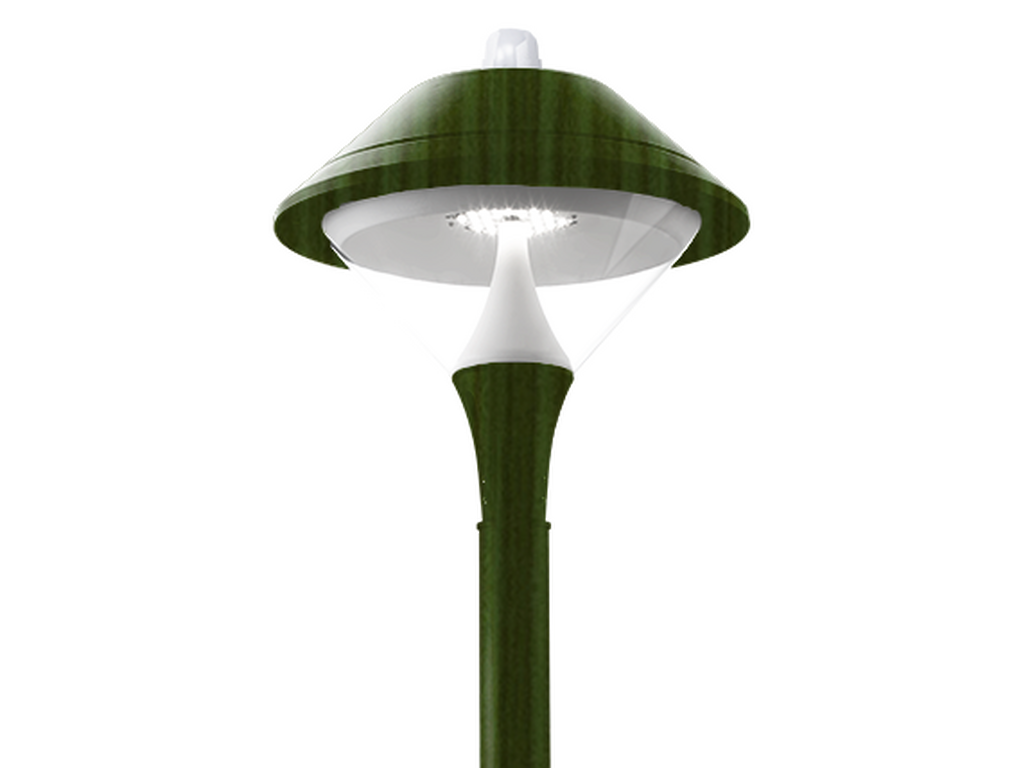

PROJECT REFERENCE (ABERDEEN Post top luminaires)

SOCIAL

Facebook-f Instagram Youtube Linkedin-in Twitter Pinterest Line

NEWSLETTER

Sign up to our newsletter

Copyright © LIGMAN Lighting Co., Ltd.

Privacy Policy      Privacy Policy CCTV      Terms of use      Terms of sales
