LIGMAN ANESTI 1 AN-20597.

ANESTI 1AN-20597ANESTI

Send us an E-Mail or use the contact form:

I have read the privacy policy and agree to the processing of my data *

The fields marked with an * must be correctly filled.
Your request was successfully sent.

Send us an E-Mail or use the contact form:

I have read the privacy policy and agree to the processing of my data *

The fields marked with an * must be correctly filled.
Your request was successfully sent.

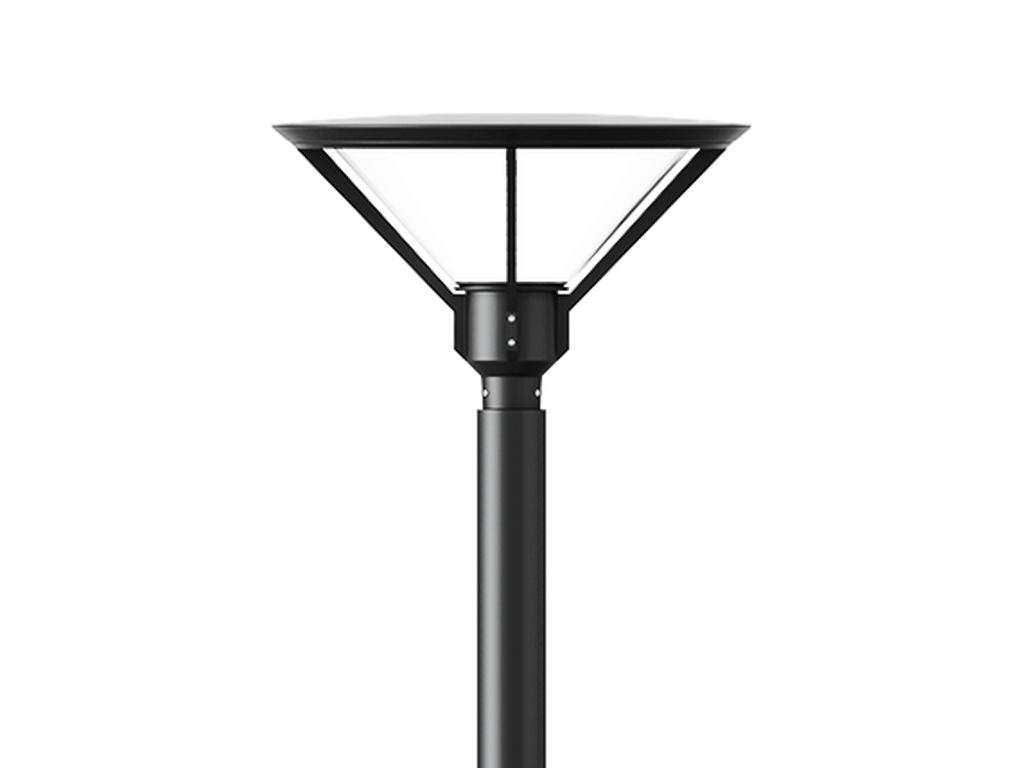

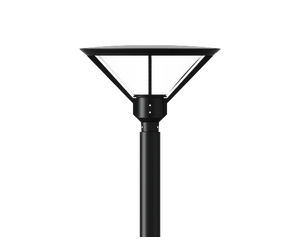

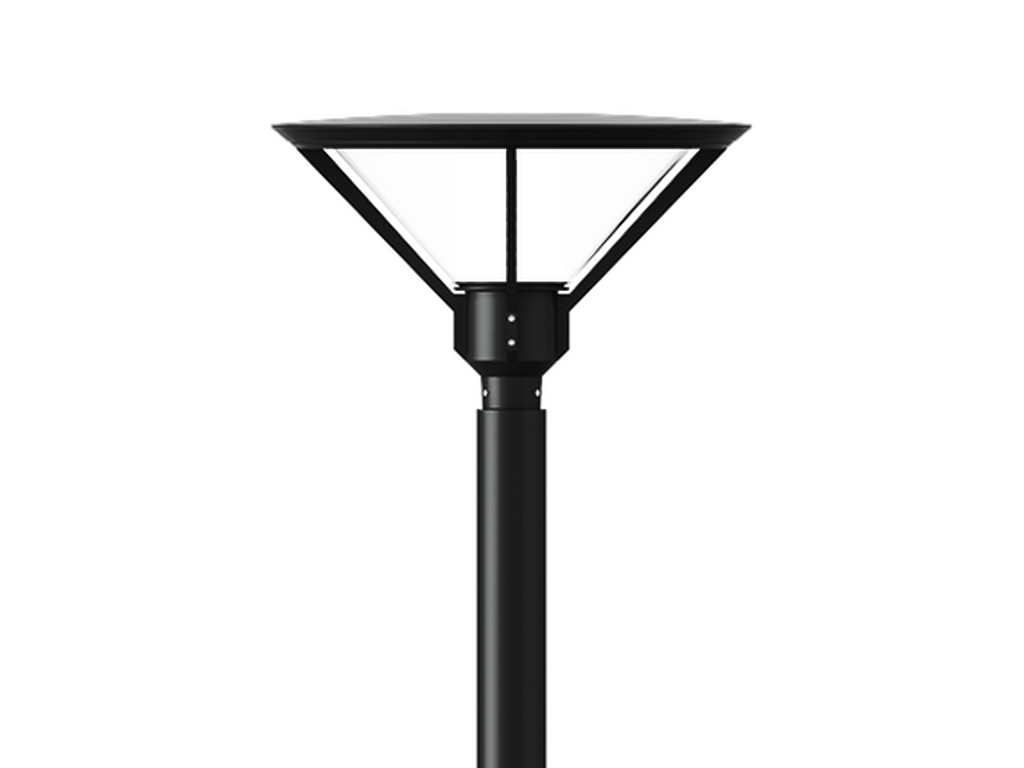

ANESTI 1Black

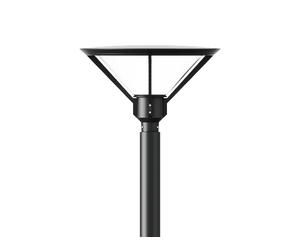

ANESTI 1Dark Grey

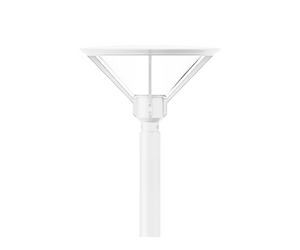

ANESTI 1White

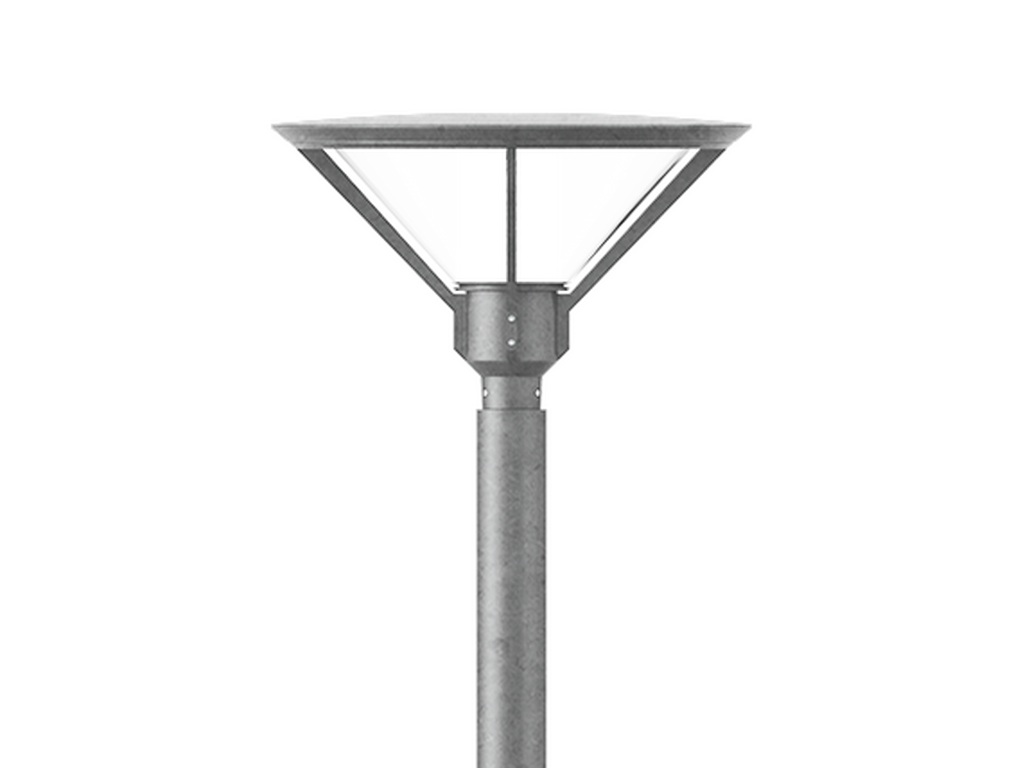

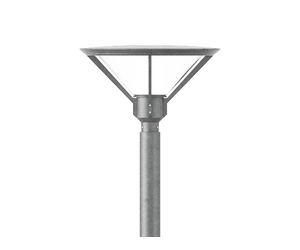

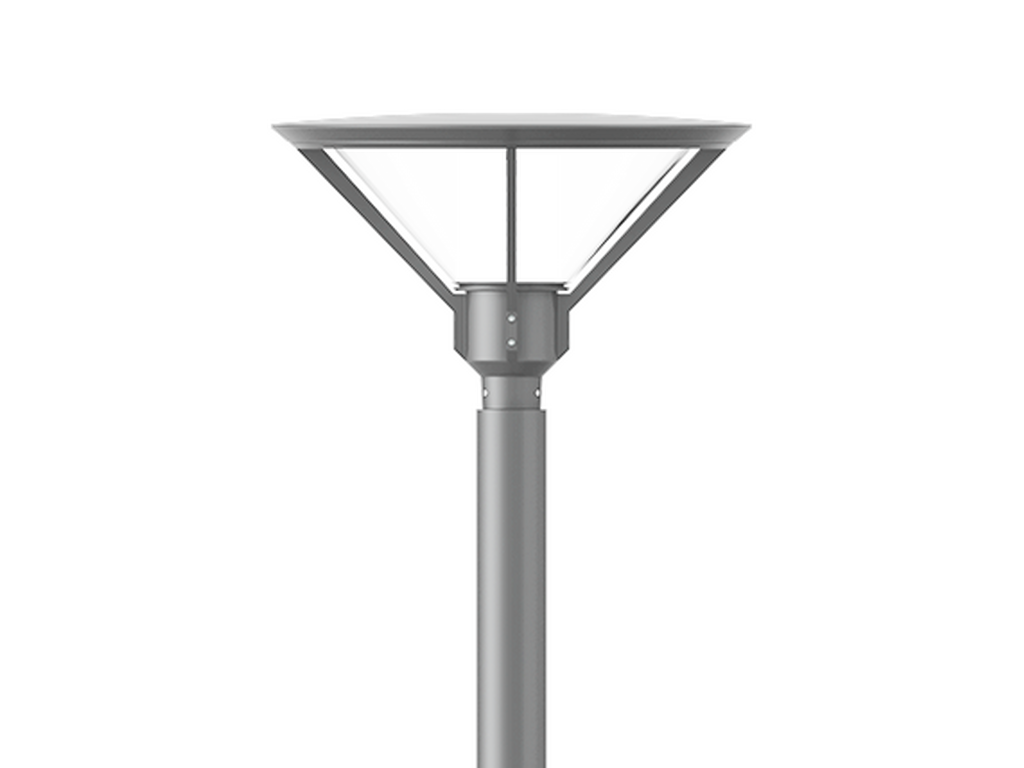

ANESTI 1Matt Silver

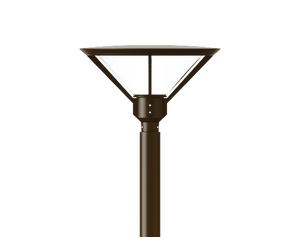

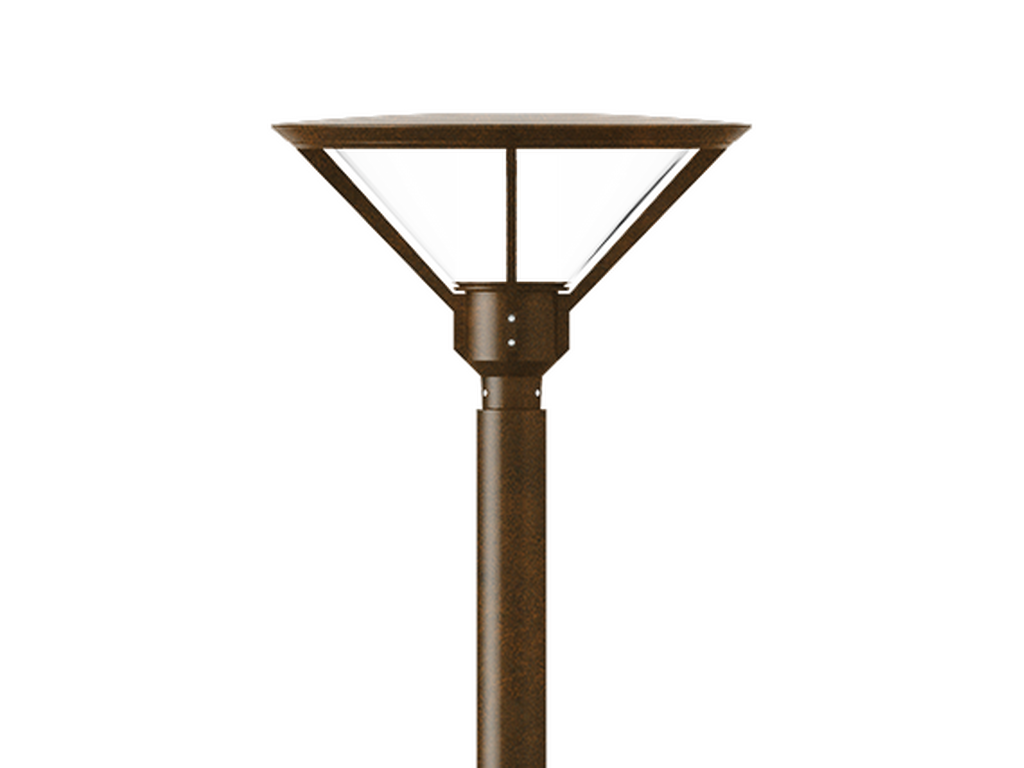

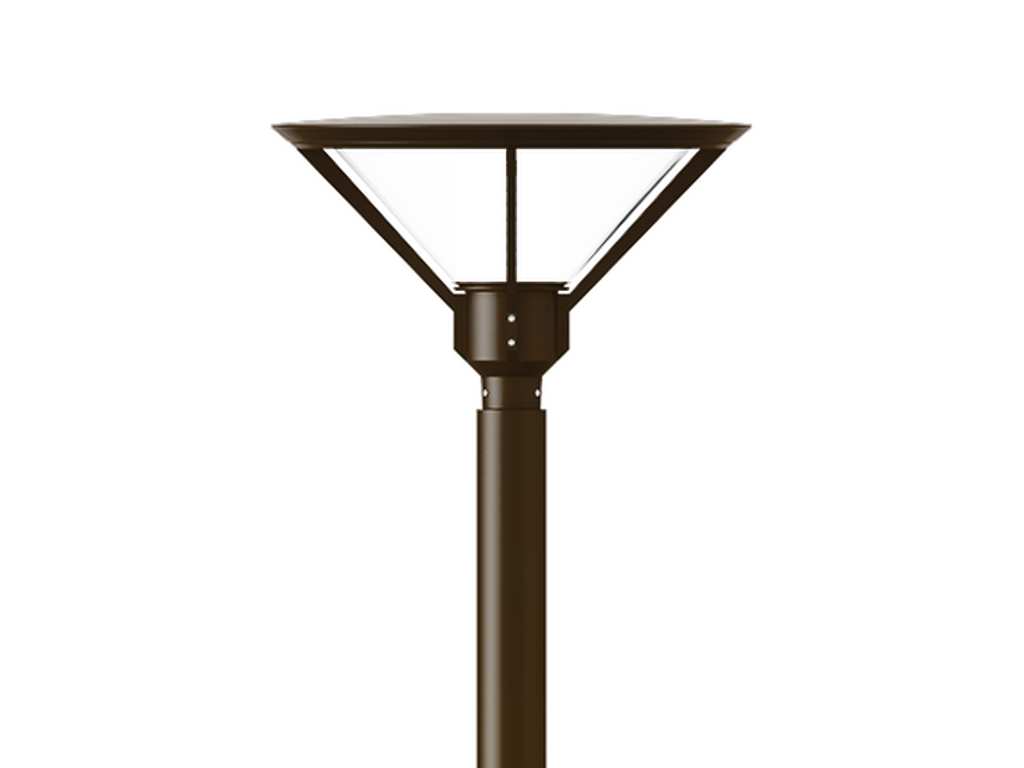

ANESTI 1Bronze
ANESTI 1Concrete - Urban
ANESTI 1Softscape - Urban

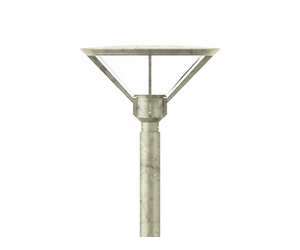

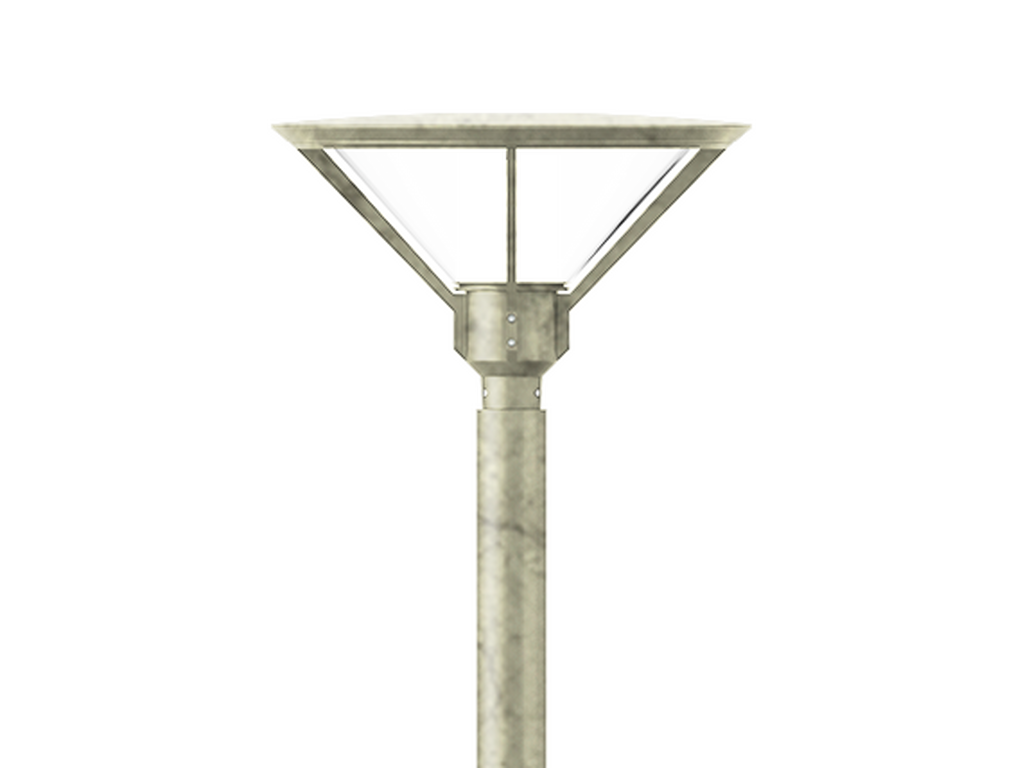

ANESTI 1Stone - Urban

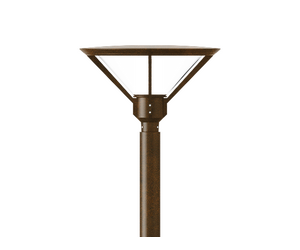

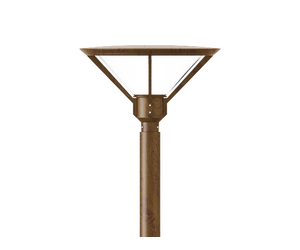

ANESTI 1Corten - Urban

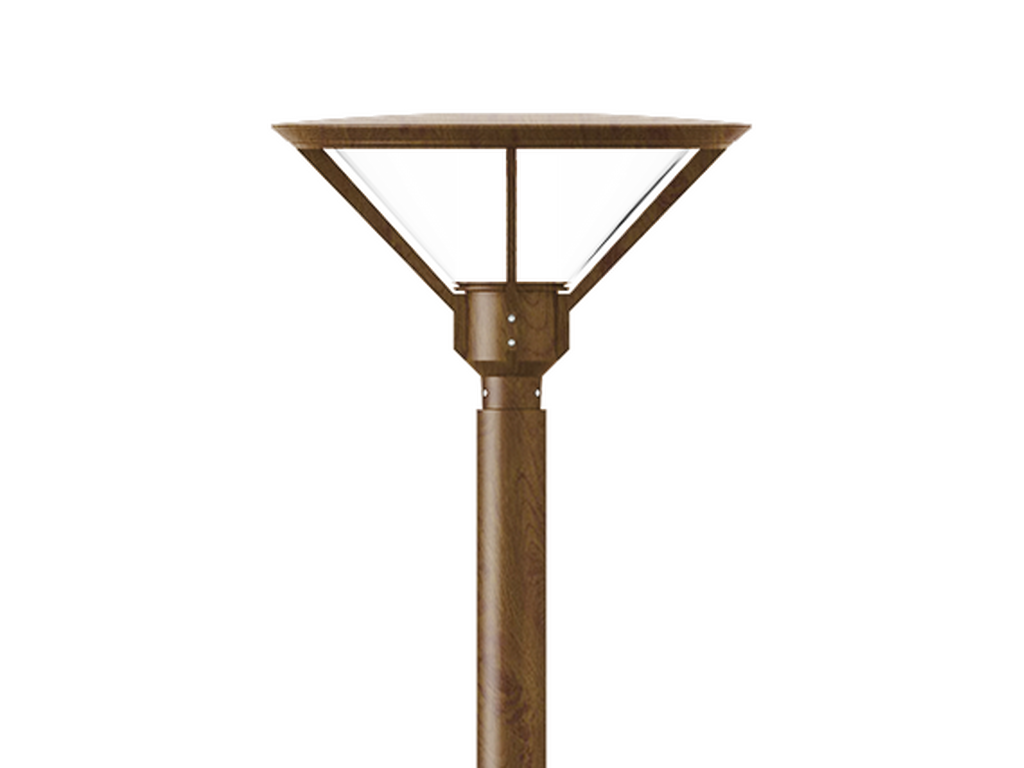

ANESTI 1Oak - Woodland

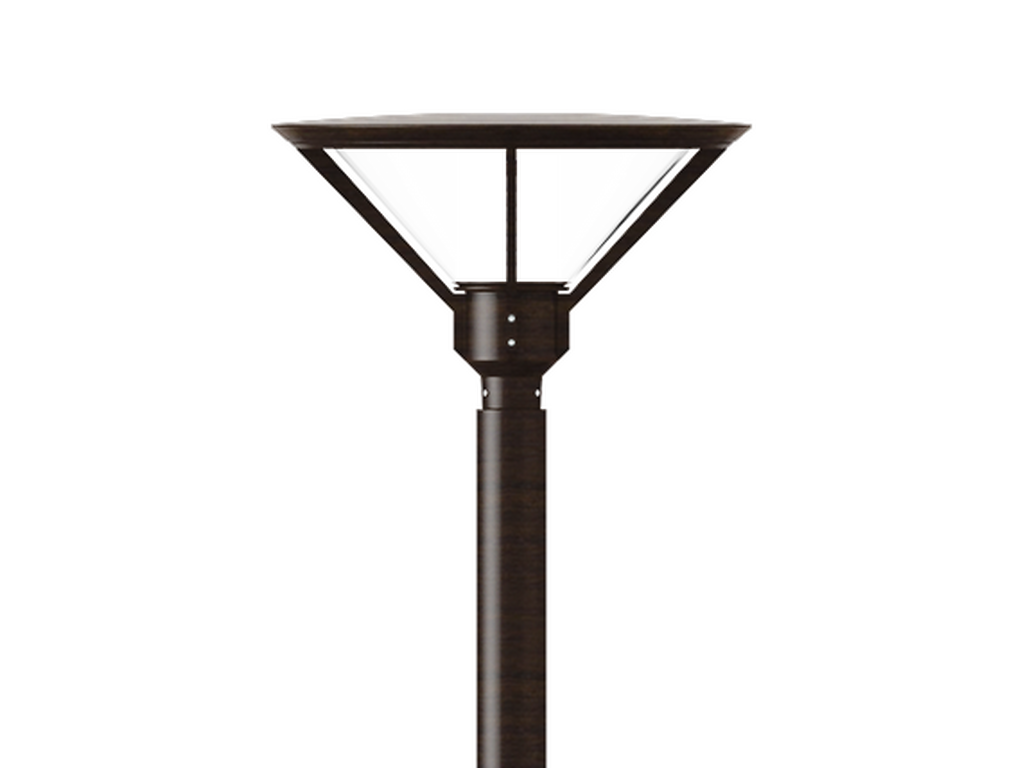

ANESTI 1Walnut - Woodland

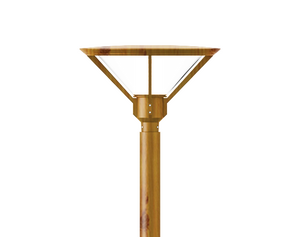

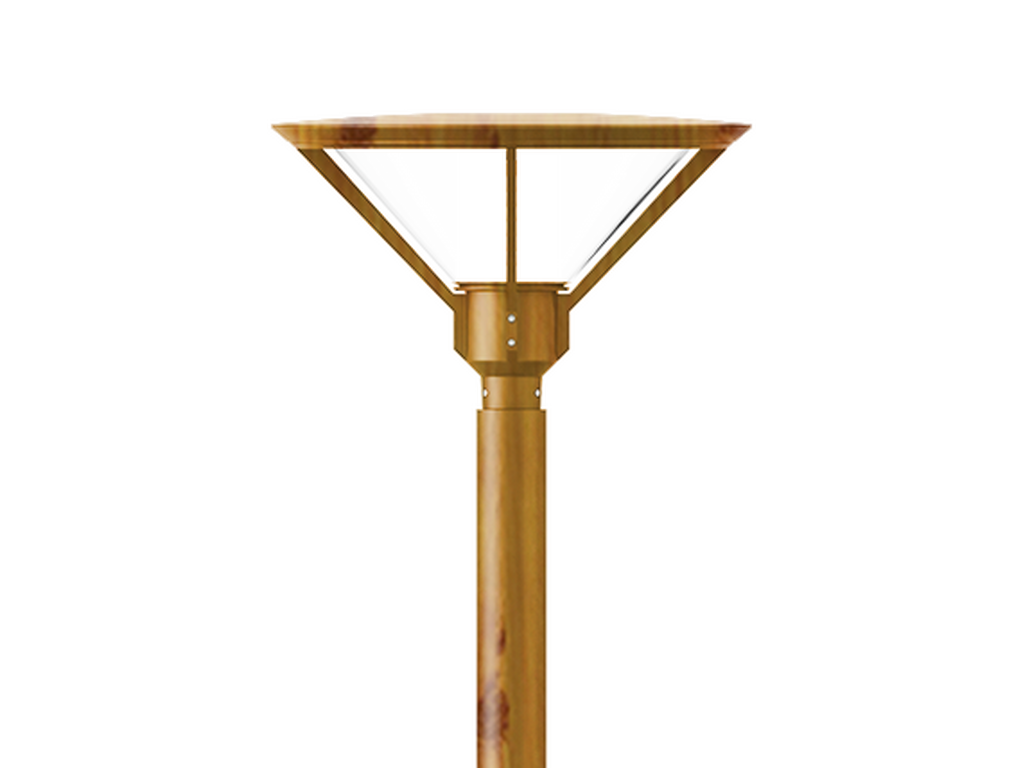

ANESTI 1Pine - Woodland
ANESTI 1Black
ANESTI 1Dark Grey
ANESTI 1White
ANESTI 1Matt Silver
ANESTI 1Bronze
ANESTI 1Concrete - Urban
ANESTI 1Softscape - Urban
ANESTI 1Stone - Urban
ANESTI 1Corten - Urban
ANESTI 1Oak - Woodland
ANESTI 1Walnut - Woodland
ANESTI 1Pine - Woodland
Supplied with a cylindrical, straight aluminium pole - Height options: 3 - 6 m
CEClass IIP55IK07

TECHNICAL SPECIFICATIONS

Material
Aluminium
Light source
24 LED
Power (W)
51 W
Lumen (lm)
6697 - 7102 lm
Efficacy (lm/W)
131 - 139 lm/W
Driver option
Integral control gear
Driver
Constant current (CC)
Input voltage
220-240 V 50/60 Hz
Optic
T2, T3, T4
Optic value
143°x58°, 129°x77°, 106°x73°
CCT / CRI
3000K CRI80, 4000K CRI80
Bug
B1-U3-G1, B2-U3-G2
ULR
3%
ULOR
3%
CIE flux code nº3
92, 94
Dimming type
On/Off
Product colours
Black, Dark Grey, White, Matt Silver, Bronze, Concrete - Urban, Softscape - Urban, Stone - Urban, Corten - Urban, Oak - Woodland, Walnut - Woodland, Pine - Woodland
Weight
29.8 kg
Operating temperature
-20 °C to 40 °C
EPA (m2)
0.160
Through wiring
Single cable entry
Lens / Reflector / Optic
High-efficiency PMMA lens, Clear acrylic PMMA diffuser
MacAdam Ellipse
3 SDCM
Lifetime L90B10 (hours)
> 90,000
Lifetime L80B10 (hours)
> 90,000
Lifetime L80B50 (hours)
> 90,000
Variants (On/Off)
Compatible with EN/ IEC 60598-2-22: Suitable for emergency installations as central supply, non-maintained (Z0)

LIGHT EFFECT

Optic

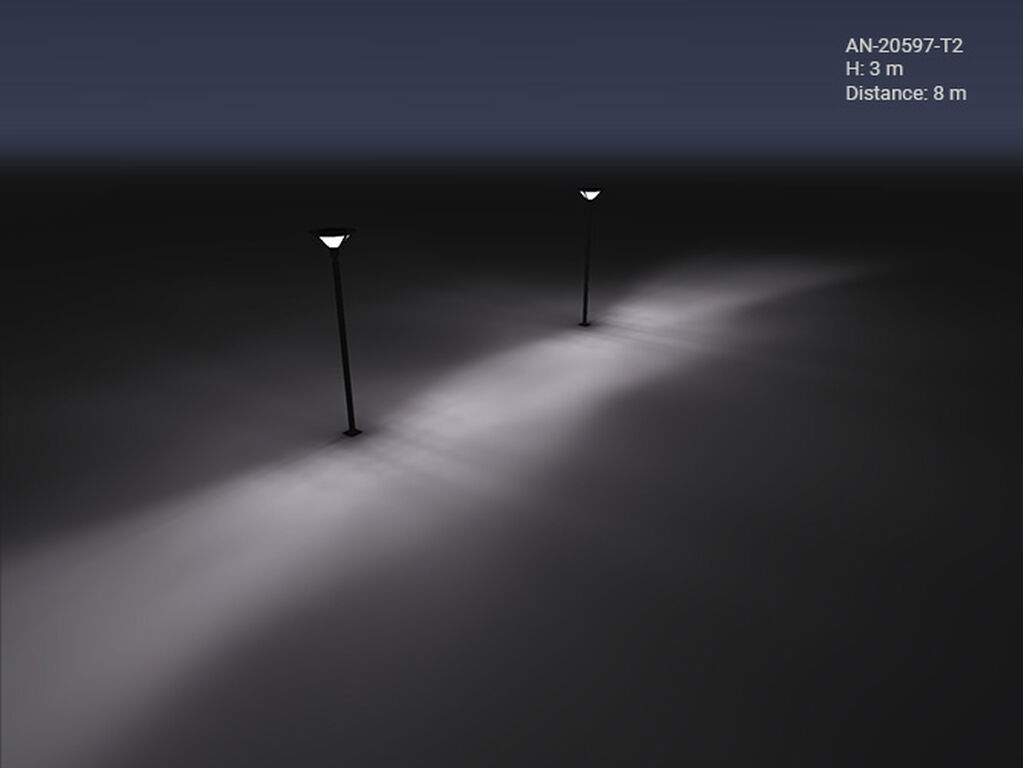

T2 (143°x58°)
T3 (129°x77°)
T4 (106°x73°)

CODE FINDER

Lumen (lm)
Optic
Optic value
CCT / CRI
Dimming type
Product colour
Variant code
Lumen (lm)
Optic
Optic value
CCT / CRI
Dimming type
Product colour
Variant code: AN-20597-T2-8030-ND-01
Lumen (lm): 6707 lm
Optic: T2
Optic value: 143°x58°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Black
Variant code: AN-20597-T2-8030-ND-02
Lumen (lm): 6707 lm
Optic: T2
Optic value: 143°x58°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Dark Grey
Variant code: AN-20597-T2-8030-ND-03
Lumen (lm): 6707 lm
Optic: T2
Optic value: 143°x58°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: White
Variant code: AN-20597-T2-8030-ND-05
Lumen (lm): 6707 lm
Optic: T2
Optic value: 143°x58°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Matt Silver
Variant code: AN-20597-T2-8030-ND-06
Lumen (lm): 6707 lm
Optic: T2
Optic value: 143°x58°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Bronze
Variant code: AN-20597-T2-8030-ND-SU01
Lumen (lm): 6707 lm
Optic: T2
Optic value: 143°x58°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Concrete - Urban
Variant code: AN-20597-T2-8030-ND-SU02
Lumen (lm): 6707 lm
Optic: T2
Optic value: 143°x58°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Softscape - Urban
Variant code: AN-20597-T2-8030-ND-SU03
Lumen (lm): 6707 lm
Optic: T2
Optic value: 143°x58°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Stone - Urban
Variant code: AN-20597-T2-8030-ND-SU04
Lumen (lm): 6707 lm
Optic: T2
Optic value: 143°x58°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Corten - Urban
Variant code: AN-20597-T2-8030-ND-SW01
Lumen (lm): 6707 lm
Optic: T2
Optic value: 143°x58°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Oak - Woodland
Variant code: AN-20597-T2-8030-ND-SW02
Lumen (lm): 6707 lm
Optic: T2
Optic value: 143°x58°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Walnut - Woodland
Variant code: AN-20597-T2-8030-ND-SW03
Lumen (lm): 6707 lm
Optic: T2
Optic value: 143°x58°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Pine - Woodland
Variant code: AN-20597-T2-8040-ND-01
Lumen (lm): 7059 lm
Optic: T2
Optic value: 143°x58°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Black
Variant code: AN-20597-T2-8040-ND-02
Lumen (lm): 7059 lm
Optic: T2
Optic value: 143°x58°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Dark Grey
Variant code: AN-20597-T2-8040-ND-03
Lumen (lm): 7059 lm
Optic: T2
Optic value: 143°x58°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: White
Variant code: AN-20597-T2-8040-ND-05
Lumen (lm): 7059 lm
Optic: T2
Optic value: 143°x58°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Matt Silver
Variant code: AN-20597-T2-8040-ND-06
Lumen (lm): 7059 lm
Optic: T2
Optic value: 143°x58°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Bronze
Variant code: AN-20597-T2-8040-ND-SU01
Lumen (lm): 7059 lm
Optic: T2
Optic value: 143°x58°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Concrete - Urban
Variant code: AN-20597-T2-8040-ND-SU02
Lumen (lm): 7059 lm
Optic: T2
Optic value: 143°x58°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Softscape - Urban
Variant code: AN-20597-T2-8040-ND-SU03
Lumen (lm): 7059 lm
Optic: T2
Optic value: 143°x58°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Stone - Urban
Variant code: AN-20597-T2-8040-ND-SU04
Lumen (lm): 7059 lm
Optic: T2
Optic value: 143°x58°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Corten - Urban
Variant code: AN-20597-T2-8040-ND-SW01
Lumen (lm): 7059 lm
Optic: T2
Optic value: 143°x58°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Oak - Woodland
Variant code: AN-20597-T2-8040-ND-SW02
Lumen (lm): 7059 lm
Optic: T2
Optic value: 143°x58°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Walnut - Woodland
Variant code: AN-20597-T2-8040-ND-SW03
Lumen (lm): 7059 lm
Optic: T2
Optic value: 143°x58°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Pine - Woodland
Variant code: AN-20597-T3-8030-ND-01
Lumen (lm): 6697 lm
Optic: T3
Optic value: 129°x77°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Black
Variant code: AN-20597-T3-8030-ND-02
Lumen (lm): 6697 lm
Optic: T3
Optic value: 129°x77°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Dark Grey
Variant code: AN-20597-T3-8030-ND-03
Lumen (lm): 6697 lm
Optic: T3
Optic value: 129°x77°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: White
Variant code: AN-20597-T3-8030-ND-05
Lumen (lm): 6697 lm
Optic: T3
Optic value: 129°x77°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Matt Silver
Variant code: AN-20597-T3-8030-ND-06
Lumen (lm): 6697 lm
Optic: T3
Optic value: 129°x77°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Bronze
Variant code: AN-20597-T3-8030-ND-SU01
Lumen (lm): 6697 lm
Optic: T3
Optic value: 129°x77°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Concrete - Urban
Variant code: AN-20597-T3-8030-ND-SU02
Lumen (lm): 6697 lm
Optic: T3
Optic value: 129°x77°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Softscape - Urban
Variant code: AN-20597-T3-8030-ND-SU03
Lumen (lm): 6697 lm
Optic: T3
Optic value: 129°x77°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Stone - Urban
Variant code: AN-20597-T3-8030-ND-SU04
Lumen (lm): 6697 lm
Optic: T3
Optic value: 129°x77°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Corten - Urban
Variant code: AN-20597-T3-8030-ND-SW01
Lumen (lm): 6697 lm
Optic: T3
Optic value: 129°x77°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Oak - Woodland
Variant code: AN-20597-T3-8030-ND-SW02
Lumen (lm): 6697 lm
Optic: T3
Optic value: 129°x77°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Walnut - Woodland
Variant code: AN-20597-T3-8030-ND-SW03
Lumen (lm): 6697 lm
Optic: T3
Optic value: 129°x77°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Pine - Woodland
Variant code: AN-20597-T3-8040-ND-01
Lumen (lm): 7049 lm
Optic: T3
Optic value: 129°x77°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Black
Variant code: AN-20597-T3-8040-ND-02
Lumen (lm): 7049 lm
Optic: T3
Optic value: 129°x77°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Dark Grey
Variant code: AN-20597-T3-8040-ND-03
Lumen (lm): 7049 lm
Optic: T3
Optic value: 129°x77°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: White
Variant code: AN-20597-T3-8040-ND-05
Lumen (lm): 7049 lm
Optic: T3
Optic value: 129°x77°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Matt Silver
Variant code: AN-20597-T3-8040-ND-06
Lumen (lm): 7049 lm
Optic: T3
Optic value: 129°x77°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Bronze
Variant code: AN-20597-T3-8040-ND-SU01
Lumen (lm): 7049 lm
Optic: T3
Optic value: 129°x77°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Concrete - Urban
Variant code: AN-20597-T3-8040-ND-SU02
Lumen (lm): 7049 lm
Optic: T3
Optic value: 129°x77°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Softscape - Urban
Variant code: AN-20597-T3-8040-ND-SU03
Lumen (lm): 7049 lm
Optic: T3
Optic value: 129°x77°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Stone - Urban
Variant code: AN-20597-T3-8040-ND-SU04
Lumen (lm): 7049 lm
Optic: T3
Optic value: 129°x77°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Corten - Urban
Variant code: AN-20597-T3-8040-ND-SW01
Lumen (lm): 7049 lm
Optic: T3
Optic value: 129°x77°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Oak - Woodland
Variant code: AN-20597-T3-8040-ND-SW02
Lumen (lm): 7049 lm
Optic: T3
Optic value: 129°x77°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Walnut - Woodland
Variant code: AN-20597-T3-8040-ND-SW03
Lumen (lm): 7049 lm
Optic: T3
Optic value: 129°x77°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Pine - Woodland
Variant code: AN-20597-T4-8030-ND-01
Lumen (lm): 6748 lm
Optic: T4
Optic value: 106°x73°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Black
Variant code: AN-20597-T4-8030-ND-02
Lumen (lm): 6748 lm
Optic: T4
Optic value: 106°x73°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Dark Grey
Variant code: AN-20597-T4-8030-ND-03
Lumen (lm): 6748 lm
Optic: T4
Optic value: 106°x73°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: White
Variant code: AN-20597-T4-8030-ND-05
Lumen (lm): 6748 lm
Optic: T4
Optic value: 106°x73°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Matt Silver
Variant code: AN-20597-T4-8030-ND-06
Lumen (lm): 6748 lm
Optic: T4
Optic value: 106°x73°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Bronze
Variant code: AN-20597-T4-8030-ND-SU01
Lumen (lm): 6748 lm
Optic: T4
Optic value: 106°x73°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Concrete - Urban
Variant code: AN-20597-T4-8030-ND-SU02
Lumen (lm): 6748 lm
Optic: T4
Optic value: 106°x73°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Softscape - Urban
Variant code: AN-20597-T4-8030-ND-SU03
Lumen (lm): 6748 lm
Optic: T4
Optic value: 106°x73°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Stone - Urban
Variant code: AN-20597-T4-8030-ND-SU04
Lumen (lm): 6748 lm
Optic: T4
Optic value: 106°x73°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Corten - Urban
Variant code: AN-20597-T4-8030-ND-SW01
Lumen (lm): 6748 lm
Optic: T4
Optic value: 106°x73°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Oak - Woodland
Variant code: AN-20597-T4-8030-ND-SW02
Lumen (lm): 6748 lm
Optic: T4
Optic value: 106°x73°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Walnut - Woodland
Variant code: AN-20597-T4-8030-ND-SW03
Lumen (lm): 6748 lm
Optic: T4
Optic value: 106°x73°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Pine - Woodland
Variant code: AN-20597-T4-8040-ND-01
Lumen (lm): 7102 lm
Optic: T4
Optic value: 106°x73°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Black
Variant code: AN-20597-T4-8040-ND-02
Lumen (lm): 7102 lm
Optic: T4
Optic value: 106°x73°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Dark Grey
Variant code: AN-20597-T4-8040-ND-03
Lumen (lm): 7102 lm
Optic: T4
Optic value: 106°x73°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: White
Variant code: AN-20597-T4-8040-ND-05
Lumen (lm): 7102 lm
Optic: T4
Optic value: 106°x73°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Matt Silver
Variant code: AN-20597-T4-8040-ND-06
Lumen (lm): 7102 lm
Optic: T4
Optic value: 106°x73°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Bronze
Variant code: AN-20597-T4-8040-ND-SU01
Lumen (lm): 7102 lm
Optic: T4
Optic value: 106°x73°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Concrete - Urban
Variant code: AN-20597-T4-8040-ND-SU02
Lumen (lm): 7102 lm
Optic: T4
Optic value: 106°x73°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Softscape - Urban
Variant code: AN-20597-T4-8040-ND-SU03
Lumen (lm): 7102 lm
Optic: T4
Optic value: 106°x73°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Stone - Urban
Variant code: AN-20597-T4-8040-ND-SU04
Lumen (lm): 7102 lm
Optic: T4
Optic value: 106°x73°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Corten - Urban
Variant code: AN-20597-T4-8040-ND-SW01
Lumen (lm): 7102 lm
Optic: T4
Optic value: 106°x73°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Oak - Woodland
Variant code: AN-20597-T4-8040-ND-SW02
Lumen (lm): 7102 lm
Optic: T4
Optic value: 106°x73°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Walnut - Woodland
Variant code: AN-20597-T4-8040-ND-SW03
Lumen (lm): 7102 lm
Optic: T4
Optic value: 106°x73°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Pine - Woodland

ACCESSORY

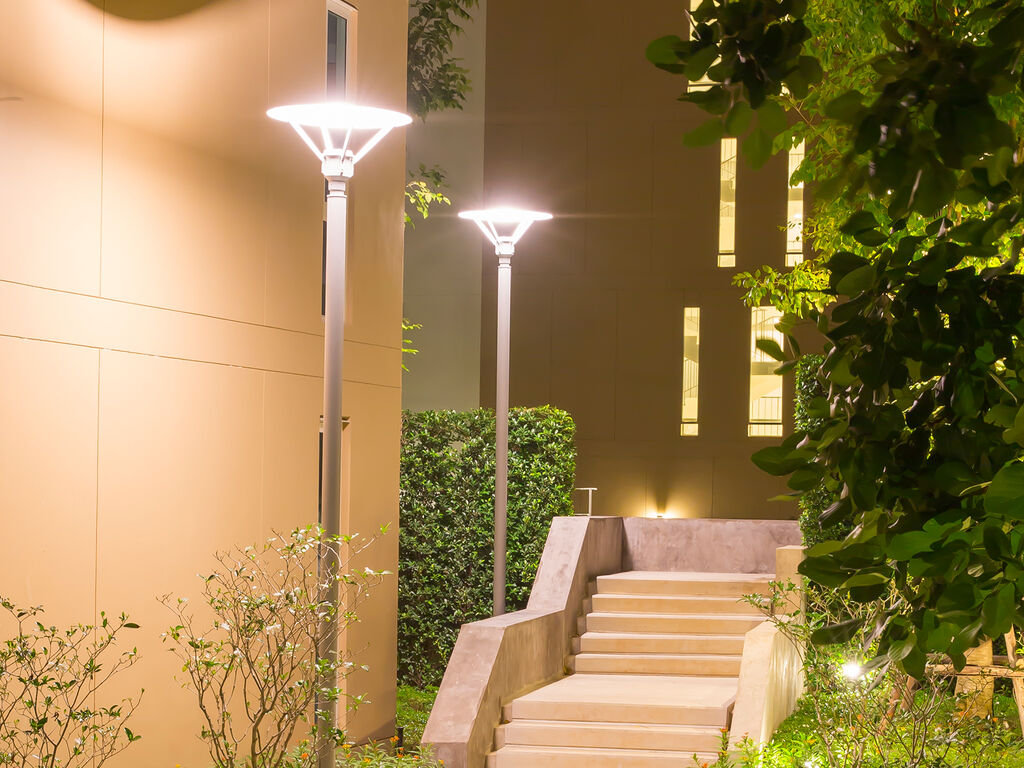

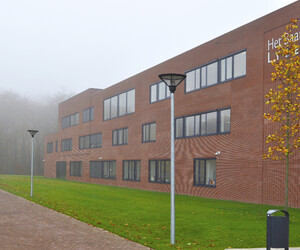

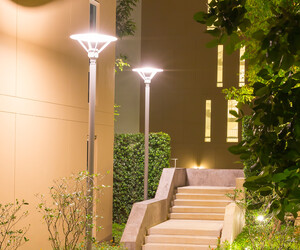

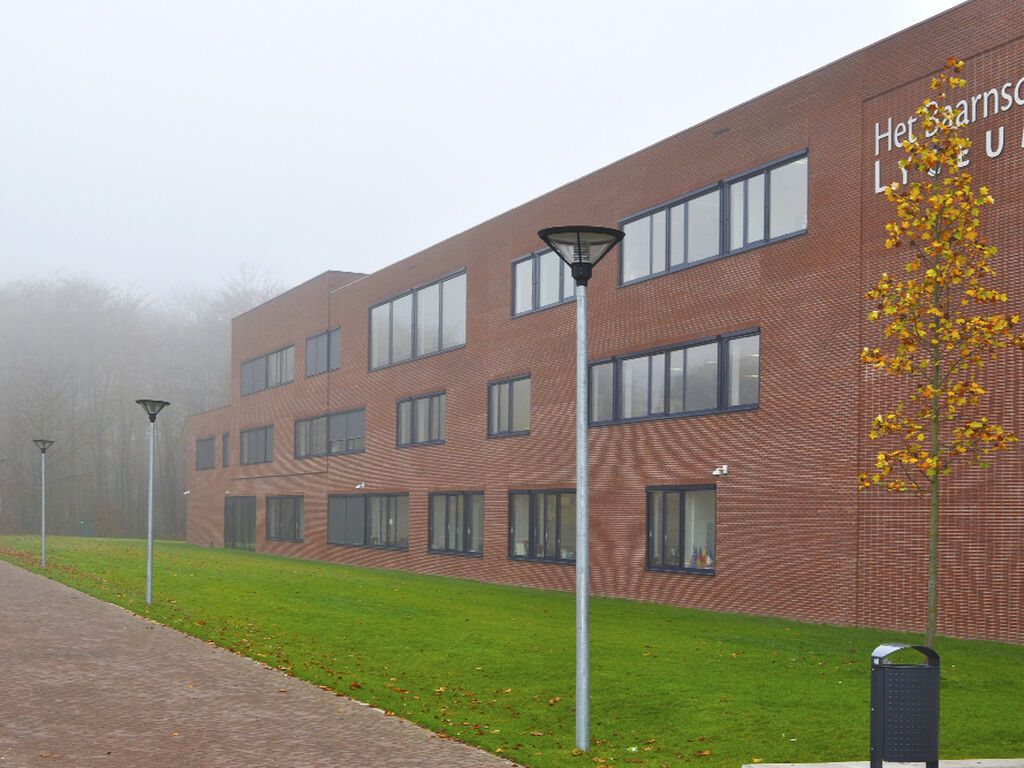

PROJECT REFERENCE (ANESTI Post top luminaires)
