LIGMAN AQUA 2 AQ-60011.

AQUA 2AQ-60011

(Version 1)

Recessed underwater projectors

Send us an E-Mail or use the contact form:

I have read the privacy policy and agree to the processing of my data *

The fields marked with an * must be correctly filled.
Your request was successfully sent.

Send us an E-Mail or use the contact form:

I have read the privacy policy and agree to the processing of my data *

The fields marked with an * must be correctly filled.
Your request was successfully sent.
AQUA 2
Without remote box IP-rated - With remote driver / recessing box - Constant current (CC) 1050 mA
CERETILAPClass IIIIP68IK07

TECHNICAL SPECIFICATIONS

Material
Stainless Steel
Light source
1 COB
Power (W)
21 W
Lumen (lm)
1555 - 1648 lm
Efficacy (lm/W)
74 - 78 lm/W
Driver option
Remote driver (included)
Driver
Constant current (CC)
Input voltage
1050 mA, 18 VDC
Optic
M, W, VW
Optic value
26°, 42°, 60°
CCT / CRI
3000K CRI80, 4000K CRI80
Bug
B1-U0-G0, B2-U0-G0
ULR
<1%
ULOR
<1%
CIE flux code nº3
100
Dimming type
On/Off
Product colours
Stainless Steel
Weight
2.2 kg
Operating temperature
-20 °C to 40 °C
Cable
One cable gland supplied with 2 m of 2x1.0 sqmm outdoor cable
Through wiring
Single cable entry
Lens / Reflector / Optic
Clear toughened glass

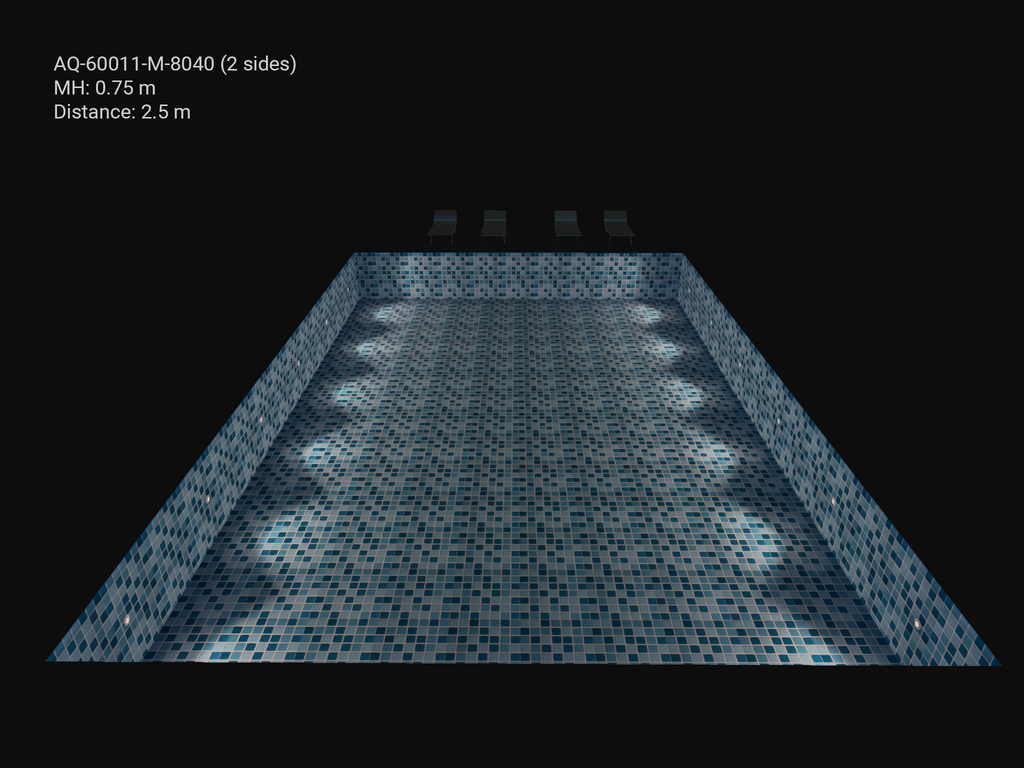

LIGHT EFFECT

Optic
M (26°)
W (42°)
VW (60°)

CODE FINDER

Lumen (lm)
Optic
Optic value
CCT / CRI
Dimming type
Product colour
Variant code
Lumen (lm)
Optic
Optic value
CCT / CRI
Dimming type
Product colour
Variant code: AQ-60011-M-8030-ND-00
Lumen (lm): 1555 lm
Optic: M
Optic value: 26°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Stainless Steel
Variant code: AQ-60011-M-8040-ND-00
Lumen (lm): 1637 lm
Optic: M
Optic value: 26°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Stainless Steel
Variant code: AQ-60011-W-8030-ND-00
Lumen (lm): 1566 lm
Optic: W
Optic value: 42°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Stainless Steel
Variant code: AQ-60011-W-8040-ND-00
Lumen (lm): 1648 lm
Optic: W
Optic value: 42°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Stainless Steel
Variant code: AQ-60011-VW-8030-ND-00
Lumen (lm): 1558 lm
Optic: VW
Optic value: 60°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Stainless Steel
Variant code: AQ-60011-VW-8040-ND-00
Lumen (lm): 1640 lm
Optic: VW
Optic value: 60°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Stainless Steel

ACCESSORY

PROJECT REFERENCE (AQUA Recessed underwater projectors)
