LIGMAN ARIZONA 2 AR-20974.

ARIZONA 2AR-20974ARIZONA

Send us an E-Mail or use the contact form:

I have read the privacy policy and agree to the processing of my data *

The fields marked with an * must be correctly filled.
Your request was successfully sent.

Send us an E-Mail or use the contact form:

I have read the privacy policy and agree to the processing of my data *

The fields marked with an * must be correctly filled.
Your request was successfully sent.

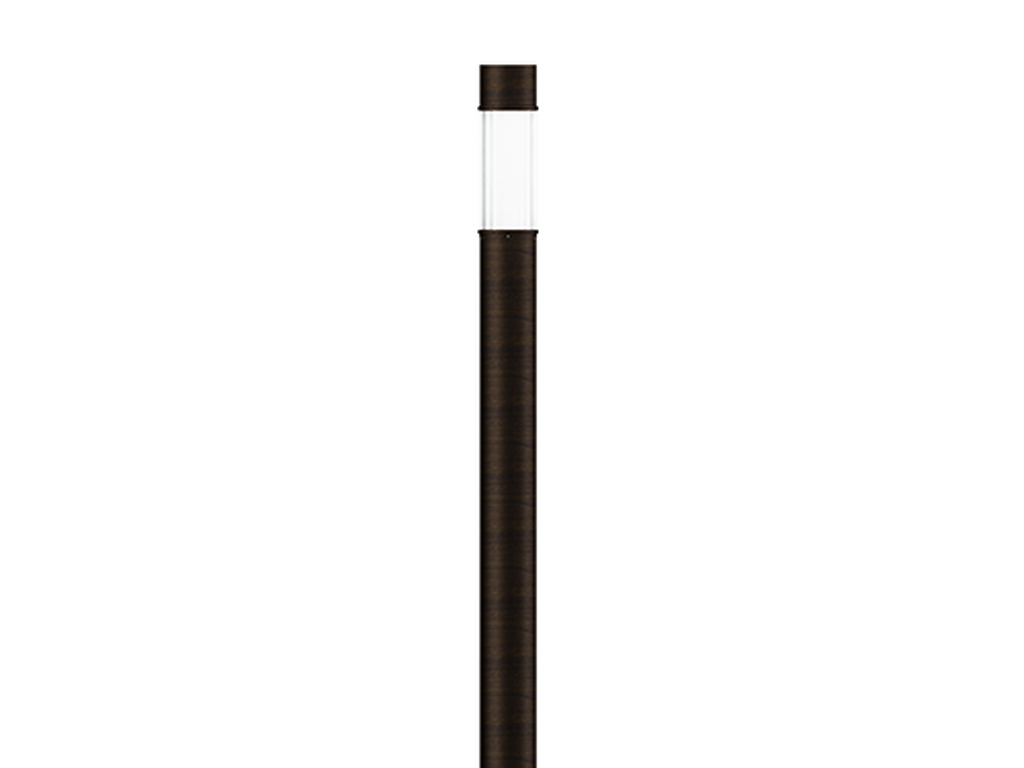

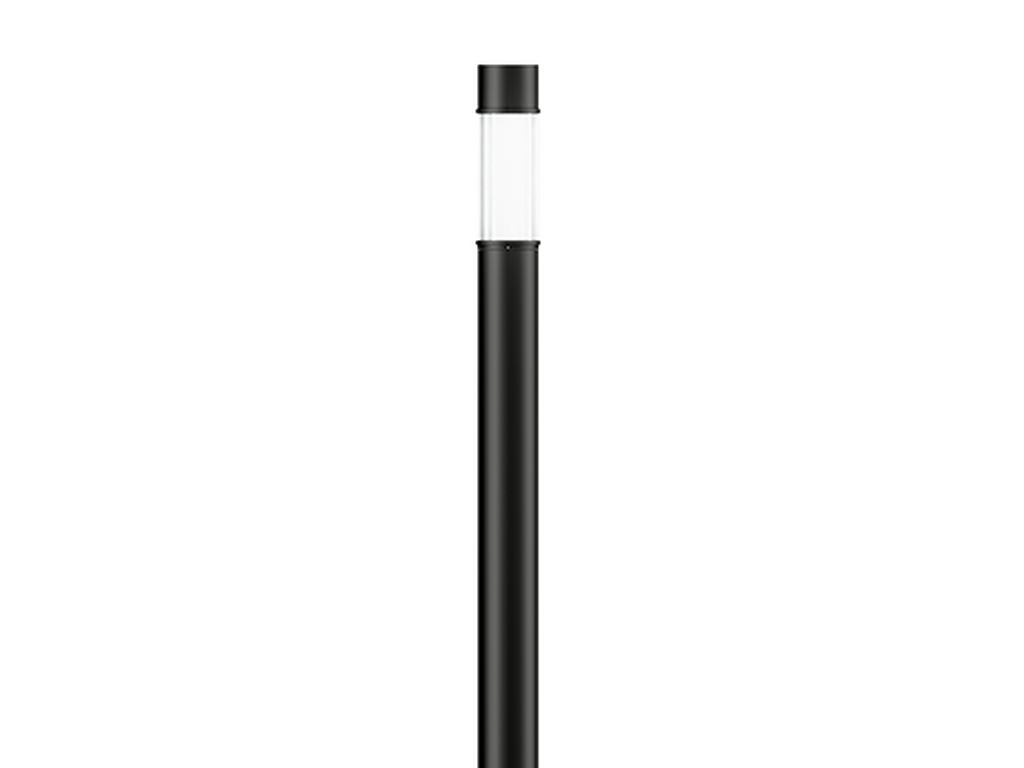

ARIZONA 2Black

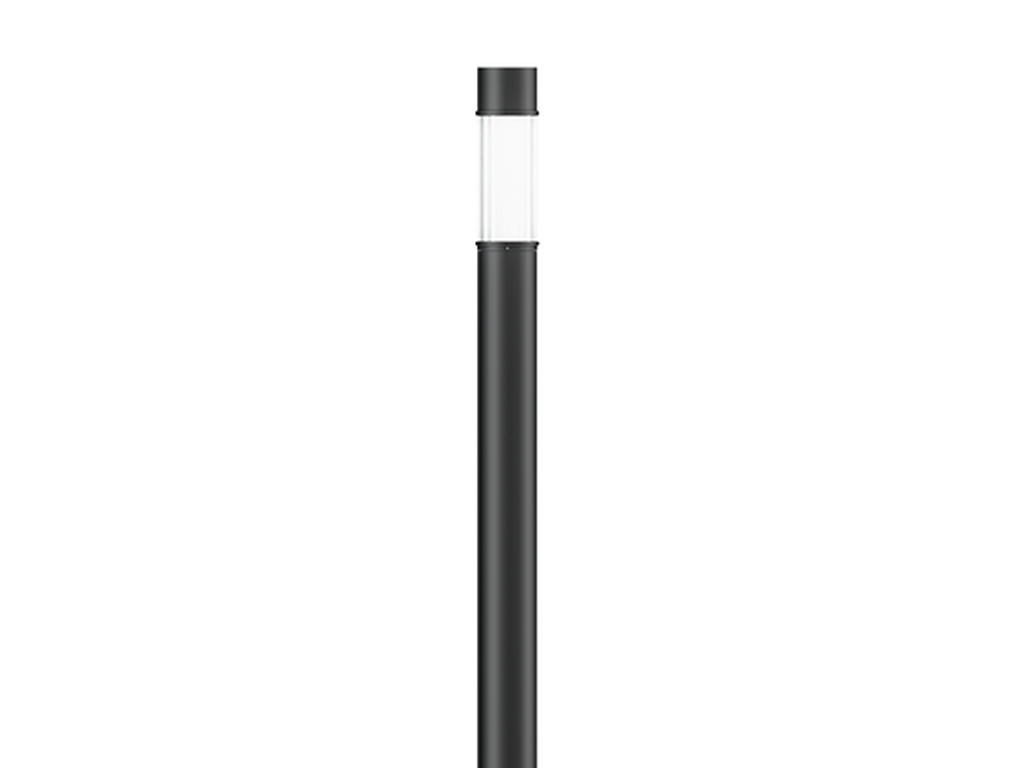

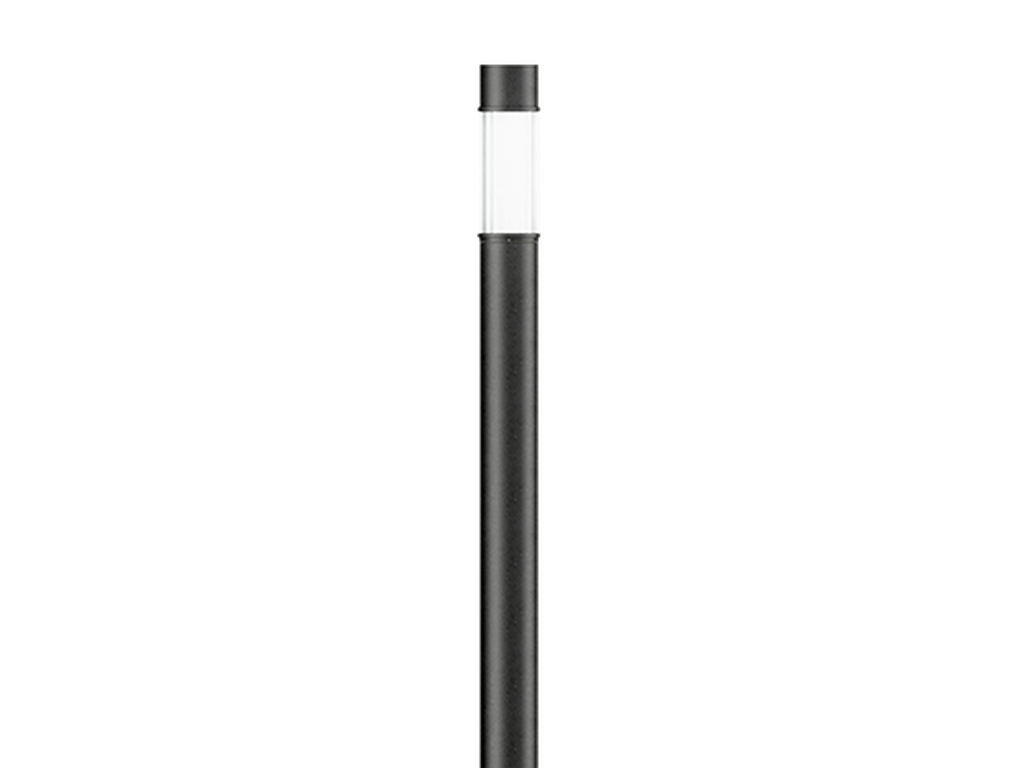

ARIZONA 2Dark Grey

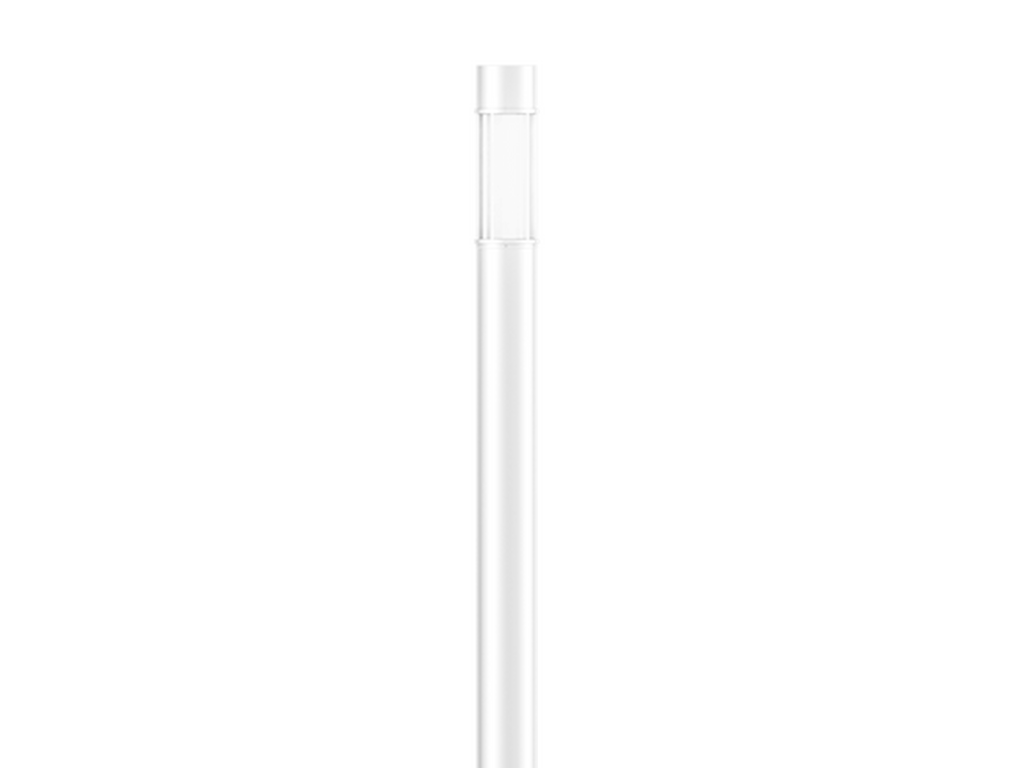

ARIZONA 2White

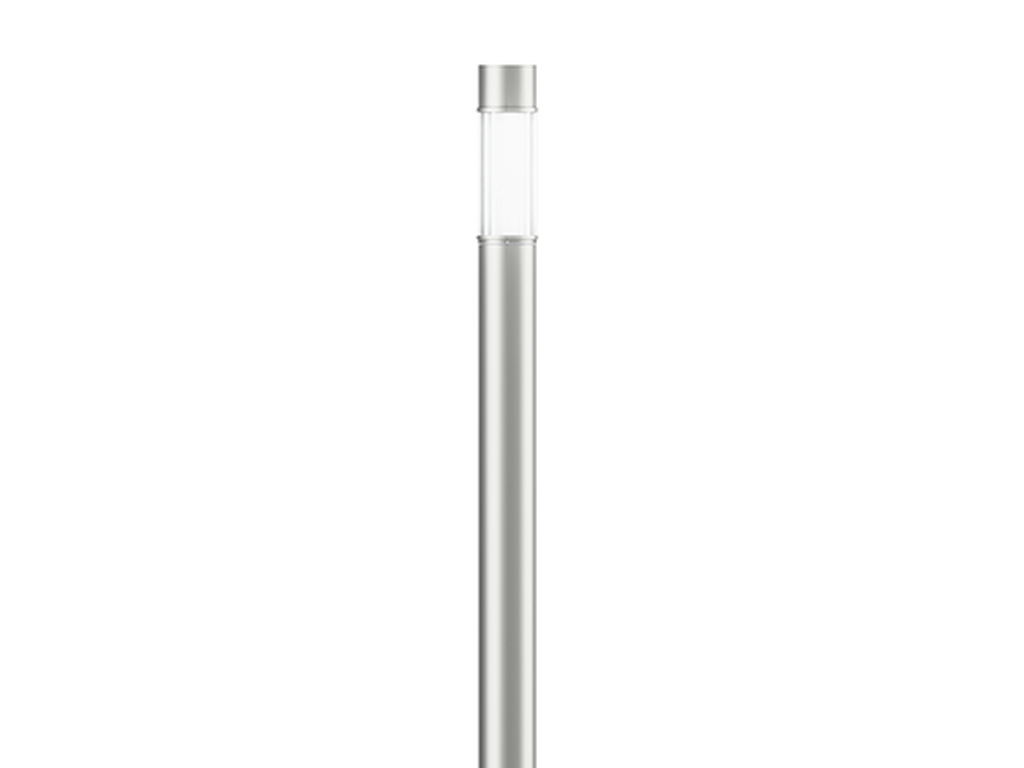

ARIZONA 2Matt Silver

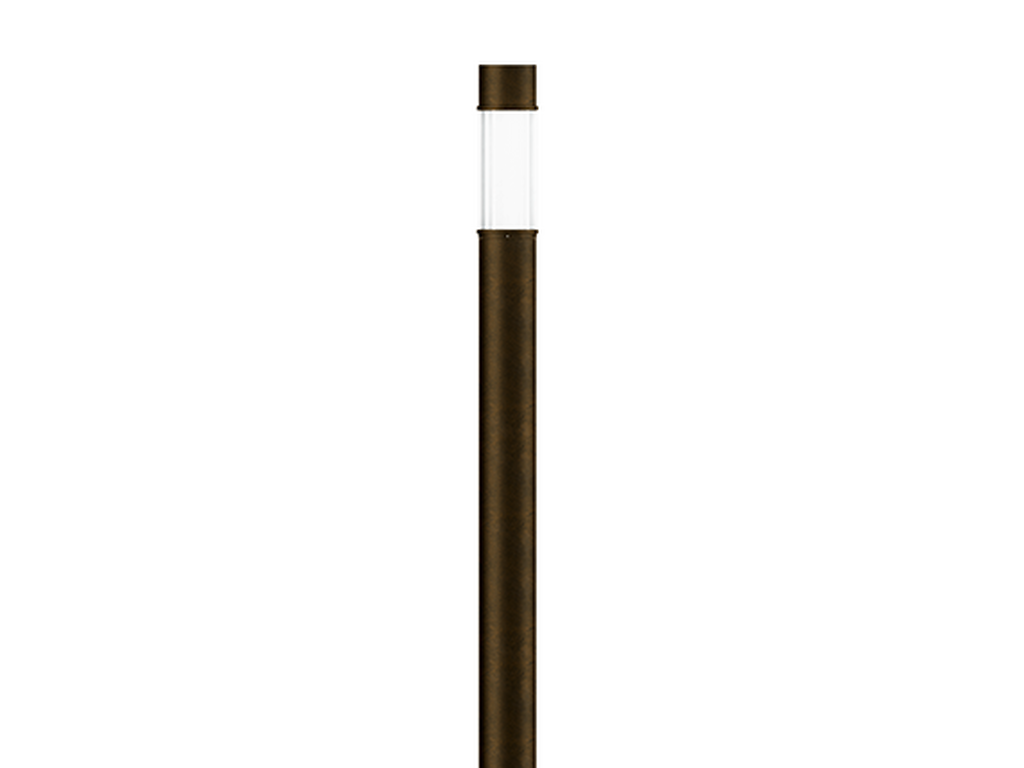

ARIZONA 2Bronze
ARIZONA 2Concrete - Urban
ARIZONA 2Softscape - Urban
ARIZONA 2Stone - Urban
ARIZONA 2Corten - Urban
ARIZONA 2Oak - Woodland
ARIZONA 2Walnut - Woodland
ARIZONA 2Pine - Woodland
ARIZONA 2Black
ARIZONA 2Dark Grey
ARIZONA 2White
ARIZONA 2Matt Silver
ARIZONA 2Bronze
ARIZONA 2Concrete - Urban
ARIZONA 2Softscape - Urban
ARIZONA 2Stone - Urban
ARIZONA 2Corten - Urban
ARIZONA 2Oak - Woodland
ARIZONA 2Walnut - Woodland
ARIZONA 2Pine - Woodland
Ø225 mm - Supplied with specific 3 m cylindrical, straight aluminium pole: APD130225-AR-20974 - IP65 - IK06
CERETILAPBISClass IIP65IK06

TECHNICAL SPECIFICATIONS

Material
Aluminium
Light source
16 LED
Power (W)
35 W
Lumen (lm)
3288 - 3697 lm
Efficacy (lm/W)
94 - 106 lm/W
Driver option
Integral control gear
Driver
Constant current (CC)
Input voltage
220-240 V 50/60 Hz
Optic
T2, T3, T4, ME
Optic value
142°x 52°, 137°x 65°, 93°x 64°, 135°x 60°
CCT / CRI
3000K CRI80, 4000K CRI80
Bug
B1-U2-G1
ULR
1%, 4%
ULOR
1%, 4%
CIE flux code nº3
97, 98
Dimming type
On/Off, 1-10V, DALI
Product colours
Black, Dark Grey, White, Matt Silver, Bronze, Concrete - Urban, Softscape - Urban, Stone - Urban, Corten - Urban, Oak - Woodland, Walnut - Woodland, Pine - Woodland
Weight
34.8 kg
Operating temperature
-20 °C to 40 °C
EPA (m2)
0.830
Cable
One IP68 connector supplied with 0.2 m of 3x1.0 sqmm outdoor cable
Through wiring
Single cable entry
Lens / Reflector / Optic
High-efficiency PMMA lens, Clear acrylic PMMA diffuser
MacAdam Ellipse
3 SDCM
Lifetime L90B10 (hours)
> 90,000
Lifetime L80B10 (hours)
> 90,000
Lifetime L80B50 (hours)
> 90,000
Variants (1-10V)
Compatible with EN/ IEC 60598-2-22: Suitable for emergency installations as central supply, non-maintained (Z0)

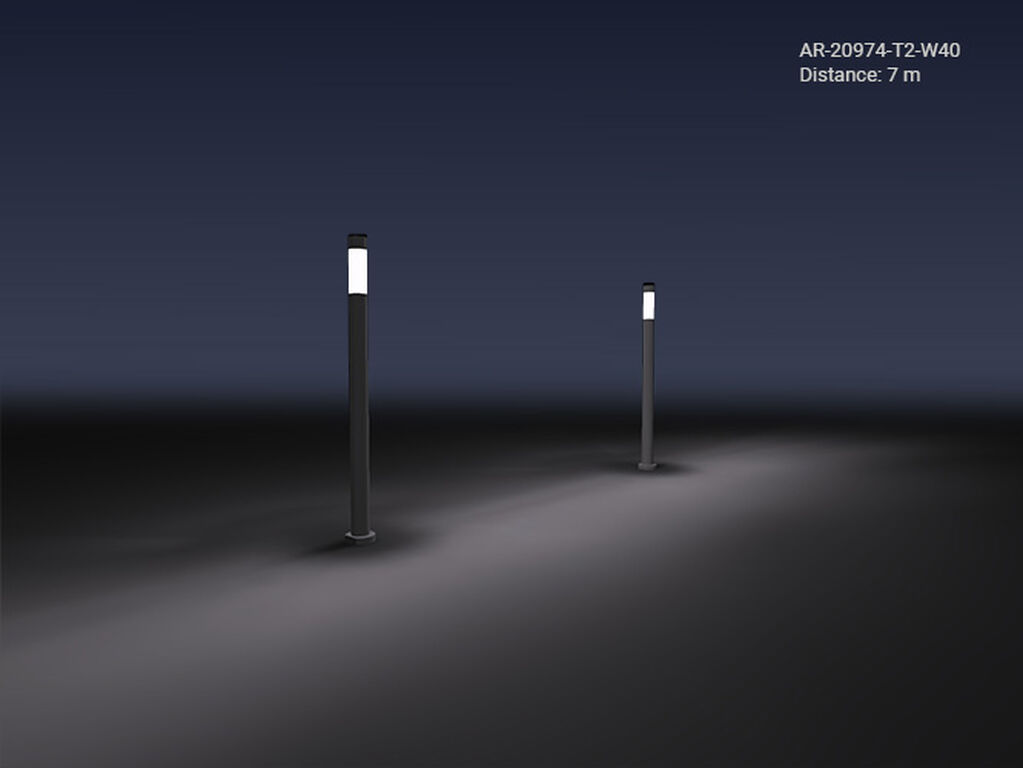

LIGHT EFFECT

Optic
T2 (142°x 52°)
T3 (137°x 65°)
T4 (93°x 64°)
ME (135°x 60°)

CODE FINDER

Lumen (lm)
Optic
Optic value
CCT / CRI
Dimming type
Product colour
Variant code
Lumen (lm)
Optic
Optic value
CCT / CRI
Dimming type
Product colour

ACCESSORY

Pole (required)

PROJECT REFERENCE (ARIZONA Light columns)
