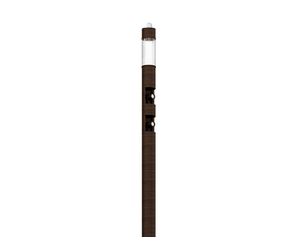

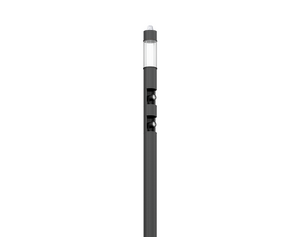

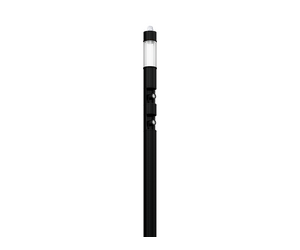

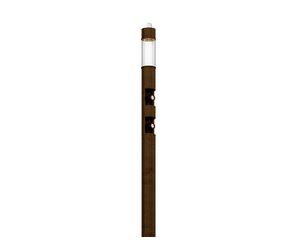

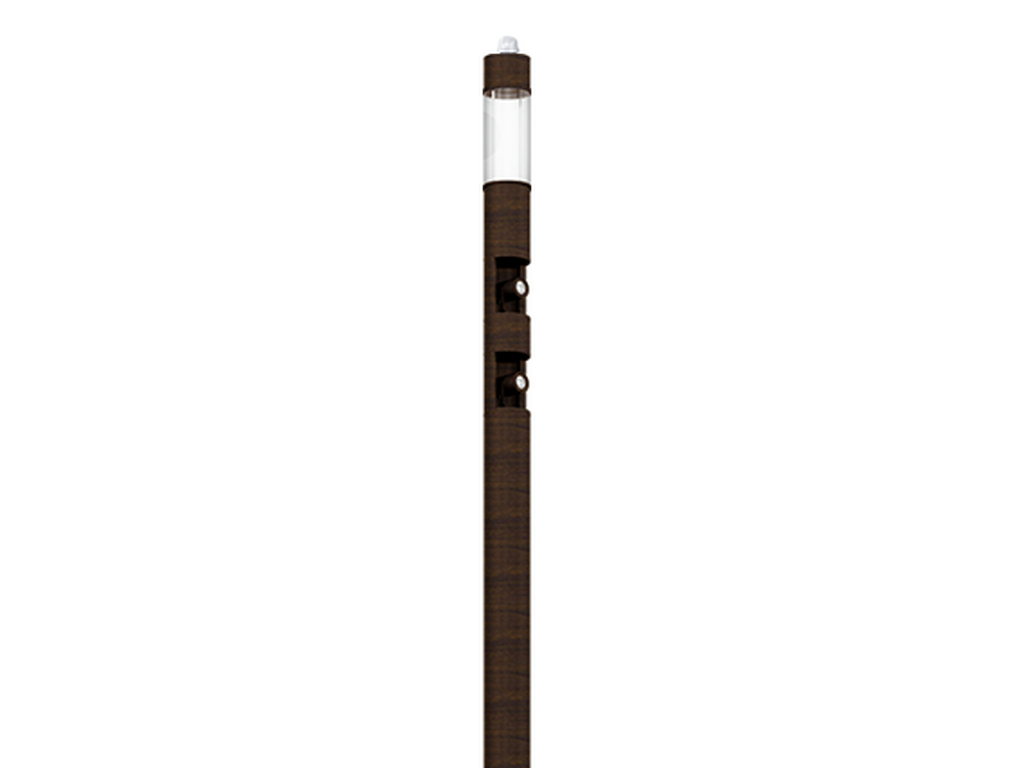

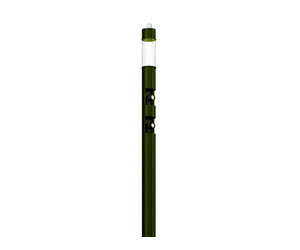

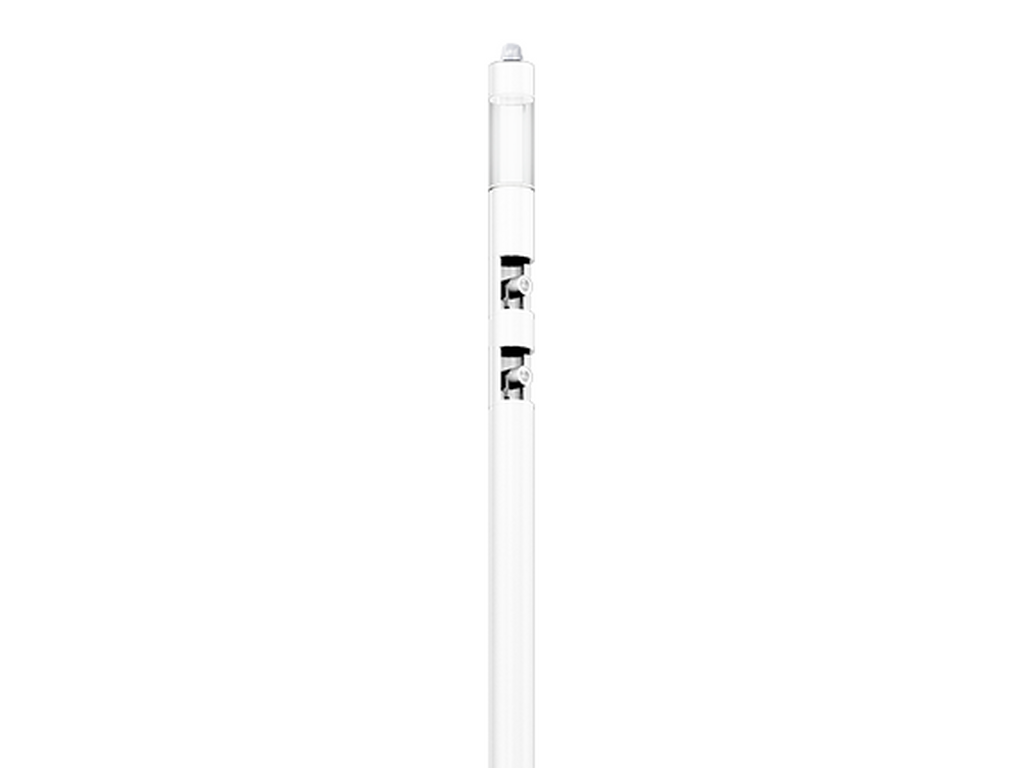

LIGMAN ARIZONA 6 AR-21131-LC.

ARIZONA 6AR-21131-LCARIZONA

Send us an E-Mail or use the contact form:

I have read the privacy policy and agree to the processing of my data *

The fields marked with an * must be correctly filled.
Your request was successfully sent.

Send us an E-Mail or use the contact form:

I have read the privacy policy and agree to the processing of my data *

The fields marked with an * must be correctly filled.
Your request was successfully sent.

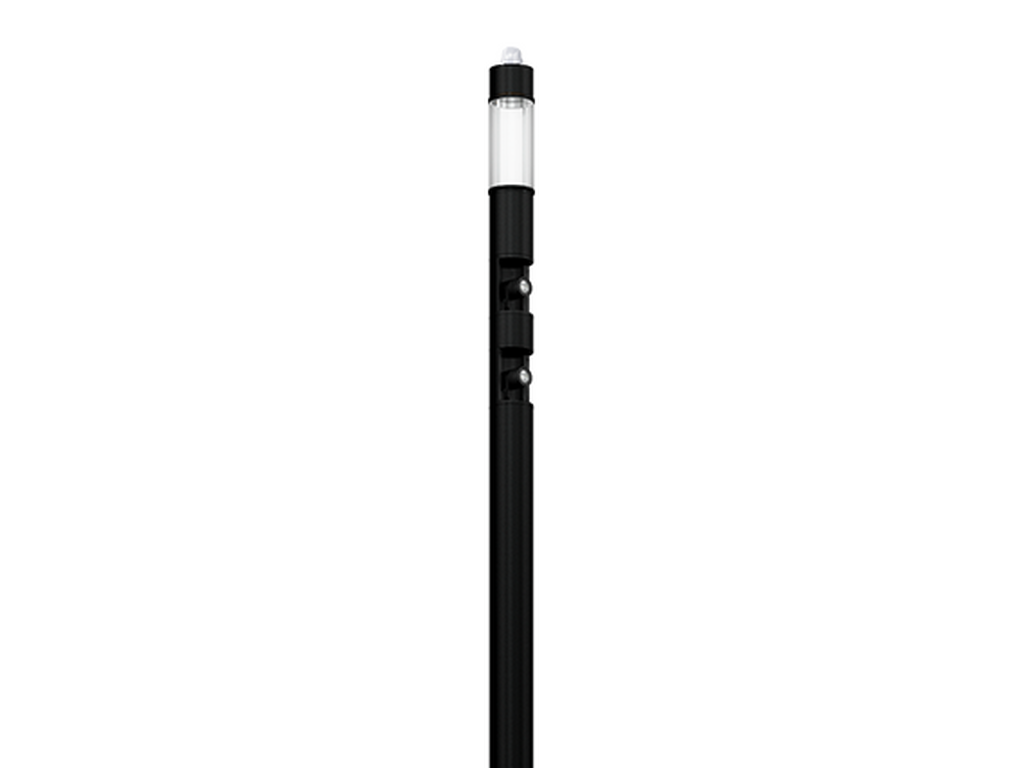

ARIZONA 6Black

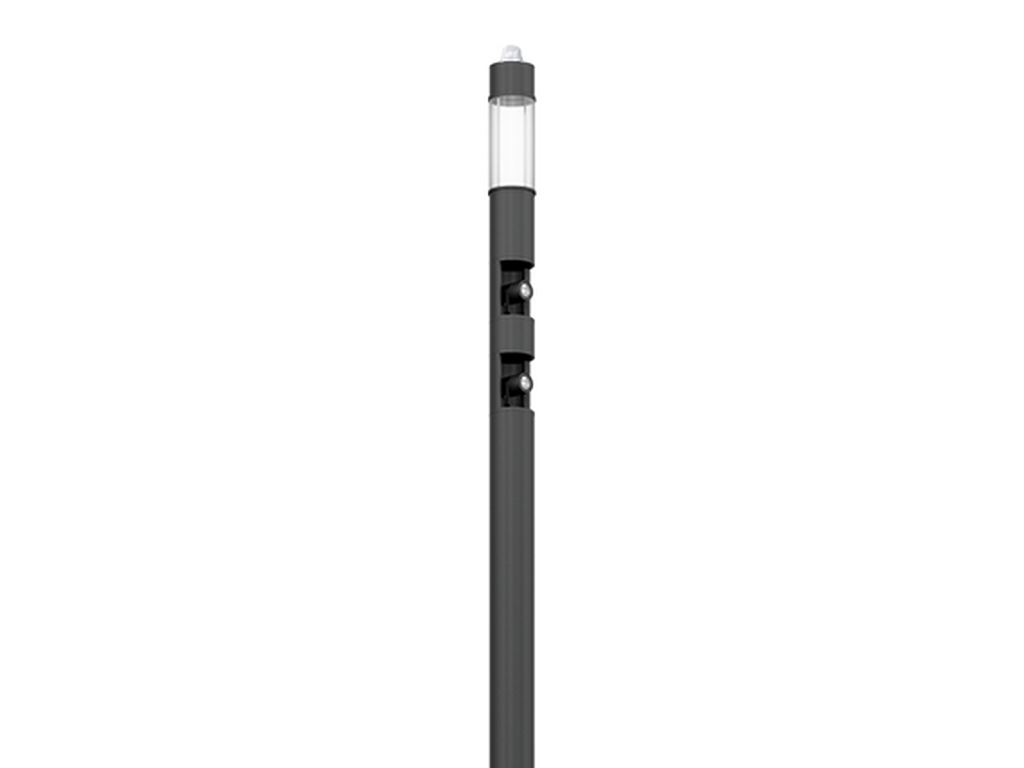

ARIZONA 6Dark Grey

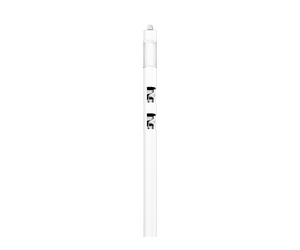

ARIZONA 6White
ARIZONA 6Matt Silver
ARIZONA 6Bronze
ARIZONA 6Concrete - Urban
ARIZONA 6Softscape - Urban

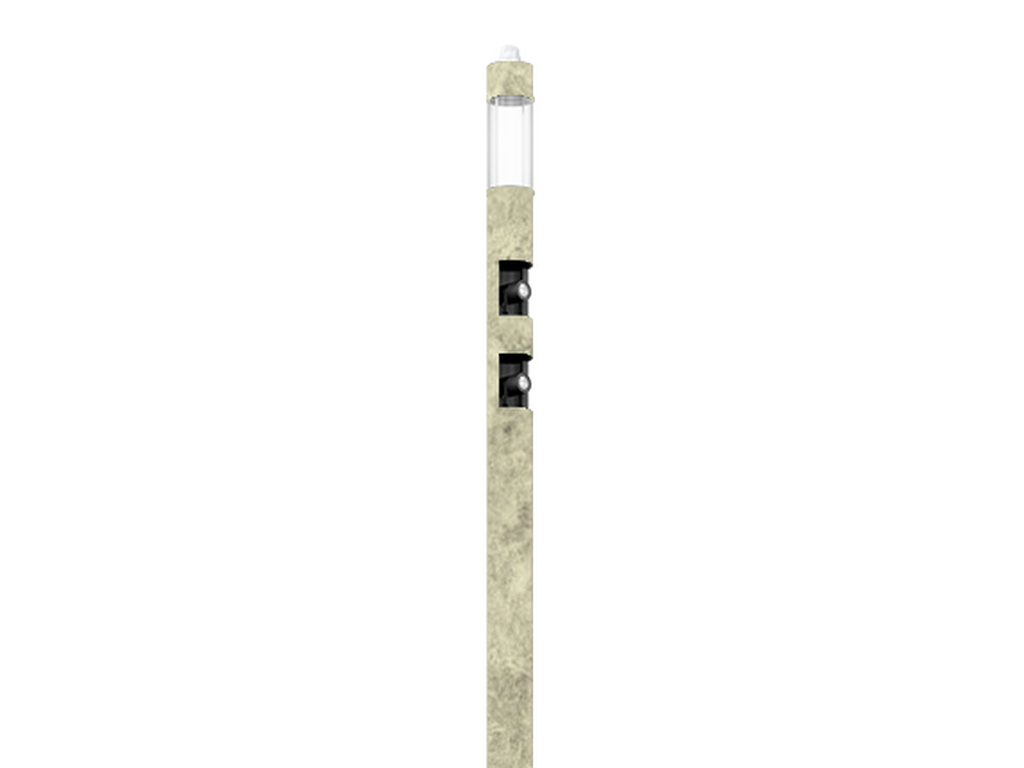

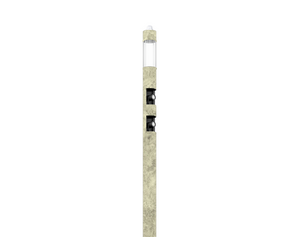

ARIZONA 6Stone - Urban

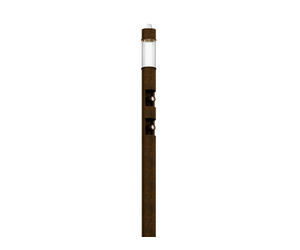

ARIZONA 6Corten - Urban
ARIZONA 6Oak - Woodland
ARIZONA 6Walnut - Woodland

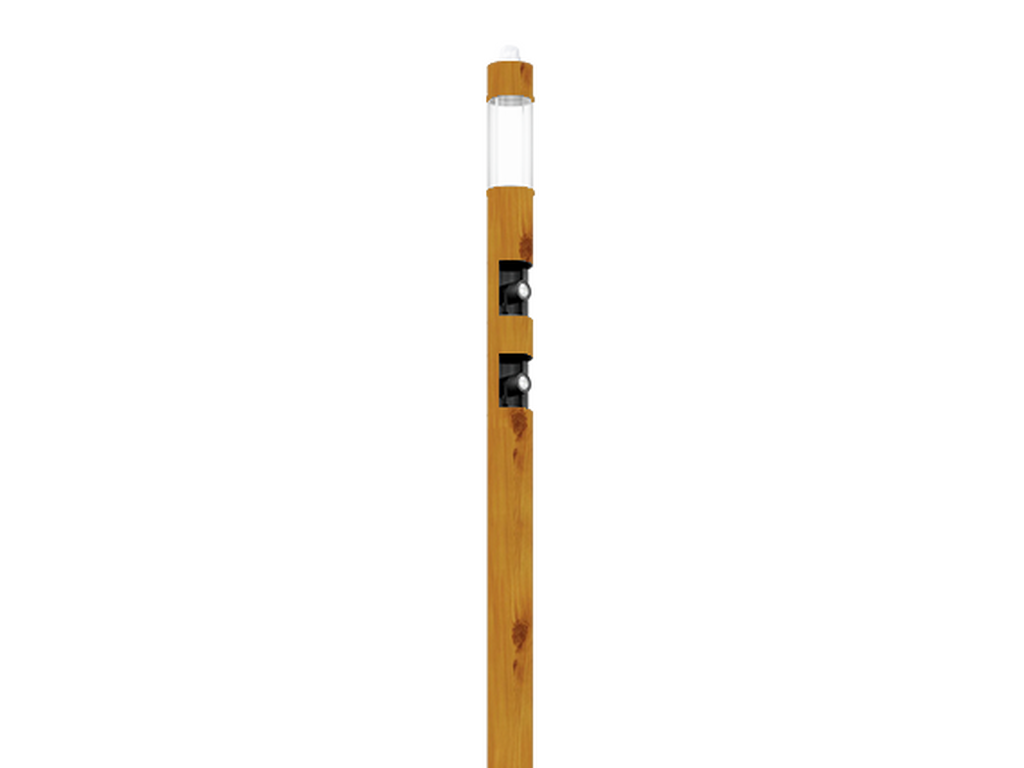

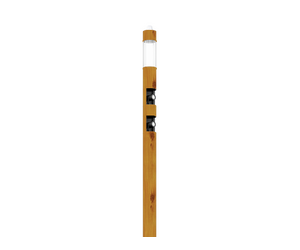

ARIZONA 6Pine - Woodland
ARIZONA 6Black
ARIZONA 6Dark Grey
ARIZONA 6White
ARIZONA 6Matt Silver
ARIZONA 6Bronze
ARIZONA 6Concrete - Urban
ARIZONA 6Softscape - Urban
ARIZONA 6Stone - Urban
ARIZONA 6Corten - Urban
ARIZONA 6Oak - Woodland
ARIZONA 6Walnut - Woodland
ARIZONA 6Pine - Woodland

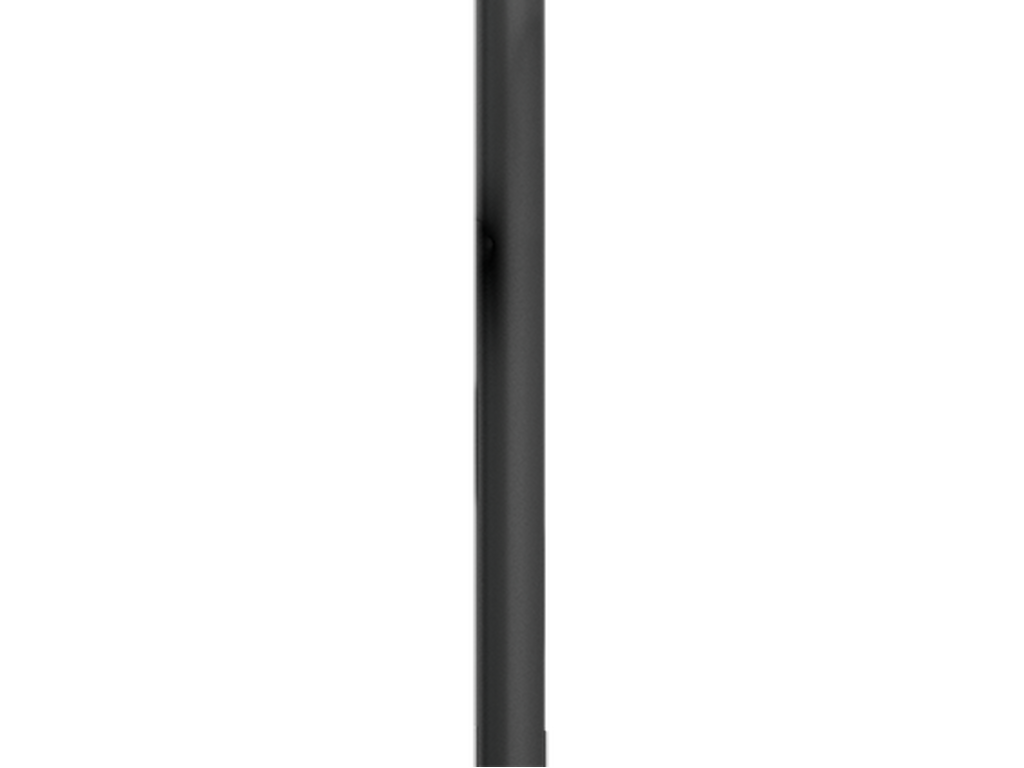

Ø225 mm - Supplied with specific 3 m cylindrical, straight aluminium pole: APD130225-AR-21131 - 2 projectors - LIGHTCONNECT™
CEClass IIP65IK06

TECHNICAL SPECIFICATIONS

Material
Aluminium
Light source
3 COB
Power (W)
88 W
Lumen (lm)
6476 - 6703 lm
Efficacy (lm/W)
74 - 76 lm/W
Driver option
Integral control gear
Driver
Constant current (CC)
Input voltage
220-240 V 50/60 Hz
Optic
G
Optic value
360°
CCT / CRI
3000K CRI80, 4000K CRI80
Dimming type
DALI
Product colours
Black, Dark Grey, White, Matt Silver, Bronze, Concrete - Urban, Softscape - Urban, Stone - Urban, Corten - Urban, Oak - Woodland, Walnut - Woodland, Pine - Woodland
Weight
48 kg
Operating temperature
-20 °C to 40 °C
Cable
One IP68 connector supplied with 0.2 m of 3x1.0 sqmm outdoor cable
Through wiring
Single cable entry
Lens / Reflector / Optic
High-efficiency optical reflector, Clear acrylic PMMA diffuser
Variants (DALI)
Compatible with EN/ IEC 60598-2-22: Suitable for emergency installations as central supply, non-maintained (Z0)

LIGHT EFFECT

Optic
G (360°) / M (23°)
G (360°) / W (32°)
G (360°) / VW (47°)

CODE FINDER

Lumen (lm)
Optic
Optic value
CCT / CRI
Dimming type
Product colour
Variant code
Lumen (lm)
Optic
Optic value
CCT / CRI
Dimming type
Product colour
Variant code: AR-21131-LC-M-8030-DA-01
Lumen (lm): 6476 lm
Optic: G
Optic value: 360°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Black
Variant code: AR-21131-LC-M-8030-DA-02
Lumen (lm): 6476 lm
Optic: G
Optic value: 360°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Dark Grey
Variant code: AR-21131-LC-M-8030-DA-03
Lumen (lm): 6476 lm
Optic: G
Optic value: 360°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: White
Variant code: AR-21131-LC-M-8030-DA-05
Lumen (lm): 6476 lm
Optic: G
Optic value: 360°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Matt Silver
Variant code: AR-21131-LC-M-8030-DA-06
Lumen (lm): 6476 lm
Optic: G
Optic value: 360°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Bronze
Variant code: AR-21131-LC-M-8030-DA-SU01
Lumen (lm): 6476 lm
Optic: G
Optic value: 360°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Concrete - Urban
Variant code: AR-21131-LC-M-8030-DA-SU02
Lumen (lm): 6476 lm
Optic: G
Optic value: 360°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Softscape - Urban
Variant code: AR-21131-LC-M-8030-DA-SU03
Lumen (lm): 6476 lm
Optic: G
Optic value: 360°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Stone - Urban
Variant code: AR-21131-LC-M-8030-DA-SU04
Lumen (lm): 6476 lm
Optic: G
Optic value: 360°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Corten - Urban
Variant code: AR-21131-LC-M-8030-DA-SW01
Lumen (lm): 6476 lm
Optic: G
Optic value: 360°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Oak - Woodland
Variant code: AR-21131-LC-M-8030-DA-SW02
Lumen (lm): 6476 lm
Optic: G
Optic value: 360°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Walnut - Woodland
Variant code: AR-21131-LC-M-8030-DA-SW03
Lumen (lm): 6476 lm
Optic: G
Optic value: 360°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Pine - Woodland
Variant code: AR-21131-LC-M-8040-DA-01
Lumen (lm): 6683 lm
Optic: G
Optic value: 360°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Black
Variant code: AR-21131-LC-M-8040-DA-02
Lumen (lm): 6683 lm
Optic: G
Optic value: 360°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Dark Grey
Variant code: AR-21131-LC-M-8040-DA-03
Lumen (lm): 6683 lm
Optic: G
Optic value: 360°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: White
Variant code: AR-21131-LC-M-8040-DA-05
Lumen (lm): 6683 lm
Optic: G
Optic value: 360°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Matt Silver
Variant code: AR-21131-LC-M-8040-DA-06
Lumen (lm): 6683 lm
Optic: G
Optic value: 360°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Bronze
Variant code: AR-21131-LC-M-8040-DA-SU01
Lumen (lm): 6683 lm
Optic: G
Optic value: 360°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Concrete - Urban
Variant code: AR-21131-LC-M-8040-DA-SU02
Lumen (lm): 6683 lm
Optic: G
Optic value: 360°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Softscape - Urban
Variant code: AR-21131-LC-M-8040-DA-SU03
Lumen (lm): 6683 lm
Optic: G
Optic value: 360°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Stone - Urban
Variant code: AR-21131-LC-M-8040-DA-SU04
Lumen (lm): 6683 lm
Optic: G
Optic value: 360°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Corten - Urban
Variant code: AR-21131-LC-M-8040-DA-SW01
Lumen (lm): 6683 lm
Optic: G
Optic value: 360°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Oak - Woodland
Variant code: AR-21131-LC-M-8040-DA-SW02
Lumen (lm): 6683 lm
Optic: G
Optic value: 360°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Walnut - Woodland
Variant code: AR-21131-LC-M-8040-DA-SW03
Lumen (lm): 6683 lm
Optic: G
Optic value: 360°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Pine - Woodland
Variant code: AR-21131-LC-W-8030-DA-01
Lumen (lm): 6476 lm
Optic: G
Optic value: 360°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Black
Variant code: AR-21131-LC-W-8030-DA-02
Lumen (lm): 6476 lm
Optic: G
Optic value: 360°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Dark Grey
Variant code: AR-21131-LC-W-8030-DA-03
Lumen (lm): 6476 lm
Optic: G
Optic value: 360°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: White
Variant code: AR-21131-LC-W-8030-DA-05
Lumen (lm): 6476 lm
Optic: G
Optic value: 360°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Matt Silver
Variant code: AR-21131-LC-W-8030-DA-06
Lumen (lm): 6476 lm
Optic: G
Optic value: 360°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Bronze
Variant code: AR-21131-LC-W-8030-DA-SU01
Lumen (lm): 6476 lm
Optic: G
Optic value: 360°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Concrete - Urban
Variant code: AR-21131-LC-W-8030-DA-SU02
Lumen (lm): 6476 lm
Optic: G
Optic value: 360°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Softscape - Urban
Variant code: AR-21131-LC-W-8030-DA-SU03
Lumen (lm): 6476 lm
Optic: G
Optic value: 360°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Stone - Urban
Variant code: AR-21131-LC-W-8030-DA-SU04
Lumen (lm): 6476 lm
Optic: G
Optic value: 360°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Corten - Urban
Variant code: AR-21131-LC-W-8030-DA-SW01
Lumen (lm): 6476 lm
Optic: G
Optic value: 360°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Oak - Woodland
Variant code: AR-21131-LC-W-8030-DA-SW02
Lumen (lm): 6476 lm
Optic: G
Optic value: 360°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Walnut - Woodland
Variant code: AR-21131-LC-W-8030-DA-SW03
Lumen (lm): 6476 lm
Optic: G
Optic value: 360°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Pine - Woodland
Variant code: AR-21131-LC-W-8040-DA-01
Lumen (lm): 6683 lm
Optic: G
Optic value: 360°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Black
Variant code: AR-21131-LC-W-8040-DA-02
Lumen (lm): 6683 lm
Optic: G
Optic value: 360°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Dark Grey
Variant code: AR-21131-LC-W-8040-DA-03
Lumen (lm): 6683 lm
Optic: G
Optic value: 360°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: White
Variant code: AR-21131-LC-W-8040-DA-05
Lumen (lm): 6683 lm
Optic: G
Optic value: 360°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Matt Silver
Variant code: AR-21131-LC-W-8040-DA-06
Lumen (lm): 6683 lm
Optic: G
Optic value: 360°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Bronze
Variant code: AR-21131-LC-W-8040-DA-SU01
Lumen (lm): 6683 lm
Optic: G
Optic value: 360°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Concrete - Urban
Variant code: AR-21131-LC-W-8040-DA-SU02
Lumen (lm): 6683 lm
Optic: G
Optic value: 360°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Softscape - Urban
Variant code: AR-21131-LC-W-8040-DA-SU03
Lumen (lm): 6683 lm
Optic: G
Optic value: 360°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Stone - Urban
Variant code: AR-21131-LC-W-8040-DA-SU04
Lumen (lm): 6683 lm
Optic: G
Optic value: 360°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Corten - Urban
Variant code: AR-21131-LC-W-8040-DA-SW01
Lumen (lm): 6683 lm
Optic: G
Optic value: 360°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Oak - Woodland
Variant code: AR-21131-LC-W-8040-DA-SW02
Lumen (lm): 6683 lm
Optic: G
Optic value: 360°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Walnut - Woodland
Variant code: AR-21131-LC-W-8040-DA-SW03
Lumen (lm): 6683 lm
Optic: G
Optic value: 360°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Pine - Woodland
Variant code: AR-21131-LC-VW-8030-DA-01
Lumen (lm): 6496 lm
Optic: G
Optic value: 360°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Black
Variant code: AR-21131-LC-VW-8030-DA-02
Lumen (lm): 6496 lm
Optic: G
Optic value: 360°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Dark Grey
Variant code: AR-21131-LC-VW-8030-DA-03
Lumen (lm): 6496 lm
Optic: G
Optic value: 360°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: White
Variant code: AR-21131-LC-VW-8030-DA-05
Lumen (lm): 6496 lm
Optic: G
Optic value: 360°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Matt Silver
Variant code: AR-21131-LC-VW-8030-DA-06
Lumen (lm): 6496 lm
Optic: G
Optic value: 360°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Bronze
Variant code: AR-21131-LC-VW-8030-DA-SU01
Lumen (lm): 6496 lm
Optic: G
Optic value: 360°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Concrete - Urban
Variant code: AR-21131-LC-VW-8030-DA-SU02
Lumen (lm): 6496 lm
Optic: G
Optic value: 360°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Softscape - Urban
Variant code: AR-21131-LC-VW-8030-DA-SU03
Lumen (lm): 6496 lm
Optic: G
Optic value: 360°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Stone - Urban
Variant code: AR-21131-LC-VW-8030-DA-SU04
Lumen (lm): 6496 lm
Optic: G
Optic value: 360°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Corten - Urban
Variant code: AR-21131-LC-VW-8030-DA-SW01
Lumen (lm): 6496 lm
Optic: G
Optic value: 360°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Oak - Woodland
Variant code: AR-21131-LC-VW-8030-DA-SW02
Lumen (lm): 6496 lm
Optic: G
Optic value: 360°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Walnut - Woodland
Variant code: AR-21131-LC-VW-8030-DA-SW03
Lumen (lm): 6496 lm
Optic: G
Optic value: 360°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Pine - Woodland
Variant code: AR-21131-LC-VW-8040-DA-01
Lumen (lm): 6703 lm
Optic: G
Optic value: 360°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Black
Variant code: AR-21131-LC-VW-8040-DA-02
Lumen (lm): 6703 lm
Optic: G
Optic value: 360°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Dark Grey
Variant code: AR-21131-LC-VW-8040-DA-03
Lumen (lm): 6703 lm
Optic: G
Optic value: 360°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: White
Variant code: AR-21131-LC-VW-8040-DA-05
Lumen (lm): 6703 lm
Optic: G
Optic value: 360°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Matt Silver
Variant code: AR-21131-LC-VW-8040-DA-06
Lumen (lm): 6703 lm
Optic: G
Optic value: 360°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Bronze
Variant code: AR-21131-LC-VW-8040-DA-SU01
Lumen (lm): 6703 lm
Optic: G
Optic value: 360°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Concrete - Urban
Variant code: AR-21131-LC-VW-8040-DA-SU02
Lumen (lm): 6703 lm
Optic: G
Optic value: 360°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Softscape - Urban
Variant code: AR-21131-LC-VW-8040-DA-SU03
Lumen (lm): 6703 lm
Optic: G
Optic value: 360°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Stone - Urban
Variant code: AR-21131-LC-VW-8040-DA-SU04
Lumen (lm): 6703 lm
Optic: G
Optic value: 360°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Corten - Urban
Variant code: AR-21131-LC-VW-8040-DA-SW01
Lumen (lm): 6703 lm
Optic: G
Optic value: 360°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Oak - Woodland
Variant code: AR-21131-LC-VW-8040-DA-SW02
Lumen (lm): 6703 lm
Optic: G
Optic value: 360°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Walnut - Woodland
Variant code: AR-21131-LC-VW-8040-DA-SW03
Lumen (lm): 6703 lm
Optic: G
Optic value: 360°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Pine - Woodland

ACCESSORY

PROJECT REFERENCE (ARIZONA Light columns)

SOCIAL

Facebook-f Instagram Youtube Linkedin-in Twitter Pinterest Line

NEWSLETTER

Sign up to our newsletter

Copyright © LIGMAN Lighting Co., Ltd.

Privacy Policy      Privacy Policy CCTV      Terms of use      Terms of sales
