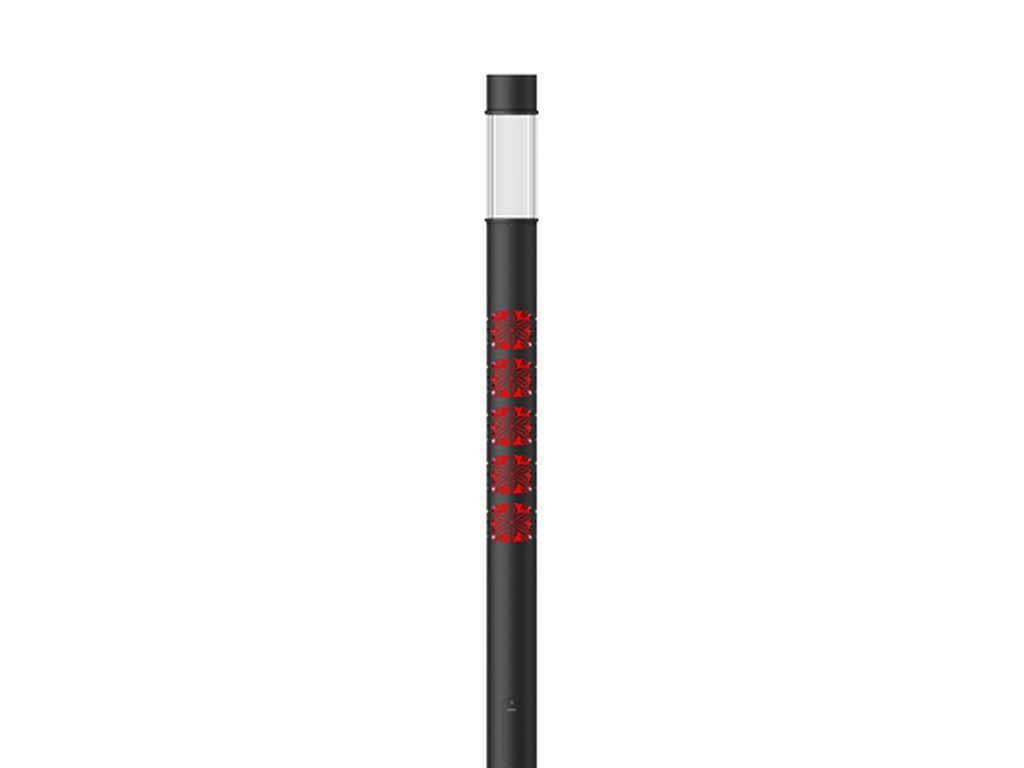

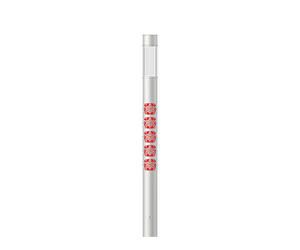

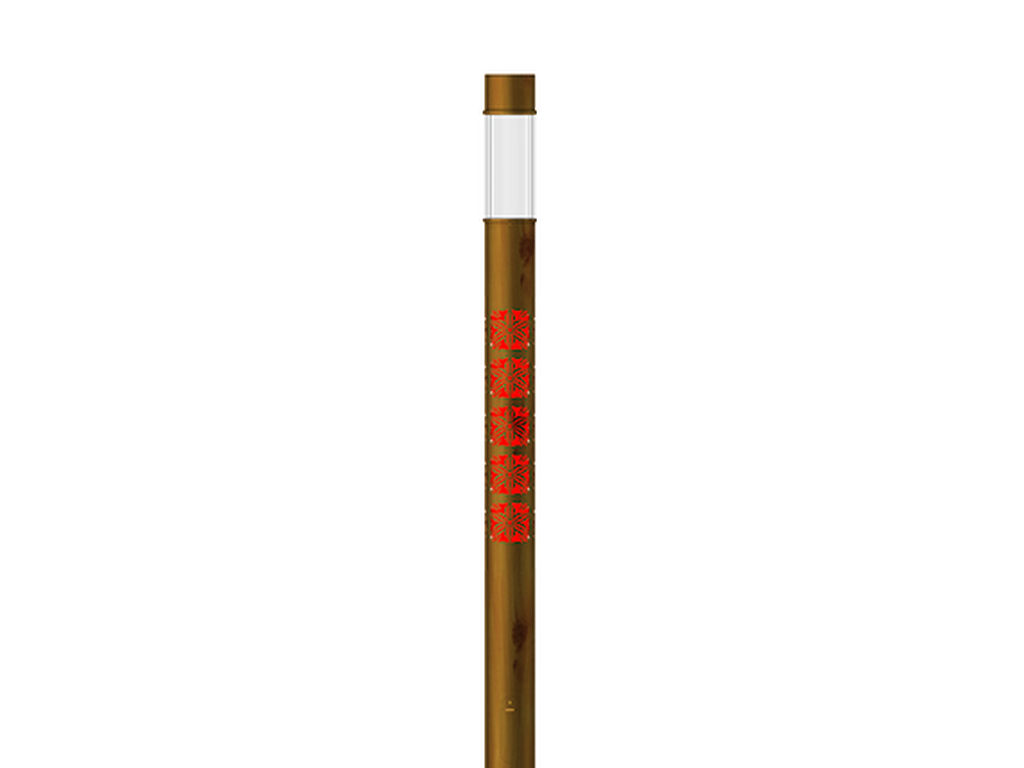

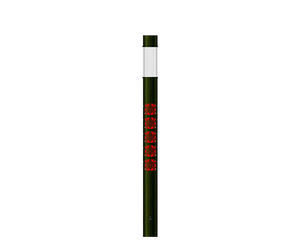

LIGMAN ARIZONA 8 AR-21162.

ARIZONA 8AR-21162ARIZONA

Send us an E-Mail or use the contact form:

I have read the privacy policy and agree to the processing of my data *

The fields marked with an * must be correctly filled.
Your request was successfully sent.

Send us an E-Mail or use the contact form:

I have read the privacy policy and agree to the processing of my data *

The fields marked with an * must be correctly filled.
Your request was successfully sent.

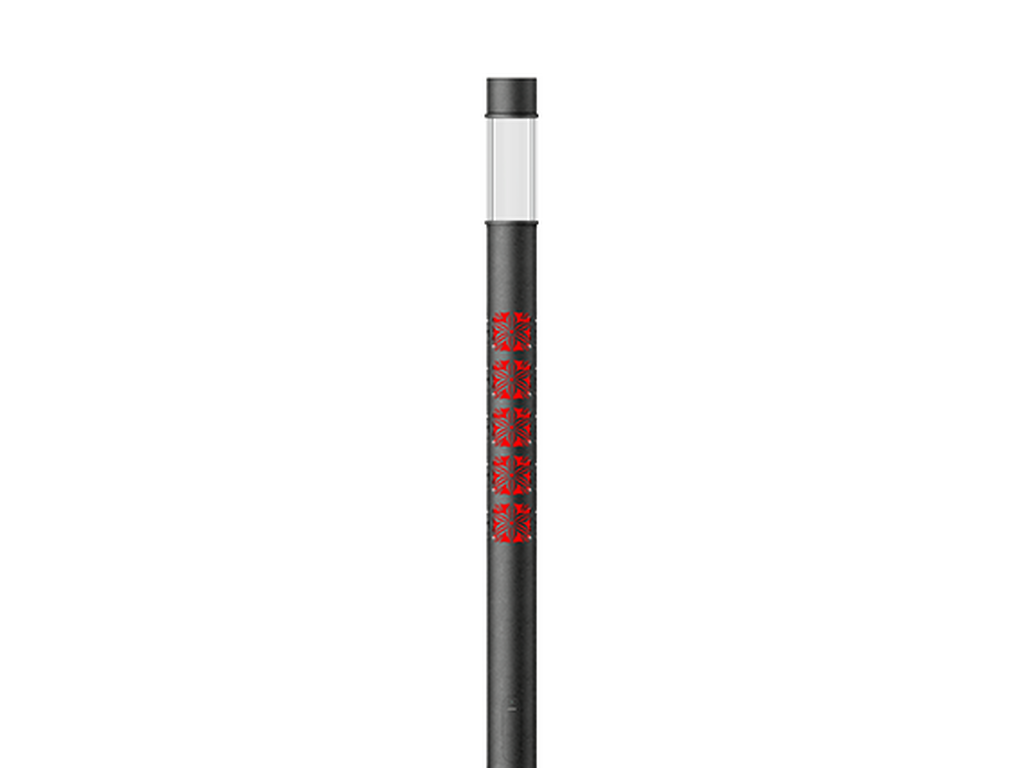

ARIZONA 8Black
ARIZONA 8Dark Grey

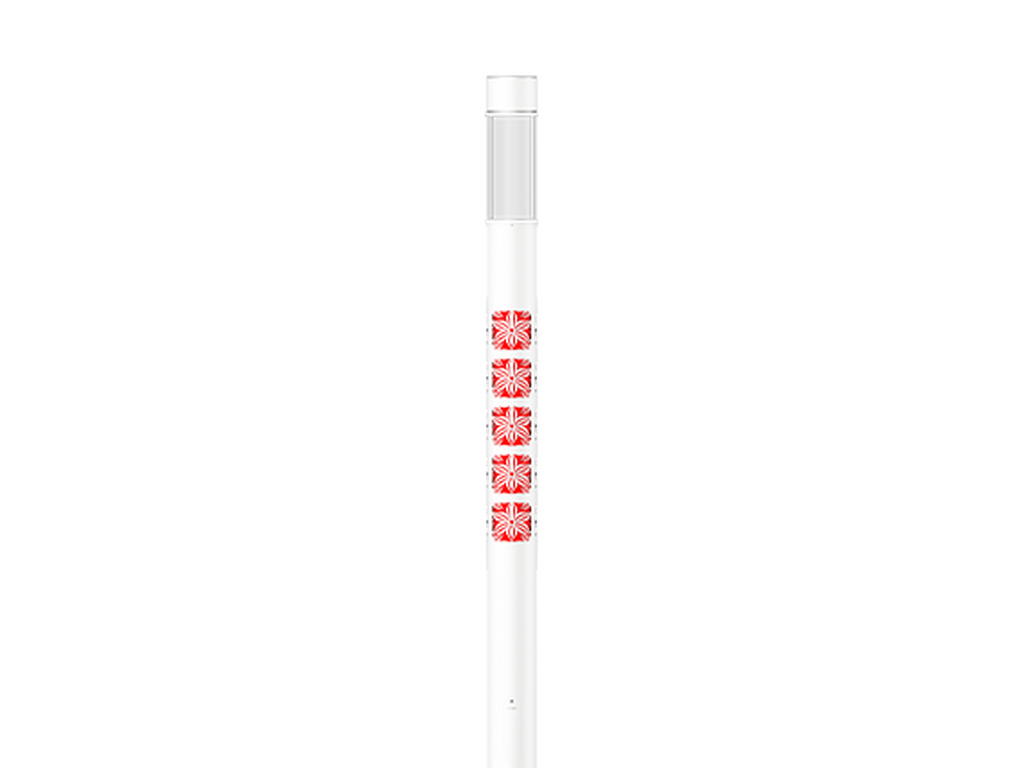

ARIZONA 8White
ARIZONA 8Matt Silver

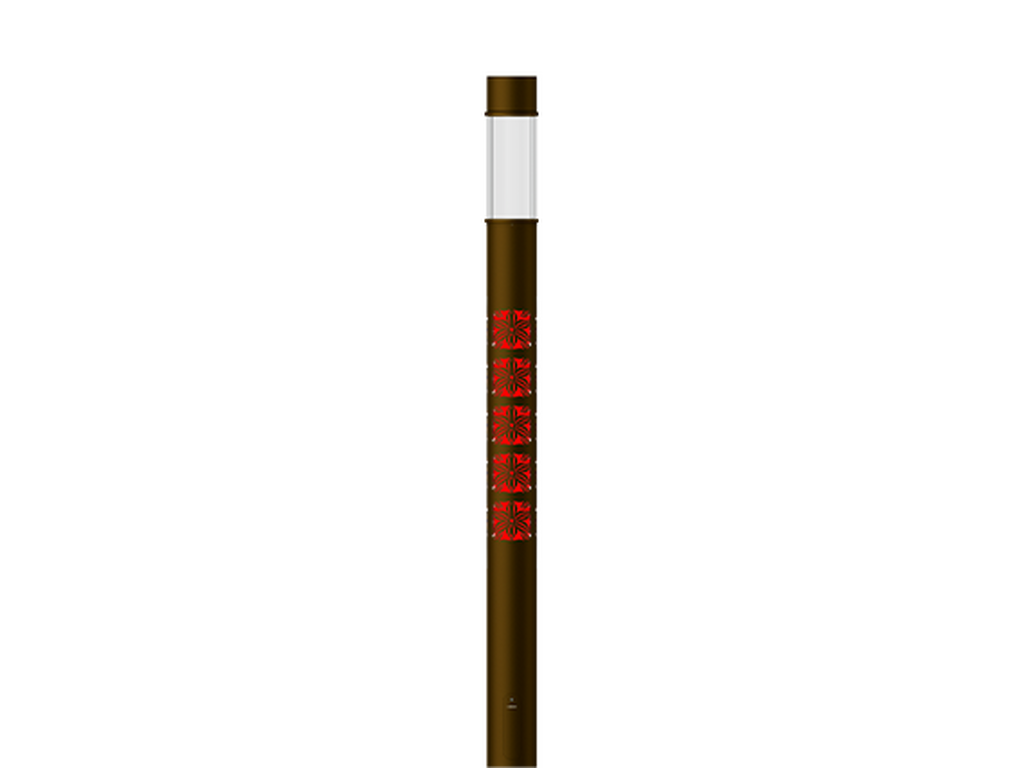

ARIZONA 8Bronze
ARIZONA 8Concrete - Urban
ARIZONA 8Softscape - Urban

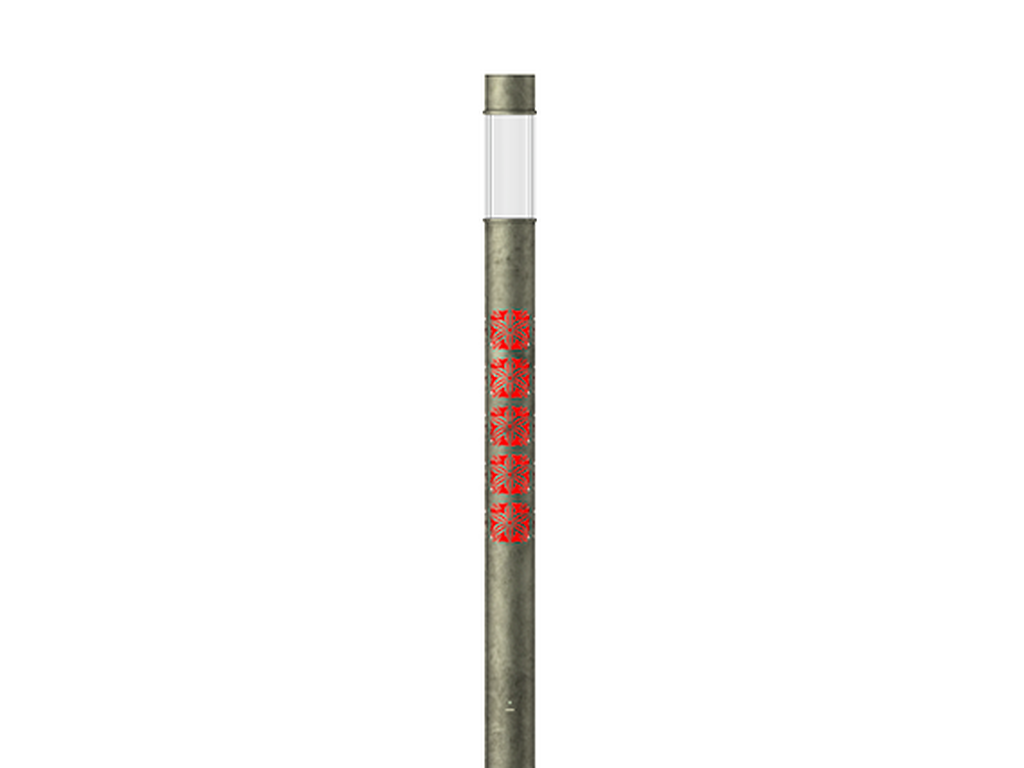

ARIZONA 8Stone - Urban

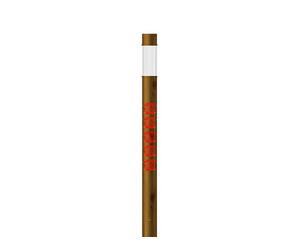

ARIZONA 8Corten - Urban
ARIZONA 8Oak - Woodland
ARIZONA 8Walnut - Woodland
ARIZONA 8Pine - Woodland

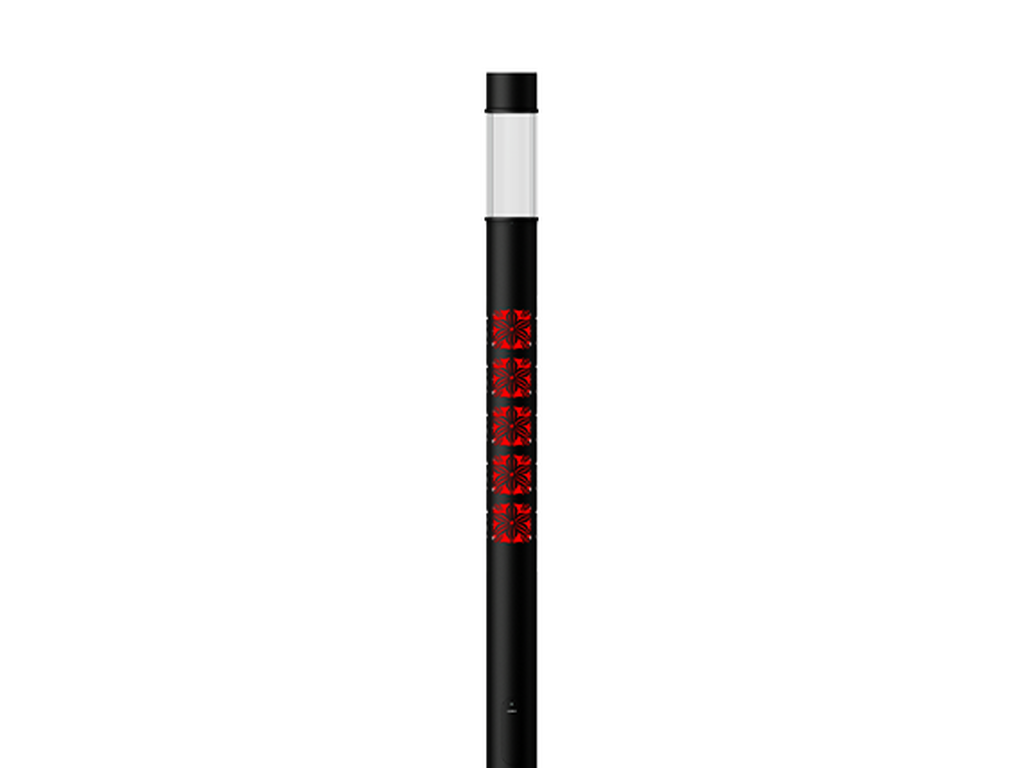

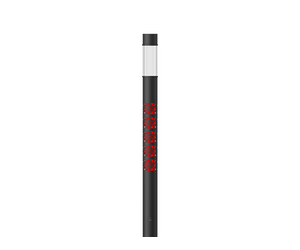

ARIZONA 8Black
ARIZONA 8Dark Grey

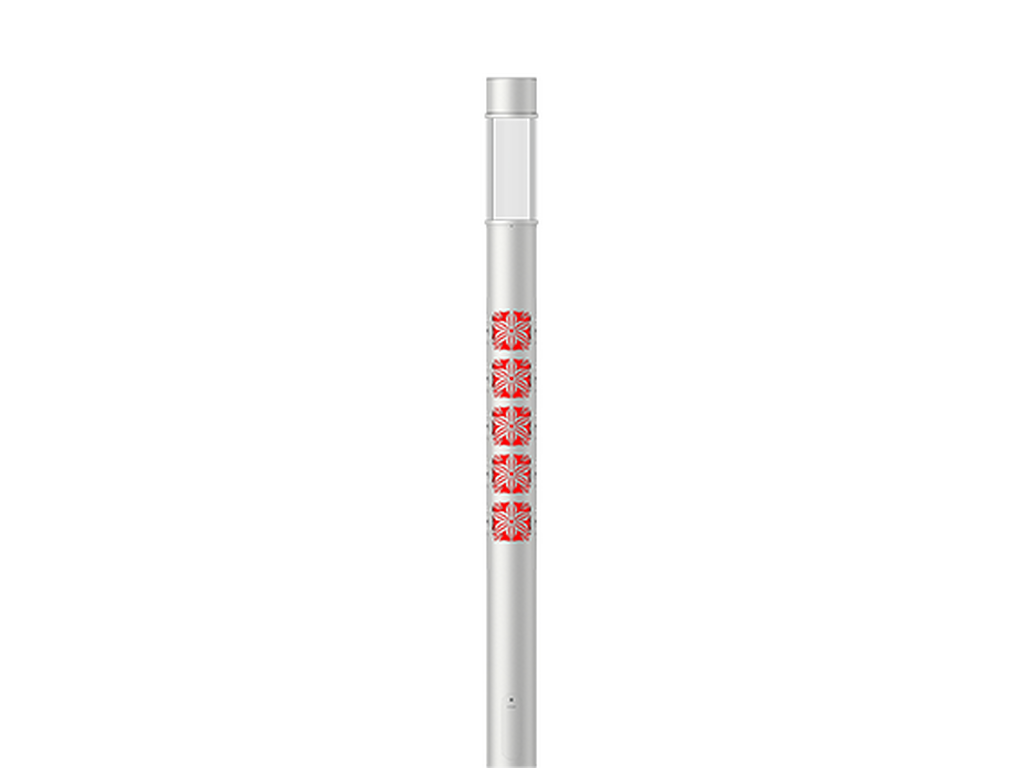

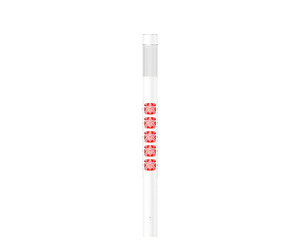

ARIZONA 8White
ARIZONA 8Matt Silver
ARIZONA 8Bronze
ARIZONA 8Concrete - Urban
ARIZONA 8Softscape - Urban
ARIZONA 8Stone - Urban
ARIZONA 8Corten - Urban

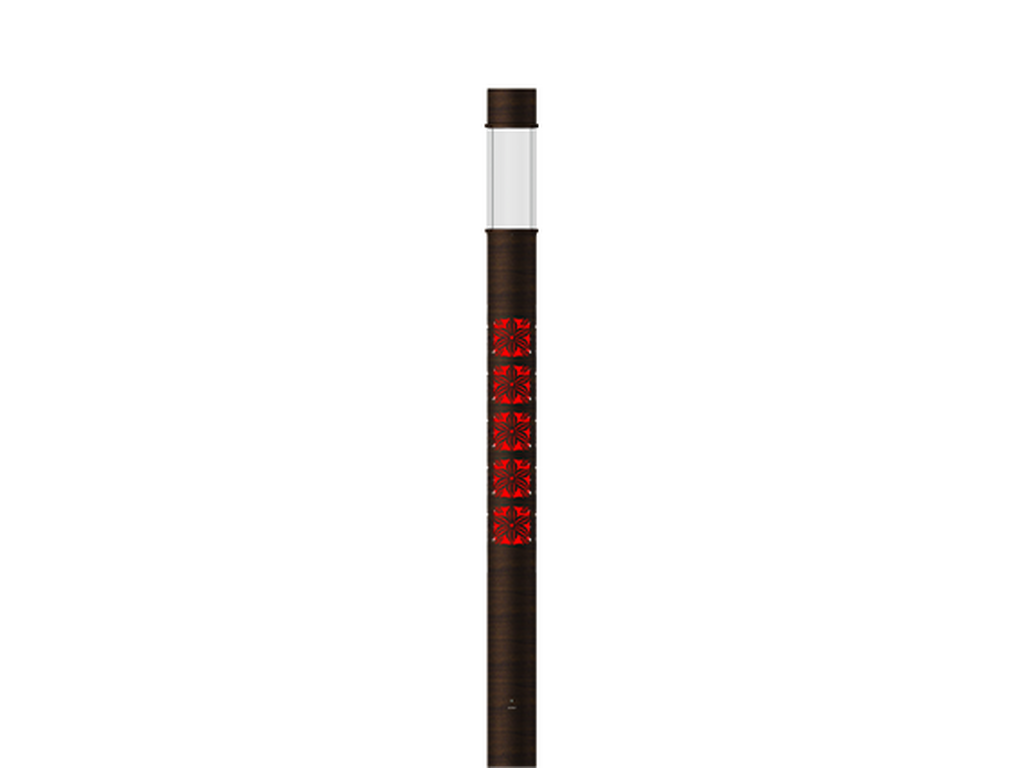

ARIZONA 8Oak - Woodland

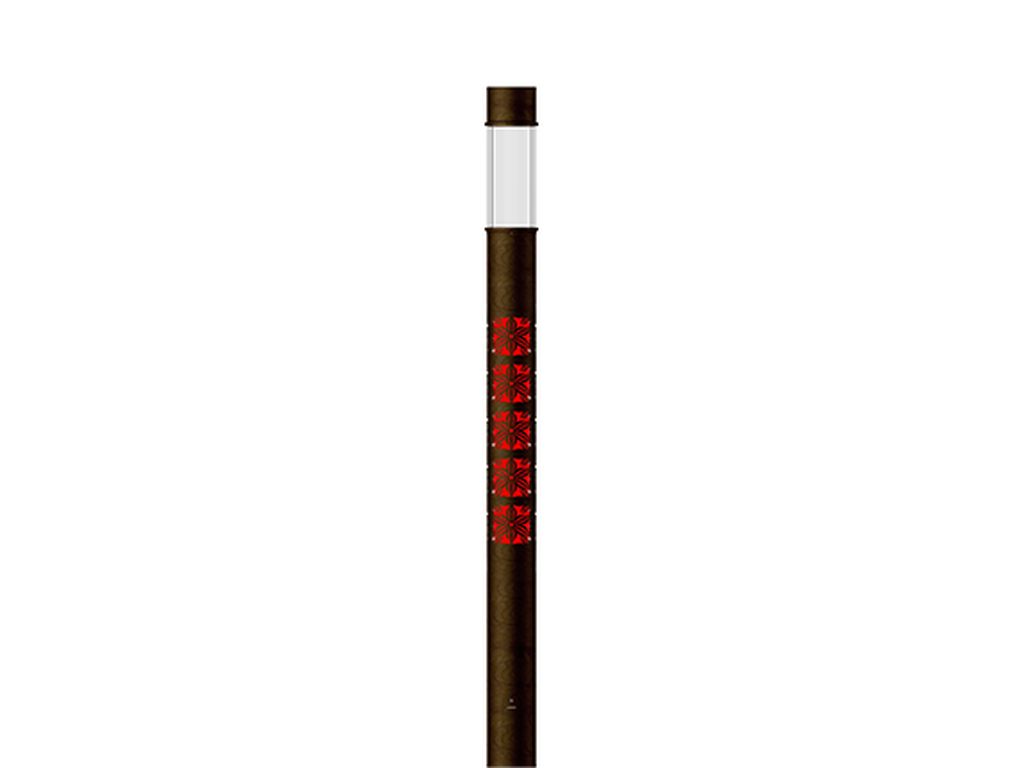

ARIZONA 8Walnut - Woodland
ARIZONA 8Pine - Woodland

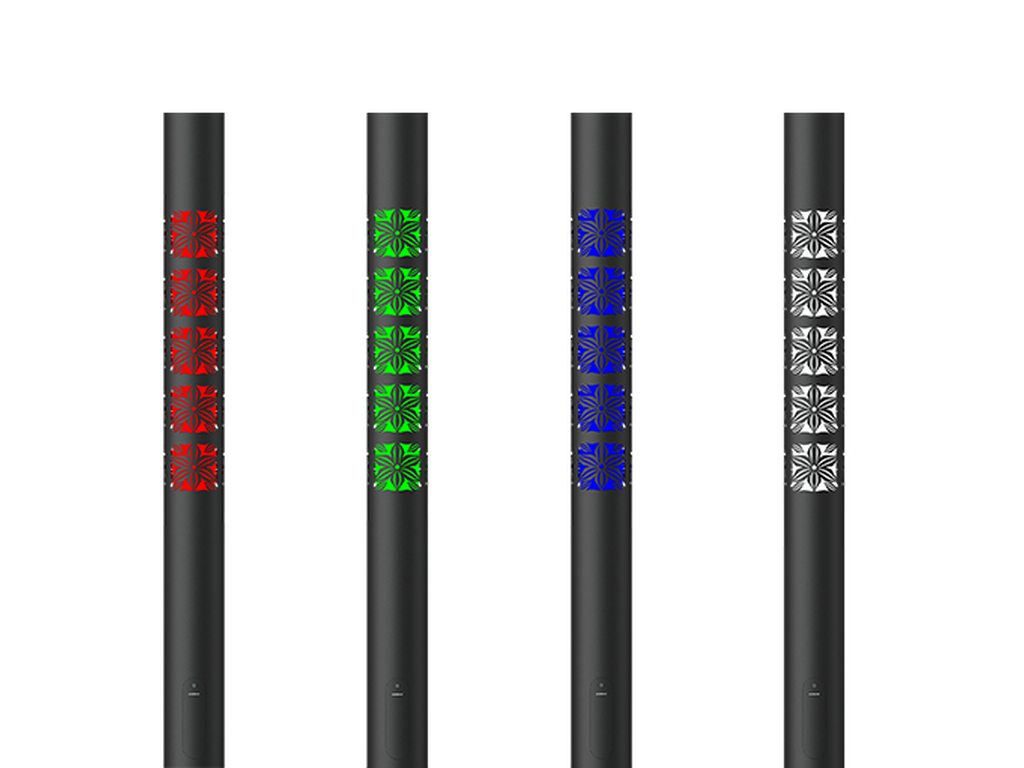

Ø225 mm - Supplied with specific 3.675 m cylindrical, straight aluminium lighting poles with illuminated decorative graphic: APG130225-001-RGBW (45W - DMX/DMXRDM) - IP65 - IK07
CEClass IIP65IK07

TECHNICAL SPECIFICATIONS

Material
Aluminium
Light source
16 LED, 3 x 16 LED
Power (W)
85 W
Lumen (lm)
2911 - 3519 lm
Efficacy (lm/W)
34 - 41 lm/W
Driver option
Integral control gear
Driver
Constant current (CC)
Input voltage
220-240 V 50/60 Hz
Optic
T2, T3, T4
Optic value
142°x 52°, 137°x 65°, 93°x 64°
CCT / CRI
RGBW30, RGBW40
Bug
B1-U2-G1
ULR
1%
ULOR
1%
CIE flux code nº3
97, 98
Dimming type
DMX, DMX/RDM
Product colours
Black, Dark Grey, White, Matt Silver, Bronze
Weight
84.78 kg
Operating temperature
-20 °C to 40 °C
Cable
One IP68 connector supplied with 0.2 m of 3x1.0 sqmm outdoor cable
Through wiring
Single cable entry
Lens / Reflector / Optic
High-efficiency optical reflector, High-efficiency PMMA lens

LIGHT EFFECT

Optic
T2 (142°x 52°)
T3 (137°x 65°)
T4 (93°x 64°)

CODE FINDER

Lumen (lm)
Optic
Optic value
CCT / CRI
Dimming type
Product colour
Variant code
Lumen (lm)
Optic
Optic value
CCT / CRI
Dimming type
Product colour
Variant code: AR-21162-T2-30-DMX-01
Lumen (lm): 2911 lm
Optic: T2
Optic value: 142°x 52°
CCT / CRI: RGBW30
Dimming type: DMX
Product colour: Black
Variant code: AR-21162-T2-30-DMX-02
Lumen (lm): 2911 lm
Optic: T2
Optic value: 142°x 52°
CCT / CRI: RGBW30
Dimming type: DMX
Product colour: Dark Grey
Variant code: AR-21162-T2-30-DMX-03
Lumen (lm): 2911 lm
Optic: T2
Optic value: 142°x 52°
CCT / CRI: RGBW30
Dimming type: DMX
Product colour: White
Variant code: AR-21162-T2-30-DMX-05
Lumen (lm): 2911 lm
Optic: T2
Optic value: 142°x 52°
CCT / CRI: RGBW30
Dimming type: DMX
Product colour: Matt Silver
Variant code: AR-21162-T2-30-DMX-06
Lumen (lm): 2911 lm
Optic: T2
Optic value: 142°x 52°
CCT / CRI: RGBW30
Dimming type: DMX
Product colour: Bronze
Variant code: AR-21162-T2-40-DMX-01
Lumen (lm): 3398 lm
Optic: T2
Optic value: 142°x 52°
CCT / CRI: RGBW40
Dimming type: DMX
Product colour: Black
Variant code: AR-21162-T2-40-DMX-02
Lumen (lm): 3398 lm
Optic: T2
Optic value: 142°x 52°
CCT / CRI: RGBW40
Dimming type: DMX
Product colour: Dark Grey
Variant code: AR-21162-T2-40-DMX-03
Lumen (lm): 3398 lm
Optic: T2
Optic value: 142°x 52°
CCT / CRI: RGBW40
Dimming type: DMX
Product colour: White
Variant code: AR-21162-T2-40-DMX-05
Lumen (lm): 3398 lm
Optic: T2
Optic value: 142°x 52°
CCT / CRI: RGBW40
Dimming type: DMX
Product colour: Matt Silver
Variant code: AR-21162-T2-40-DMX-06
Lumen (lm): 3398 lm
Optic: T2
Optic value: 142°x 52°
CCT / CRI: RGBW40
Dimming type: DMX
Product colour: Bronze
Variant code: AR-21162-T2-30-DMXRDM-01
Lumen (lm): 2911 lm
Optic: T2
Optic value: 142°x 52°
CCT / CRI: RGBW30
Dimming type: DMX/RDM
Product colour: Black
Variant code: AR-21162-T2-30-DMXRDM-02
Lumen (lm): 2911 lm
Optic: T2
Optic value: 142°x 52°
CCT / CRI: RGBW30
Dimming type: DMX/RDM
Product colour: Dark Grey
Variant code: AR-21162-T2-30-DMXRDM-03
Lumen (lm): 2911 lm
Optic: T2
Optic value: 142°x 52°
CCT / CRI: RGBW30
Dimming type: DMX/RDM
Product colour: White
Variant code: AR-21162-T2-30-DMXRDM-05
Lumen (lm): 2911 lm
Optic: T2
Optic value: 142°x 52°
CCT / CRI: RGBW30
Dimming type: DMX/RDM
Product colour: Matt Silver
Variant code: AR-21162-T2-30-DMXRDM-06
Lumen (lm): 2911 lm
Optic: T2
Optic value: 142°x 52°
CCT / CRI: RGBW30
Dimming type: DMX/RDM
Product colour: Bronze
Variant code: AR-21162-T2-40-DMXRDM-01
Lumen (lm): 3398 lm
Optic: T2
Optic value: 142°x 52°
CCT / CRI: RGBW40
Dimming type: DMX/RDM
Product colour: Black
Variant code: AR-21162-T2-40-DMXRDM-02
Lumen (lm): 3398 lm
Optic: T2
Optic value: 142°x 52°
CCT / CRI: RGBW40
Dimming type: DMX/RDM
Product colour: Dark Grey
Variant code: AR-21162-T2-40-DMXRDM-03
Lumen (lm): 3398 lm
Optic: T2
Optic value: 142°x 52°
CCT / CRI: RGBW40
Dimming type: DMX/RDM
Product colour: White
Variant code: AR-21162-T2-40-DMXRDM-05
Lumen (lm): 3398 lm
Optic: T2
Optic value: 142°x 52°
CCT / CRI: RGBW40
Dimming type: DMX/RDM
Product colour: Matt Silver
Variant code: AR-21162-T2-40-DMXRDM-06
Lumen (lm): 3398 lm
Optic: T2
Optic value: 142°x 52°
CCT / CRI: RGBW40
Dimming type: DMX/RDM
Product colour: Bronze
Variant code: AR-21162-T3-30-DMX-01
Lumen (lm): 2953 lm
Optic: T3
Optic value: 137°x 65°
CCT / CRI: RGBW30
Dimming type: DMX
Product colour: Black
Variant code: AR-21162-T3-30-DMX-02
Lumen (lm): 2953 lm
Optic: T3
Optic value: 137°x 65°
CCT / CRI: RGBW30
Dimming type: DMX
Product colour: Dark Grey
Variant code: AR-21162-T3-30-DMX-03
Lumen (lm): 2953 lm
Optic: T3
Optic value: 137°x 65°
CCT / CRI: RGBW30
Dimming type: DMX
Product colour: White
Variant code: AR-21162-T3-30-DMX-05
Lumen (lm): 2953 lm
Optic: T3
Optic value: 137°x 65°
CCT / CRI: RGBW30
Dimming type: DMX
Product colour: Matt Silver
Variant code: AR-21162-T3-30-DMX-06
Lumen (lm): 2953 lm
Optic: T3
Optic value: 137°x 65°
CCT / CRI: RGBW30
Dimming type: DMX
Product colour: Bronze
Variant code: AR-21162-T3-40-DMX-01
Lumen (lm): 3477 lm
Optic: T3
Optic value: 137°x 65°
CCT / CRI: RGBW40
Dimming type: DMX
Product colour: Black
Variant code: AR-21162-T3-40-DMX-02
Lumen (lm): 3477 lm
Optic: T3
Optic value: 137°x 65°
CCT / CRI: RGBW40
Dimming type: DMX
Product colour: Dark Grey
Variant code: AR-21162-T3-40-DMX-03
Lumen (lm): 3477 lm
Optic: T3
Optic value: 137°x 65°
CCT / CRI: RGBW40
Dimming type: DMX
Product colour: White
Variant code: AR-21162-T3-40-DMX-05
Lumen (lm): 3477 lm
Optic: T3
Optic value: 137°x 65°
CCT / CRI: RGBW40
Dimming type: DMX
Product colour: Matt Silver
Variant code: AR-21162-T3-40-DMX-06
Lumen (lm): 3477 lm
Optic: T3
Optic value: 137°x 65°
CCT / CRI: RGBW40
Dimming type: DMX
Product colour: Bronze
Variant code: AR-21162-T3-30-DMXRDM-01
Lumen (lm): 2953 lm
Optic: T3
Optic value: 137°x 65°
CCT / CRI: RGBW30
Dimming type: DMX/RDM
Product colour: Black
Variant code: AR-21162-T3-30-DMXRDM-02
Lumen (lm): 2953 lm
Optic: T3
Optic value: 137°x 65°
CCT / CRI: RGBW30
Dimming type: DMX/RDM
Product colour: Dark Grey
Variant code: AR-21162-T3-30-DMXRDM-03
Lumen (lm): 2953 lm
Optic: T3
Optic value: 137°x 65°
CCT / CRI: RGBW30
Dimming type: DMX/RDM
Product colour: White
Variant code: AR-21162-T3-30-DMXRDM-05
Lumen (lm): 2953 lm
Optic: T3
Optic value: 137°x 65°
CCT / CRI: RGBW30
Dimming type: DMX/RDM
Product colour: Matt Silver
Variant code: AR-21162-T3-30-DMXRDM-06
Lumen (lm): 2953 lm
Optic: T3
Optic value: 137°x 65°
CCT / CRI: RGBW30
Dimming type: DMX/RDM
Product colour: Bronze
Variant code: AR-21162-T3-40-DMXRDM-01
Lumen (lm): 3477 lm
Optic: T3
Optic value: 137°x 65°
CCT / CRI: RGBW40
Dimming type: DMX/RDM
Product colour: Black
Variant code: AR-21162-T3-40-DMXRDM-02
Lumen (lm): 3477 lm
Optic: T3
Optic value: 137°x 65°
CCT / CRI: RGBW40
Dimming type: DMX/RDM
Product colour: Dark Grey
Variant code: AR-21162-T3-40-DMXRDM-03
Lumen (lm): 3477 lm
Optic: T3
Optic value: 137°x 65°
CCT / CRI: RGBW40
Dimming type: DMX/RDM
Product colour: White
Variant code: AR-21162-T3-40-DMXRDM-05
Lumen (lm): 3477 lm
Optic: T3
Optic value: 137°x 65°
CCT / CRI: RGBW40
Dimming type: DMX/RDM
Product colour: Matt Silver
Variant code: AR-21162-T3-40-DMXRDM-06
Lumen (lm): 3477 lm
Optic: T3
Optic value: 137°x 65°
CCT / CRI: RGBW40
Dimming type: DMX/RDM
Product colour: Bronze
Variant code: AR-21162-T4-30-DMX-01
Lumen (lm): 3015 lm
Optic: T4
Optic value: 93°x 64°
CCT / CRI: RGBW30
Dimming type: DMX
Product colour: Black
Variant code: AR-21162-T4-30-DMX-02
Lumen (lm): 3015 lm
Optic: T4
Optic value: 93°x 64°
CCT / CRI: RGBW30
Dimming type: DMX
Product colour: Dark Grey
Variant code: AR-21162-T4-30-DMX-03
Lumen (lm): 3015 lm
Optic: T4
Optic value: 93°x 64°
CCT / CRI: RGBW30
Dimming type: DMX
Product colour: White
Variant code: AR-21162-T4-30-DMX-05
Lumen (lm): 3015 lm
Optic: T4
Optic value: 93°x 64°
CCT / CRI: RGBW30
Dimming type: DMX
Product colour: Matt Silver
Variant code: AR-21162-T4-30-DMX-06
Lumen (lm): 3015 lm
Optic: T4
Optic value: 93°x 64°
CCT / CRI: RGBW30
Dimming type: DMX
Product colour: Bronze
Variant code: AR-21162-T4-40-DMX-01
Lumen (lm): 3519 lm
Optic: T4
Optic value: 93°x 64°
CCT / CRI: RGBW40
Dimming type: DMX
Product colour: Black
Variant code: AR-21162-T4-40-DMX-02
Lumen (lm): 3519 lm
Optic: T4
Optic value: 93°x 64°
CCT / CRI: RGBW40
Dimming type: DMX
Product colour: Dark Grey
Variant code: AR-21162-T4-40-DMX-03
Lumen (lm): 3519 lm
Optic: T4
Optic value: 93°x 64°
CCT / CRI: RGBW40
Dimming type: DMX
Product colour: White
Variant code: AR-21162-T4-40-DMX-05
Lumen (lm): 3519 lm
Optic: T4
Optic value: 93°x 64°
CCT / CRI: RGBW40
Dimming type: DMX
Product colour: Matt Silver
Variant code: AR-21162-T4-40-DMX-06
Lumen (lm): 3519 lm
Optic: T4
Optic value: 93°x 64°
CCT / CRI: RGBW40
Dimming type: DMX
Product colour: Bronze
Variant code: AR-21162-T4-30-DMXRDM-01
Lumen (lm): 3015 lm
Optic: T4
Optic value: 93°x 64°
CCT / CRI: RGBW30
Dimming type: DMX/RDM
Product colour: Black
Variant code: AR-21162-T4-30-DMXRDM-02
Lumen (lm): 3015 lm
Optic: T4
Optic value: 93°x 64°
CCT / CRI: RGBW30
Dimming type: DMX/RDM
Product colour: Dark Grey
Variant code: AR-21162-T4-30-DMXRDM-03
Lumen (lm): 3015 lm
Optic: T4
Optic value: 93°x 64°
CCT / CRI: RGBW30
Dimming type: DMX/RDM
Product colour: White
Variant code: AR-21162-T4-30-DMXRDM-05
Lumen (lm): 3015 lm
Optic: T4
Optic value: 93°x 64°
CCT / CRI: RGBW30
Dimming type: DMX/RDM
Product colour: Matt Silver
Variant code: AR-21162-T4-30-DMXRDM-06
Lumen (lm): 3015 lm
Optic: T4
Optic value: 93°x 64°
CCT / CRI: RGBW30
Dimming type: DMX/RDM
Product colour: Bronze
Variant code: AR-21162-T4-40-DMXRDM-01
Lumen (lm): 3519 lm
Optic: T4
Optic value: 93°x 64°
CCT / CRI: RGBW40
Dimming type: DMX/RDM
Product colour: Black
Variant code: AR-21162-T4-40-DMXRDM-02
Lumen (lm): 3519 lm
Optic: T4
Optic value: 93°x 64°
CCT / CRI: RGBW40
Dimming type: DMX/RDM
Product colour: Dark Grey
Variant code: AR-21162-T4-40-DMXRDM-03
Lumen (lm): 3519 lm
Optic: T4
Optic value: 93°x 64°
CCT / CRI: RGBW40
Dimming type: DMX/RDM
Product colour: White
Variant code: AR-21162-T4-40-DMXRDM-05
Lumen (lm): 3519 lm
Optic: T4
Optic value: 93°x 64°
CCT / CRI: RGBW40
Dimming type: DMX/RDM
Product colour: Matt Silver
Variant code: AR-21162-T4-40-DMXRDM-06
Lumen (lm): 3519 lm
Optic: T4
Optic value: 93°x 64°
CCT / CRI: RGBW40
Dimming type: DMX/RDM
Product colour: Bronze

ACCESSORY

PROJECT REFERENCE (ARIZONA Light columns)

SOCIAL

Facebook-f Instagram Youtube Linkedin-in Twitter Pinterest Line

NEWSLETTER

Sign up to our newsletter

Copyright © LIGMAN Lighting Co., Ltd.

Privacy Policy      Privacy Policy CCTV      Terms of use      Terms of sales
