CAPSULE 5CA-30607CAPSULE

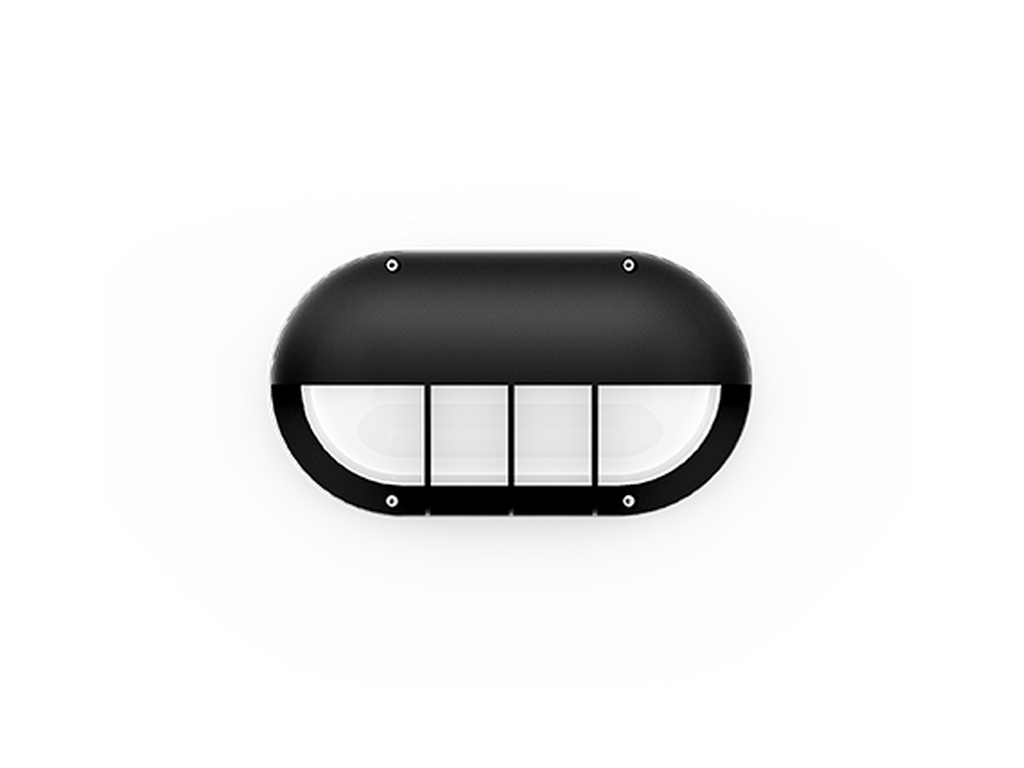

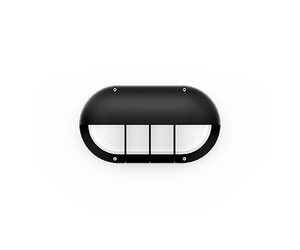

Black

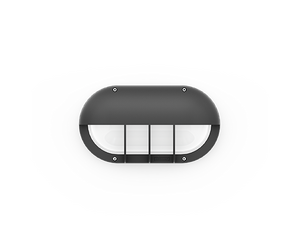

Dark Grey

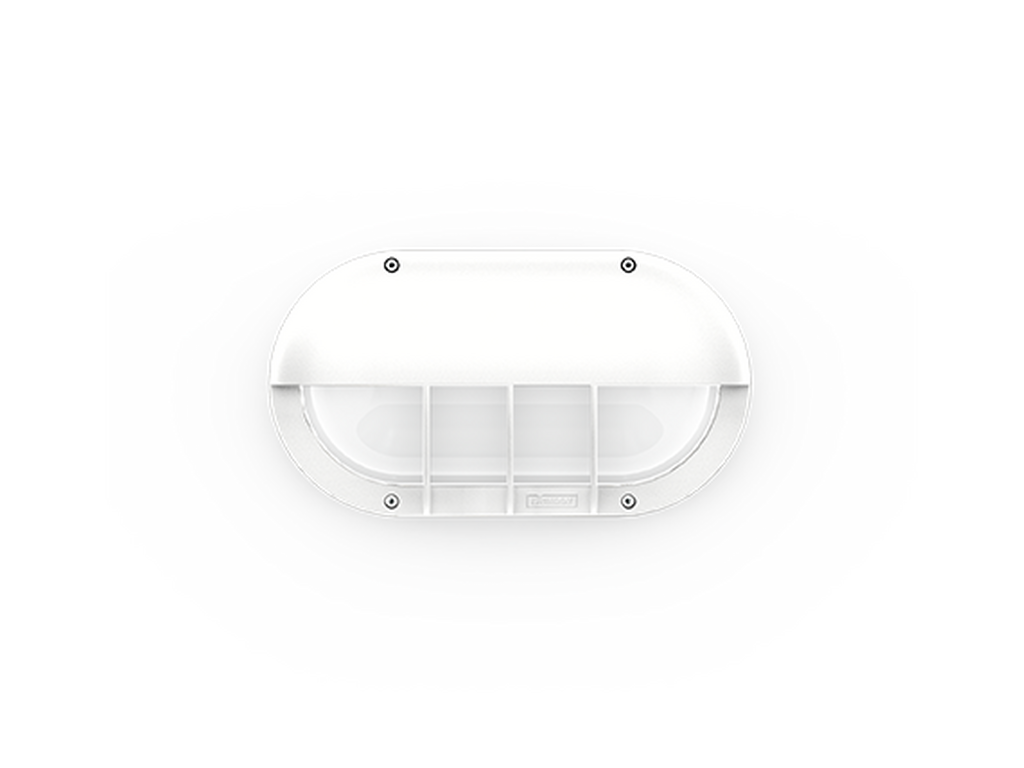

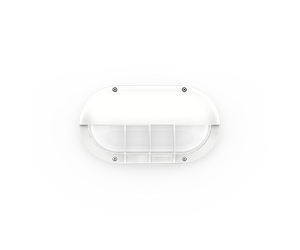

White
Matt Silver

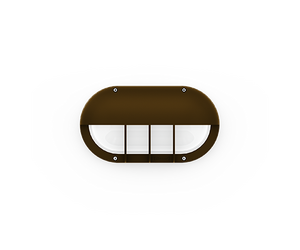

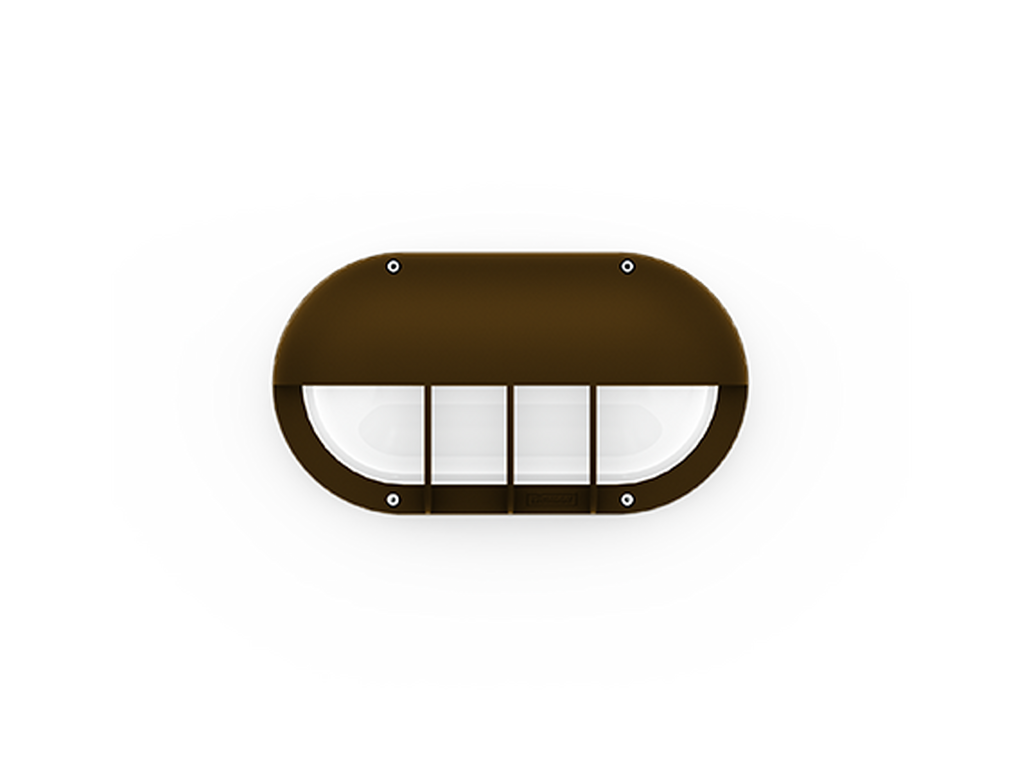

Bronze

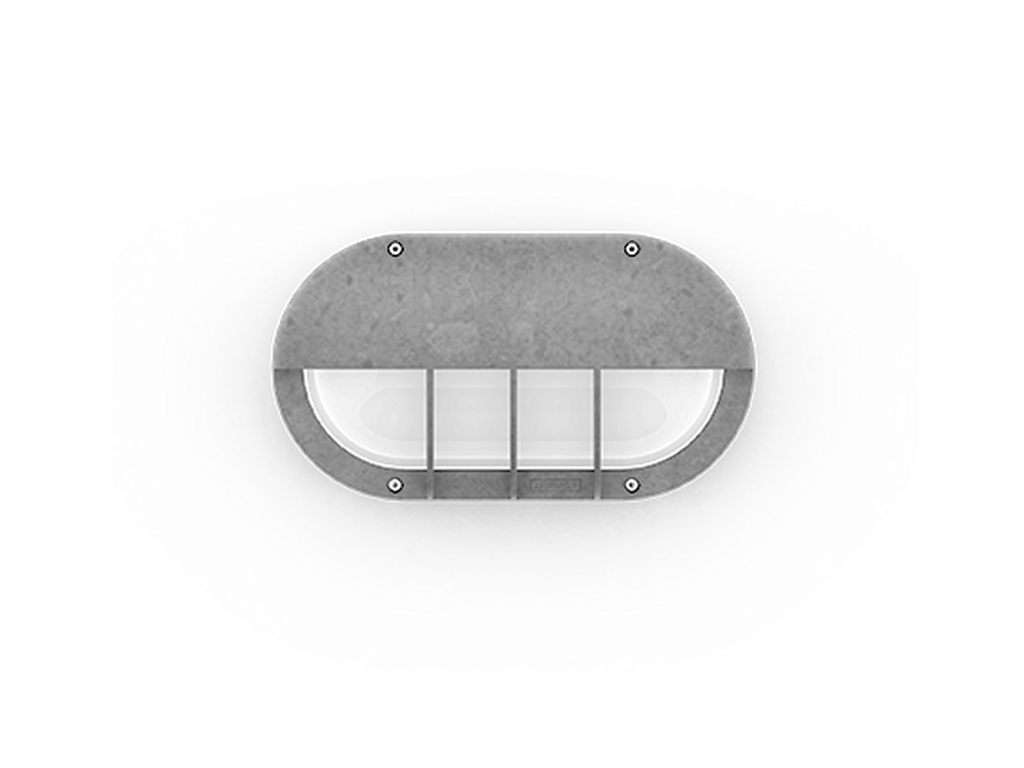

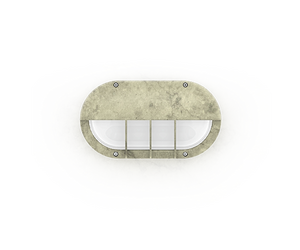

Concrete - Urban
Softscape - Urban
Stone - Urban

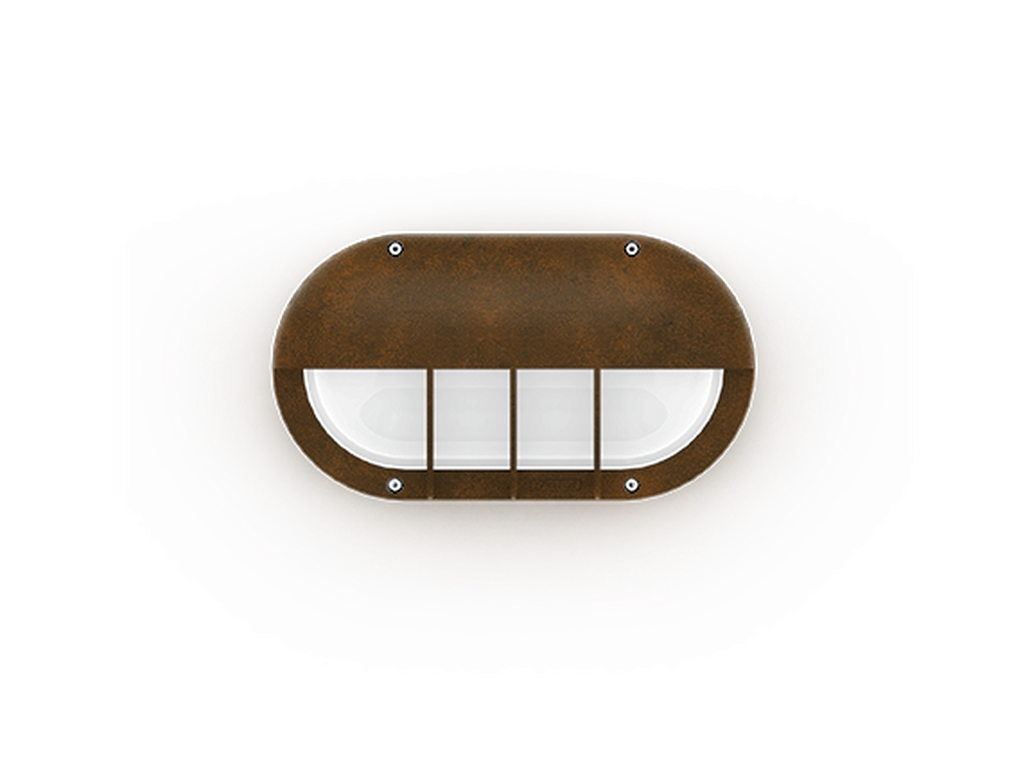

Corten - Urban

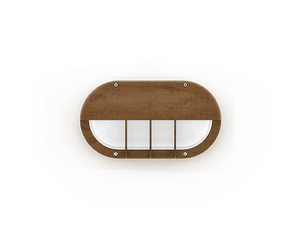

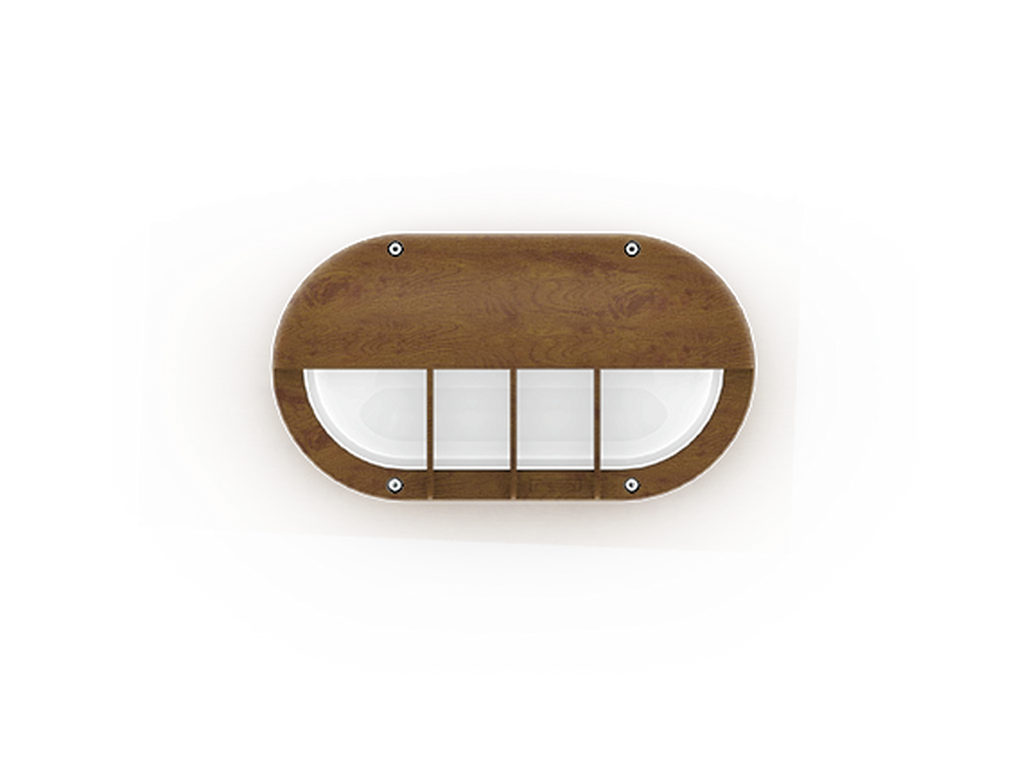

Oak - Woodland

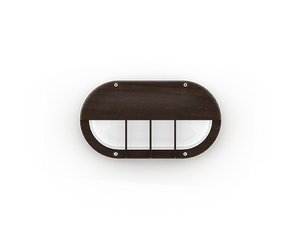

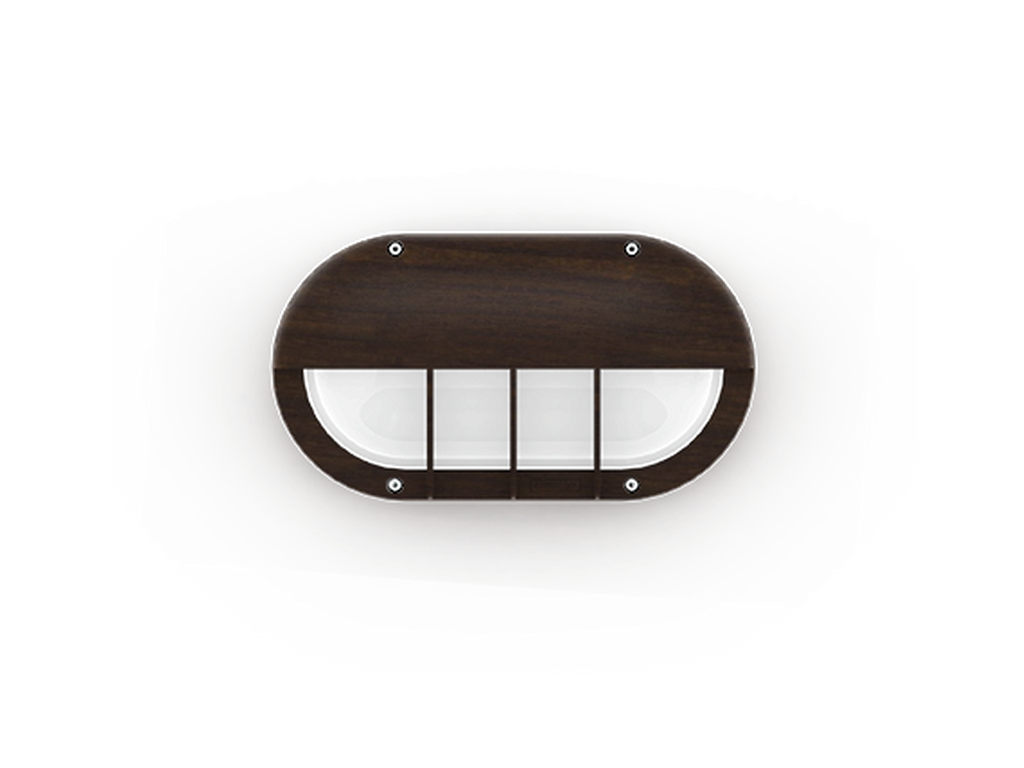

Walnut - Woodland

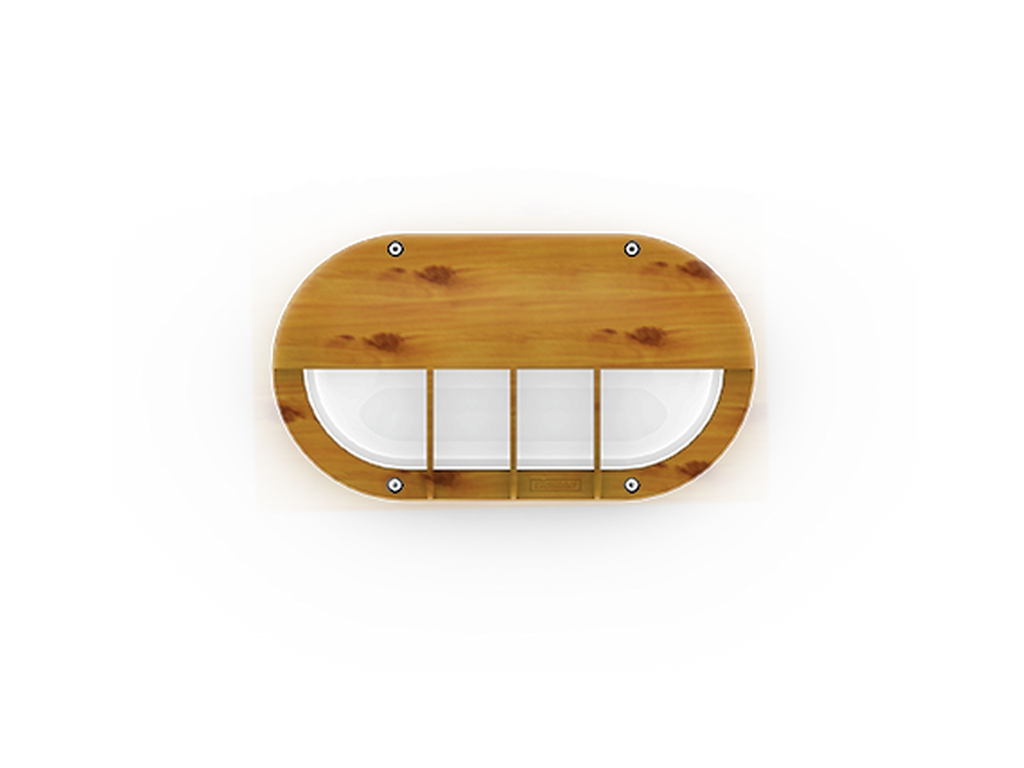

Pine - Woodland
Black
Dark Grey
White
Matt Silver
Bronze
Concrete - Urban
Softscape - Urban
Stone - Urban
Corten - Urban
Oak - Woodland
Walnut - Woodland
Pine - WoodlandTW
TECHNICAL SPECIFICATIONS
Material
Aluminium
Light source
192 LED
Power (W)
16 W
Lumen (lm)
631 lm
Efficacy (lm/W)
39 lm/W
Driver option
Integral control gear
Driver
Constant current (CC)
Input voltage
220-240 V 50/60 Hz
Optic
G
Optic value
102°x109°
CCT / CRI
TW (2700K - 6500K)
Bug
B0-U3-G1
ULR
15.67%
ULOR
15.67%
CIE flux code nº3
84
Dimming type
DALI
Product colours
Black, Dark Grey, White, Matt Silver, Bronze, Concrete - Urban, Softscape - Urban, Stone - Urban, Corten - Urban, Oak - Woodland, Walnut - Woodland, Pine - Woodland
Weight
2.2 kg
Operating temperature
-20 °C to 50 °C
Through wiring
Two cable entries for through wiring
Lens / Reflector / Optic
Opal UV-stabilised polycarbonate diffuser
MacAdam Ellipse
3 SDCM
Lifetime L90B10 (hours)
> 37,000
Lifetime L80B10 (hours)
> 78,000
Lifetime L80B50 (hours)
> 86,000
Variants (DALI)
Compatible with EN/ IEC 60598-2-22: Suitable for emergency installations as central supply, non-maintained (Z0)
DOWNLOADS
Family spec sheet
Product spec sheet
Installation manual
Technical drawing
2D - CAD
3D view link
AR Tracker
CE documentFor BIM files (Revit - RFA), please check the Variant code
LIGHT EFFECT
Optic
G (102°x109°)
CODE FINDER
Lumen (lm)
Optic
Optic value
CCT / CRI
Dimming type
Product colour
Variant code
Lumen (lm)
Optic
Optic value
CCT / CRI
Dimming type
Product colour
Variant code: CA-30607-G-TW2765-DA-01
Lumen (lm): 631 lm
Optic: G
Optic value: 102°x109°
CCT / CRI: TW (2700K - 6500K)
Dimming type: DALI
Product colour: Black
Variant code: CA-30607-G-TW2765-DA-02
Lumen (lm): 631 lm
Optic: G
Optic value: 102°x109°
CCT / CRI: TW (2700K - 6500K)
Dimming type: DALI

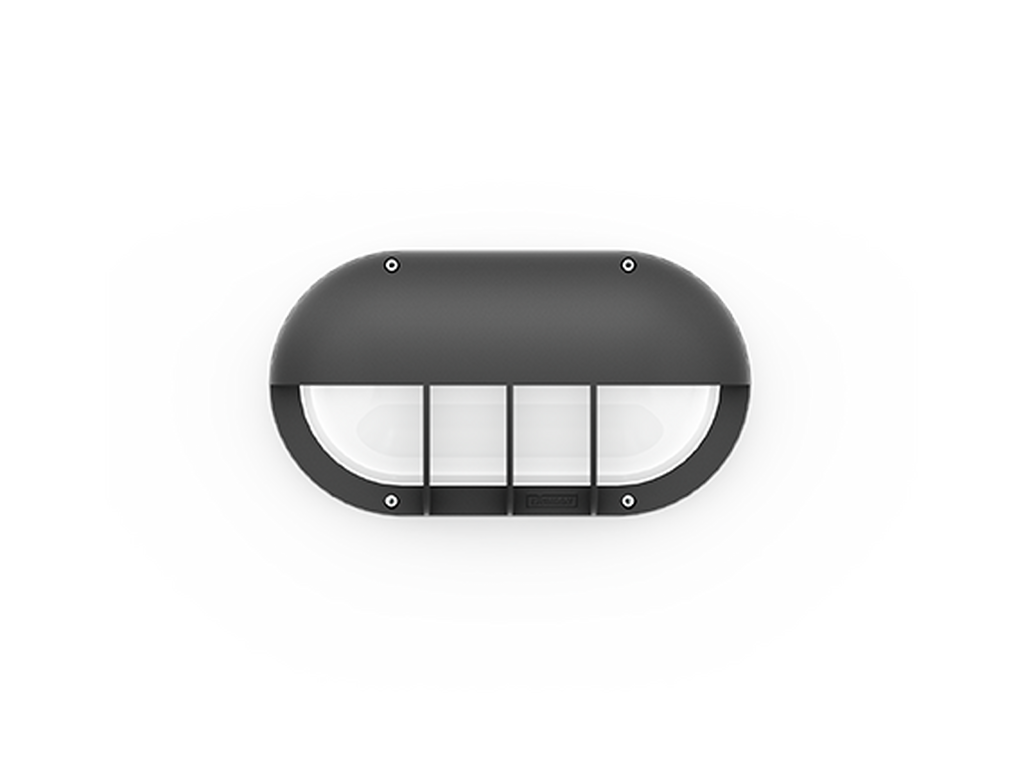

Product colour: Dark Grey
Variant code: CA-30607-G-TW2765-DA-03
Lumen (lm): 631 lm
Optic: G
Optic value: 102°x109°
CCT / CRI: TW (2700K - 6500K)
Dimming type: DALI

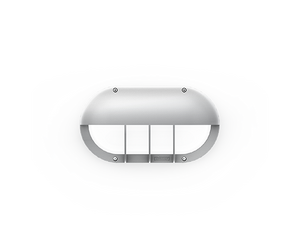

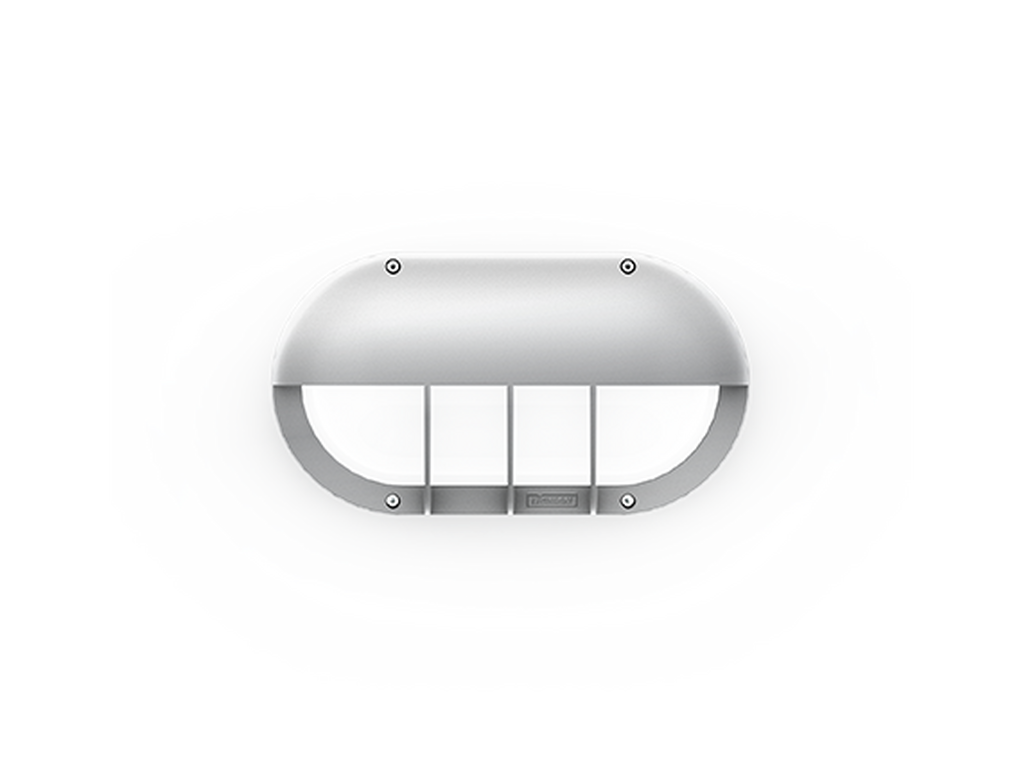

Product colour: White
Variant code: CA-30607-G-TW2765-DA-05
Lumen (lm): 631 lm
Optic: G
Optic value: 102°x109°
CCT / CRI: TW (2700K - 6500K)
Dimming type: DALI
Product colour: Matt Silver
Variant code: CA-30607-G-TW2765-DA-06
Lumen (lm): 631 lm
Optic: G
Optic value: 102°x109°
CCT / CRI: TW (2700K - 6500K)
Dimming type: DALI
Product colour: Bronze
Variant code: CA-30607-G-TW2765-DA-SU01
Lumen (lm): 631 lm
Optic: G
Optic value: 102°x109°
CCT / CRI: TW (2700K - 6500K)
Dimming type: DALI

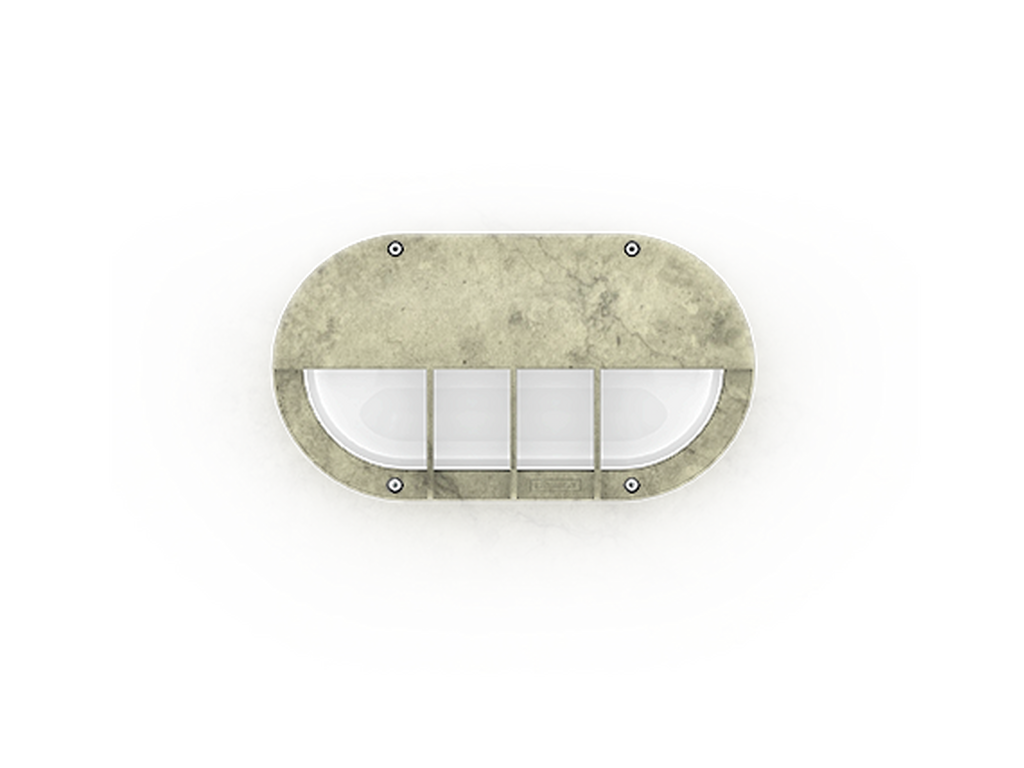

Product colour: Concrete - Urban
Variant code: CA-30607-G-TW2765-DA-SU02
Lumen (lm): 631 lm
Optic: G
Optic value: 102°x109°
CCT / CRI: TW (2700K - 6500K)
Dimming type: DALI

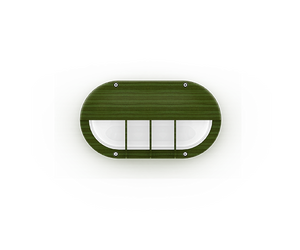

Product colour: Softscape - Urban
Variant code: CA-30607-G-TW2765-DA-SU03
Lumen (lm): 631 lm
Optic: G
Optic value: 102°x109°
CCT / CRI: TW (2700K - 6500K)
Dimming type: DALI
Product colour: Stone - Urban
Variant code: CA-30607-G-TW2765-DA-SU04
Lumen (lm): 631 lm
Optic: G
Optic value: 102°x109°
CCT / CRI: TW (2700K - 6500K)
Dimming type: DALI

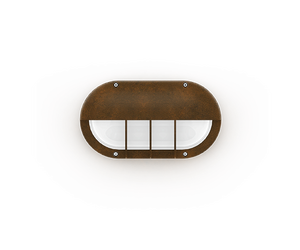

Product colour: Corten - Urban
Variant code: CA-30607-G-TW2765-DA-SW01
Lumen (lm): 631 lm
Optic: G
Optic value: 102°x109°
CCT / CRI: TW (2700K - 6500K)
Dimming type: DALI

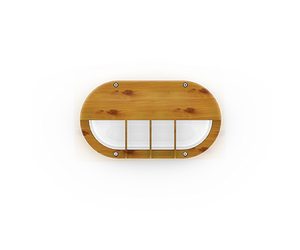

Product colour: Oak - Woodland
Variant code: CA-30607-G-TW2765-DA-SW02
Lumen (lm): 631 lm
Optic: G
Optic value: 102°x109°
CCT / CRI: TW (2700K - 6500K)
Dimming type: DALI
Product colour: Walnut - Woodland
Variant code: CA-30607-G-TW2765-DA-SW03
Lumen (lm): 631 lm
Optic: G
Optic value: 102°x109°
CCT / CRI: TW (2700K - 6500K)
Dimming type: DALI
Product colour: Pine - Woodland
