LIGMAN GANDALF 22 GA-31914.

GANDALF 22GA-31914GANDALF

Send us an E-Mail or use the contact form:

I have read the privacy policy and agree to the processing of my data *

The fields marked with an * must be correctly filled.
Your request was successfully sent.

Send us an E-Mail or use the contact form:

I have read the privacy policy and agree to the processing of my data *

The fields marked with an * must be correctly filled.
Your request was successfully sent.
GANDALF 22Black

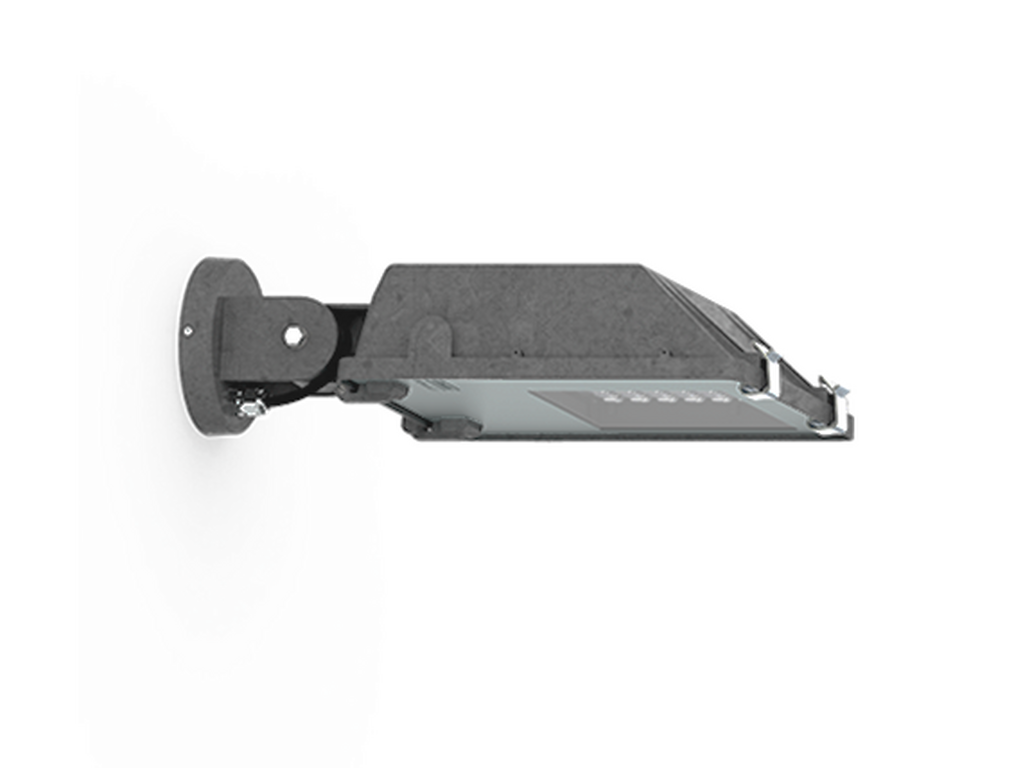

GANDALF 22Dark Grey

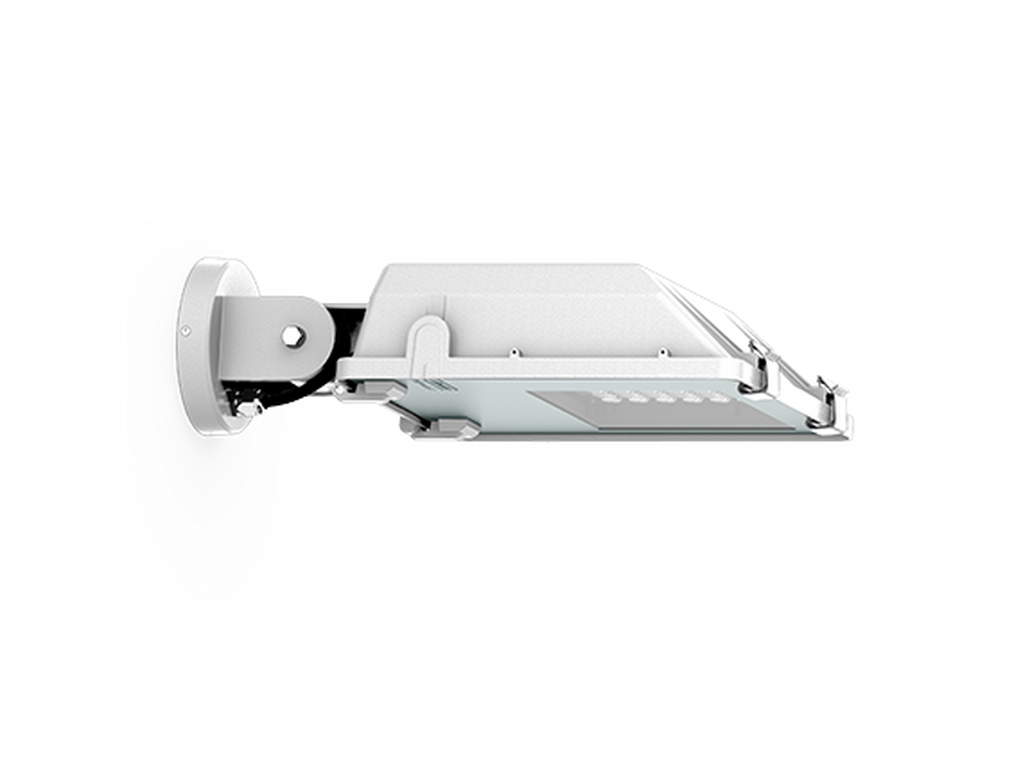

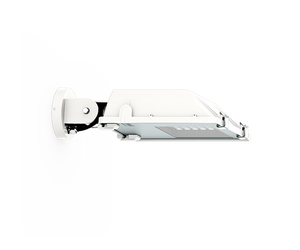

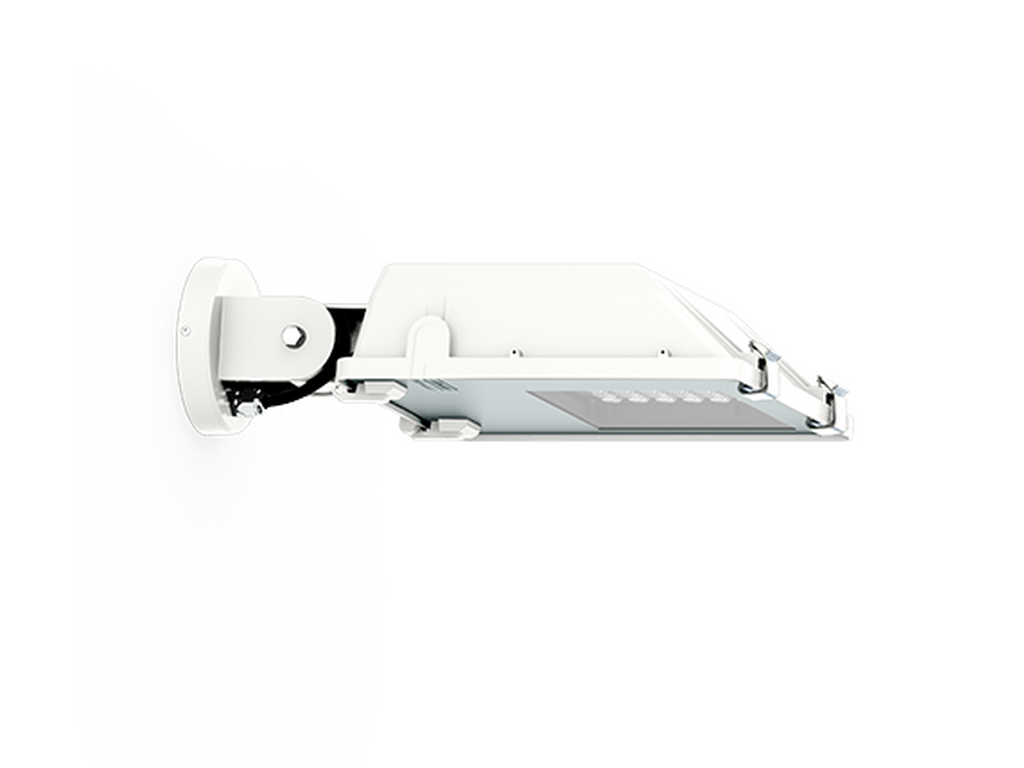

GANDALF 22White

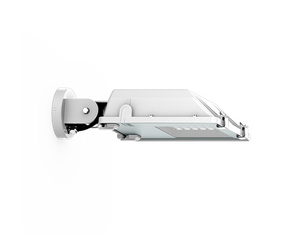

GANDALF 22Matt Silver

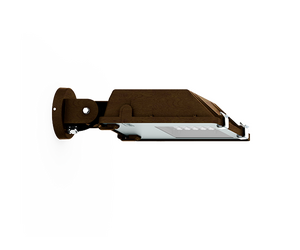

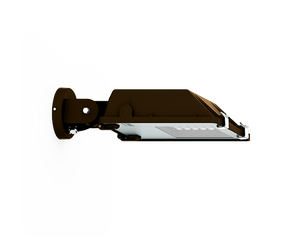

GANDALF 22Bronze

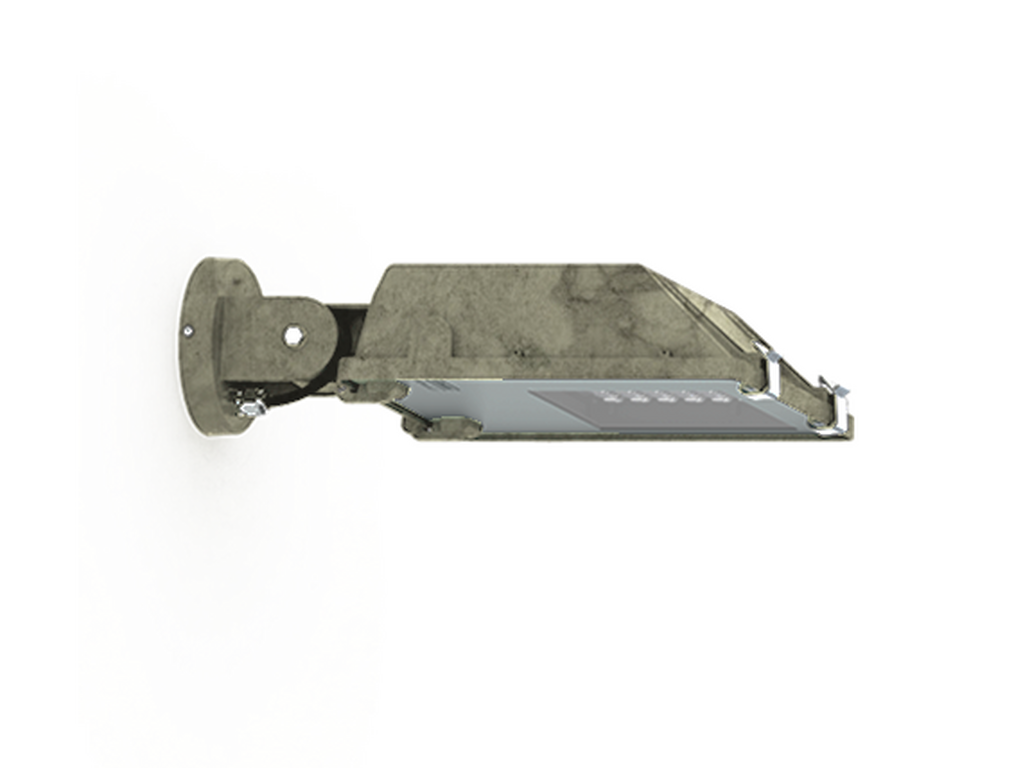

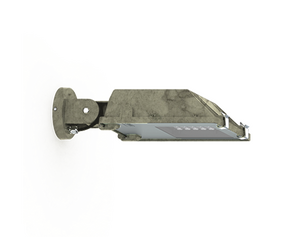

GANDALF 22Concrete - Urban
GANDALF 22Softscape - Urban
GANDALF 22Stone - Urban
GANDALF 22Corten - Urban

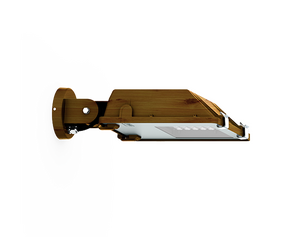

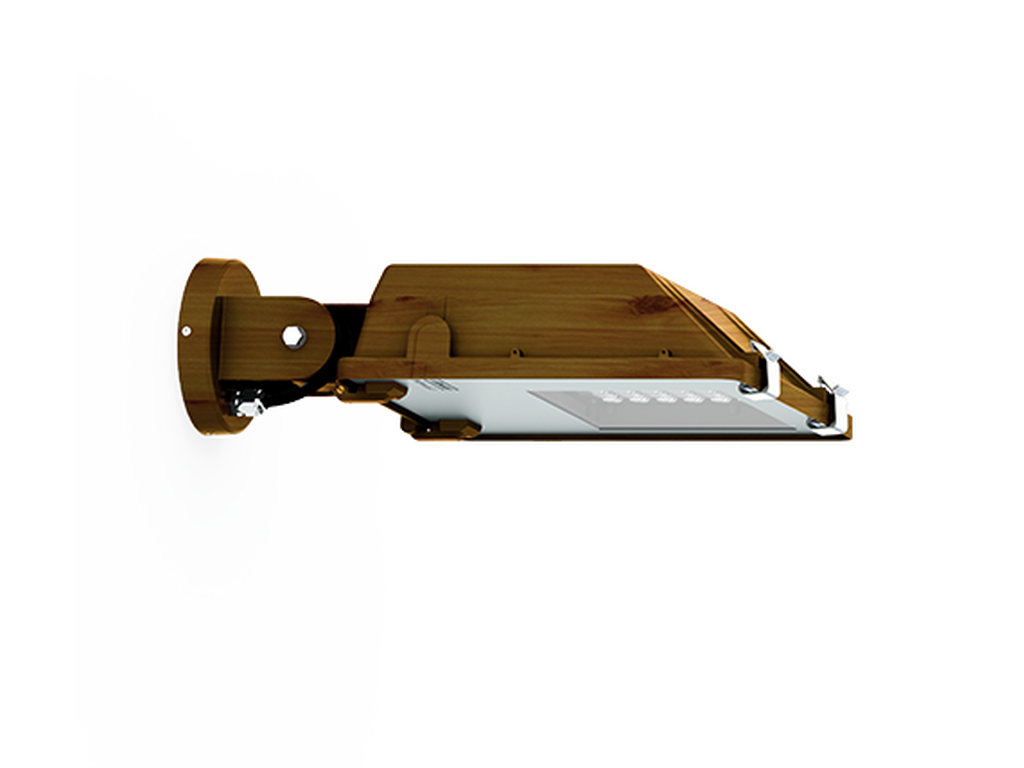

GANDALF 22Oak - Woodland

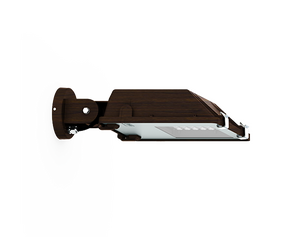

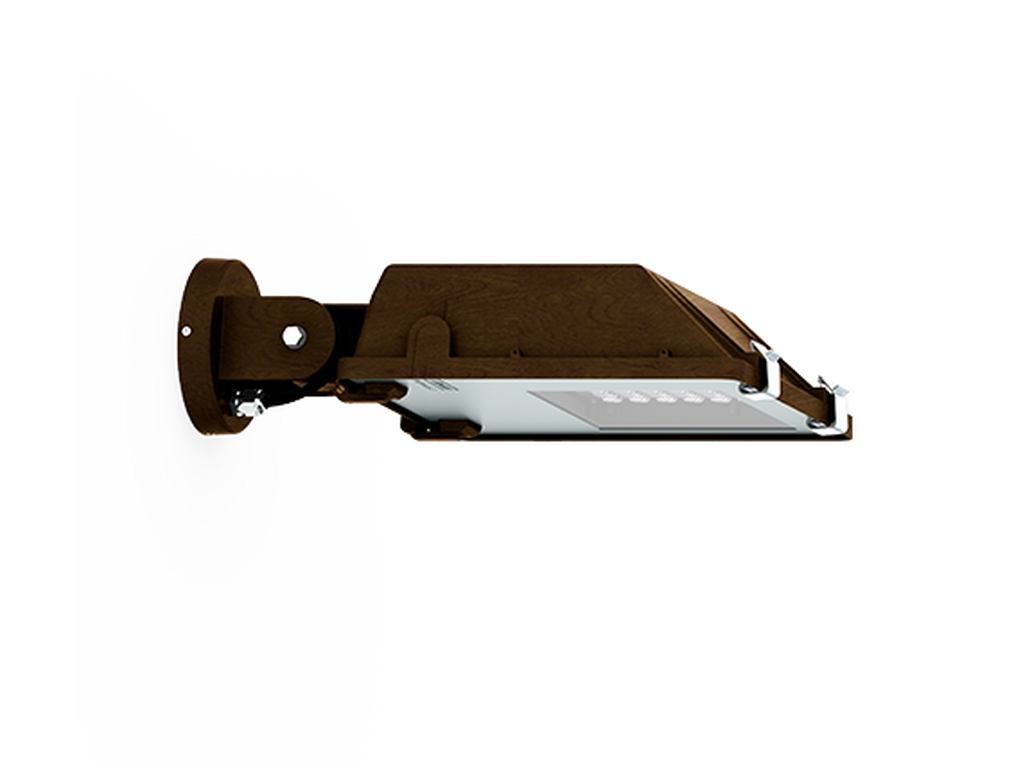

GANDALF 22Walnut - Woodland
GANDALF 22Pine - Woodland
GANDALF 22Black
GANDALF 22Dark Grey
GANDALF 22White
GANDALF 22Matt Silver
GANDALF 22Bronze
GANDALF 22Concrete - Urban
GANDALF 22Softscape - Urban
GANDALF 22Stone - Urban
GANDALF 22Corten - Urban
GANDALF 22Oak - Woodland
GANDALF 22Walnut - Woodland
GANDALF 22Pine - Woodland
CERETILAPClass IIP65IK10

TECHNICAL SPECIFICATIONS

Material
Aluminium
Light source
48 LED
Power (W)
74 W
Lumen (lm)
7282 - 9862 lm
Efficacy (lm/W)
98 - 133 lm/W
Driver option
Integral control gear
Driver
Constant current (CC)
Input voltage
220-240 V 50/60 Hz
Optic
N, M, W, VW, EW, T2, T3, T4
Optic value
11°, 30°, 57°, 68°, 115°, 140°x42°, 148°x73°, 118°x79°
CCT / CRI
3000K CRI80, 4000K CRI80
Bug
B1-U0-G1, B2-U0-G1, B2-U0-G2, B3-U0-G0, B4-U0-G0
ULR
<1%
ULOR
<1%
CIE flux code nº3
100, 97, 98, 99
Dimming type
On/Off, 1-10V, DALI
Product colours
Black, Dark Grey, White, Matt Silver, Bronze, Concrete - Urban, Softscape - Urban, Stone - Urban, Corten - Urban, Oak - Woodland, Walnut - Woodland, Pine - Woodland
Weight
9.5 kg
Operating temperature
-20 °C to 40 °C
Through wiring
Two cable entries for through wiring
Lens / Reflector / Optic
High-efficiency PMMA lens, Clear toughened glass
MacAdam Ellipse
3 SDCM
Lifetime L90B10 (hours)
> 90,000
Lifetime L80B10 (hours)
> 90,000
Lifetime L80B50 (hours)
> 90,000
Variants (On/Off, 1-10V, DALI)
Compatible with EN/ IEC 60598-2-22: Suitable for emergency installations as central supply, non-maintained (Z0)

LIGHT EFFECT

Optic
N (11°)
M (30°)
W (57°)
VW (68°)
EW (115°)
T2 (140°x42°)
T3 (148°x73°)
T4 (118°x79°)

CODE FINDER

Lumen (lm)
Optic
Optic value
CCT / CRI
Dimming type
Product colour
Variant code
Lumen (lm)
Optic
Optic value
CCT / CRI
Dimming type
Product colour

ACCESSORY

PROJECT REFERENCE (GANDALF Surface facade luminaires)
