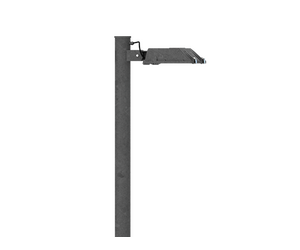

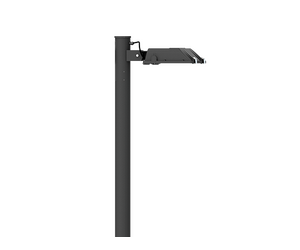

GANDALF 24
GANDALF 24
GANDALF 24
GANDALF 24

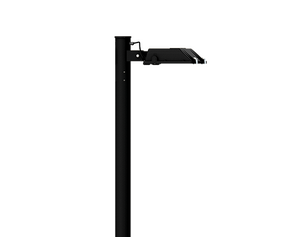

GANDALF 24Black
GANDALF 24Dark Grey

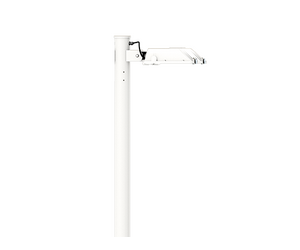

GANDALF 24White
GANDALF 24Matt Silver

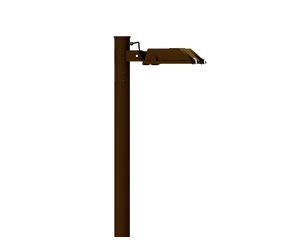

GANDALF 24Bronze

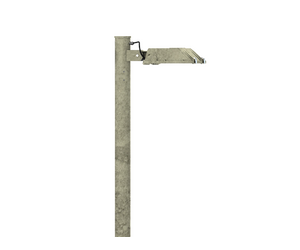

GANDALF 24Concrete - Urban
GANDALF 24Softscape - Urban
GANDALF 24Stone - Urban

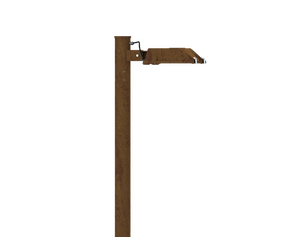

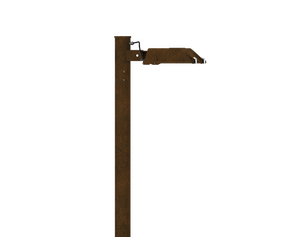

GANDALF 24Corten - Urban
GANDALF 24Oak - Woodland
GANDALF 24Walnut - Woodland
GANDALF 24Pine - Woodland
GANDALF 24
GANDALF 24
GANDALF 24
GANDALF 24
GANDALF 24Black
GANDALF 24Dark Grey
GANDALF 24White
GANDALF 24Matt Silver
GANDALF 24Bronze
GANDALF 24Concrete - Urban
GANDALF 24Softscape - Urban
GANDALF 24Stone - Urban
GANDALF 24Corten - Urban
GANDALF 24Oak - Woodland
GANDALF 24Walnut - Woodland
GANDALF 24Pine - Woodland
1 side
CEClass IIP65IK08

Technical information

Material
Aluminium
Light source
48 LED
Power (W)
89 W
Lumen (lm)
8578 - 11837 lm
Efficacy (lm/W)
96 - 133 lm/W
Driver option
Integral control gear
Driver
Constant current (CC)
Input voltage
220-240 V 50/60 Hz
Optic
N, M, W, VW, EW, T2, T3, T4
Optic value
11°, 26°, 52°, 66°, 115°, 140°x47°, 138°x64°, 99°x77°
CCT / CRI
3000K CRI80, 4000K CRI80
Bug
B2-U0-G2, B3-U0-G0, B4-U0-G0, B5-U0-G0
ULR
<1%
ULOR
<1%
CIE flux code nº3
100, 97, 98, 99
Dimming type
On/Off, 1-10V, DALI
Product colours
Black, Dark Grey, White, Matt Silver, Bronze, Concrete - Urban, Softscape - Urban, Stone - Urban, Corten - Urban, Oak - Woodland, Walnut - Woodland, Pine - Woodland
Weight
10.7 kg
Operating temperature
-20 °C to 50 °C
EPA (m2)
0.096
Cable
One cable gland supplied with 0.5 m of 3x1.0 sqmm outdoor cable
Through wiring
Single cable entry
Lens / Reflector / Optic
Clear toughened glass, High-efficiency polycarbonate lens
Tilt
80°(Up)/ -80°(Down)
MacAdam Ellipse
3 SDCM
Lifetime L90B10 (hours)
> 90,000
Lifetime L80B10 (hours)
> 90,000
Lifetime L80B50 (hours)
> 90,000
Variants (On/Off, 1-10V, DALI)
Compatible with EN/ IEC 60598-2-22: Suitable for emergency installations as central supply, non-maintained (Z0)

Light effect

Optic

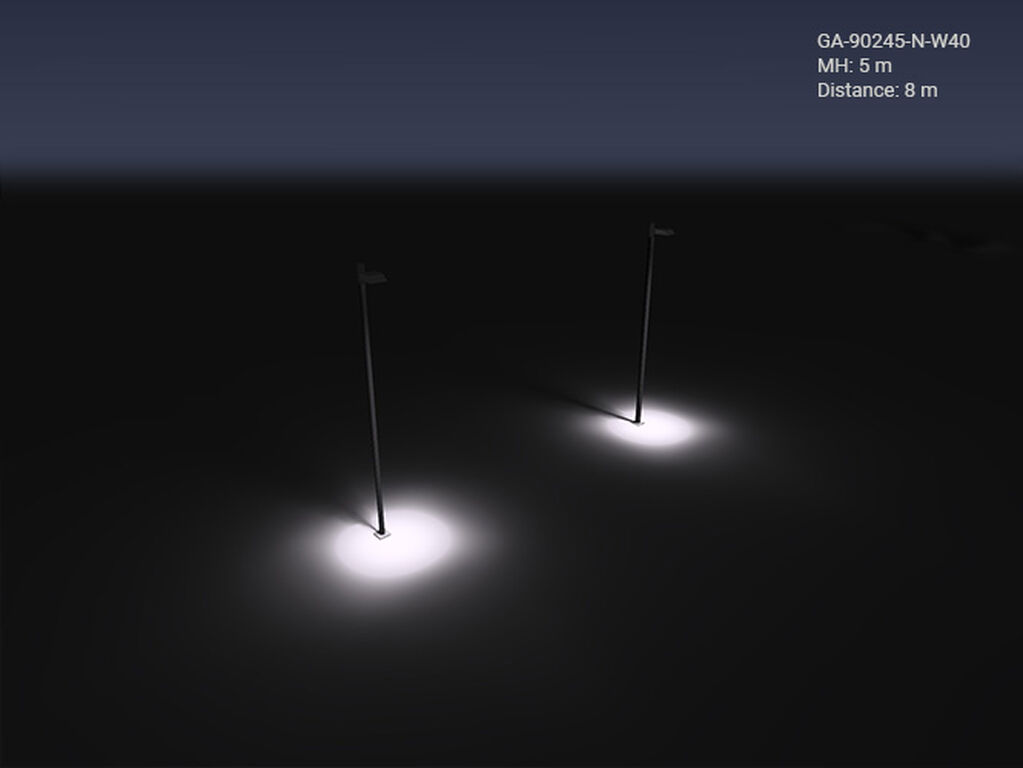

N (11°)
M (26°)
W (52°)
VW (66°)
EW (115°)
T2 (140°x47°)
T3 (138°x64°)
T4 (99°x77°)

Code finder

Lumen (lm)
Optic
Optic value
CCT / CRI
Dimming type
Product colour
Variant code
Lumen (lm)
Optic
Optic value
CCT / CRI
Dimming type
Product colour

Accessory

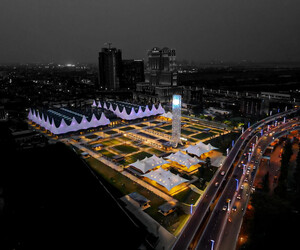

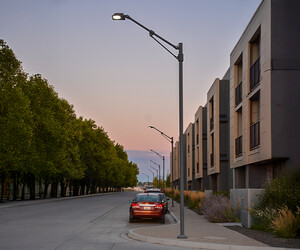

Project reference (GANDALF Street & area lighting luminaires)
