LIGMAN GINO 2 GI-31591.

GINO 2GI-31591GINO

Send us an E-Mail or use the contact form:

I have read the privacy policy and agree to the processing of my data *

The fields marked with an * must be correctly filled.
Your request was successfully sent.

Send us an E-Mail or use the contact form:

I have read the privacy policy and agree to the processing of my data *

The fields marked with an * must be correctly filled.
Your request was successfully sent.


GINO 2Black
GINO 2Dark Grey

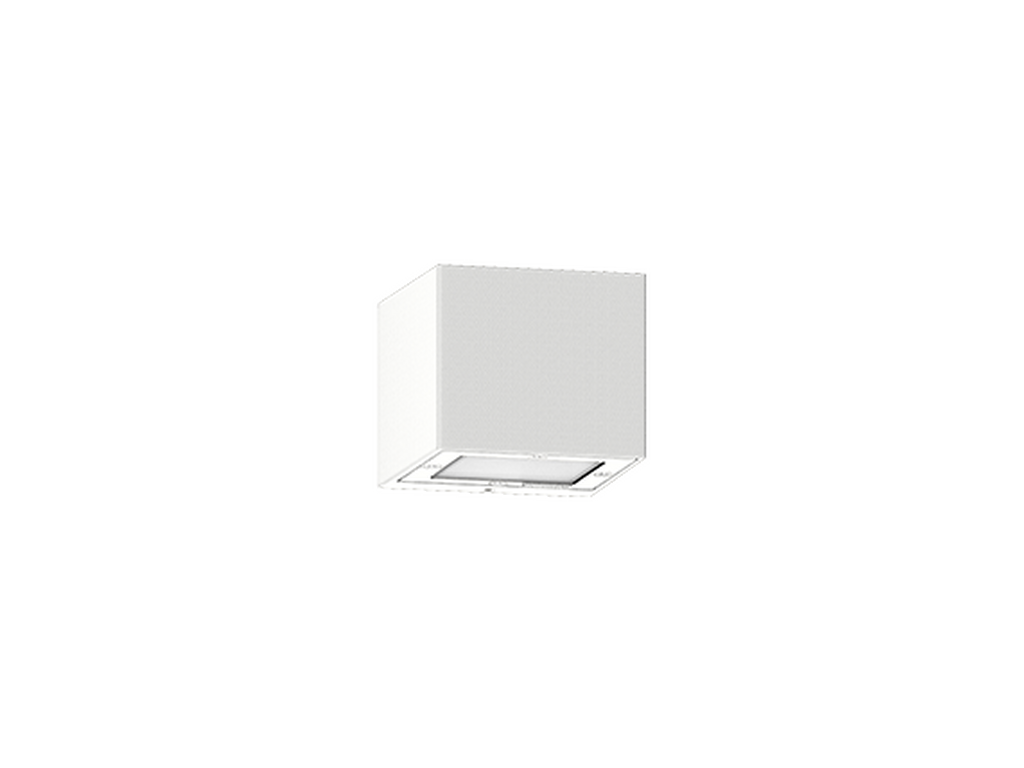

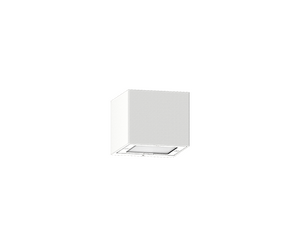

GINO 2White

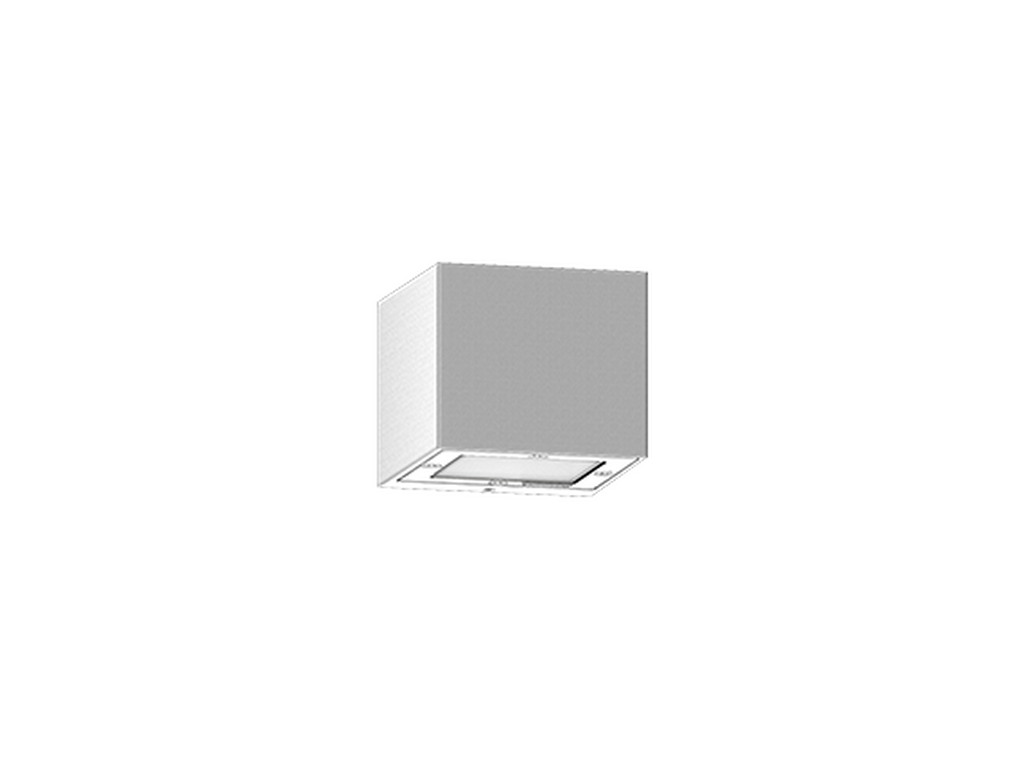

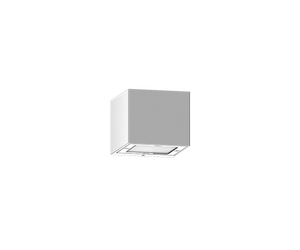

GINO 2Matt Silver
GINO 2Bronze
GINO 2Concrete - Urban
GINO 2Softscape - Urban
GINO 2Stone - Urban

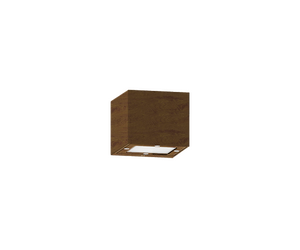

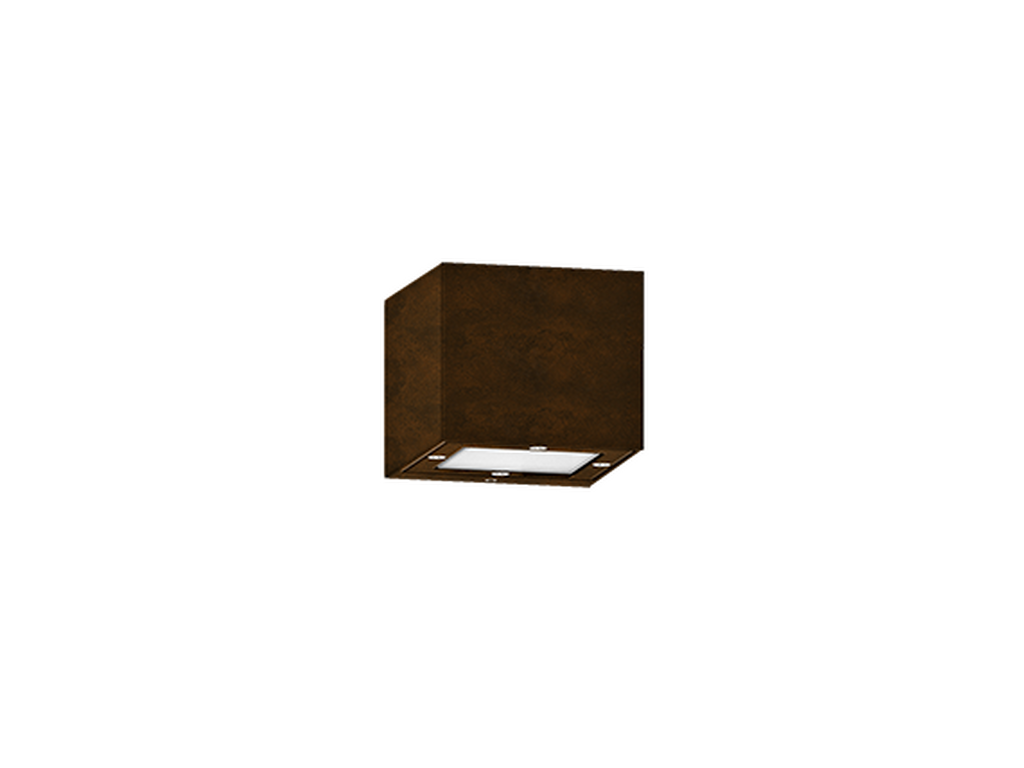

GINO 2Corten - Urban
GINO 2Oak - Woodland

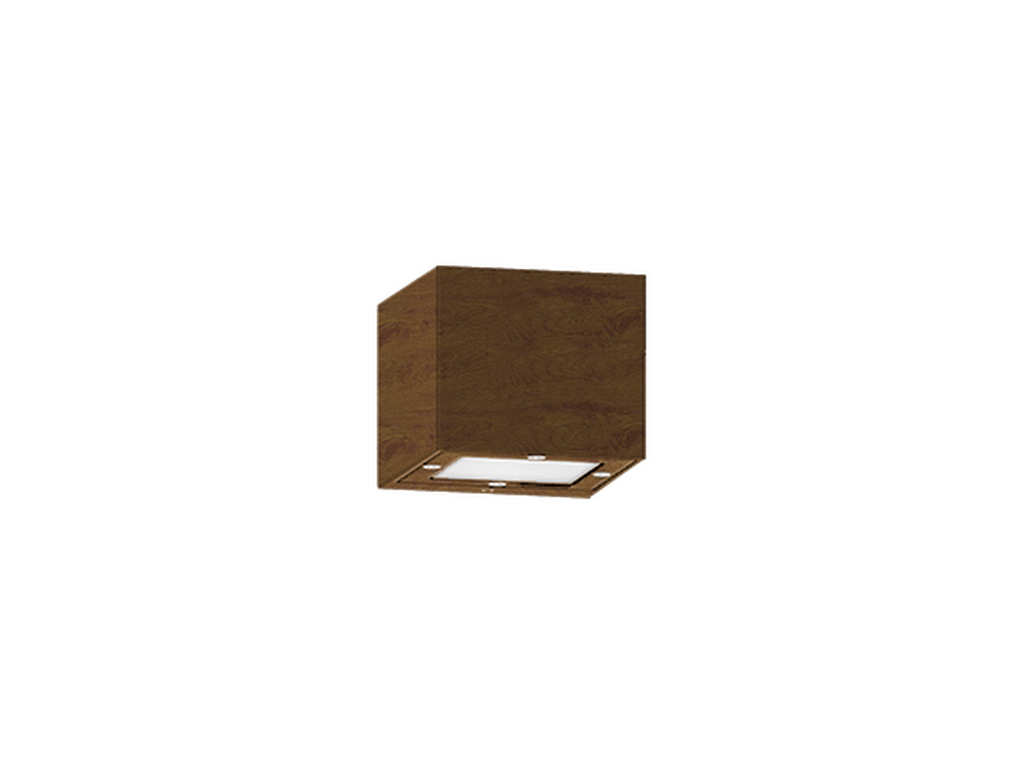

GINO 2Walnut - Woodland

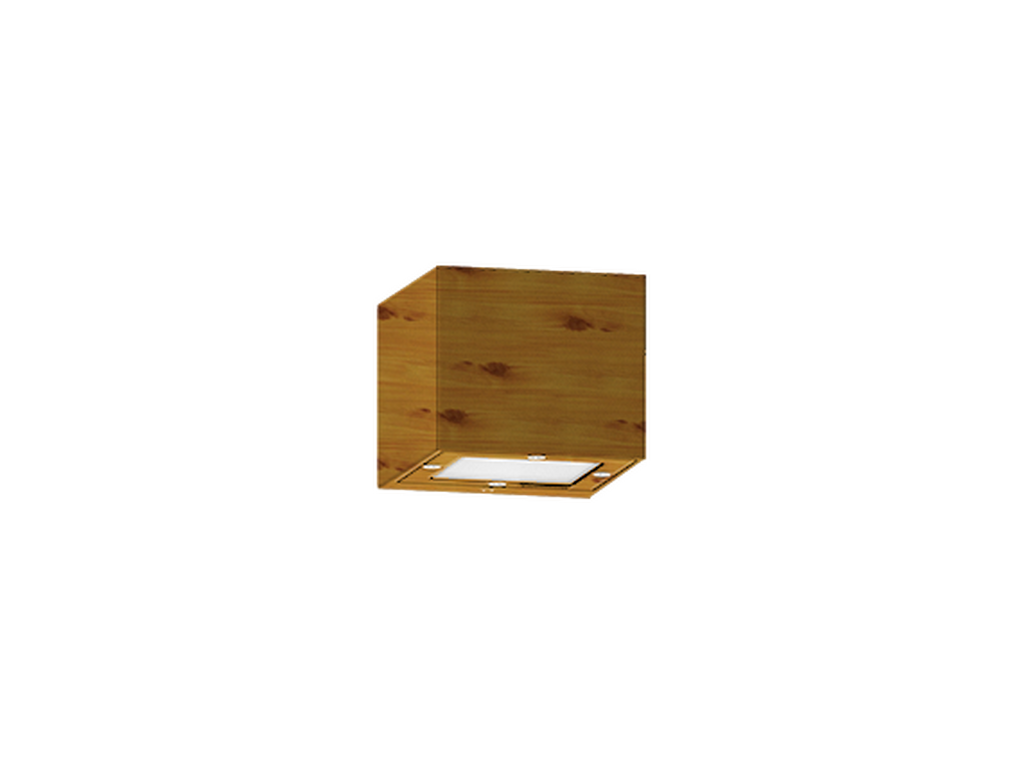

GINO 2Pine - Woodland
GINO 2Black
GINO 2Dark Grey
GINO 2White
GINO 2Matt Silver

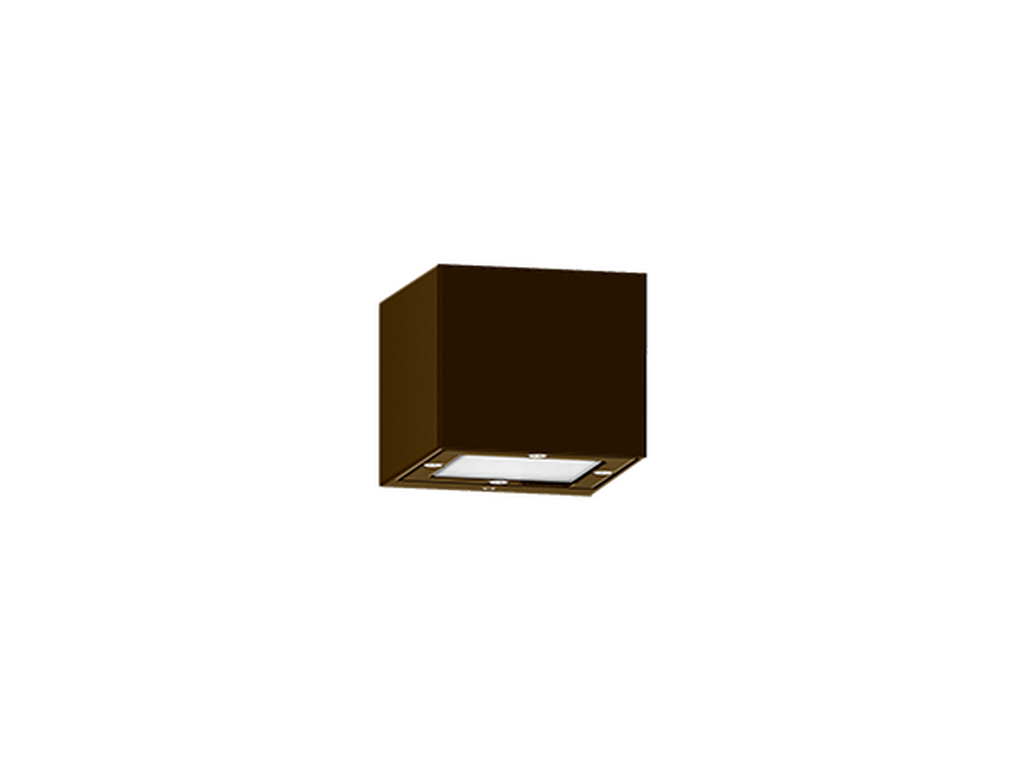

GINO 2Bronze

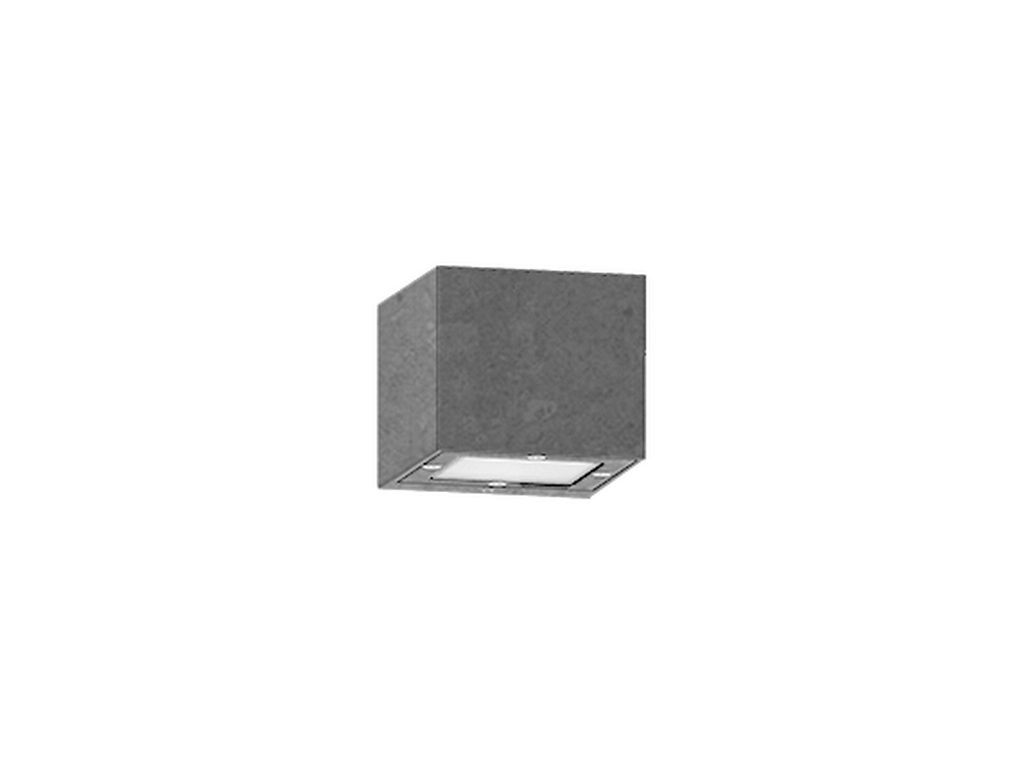

GINO 2Concrete - Urban

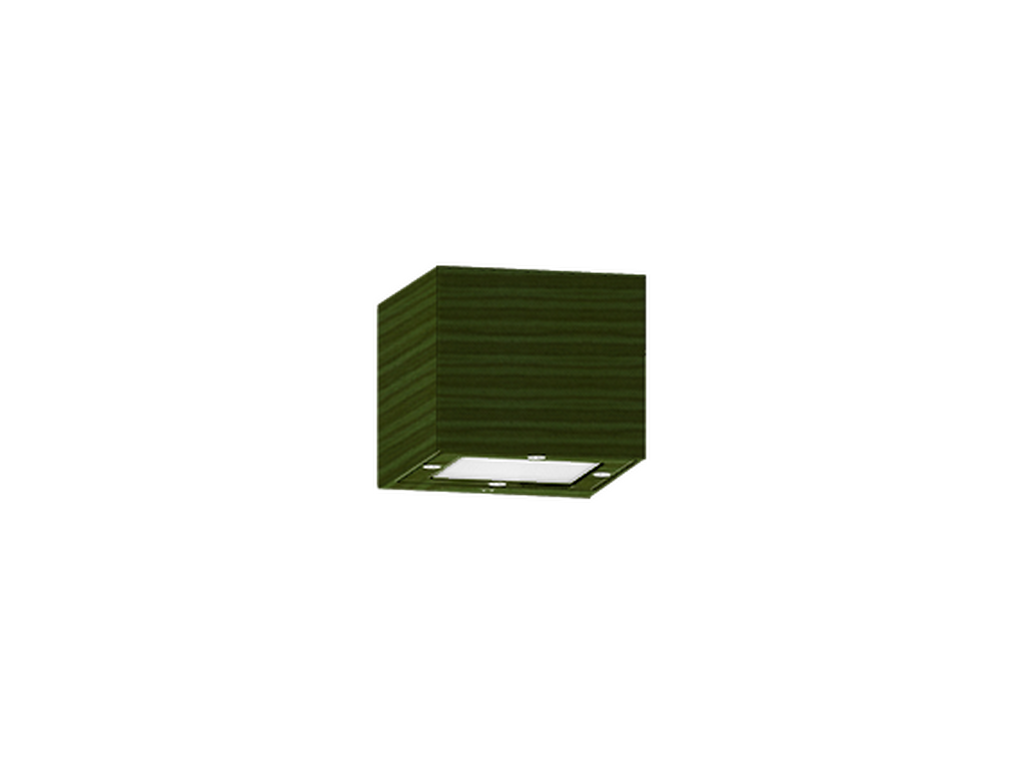

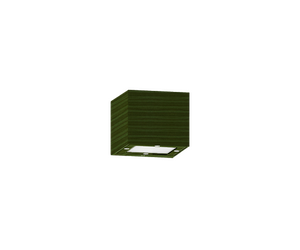

GINO 2Softscape - Urban

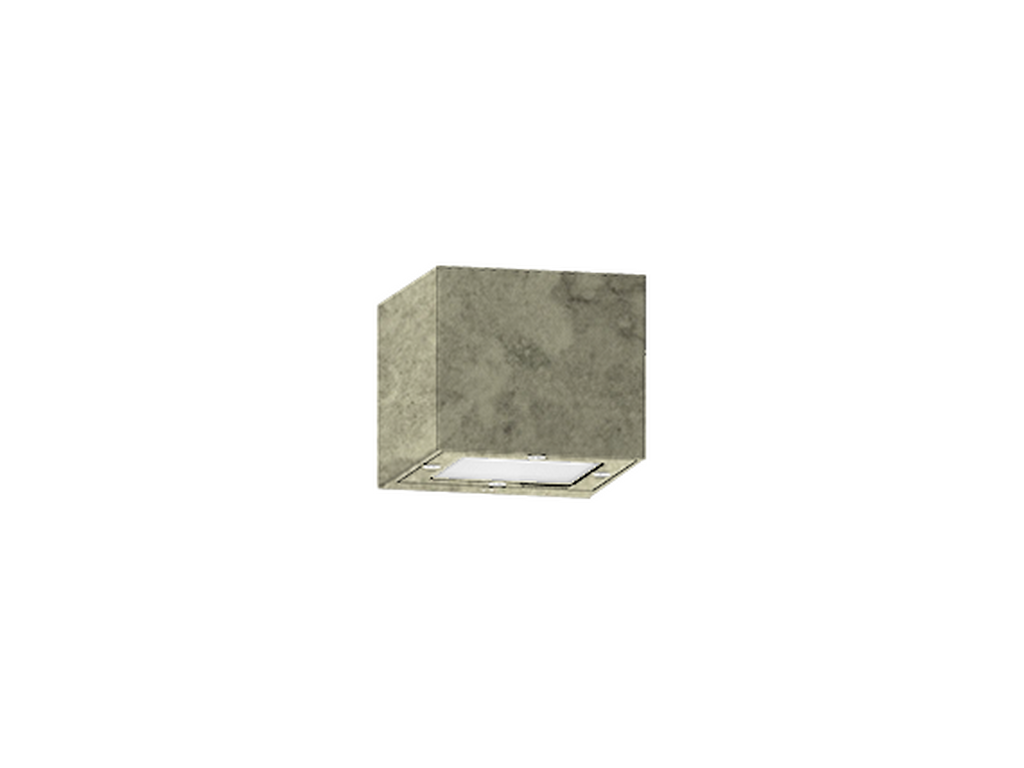

GINO 2Stone - Urban

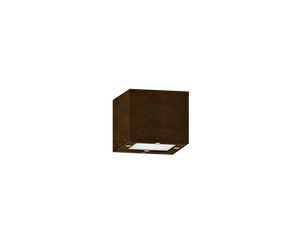

GINO 2Corten - Urban
GINO 2Oak - Woodland
GINO 2Walnut - Woodland
GINO 2Pine - Woodland
Frosted diffuser - Down
CERETILAPClass IIP65IK07

TECHNICAL SPECIFICATIONS

Material
Aluminium
Light source
1 COB
Power (W)
4.5 W
Lumen (lm)
219 - 236 lm
Efficacy (lm/W)
49 - 52 lm/W
Driver option
Integral control gear
Driver
Constant current (CC)
Input voltage
220-240 V 50/60 Hz
Optic
G
Optic value
91°
CCT / CRI
3000K CRI80, 4000K CRI80
Bug
B0-U0-G0
ULR
0%
ULOR
0%
CIE flux code nº3
97
Dimming type
On/Off
Product colours
Black, Dark Grey, White, Matt Silver, Bronze, Concrete - Urban, Softscape - Urban, Stone - Urban, Corten - Urban, Oak - Woodland, Walnut - Woodland, Pine - Woodland
Weight
1.0 kg
Operating temperature
-20 °C to 50 °C
Through wiring
Single cable entry
Lens / Reflector / Optic
Frosted toughened glass
MacAdam Ellipse
3 SDCM
Lifetime L90B10 (hours)
> 50,000
Variants (On/Off)
Compatible with EN/ IEC 60598-2-22: Suitable for emergency installations as central supply, non-maintained (Z0)

LIGHT EFFECT

Optic
G (91°)

CODE FINDER

Lumen (lm)
Optic
Optic value
CCT / CRI
Dimming type
Product colour
Variant code
Lumen (lm)
Optic
Optic value
CCT / CRI
Dimming type
Product colour
Variant code: GI-31591-8030-ND-01
Lumen (lm): 219 lm
Optic: G
Optic value: 91°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Black
Variant code: GI-31591-8030-ND-02
Lumen (lm): 219 lm
Optic: G
Optic value: 91°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Dark Grey
Variant code: GI-31591-8030-ND-03
Lumen (lm): 219 lm
Optic: G
Optic value: 91°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: White
Variant code: GI-31591-8030-ND-05
Lumen (lm): 219 lm
Optic: G
Optic value: 91°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Matt Silver
Variant code: GI-31591-8030-ND-06
Lumen (lm): 219 lm
Optic: G
Optic value: 91°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Bronze
Variant code: GI-31591-8030-ND-SU01
Lumen (lm): 219 lm
Optic: G
Optic value: 91°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Concrete - Urban
Variant code: GI-31591-8030-ND-SU02
Lumen (lm): 219 lm
Optic: G
Optic value: 91°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Softscape - Urban
Variant code: GI-31591-8030-ND-SU03
Lumen (lm): 219 lm
Optic: G
Optic value: 91°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Stone - Urban
Variant code: GI-31591-8030-ND-SU04
Lumen (lm): 219 lm
Optic: G
Optic value: 91°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Corten - Urban
Variant code: GI-31591-8030-ND-SW01
Lumen (lm): 219 lm
Optic: G
Optic value: 91°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Oak - Woodland
Variant code: GI-31591-8030-ND-SW02
Lumen (lm): 219 lm
Optic: G
Optic value: 91°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Walnut - Woodland
Variant code: GI-31591-8030-ND-SW03
Lumen (lm): 219 lm
Optic: G
Optic value: 91°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Pine - Woodland
Variant code: GI-31591-8040-ND-01
Lumen (lm): 236 lm
Optic: G
Optic value: 91°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Black
Variant code: GI-31591-8040-ND-02
Lumen (lm): 236 lm
Optic: G
Optic value: 91°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Dark Grey
Variant code: GI-31591-8040-ND-03
Lumen (lm): 236 lm
Optic: G
Optic value: 91°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: White
Variant code: GI-31591-8040-ND-05
Lumen (lm): 236 lm
Optic: G
Optic value: 91°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Matt Silver
Variant code: GI-31591-8040-ND-06
Lumen (lm): 236 lm
Optic: G
Optic value: 91°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Bronze
Variant code: GI-31591-8040-ND-SU01
Lumen (lm): 236 lm
Optic: G
Optic value: 91°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Concrete - Urban
Variant code: GI-31591-8040-ND-SU02
Lumen (lm): 236 lm
Optic: G
Optic value: 91°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Softscape - Urban
Variant code: GI-31591-8040-ND-SU03
Lumen (lm): 236 lm
Optic: G
Optic value: 91°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Stone - Urban
Variant code: GI-31591-8040-ND-SU04
Lumen (lm): 236 lm
Optic: G
Optic value: 91°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Corten - Urban
Variant code: GI-31591-8040-ND-SW01
Lumen (lm): 236 lm
Optic: G
Optic value: 91°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Oak - Woodland
Variant code: GI-31591-8040-ND-SW02
Lumen (lm): 236 lm
Optic: G
Optic value: 91°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Walnut - Woodland
Variant code: GI-31591-8040-ND-SW03
Lumen (lm): 236 lm
Optic: G
Optic value: 91°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Pine - Woodland

ACCESSORY

PROJECT REFERENCE (GINO Surface facade luminaires)
