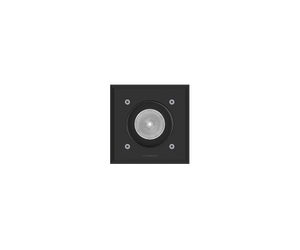

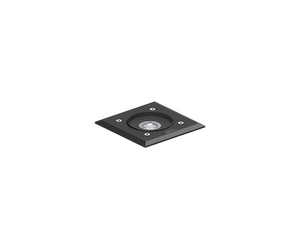

HARRIER 2

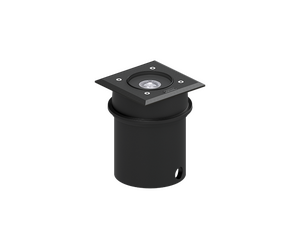

With recessing box / driver - Square - Aluminium frame
CEClass IIP67IK10

TECHNICAL SPECIFICATIONS

Material
Aluminium
Lamp
MR16-GU10
Power (Luminaire)
7.5 W
Lumen (Luminaire)
260 - 402 lm
Luminaire luminous efficacy
35 - 54 lm/W
EEC
A+
CCT
3000K CRI90, 4000K CRI90
CRI
Ra > 90
MacAdam Ellipse
3 SDCM
Optic
E, M, N, VW
Optic Value
12°x50°, 13°, 22°, 58°
Dimming type
On/Off
Product colors
Black, Dark Grey, White, Matt Silver, Bronze
Weight
0.5 kg

CODE FINDER

Lumen
CCT
CRI
Optic
Optic Value
Dimming type
Product colors
SKU
Lamp
Power
(Lum.)
Lumen
(Lum.)
CCT
CRI
Optic
Optic
Value
Dimming
type
Product
colors
SKU: HA-60197-A-E-9030-ND-01
Lamp: MR16-GU10
Power (Lum.): 7.5 W
Lumen (Lum.): 294 lm
CCT: 3000K CRI90
CRI: Ra > 90
Optic: E
Optic Value: 12°x50°
Dimming type: On/Off
Product colors: Black
SKU: HA-60197-A-E-9030-ND-02
Lamp: MR16-GU10
Power (Lum.): 7.5 W
Lumen (Lum.): 294 lm
CCT: 3000K CRI90
CRI: Ra > 90
Optic: E
Optic Value: 12°x50°
Dimming type: On/Off
Product colors: Dark Grey
SKU: HA-60197-A-E-9030-ND-03
Lamp: MR16-GU10
Power (Lum.): 7.5 W
Lumen (Lum.): 294 lm
CCT: 3000K CRI90
CRI: Ra > 90
Optic: E
Optic Value: 12°x50°
Dimming type: On/Off
Product colors: White
SKU: HA-60197-A-E-9030-ND-05
Lamp: MR16-GU10
Power (Lum.): 7.5 W
Lumen (Lum.): 294 lm
CCT: 3000K CRI90
CRI: Ra > 90
Optic: E
Optic Value: 12°x50°
Dimming type: On/Off
Product colors: Matt Silver
SKU: HA-60197-A-E-9030-ND-06
Lamp: MR16-GU10
Power (Lum.): 7.5 W
Lumen (Lum.): 294 lm
CCT: 3000K CRI90
CRI: Ra > 90
Optic: E
Optic Value: 12°x50°
Dimming type: On/Off
Product colors: Bronze
SKU: HA-60197-A-E-9040-ND-01
Lamp: MR16-GU10
Power (Lum.): 7.5 W
Lumen (Lum.): 338 lm
CCT: 4000K CRI90
CRI: Ra > 90
Optic: E
Optic Value: 12°x50°
Dimming type: On/Off
Product colors: Black
SKU: HA-60197-A-E-9040-ND-02
Lamp: MR16-GU10
Power (Lum.): 7.5 W
Lumen (Lum.): 338 lm
CCT: 4000K CRI90
CRI: Ra > 90
Optic: E
Optic Value: 12°x50°
Dimming type: On/Off
Product colors: Dark Grey
SKU: HA-60197-A-E-9040-ND-03
Lamp: MR16-GU10
Power (Lum.): 7.5 W
Lumen (Lum.): 338 lm
CCT: 4000K CRI90
CRI: Ra > 90
Optic: E
Optic Value: 12°x50°
Dimming type: On/Off
Product colors: White
SKU: HA-60197-A-E-9040-ND-05
Lamp: MR16-GU10
Power (Lum.): 7.5 W
Lumen (Lum.): 338 lm
CCT: 4000K CRI90
CRI: Ra > 90
Optic: E
Optic Value: 12°x50°
Dimming type: On/Off
Product colors: Matt Silver
SKU: HA-60197-A-E-9040-ND-06
Lamp: MR16-GU10
Power (Lum.): 7.5 W
Lumen (Lum.): 338 lm
CCT: 4000K CRI90
CRI: Ra > 90
Optic: E
Optic Value: 12°x50°
Dimming type: On/Off
Product colors: Bronze
SKU: HA-60197-A-M-9030-ND-01
Lamp: MR16-GU10
Power (Lum.): 7.5 W
Lumen (Lum.): 305 lm
CCT: 3000K CRI90
CRI: Ra > 90
Optic: M
Optic Value: 22°
Dimming type: On/Off
Product colors: Black
SKU: HA-60197-A-M-9030-ND-02
Lamp: MR16-GU10
Power (Lum.): 7.5 W
Lumen (Lum.): 305 lm
CCT: 3000K CRI90
CRI: Ra > 90
Optic: M
Optic Value: 22°
Dimming type: On/Off
Product colors: Dark Grey
SKU: HA-60197-A-M-9030-ND-03
Lamp: MR16-GU10
Power (Lum.): 7.5 W
Lumen (Lum.): 305 lm
CCT: 3000K CRI90
CRI: Ra > 90
Optic: M
Optic Value: 22°
Dimming type: On/Off
Product colors: White
SKU: HA-60197-A-M-9030-ND-05
Lamp: MR16-GU10
Power (Lum.): 7.5 W
Lumen (Lum.): 305 lm
CCT: 3000K CRI90
CRI: Ra > 90
Optic: M
Optic Value: 22°
Dimming type: On/Off
Product colors: Matt Silver
SKU: HA-60197-A-M-9030-ND-06
Lamp: MR16-GU10
Power (Lum.): 7.5 W
Lumen (Lum.): 305 lm
CCT: 3000K CRI90
CRI: Ra > 90
Optic: M
Optic Value: 22°
Dimming type: On/Off
Product colors: Bronze
SKU: HA-60197-A-M-9040-ND-01
Lamp: MR16-GU10
Power (Lum.): 7.5 W
Lumen (Lum.): 351 lm
CCT: 4000K CRI90
CRI: Ra > 90
Optic: M
Optic Value: 22°
Dimming type: On/Off
Product colors: Black
SKU: HA-60197-A-M-9040-ND-02
Lamp: MR16-GU10
Power (Lum.): 7.5 W
Lumen (Lum.): 351 lm
CCT: 4000K CRI90
CRI: Ra > 90
Optic: M
Optic Value: 22°
Dimming type: On/Off
Product colors: Dark Grey
SKU: HA-60197-A-M-9040-ND-03
Lamp: MR16-GU10
Power (Lum.): 7.5 W
Lumen (Lum.): 351 lm
CCT: 4000K CRI90
CRI: Ra > 90
Optic: M
Optic Value: 22°
Dimming type: On/Off
Product colors: White
SKU: HA-60197-A-M-9040-ND-05
Lamp: MR16-GU10
Power (Lum.): 7.5 W
Lumen (Lum.): 351 lm
CCT: 4000K CRI90
CRI: Ra > 90
Optic: M
Optic Value: 22°
Dimming type: On/Off
Product colors: Matt Silver
SKU: HA-60197-A-M-9040-ND-06
Lamp: MR16-GU10
Power (Lum.): 7.5 W
Lumen (Lum.): 351 lm
CCT: 4000K CRI90
CRI: Ra > 90
Optic: M
Optic Value: 22°
Dimming type: On/Off
Product colors: Bronze
SKU: HA-60197-A-N-9030-ND-01
Lamp: MR16-GU10
Power (Lum.): 7.5 W
Lumen (Lum.): 349 lm
CCT: 3000K CRI90
CRI: Ra > 90
Optic: N
Optic Value: 13°
Dimming type: On/Off
Product colors: Black
SKU: HA-60197-A-N-9030-ND-02
Lamp: MR16-GU10
Power (Lum.): 7.5 W
Lumen (Lum.): 349 lm
CCT: 3000K CRI90
CRI: Ra > 90
Optic: N
Optic Value: 13°
Dimming type: On/Off
Product colors: Dark Grey
SKU: HA-60197-A-N-9030-ND-03
Lamp: MR16-GU10
Power (Lum.): 7.5 W
Lumen (Lum.): 349 lm
CCT: 3000K CRI90
CRI: Ra > 90
Optic: N
Optic Value: 13°
Dimming type: On/Off
Product colors: White
SKU: HA-60197-A-N-9030-ND-05
Lamp: MR16-GU10
Power (Lum.): 7.5 W
Lumen (Lum.): 349 lm
CCT: 3000K CRI90
CRI: Ra > 90
Optic: N
Optic Value: 13°
Dimming type: On/Off
Product colors: Matt Silver
SKU: HA-60197-A-N-9030-ND-06
Lamp: MR16-GU10
Power (Lum.): 7.5 W
Lumen (Lum.): 349 lm
CCT: 3000K CRI90
CRI: Ra > 90
Optic: N
Optic Value: 13°
Dimming type: On/Off
Product colors: Bronze
SKU: HA-60197-A-N-9040-ND-01
Lamp: MR16-GU10
Power (Lum.): 7.5 W
Lumen (Lum.): 402 lm
CCT: 4000K CRI90
CRI: Ra > 90
Optic: N
Optic Value: 13°
Dimming type: On/Off
Product colors: Black
SKU: HA-60197-A-N-9040-ND-02
Lamp: MR16-GU10
Power (Lum.): 7.5 W
Lumen (Lum.): 402 lm
CCT: 4000K CRI90
CRI: Ra > 90
Optic: N
Optic Value: 13°
Dimming type: On/Off
Product colors: Dark Grey
SKU: HA-60197-A-N-9040-ND-03
Lamp: MR16-GU10
Power (Lum.): 7.5 W
Lumen (Lum.): 402 lm
CCT: 4000K CRI90
CRI: Ra > 90
Optic: N
Optic Value: 13°
Dimming type: On/Off
Product colors: White
SKU: HA-60197-A-N-9040-ND-05
Lamp: MR16-GU10
Power (Lum.): 7.5 W
Lumen (Lum.): 402 lm
CCT: 4000K CRI90
CRI: Ra > 90
Optic: N
Optic Value: 13°
Dimming type: On/Off
Product colors: Matt Silver
SKU: HA-60197-A-N-9040-ND-06
Lamp: MR16-GU10
Power (Lum.): 7.5 W
Lumen (Lum.): 402 lm
CCT: 4000K CRI90
CRI: Ra > 90
Optic: N
Optic Value: 13°
Dimming type: On/Off
Product colors: Bronze
SKU: HA-60197-A-VW-9030-ND-01
Lamp: MR16-GU10
Power (Lum.): 7.5 W
Lumen (Lum.): 260 lm
CCT: 3000K CRI90
CRI: Ra > 90
Optic: VW
Optic Value: 58°
Dimming type: On/Off
Product colors: Black
SKU: HA-60197-A-VW-9030-ND-02
Lamp: MR16-GU10
Power (Lum.): 7.5 W
Lumen (Lum.): 260 lm
CCT: 3000K CRI90
CRI: Ra > 90
Optic: VW
Optic Value: 58°
Dimming type: On/Off
Product colors: Dark Grey
SKU: HA-60197-A-VW-9030-ND-03
Lamp: MR16-GU10
Power (Lum.): 7.5 W
Lumen (Lum.): 260 lm
CCT: 3000K CRI90
CRI: Ra > 90
Optic: VW
Optic Value: 58°
Dimming type: On/Off
Product colors: White
SKU: HA-60197-A-VW-9030-ND-05
Lamp: MR16-GU10
Power (Lum.): 7.5 W
Lumen (Lum.): 260 lm
CCT: 3000K CRI90
CRI: Ra > 90
Optic: VW
Optic Value: 58°
Dimming type: On/Off
Product colors: Matt Silver
SKU: HA-60197-A-VW-9030-ND-06
Lamp: MR16-GU10
Power (Lum.): 7.5 W
Lumen (Lum.): 260 lm
CCT: 3000K CRI90
CRI: Ra > 90
Optic: VW
Optic Value: 58°
Dimming type: On/Off
Product colors: Bronze
SKU: HA-60197-A-VW-9040-ND-01
Lamp: MR16-GU10
Power (Lum.): 7.5 W
Lumen (Lum.): 299 lm
CCT: 4000K CRI90
CRI: Ra > 90
Optic: VW
Optic Value: 58°
Dimming type: On/Off
Product colors: Black
SKU: HA-60197-A-VW-9040-ND-02
Lamp: MR16-GU10
Power (Lum.): 7.5 W
Lumen (Lum.): 299 lm
CCT: 4000K CRI90
CRI: Ra > 90
Optic: VW
Optic Value: 58°
Dimming type: On/Off
Product colors: Dark Grey
SKU: HA-60197-A-VW-9040-ND-03
Lamp: MR16-GU10
Power (Lum.): 7.5 W
Lumen (Lum.): 299 lm
CCT: 4000K CRI90
CRI: Ra > 90
Optic: VW
Optic Value: 58°
Dimming type: On/Off
Product colors: White
SKU: HA-60197-A-VW-9040-ND-05
Lamp: MR16-GU10
Power (Lum.): 7.5 W
Lumen (Lum.): 299 lm
CCT: 4000K CRI90
CRI: Ra > 90
Optic: VW
Optic Value: 58°
Dimming type: On/Off
Product colors: Matt Silver
SKU: HA-60197-A-VW-9040-ND-06
Lamp: MR16-GU10
Power (Lum.): 7.5 W
Lumen (Lum.): 299 lm
CCT: 4000K CRI90
CRI: Ra > 90
Optic: VW
Optic Value: 58°
Dimming type: On/Off
Product colors: Bronze
