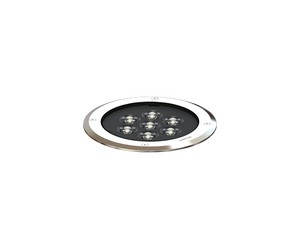

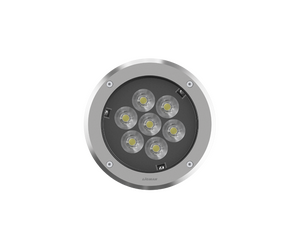

HARRIER 3HA-60296-SHARRIER

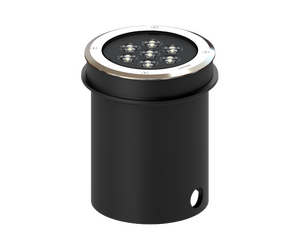

With recessing box / driver - Round - Stainless steel frame
TECHNICAL SPECIFICATIONS
Material
Stainless Steel
Light source
7 LED
Power (W)
22 W
Lumen (lm)
2234 - 2351 lm
Efficacy (lm/W)
102 - 107 lm/W
Driver option
Integral control gear
Driver
Constant current (CC)
Input voltage
220-240 V 50/60 Hz
Optic
VN
Optic value
8°
CCT / CRI
3000K CRI80, 4000K CRI80
Bug
B0-U5-G0
ULR
100%
ULOR
100%
Dimming type
On/Off, 1-10V, DALI
Product colours
Stainless Steel
Weight
2.3 kg
Operating temperature
-20 °C to 50 °C
Cable
One cable gland supplied with 1 m of 3x1.0 sqmm outdoor cable
Through wiring
Single cable entry, through wiring upon request
Lens / Reflector / Optic
Clear toughened glass, High-efficiency PMMA lens
MacAdam Ellipse
3 SDCM
Lifetime L90B10 (hours)
> 109,000
Lifetime L80B10 (hours)
> 109,000
Lifetime L80B50 (hours)
> 109,000
Variants (On/Off, 1-10V, DALI)
Compatible with EN/ IEC 60598-2-22: Suitable for emergency installations as central supply, non-maintained (Z0)
DOWNLOADS
Family spec sheet
Product spec sheet
Installation manual
Technical drawing
2D - CAD
BIM - IFC
DIALux - ULD
IES
CE documentFor BIM files (Revit - RFA), please check the Variant code
LIGHT EFFECT
Optic
VN (8°)
CODE FINDER
Lumen (lm)
Optic
Optic value
CCT / CRI
Dimming type
Product colour
Variant code
Lumen (lm)
Optic
Optic value
CCT / CRI
Dimming type
Product colour
Variant code: HA-60296-S-VN-8030-ND-00
Lumen (lm): 2234 lm
Optic: VN
Optic value: 8°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Stainless Steel
Variant code: HA-60296-S-VN-8040-ND-00
Lumen (lm): 2351 lm
Optic: VN
Optic value: 8°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Stainless Steel
Variant code: HA-60296-S-VN-8030-DI-00
Lumen (lm): 2234 lm
Optic: VN
Optic value: 8°
CCT / CRI: 3000K CRI80
Dimming type: 1-10V
Product colour: Stainless Steel
Variant code: HA-60296-S-VN-8040-DI-00
Lumen (lm): 2351 lm
Optic: VN
Optic value: 8°
CCT / CRI: 4000K CRI80
Dimming type: 1-10V
Product colour: Stainless Steel
Variant code: HA-60296-S-VN-8030-DA-00
Lumen (lm): 2234 lm
Optic: VN
Optic value: 8°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Stainless Steel
Variant code: HA-60296-S-VN-8040-DA-00
Lumen (lm): 2351 lm
Optic: VN
Optic value: 8°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Stainless Steel
