LIGMAN JANET 3 JA-60821.

JANET 3JA-60821

(Version 1)

Recessed underwater projectors

Send us an E-Mail or use the contact form:

I have read the privacy policy and agree to the processing of my data *

The fields marked with an * must be correctly filled.
Your request was successfully sent.

Send us an E-Mail or use the contact form:

I have read the privacy policy and agree to the processing of my data *

The fields marked with an * must be correctly filled.
Your request was successfully sent.
JANET 3
Without remote driver - With recessing box - Constant voltage (CV) 24 V
CEClass IIIIP68IK07

Technical information

Material
Stainless Steel
Light source
3 LED
Power (W)
7 W
Lumen (lm)
617 - 765 lm
Efficacy (lm/W)
88 - 109 lm/W
Driver option
Remote driver (not included)
Driver
Constant voltage (CV)
Input voltage
24 VDC
Optic
N, M, W
Optic value
23°, 31°, 51°
CCT / CRI
3000K CRI80, 4000K CRI80
Bug
B1-U0-G0, B2-U0-G0
ULR
<1%
ULOR
<1%
CIE flux code nº3
100
Dimming type
On/Off
Product colours
Stainless Steel
Weight
1.6 kg
Operating temperature
-20 °C to 40 °C
Cable
One cable gland supplied with 2 m of 2x1.0 sqmm outdoor cable
Through wiring
Single cable entry
Lens / Reflector / Optic
Clear toughened glass

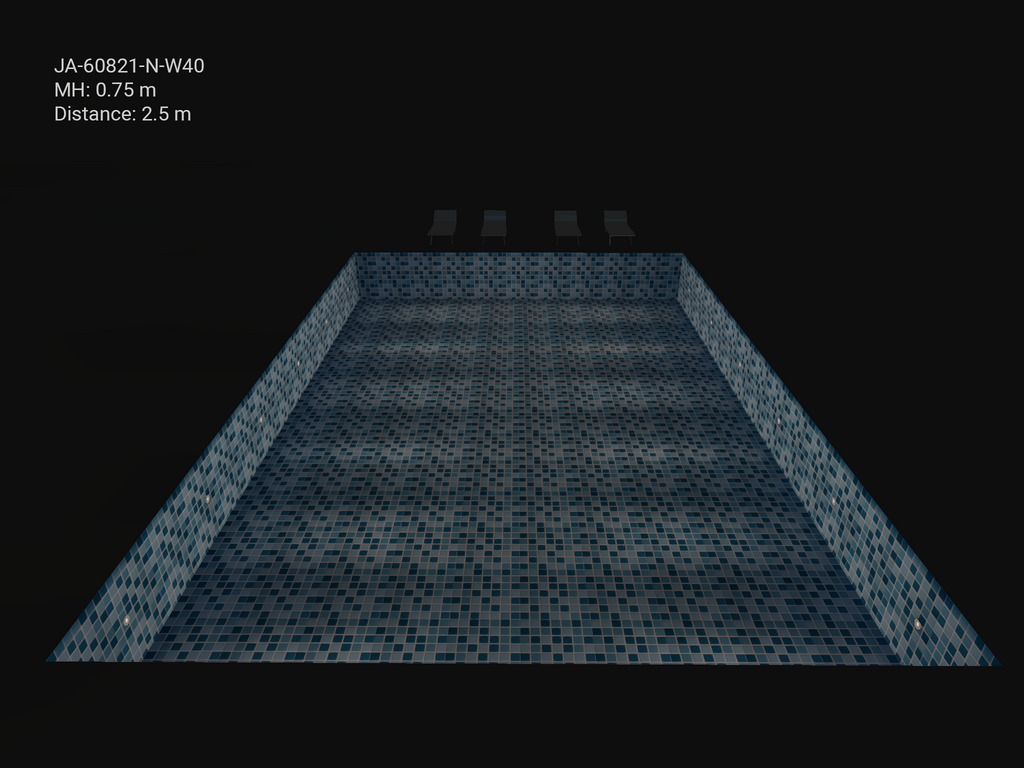

Light effect

Optic
N (23°)
M (31°)
W (51°)

Code finder

Lumen (lm)
Optic
Optic value
CCT / CRI
Dimming type
Product colour
Variant code
Lumen (lm)
Optic
Optic value
CCT / CRI
Dimming type
Product colour
Variant code: JA-60821-N-8030-ND-00
Lumen (lm): 727 lm
Optic: N
Optic value: 23°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Stainless Steel
Variant code: JA-60821-N-8040-ND-00
Lumen (lm): 765 lm
Optic: N
Optic value: 23°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Stainless Steel
Variant code: JA-60821-M-8030-ND-00
Lumen (lm): 631 lm
Optic: M
Optic value: 31°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Stainless Steel
Variant code: JA-60821-M-8040-ND-00
Lumen (lm): 665 lm
Optic: M
Optic value: 31°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Stainless Steel
Variant code: JA-60821-W-8030-ND-00
Lumen (lm): 617 lm
Optic: W
Optic value: 51°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Stainless Steel
Variant code: JA-60821-W-8040-ND-00
Lumen (lm): 650 lm
Optic: W
Optic value: 51°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Stainless Steel

Accessory

Project reference (JANET Recessed underwater projectors)
