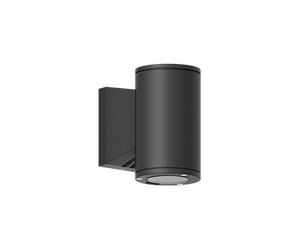

LIGMAN JET 4 JE-30454.

JET 4JE-30454JET

Send us an E-Mail or use the contact form:

I have read the privacy policy and agree to the processing of my data *

The fields marked with an * must be correctly filled.
Your request was successfully sent.

Send us an E-Mail or use the contact form:

I have read the privacy policy and agree to the processing of my data *

The fields marked with an * must be correctly filled.
Your request was successfully sent.


JET 4Black
JET 4Dark Grey
JET 4White
JET 4Matt Silver
JET 4Bronze
JET 4Concrete - Urban
JET 4Softscape - Urban
JET 4Stone - Urban
JET 4Corten - Urban
JET 4Oak - Woodland
JET 4Walnut - Woodland
JET 4Pine - Woodland
JET 4Black
JET 4Dark Grey
JET 4White
JET 4Matt Silver
JET 4Bronze
JET 4Concrete - Urban
JET 4Softscape - Urban
JET 4Stone - Urban
JET 4Corten - Urban
JET 4Oak - Woodland
JET 4Walnut - Woodland
JET 4Pine - Woodland

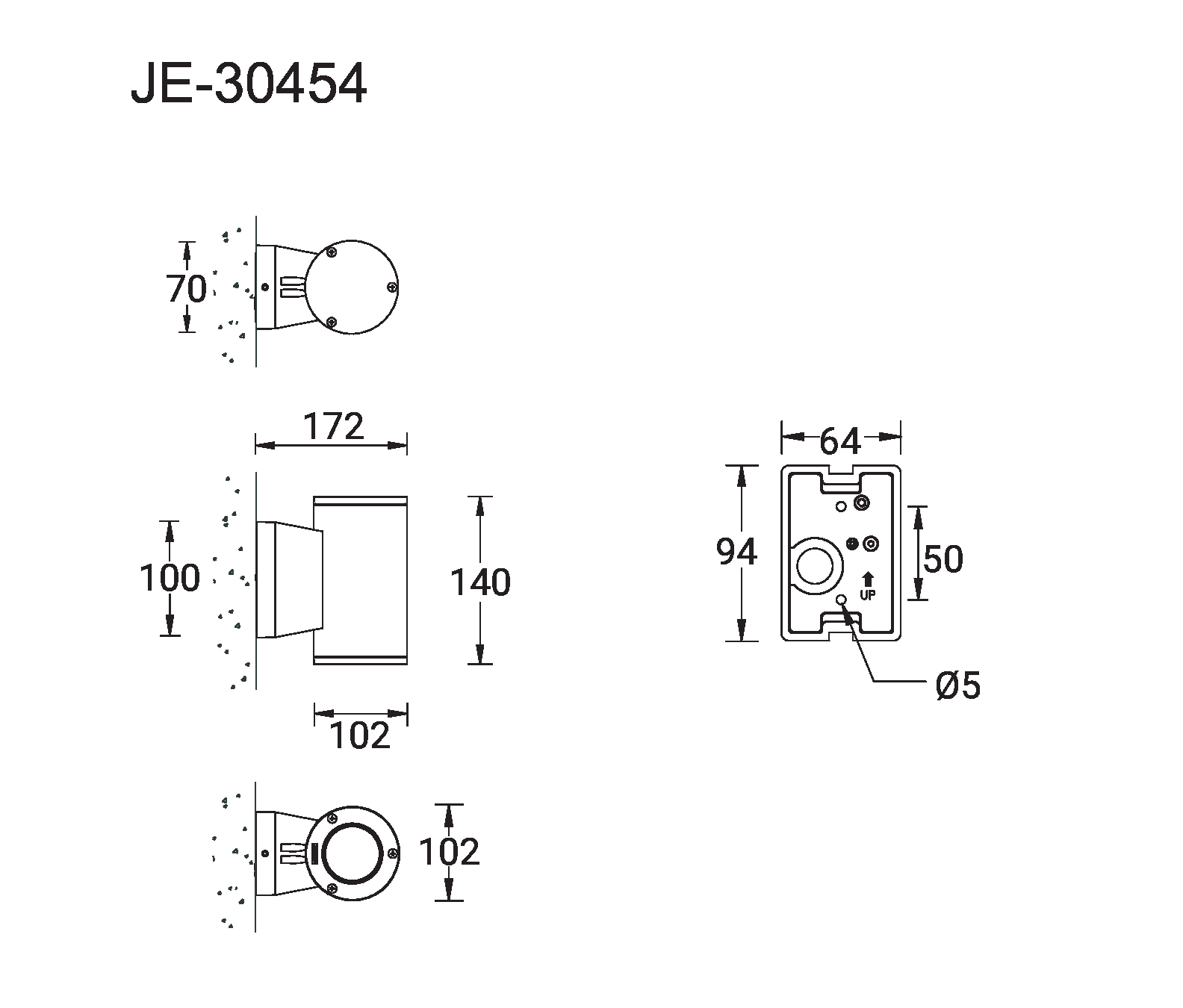

Ø102 - 140 mm - Down - Round
CERETILAPClass IIP65IK08

TECHNICAL SPECIFICATIONS

Material
Aluminium
Light source
MR16-GU10
Power (W)
7.5 W
Lumen (lm)
254 - 395 lm
Efficacy (lm/W)
34 - 53 lm/W
Driver option
Integral control gear
Driver
Constant current (CC)
Input voltage
220-240 V 50/60 Hz
Optic
N, M, VW, E
Optic value
13°, 23°, 60°, 12°x51°
CCT / CRI
3000K CRI95, 4000K CRI90
Bug
B0-U0-G0, B1-U0-G0
ULR
0%
ULOR
0%
CIE flux code nº3
100, 99
Dimming type
On/Off
Product colours
Black, Dark Grey, White, Matt Silver, Bronze, Concrete - Urban, Softscape - Urban, Stone - Urban, Corten - Urban, Oak - Woodland, Walnut - Woodland, Pine - Woodland
Weight
0.8 kg
Operating temperature
-20 °C to 50 °C
Through wiring
Single cable entry
Lens / Reflector / Optic
High-efficiency optical reflector, Clear toughened glass

LIGHT EFFECT

Optic
N (13°)
M (23°)
VW (60°)
E (12°x51°)

CODE FINDER

Lumen (lm)
Optic
Optic value
CCT / CRI
Dimming type
Product colour
Variant code
Lumen (lm)
Optic
Optic value
CCT / CRI
Dimming type
Product colour
Variant code: JE-30454-N-9040-ND-01
Lumen (lm): 395 lm
Optic: N
Optic value: 13°
CCT / CRI: 4000K CRI90
Dimming type: On/Off
Product colour: Black
Variant code: JE-30454-N-9040-ND-02
Lumen (lm): 395 lm
Optic: N
Optic value: 13°
CCT / CRI: 4000K CRI90
Dimming type: On/Off
Product colour: Dark Grey
Variant code: JE-30454-N-9040-ND-03
Lumen (lm): 395 lm
Optic: N
Optic value: 13°
CCT / CRI: 4000K CRI90
Dimming type: On/Off
Product colour: White
Variant code: JE-30454-N-9040-ND-05
Lumen (lm): 395 lm
Optic: N
Optic value: 13°
CCT / CRI: 4000K CRI90
Dimming type: On/Off
Product colour: Matt Silver
Variant code: JE-30454-N-9040-ND-06
Lumen (lm): 395 lm
Optic: N
Optic value: 13°
CCT / CRI: 4000K CRI90
Dimming type: On/Off
Product colour: Bronze
Variant code: JE-30454-N-9040-ND-SU01
Lumen (lm): 395 lm
Optic: N
Optic value: 13°
CCT / CRI: 4000K CRI90
Dimming type: On/Off
Product colour: Concrete - Urban
Variant code: JE-30454-N-9040-ND-SU02
Lumen (lm): 395 lm
Optic: N
Optic value: 13°
CCT / CRI: 4000K CRI90
Dimming type: On/Off
Product colour: Softscape - Urban
Variant code: JE-30454-N-9040-ND-SU03
Lumen (lm): 395 lm
Optic: N
Optic value: 13°
CCT / CRI: 4000K CRI90
Dimming type: On/Off
Product colour: Stone - Urban
Variant code: JE-30454-N-9040-ND-SU04
Lumen (lm): 395 lm
Optic: N
Optic value: 13°
CCT / CRI: 4000K CRI90
Dimming type: On/Off
Product colour: Corten - Urban
Variant code: JE-30454-N-9040-ND-SW01
Lumen (lm): 395 lm
Optic: N
Optic value: 13°
CCT / CRI: 4000K CRI90
Dimming type: On/Off
Product colour: Oak - Woodland
Variant code: JE-30454-N-9040-ND-SW02
Lumen (lm): 395 lm
Optic: N
Optic value: 13°
CCT / CRI: 4000K CRI90
Dimming type: On/Off
Product colour: Walnut - Woodland
Variant code: JE-30454-N-9040-ND-SW03
Lumen (lm): 395 lm
Optic: N
Optic value: 13°
CCT / CRI: 4000K CRI90
Dimming type: On/Off
Product colour: Pine - Woodland
Variant code: JE-30454-N-9530-ND-01
Lumen (lm): 343 lm
Optic: N
Optic value: 13°
CCT / CRI: 3000K CRI95
Dimming type: On/Off
Product colour: Black
Variant code: JE-30454-N-9530-ND-02
Lumen (lm): 343 lm
Optic: N
Optic value: 13°
CCT / CRI: 3000K CRI95
Dimming type: On/Off
Product colour: Dark Grey
Variant code: JE-30454-N-9530-ND-03
Lumen (lm): 343 lm
Optic: N
Optic value: 13°
CCT / CRI: 3000K CRI95
Dimming type: On/Off
Product colour: White
Variant code: JE-30454-N-9530-ND-05
Lumen (lm): 343 lm
Optic: N
Optic value: 13°
CCT / CRI: 3000K CRI95
Dimming type: On/Off
Product colour: Matt Silver
Variant code: JE-30454-N-9530-ND-06
Lumen (lm): 343 lm
Optic: N
Optic value: 13°
CCT / CRI: 3000K CRI95
Dimming type: On/Off
Product colour: Bronze
Variant code: JE-30454-N-9530-ND-SU01
Lumen (lm): 343 lm
Optic: N
Optic value: 13°
CCT / CRI: 3000K CRI95
Dimming type: On/Off
Product colour: Concrete - Urban
Variant code: JE-30454-N-9530-ND-SU02
Lumen (lm): 343 lm
Optic: N
Optic value: 13°
CCT / CRI: 3000K CRI95
Dimming type: On/Off
Product colour: Softscape - Urban
Variant code: JE-30454-N-9530-ND-SU03
Lumen (lm): 343 lm
Optic: N
Optic value: 13°
CCT / CRI: 3000K CRI95
Dimming type: On/Off
Product colour: Stone - Urban
Variant code: JE-30454-N-9530-ND-SU04
Lumen (lm): 343 lm
Optic: N
Optic value: 13°
CCT / CRI: 3000K CRI95
Dimming type: On/Off
Product colour: Corten - Urban
Variant code: JE-30454-N-9530-ND-SW01
Lumen (lm): 343 lm
Optic: N
Optic value: 13°
CCT / CRI: 3000K CRI95
Dimming type: On/Off
Product colour: Oak - Woodland
Variant code: JE-30454-N-9530-ND-SW02
Lumen (lm): 343 lm
Optic: N
Optic value: 13°
CCT / CRI: 3000K CRI95
Dimming type: On/Off
Product colour: Walnut - Woodland
Variant code: JE-30454-N-9530-ND-SW03
Lumen (lm): 343 lm
Optic: N
Optic value: 13°
CCT / CRI: 3000K CRI95
Dimming type: On/Off
Product colour: Pine - Woodland
Variant code: JE-30454-M-9040-ND-01
Lumen (lm): 343 lm
Optic: M
Optic value: 23°
CCT / CRI: 4000K CRI90
Dimming type: On/Off
Product colour: Black
Variant code: JE-30454-M-9040-ND-02
Lumen (lm): 343 lm
Optic: M
Optic value: 23°
CCT / CRI: 4000K CRI90
Dimming type: On/Off
Product colour: Dark Grey
Variant code: JE-30454-M-9040-ND-03
Lumen (lm): 343 lm
Optic: M
Optic value: 23°
CCT / CRI: 4000K CRI90
Dimming type: On/Off
Product colour: White
Variant code: JE-30454-M-9040-ND-05
Lumen (lm): 343 lm
Optic: M
Optic value: 23°
CCT / CRI: 4000K CRI90
Dimming type: On/Off
Product colour: Matt Silver
Variant code: JE-30454-M-9040-ND-06
Lumen (lm): 343 lm
Optic: M
Optic value: 23°
CCT / CRI: 4000K CRI90
Dimming type: On/Off
Product colour: Bronze
Variant code: JE-30454-M-9040-ND-SU01
Lumen (lm): 343 lm
Optic: M
Optic value: 23°
CCT / CRI: 4000K CRI90
Dimming type: On/Off
Product colour: Concrete - Urban
Variant code: JE-30454-M-9040-ND-SU02
Lumen (lm): 343 lm
Optic: M
Optic value: 23°
CCT / CRI: 4000K CRI90
Dimming type: On/Off
Product colour: Softscape - Urban
Variant code: JE-30454-M-9040-ND-SU03
Lumen (lm): 343 lm
Optic: M
Optic value: 23°
CCT / CRI: 4000K CRI90
Dimming type: On/Off
Product colour: Stone - Urban
Variant code: JE-30454-M-9040-ND-SU04
Lumen (lm): 343 lm
Optic: M
Optic value: 23°
CCT / CRI: 4000K CRI90
Dimming type: On/Off
Product colour: Corten - Urban
Variant code: JE-30454-M-9040-ND-SW01
Lumen (lm): 343 lm
Optic: M
Optic value: 23°
CCT / CRI: 4000K CRI90
Dimming type: On/Off
Product colour: Oak - Woodland
Variant code: JE-30454-M-9040-ND-SW02
Lumen (lm): 343 lm
Optic: M
Optic value: 23°
CCT / CRI: 4000K CRI90
Dimming type: On/Off
Product colour: Walnut - Woodland
Variant code: JE-30454-M-9040-ND-SW03
Lumen (lm): 343 lm
Optic: M
Optic value: 23°
CCT / CRI: 4000K CRI90
Dimming type: On/Off
Product colour: Pine - Woodland
Variant code: JE-30454-M-9530-ND-01
Lumen (lm): 298 lm
Optic: M
Optic value: 23°
CCT / CRI: 3000K CRI95
Dimming type: On/Off
Product colour: Black
Variant code: JE-30454-M-9530-ND-02
Lumen (lm): 298 lm
Optic: M
Optic value: 23°
CCT / CRI: 3000K CRI95
Dimming type: On/Off
Product colour: Dark Grey
Variant code: JE-30454-M-9530-ND-03
Lumen (lm): 298 lm
Optic: M
Optic value: 23°
CCT / CRI: 3000K CRI95
Dimming type: On/Off
Product colour: White
Variant code: JE-30454-M-9530-ND-05
Lumen (lm): 298 lm
Optic: M
Optic value: 23°
CCT / CRI: 3000K CRI95
Dimming type: On/Off
Product colour: Matt Silver
Variant code: JE-30454-M-9530-ND-06
Lumen (lm): 298 lm
Optic: M
Optic value: 23°
CCT / CRI: 3000K CRI95
Dimming type: On/Off
Product colour: Bronze
Variant code: JE-30454-M-9530-ND-SU01
Lumen (lm): 298 lm
Optic: M
Optic value: 23°
CCT / CRI: 3000K CRI95
Dimming type: On/Off
Product colour: Concrete - Urban
Variant code: JE-30454-M-9530-ND-SU02
Lumen (lm): 298 lm
Optic: M
Optic value: 23°
CCT / CRI: 3000K CRI95
Dimming type: On/Off
Product colour: Softscape - Urban
Variant code: JE-30454-M-9530-ND-SU03
Lumen (lm): 298 lm
Optic: M
Optic value: 23°
CCT / CRI: 3000K CRI95
Dimming type: On/Off
Product colour: Stone - Urban
Variant code: JE-30454-M-9530-ND-SU04
Lumen (lm): 298 lm
Optic: M
Optic value: 23°
CCT / CRI: 3000K CRI95
Dimming type: On/Off
Product colour: Corten - Urban
Variant code: JE-30454-M-9530-ND-SW01
Lumen (lm): 298 lm
Optic: M
Optic value: 23°
CCT / CRI: 3000K CRI95
Dimming type: On/Off
Product colour: Oak - Woodland
Variant code: JE-30454-M-9530-ND-SW02
Lumen (lm): 298 lm
Optic: M
Optic value: 23°
CCT / CRI: 3000K CRI95
Dimming type: On/Off
Product colour: Walnut - Woodland
Variant code: JE-30454-M-9530-ND-SW03
Lumen (lm): 298 lm
Optic: M
Optic value: 23°
CCT / CRI: 3000K CRI95
Dimming type: On/Off
Product colour: Pine - Woodland
Variant code: JE-30454-VW-9040-ND-01
Lumen (lm): 292 lm
Optic: VW
Optic value: 60°
CCT / CRI: 4000K CRI90
Dimming type: On/Off
Product colour: Black
Variant code: JE-30454-VW-9040-ND-02
Lumen (lm): 292 lm
Optic: VW
Optic value: 60°
CCT / CRI: 4000K CRI90
Dimming type: On/Off
Product colour: Dark Grey
Variant code: JE-30454-VW-9040-ND-03
Lumen (lm): 292 lm
Optic: VW
Optic value: 60°
CCT / CRI: 4000K CRI90
Dimming type: On/Off
Product colour: White
Variant code: JE-30454-VW-9040-ND-05
Lumen (lm): 292 lm
Optic: VW
Optic value: 60°
CCT / CRI: 4000K CRI90
Dimming type: On/Off
Product colour: Matt Silver
Variant code: JE-30454-VW-9040-ND-06
Lumen (lm): 292 lm
Optic: VW
Optic value: 60°
CCT / CRI: 4000K CRI90
Dimming type: On/Off
Product colour: Bronze
Variant code: JE-30454-VW-9040-ND-SU01
Lumen (lm): 292 lm
Optic: VW
Optic value: 60°
CCT / CRI: 4000K CRI90
Dimming type: On/Off
Product colour: Concrete - Urban
Variant code: JE-30454-VW-9040-ND-SU02
Lumen (lm): 292 lm
Optic: VW
Optic value: 60°
CCT / CRI: 4000K CRI90
Dimming type: On/Off
Product colour: Softscape - Urban
Variant code: JE-30454-VW-9040-ND-SU03
Lumen (lm): 292 lm
Optic: VW
Optic value: 60°
CCT / CRI: 4000K CRI90
Dimming type: On/Off
Product colour: Stone - Urban
Variant code: JE-30454-VW-9040-ND-SU04
Lumen (lm): 292 lm
Optic: VW
Optic value: 60°
CCT / CRI: 4000K CRI90
Dimming type: On/Off
Product colour: Corten - Urban
Variant code: JE-30454-VW-9040-ND-SW01
Lumen (lm): 292 lm
Optic: VW
Optic value: 60°
CCT / CRI: 4000K CRI90
Dimming type: On/Off
Product colour: Oak - Woodland
Variant code: JE-30454-VW-9040-ND-SW02
Lumen (lm): 292 lm
Optic: VW
Optic value: 60°
CCT / CRI: 4000K CRI90
Dimming type: On/Off
Product colour: Walnut - Woodland
Variant code: JE-30454-VW-9040-ND-SW03
Lumen (lm): 292 lm
Optic: VW
Optic value: 60°
CCT / CRI: 4000K CRI90
Dimming type: On/Off
Product colour: Pine - Woodland
Variant code: JE-30454-VW-9530-ND-01
Lumen (lm): 254 lm
Optic: VW
Optic value: 60°
CCT / CRI: 3000K CRI95
Dimming type: On/Off
Product colour: Black
Variant code: JE-30454-VW-9530-ND-02
Lumen (lm): 254 lm
Optic: VW
Optic value: 60°
CCT / CRI: 3000K CRI95
Dimming type: On/Off
Product colour: Dark Grey
Variant code: JE-30454-VW-9530-ND-03
Lumen (lm): 254 lm
Optic: VW
Optic value: 60°
CCT / CRI: 3000K CRI95
Dimming type: On/Off
Product colour: White
Variant code: JE-30454-VW-9530-ND-05
Lumen (lm): 254 lm
Optic: VW
Optic value: 60°
CCT / CRI: 3000K CRI95
Dimming type: On/Off
Product colour: Matt Silver
Variant code: JE-30454-VW-9530-ND-06
Lumen (lm): 254 lm
Optic: VW
Optic value: 60°
CCT / CRI: 3000K CRI95
Dimming type: On/Off
Product colour: Bronze
Variant code: JE-30454-VW-9530-ND-SU01
Lumen (lm): 254 lm
Optic: VW
Optic value: 60°
CCT / CRI: 3000K CRI95
Dimming type: On/Off
Product colour: Concrete - Urban
Variant code: JE-30454-VW-9530-ND-SU02
Lumen (lm): 254 lm
Optic: VW
Optic value: 60°
CCT / CRI: 3000K CRI95
Dimming type: On/Off
Product colour: Softscape - Urban
Variant code: JE-30454-VW-9530-ND-SU03
Lumen (lm): 254 lm
Optic: VW
Optic value: 60°
CCT / CRI: 3000K CRI95
Dimming type: On/Off
Product colour: Stone - Urban
Variant code: JE-30454-VW-9530-ND-SU04
Lumen (lm): 254 lm
Optic: VW
Optic value: 60°
CCT / CRI: 3000K CRI95
Dimming type: On/Off
Product colour: Corten - Urban
Variant code: JE-30454-VW-9530-ND-SW01
Lumen (lm): 254 lm
Optic: VW
Optic value: 60°
CCT / CRI: 3000K CRI95
Dimming type: On/Off
Product colour: Oak - Woodland
Variant code: JE-30454-VW-9530-ND-SW02
Lumen (lm): 254 lm
Optic: VW
Optic value: 60°
CCT / CRI: 3000K CRI95
Dimming type: On/Off
Product colour: Walnut - Woodland
Variant code: JE-30454-VW-9530-ND-SW03
Lumen (lm): 254 lm
Optic: VW
Optic value: 60°
CCT / CRI: 3000K CRI95
Dimming type: On/Off
Product colour: Pine - Woodland
Variant code: JE-30454-E-9040-ND-01
Lumen (lm): 334 lm
Optic: E
Optic value: 12°x51°
CCT / CRI: 4000K CRI90
Dimming type: On/Off
Product colour: Black
Variant code: JE-30454-E-9040-ND-02
Lumen (lm): 334 lm
Optic: E
Optic value: 12°x51°
CCT / CRI: 4000K CRI90
Dimming type: On/Off
Product colour: Dark Grey
Variant code: JE-30454-E-9040-ND-03
Lumen (lm): 334 lm
Optic: E
Optic value: 12°x51°
CCT / CRI: 4000K CRI90
Dimming type: On/Off
Product colour: White
Variant code: JE-30454-E-9040-ND-05
Lumen (lm): 334 lm
Optic: E
Optic value: 12°x51°
CCT / CRI: 4000K CRI90
Dimming type: On/Off
Product colour: Matt Silver
Variant code: JE-30454-E-9040-ND-06
Lumen (lm): 334 lm
Optic: E
Optic value: 12°x51°
CCT / CRI: 4000K CRI90
Dimming type: On/Off
Product colour: Bronze
Variant code: JE-30454-E-9040-ND-SU01
Lumen (lm): 334 lm
Optic: E
Optic value: 12°x51°
CCT / CRI: 4000K CRI90
Dimming type: On/Off
Product colour: Concrete - Urban
Variant code: JE-30454-E-9040-ND-SU02
Lumen (lm): 334 lm
Optic: E
Optic value: 12°x51°
CCT / CRI: 4000K CRI90
Dimming type: On/Off
Product colour: Softscape - Urban
Variant code: JE-30454-E-9040-ND-SU03
Lumen (lm): 334 lm
Optic: E
Optic value: 12°x51°
CCT / CRI: 4000K CRI90
Dimming type: On/Off
Product colour: Stone - Urban
Variant code: JE-30454-E-9040-ND-SU04
Lumen (lm): 334 lm
Optic: E
Optic value: 12°x51°
CCT / CRI: 4000K CRI90
Dimming type: On/Off
Product colour: Corten - Urban
Variant code: JE-30454-E-9040-ND-SW01
Lumen (lm): 334 lm
Optic: E
Optic value: 12°x51°
CCT / CRI: 4000K CRI90
Dimming type: On/Off
Product colour: Oak - Woodland
Variant code: JE-30454-E-9040-ND-SW02
Lumen (lm): 334 lm
Optic: E
Optic value: 12°x51°
CCT / CRI: 4000K CRI90
Dimming type: On/Off
Product colour: Walnut - Woodland
Variant code: JE-30454-E-9040-ND-SW03
Lumen (lm): 334 lm
Optic: E
Optic value: 12°x51°
CCT / CRI: 4000K CRI90
Dimming type: On/Off
Product colour: Pine - Woodland
Variant code: JE-30454-E-9530-ND-01
Lumen (lm): 291 lm
Optic: E
Optic value: 12°x51°
CCT / CRI: 3000K CRI95
Dimming type: On/Off
Product colour: Black
Variant code: JE-30454-E-9530-ND-02
Lumen (lm): 291 lm
Optic: E
Optic value: 12°x51°
CCT / CRI: 3000K CRI95
Dimming type: On/Off
Product colour: Dark Grey
Variant code: JE-30454-E-9530-ND-03
Lumen (lm): 291 lm
Optic: E
Optic value: 12°x51°
CCT / CRI: 3000K CRI95
Dimming type: On/Off
Product colour: White
Variant code: JE-30454-E-9530-ND-05
Lumen (lm): 291 lm
Optic: E
Optic value: 12°x51°
CCT / CRI: 3000K CRI95
Dimming type: On/Off
Product colour: Matt Silver
Variant code: JE-30454-E-9530-ND-06
Lumen (lm): 291 lm
Optic: E
Optic value: 12°x51°
CCT / CRI: 3000K CRI95
Dimming type: On/Off
Product colour: Bronze
Variant code: JE-30454-E-9530-ND-SU01
Lumen (lm): 291 lm
Optic: E
Optic value: 12°x51°
CCT / CRI: 3000K CRI95
Dimming type: On/Off
Product colour: Concrete - Urban
Variant code: JE-30454-E-9530-ND-SU02
Lumen (lm): 291 lm
Optic: E
Optic value: 12°x51°
CCT / CRI: 3000K CRI95
Dimming type: On/Off
Product colour: Softscape - Urban
Variant code: JE-30454-E-9530-ND-SU03
Lumen (lm): 291 lm
Optic: E
Optic value: 12°x51°
CCT / CRI: 3000K CRI95
Dimming type: On/Off
Product colour: Stone - Urban
Variant code: JE-30454-E-9530-ND-SU04
Lumen (lm): 291 lm
Optic: E
Optic value: 12°x51°
CCT / CRI: 3000K CRI95
Dimming type: On/Off
Product colour: Corten - Urban
Variant code: JE-30454-E-9530-ND-SW01
Lumen (lm): 291 lm
Optic: E
Optic value: 12°x51°
CCT / CRI: 3000K CRI95
Dimming type: On/Off
Product colour: Oak - Woodland
Variant code: JE-30454-E-9530-ND-SW02
Lumen (lm): 291 lm
Optic: E
Optic value: 12°x51°
CCT / CRI: 3000K CRI95
Dimming type: On/Off
Product colour: Walnut - Woodland
Variant code: JE-30454-E-9530-ND-SW03
Lumen (lm): 291 lm
Optic: E
Optic value: 12°x51°
CCT / CRI: 3000K CRI95
Dimming type: On/Off
Product colour: Pine - Woodland

ACCESSORY

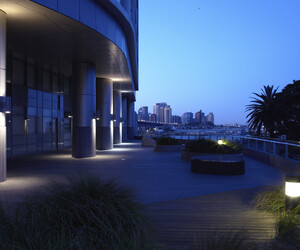

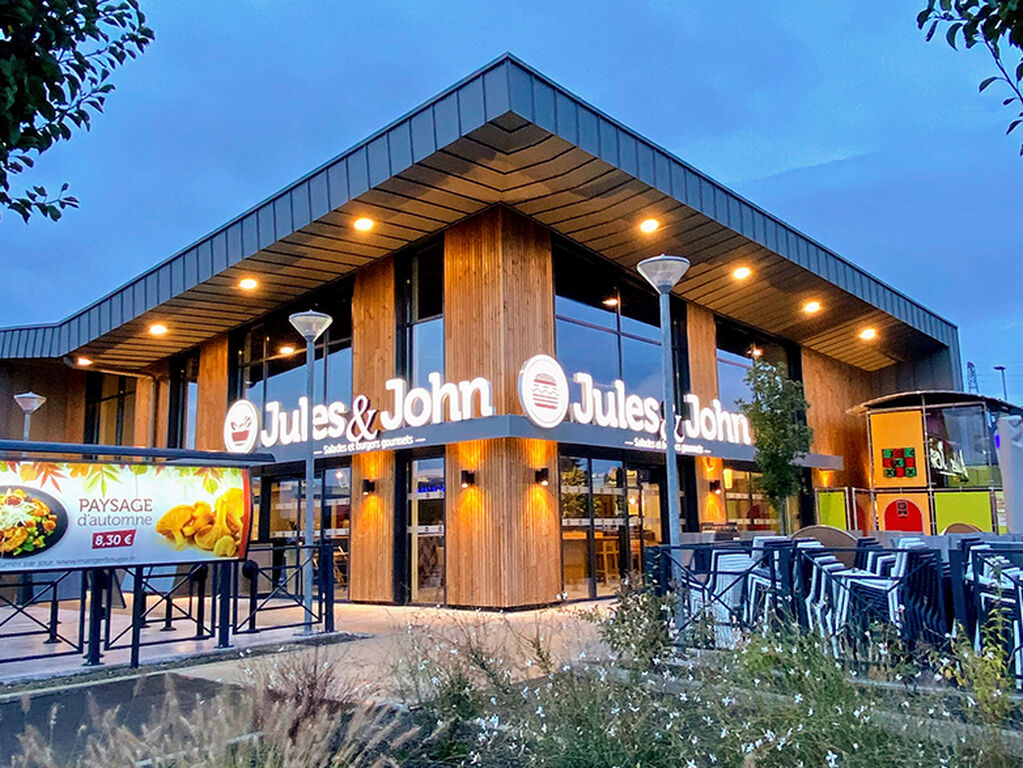

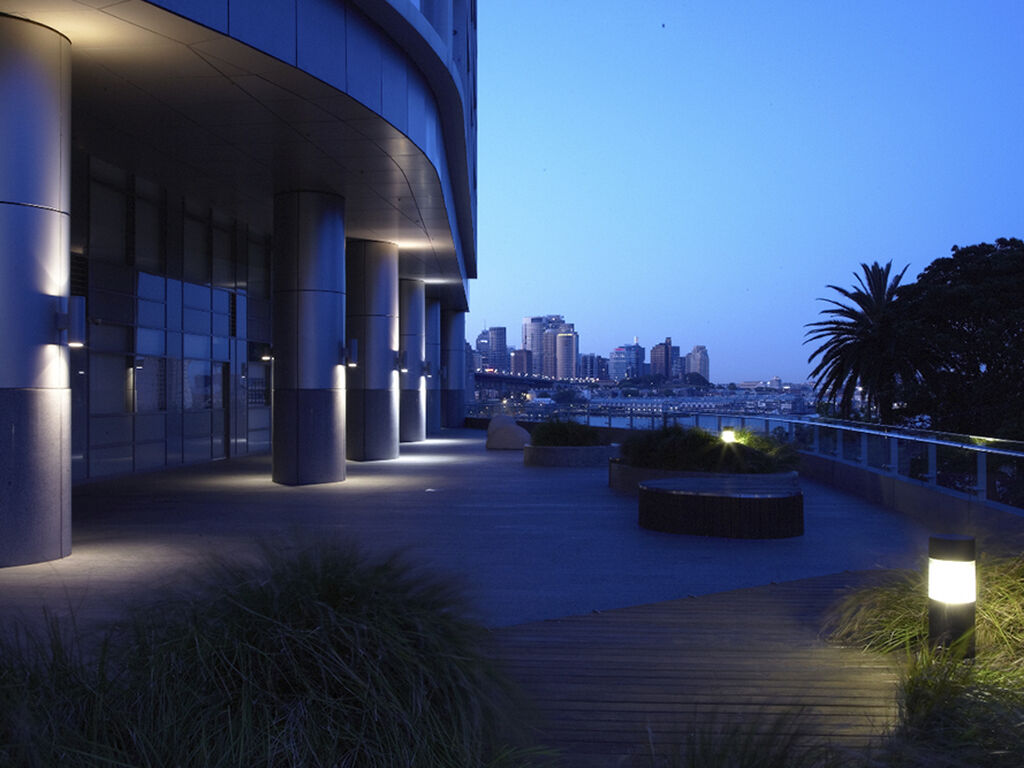

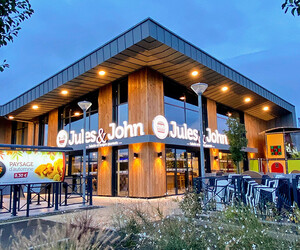

PROJECT REFERENCE (JET Surface facade luminaires)

SOCIAL

Facebook-f Instagram Youtube Linkedin-in Twitter Pinterest Line

NEWSLETTER

Sign up to our newsletter

Copyright © LIGMAN Lighting Co., Ltd.

Privacy Policy      Privacy Policy CCTV      Terms of use      Terms of sales
