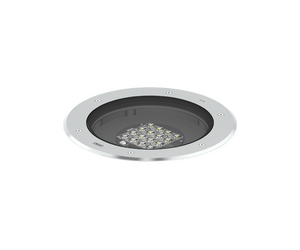

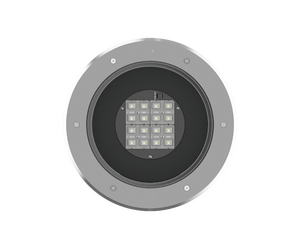

KIOS 9
KIOS 9
KIOS 9
KIOS 9
KIOS 9
KIOS 9

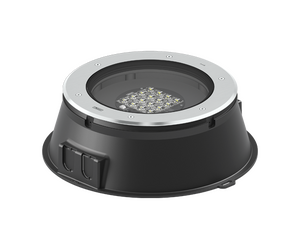

With recessing box / driver - Embross frame
CERETILAPClass IIP67IK10

TECHNICAL SPECIFICATIONS

Material
Stainless Steel
Light source
16 LED
Power (W)
25 W
Lumen (lm)
2297 - 2739 lm
Efficacy (lm/W)
92 - 110 lm/W
Driver option
Integral control gear
Driver
Constant current (CC)
Input voltage
220-240 V 50/60 Hz
Optic
T2, T3, T4
Optic value
136°x 48°, 136°x 67°, 92°x 73°
CCT / CRI
2700K CRI80, 3000K CRI80, 4000K CRI80
Bug
B0-U5-G0
ULR
100%
ULOR
100%
Dimming type
On/Off, 1-10V, DALI
Product colours
Stainless Steel
Weight
9.2 kg
Operating temperature
-20 °C to 40 °C
Through wiring
Single cable entry, through wiring upon request
Lens / Reflector / Optic
Clear toughened glass, High-efficiency PMMA lens
MacAdam Ellipse
3 SDCM
Lifetime L90B10 (hours)
> 90,000
Lifetime L80B10 (hours)
> 90,000
Lifetime L80B50 (hours)
> 90,000
Variants (1-10V)
Compatible with EN/ IEC 60598-2-22: Suitable for emergency installations as central supply, non-maintained (Z0)

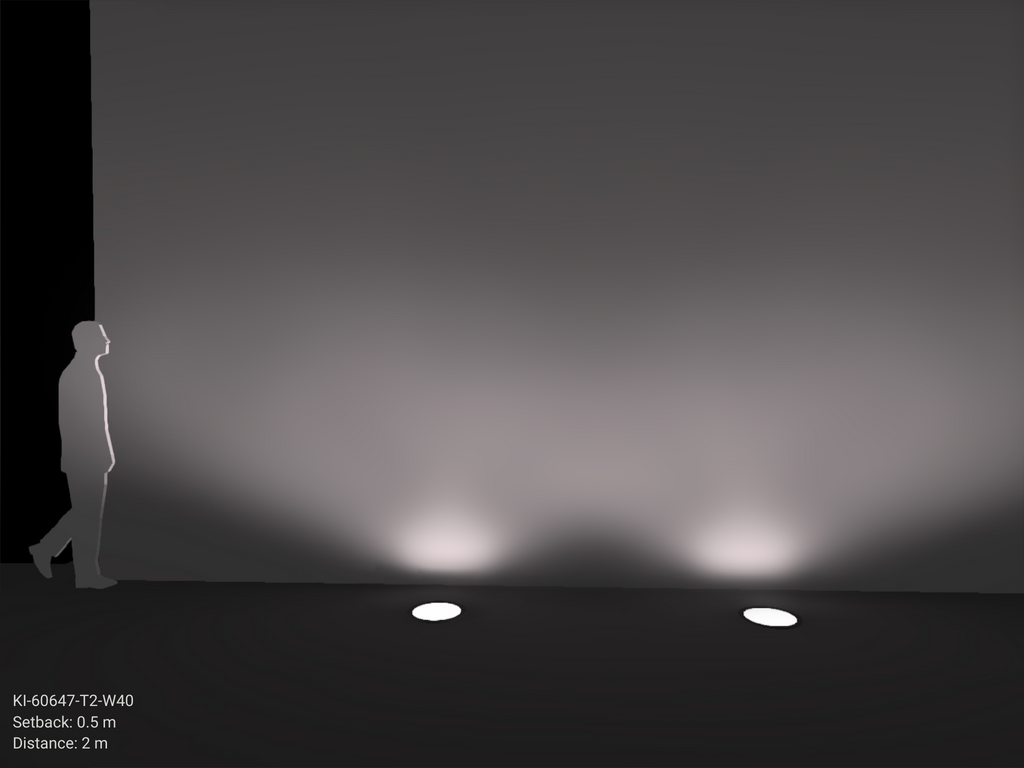

LIGHT EFFECT

Optic
T2 (136°x 48°)
T3 (136°x 67°)
T4 (92°x 73°)

CODE FINDER

Lumen (lm)
Optic
Optic value
CCT / CRI
Dimming type
Product colour
Variant code
Lumen (lm)
Optic
Optic value
CCT / CRI
Dimming type
Product colour
Variant code: KI-60647-T2-8027-ND-00
Lumen (lm): 2424 lm
Optic: T2
Optic value: 136°x 48°
CCT / CRI: 2700K CRI80
Dimming type: On/Off
Product colour: Stainless Steel
Variant code: KI-60647-T2-8030-ND-00
Lumen (lm): 2560 lm
Optic: T2
Optic value: 136°x 48°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Stainless Steel
Variant code: KI-60647-T2-8040-ND-00
Lumen (lm): 2739 lm
Optic: T2
Optic value: 136°x 48°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Stainless Steel
Variant code: KI-60647-T2-8027-DI-00
Lumen (lm): 2424 lm
Optic: T2
Optic value: 136°x 48°
CCT / CRI: 2700K CRI80
Dimming type: 1-10V
Product colour: Stainless Steel
Variant code: KI-60647-T2-8030-DI-00
Lumen (lm): 2560 lm
Optic: T2
Optic value: 136°x 48°
CCT / CRI: 3000K CRI80
Dimming type: 1-10V
Product colour: Stainless Steel
Variant code: KI-60647-T2-8040-DI-00
Lumen (lm): 2739 lm
Optic: T2
Optic value: 136°x 48°
CCT / CRI: 4000K CRI80
Dimming type: 1-10V
Product colour: Stainless Steel
Variant code: KI-60647-T2-8027-DA-00
Lumen (lm): 2424 lm
Optic: T2
Optic value: 136°x 48°
CCT / CRI: 2700K CRI80
Dimming type: DALI
Product colour: Stainless Steel
Variant code: KI-60647-T2-8030-DA-00
Lumen (lm): 2560 lm
Optic: T2
Optic value: 136°x 48°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Stainless Steel
Variant code: KI-60647-T2-8040-DA-00
Lumen (lm): 2739 lm
Optic: T2
Optic value: 136°x 48°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Stainless Steel
Variant code: KI-60647-T3-8027-ND-00
Lumen (lm): 2297 lm
Optic: T3
Optic value: 136°x 67°
CCT / CRI: 2700K CRI80
Dimming type: On/Off
Product colour: Stainless Steel
Variant code: KI-60647-T3-8030-ND-00
Lumen (lm): 2426 lm
Optic: T3
Optic value: 136°x 67°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Stainless Steel
Variant code: KI-60647-T3-8040-ND-00
Lumen (lm): 2596 lm
Optic: T3
Optic value: 136°x 67°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Stainless Steel
Variant code: KI-60647-T3-8027-DI-00
Lumen (lm): 2297 lm
Optic: T3
Optic value: 136°x 67°
CCT / CRI: 2700K CRI80
Dimming type: 1-10V
Product colour: Stainless Steel
Variant code: KI-60647-T3-8030-DI-00
Lumen (lm): 2426 lm
Optic: T3
Optic value: 136°x 67°
CCT / CRI: 3000K CRI80
Dimming type: 1-10V
Product colour: Stainless Steel
Variant code: KI-60647-T3-8040-DI-00
Lumen (lm): 2596 lm
Optic: T3
Optic value: 136°x 67°
CCT / CRI: 4000K CRI80
Dimming type: 1-10V
Product colour: Stainless Steel
Variant code: KI-60647-T3-8027-DA-00
Lumen (lm): 2297 lm
Optic: T3
Optic value: 136°x 67°
CCT / CRI: 2700K CRI80
Dimming type: DALI
Product colour: Stainless Steel
Variant code: KI-60647-T3-8030-DA-00
Lumen (lm): 2426 lm
Optic: T3
Optic value: 136°x 67°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Stainless Steel
Variant code: KI-60647-T3-8040-DA-00
Lumen (lm): 2596 lm
Optic: T3
Optic value: 136°x 67°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Stainless Steel
Variant code: KI-60647-T4-8027-ND-00
Lumen (lm): 2337 lm
Optic: T4
Optic value: 92°x 73°
CCT / CRI: 2700K CRI80
Dimming type: On/Off
Product colour: Stainless Steel
Variant code: KI-60647-T4-8030-ND-00
Lumen (lm): 2469 lm
Optic: T4
Optic value: 92°x 73°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Stainless Steel
Variant code: KI-60647-T4-8040-ND-00
Lumen (lm): 2642 lm
Optic: T4
Optic value: 92°x 73°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Stainless Steel
Variant code: KI-60647-T4-8027-DI-00
Lumen (lm): 2337 lm
Optic: T4
Optic value: 92°x 73°
CCT / CRI: 2700K CRI80
Dimming type: 1-10V
Product colour: Stainless Steel
Variant code: KI-60647-T4-8030-DI-00
Lumen (lm): 2469 lm
Optic: T4
Optic value: 92°x 73°
CCT / CRI: 3000K CRI80
Dimming type: 1-10V
Product colour: Stainless Steel
Variant code: KI-60647-T4-8040-DI-00
Lumen (lm): 2642 lm
Optic: T4
Optic value: 92°x 73°
CCT / CRI: 4000K CRI80
Dimming type: 1-10V
Product colour: Stainless Steel
Variant code: KI-60647-T4-8027-DA-00
Lumen (lm): 2337 lm
Optic: T4
Optic value: 92°x 73°
CCT / CRI: 2700K CRI80
Dimming type: DALI
Product colour: Stainless Steel
Variant code: KI-60647-T4-8030-DA-00
Lumen (lm): 2469 lm
Optic: T4
Optic value: 92°x 73°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Stainless Steel
Variant code: KI-60647-T4-8040-DA-00
Lumen (lm): 2642 lm
Optic: T4
Optic value: 92°x 73°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Stainless Steel
