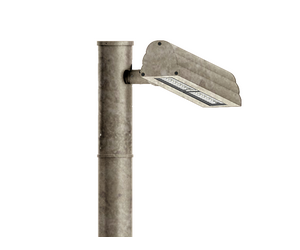

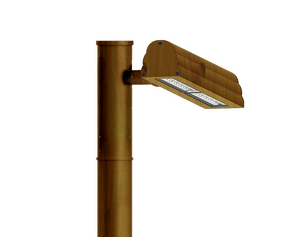

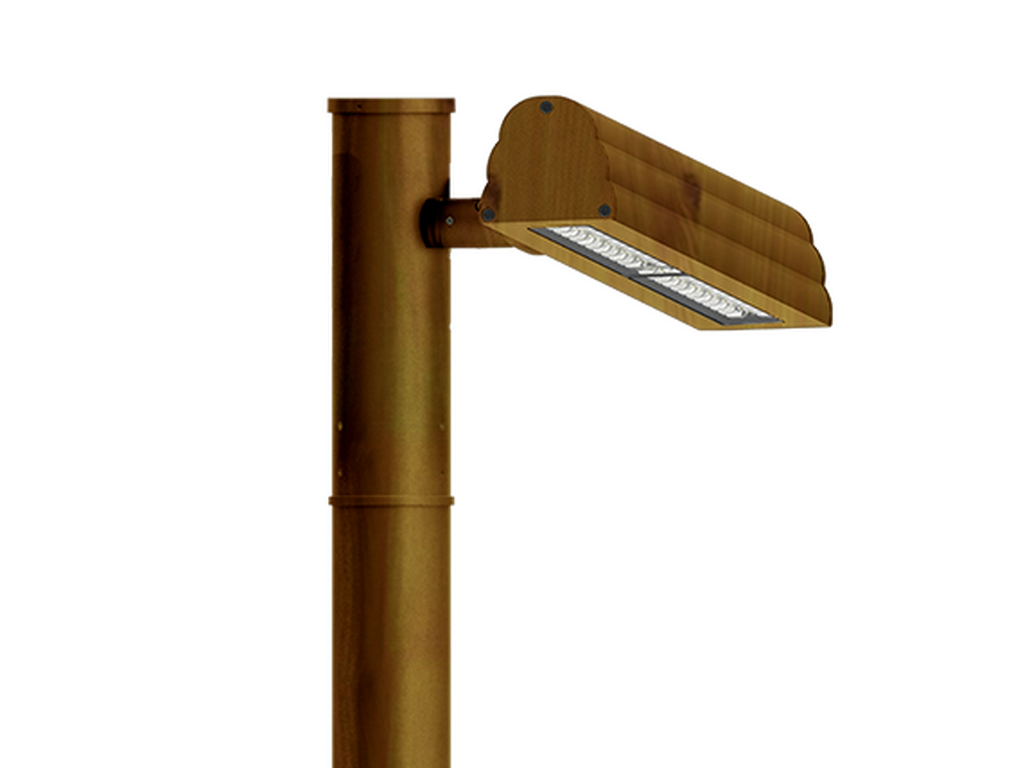

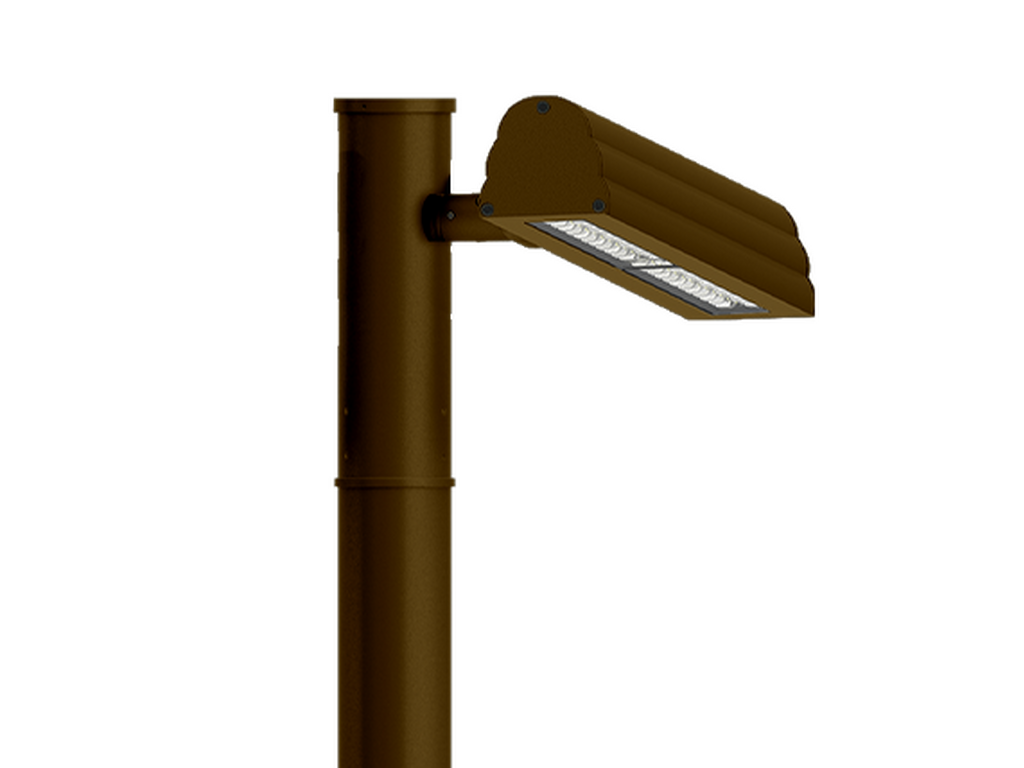

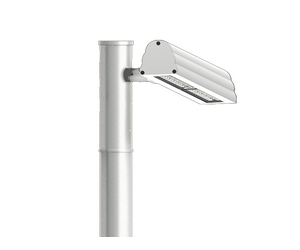

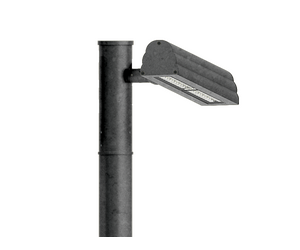

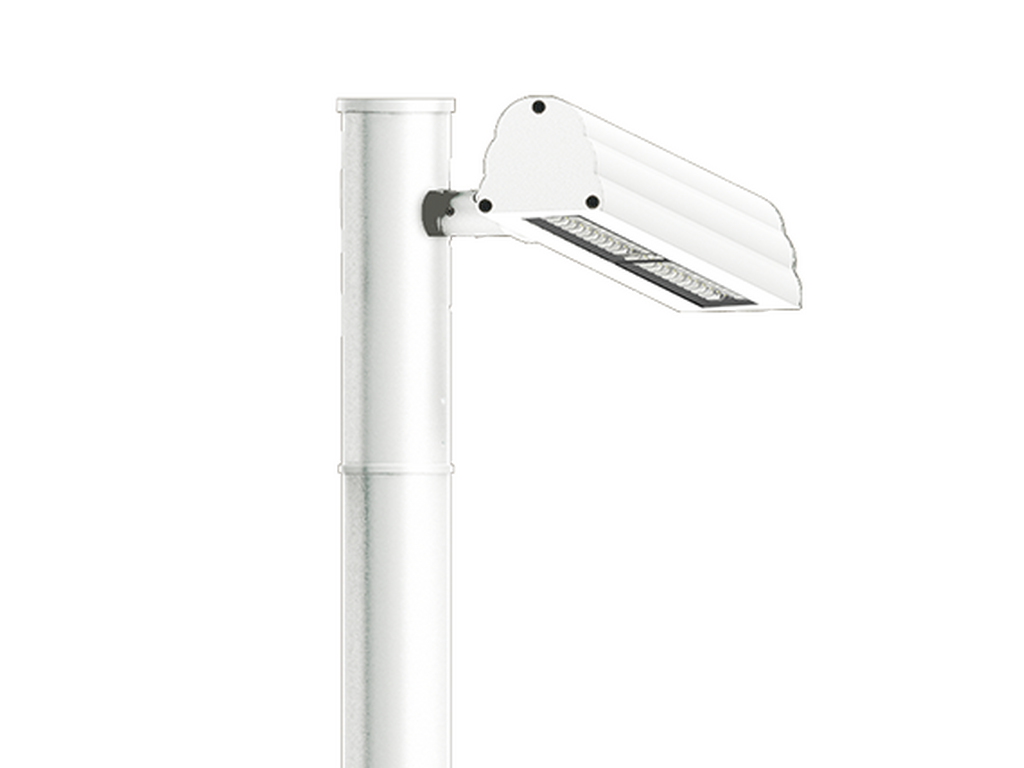

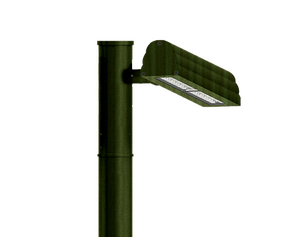

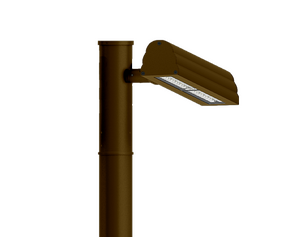

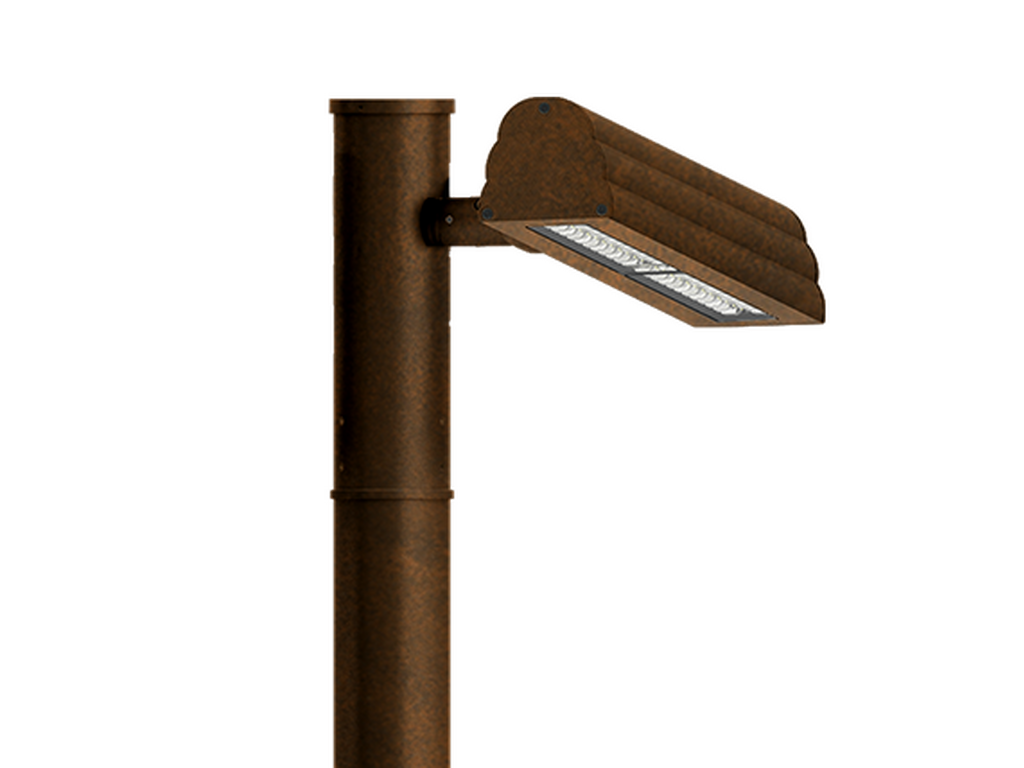

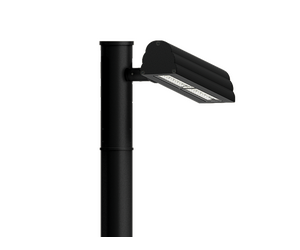

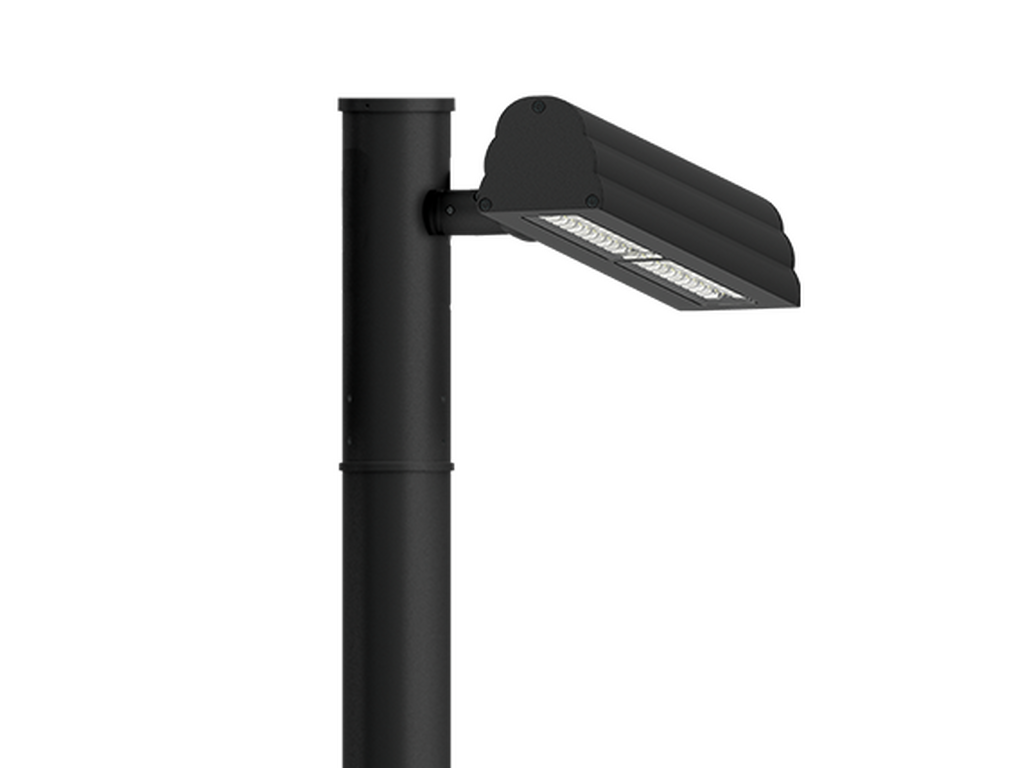

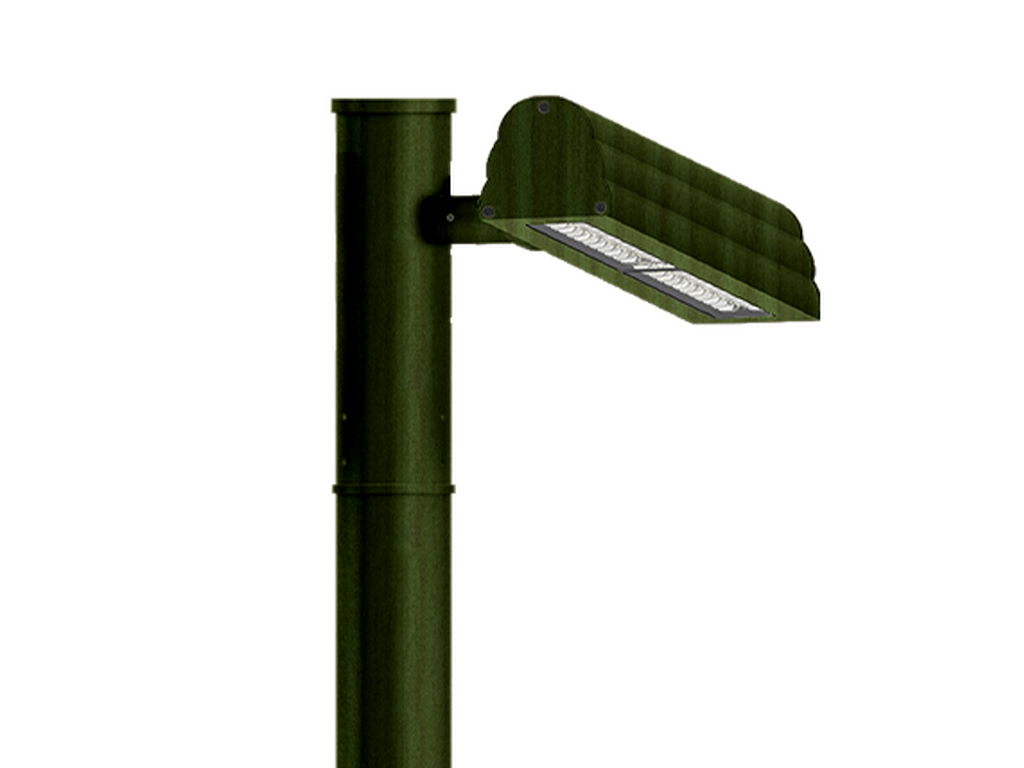

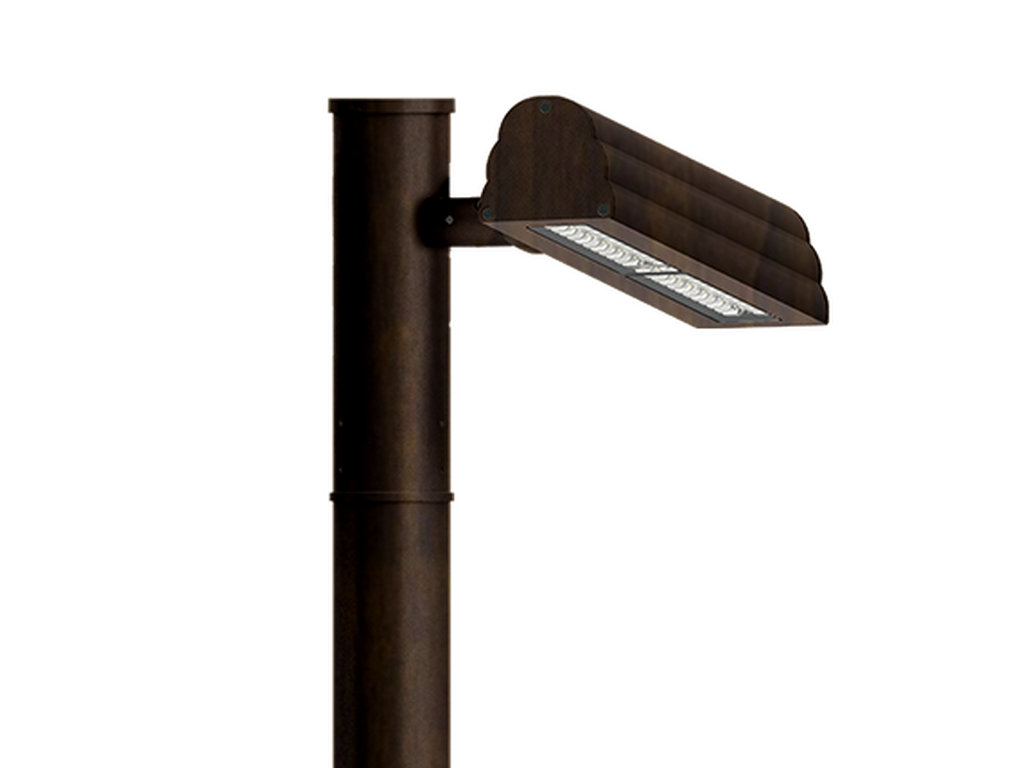

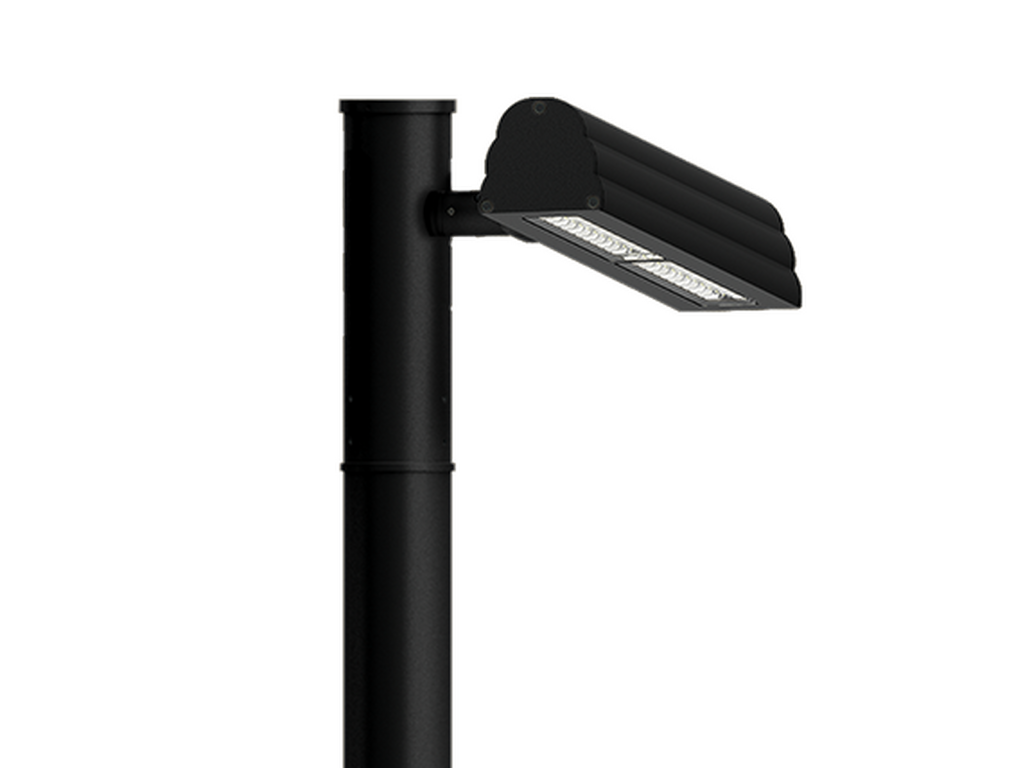

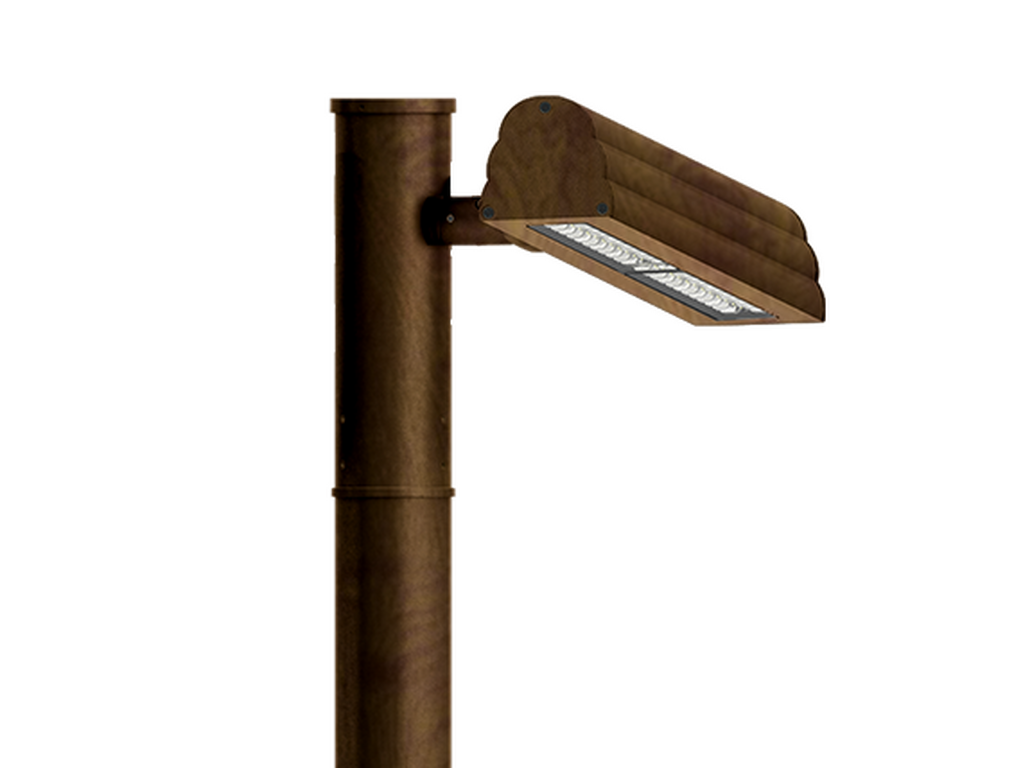

KWH 5KWH-20011KWH
Black
Dark Grey
White
Matt Silver
Bronze
Concrete - Urban
Softscape - Urban
Stone - Urban
Corten - Urban
Oak - Woodland
Walnut - Woodland
Pine - Woodland
Black
Dark Grey
White
Matt Silver
Bronze
Concrete - Urban
Softscape - Urban
Stone - Urban
Corten - Urban
Oak - Woodland
Walnut - Woodland
Pine - Woodland
Medium
TECHNICAL SPECIFICATIONS
Material
Aluminium
Light source
4 x 12 LED
Power (W)
38 W
Lumen (lm)
4280 - 5182 lm
Efficacy (lm/W)
113 - 136 lm/W
Driver option
Integral control gear
Driver
Constant current (CC)
Input voltage
220-240 V 50/60 Hz
Optic
M, W, EW, T1, T2, T3, T4, ME, SCL
Optic value
31°, 55°, 107°, 147° x 77°, 139° x 57°, 133° x 88°, 104° x 66°, 141° x 60°, 154° x 68°
CCT / CRI
3000K CRI80, 4000K CRI80
Bug
B1-U0-G0, B1-U0-G1, B2-U0-G0, B2-U0-G2, B3-U0-G0
Dimming type
On/Off, 1-10V, DALI
Product colours
Black, Dark Grey, White, Matt Silver, Bronze, Concrete - Urban, Softscape - Urban, Stone - Urban, Corten - Urban, Oak - Woodland, Walnut - Woodland, Pine - Woodland
Weight
8.27 kg
Operating temperature
-20 °C to 50 °C
Through wiring
Single cable entry
Lens / Reflector / Optic
High-efficiency PMMA lens, Clear toughened glass
Variants (On/Off, 1-10V, DALI)
Compatible with EN/ IEC 60598-2-22: Suitable for emergency installations as central supply, non-maintained (Z0)
DOWNLOADS
Family spec sheet
Product spec sheet
Installation manual
Technical drawing
2D - CAD
BIM - IFC
DIALux - ULD
IES
CE documentFor BIM files (Revit - RFA), please check the Variant code

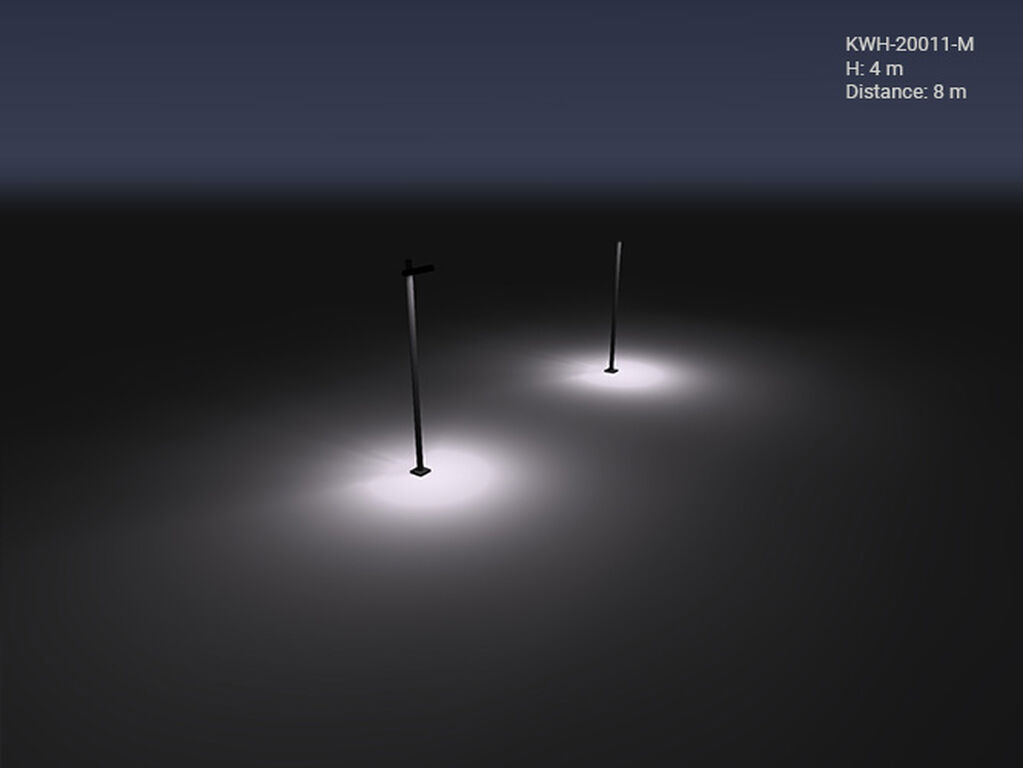

LIGHT EFFECT
Optic
M (31°)
W (55°)
EW (107°)
T1 (147° x 77°)
T2 (139° x 57°)
T3 (133° x 88°)
T4 (104° x 66°)
ME (141° x 60°)
SCL (154° x 68°)
CODE FINDER
Lumen (lm)
Optic
Optic value
CCT / CRI
Dimming type
Product colour
Variant code
Lumen (lm)
Optic
Optic value
CCT / CRI
Dimming type
Product colour
