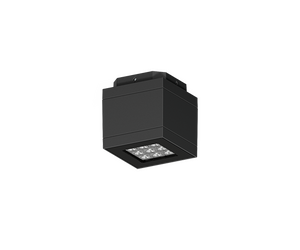

LIGMAN LADOR 11 LD-80021.

LADOR 11LD-80021Surface exterior downlights

Send us an E-Mail or use the contact form:

I have read the privacy policy and agree to the processing of my data *

The fields marked with an * must be correctly filled.
Your request was successfully sent.

Send us an E-Mail or use the contact form:

I have read the privacy policy and agree to the processing of my data *

The fields marked with an * must be correctly filled.
Your request was successfully sent.
LADOR 11
LADOR 11
LADOR 11
LADOR 11
LADOR 11Black
LADOR 11Dark Grey
LADOR 11White
LADOR 11Matt Silver
LADOR 11Bronze
LADOR 11Concrete - Urban
LADOR 11Softscape - Urban
LADOR 11Stone - Urban
LADOR 11Corten - Urban
LADOR 11Oak - Woodland
LADOR 11Walnut - Woodland
LADOR 11Pine - Woodland
LADOR 11
LADOR 11
LADOR 11
LADOR 11
LADOR 11Black
LADOR 11Dark Grey
LADOR 11White
LADOR 11Matt Silver
LADOR 11Bronze
LADOR 11Concrete - Urban
LADOR 11Softscape - Urban
LADOR 11Stone - Urban
LADOR 11Corten - Urban
LADOR 11Oak - Woodland
LADOR 11Walnut - Woodland
LADOR 11Pine - Woodland
Integral control gear - 120x120 mm - Class I
CEBISClass IIP65IK07

Technical information

Material
Aluminium
Light source
9 LED
Power (W)
21 W
Lumen (lm)
1921 - 2364 lm
Efficacy (lm/W)
91 - 113 lm/W
Driver option
Integral control gear
Driver
Constant current (CC)
Input voltage
220-240 V 50/60 Hz
Optic
N, M, W, VW, E
Optic value
10°, 17°, 34°, 70°, 43°x11°
CCT / CRI
3000K CRI80, 4000K CRI80
Bug
B2-U0-G0, B3-U0-G0
ULR
<1%
ULOR
<1%
CIE flux code nº3
100
Dimming type
On/Off, DALI
Product colours
Black, Dark Grey, White, Matt Silver, Bronze, Concrete - Urban, Softscape - Urban, Stone - Urban, Corten - Urban, Oak - Woodland, Walnut - Woodland, Pine - Woodland
Weight
2.1 kg
Operating temperature
-20 °C to 40 °C
Cable
One cable gland supplied with 0.2 m of 3x1.0 sqmm outdoor cable
Through wiring
Single cable entry
Lens / Reflector / Optic
Clear toughened glass, High-efficiency PMMA lens
MacAdam Ellipse
3 SDCM
Lifetime L90B10 (hours)
> 120,000
Lifetime L80B10 (hours)
> 120,000
Lifetime L80B50 (hours)
> 120,000
Variants (On/Off, DALI)
Compatible with EN/ IEC 60598-2-22: Suitable for emergency installations as central supply, non-maintained (Z0)

Light effect

Optic
N (10°)
M (17°)
W (34°)
VW (70°)
E (43°x11°)

Code finder

Lumen (lm)
Optic
Optic value
CCT / CRI
Dimming type
Product colour
Variant code
Lumen (lm)
Optic
Optic value
CCT / CRI
Dimming type
Product colour

Accessory

Project reference (LADOR Surface exterior downlights)
