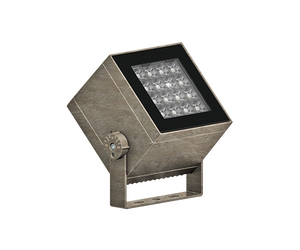

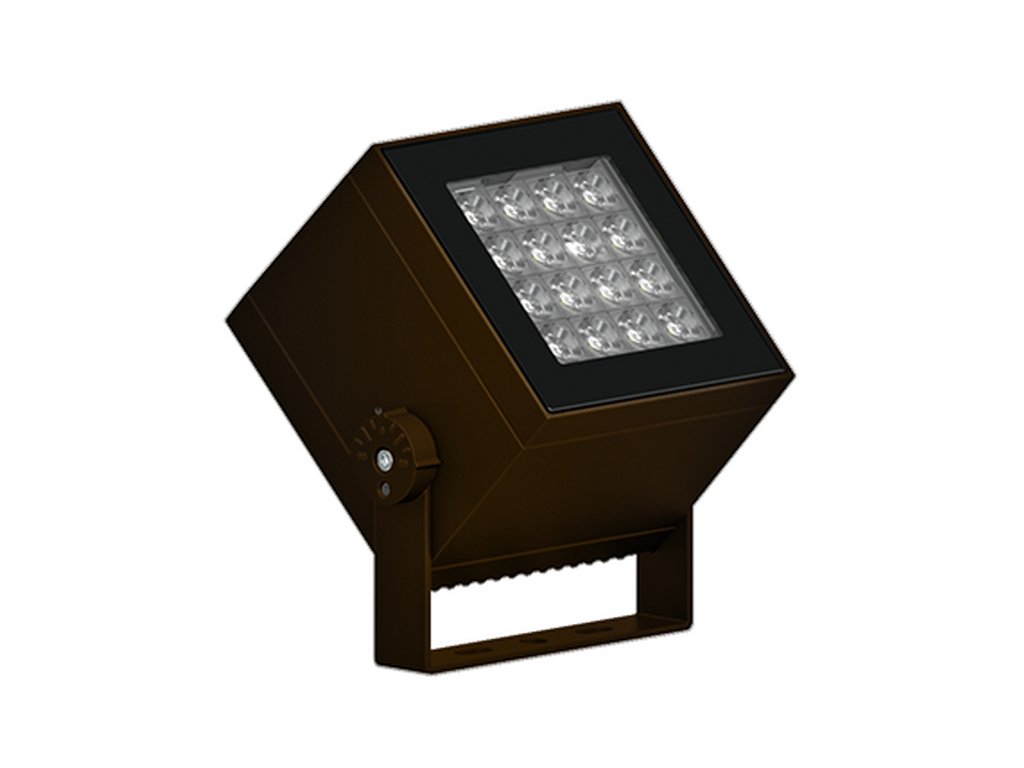

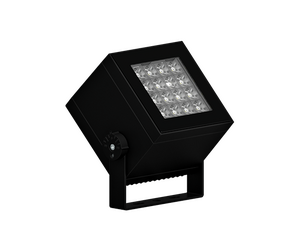

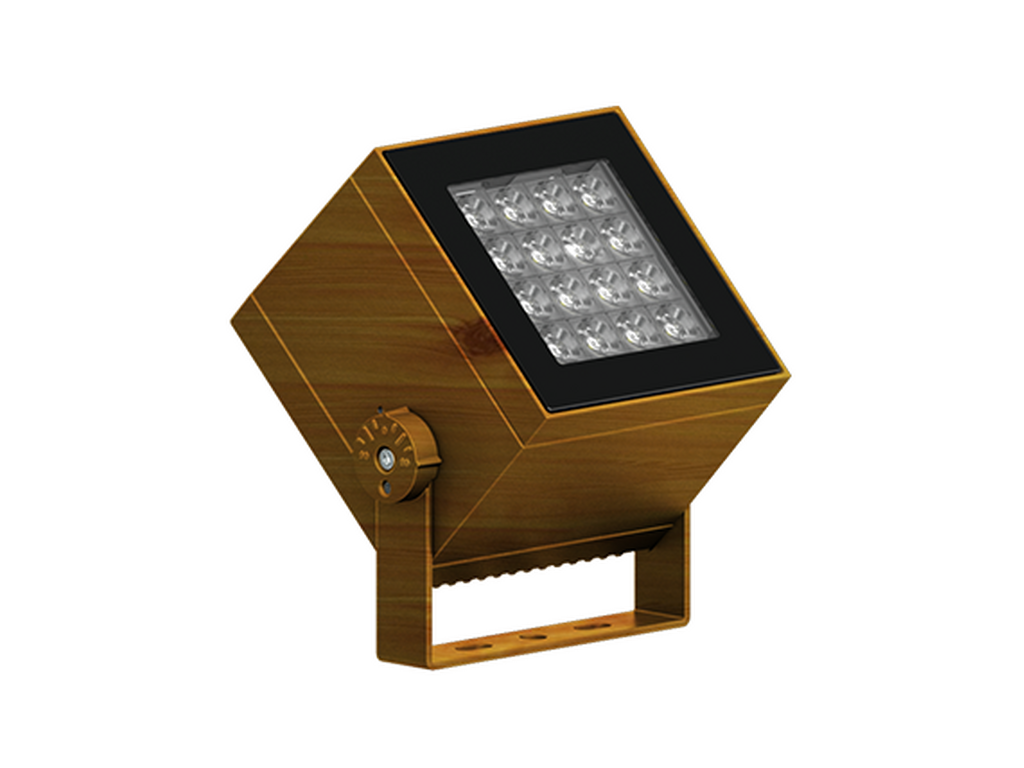

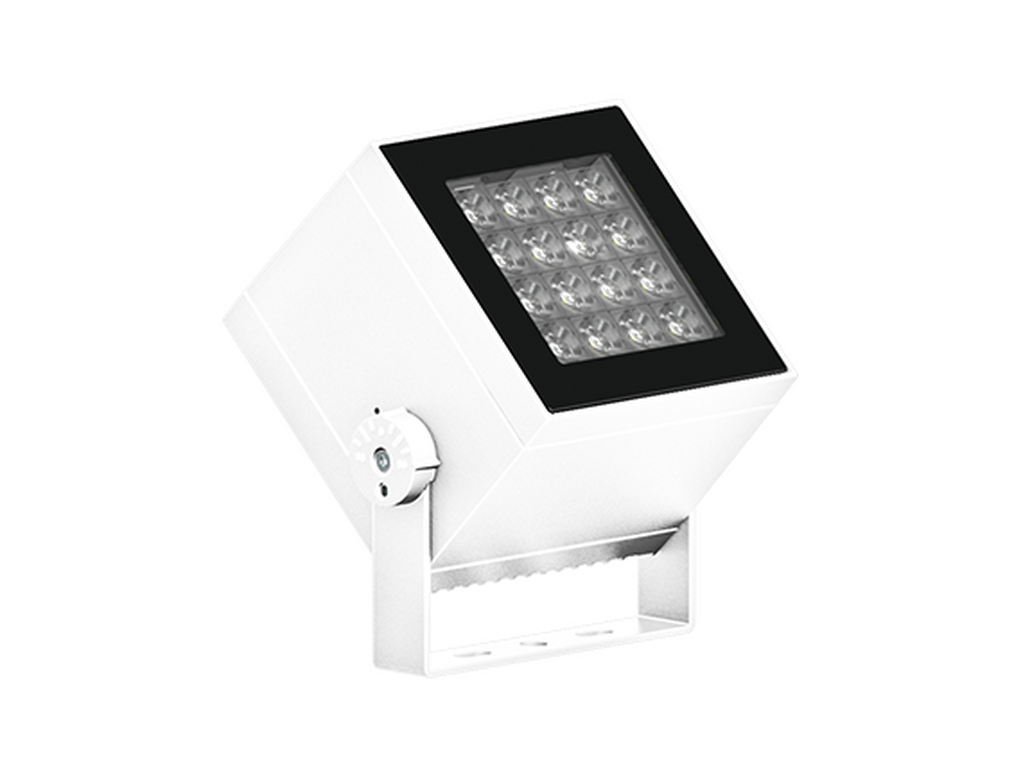

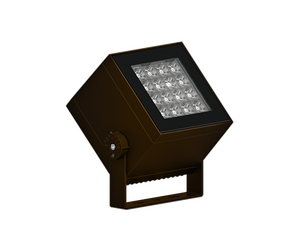

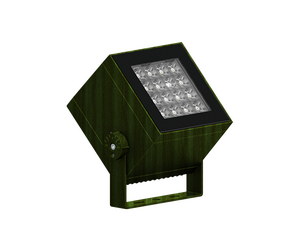

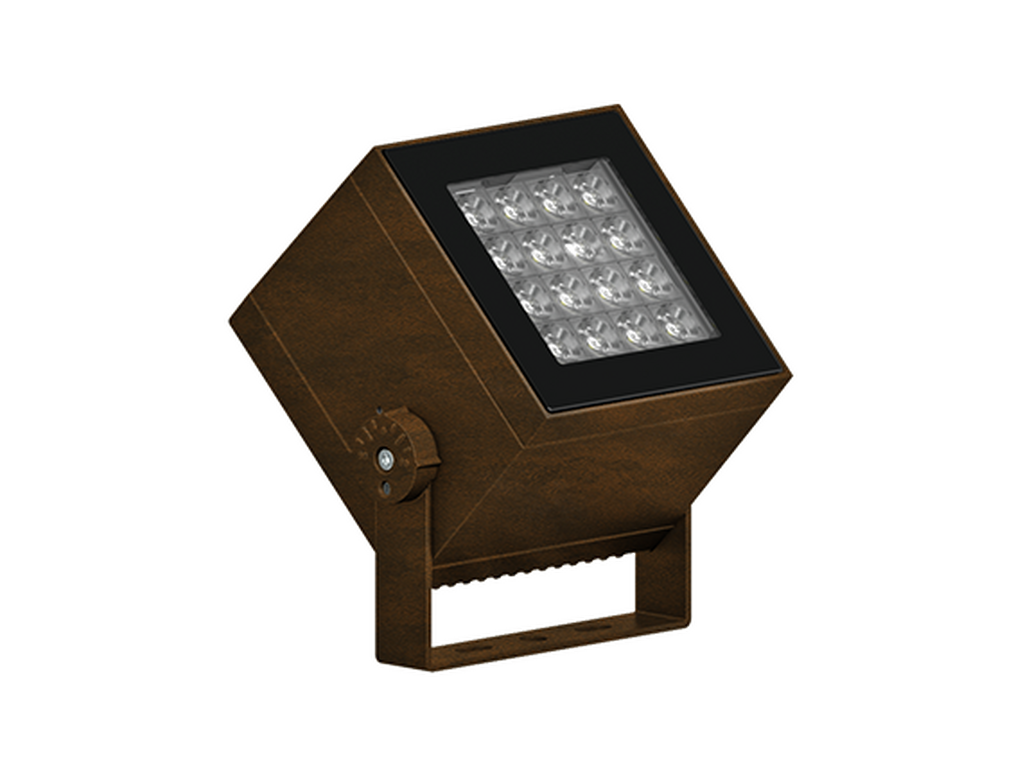

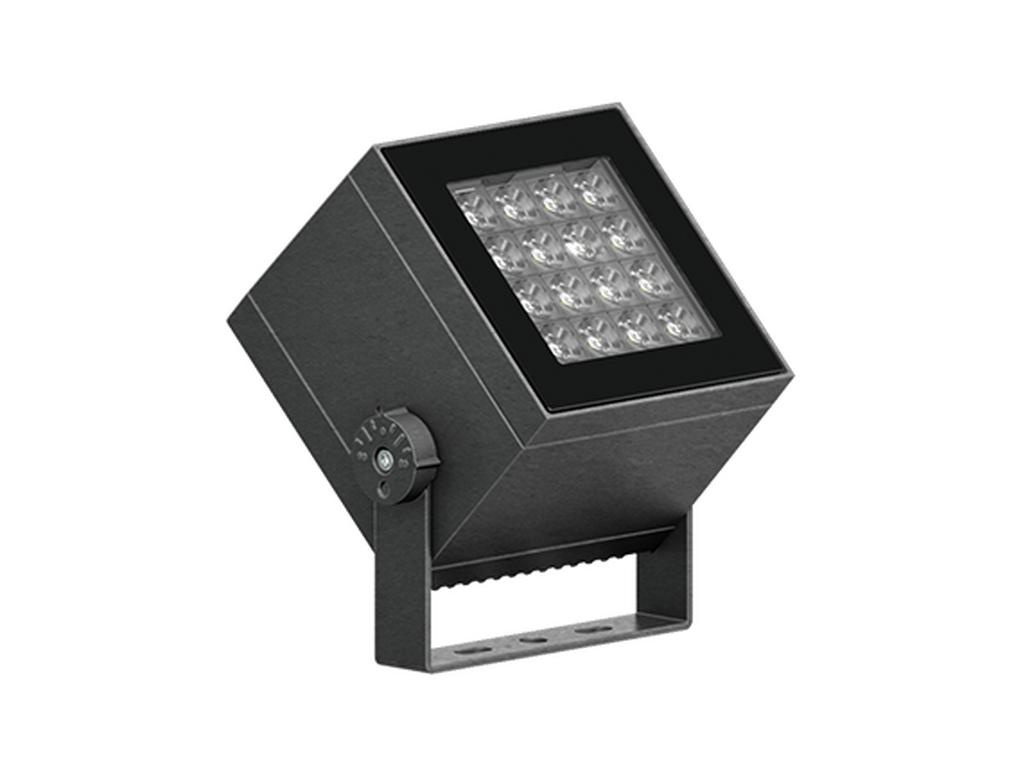

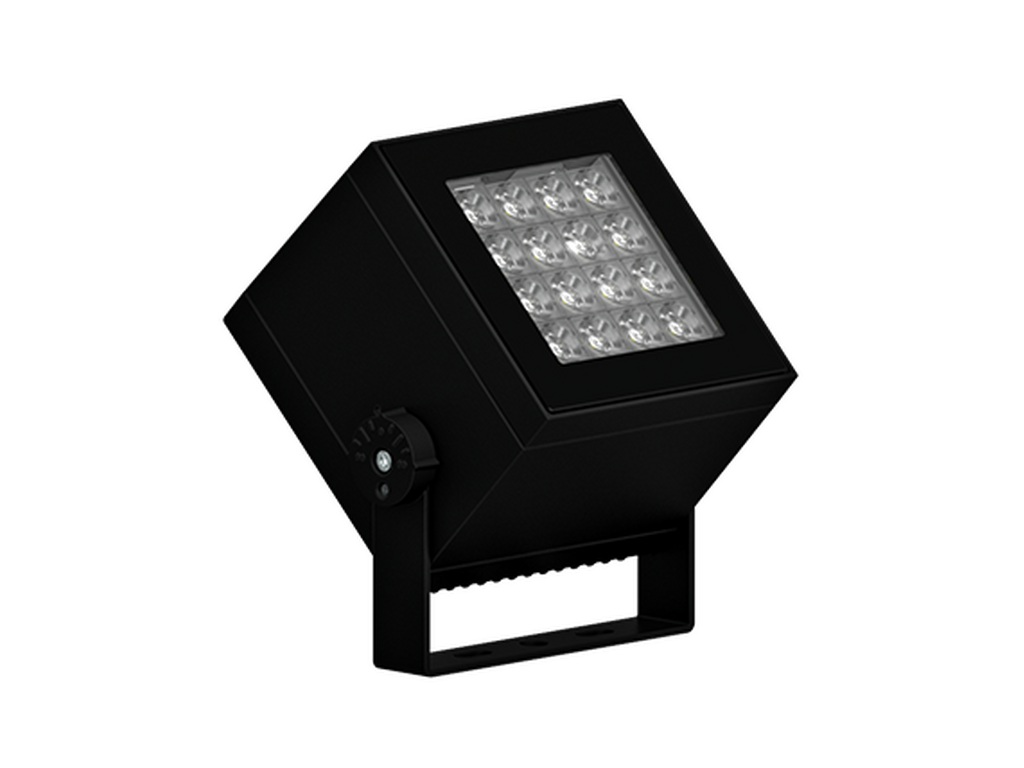

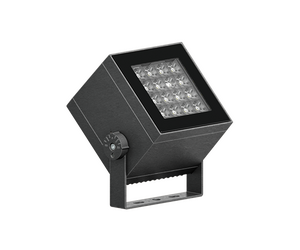

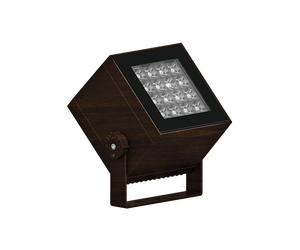

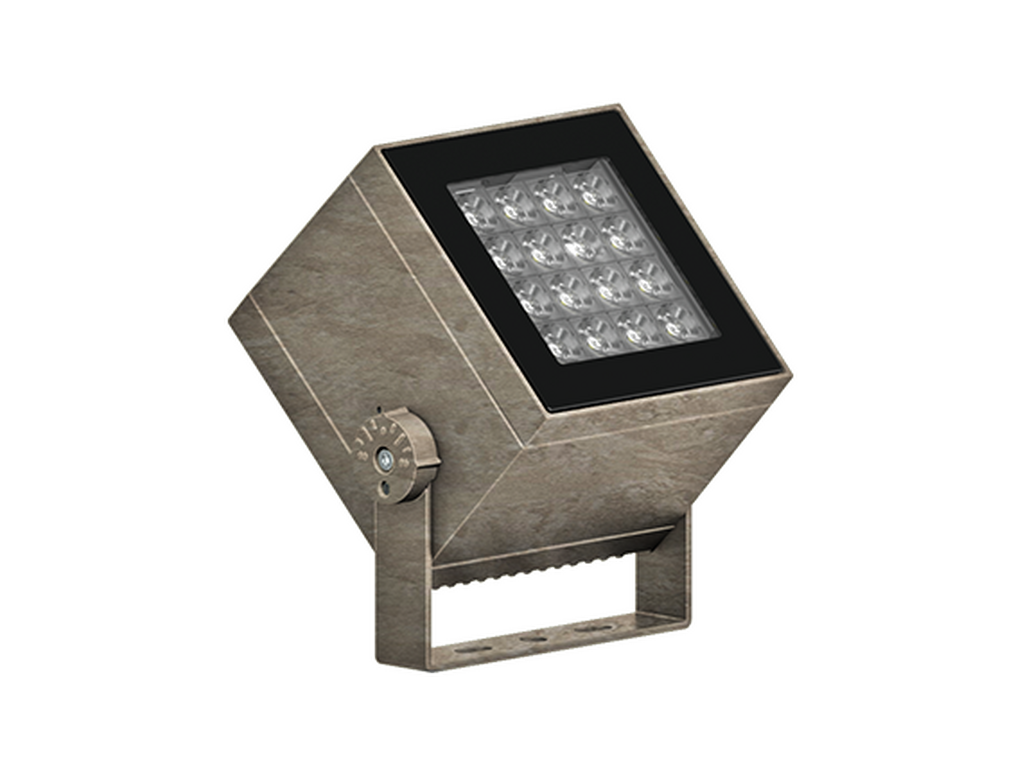

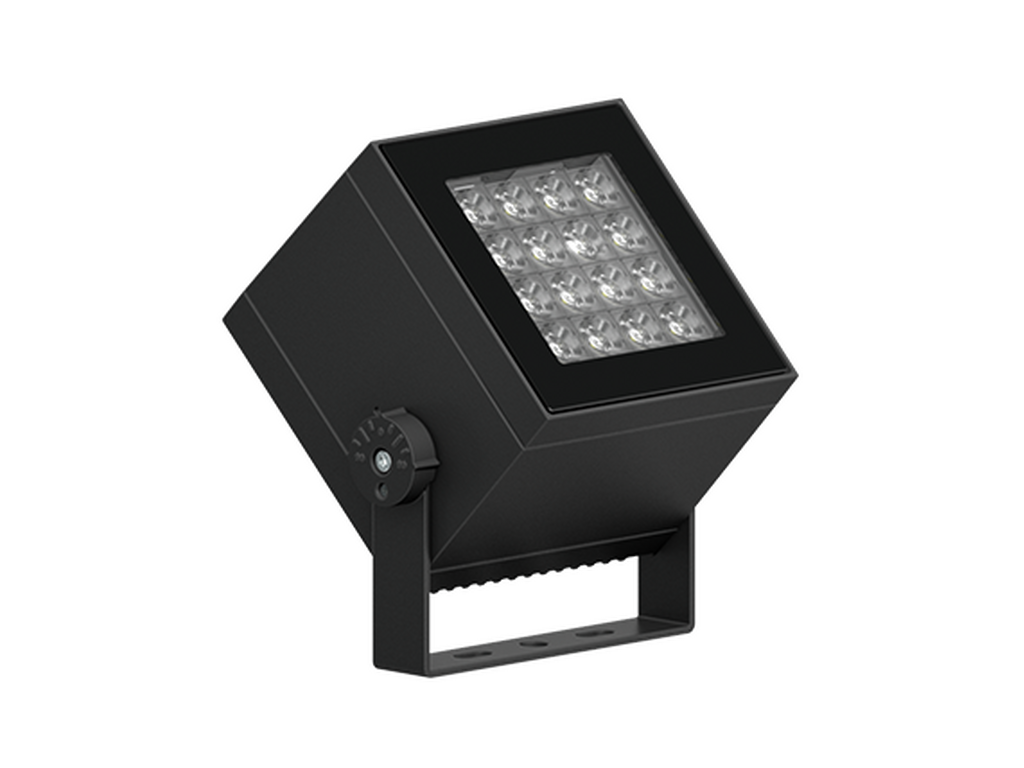

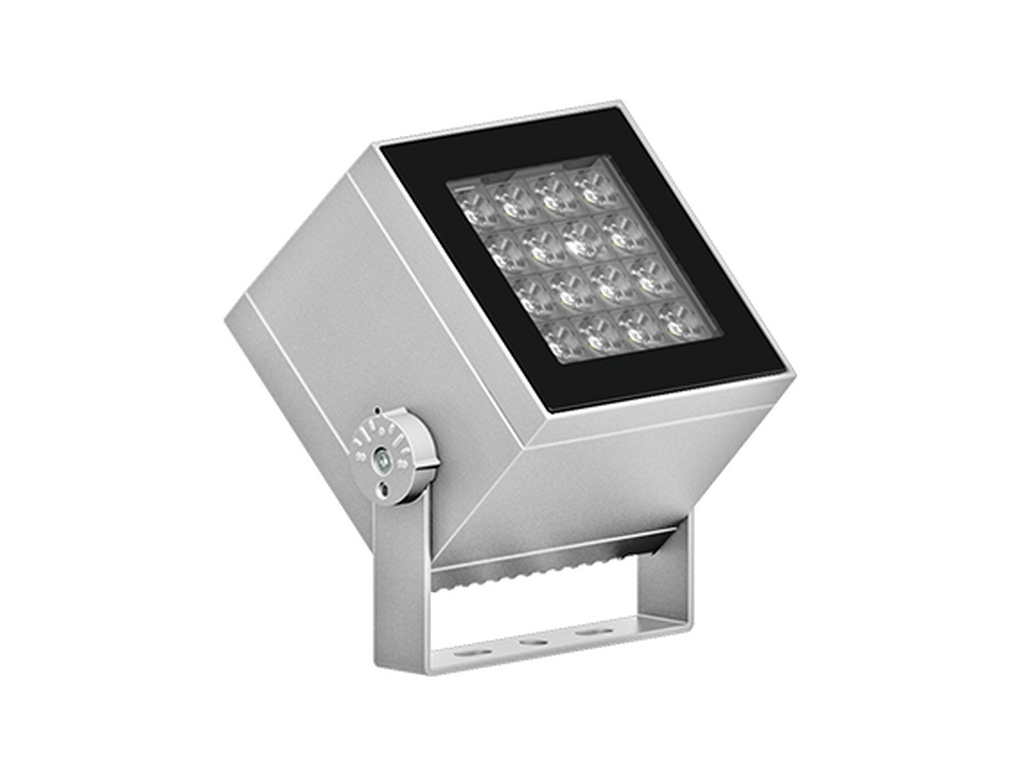

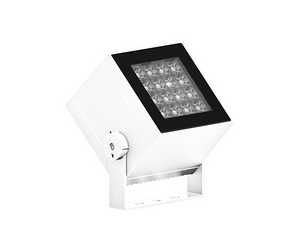

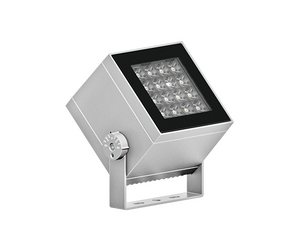

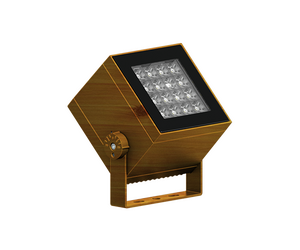

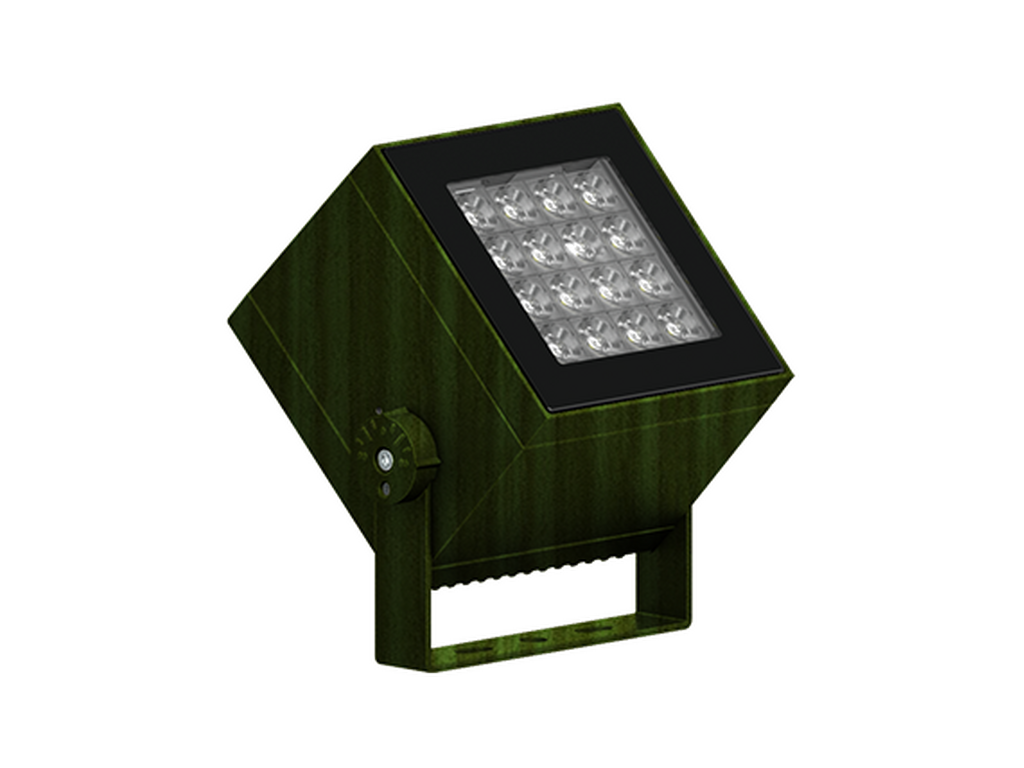

LADOR 4LD-50032Floodlights, projectors
Black
Dark Grey
White
Matt Silver
Bronze
Concrete - Urban
Softscape - Urban
Stone - Urban
Corten - Urban
Oak - Woodland
Walnut - Woodland
Pine - Woodland
Black
Dark Grey
White
Matt Silver
Bronze
Concrete - Urban
Softscape - Urban
Stone - Urban
Corten - Urban
Oak - Woodland
Walnut - Woodland
Pine - Woodland
Integral control gear - 145x145 mm - Class I - RGBW
TECHNICAL SPECIFICATIONS
Material
Aluminium
Light source
16 LED
Power (W)
28 W
Lumen (lm)
1322 - 1600 lm
Efficacy (lm/W)
47 - 57 lm/W
Driver option
Integral control gear
Driver
Constant voltage (CV)
Input voltage
220-240 V 50/60 Hz
Optic
N, M, W, VW, E
Optic value
8°, 17°, 26°, 65°, 43°x11°
CCT / CRI
RGBW30, RGBW40
Bug
B1-U0-G0
ULR
0%
ULOR
0%
CIE flux code nº3
100
Dimming type
DMX, DMX/RDM
Product colours
Black, Dark Grey, White, Matt Silver, Bronze, Concrete - Urban, Softscape - Urban, Stone - Urban, Corten - Urban, Oak - Woodland, Walnut - Woodland, Pine - Woodland
Weight
3 kg
Operating temperature
-20 °C to 40 °C
Cable
One IP68 connector supplied with 0.2 m of 8x0.5 sqmm outdoor cable
Through wiring
Single cable entry
Lens / Reflector / Optic
High-efficiency PMMA lens, Clear toughened glass
Variants (DMX/RDM)
Compatible with EN/ IEC 60598-2-22: Suitable for emergency installations as central supply, non-maintained (Z0)
DOWNLOADS
Family spec sheet
Product spec sheet
Installation manual
Technical drawing
2D - CAD
BIM - IFC
DIALux - ULD
IES
3D view link
AR Tracker
CE documentFor BIM files (Revit - RFA), please check the Variant code
LIGHT EFFECT
Optic
N (8°)
M (17°)
W (26°)
VW (65°)
E (43°x11°)
CODE FINDER
Lumen (lm)
Optic
Optic value
CCT / CRI
Dimming type
Product colour
Variant code
Lumen (lm)
Optic
Optic value
CCT / CRI
Dimming type
Product colour
