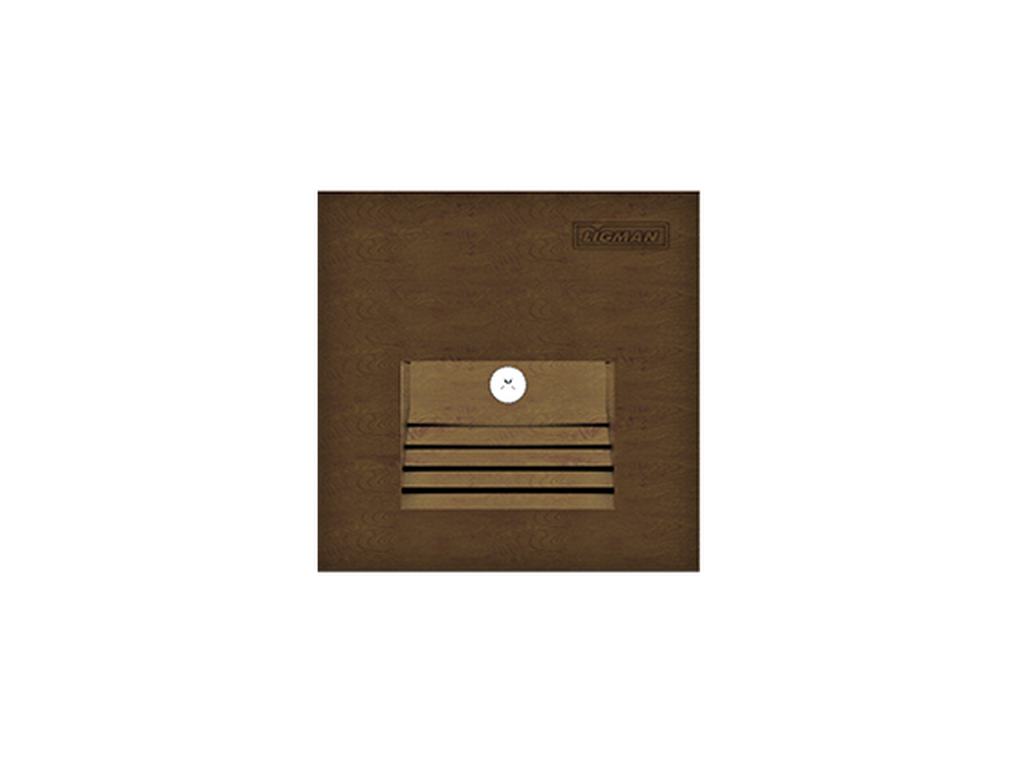

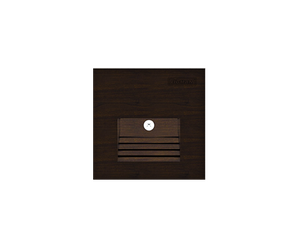

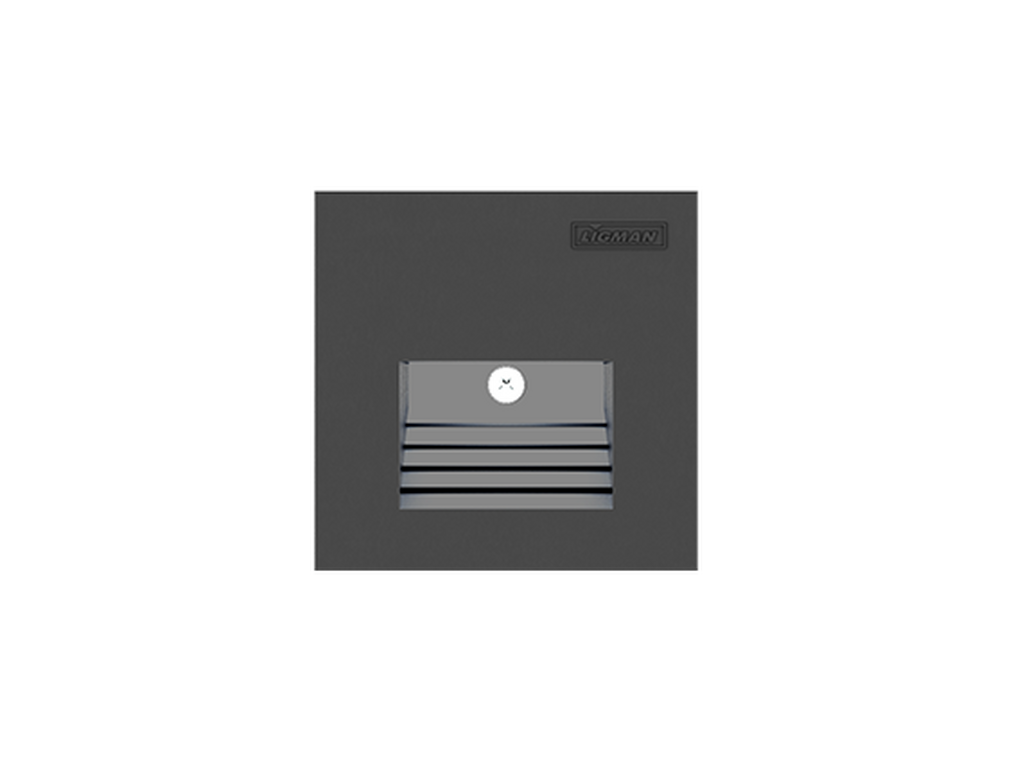

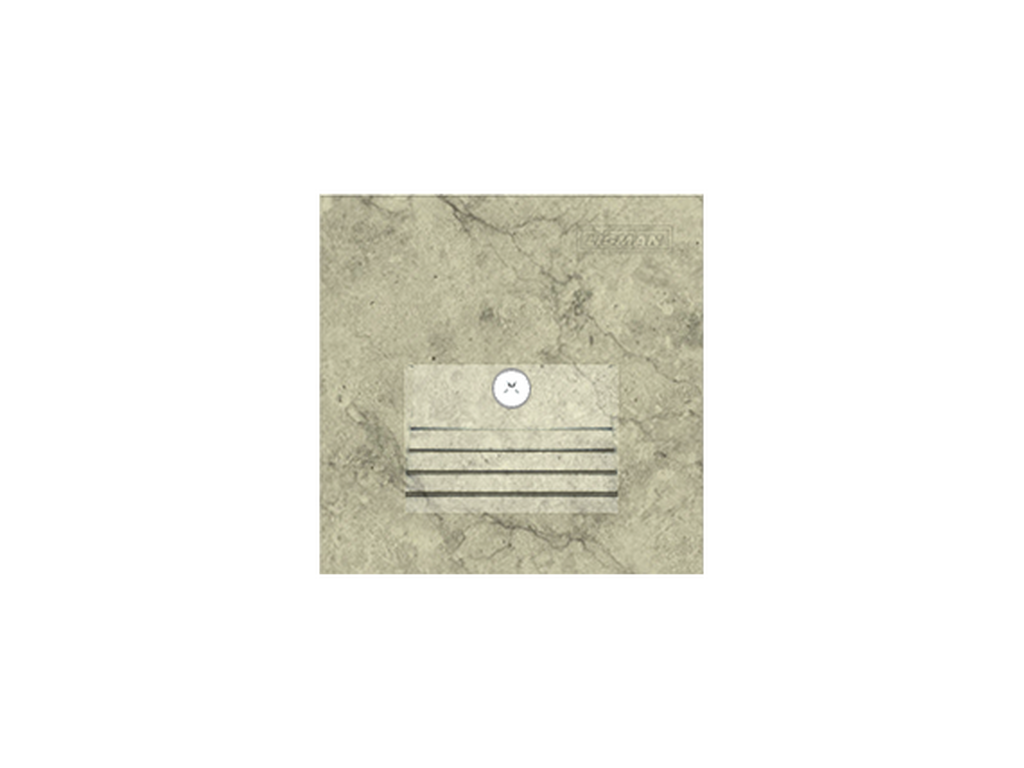

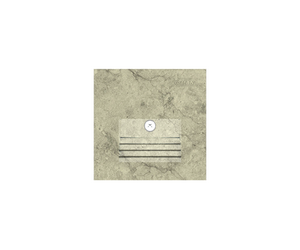

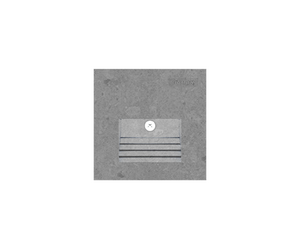

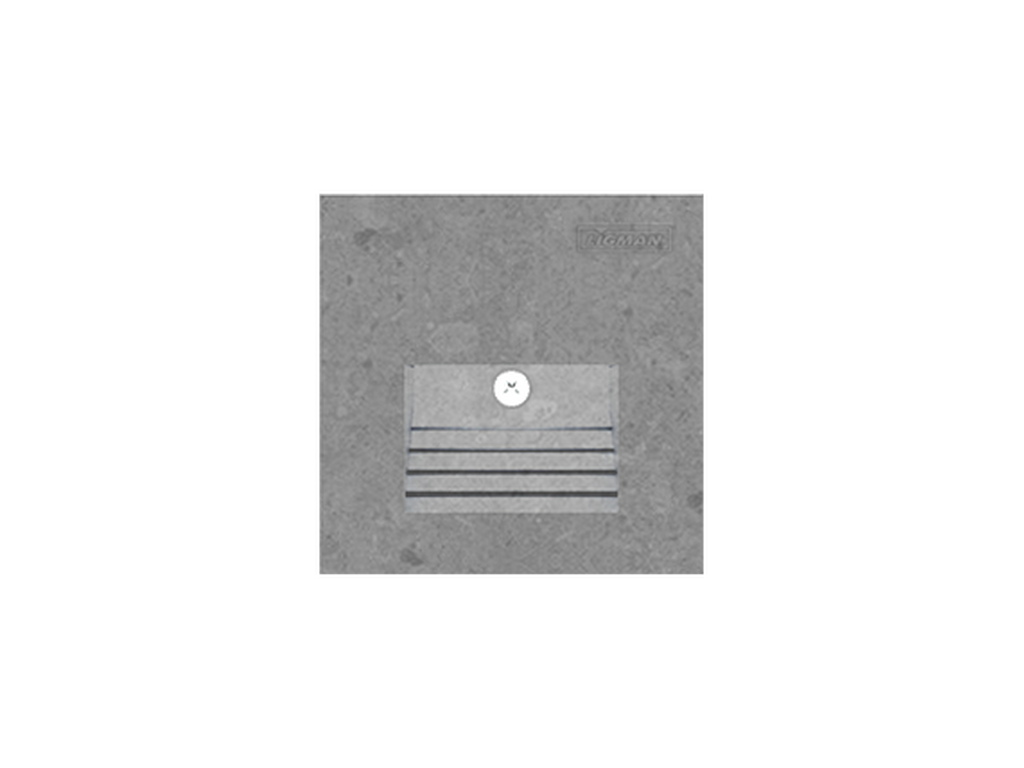

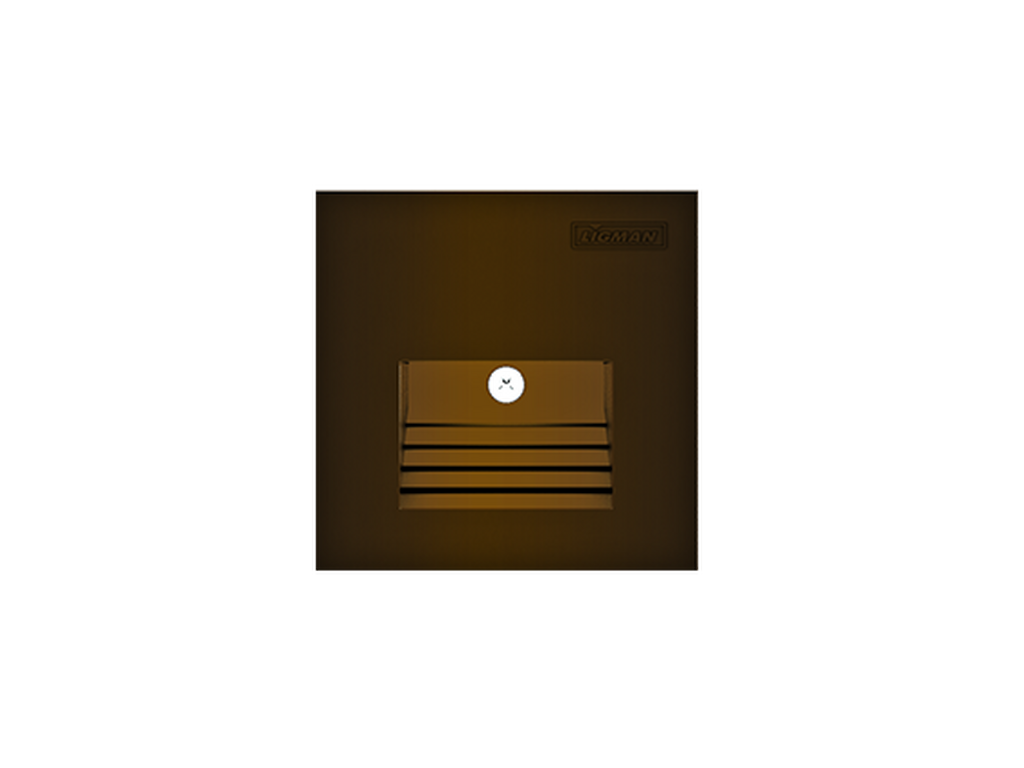

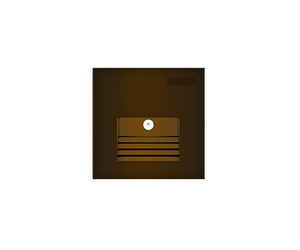

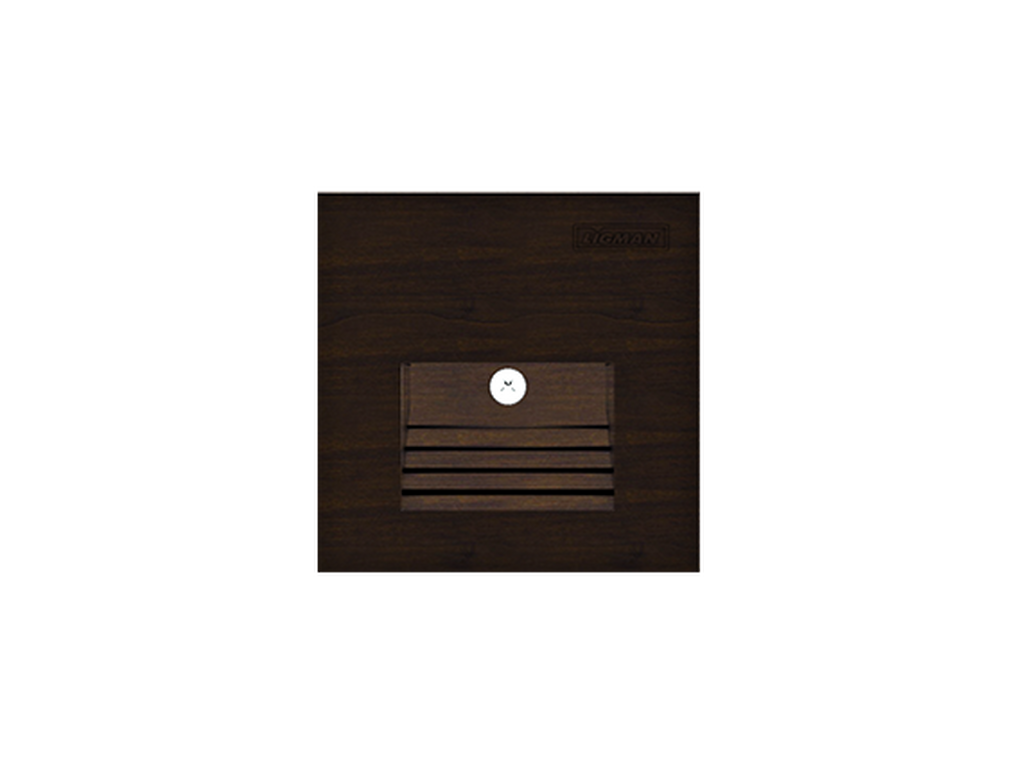

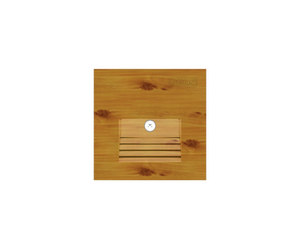

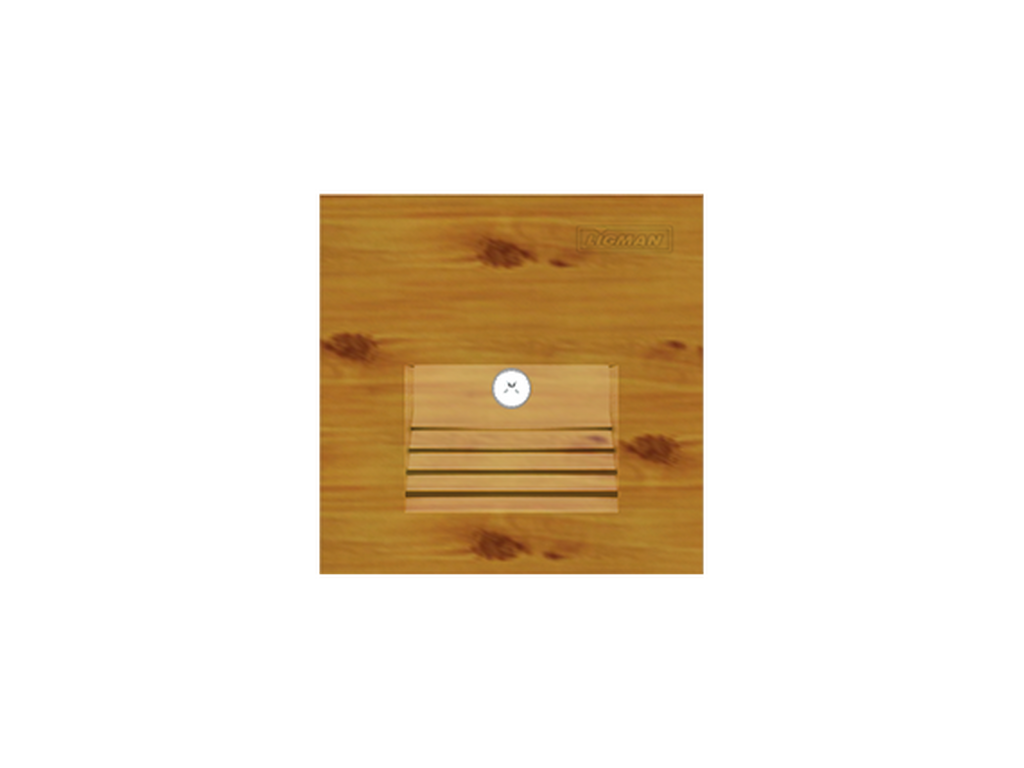

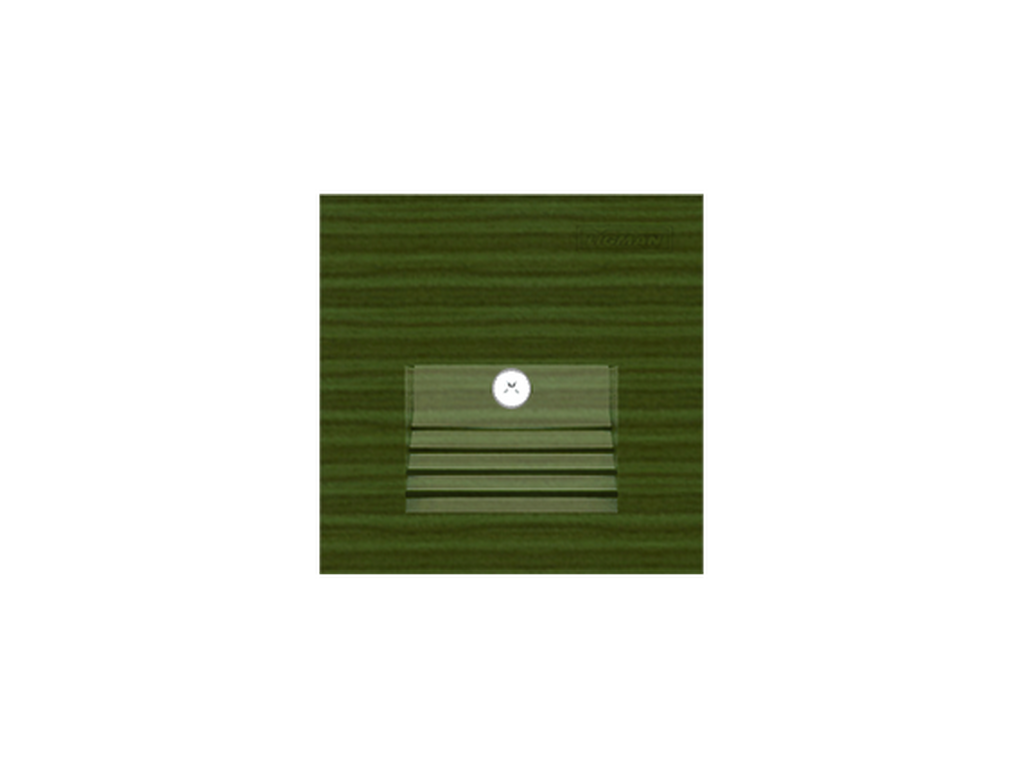

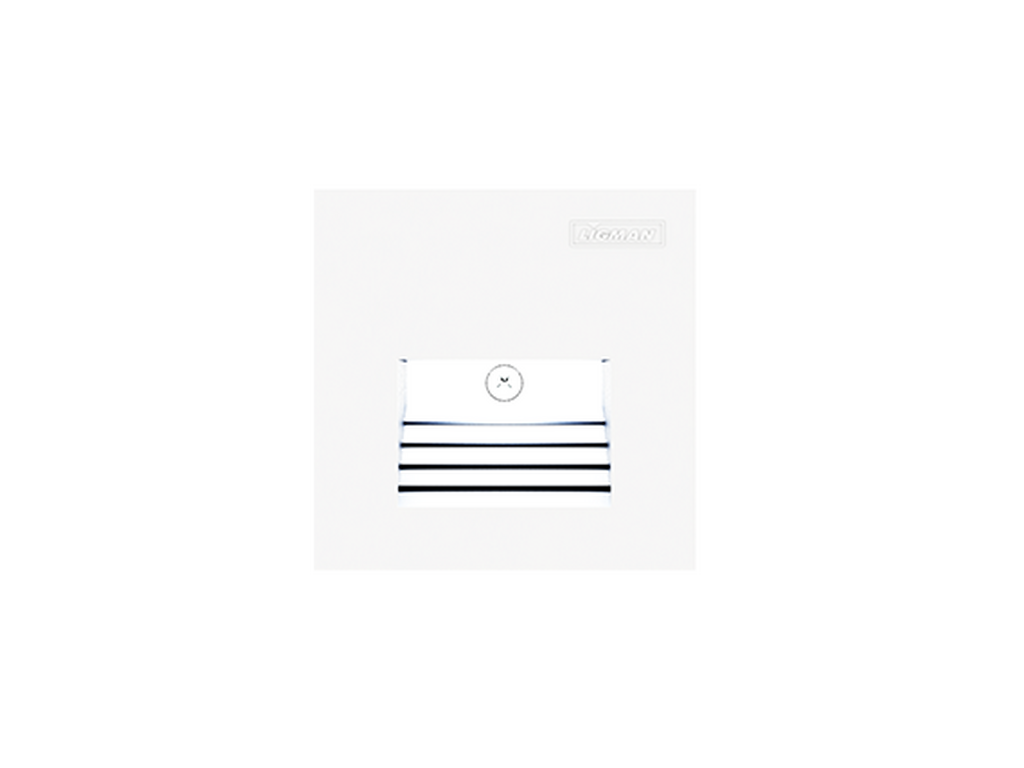

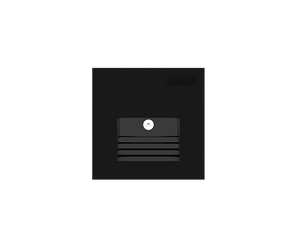

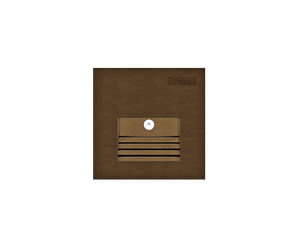

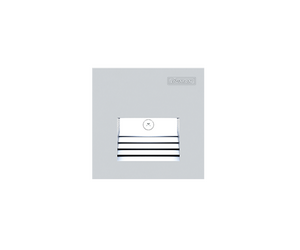

LBX 1LB-40436LBX
Black
Dark Grey
White
Matt Silver
Bronze
Concrete - Urban
Softscape - Urban
Stone - Urban
Corten - Urban
Oak - Woodland
Walnut - Woodland
Pine - Woodland

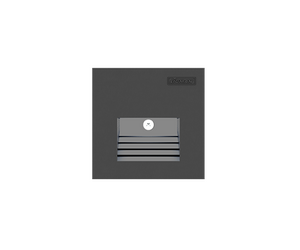

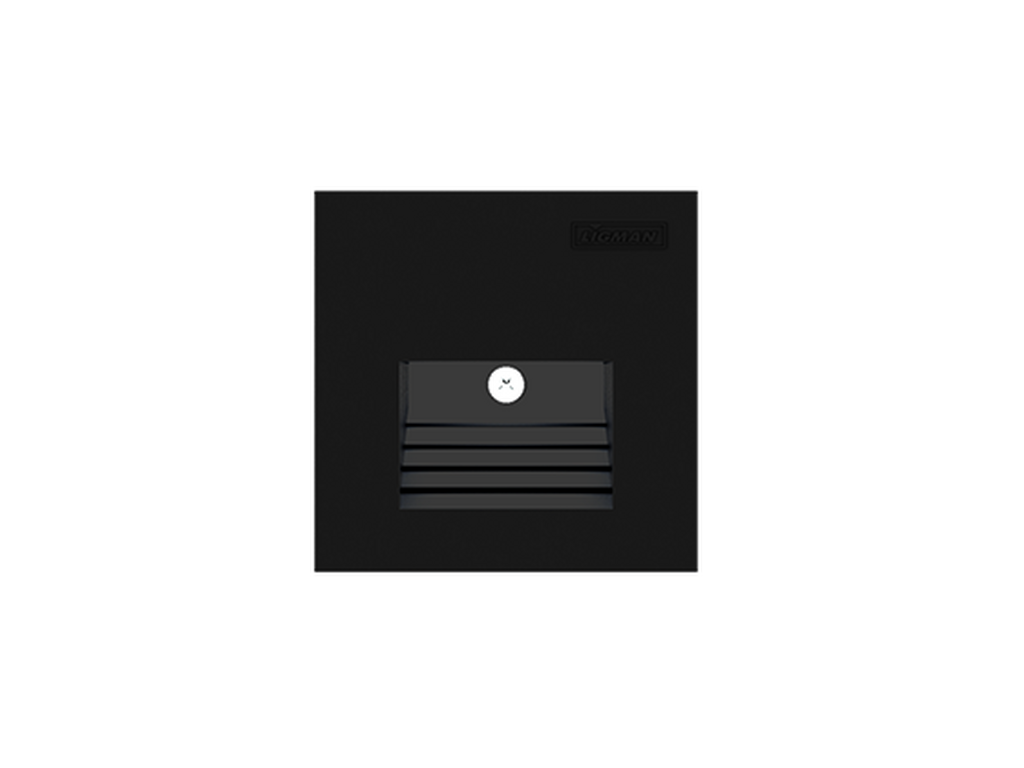

Black
Dark Grey

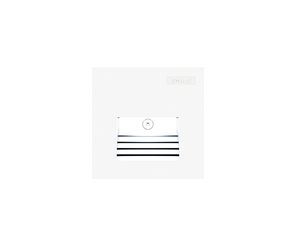

White

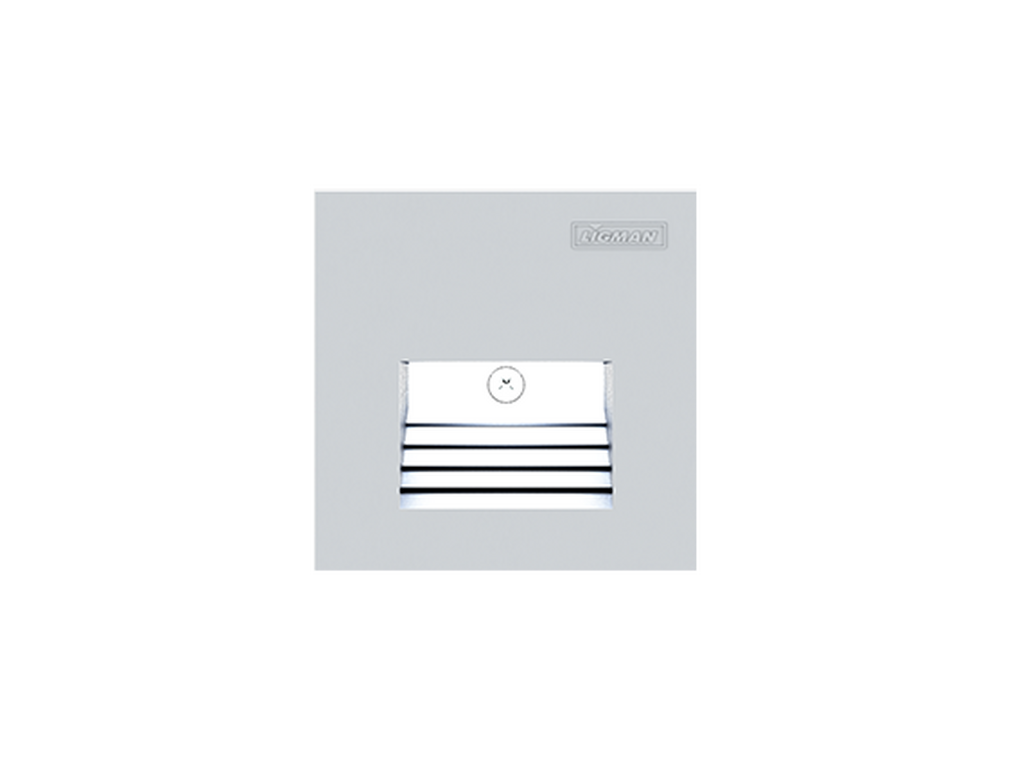

Matt Silver
Bronze
Concrete - Urban
Softscape - Urban
Stone - Urban

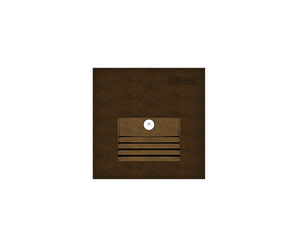

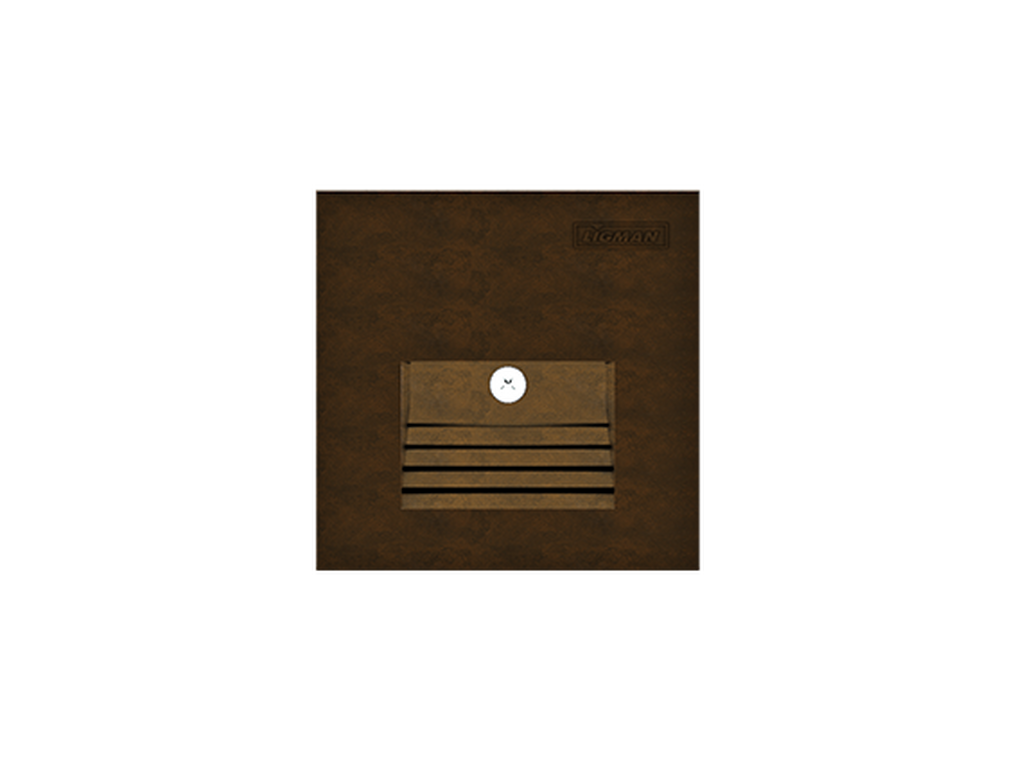

Corten - Urban
Oak - Woodland
Walnut - Woodland
Pine - Woodland
Integral control gear - With recessing box - Class I
TECHNICAL SPECIFICATIONS
Material
Aluminium
Light source
1 LED
Power (W)
4 W
Lumen (lm)
39 lm
Efficacy (lm/W)
10 lm/W
Driver option
Integral control gear
Driver
Constant current (CC)
Input voltage
220-240 V 50/60 Hz
Optic
G
Optic value
34° x 68°
CCT / CRI
3000K CRI80, 4000K CRI80
Bug
B0-U1-G0
ULR
4%
ULOR
4%
CIE flux code nº3
97
Dimming type
On/Off
Product colours
Black, Dark Grey, White, Matt Silver, Bronze, Concrete - Urban, Softscape - Urban, Stone - Urban, Corten - Urban, Oak - Woodland, Walnut - Woodland, Pine - Woodland
Weight
0.3 kg
Operating temperature
-20 °C to 40 °C
Cable
One cable gland supplied with 0.3 m of 3x0.5 sqmm outdoor cable
Through wiring
Single cable entry
Lens / Reflector / Optic
Clear toughened glass
MacAdam Ellipse
3 SDCM
Lifetime L90B10 (hours)
> 120,000
Lifetime L80B10 (hours)
> 120,000
Lifetime L80B50 (hours)
> 120,000
DOWNLOADS
Family spec sheet
Product spec sheet
Installation manual
Technical drawing
2D - CAD
BIM - IFC
DIALux - ULD
IES
3D view link
AR Tracker
CE documentFor BIM files (Revit - RFA), please check the Variant code

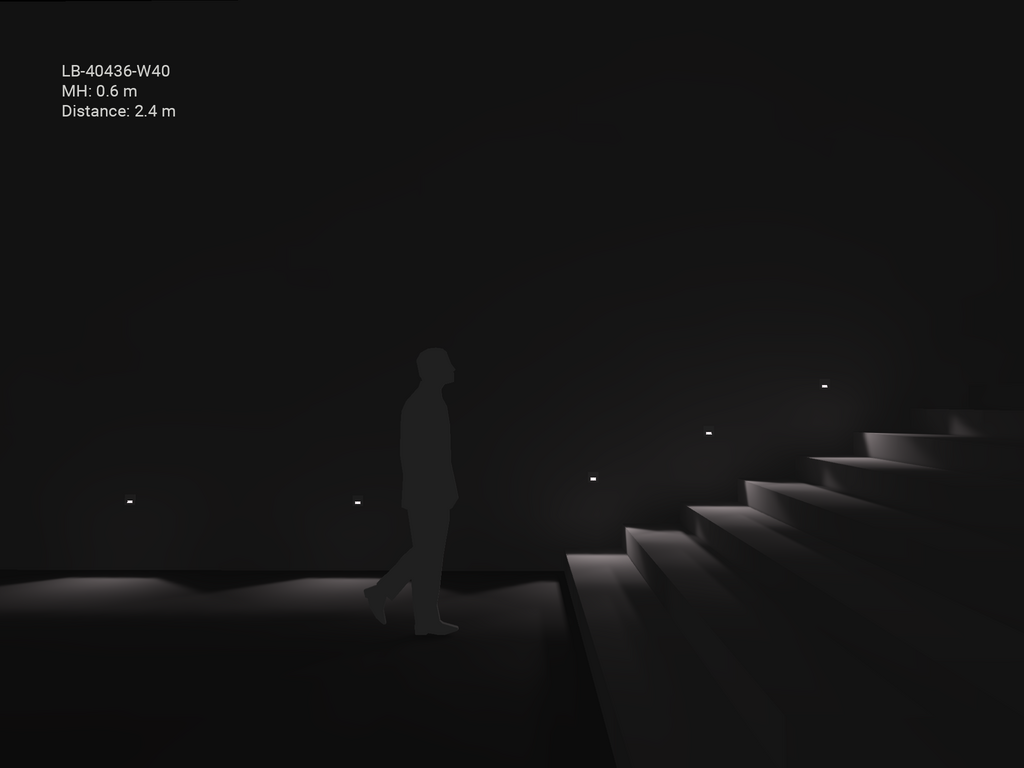

LIGHT EFFECT
Optic
G (34° x 68°)
CODE FINDER
Lumen (lm)
Optic
Optic value
CCT / CRI
Dimming type
Product colour
Variant code
Lumen (lm)
Optic
Optic value
CCT / CRI
Dimming type
Product colour
Variant code: LB-40436-8030-ND-01
Lumen (lm): 39 lm
Optic: G
Optic value: 34° x 68°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Black
Variant code: LB-40436-8030-ND-02
Lumen (lm): 39 lm
Optic: G
Optic value: 34° x 68°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Dark Grey
Variant code: LB-40436-8030-ND-03
Lumen (lm): 39 lm
Optic: G
Optic value: 34° x 68°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: White
Variant code: LB-40436-8030-ND-05
Lumen (lm): 39 lm
Optic: G
Optic value: 34° x 68°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Matt Silver
Variant code: LB-40436-8030-ND-06
Lumen (lm): 39 lm
Optic: G
Optic value: 34° x 68°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Bronze
Variant code: LB-40436-8030-ND-SU01
Lumen (lm): 39 lm
Optic: G
Optic value: 34° x 68°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Concrete - Urban
Variant code: LB-40436-8030-ND-SU02
Lumen (lm): 39 lm
Optic: G
Optic value: 34° x 68°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Softscape - Urban
Variant code: LB-40436-8030-ND-SU03
Lumen (lm): 39 lm
Optic: G
Optic value: 34° x 68°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Stone - Urban
Variant code: LB-40436-8030-ND-SU04
Lumen (lm): 39 lm
Optic: G
Optic value: 34° x 68°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Corten - Urban
Variant code: LB-40436-8030-ND-SW01
Lumen (lm): 39 lm
Optic: G
Optic value: 34° x 68°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Oak - Woodland
Variant code: LB-40436-8030-ND-SW02
Lumen (lm): 39 lm
Optic: G
Optic value: 34° x 68°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Walnut - Woodland
Variant code: LB-40436-8030-ND-SW03
Lumen (lm): 39 lm
Optic: G
Optic value: 34° x 68°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Pine - Woodland
Variant code: LB-40436-8040-ND-01
Lumen (lm): 39 lm
Optic: G
Optic value: 34° x 68°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Black
Variant code: LB-40436-8040-ND-02
Lumen (lm): 39 lm
Optic: G
Optic value: 34° x 68°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Dark Grey
Variant code: LB-40436-8040-ND-03
Lumen (lm): 39 lm
Optic: G
Optic value: 34° x 68°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: White
Variant code: LB-40436-8040-ND-05
Lumen (lm): 39 lm
Optic: G
Optic value: 34° x 68°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Matt Silver
Variant code: LB-40436-8040-ND-06
Lumen (lm): 39 lm
Optic: G
Optic value: 34° x 68°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Bronze
Variant code: LB-40436-8040-ND-SU01
Lumen (lm): 39 lm
Optic: G
Optic value: 34° x 68°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Concrete - Urban
Variant code: LB-40436-8040-ND-SU02
Lumen (lm): 39 lm
Optic: G
Optic value: 34° x 68°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Softscape - Urban
Variant code: LB-40436-8040-ND-SU03
Lumen (lm): 39 lm
Optic: G
Optic value: 34° x 68°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Stone - Urban
Variant code: LB-40436-8040-ND-SU04
Lumen (lm): 39 lm
Optic: G
Optic value: 34° x 68°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Corten - Urban
Variant code: LB-40436-8040-ND-SW01
Lumen (lm): 39 lm
Optic: G
Optic value: 34° x 68°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Oak - Woodland
Variant code: LB-40436-8040-ND-SW02
Lumen (lm): 39 lm
Optic: G
Optic value: 34° x 68°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Walnut - Woodland
Variant code: LB-40436-8040-ND-SW03
Lumen (lm): 39 lm
Optic: G
Optic value: 34° x 68°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Pine - Woodland
