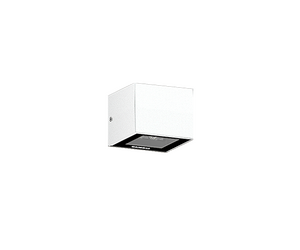

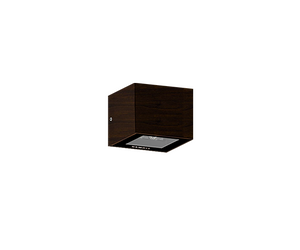

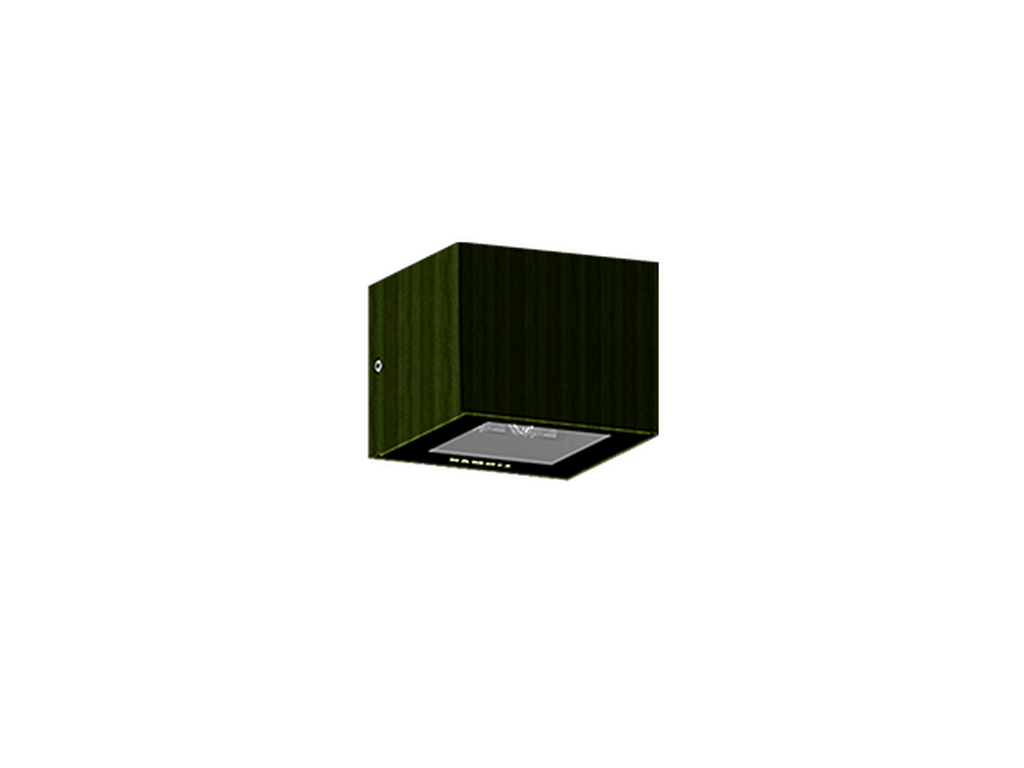

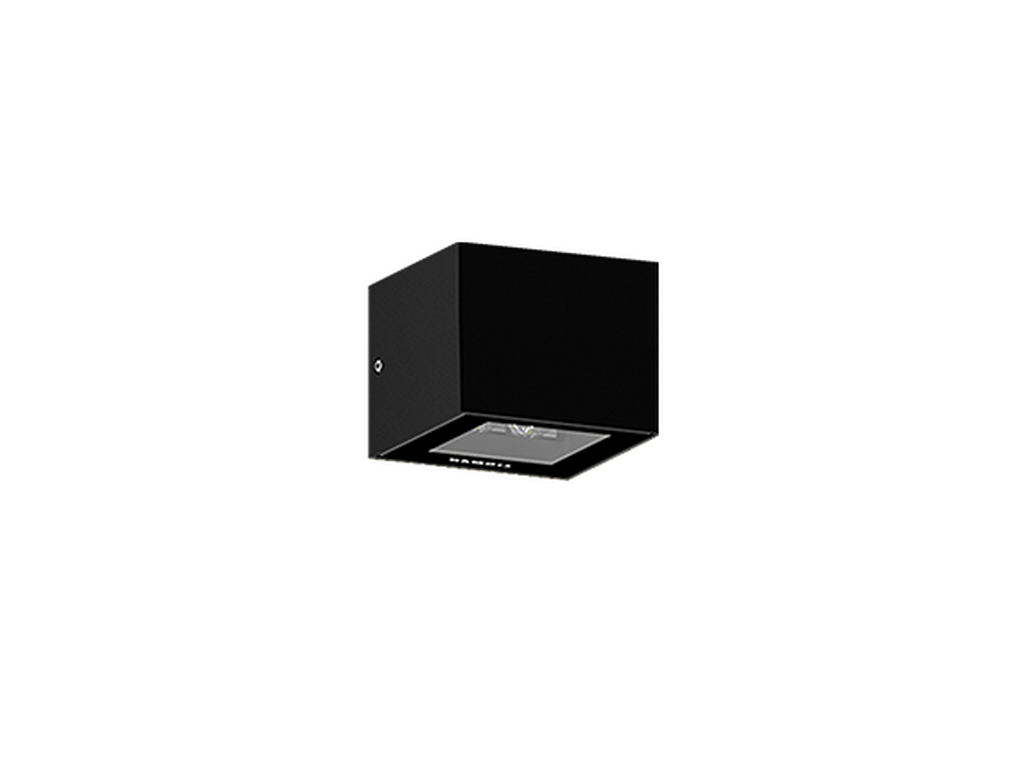

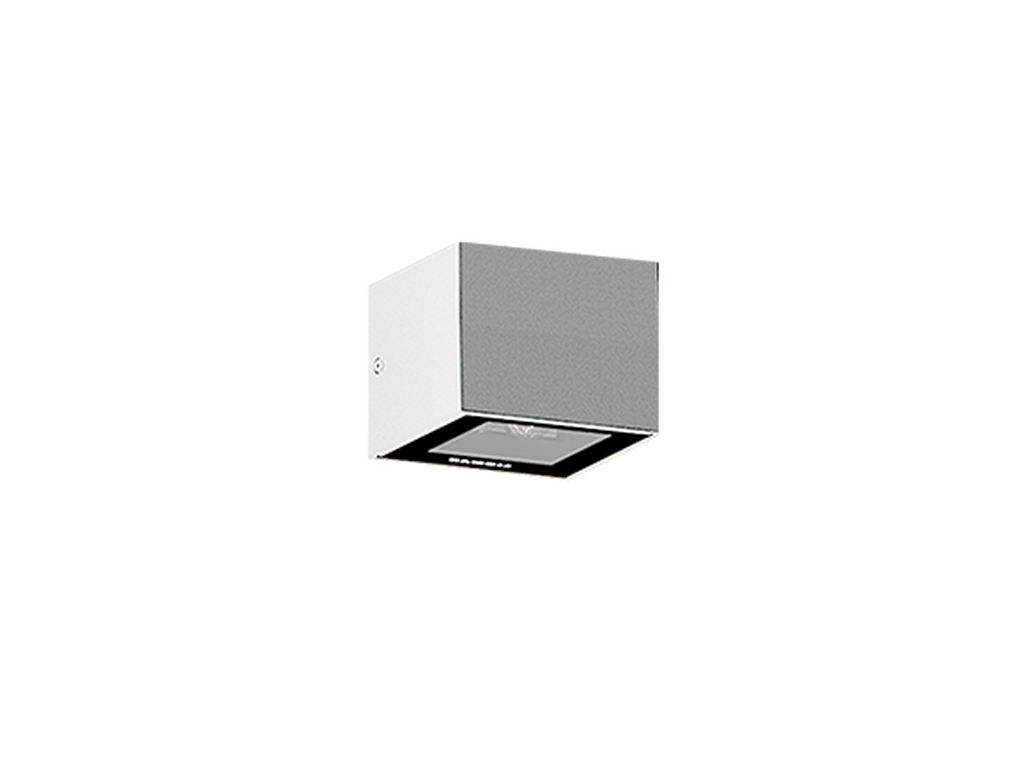

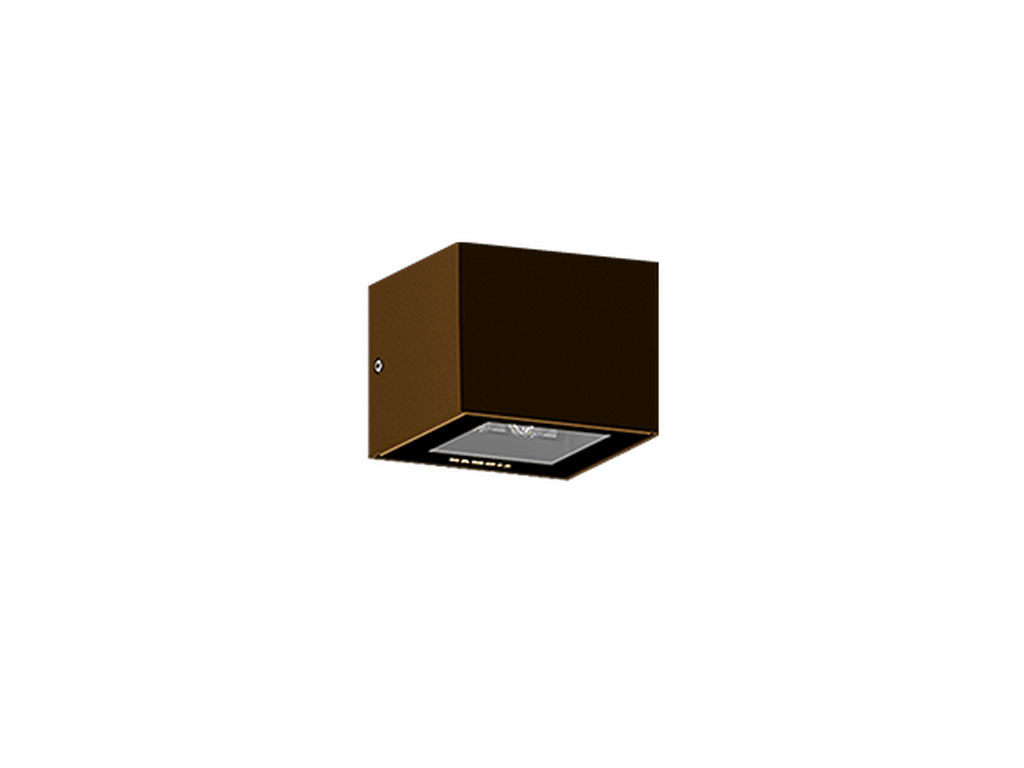

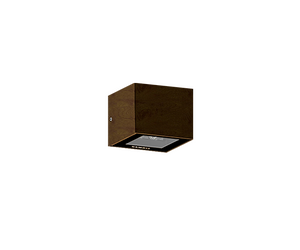

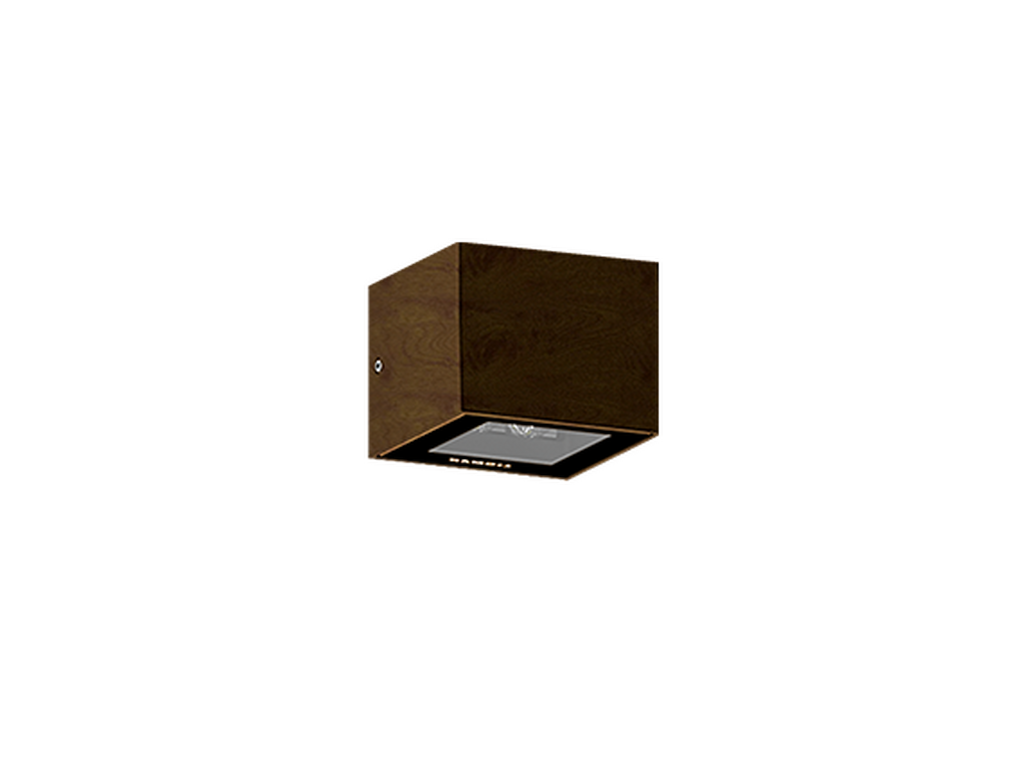

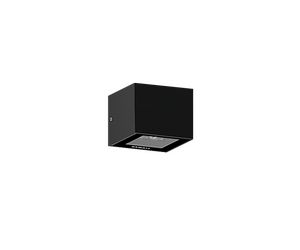

LEEDS 1LEE-30031LEEDS
Black
Dark Grey
White
Matt Silver
Bronze
Concrete - Urban
Softscape - Urban
Stone - Urban
Corten - Urban
Oak - Woodland
Walnut - Woodland
Pine - Woodland
Black
Dark Grey
White
Matt Silver
Bronze
Concrete - Urban
Softscape - Urban
Stone - Urban
Corten - Urban
Oak - Woodland
Walnut - Woodland
Pine - Woodland
Down (Optic) & Up (Optic 2nd) - Square
TECHNICAL SPECIFICATIONS
Material
Aluminium
Light source
4 & 4 LED
Power (W)
15 W
Lumen (lm)
1152 - 1590 lm
Driver option
Integral control gear
Driver
Constant current (CC)
Input voltage
220-240 V 50/60 Hz
Optic
M, W, EW, T2, T3, T4, ME
Optic value
30°, 56°, 99°x102°, 129°x49°, 112°x80°, 89°x60°, 122°x50°
Optic (2nd)
M, W, EW, T2, T3, T4
Optic (2nd) Value
30°, 56°, 99°x102°, 129°x49°, 112°x80°, 89°x60°
CCT / CRI
3000K CRI80, 4000K CRI80
Bug
B0-U4-G0, B1-U4-G0, B1-U4-G1
ULR
43%, 44%, 45%, 46%, 47%, 48%, 49%, 50%, 51%, 52%, 53%, 54%, 55%, 56%, 57%, 6%
ULOR
43%, 44%, 45%, 46%, 47%, 48%, 49%, 50%, 51%, 52%, 53%, 54%, 55%, 56%, 57%, 6%
CIE flux code nº3
100, 99
Dimming type
On/Off
Product colours
Black, Dark Grey, White, Matt Silver, Bronze, Concrete - Urban, Softscape - Urban, Stone - Urban, Corten - Urban, Oak - Woodland, Walnut - Woodland, Pine - Woodland
Weight
1.1 kg
Operating temperature
-20 °C to 40 °C
Through wiring
Single cable entry
Lens / Reflector / Optic
Clear toughened glass, High-efficiency PMMA lens
MacAdam Ellipse
3 SDCM
Lifetime L90B10 (hours)
> 90,000
Lifetime L80B10 (hours)
> 90,000
Lifetime L80B50 (hours)
> 90,000
DOWNLOADS
Family spec sheet
Product spec sheet
Installation manual

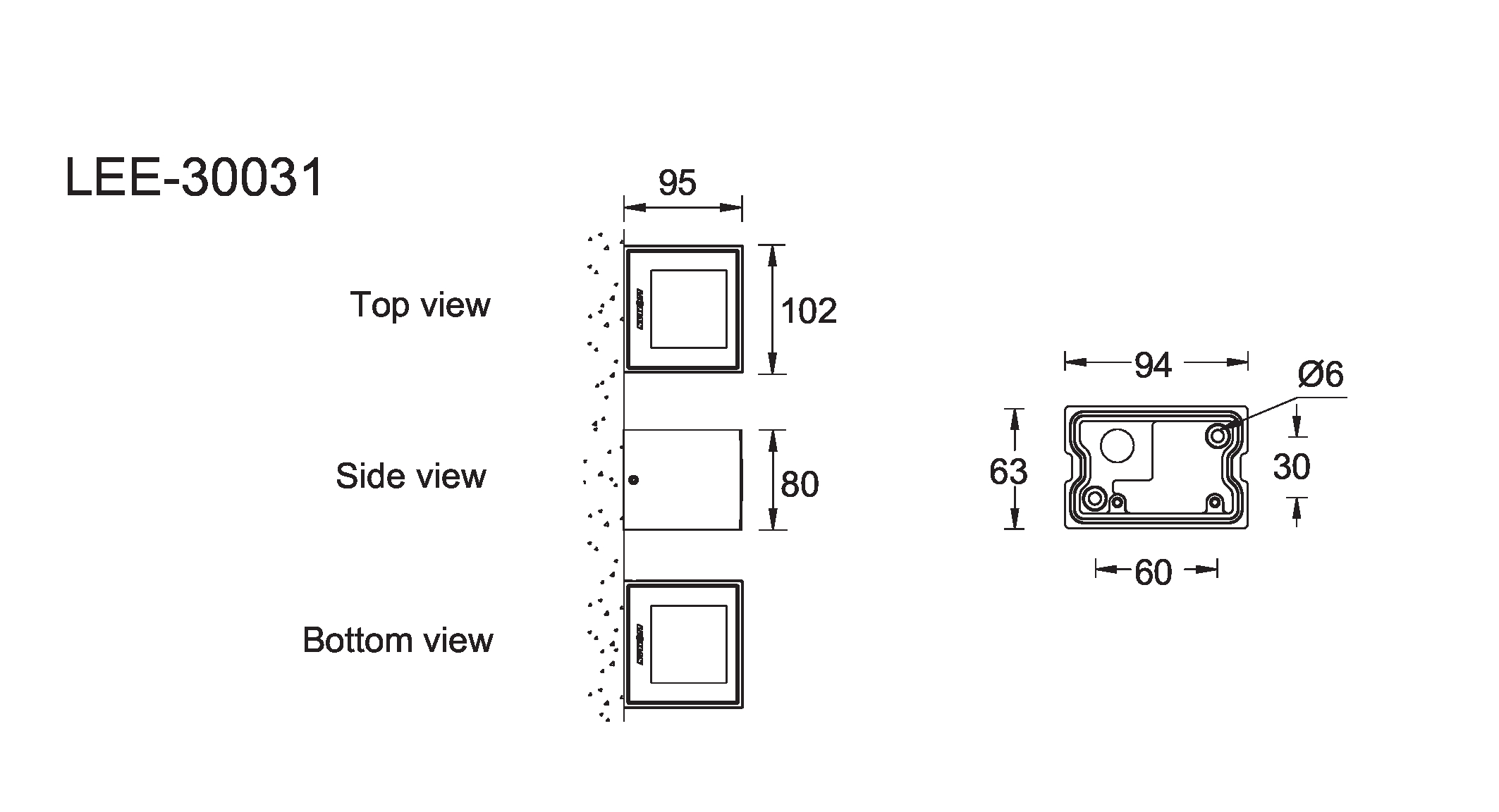

Technical drawing
2D - CAD
BIM - IFC
DIALux - ULD
IES
3D view link
AR Tracker
CE documentFor BIM files (Revit - RFA), please check the Variant code

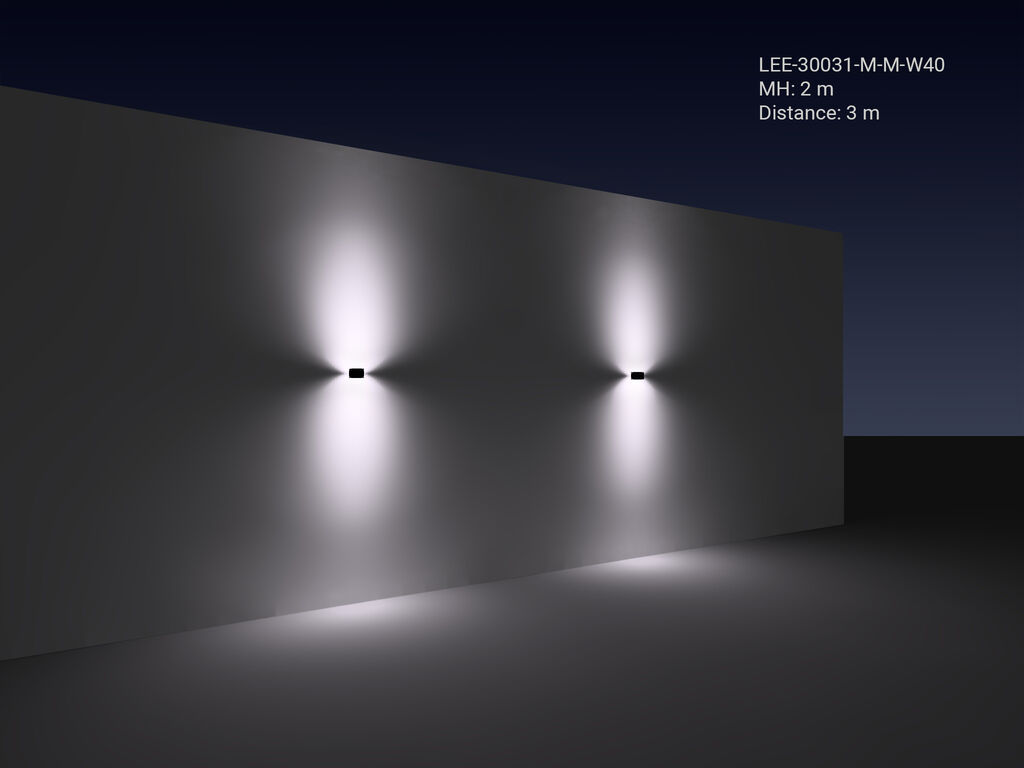

LIGHT EFFECT
Optic
M (30°) / M (30°)
M (30°) / W (56°)
M (30°) / EW (99°x102°)
M (30°) / T2 (129°x49°)
M (30°) / T3 (112°x80°)
M (30°) / T4 (89°x60°)
W (56°) / M (30°)
W (56°) / W (56°)
W (56°) / EW (99°x102°)
W (56°) / T2 (129°x49°)
W (56°) / T3 (112°x80°)
W (56°) / T4 (89°x60°)
EW (99°x102°) / M (30°)
EW (99°x102°) / W (56°)
EW (99°x102°) / EW (99°x102°)
EW (99°x102°) / T2 (129°x49°)
EW (99°x102°) / T3 (112°x80°)
EW (99°x102°) / T4 (89°x60°)
T2 (129°x49°) / M (30°)
T2 (129°x49°) / W (56°)
T2 (129°x49°) / EW (99°x102°)
T2 (129°x49°) / T2 (129°x49°)
T2 (129°x49°) / T3 (112°x80°)
T2 (129°x49°) / T4 (89°x60°)
T3 (112°x80°) / M (30°)
T3 (112°x80°) / W (56°)
T3 (112°x80°) / EW (99°x102°)
T3 (112°x80°) / T2 (129°x49°)
T3 (112°x80°) / T3 (112°x80°)
T3 (112°x80°) / T4 (89°x60°)
T4 (89°x60°) / M (30°)
T4 (89°x60°) / W (56°)
T4 (89°x60°) / EW (99°x102°)
T4 (89°x60°) / T2 (129°x49°)
T4 (89°x60°) / T3 (112°x80°)
T4 (89°x60°) / T4 (89°x60°)
ME (122°x50°) / M (30°)
ME (122°x50°) / W (56°)
ME (122°x50°) / EW (99°x102°)
ME (122°x50°) / T2 (129°x49°)
ME (122°x50°) / T3 (112°x80°)
ME (122°x50°) / T4 (89°x60°)
