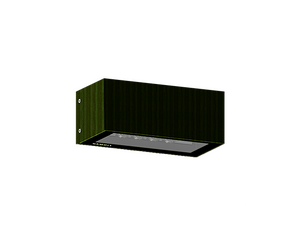

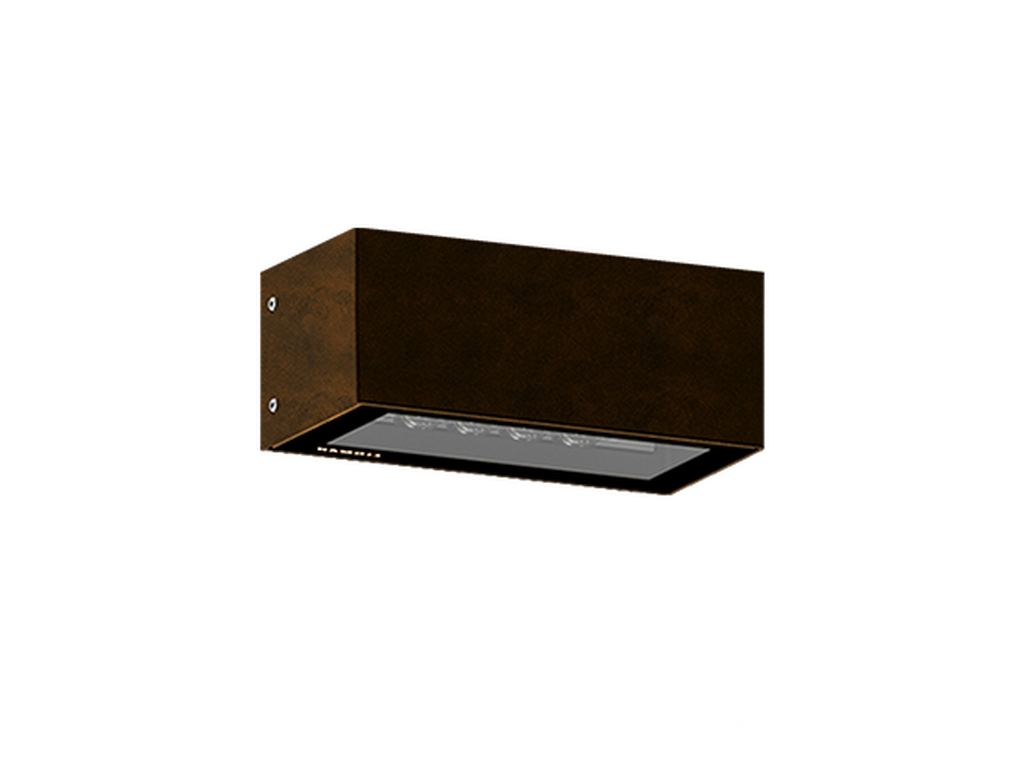

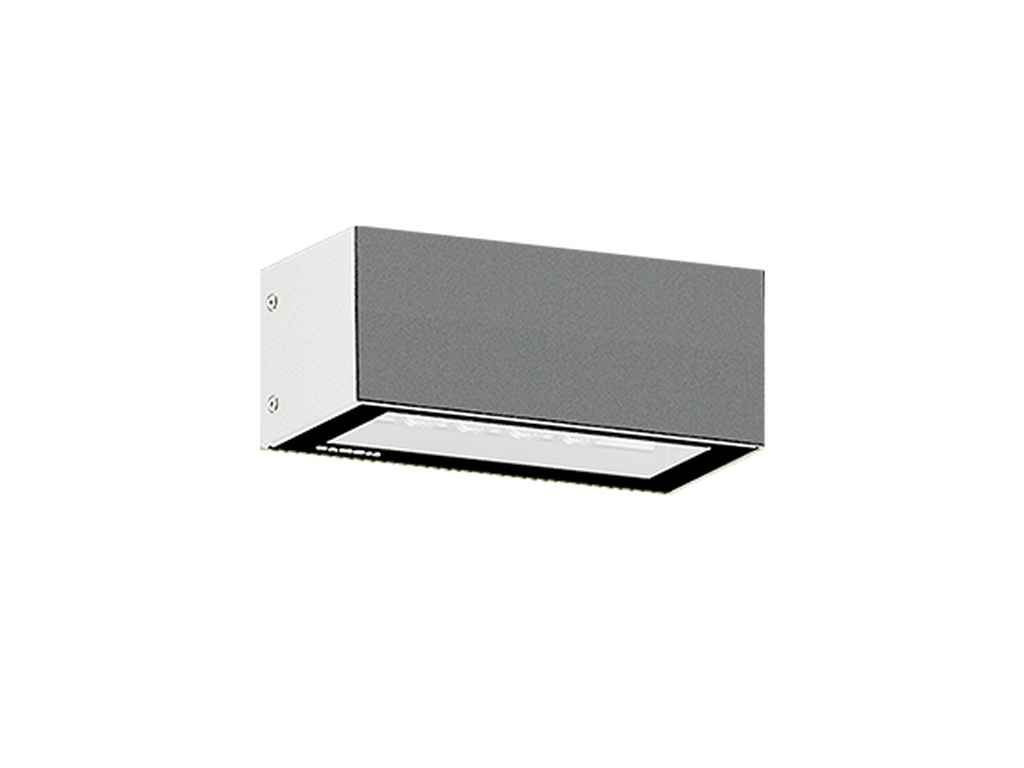

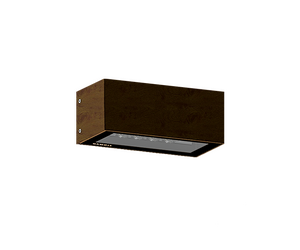

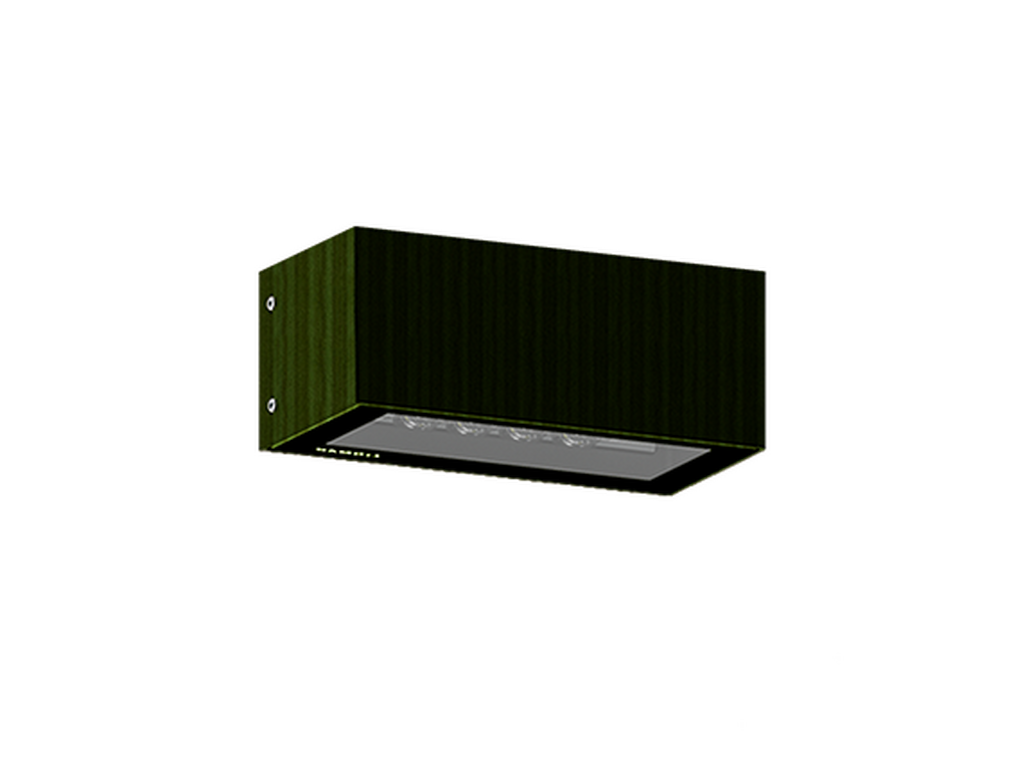

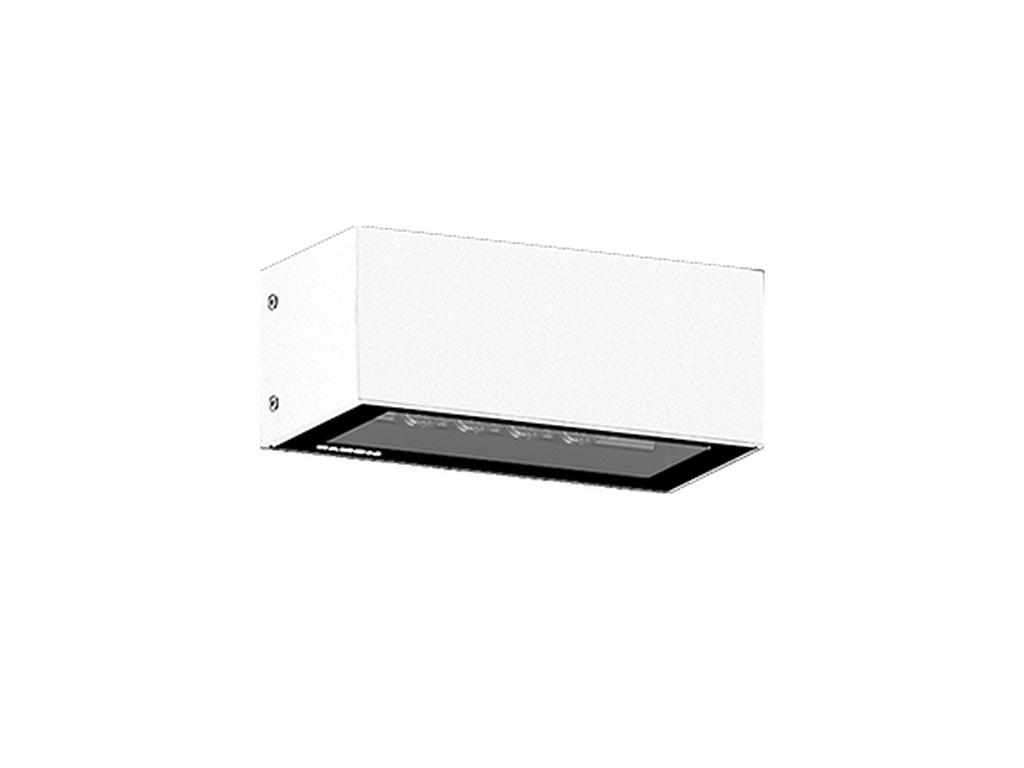

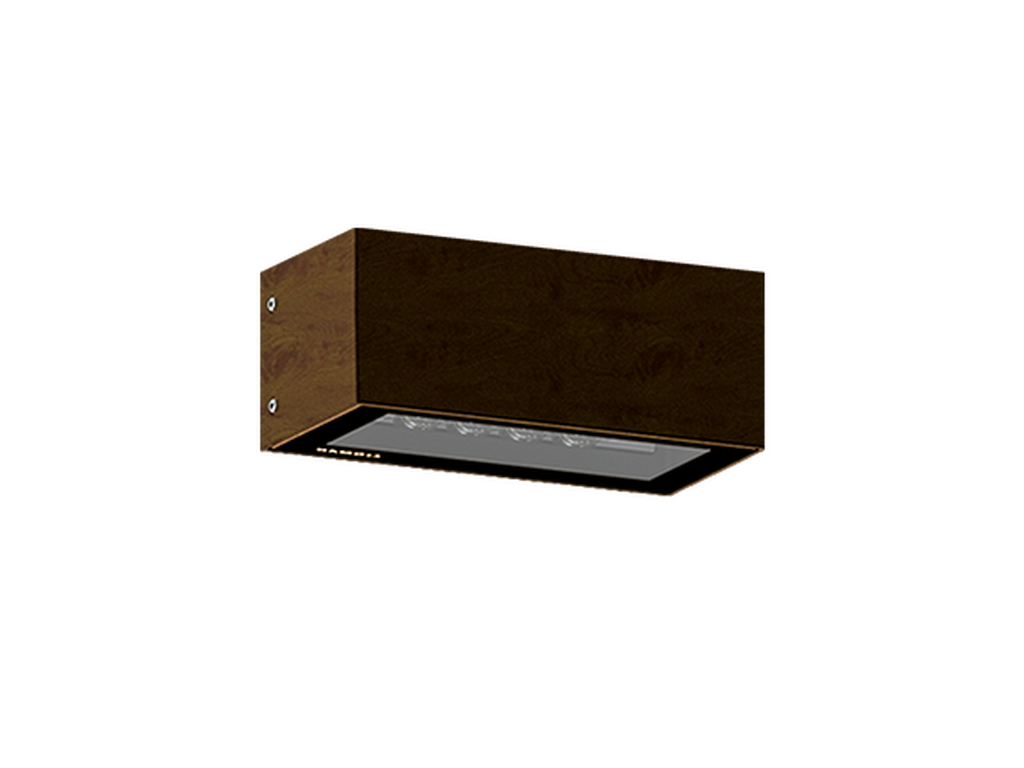

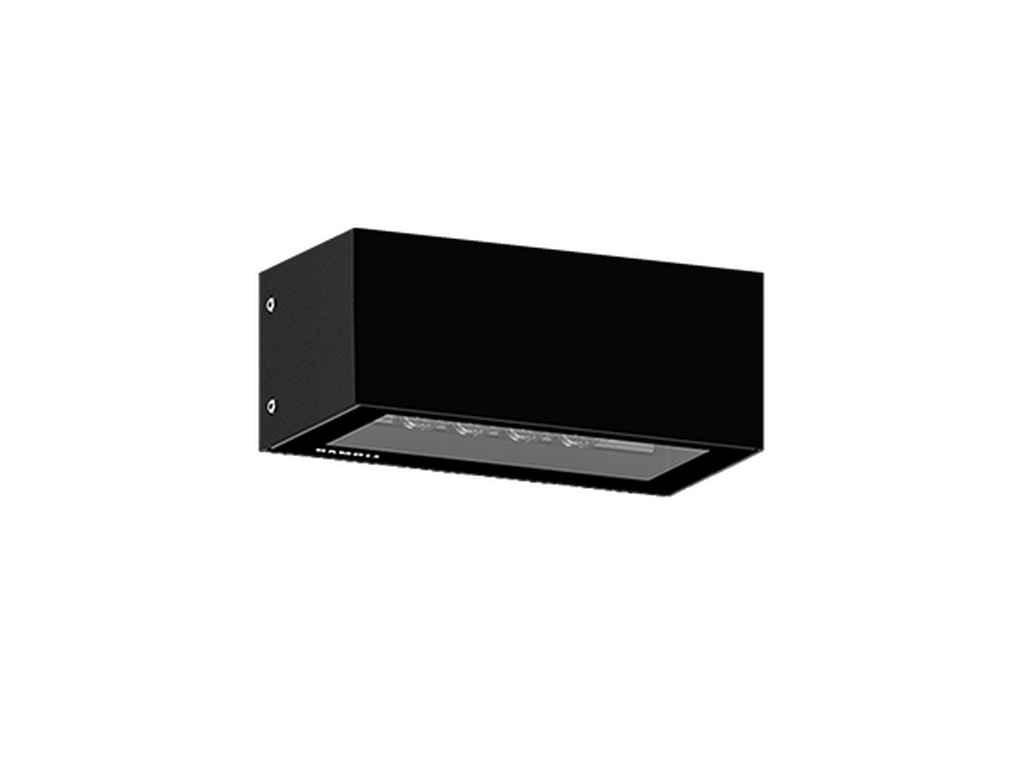

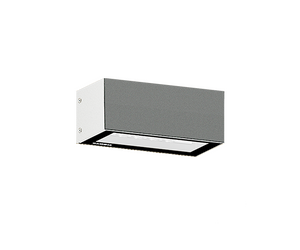

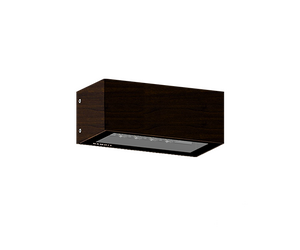

LEEDS 4LEE-30011LEEDS

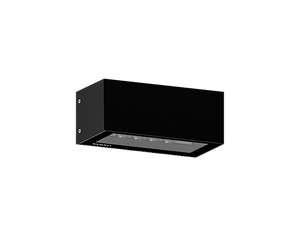

Black

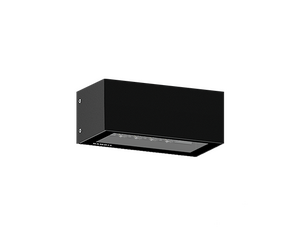

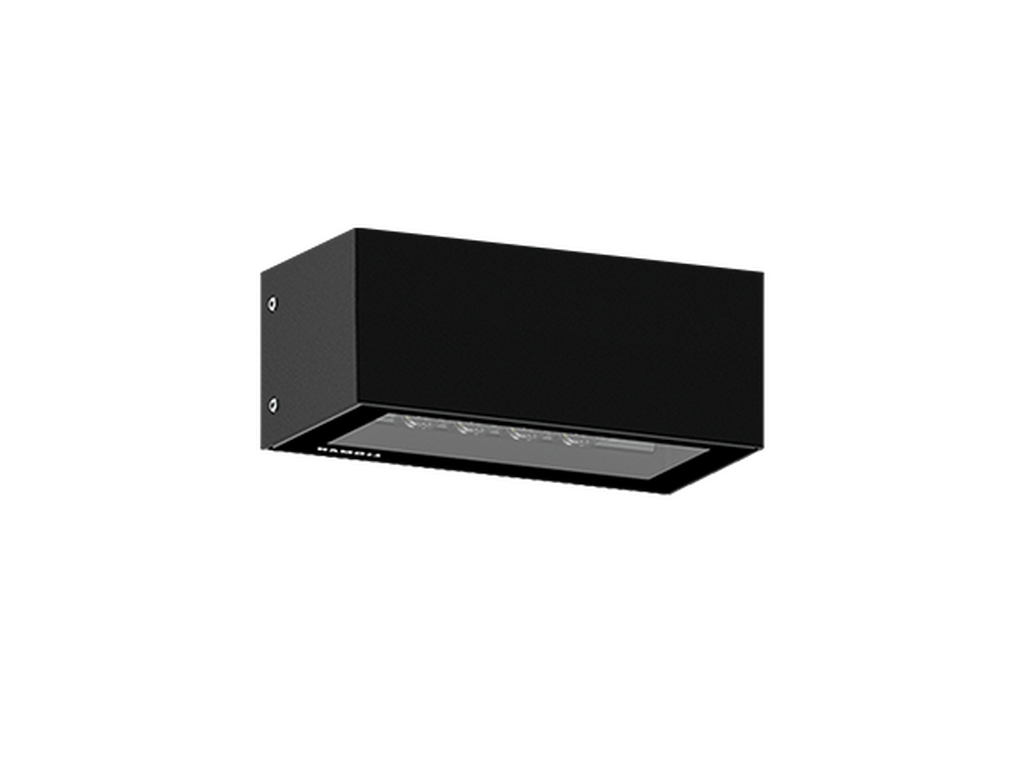

Dark Grey

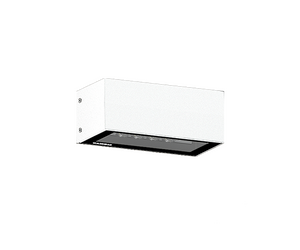

White
Matt Silver
Bronze

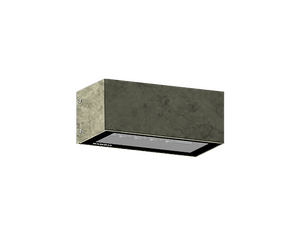

Concrete - Urban
Softscape - Urban
Stone - Urban

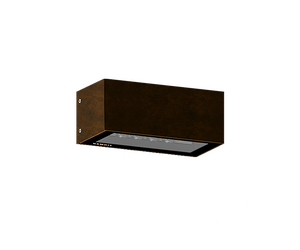

Corten - Urban

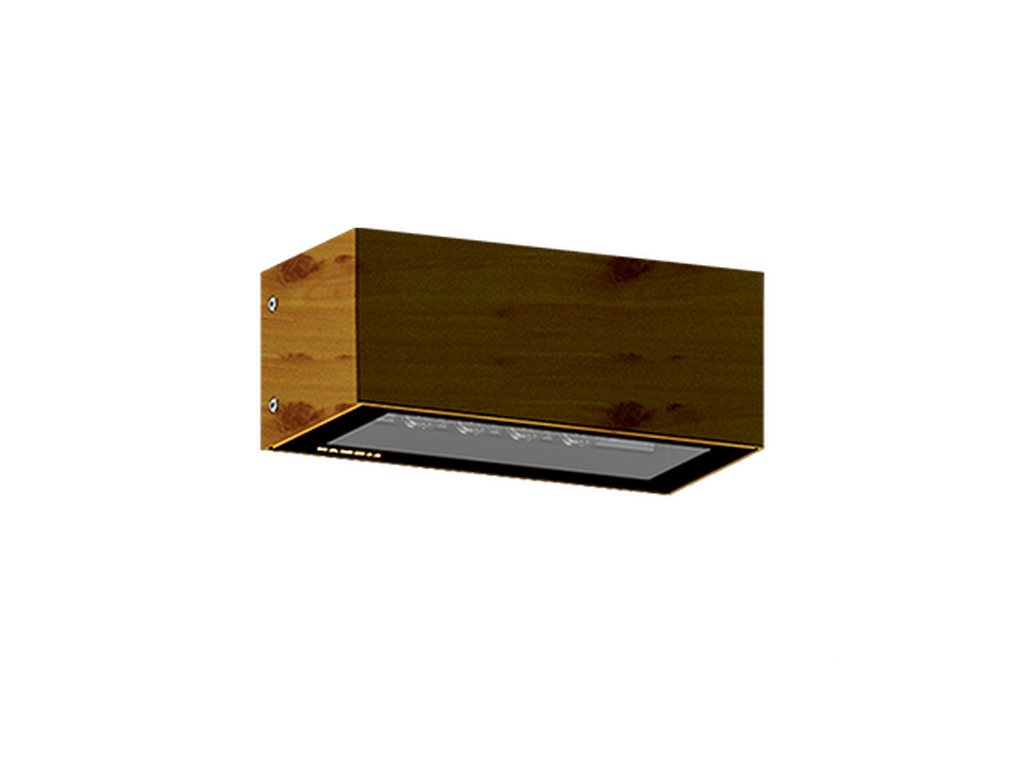

Oak - Woodland

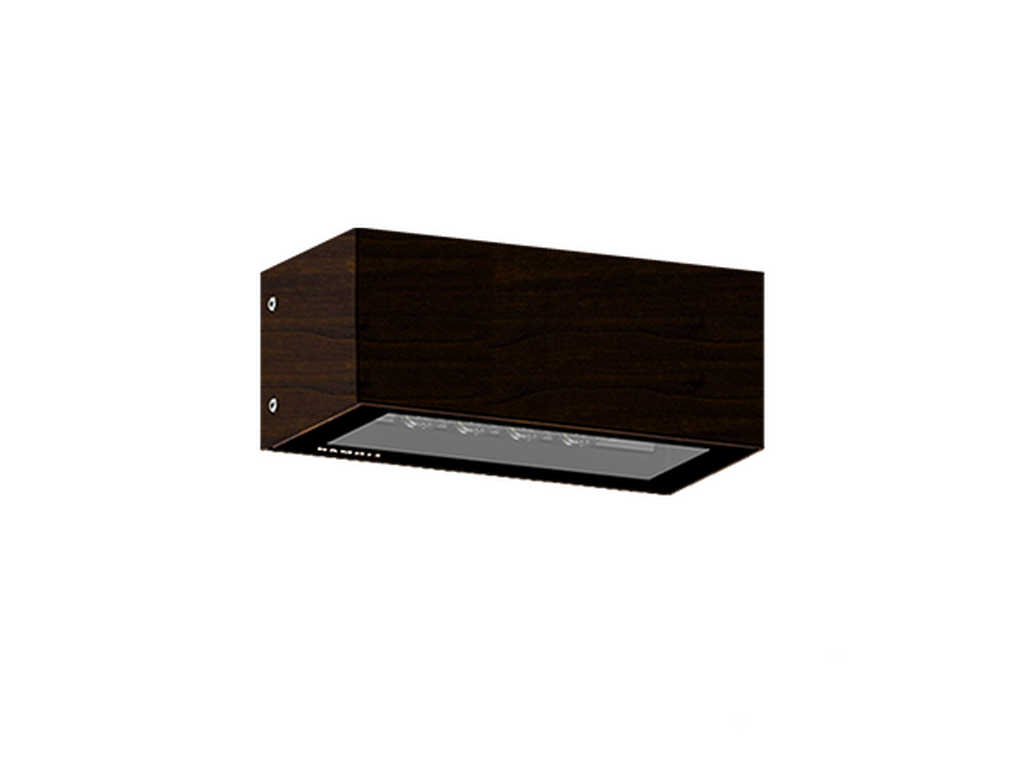

Walnut - Woodland
Pine - Woodland
Black
Dark Grey
White
Matt Silver
Bronze
Concrete - Urban
Softscape - Urban
Stone - Urban
Corten - Urban
Oak - Woodland
Walnut - Woodland
Pine - Woodland
Down - Rectangular
TECHNICAL SPECIFICATIONS
Material
Aluminium
Light source
8 LED
Power (W)
14 W
Lumen (lm)
1376 - 1675 lm
Efficacy (lm/W)
98 - 120 lm/W
Driver option
Integral control gear
Driver
Constant current (CC)
Input voltage
220-240 V 50/60 Hz
Optic
M, W, EW, T2, T3, T4, ME
Optic value
30°, 56°, 110°x103°, 139°x55°, 123°x85°, 105°x69°, 139°x60°
CCT / CRI
3000K CRI80, 4000K CRI80
Bug
B0-U0-G0, B1-U0-G0, B2-U0-G0
ULR
0%
ULOR
0%
CIE flux code nº3
100, 97, 98, 99
Dimming type
On/Off, 1-10V, DALI
Product colours
Black, Dark Grey, White, Matt Silver, Bronze, Concrete - Urban, Softscape - Urban, Stone - Urban, Corten - Urban, Oak - Woodland, Walnut - Woodland, Pine - Woodland
Weight
1.5 kg
Operating temperature
-20 °C to 50 °C
Through wiring
Single cable entry
Lens / Reflector / Optic
Clear toughened glass, High-efficiency PMMA lens
MacAdam Ellipse
3 SDCM
Lifetime L90B10 (hours)
> 90,000
Lifetime L80B10 (hours)
> 90,000
Lifetime L80B50 (hours)
> 90,000
Variants (On/Off, 1-10V, DALI)
Compatible with EN/ IEC 60598-2-22: Suitable for emergency installations as central supply, non-maintained (Z0)
DOWNLOADS
Family spec sheet
Product spec sheet
Installation manual

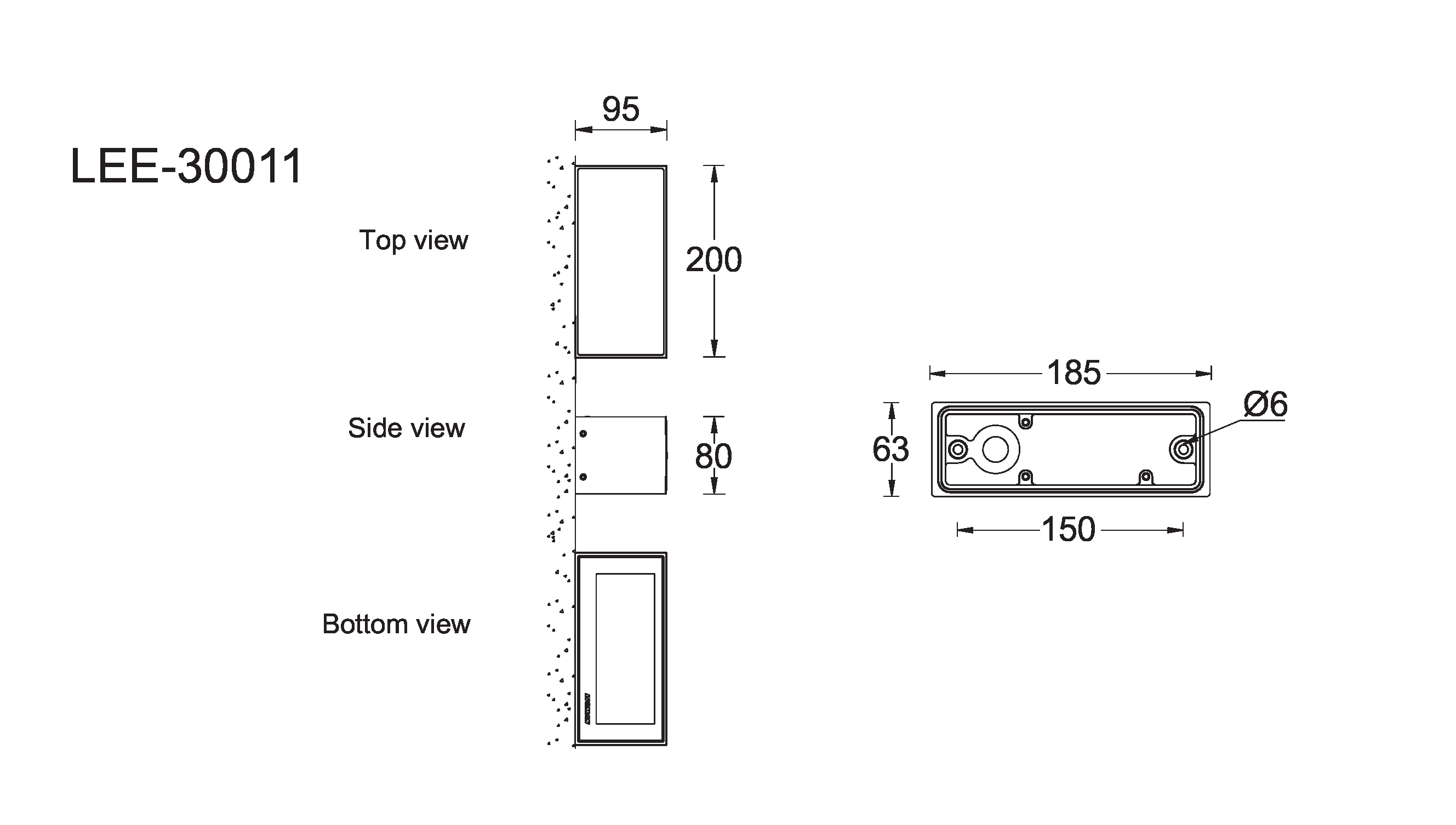

Technical drawing
2D - CAD
BIM - IFC
DIALux - ULD
IES
3D view link
AR Tracker
CE documentFor BIM files (Revit - RFA), please check the Variant code

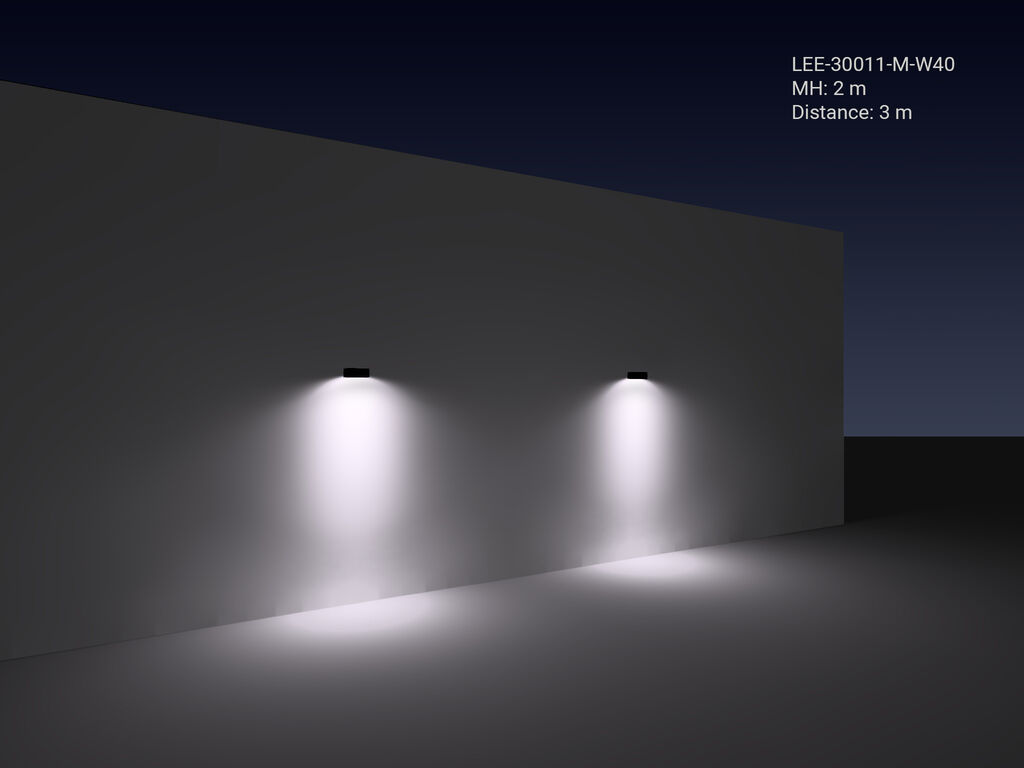

LIGHT EFFECT
Optic
M (30°)
W (56°)
EW (110°x103°)
T2 (139°x55°)
T3 (123°x85°)
T4 (105°x69°)
ME (139°x60°)
