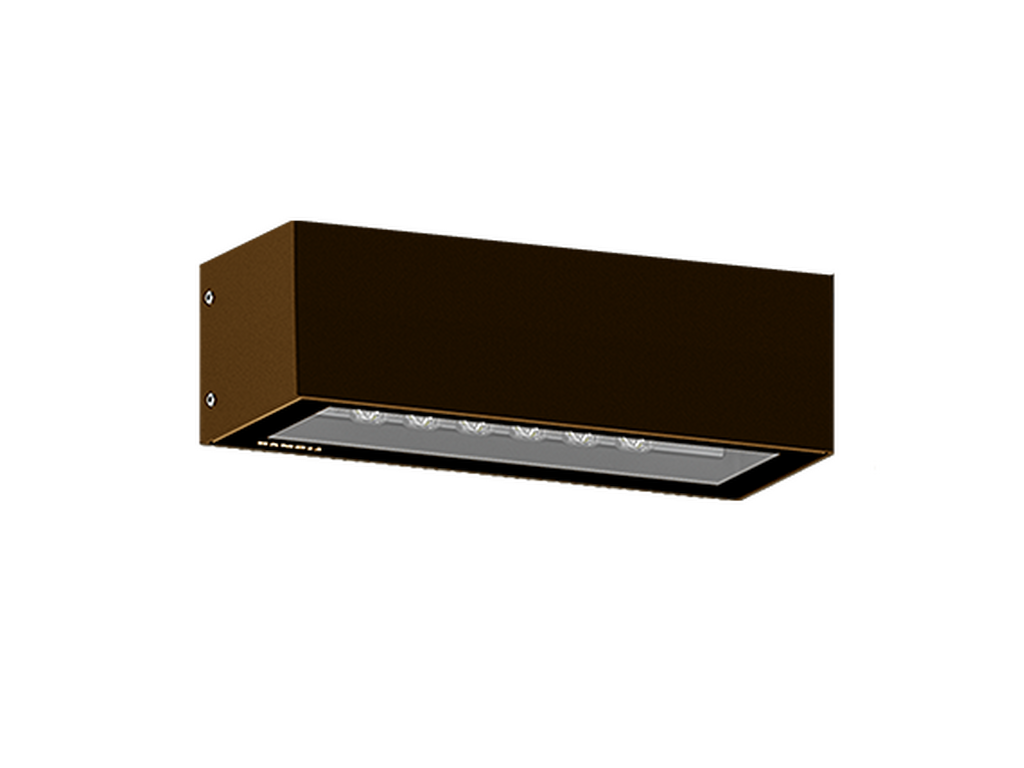

LEEDS 6LEE-30021LEEDS

Please contact the following LIGMAN office:

United States (HQ)
LIGMAN Lighting USA Inc. - 7144 NW Progress Court, Hillsboro, 97124 Oregon
United States
Tel: +1 503 645 0500
[email protected]

Send us an E-Mail or use the contact form:

I have read the privacy policy and agree to the processing of my data *

The fields marked with an * must be correctly filled.
Your request was successfully sent.

Send us an E-Mail or use the contact form:

I have read the privacy policy and agree to the processing of my data *

The fields marked with an * must be correctly filled.
Your request was successfully sent.

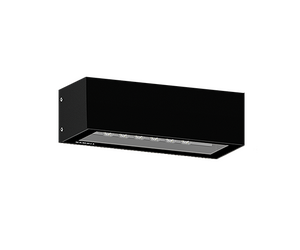

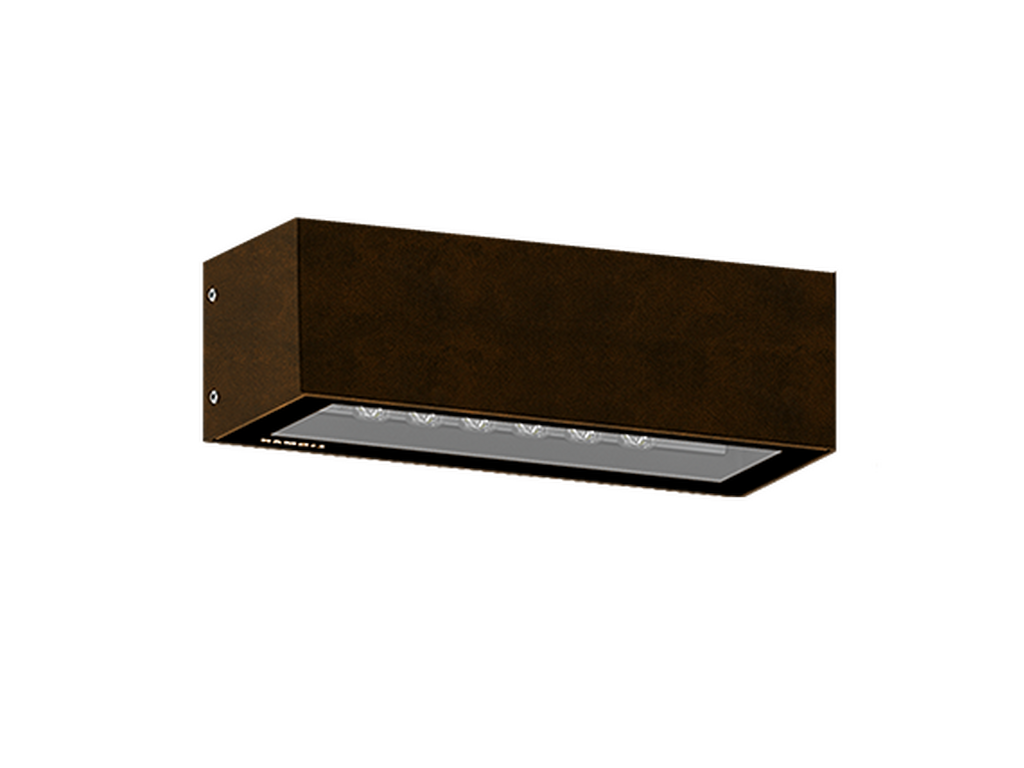

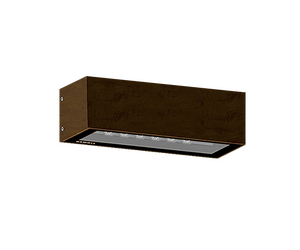

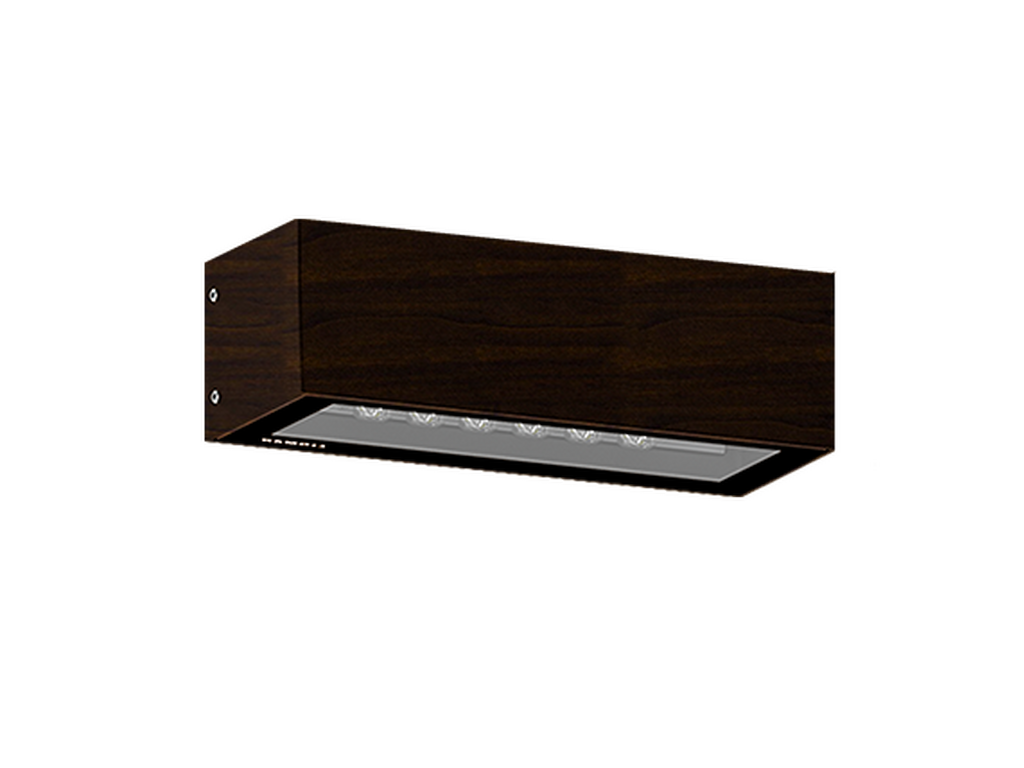

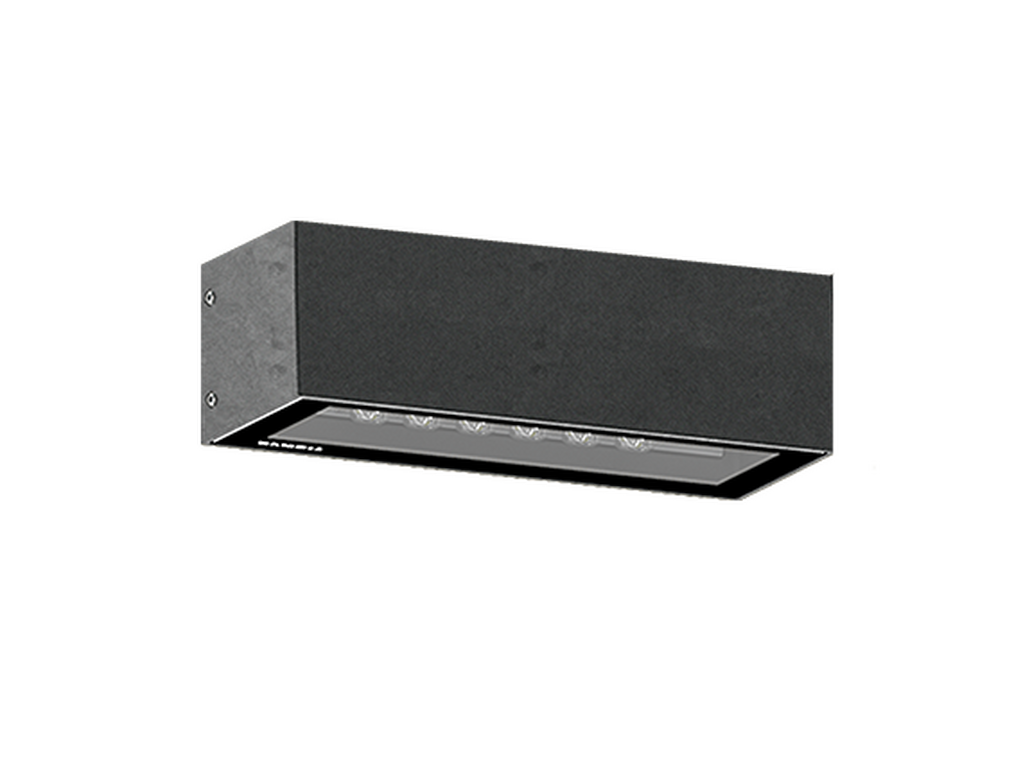

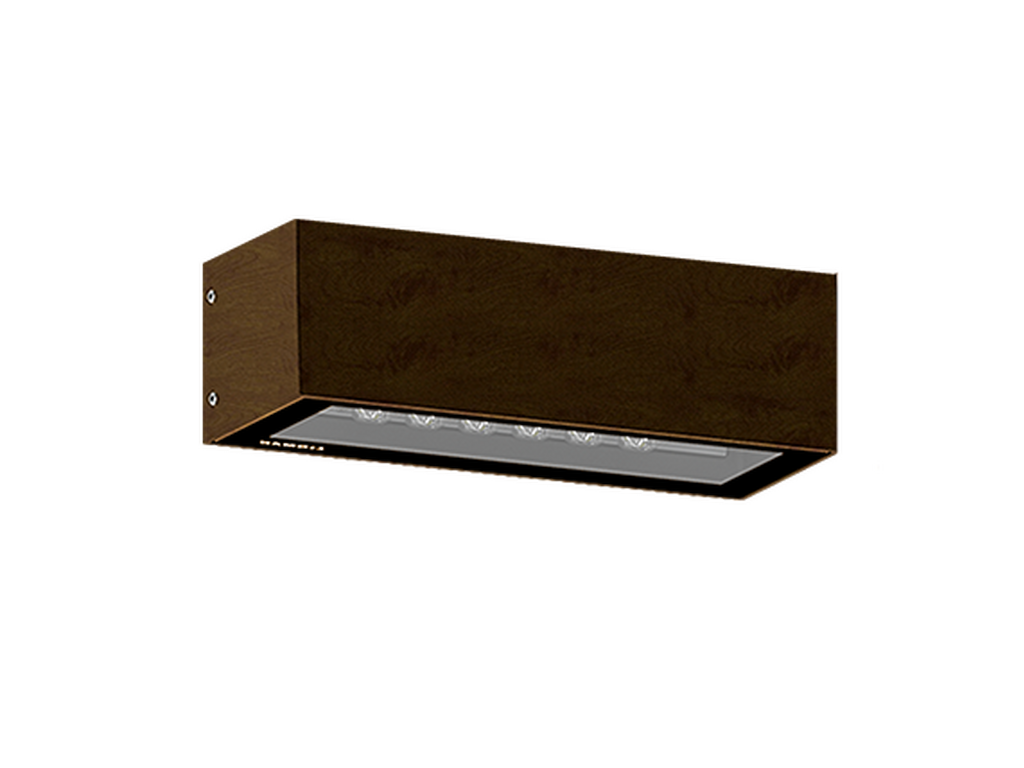

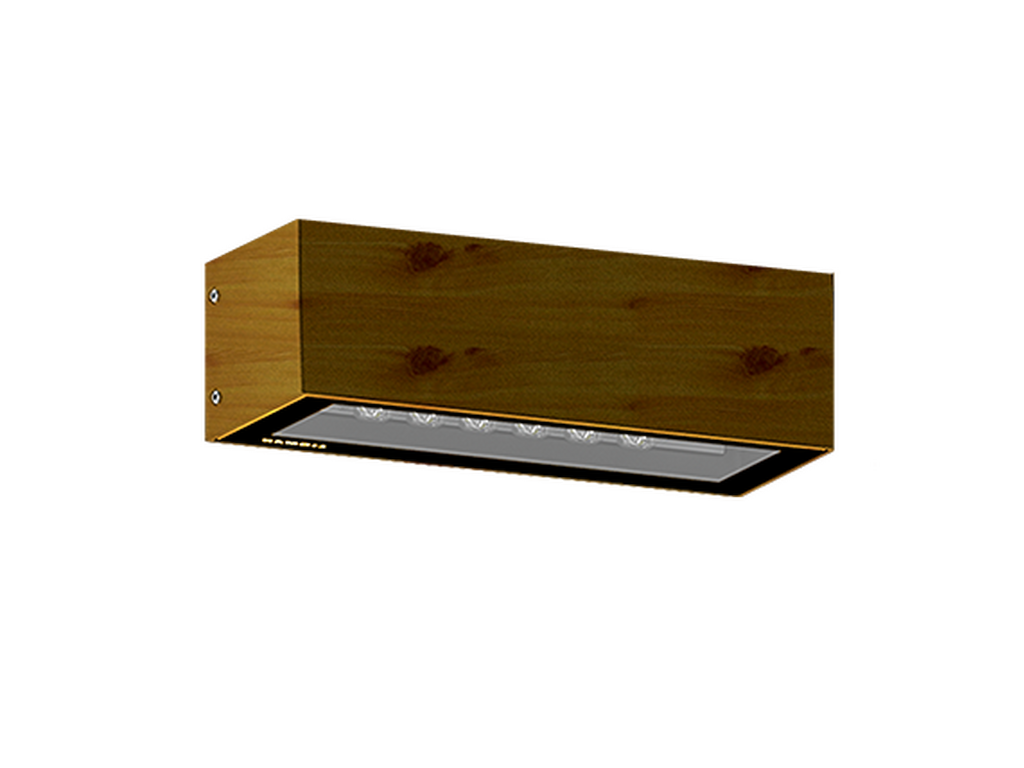

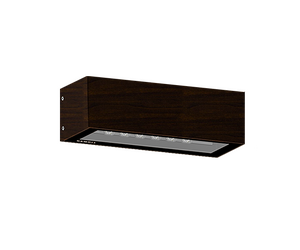

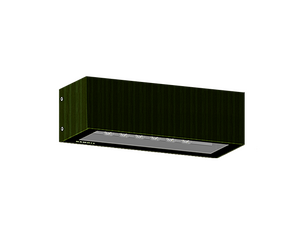

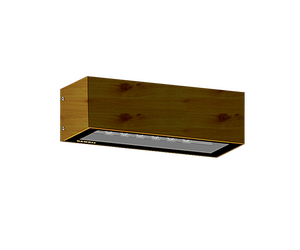

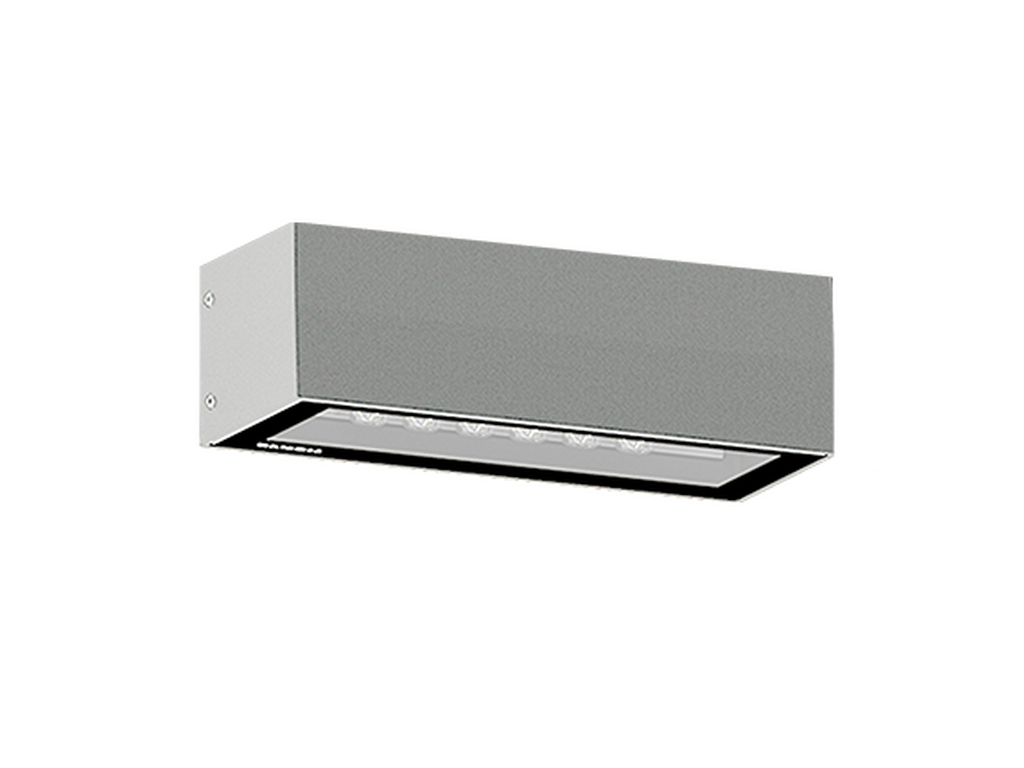

LEEDS 6Black
LEEDS 6Dark Grey

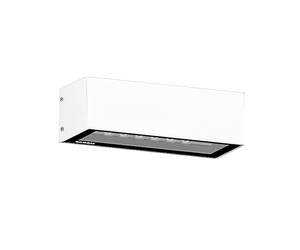

LEEDS 6White
LEEDS 6Matt Silver

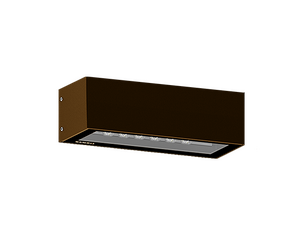

LEEDS 6Bronze

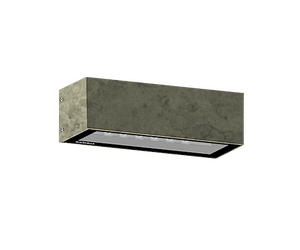

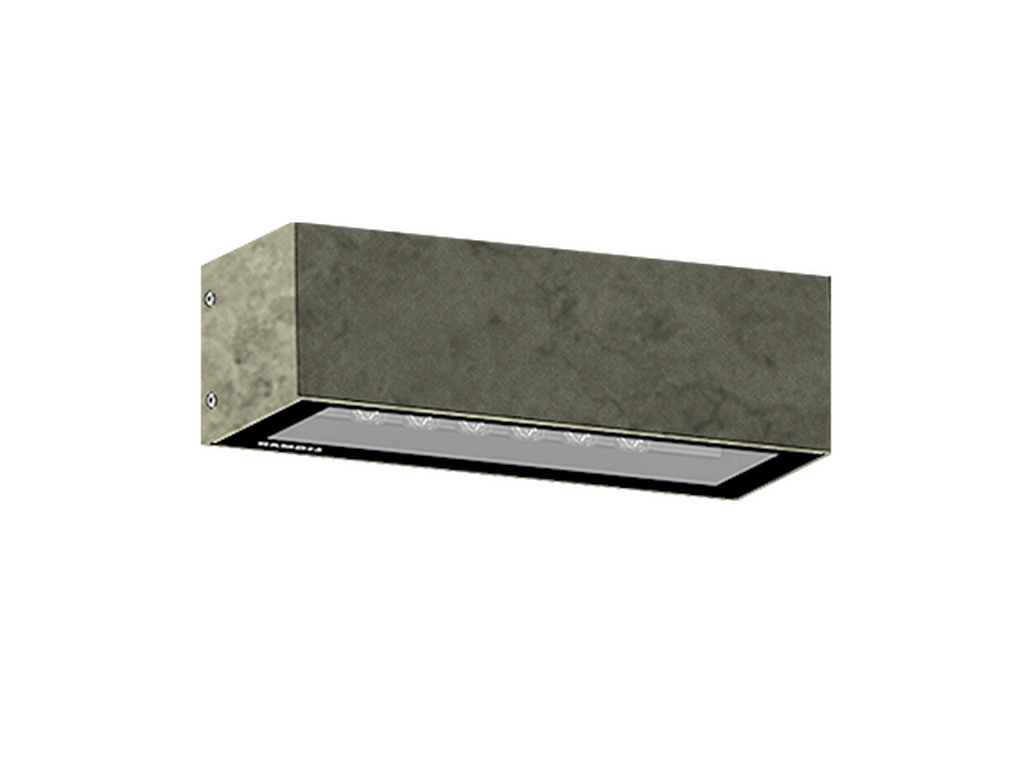

LEEDS 6Concrete - Urban
LEEDS 6Softscape - Urban
LEEDS 6Stone - Urban

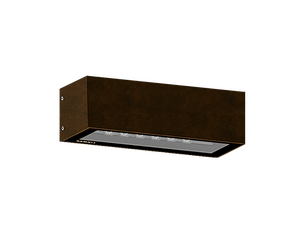

LEEDS 6Corten - Urban

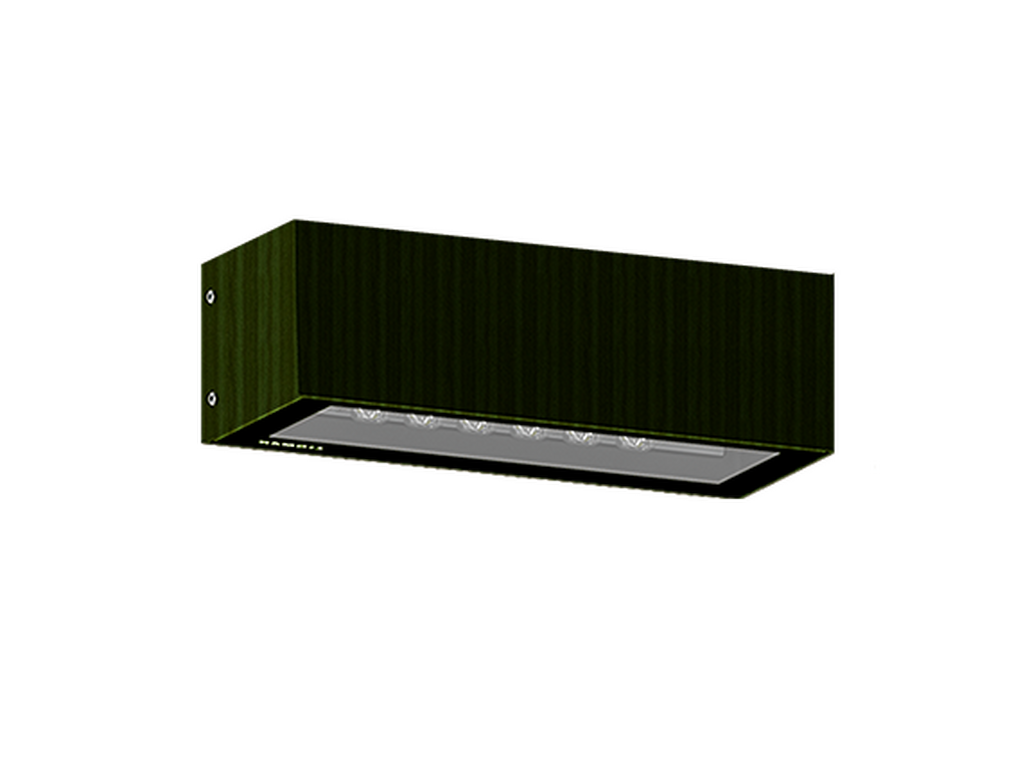

LEEDS 6Oak - Woodland
LEEDS 6Walnut - Woodland
LEEDS 6Pine - Woodland
LEEDS 6Black
LEEDS 6Dark Grey
LEEDS 6White
LEEDS 6Matt Silver
LEEDS 6Bronze
LEEDS 6Concrete - Urban
LEEDS 6Softscape - Urban
LEEDS 6Stone - Urban
LEEDS 6Corten - Urban
LEEDS 6Oak - Woodland
LEEDS 6Walnut - Woodland
LEEDS 6Pine - Woodland
Down - Rectangular
CERETILAPClass IIP65IK07

TECHNICAL SPECIFICATIONS

Material
Aluminium
Light source
12 LED
Power (Luminaire)
19.7 W
Lumen (Luminaire)
2045 - 2422 lm
Luminaire luminous efficacy
104 - 123 lm/W
Driver option
Integral control gear
Driver
Constant current (CC)
Input voltage
220-240 V 50/60 Hz
Optic
EW, M, ME, T2, T3, T4, W
Optic value
108°x66°, 109°x102°, 124°x86°, 137°x58°, 140°x62°, 30°, 56°
CCT / CRI
3000K CRI80, 4000K CRI80
Bug
B1-U0-G0, B1-U0-G1, B2-U0-G0
ULR
0%
ULOR
0%
CIE flux code nº3
100, 97, 98, 99
Dimming type
1-10V, DALI, On/Off
Product colours
Black, Dark Grey, White, Matt Silver, Bronze, Concrete - Urban, Softscape - Urban, Stone - Urban, Corten - Urban, Oak - Woodland, Walnut - Woodland, Pine - Woodland
Weight
1.8 kg
Operating temperature
-20 °C to 40 °C
MacAdam Ellipse
3 SDCM
Lifetime L90B10 (hours)
90,000
Lifetime L80B10 (hours)
90,000
Lifetime L80B50 (hours)
90,000
Variants (On/Off, DALI, 1-10V)
Compatible with EN/ IEC 60598-2-22: Suitable for emergency installations as central supply, non-maintained (Z0)

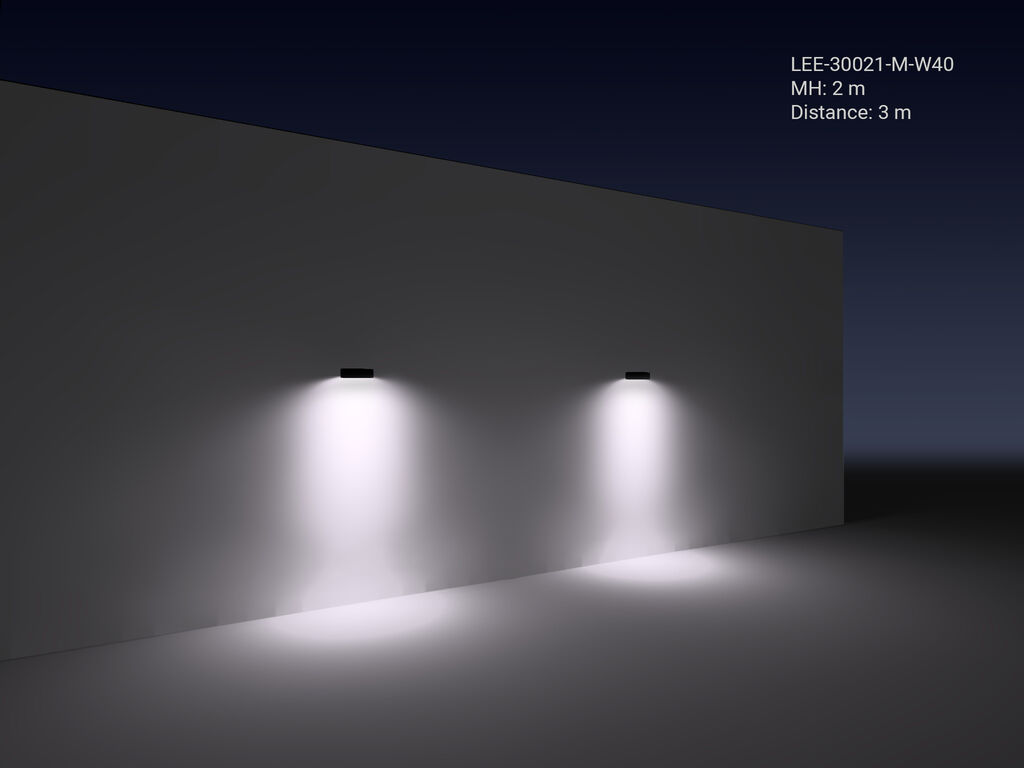

LIGHT EFFECT

Light distribution
EW (109°x102°)
M (30°)
ME (140°x62°)
T2 (137°x58°)
T3 (124°x86°)
T4 (108°x66°)
W (56°)

CODE FINDER

Lumen
Optic
Optic value
CCT / CRI
Dimming type
Product colour
Variant code
Lumen
Optic
Optic value
CCT / CRI
Dimming type
Product colour
