NEW

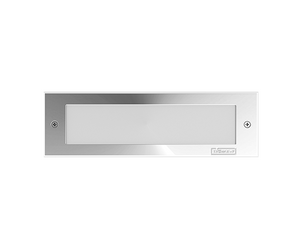

LEGEND 1

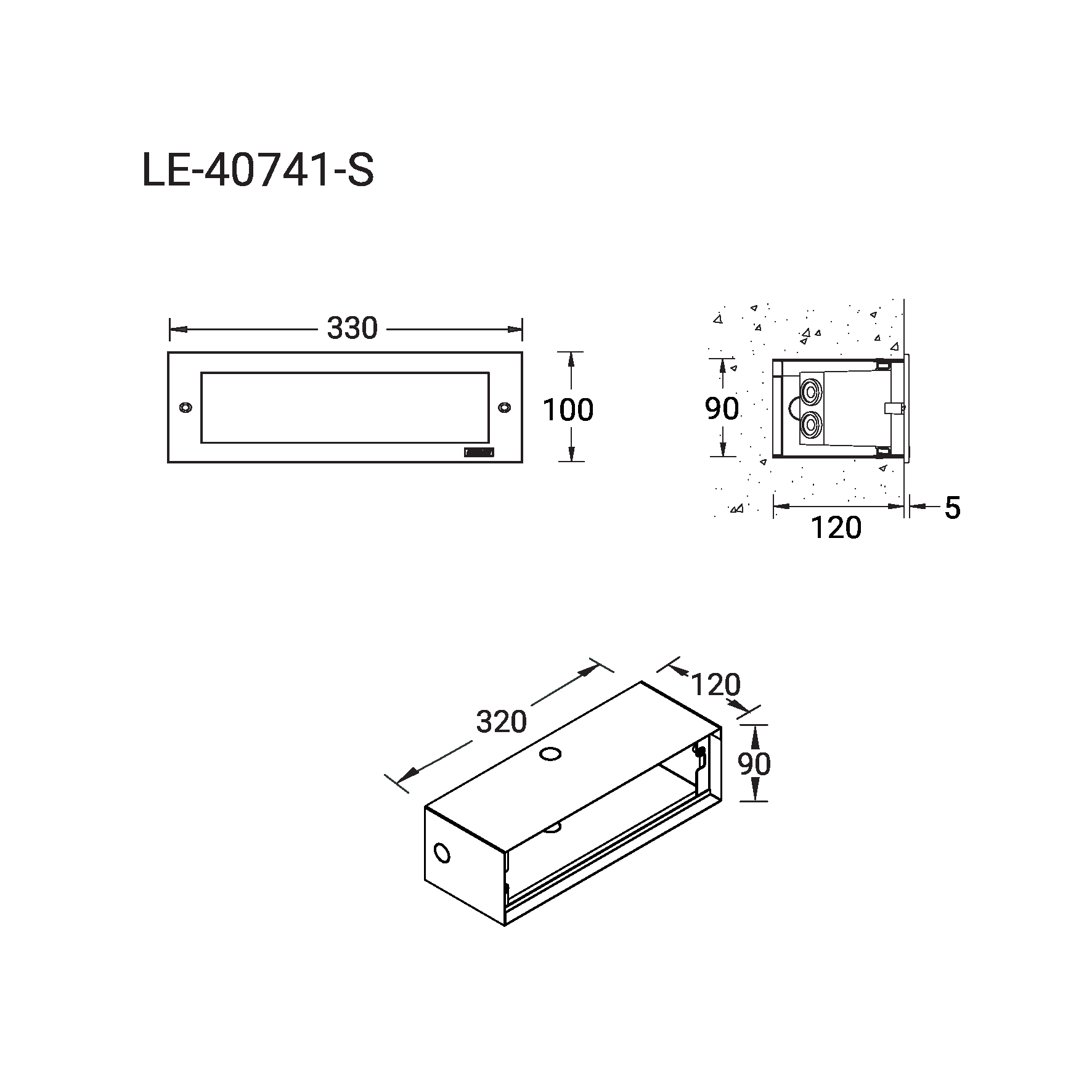

With recessing box - Stainless frame - IK08
CEClass IIP65IK08

TECHNICAL SPECIFICATIONS

Material
Stainless Steel
Light source
60 LED
Power (W)
14 W
Lumen (lm)
1124 - 1183 lm
Efficacy (lm/W)
80 - 85 lm/W
Driver option
Integral control gear
Driver
Constant current (CC)
Input voltage
220-240V 50/60Hz
Optic
G
Optic value
101°x106°
CCT / CRI
3000K CRI80, 4000K CRI80
Bug
B1-U3-G1
ULR
49%
ULOR
49%
CIE flux code nº3
66
Dimming type
On/Off, 1-10V, DALI
Product colours
Stainless Steel
Weight
2.3 kg
Operating temperature
-20 °C to 50 °C
Through wiring
Two cable entries for through wiring
Lens / Reflector / Optic
Opal high-efficiency PMMA diffuser
Variants (On/Off, 1-10V, DALI)
Compatible with EN/ IEC 60598-2-22: Suitable for emergency installations as central supply, non-maintained (Z0)

LIGHT EFFECT

Optic
G (101°x106°)

CODE FINDER

Lumen (lm)
Optic
Optic value
CCT / CRI
Dimming type
Product colour
Variant code
Lumen (lm)
Optic
Optic value
CCT / CRI
Dimming type
Product colour
Variant code: LE-40741-S-G-8030-ND-00
Lumen (lm): 1124 lm
Optic: G
Optic value: 101°x106°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Stainless Steel
Variant code: LE-40741-S-G-8040-ND-00
Lumen (lm): 1183 lm
Optic: G
Optic value: 101°x106°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Stainless Steel
Variant code: LE-40741-S-G-8030-DI-00
Lumen (lm): 1124 lm
Optic: G
Optic value: 101°x106°
CCT / CRI: 3000K CRI80
Dimming type: 1-10V
Product colour: Stainless Steel
Variant code: LE-40741-S-G-8040-DI-00
Lumen (lm): 1183 lm
Optic: G
Optic value: 101°x106°
CCT / CRI: 4000K CRI80
Dimming type: 1-10V
Product colour: Stainless Steel
Variant code: LE-40741-S-G-8030-DA-00
Lumen (lm): 1124 lm
Optic: G
Optic value: 101°x106°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Stainless Steel
Variant code: LE-40741-S-G-8040-DA-00
Lumen (lm): 1183 lm
Optic: G
Optic value: 101°x106°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Stainless Steel
