LIGMAN LEGEND 2 LE-40601-A.

LEGEND 2LE-40601-ALEGEND

Send us an E-Mail or use the contact form:

I have read the privacy policy and agree to the processing of my data *

The fields marked with an * must be correctly filled.
Your request was successfully sent.

Send us an E-Mail or use the contact form:

I have read the privacy policy and agree to the processing of my data *

The fields marked with an * must be correctly filled.
Your request was successfully sent.

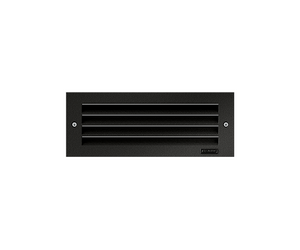

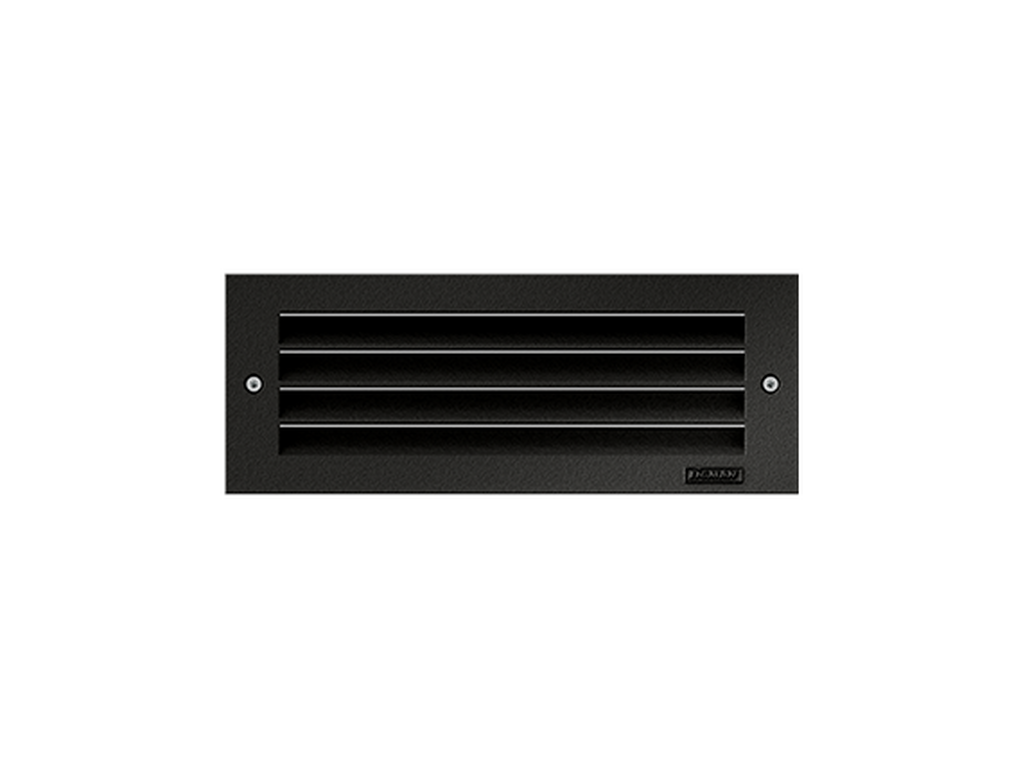

LEGEND 2Black

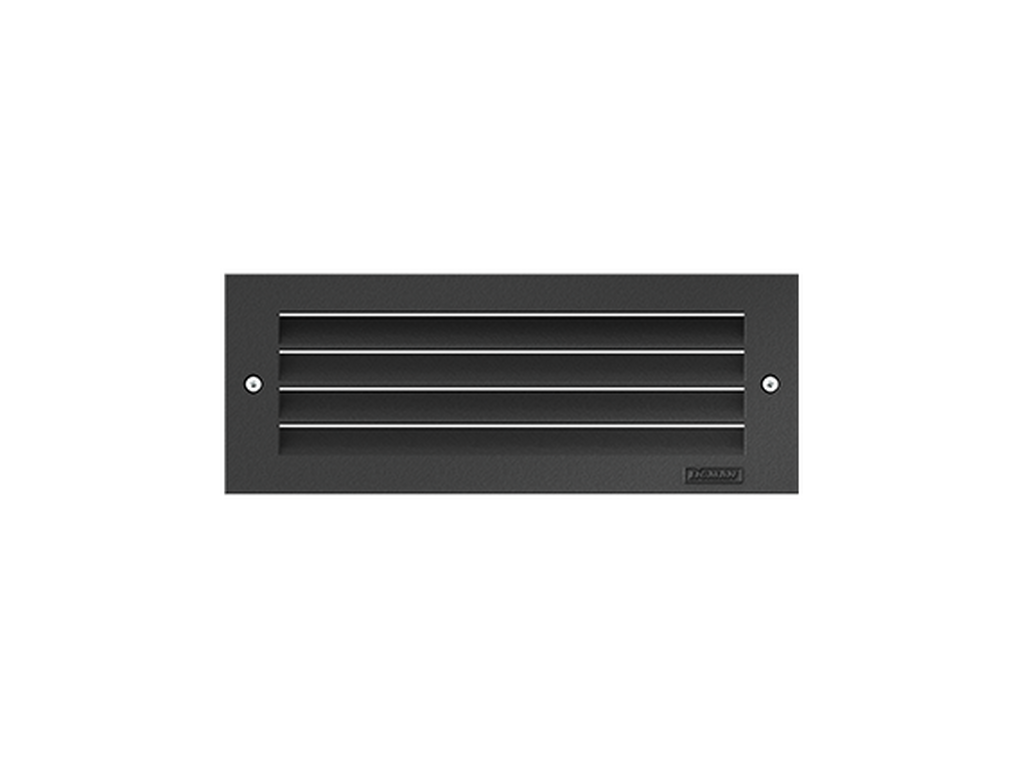

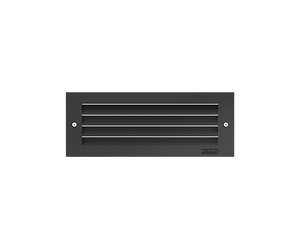

LEGEND 2Dark Grey

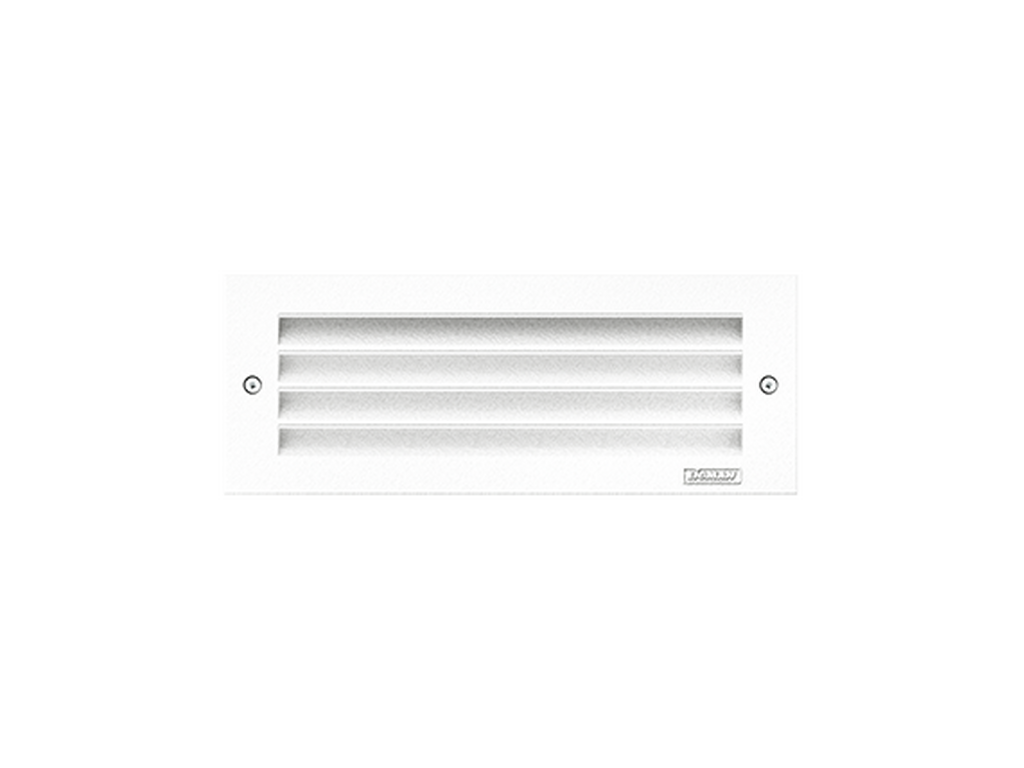

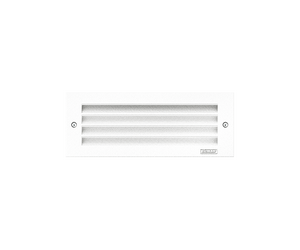

LEGEND 2White

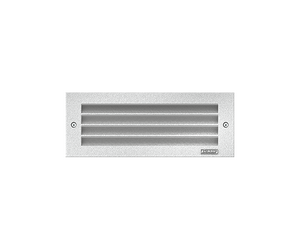

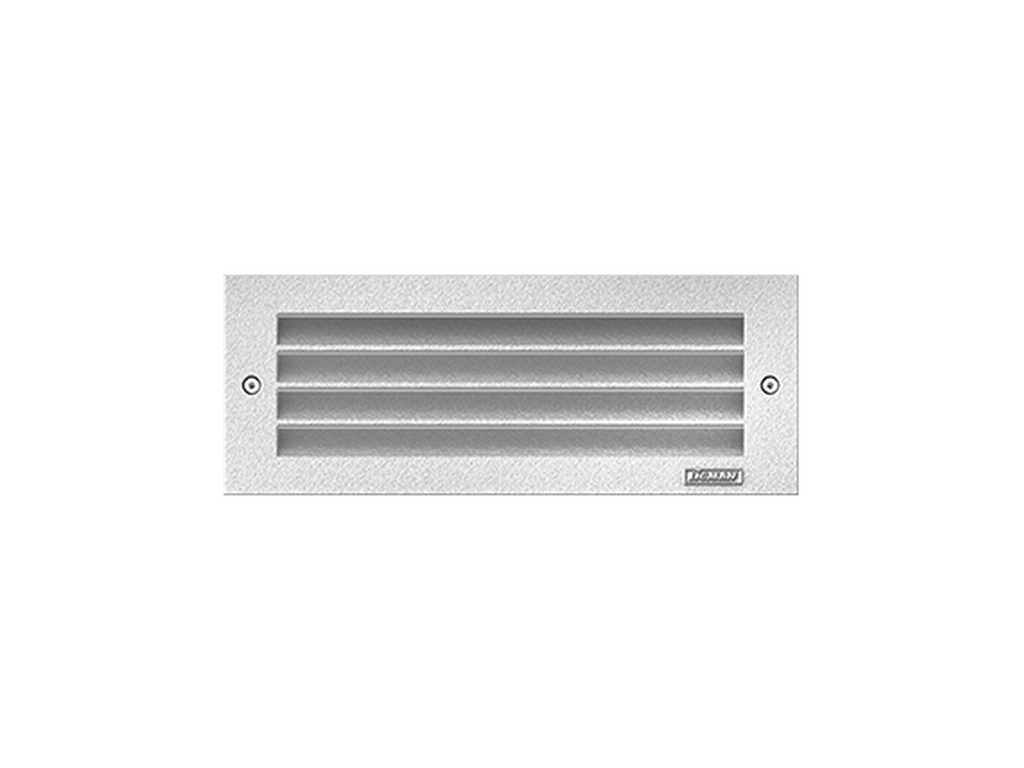

LEGEND 2Matt Silver

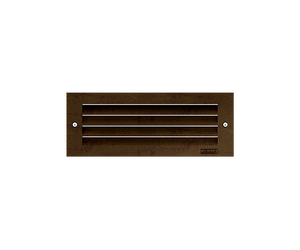

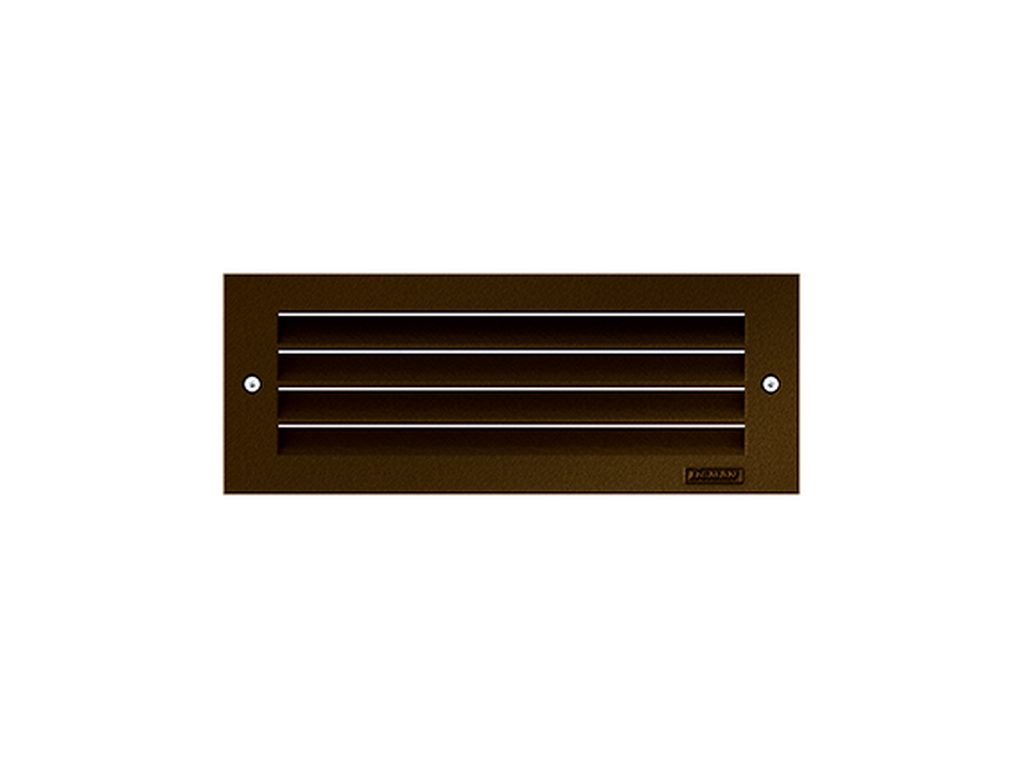

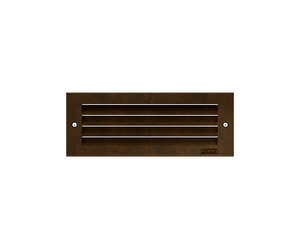

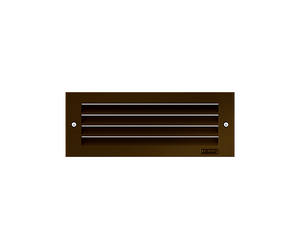

LEGEND 2Bronze

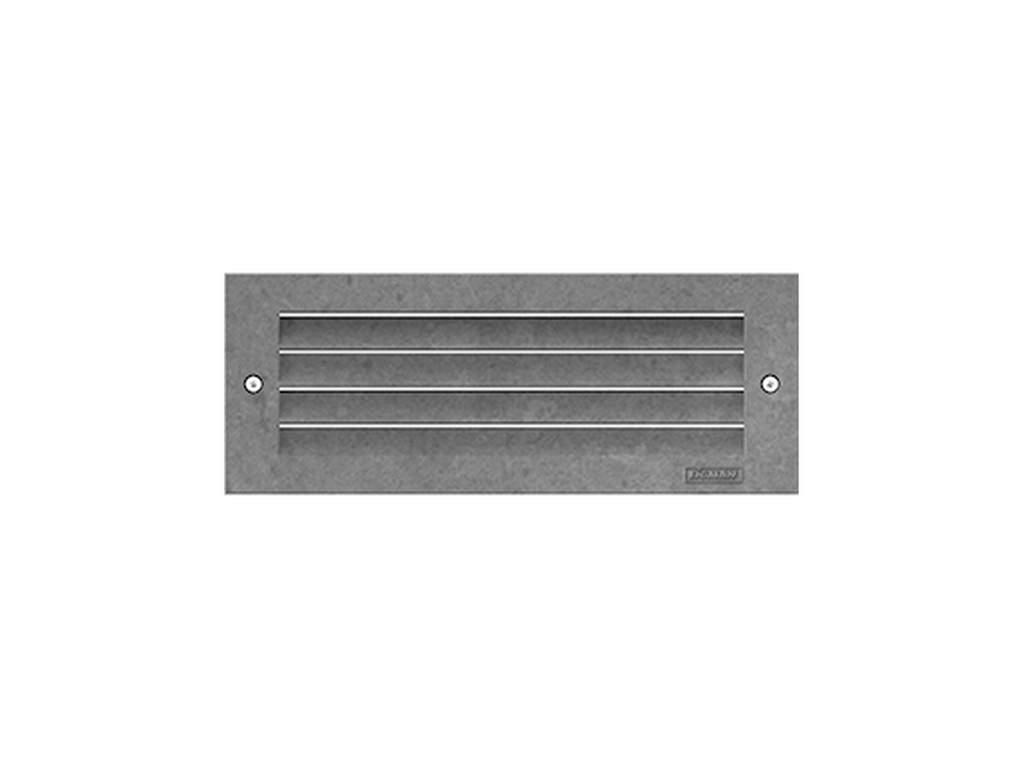

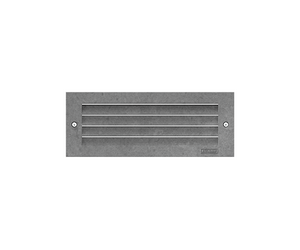

LEGEND 2Concrete - Urban
LEGEND 2Softscape - Urban

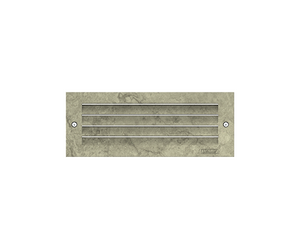

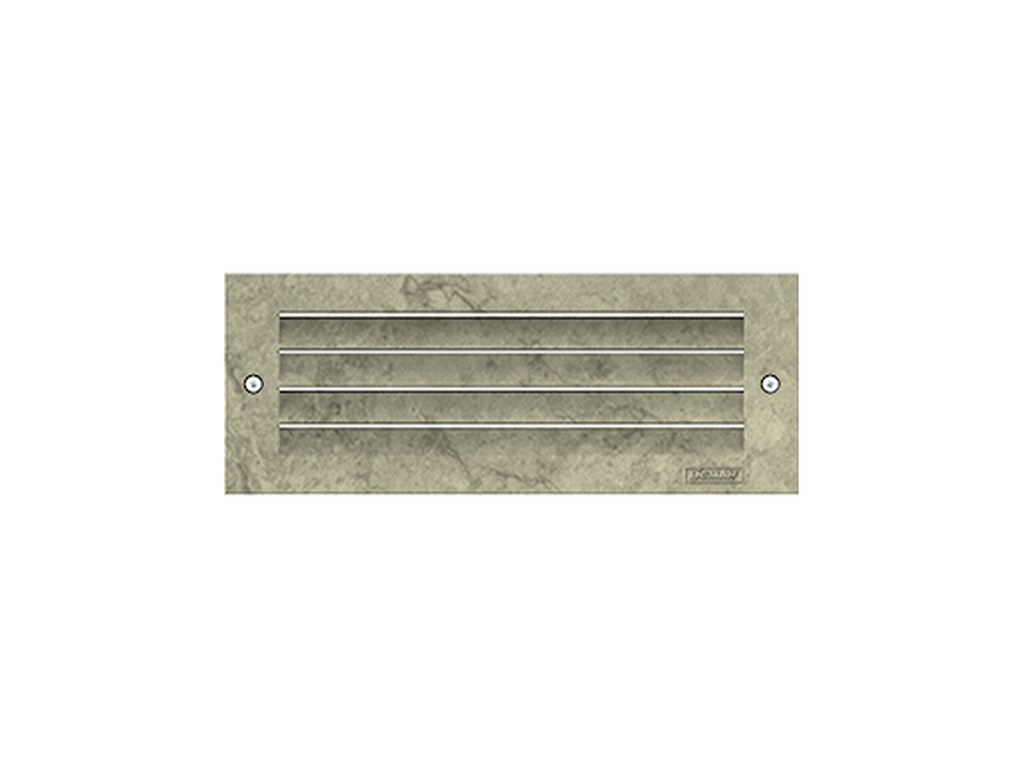

LEGEND 2Stone - Urban

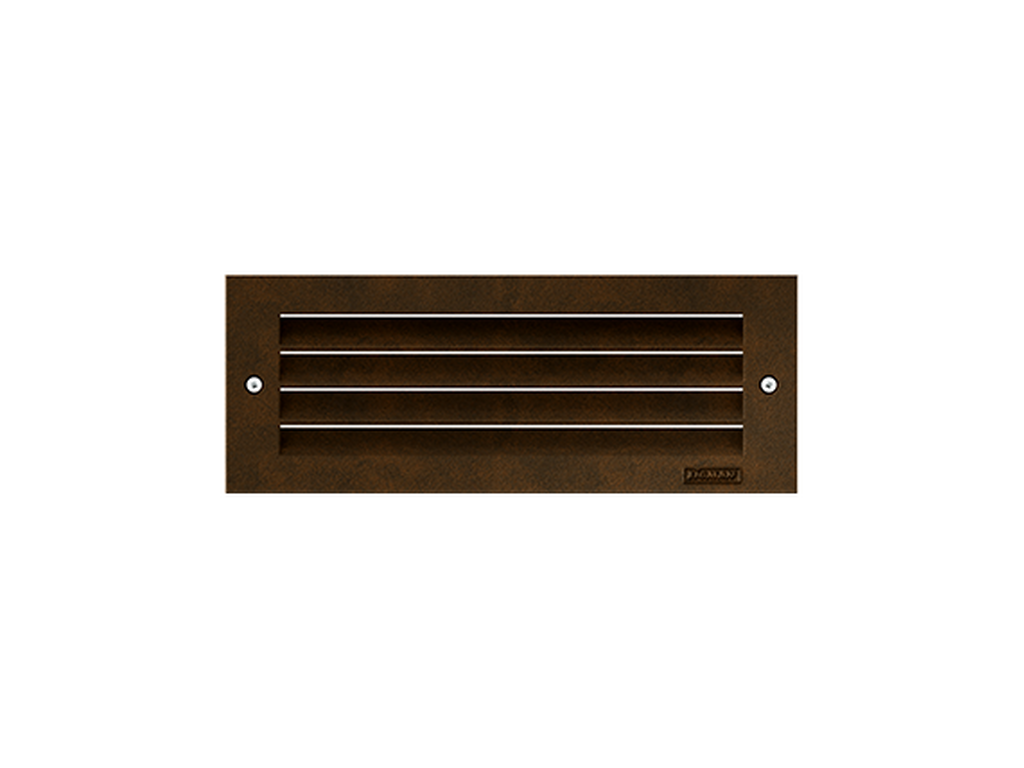

LEGEND 2Corten - Urban
LEGEND 2Oak - Woodland

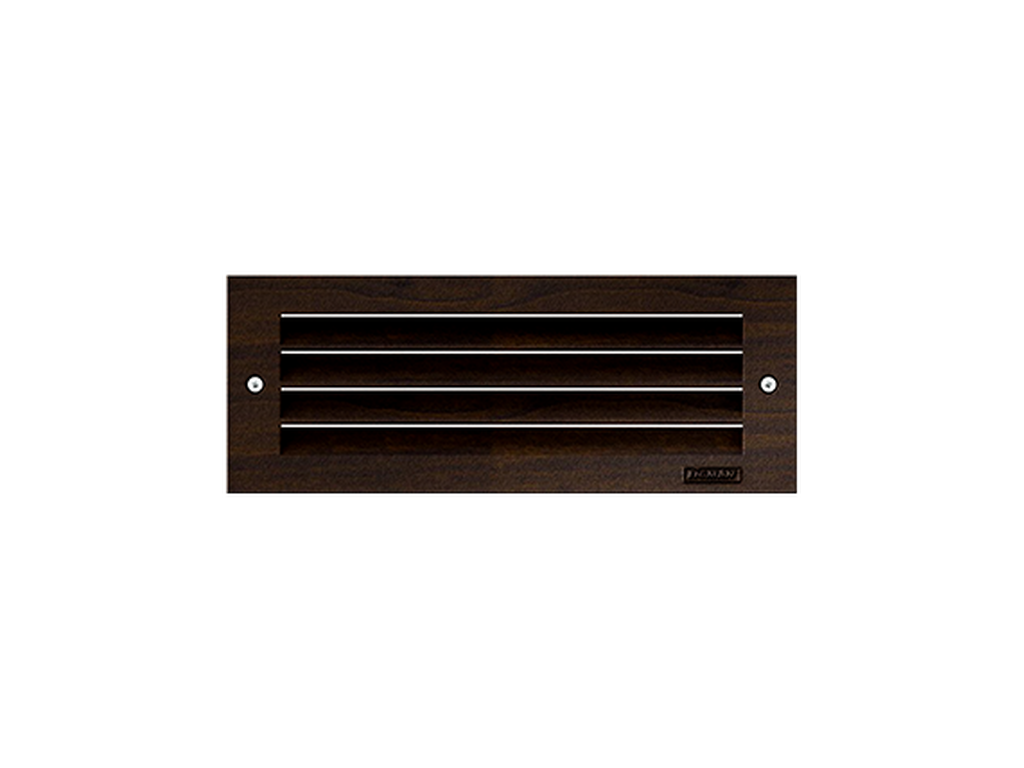

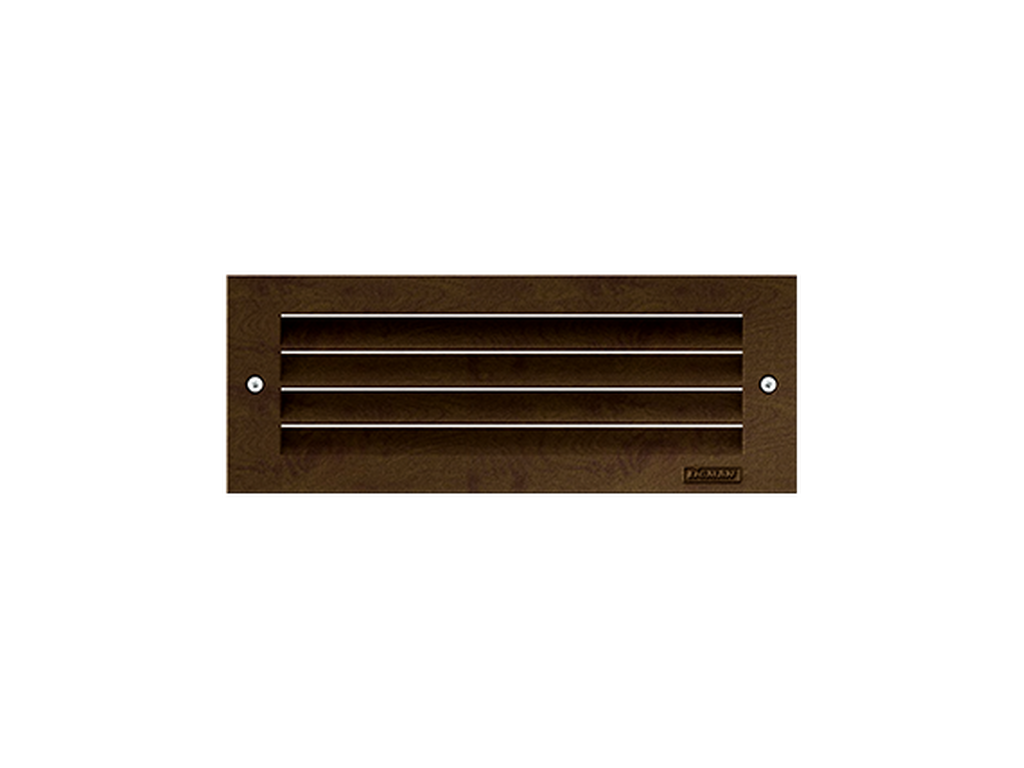

LEGEND 2Walnut - Woodland

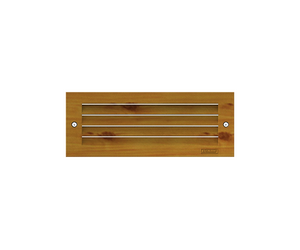

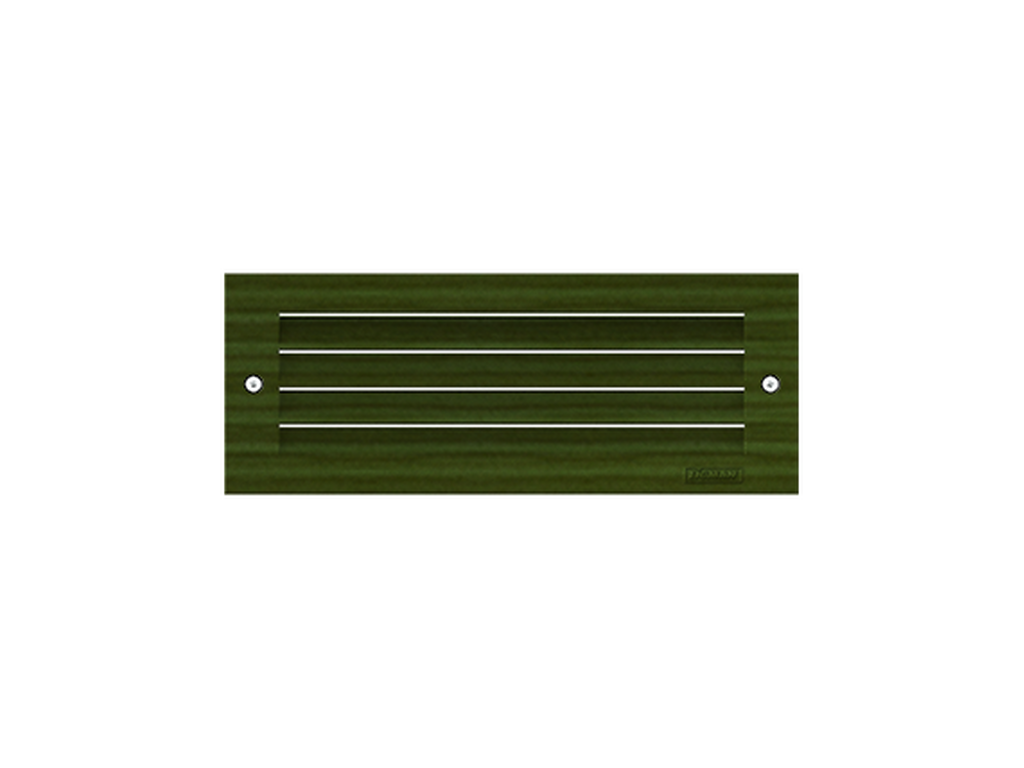

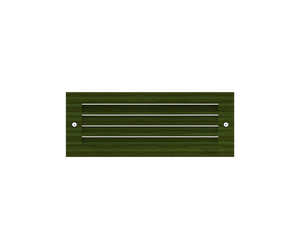

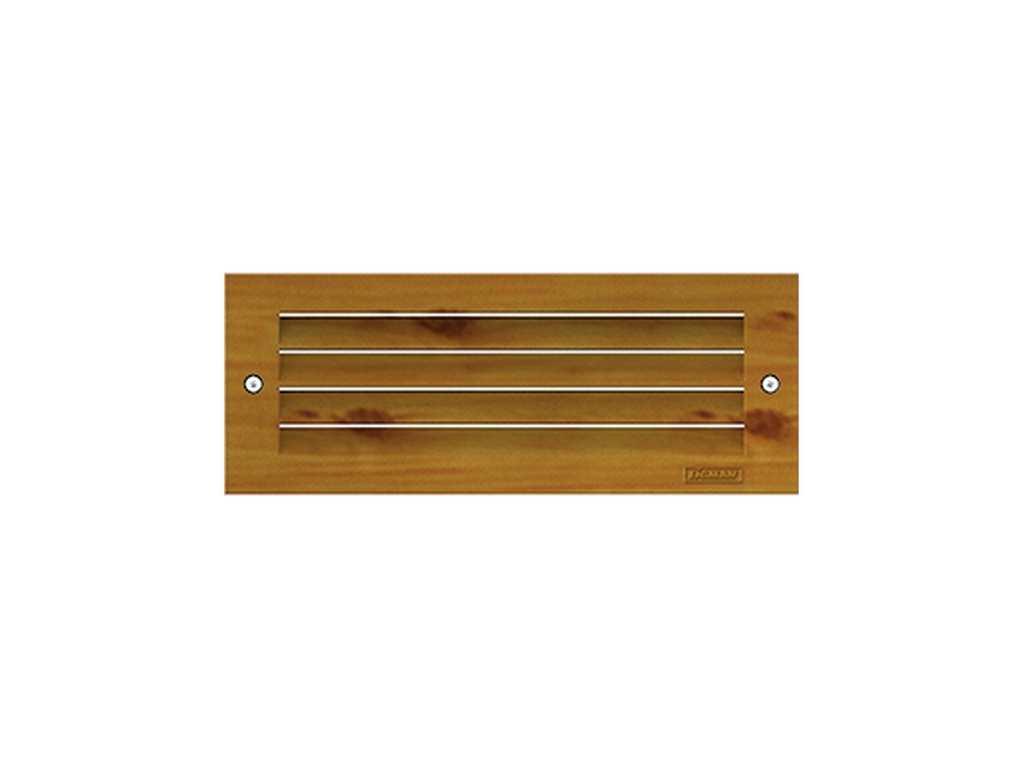

LEGEND 2Pine - Woodland
LEGEND 2Black
LEGEND 2Dark Grey
LEGEND 2White
LEGEND 2Matt Silver
LEGEND 2Bronze
LEGEND 2Concrete - Urban
LEGEND 2Softscape - Urban
LEGEND 2Stone - Urban
LEGEND 2Corten - Urban
LEGEND 2Oak - Woodland
LEGEND 2Walnut - Woodland
LEGEND 2Pine - Woodland
With recessing box - Aluminium frame - IK07
CERETILAPClass IIP65IK07

TECHNICAL SPECIFICATIONS

Material
Aluminium
Light source
48 LED
Power (W)
13 W
Lumen (lm)
372 - 392 lm
Efficacy (lm/W)
29 - 30 lm/W
Driver option
Integral control gear
Driver
Constant current (CC)
Input voltage
220-240 V 50/60 Hz
Optic
G
Optic value
103°x50°
CCT / CRI
3000K CRI80, 4000K CRI80
Bug
B0-U1-G0
ULR
3%
ULOR
3%
CIE flux code nº3
83
Dimming type
On/Off, 1-10V, DALI
Product colours
Black, Dark Grey, White, Matt Silver, Bronze, Concrete - Urban, Softscape - Urban, Stone - Urban, Corten - Urban, Oak - Woodland, Walnut - Woodland, Pine - Woodland
Weight
1.6 kg
Operating temperature
-20 °C to 45 °C
Through wiring
Two cable entries for through wiring
Lens / Reflector / Optic
Opal high-efficiency PMMA diffuser
Variants (On/Off, 1-10V, DALI)
Compatible with EN/ IEC 60598-2-22: Suitable for emergency installations as central supply, non-maintained (Z0)

LIGHT EFFECT

Optic
G (103°x50°)

CODE FINDER

Lumen (lm)
Optic
Optic value
CCT / CRI
Dimming type
Product colour
Variant code
Lumen (lm)
Optic
Optic value
CCT / CRI
Dimming type
Product colour
Variant code: LE-40601-A-G-8030-ND-01
Lumen (lm): 372 lm
Optic: G
Optic value: 103°x50°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Black
Variant code: LE-40601-A-G-8030-ND-02
Lumen (lm): 372 lm
Optic: G
Optic value: 103°x50°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Dark Grey
Variant code: LE-40601-A-G-8030-ND-03
Lumen (lm): 372 lm
Optic: G
Optic value: 103°x50°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: White
Variant code: LE-40601-A-G-8030-ND-05
Lumen (lm): 372 lm
Optic: G
Optic value: 103°x50°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Matt Silver
Variant code: LE-40601-A-G-8030-ND-06
Lumen (lm): 372 lm
Optic: G
Optic value: 103°x50°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Bronze
Variant code: LE-40601-A-G-8030-ND-SU01
Lumen (lm): 372 lm
Optic: G
Optic value: 103°x50°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Concrete - Urban
Variant code: LE-40601-A-G-8030-ND-SU02
Lumen (lm): 372 lm
Optic: G
Optic value: 103°x50°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Softscape - Urban
Variant code: LE-40601-A-G-8030-ND-SU03
Lumen (lm): 372 lm
Optic: G
Optic value: 103°x50°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Stone - Urban
Variant code: LE-40601-A-G-8030-ND-SU04
Lumen (lm): 372 lm
Optic: G
Optic value: 103°x50°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Corten - Urban
Variant code: LE-40601-A-G-8030-ND-SW01
Lumen (lm): 372 lm
Optic: G
Optic value: 103°x50°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Oak - Woodland
Variant code: LE-40601-A-G-8030-ND-SW02
Lumen (lm): 372 lm
Optic: G
Optic value: 103°x50°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Walnut - Woodland
Variant code: LE-40601-A-G-8030-ND-SW03
Lumen (lm): 372 lm
Optic: G
Optic value: 103°x50°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Pine - Woodland
Variant code: LE-40601-A-G-8040-ND-01
Lumen (lm): 392 lm
Optic: G
Optic value: 103°x50°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Black
Variant code: LE-40601-A-G-8040-ND-02
Lumen (lm): 392 lm
Optic: G
Optic value: 103°x50°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Dark Grey
Variant code: LE-40601-A-G-8040-ND-03
Lumen (lm): 392 lm
Optic: G
Optic value: 103°x50°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: White
Variant code: LE-40601-A-G-8040-ND-05
Lumen (lm): 392 lm
Optic: G
Optic value: 103°x50°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Matt Silver
Variant code: LE-40601-A-G-8040-ND-06
Lumen (lm): 392 lm
Optic: G
Optic value: 103°x50°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Bronze
Variant code: LE-40601-A-G-8040-ND-SU01
Lumen (lm): 392 lm
Optic: G
Optic value: 103°x50°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Concrete - Urban
Variant code: LE-40601-A-G-8040-ND-SU02
Lumen (lm): 392 lm
Optic: G
Optic value: 103°x50°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Softscape - Urban
Variant code: LE-40601-A-G-8040-ND-SU03
Lumen (lm): 392 lm
Optic: G
Optic value: 103°x50°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Stone - Urban
Variant code: LE-40601-A-G-8040-ND-SU04
Lumen (lm): 392 lm
Optic: G
Optic value: 103°x50°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Corten - Urban
Variant code: LE-40601-A-G-8040-ND-SW01
Lumen (lm): 392 lm
Optic: G
Optic value: 103°x50°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Oak - Woodland
Variant code: LE-40601-A-G-8040-ND-SW02
Lumen (lm): 392 lm
Optic: G
Optic value: 103°x50°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Walnut - Woodland
Variant code: LE-40601-A-G-8040-ND-SW03
Lumen (lm): 392 lm
Optic: G
Optic value: 103°x50°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Pine - Woodland
Variant code: LE-40601-A-G-8030-DI-01
Lumen (lm): 372 lm
Optic: G
Optic value: 103°x50°
CCT / CRI: 3000K CRI80
Dimming type: 1-10V
Product colour: Black
Variant code: LE-40601-A-G-8030-DI-02
Lumen (lm): 372 lm
Optic: G
Optic value: 103°x50°
CCT / CRI: 3000K CRI80
Dimming type: 1-10V
Product colour: Dark Grey
Variant code: LE-40601-A-G-8030-DI-03
Lumen (lm): 372 lm
Optic: G
Optic value: 103°x50°
CCT / CRI: 3000K CRI80
Dimming type: 1-10V
Product colour: White
Variant code: LE-40601-A-G-8030-DI-05
Lumen (lm): 372 lm
Optic: G
Optic value: 103°x50°
CCT / CRI: 3000K CRI80
Dimming type: 1-10V
Product colour: Matt Silver
Variant code: LE-40601-A-G-8030-DI-06
Lumen (lm): 372 lm
Optic: G
Optic value: 103°x50°
CCT / CRI: 3000K CRI80
Dimming type: 1-10V
Product colour: Bronze
Variant code: LE-40601-A-G-8030-DI-SU01
Lumen (lm): 372 lm
Optic: G
Optic value: 103°x50°
CCT / CRI: 3000K CRI80
Dimming type: 1-10V
Product colour: Concrete - Urban
Variant code: LE-40601-A-G-8030-DI-SU02
Lumen (lm): 372 lm
Optic: G
Optic value: 103°x50°
CCT / CRI: 3000K CRI80
Dimming type: 1-10V
Product colour: Softscape - Urban
Variant code: LE-40601-A-G-8030-DI-SU03
Lumen (lm): 372 lm
Optic: G
Optic value: 103°x50°
CCT / CRI: 3000K CRI80
Dimming type: 1-10V
Product colour: Stone - Urban
Variant code: LE-40601-A-G-8030-DI-SU04
Lumen (lm): 372 lm
Optic: G
Optic value: 103°x50°
CCT / CRI: 3000K CRI80
Dimming type: 1-10V
Product colour: Corten - Urban
Variant code: LE-40601-A-G-8030-DI-SW01
Lumen (lm): 372 lm
Optic: G
Optic value: 103°x50°
CCT / CRI: 3000K CRI80
Dimming type: 1-10V
Product colour: Oak - Woodland
Variant code: LE-40601-A-G-8030-DI-SW02
Lumen (lm): 372 lm
Optic: G
Optic value: 103°x50°
CCT / CRI: 3000K CRI80
Dimming type: 1-10V
Product colour: Walnut - Woodland
Variant code: LE-40601-A-G-8030-DI-SW03
Lumen (lm): 372 lm
Optic: G
Optic value: 103°x50°
CCT / CRI: 3000K CRI80
Dimming type: 1-10V
Product colour: Pine - Woodland
Variant code: LE-40601-A-G-8040-DI-01
Lumen (lm): 392 lm
Optic: G
Optic value: 103°x50°
CCT / CRI: 4000K CRI80
Dimming type: 1-10V
Product colour: Black
Variant code: LE-40601-A-G-8040-DI-02
Lumen (lm): 392 lm
Optic: G
Optic value: 103°x50°
CCT / CRI: 4000K CRI80
Dimming type: 1-10V
Product colour: Dark Grey
Variant code: LE-40601-A-G-8040-DI-03
Lumen (lm): 392 lm
Optic: G
Optic value: 103°x50°
CCT / CRI: 4000K CRI80
Dimming type: 1-10V
Product colour: White
Variant code: LE-40601-A-G-8040-DI-05
Lumen (lm): 392 lm
Optic: G
Optic value: 103°x50°
CCT / CRI: 4000K CRI80
Dimming type: 1-10V
Product colour: Matt Silver
Variant code: LE-40601-A-G-8040-DI-06
Lumen (lm): 392 lm
Optic: G
Optic value: 103°x50°
CCT / CRI: 4000K CRI80
Dimming type: 1-10V
Product colour: Bronze
Variant code: LE-40601-A-G-8040-DI-SU01
Lumen (lm): 392 lm
Optic: G
Optic value: 103°x50°
CCT / CRI: 4000K CRI80
Dimming type: 1-10V
Product colour: Concrete - Urban
Variant code: LE-40601-A-G-8040-DI-SU02
Lumen (lm): 392 lm
Optic: G
Optic value: 103°x50°
CCT / CRI: 4000K CRI80
Dimming type: 1-10V
Product colour: Softscape - Urban
Variant code: LE-40601-A-G-8040-DI-SU03
Lumen (lm): 392 lm
Optic: G
Optic value: 103°x50°
CCT / CRI: 4000K CRI80
Dimming type: 1-10V
Product colour: Stone - Urban
Variant code: LE-40601-A-G-8040-DI-SU04
Lumen (lm): 392 lm
Optic: G
Optic value: 103°x50°
CCT / CRI: 4000K CRI80
Dimming type: 1-10V
Product colour: Corten - Urban
Variant code: LE-40601-A-G-8040-DI-SW01
Lumen (lm): 392 lm
Optic: G
Optic value: 103°x50°
CCT / CRI: 4000K CRI80
Dimming type: 1-10V
Product colour: Oak - Woodland
Variant code: LE-40601-A-G-8040-DI-SW02
Lumen (lm): 392 lm
Optic: G
Optic value: 103°x50°
CCT / CRI: 4000K CRI80
Dimming type: 1-10V
Product colour: Walnut - Woodland
Variant code: LE-40601-A-G-8040-DI-SW03
Lumen (lm): 392 lm
Optic: G
Optic value: 103°x50°
CCT / CRI: 4000K CRI80
Dimming type: 1-10V
Product colour: Pine - Woodland
Variant code: LE-40601-A-G-8030-DA-01
Lumen (lm): 372 lm
Optic: G
Optic value: 103°x50°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Black
Variant code: LE-40601-A-G-8030-DA-02
Lumen (lm): 372 lm
Optic: G
Optic value: 103°x50°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Dark Grey
Variant code: LE-40601-A-G-8030-DA-03
Lumen (lm): 372 lm
Optic: G
Optic value: 103°x50°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: White
Variant code: LE-40601-A-G-8030-DA-05
Lumen (lm): 372 lm
Optic: G
Optic value: 103°x50°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Matt Silver
Variant code: LE-40601-A-G-8030-DA-06
Lumen (lm): 372 lm
Optic: G
Optic value: 103°x50°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Bronze
Variant code: LE-40601-A-G-8030-DA-SU01
Lumen (lm): 372 lm
Optic: G
Optic value: 103°x50°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Concrete - Urban
Variant code: LE-40601-A-G-8030-DA-SU02
Lumen (lm): 372 lm
Optic: G
Optic value: 103°x50°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Softscape - Urban
Variant code: LE-40601-A-G-8030-DA-SU03
Lumen (lm): 372 lm
Optic: G
Optic value: 103°x50°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Stone - Urban
Variant code: LE-40601-A-G-8030-DA-SU04
Lumen (lm): 372 lm
Optic: G
Optic value: 103°x50°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Corten - Urban
Variant code: LE-40601-A-G-8030-DA-SW01
Lumen (lm): 372 lm
Optic: G
Optic value: 103°x50°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Oak - Woodland
Variant code: LE-40601-A-G-8030-DA-SW02
Lumen (lm): 372 lm
Optic: G
Optic value: 103°x50°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Walnut - Woodland
Variant code: LE-40601-A-G-8030-DA-SW03
Lumen (lm): 372 lm
Optic: G
Optic value: 103°x50°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Pine - Woodland
Variant code: LE-40601-A-G-8040-DA-01
Lumen (lm): 392 lm
Optic: G
Optic value: 103°x50°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Black
Variant code: LE-40601-A-G-8040-DA-02
Lumen (lm): 392 lm
Optic: G
Optic value: 103°x50°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Dark Grey
Variant code: LE-40601-A-G-8040-DA-03
Lumen (lm): 392 lm
Optic: G
Optic value: 103°x50°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: White
Variant code: LE-40601-A-G-8040-DA-05
Lumen (lm): 392 lm
Optic: G
Optic value: 103°x50°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Matt Silver
Variant code: LE-40601-A-G-8040-DA-06
Lumen (lm): 392 lm
Optic: G
Optic value: 103°x50°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Bronze
Variant code: LE-40601-A-G-8040-DA-SU01
Lumen (lm): 392 lm
Optic: G
Optic value: 103°x50°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Concrete - Urban
Variant code: LE-40601-A-G-8040-DA-SU02
Lumen (lm): 392 lm
Optic: G
Optic value: 103°x50°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Softscape - Urban
Variant code: LE-40601-A-G-8040-DA-SU03
Lumen (lm): 392 lm
Optic: G
Optic value: 103°x50°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Stone - Urban
Variant code: LE-40601-A-G-8040-DA-SU04
Lumen (lm): 392 lm
Optic: G
Optic value: 103°x50°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Corten - Urban
Variant code: LE-40601-A-G-8040-DA-SW01
Lumen (lm): 392 lm
Optic: G
Optic value: 103°x50°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Oak - Woodland
Variant code: LE-40601-A-G-8040-DA-SW02
Lumen (lm): 392 lm
Optic: G
Optic value: 103°x50°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Walnut - Woodland
Variant code: LE-40601-A-G-8040-DA-SW03
Lumen (lm): 392 lm
Optic: G
Optic value: 103°x50°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Pine - Woodland

ACCESSORY

PROJECT REFERENCE (LEGEND Recessed luminaires)
