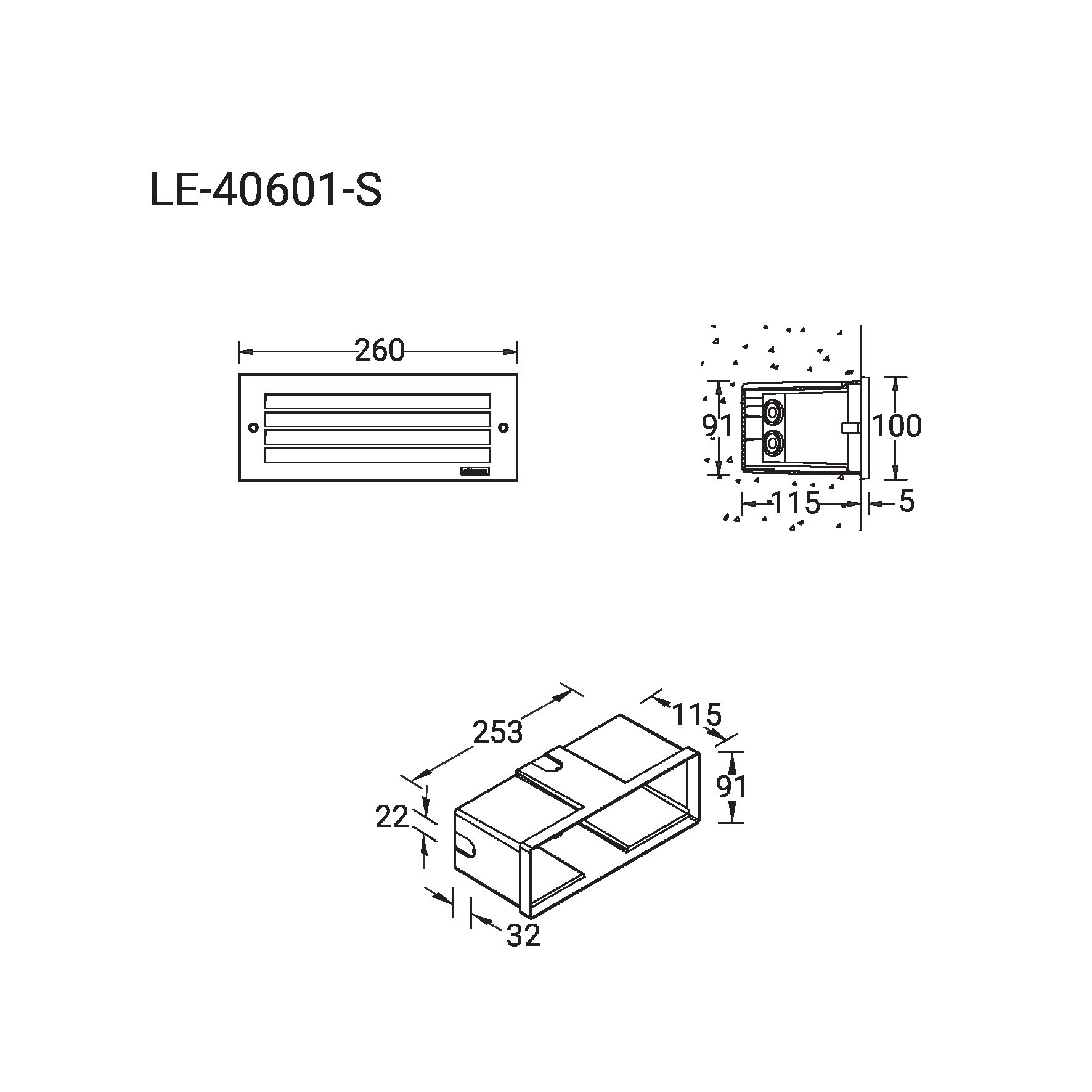

LEGEND 2
With recessing box - Stainless frame - IK07
CERETILAPClass IIP65IK07

TECHNICAL SPECIFICATIONS

Material
Stainless Steel
Light source
48 LED
Power (W)
13 W
Lumen (lm)
445 - 468 lm
Efficacy (lm/W)
34 - 36 lm/W
Driver option
Integral control gear
Driver
Constant current (CC)
Input voltage
220-240 V 50/60 Hz
Optic
G
Optic value
112°x180°
CCT / CRI
3000K CRI80, 4000K CRI80
Bug
B0-U2-G1
ULR
15%
ULOR
15%
CIE flux code nº3
77
Dimming type
On/Off, 1-10V, DALI
Product colours
Stainless Steel
Weight
1.9 kg
Operating temperature
-20 °C to 45 °C
Through wiring
Two cable entries for through wiring
Lens / Reflector / Optic
Opal high-efficiency PMMA diffuser
Variants (On/Off, 1-10V, DALI)
Compatible with EN/ IEC 60598-2-22: Suitable for emergency installations as central supply, non-maintained (Z0)

LIGHT EFFECT

Optic
G (112°x180°)

CODE FINDER

Lumen (lm)
Optic
Optic value
CCT / CRI
Dimming type
Product colour
Variant code
Lumen (lm)
Optic
Optic value
CCT / CRI
Dimming type
Product colour
Variant code: LE-40601-S-G-8030-ND-00
Lumen (lm): 445 lm
Optic: G
Optic value: 112°x180°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Stainless Steel
Variant code: LE-40601-S-G-8040-ND-00
Lumen (lm): 468 lm
Optic: G
Optic value: 112°x180°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Stainless Steel
Variant code: LE-40601-S-G-8030-DI-00
Lumen (lm): 445 lm
Optic: G
Optic value: 112°x180°
CCT / CRI: 3000K CRI80
Dimming type: 1-10V
Product colour: Stainless Steel
Variant code: LE-40601-S-G-8040-DI-00
Lumen (lm): 468 lm
Optic: G
Optic value: 112°x180°
CCT / CRI: 4000K CRI80
Dimming type: 1-10V
Product colour: Stainless Steel
Variant code: LE-40601-S-G-8030-DA-00
Lumen (lm): 445 lm
Optic: G
Optic value: 112°x180°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Stainless Steel
Variant code: LE-40601-S-G-8040-DA-00
Lumen (lm): 468 lm
Optic: G
Optic value: 112°x180°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Stainless Steel
