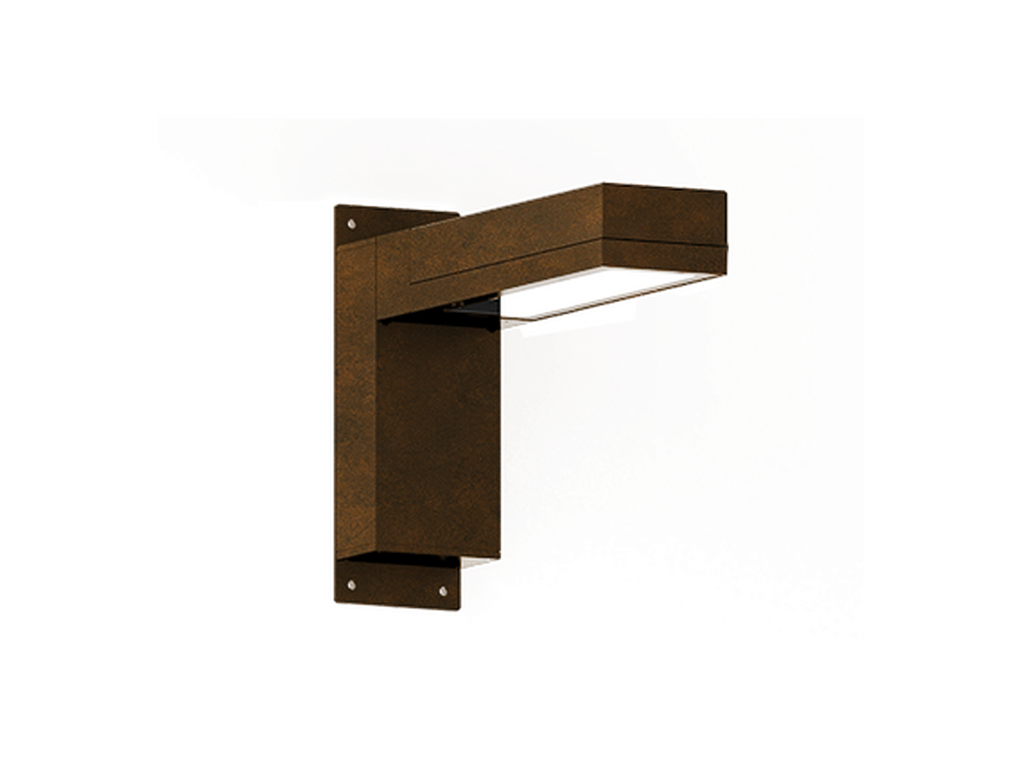

LIGMAN LIGHT LINEAR PT 12 LI-30011.

LIGHT LINEAR PT 12LI-30011LIGHT LINEAR PT

Send us an E-Mail or use the contact form:

I have read the privacy policy and agree to the processing of my data *

The fields marked with an * must be correctly filled.
Your request was successfully sent.

Send us an E-Mail or use the contact form:

I have read the privacy policy and agree to the processing of my data *

The fields marked with an * must be correctly filled.
Your request was successfully sent.

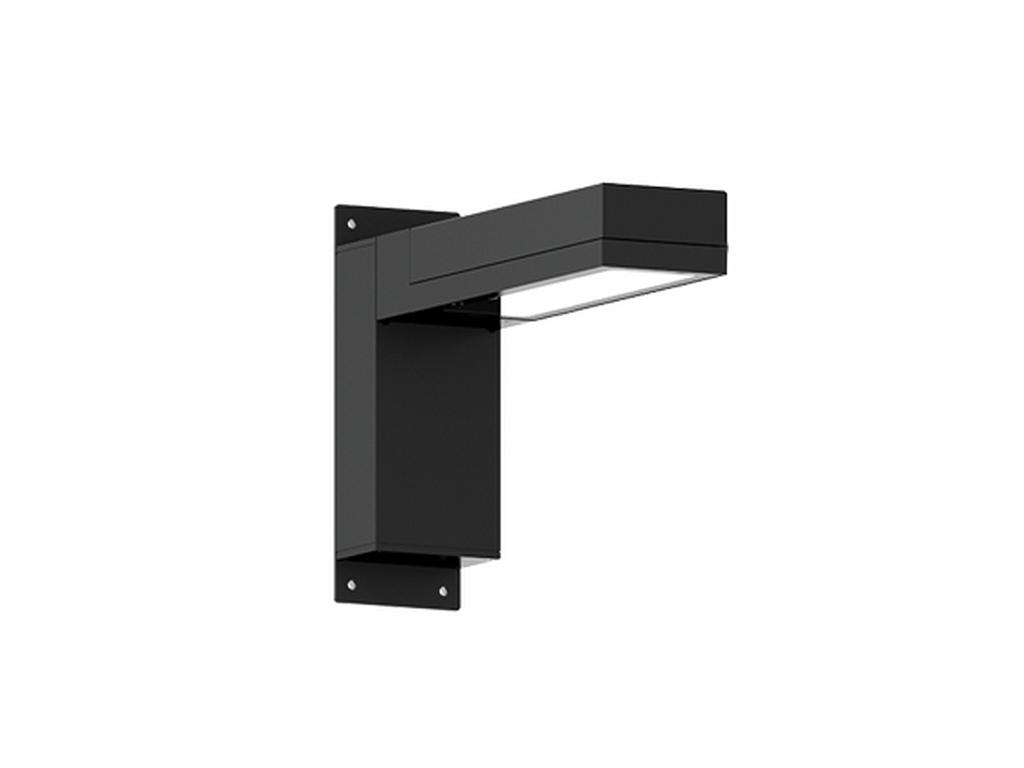

LIGHT LINEAR PT 12Black
LIGHT LINEAR PT 12Dark Grey

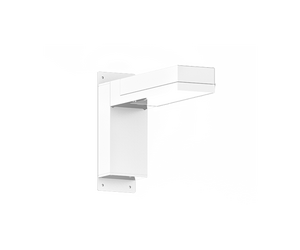

LIGHT LINEAR PT 12White

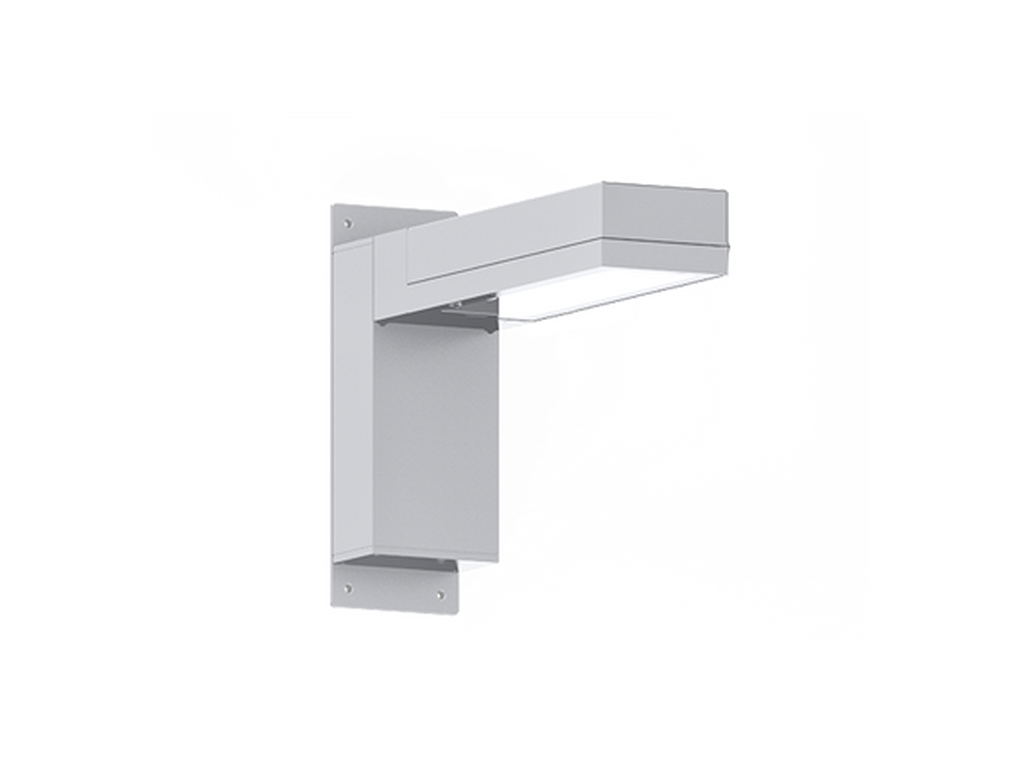

LIGHT LINEAR PT 12Matt Silver
LIGHT LINEAR PT 12Bronze

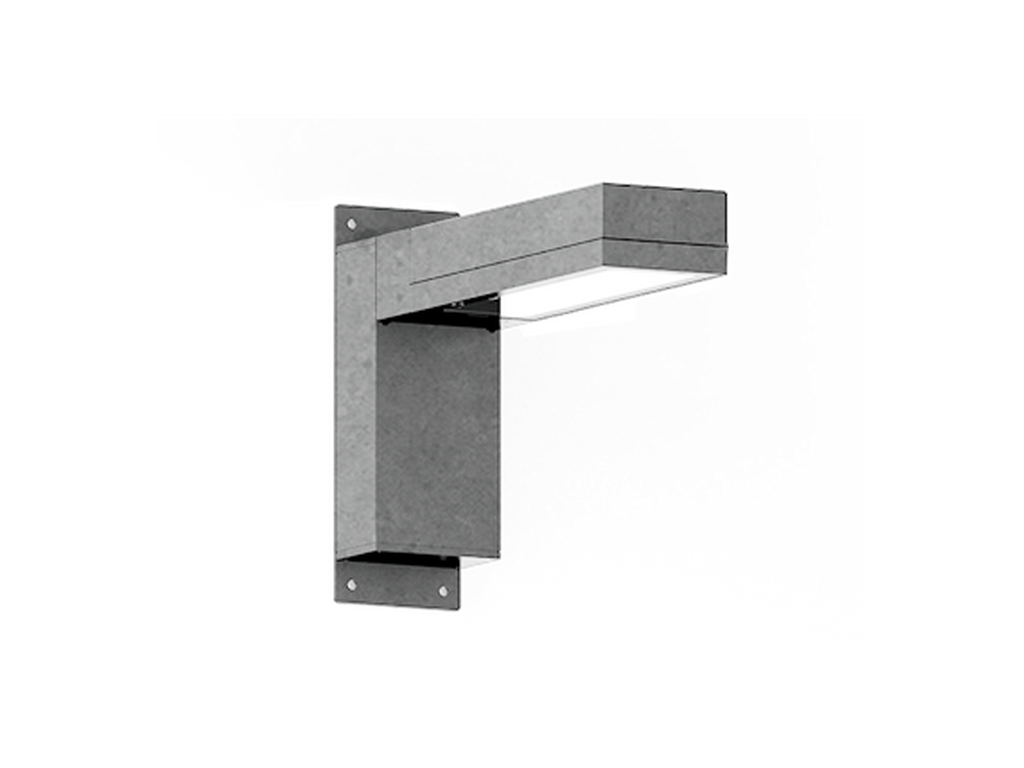

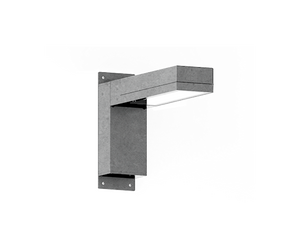

LIGHT LINEAR PT 12Concrete - Urban
LIGHT LINEAR PT 12Softscape - Urban
LIGHT LINEAR PT 12Stone - Urban
LIGHT LINEAR PT 12Corten - Urban

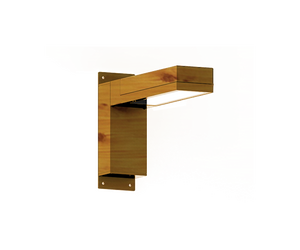

LIGHT LINEAR PT 12Oak - Woodland

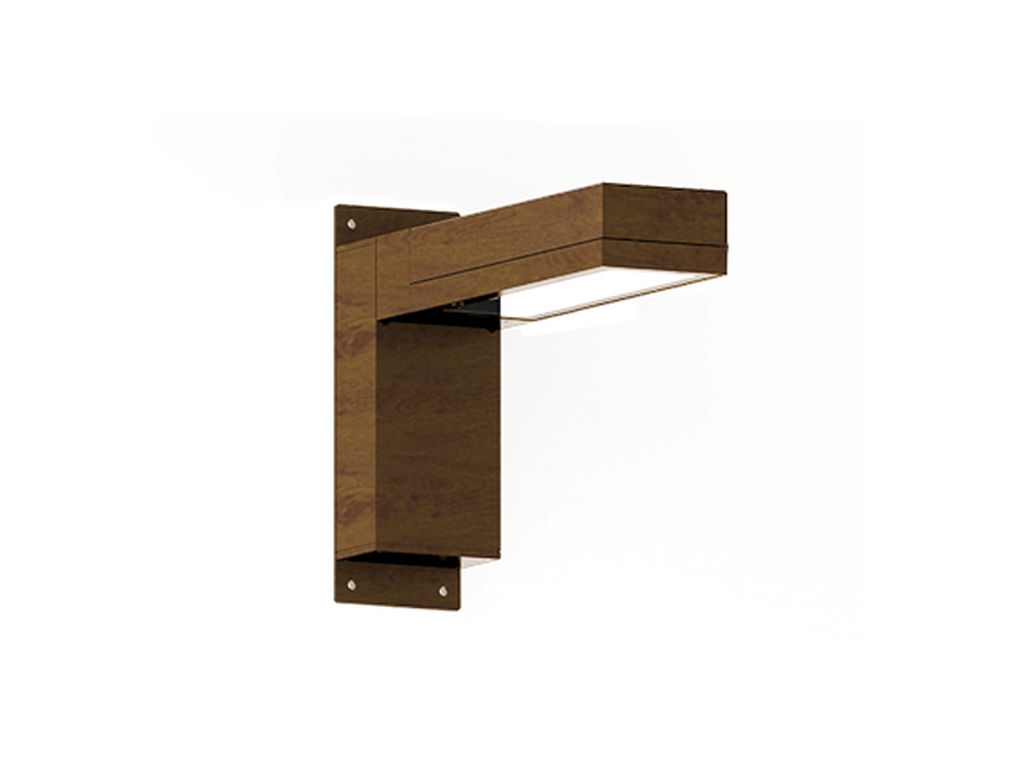

LIGHT LINEAR PT 12Walnut - Woodland
LIGHT LINEAR PT 12Pine - Woodland

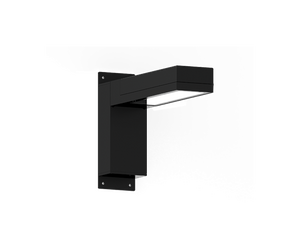

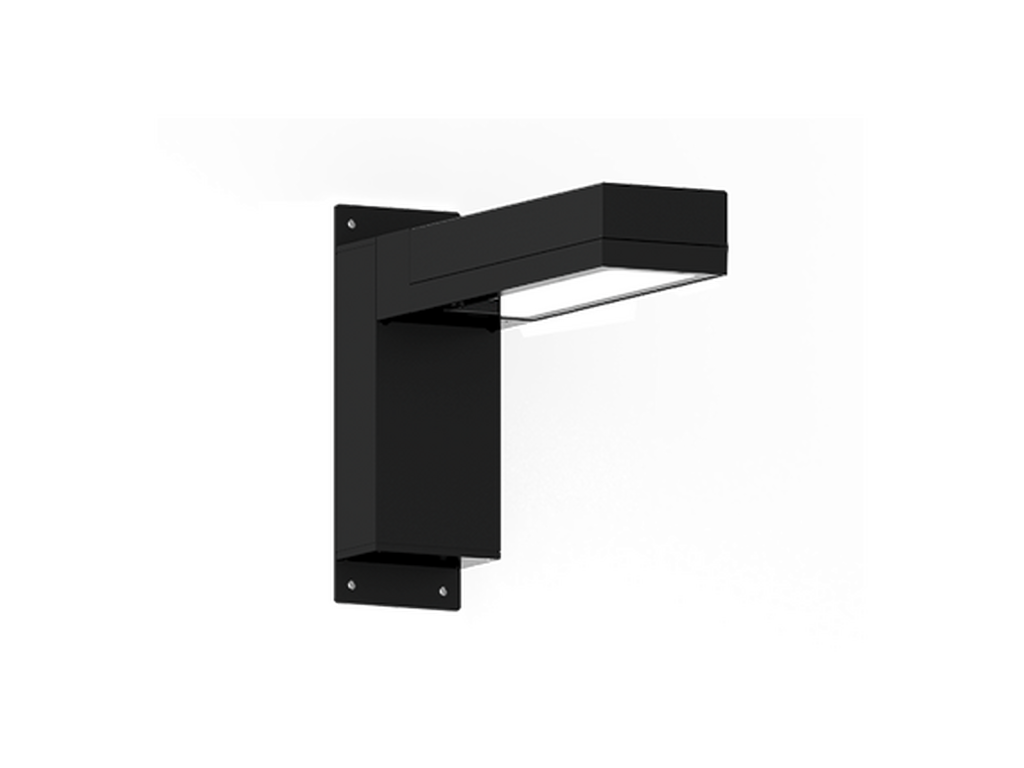

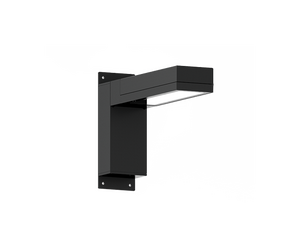

LIGHT LINEAR PT 12Black
LIGHT LINEAR PT 12Dark Grey

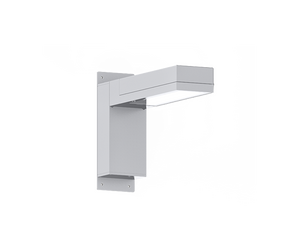

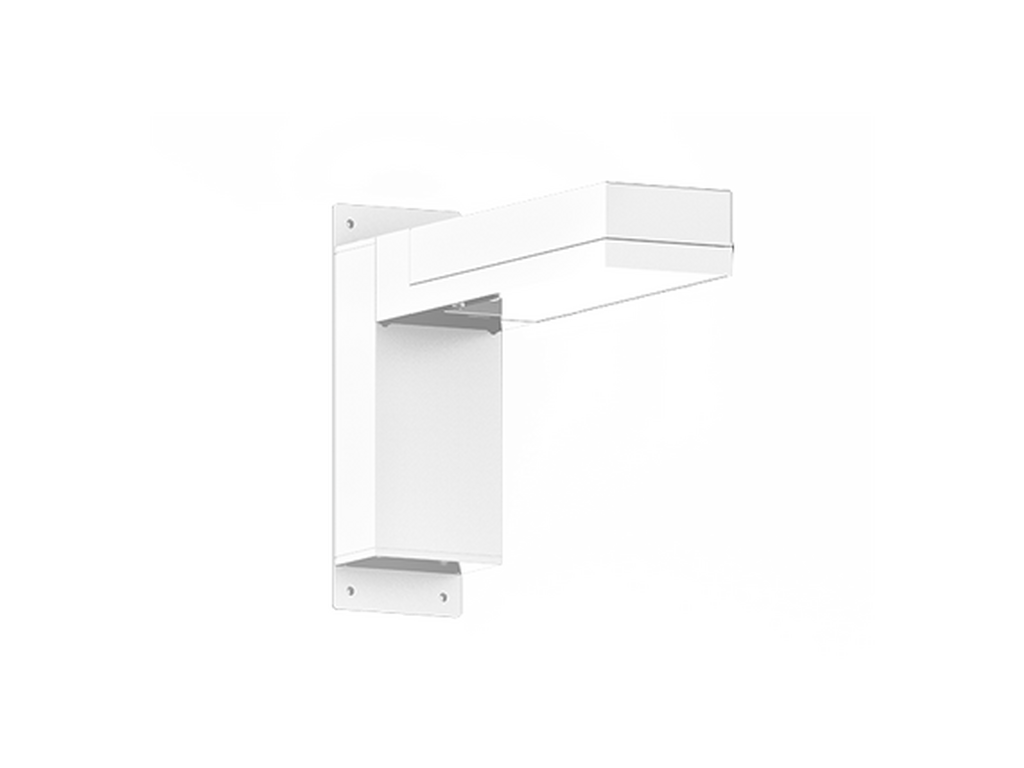

LIGHT LINEAR PT 12White
LIGHT LINEAR PT 12Matt Silver

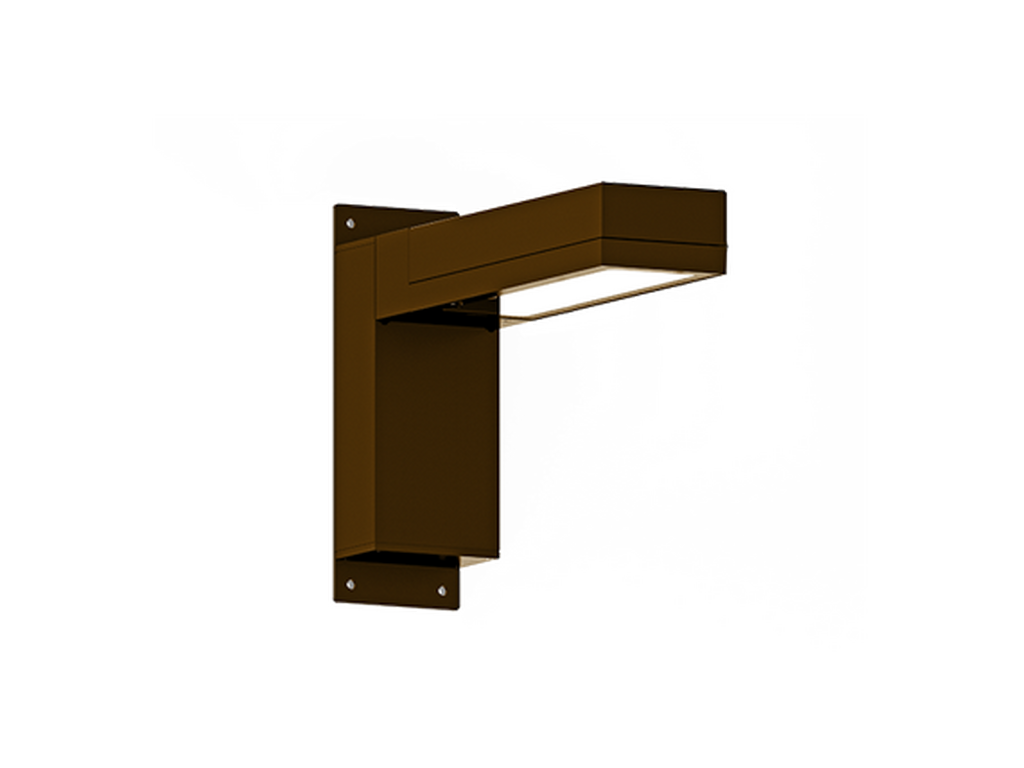

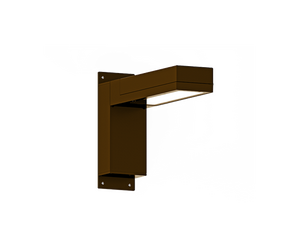

LIGHT LINEAR PT 12Bronze

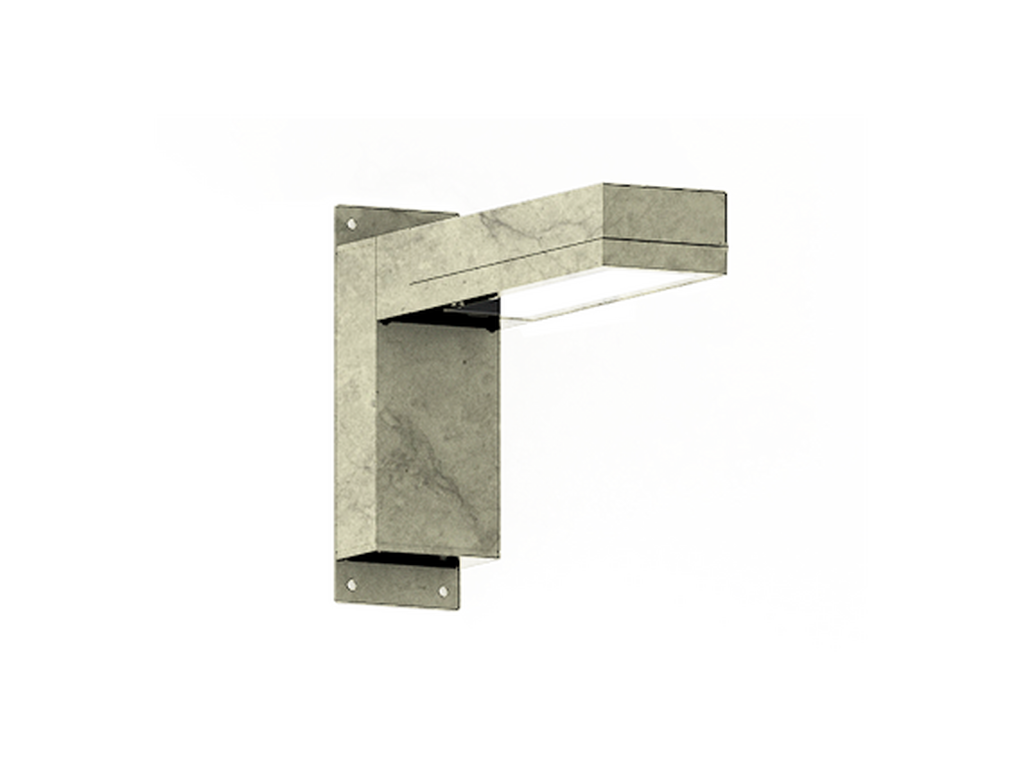

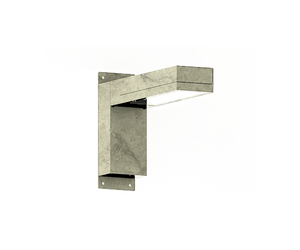

LIGHT LINEAR PT 12Concrete - Urban
LIGHT LINEAR PT 12Softscape - Urban
LIGHT LINEAR PT 12Stone - Urban

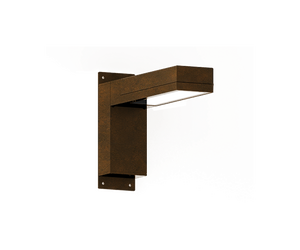

LIGHT LINEAR PT 12Corten - Urban
LIGHT LINEAR PT 12Oak - Woodland

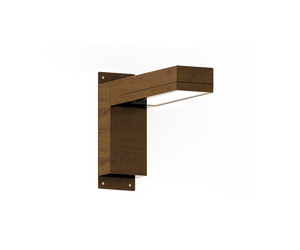

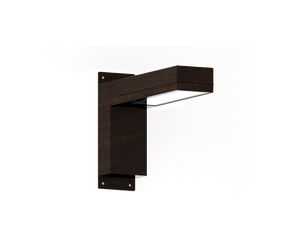

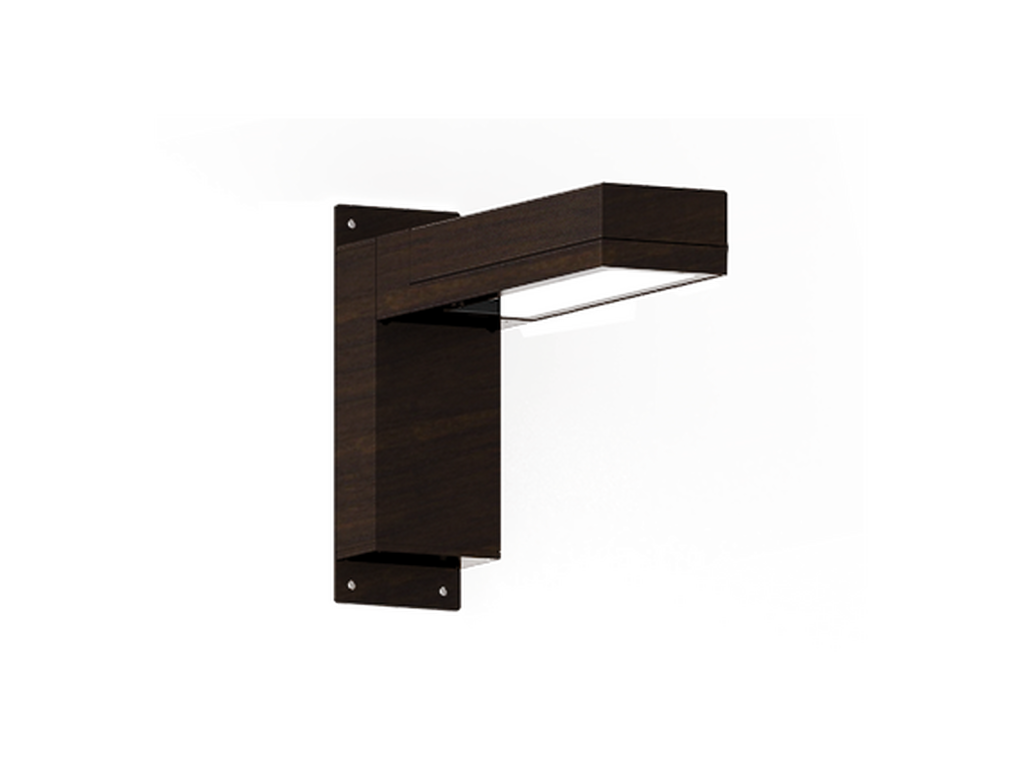

LIGHT LINEAR PT 12Walnut - Woodland

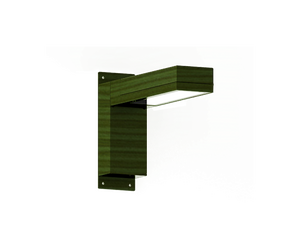

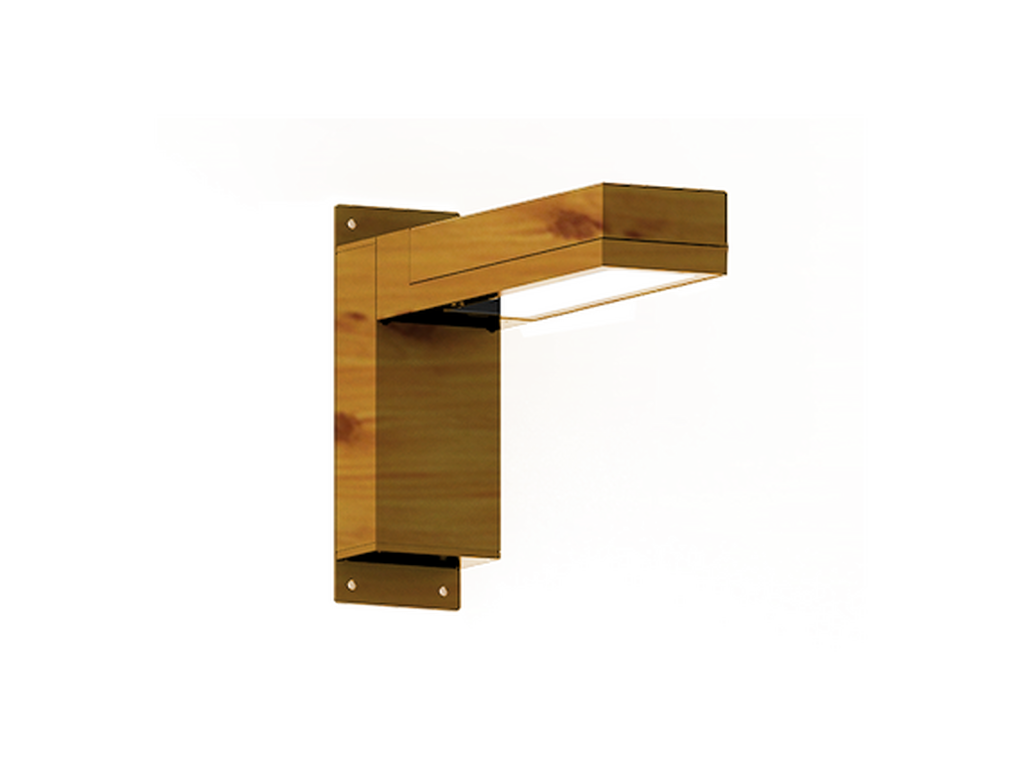

LIGHT LINEAR PT 12Pine - Woodland
CEENECRETILAPClass IIP65IK08

TECHNICAL SPECIFICATIONS

Material
Aluminium
Light source
2 x 12 LED
Power (W)
37 W
Lumen (lm)
4093 - 4601 lm
Efficacy (lm/W)
146 - 164 lm/W
Driver option
Integral control gear
Driver
Constant current (CC)
Input voltage
220-240 V 50/60 Hz
Optic
T2, T3, T4, ME
Optic value
139°x52°, 129°x69°, 102°x78°, 127°x56°
CCT / CRI
3000K CRI80, 4000K CRI80
Bug
B1-U0-G1
ULR
0%
ULOR
0%
CIE flux code nº3
98
Dimming type
On/Off, DALI
Product colours
Black, Dark Grey, White, Matt Silver, Bronze, Concrete - Urban, Softscape - Urban, Stone - Urban, Corten - Urban, Oak - Woodland, Walnut - Woodland, Pine - Woodland
Weight
7.7 kg
Operating temperature
-20 °C to 50 °C
Through wiring
Single cable entry
Lens / Reflector / Optic
Clear toughened glass, High-efficiency PMMA lens
MacAdam Ellipse
3 SDCM
Lifetime L90B10 (hours)
> 90,000
Lifetime L80B10 (hours)
> 90,000
Lifetime L80B50 (hours)
> 90,000
Variants (DALI)
Compatible with EN/ IEC 60598-2-22: Suitable for emergency installations as central supply, non-maintained (Z0)

CODE FINDER

Lumen (lm)
Optic
Optic value
CCT / CRI
Dimming type
Product colour
Variant code
Lumen (lm)
Optic
Optic value
CCT / CRI
Dimming type
Product colour
Variant code: LI-30011-T2-8030-ND-01
Lumen (lm): 4192 lm
Optic: T2
Optic value: 139°x52°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Black
Variant code: LI-30011-T2-8030-ND-02
Lumen (lm): 4192 lm
Optic: T2
Optic value: 139°x52°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Dark Grey
Variant code: LI-30011-T2-8030-ND-03
Lumen (lm): 4192 lm
Optic: T2
Optic value: 139°x52°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: White
Variant code: LI-30011-T2-8030-ND-05
Lumen (lm): 4192 lm
Optic: T2
Optic value: 139°x52°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Matt Silver
Variant code: LI-30011-T2-8030-ND-06
Lumen (lm): 4192 lm
Optic: T2
Optic value: 139°x52°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Bronze
Variant code: LI-30011-T2-8030-ND-SU01
Lumen (lm): 4192 lm
Optic: T2
Optic value: 139°x52°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Concrete - Urban
Variant code: LI-30011-T2-8030-ND-SU02
Lumen (lm): 4192 lm
Optic: T2
Optic value: 139°x52°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Softscape - Urban
Variant code: LI-30011-T2-8030-ND-SU03
Lumen (lm): 4192 lm
Optic: T2
Optic value: 139°x52°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Stone - Urban
Variant code: LI-30011-T2-8030-ND-SU04
Lumen (lm): 4192 lm
Optic: T2
Optic value: 139°x52°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Corten - Urban
Variant code: LI-30011-T2-8030-ND-SW01
Lumen (lm): 4192 lm
Optic: T2
Optic value: 139°x52°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Oak - Woodland
Variant code: LI-30011-T2-8030-ND-SW02
Lumen (lm): 4192 lm
Optic: T2
Optic value: 139°x52°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Walnut - Woodland
Variant code: LI-30011-T2-8030-ND-SW03
Lumen (lm): 4192 lm
Optic: T2
Optic value: 139°x52°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Pine - Woodland
Variant code: LI-30011-T2-8040-ND-01
Lumen (lm): 4485 lm
Optic: T2
Optic value: 139°x52°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Black
Variant code: LI-30011-T2-8040-ND-02
Lumen (lm): 4485 lm
Optic: T2
Optic value: 139°x52°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Dark Grey
Variant code: LI-30011-T2-8040-ND-03
Lumen (lm): 4485 lm
Optic: T2
Optic value: 139°x52°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: White
Variant code: LI-30011-T2-8040-ND-05
Lumen (lm): 4485 lm
Optic: T2
Optic value: 139°x52°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Matt Silver
Variant code: LI-30011-T2-8040-ND-06
Lumen (lm): 4485 lm
Optic: T2
Optic value: 139°x52°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Bronze
Variant code: LI-30011-T2-8040-ND-SU01
Lumen (lm): 4485 lm
Optic: T2
Optic value: 139°x52°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Concrete - Urban
Variant code: LI-30011-T2-8040-ND-SU02
Lumen (lm): 4485 lm
Optic: T2
Optic value: 139°x52°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Softscape - Urban
Variant code: LI-30011-T2-8040-ND-SU03
Lumen (lm): 4485 lm
Optic: T2
Optic value: 139°x52°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Stone - Urban
Variant code: LI-30011-T2-8040-ND-SU04
Lumen (lm): 4485 lm
Optic: T2
Optic value: 139°x52°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Corten - Urban
Variant code: LI-30011-T2-8040-ND-SW01
Lumen (lm): 4485 lm
Optic: T2
Optic value: 139°x52°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Oak - Woodland
Variant code: LI-30011-T2-8040-ND-SW02
Lumen (lm): 4485 lm
Optic: T2
Optic value: 139°x52°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Walnut - Woodland
Variant code: LI-30011-T2-8040-ND-SW03
Lumen (lm): 4485 lm
Optic: T2
Optic value: 139°x52°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Pine - Woodland
Variant code: LI-30011-T2-8030-DA-01
Lumen (lm): 4192 lm
Optic: T2
Optic value: 139°x52°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Black
Variant code: LI-30011-T2-8030-DA-02
Lumen (lm): 4192 lm
Optic: T2
Optic value: 139°x52°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Dark Grey
Variant code: LI-30011-T2-8030-DA-03
Lumen (lm): 4192 lm
Optic: T2
Optic value: 139°x52°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: White
Variant code: LI-30011-T2-8030-DA-05
Lumen (lm): 4192 lm
Optic: T2
Optic value: 139°x52°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Matt Silver
Variant code: LI-30011-T2-8030-DA-06
Lumen (lm): 4192 lm
Optic: T2
Optic value: 139°x52°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Bronze
Variant code: LI-30011-T2-8030-DA-SU01
Lumen (lm): 4192 lm
Optic: T2
Optic value: 139°x52°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Concrete - Urban
Variant code: LI-30011-T2-8030-DA-SU02
Lumen (lm): 4192 lm
Optic: T2
Optic value: 139°x52°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Softscape - Urban
Variant code: LI-30011-T2-8030-DA-SU03
Lumen (lm): 4192 lm
Optic: T2
Optic value: 139°x52°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Stone - Urban
Variant code: LI-30011-T2-8030-DA-SU04
Lumen (lm): 4192 lm
Optic: T2
Optic value: 139°x52°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Corten - Urban
Variant code: LI-30011-T2-8030-DA-SW01
Lumen (lm): 4192 lm
Optic: T2
Optic value: 139°x52°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Oak - Woodland
Variant code: LI-30011-T2-8030-DA-SW02
Lumen (lm): 4192 lm
Optic: T2
Optic value: 139°x52°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Walnut - Woodland
Variant code: LI-30011-T2-8030-DA-SW03
Lumen (lm): 4192 lm
Optic: T2
Optic value: 139°x52°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Pine - Woodland
Variant code: LI-30011-T2-8040-DA-01
Lumen (lm): 4485 lm
Optic: T2
Optic value: 139°x52°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Black
Variant code: LI-30011-T2-8040-DA-02
Lumen (lm): 4485 lm
Optic: T2
Optic value: 139°x52°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Dark Grey
Variant code: LI-30011-T2-8040-DA-03
Lumen (lm): 4485 lm
Optic: T2
Optic value: 139°x52°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: White
Variant code: LI-30011-T2-8040-DA-05
Lumen (lm): 4485 lm
Optic: T2
Optic value: 139°x52°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Matt Silver
Variant code: LI-30011-T2-8040-DA-06
Lumen (lm): 4485 lm
Optic: T2
Optic value: 139°x52°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Bronze
Variant code: LI-30011-T2-8040-DA-SU01
Lumen (lm): 4485 lm
Optic: T2
Optic value: 139°x52°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Concrete - Urban
Variant code: LI-30011-T2-8040-DA-SU02
Lumen (lm): 4485 lm
Optic: T2
Optic value: 139°x52°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Softscape - Urban
Variant code: LI-30011-T2-8040-DA-SU03
Lumen (lm): 4485 lm
Optic: T2
Optic value: 139°x52°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Stone - Urban
Variant code: LI-30011-T2-8040-DA-SU04
Lumen (lm): 4485 lm
Optic: T2
Optic value: 139°x52°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Corten - Urban
Variant code: LI-30011-T2-8040-DA-SW01
Lumen (lm): 4485 lm
Optic: T2
Optic value: 139°x52°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Oak - Woodland
Variant code: LI-30011-T2-8040-DA-SW02
Lumen (lm): 4485 lm
Optic: T2
Optic value: 139°x52°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Walnut - Woodland
Variant code: LI-30011-T2-8040-DA-SW03
Lumen (lm): 4485 lm
Optic: T2
Optic value: 139°x52°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Pine - Woodland
Variant code: LI-30011-T3-8030-ND-01
Lumen (lm): 4093 lm
Optic: T3
Optic value: 129°x69°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Black
Variant code: LI-30011-T3-8030-ND-02
Lumen (lm): 4093 lm
Optic: T3
Optic value: 129°x69°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Dark Grey
Variant code: LI-30011-T3-8030-ND-03
Lumen (lm): 4093 lm
Optic: T3
Optic value: 129°x69°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: White
Variant code: LI-30011-T3-8030-ND-05
Lumen (lm): 4093 lm
Optic: T3
Optic value: 129°x69°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Matt Silver
Variant code: LI-30011-T3-8030-ND-06
Lumen (lm): 4093 lm
Optic: T3
Optic value: 129°x69°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Bronze
Variant code: LI-30011-T3-8030-ND-SU01
Lumen (lm): 4093 lm
Optic: T3
Optic value: 129°x69°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Concrete - Urban
Variant code: LI-30011-T3-8030-ND-SU02
Lumen (lm): 4093 lm
Optic: T3
Optic value: 129°x69°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Softscape - Urban
Variant code: LI-30011-T3-8030-ND-SU03
Lumen (lm): 4093 lm
Optic: T3
Optic value: 129°x69°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Stone - Urban
Variant code: LI-30011-T3-8030-ND-SU04
Lumen (lm): 4093 lm
Optic: T3
Optic value: 129°x69°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Corten - Urban
Variant code: LI-30011-T3-8030-ND-SW01
Lumen (lm): 4093 lm
Optic: T3
Optic value: 129°x69°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Oak - Woodland
Variant code: LI-30011-T3-8030-ND-SW02
Lumen (lm): 4093 lm
Optic: T3
Optic value: 129°x69°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Walnut - Woodland
Variant code: LI-30011-T3-8030-ND-SW03
Lumen (lm): 4093 lm
Optic: T3
Optic value: 129°x69°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Pine - Woodland
Variant code: LI-30011-T3-8040-ND-01
Lumen (lm): 4379 lm
Optic: T3
Optic value: 129°x69°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Black
Variant code: LI-30011-T3-8040-ND-02
Lumen (lm): 4379 lm
Optic: T3
Optic value: 129°x69°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Dark Grey
Variant code: LI-30011-T3-8040-ND-03
Lumen (lm): 4379 lm
Optic: T3
Optic value: 129°x69°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: White
Variant code: LI-30011-T3-8040-ND-05
Lumen (lm): 4379 lm
Optic: T3
Optic value: 129°x69°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Matt Silver
Variant code: LI-30011-T3-8040-ND-06
Lumen (lm): 4379 lm
Optic: T3
Optic value: 129°x69°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Bronze
Variant code: LI-30011-T3-8040-ND-SU01
Lumen (lm): 4379 lm
Optic: T3
Optic value: 129°x69°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Concrete - Urban
Variant code: LI-30011-T3-8040-ND-SU02
Lumen (lm): 4379 lm
Optic: T3
Optic value: 129°x69°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Softscape - Urban
Variant code: LI-30011-T3-8040-ND-SU03
Lumen (lm): 4379 lm
Optic: T3
Optic value: 129°x69°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Stone - Urban
Variant code: LI-30011-T3-8040-ND-SU04
Lumen (lm): 4379 lm
Optic: T3
Optic value: 129°x69°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Corten - Urban
Variant code: LI-30011-T3-8040-ND-SW01
Lumen (lm): 4379 lm
Optic: T3
Optic value: 129°x69°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Oak - Woodland
Variant code: LI-30011-T3-8040-ND-SW02
Lumen (lm): 4379 lm
Optic: T3
Optic value: 129°x69°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Walnut - Woodland
Variant code: LI-30011-T3-8040-ND-SW03
Lumen (lm): 4379 lm
Optic: T3
Optic value: 129°x69°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Pine - Woodland
Variant code: LI-30011-T3-8030-DA-01
Lumen (lm): 4093 lm
Optic: T3
Optic value: 129°x69°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Black
Variant code: LI-30011-T3-8030-DA-02
Lumen (lm): 4093 lm
Optic: T3
Optic value: 129°x69°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Dark Grey
Variant code: LI-30011-T3-8030-DA-03
Lumen (lm): 4093 lm
Optic: T3
Optic value: 129°x69°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: White
Variant code: LI-30011-T3-8030-DA-05
Lumen (lm): 4093 lm
Optic: T3
Optic value: 129°x69°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Matt Silver
Variant code: LI-30011-T3-8030-DA-06
Lumen (lm): 4093 lm
Optic: T3
Optic value: 129°x69°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Bronze
Variant code: LI-30011-T3-8030-DA-SU01
Lumen (lm): 4093 lm
Optic: T3
Optic value: 129°x69°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Concrete - Urban
Variant code: LI-30011-T3-8030-DA-SU02
Lumen (lm): 4093 lm
Optic: T3
Optic value: 129°x69°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Softscape - Urban
Variant code: LI-30011-T3-8030-DA-SU03
Lumen (lm): 4093 lm
Optic: T3
Optic value: 129°x69°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Stone - Urban
Variant code: LI-30011-T3-8030-DA-SU04
Lumen (lm): 4093 lm
Optic: T3
Optic value: 129°x69°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Corten - Urban
Variant code: LI-30011-T3-8030-DA-SW01
Lumen (lm): 4093 lm
Optic: T3
Optic value: 129°x69°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Oak - Woodland
Variant code: LI-30011-T3-8030-DA-SW02
Lumen (lm): 4093 lm
Optic: T3
Optic value: 129°x69°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Walnut - Woodland
Variant code: LI-30011-T3-8030-DA-SW03
Lumen (lm): 4093 lm
Optic: T3
Optic value: 129°x69°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Pine - Woodland
Variant code: LI-30011-T3-8040-DA-01
Lumen (lm): 4379 lm
Optic: T3
Optic value: 129°x69°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Black
Variant code: LI-30011-T3-8040-DA-02
Lumen (lm): 4379 lm
Optic: T3
Optic value: 129°x69°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Dark Grey
Variant code: LI-30011-T3-8040-DA-03
Lumen (lm): 4379 lm
Optic: T3
Optic value: 129°x69°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: White
Variant code: LI-30011-T3-8040-DA-05
Lumen (lm): 4379 lm
Optic: T3
Optic value: 129°x69°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Matt Silver
Variant code: LI-30011-T3-8040-DA-06
Lumen (lm): 4379 lm
Optic: T3
Optic value: 129°x69°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Bronze
Variant code: LI-30011-T3-8040-DA-SU01
Lumen (lm): 4379 lm
Optic: T3
Optic value: 129°x69°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Concrete - Urban
Variant code: LI-30011-T3-8040-DA-SU02
Lumen (lm): 4379 lm
Optic: T3
Optic value: 129°x69°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Softscape - Urban
Variant code: LI-30011-T3-8040-DA-SU03
Lumen (lm): 4379 lm
Optic: T3
Optic value: 129°x69°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Stone - Urban
Variant code: LI-30011-T3-8040-DA-SU04
Lumen (lm): 4379 lm
Optic: T3
Optic value: 129°x69°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Corten - Urban
Variant code: LI-30011-T3-8040-DA-SW01
Lumen (lm): 4379 lm
Optic: T3
Optic value: 129°x69°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Oak - Woodland
Variant code: LI-30011-T3-8040-DA-SW02
Lumen (lm): 4379 lm
Optic: T3
Optic value: 129°x69°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Walnut - Woodland
Variant code: LI-30011-T3-8040-DA-SW03
Lumen (lm): 4379 lm
Optic: T3
Optic value: 129°x69°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Pine - Woodland
Variant code: LI-30011-T4-8030-ND-01
Lumen (lm): 4301 lm
Optic: T4
Optic value: 102°x78°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Black
Variant code: LI-30011-T4-8030-ND-02
Lumen (lm): 4301 lm
Optic: T4
Optic value: 102°x78°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Dark Grey
Variant code: LI-30011-T4-8030-ND-03
Lumen (lm): 4301 lm
Optic: T4
Optic value: 102°x78°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: White
Variant code: LI-30011-T4-8030-ND-05
Lumen (lm): 4301 lm
Optic: T4
Optic value: 102°x78°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Matt Silver
Variant code: LI-30011-T4-8030-ND-06
Lumen (lm): 4301 lm
Optic: T4
Optic value: 102°x78°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Bronze
Variant code: LI-30011-T4-8030-ND-SU01
Lumen (lm): 4301 lm
Optic: T4
Optic value: 102°x78°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Concrete - Urban
Variant code: LI-30011-T4-8030-ND-SU02
Lumen (lm): 4301 lm
Optic: T4
Optic value: 102°x78°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Softscape - Urban
Variant code: LI-30011-T4-8030-ND-SU03
Lumen (lm): 4301 lm
Optic: T4
Optic value: 102°x78°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Stone - Urban
Variant code: LI-30011-T4-8030-ND-SU04
Lumen (lm): 4301 lm
Optic: T4
Optic value: 102°x78°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Corten - Urban
Variant code: LI-30011-T4-8030-ND-SW01
Lumen (lm): 4301 lm
Optic: T4
Optic value: 102°x78°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Oak - Woodland
Variant code: LI-30011-T4-8030-ND-SW02
Lumen (lm): 4301 lm
Optic: T4
Optic value: 102°x78°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Walnut - Woodland
Variant code: LI-30011-T4-8030-ND-SW03
Lumen (lm): 4301 lm
Optic: T4
Optic value: 102°x78°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Pine - Woodland
Variant code: LI-30011-T4-8040-ND-01
Lumen (lm): 4601 lm
Optic: T4
Optic value: 102°x78°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Black
Variant code: LI-30011-T4-8040-ND-02
Lumen (lm): 4601 lm
Optic: T4
Optic value: 102°x78°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Dark Grey
Variant code: LI-30011-T4-8040-ND-03
Lumen (lm): 4601 lm
Optic: T4
Optic value: 102°x78°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: White
Variant code: LI-30011-T4-8040-ND-05
Lumen (lm): 4601 lm
Optic: T4
Optic value: 102°x78°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Matt Silver
Variant code: LI-30011-T4-8040-ND-06
Lumen (lm): 4601 lm
Optic: T4
Optic value: 102°x78°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Bronze
Variant code: LI-30011-T4-8040-ND-SU01
Lumen (lm): 4601 lm
Optic: T4
Optic value: 102°x78°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Concrete - Urban
Variant code: LI-30011-T4-8040-ND-SU02
Lumen (lm): 4601 lm
Optic: T4
Optic value: 102°x78°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Softscape - Urban
Variant code: LI-30011-T4-8040-ND-SU03
Lumen (lm): 4601 lm
Optic: T4
Optic value: 102°x78°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Stone - Urban
Variant code: LI-30011-T4-8040-ND-SU04
Lumen (lm): 4601 lm
Optic: T4
Optic value: 102°x78°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Corten - Urban
Variant code: LI-30011-T4-8040-ND-SW01
Lumen (lm): 4601 lm
Optic: T4
Optic value: 102°x78°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Oak - Woodland
Variant code: LI-30011-T4-8040-ND-SW02
Lumen (lm): 4601 lm
Optic: T4
Optic value: 102°x78°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Walnut - Woodland
Variant code: LI-30011-T4-8040-ND-SW03
Lumen (lm): 4601 lm
Optic: T4
Optic value: 102°x78°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Pine - Woodland
Variant code: LI-30011-T4-8030-DA-01
Lumen (lm): 4301 lm
Optic: T4
Optic value: 102°x78°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Black
Variant code: LI-30011-T4-8030-DA-02
Lumen (lm): 4301 lm
Optic: T4
Optic value: 102°x78°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Dark Grey
Variant code: LI-30011-T4-8030-DA-03
Lumen (lm): 4301 lm
Optic: T4
Optic value: 102°x78°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: White
Variant code: LI-30011-T4-8030-DA-05
Lumen (lm): 4301 lm
Optic: T4
Optic value: 102°x78°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Matt Silver
Variant code: LI-30011-T4-8030-DA-06
Lumen (lm): 4301 lm
Optic: T4
Optic value: 102°x78°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Bronze
Variant code: LI-30011-T4-8030-DA-SU01
Lumen (lm): 4301 lm
Optic: T4
Optic value: 102°x78°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Concrete - Urban
Variant code: LI-30011-T4-8030-DA-SU02
Lumen (lm): 4301 lm
Optic: T4
Optic value: 102°x78°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Softscape - Urban
Variant code: LI-30011-T4-8030-DA-SU03
Lumen (lm): 4301 lm
Optic: T4
Optic value: 102°x78°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Stone - Urban
Variant code: LI-30011-T4-8030-DA-SU04
Lumen (lm): 4301 lm
Optic: T4
Optic value: 102°x78°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Corten - Urban
Variant code: LI-30011-T4-8030-DA-SW01
Lumen (lm): 4301 lm
Optic: T4
Optic value: 102°x78°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Oak - Woodland
Variant code: LI-30011-T4-8030-DA-SW02
Lumen (lm): 4301 lm
Optic: T4
Optic value: 102°x78°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Walnut - Woodland
Variant code: LI-30011-T4-8030-DA-SW03
Lumen (lm): 4301 lm
Optic: T4
Optic value: 102°x78°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Pine - Woodland
Variant code: LI-30011-T4-8040-DA-01
Lumen (lm): 4601 lm
Optic: T4
Optic value: 102°x78°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Black
Variant code: LI-30011-T4-8040-DA-02
Lumen (lm): 4601 lm
Optic: T4
Optic value: 102°x78°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Dark Grey
Variant code: LI-30011-T4-8040-DA-03
Lumen (lm): 4601 lm
Optic: T4
Optic value: 102°x78°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: White
Variant code: LI-30011-T4-8040-DA-05
Lumen (lm): 4601 lm
Optic: T4
Optic value: 102°x78°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Matt Silver
Variant code: LI-30011-T4-8040-DA-06
Lumen (lm): 4601 lm
Optic: T4
Optic value: 102°x78°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Bronze
Variant code: LI-30011-T4-8040-DA-SU01
Lumen (lm): 4601 lm
Optic: T4
Optic value: 102°x78°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Concrete - Urban
Variant code: LI-30011-T4-8040-DA-SU02
Lumen (lm): 4601 lm
Optic: T4
Optic value: 102°x78°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Softscape - Urban
Variant code: LI-30011-T4-8040-DA-SU03
Lumen (lm): 4601 lm
Optic: T4
Optic value: 102°x78°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Stone - Urban
Variant code: LI-30011-T4-8040-DA-SU04
Lumen (lm): 4601 lm
Optic: T4
Optic value: 102°x78°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Corten - Urban
Variant code: LI-30011-T4-8040-DA-SW01
Lumen (lm): 4601 lm
Optic: T4
Optic value: 102°x78°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Oak - Woodland
Variant code: LI-30011-T4-8040-DA-SW02
Lumen (lm): 4601 lm
Optic: T4
Optic value: 102°x78°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Walnut - Woodland
Variant code: LI-30011-T4-8040-DA-SW03
Lumen (lm): 4601 lm
Optic: T4
Optic value: 102°x78°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Pine - Woodland
Variant code: LI-30011-ME-8030-ND-01
Lumen (lm): 4094 lm
Optic: ME
Optic value: 127°x56°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Black
Variant code: LI-30011-ME-8030-ND-02
Lumen (lm): 4094 lm
Optic: ME
Optic value: 127°x56°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Dark Grey
Variant code: LI-30011-ME-8030-ND-03
Lumen (lm): 4094 lm
Optic: ME
Optic value: 127°x56°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: White
Variant code: LI-30011-ME-8030-ND-05
Lumen (lm): 4094 lm
Optic: ME
Optic value: 127°x56°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Matt Silver
Variant code: LI-30011-ME-8030-ND-06
Lumen (lm): 4094 lm
Optic: ME
Optic value: 127°x56°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Bronze
Variant code: LI-30011-ME-8030-ND-SU01
Lumen (lm): 4094 lm
Optic: ME
Optic value: 127°x56°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Concrete - Urban
Variant code: LI-30011-ME-8030-ND-SU02
Lumen (lm): 4094 lm
Optic: ME
Optic value: 127°x56°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Softscape - Urban
Variant code: LI-30011-ME-8030-ND-SU03
Lumen (lm): 4094 lm
Optic: ME
Optic value: 127°x56°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Stone - Urban
Variant code: LI-30011-ME-8030-ND-SU04
Lumen (lm): 4094 lm
Optic: ME
Optic value: 127°x56°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Corten - Urban
Variant code: LI-30011-ME-8030-ND-SW01
Lumen (lm): 4094 lm
Optic: ME
Optic value: 127°x56°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Oak - Woodland
Variant code: LI-30011-ME-8030-ND-SW02
Lumen (lm): 4094 lm
Optic: ME
Optic value: 127°x56°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Walnut - Woodland
Variant code: LI-30011-ME-8030-ND-SW03
Lumen (lm): 4094 lm
Optic: ME
Optic value: 127°x56°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Pine - Woodland
Variant code: LI-30011-ME-8040-ND-01
Lumen (lm): 4380 lm
Optic: ME
Optic value: 127°x56°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Black
Variant code: LI-30011-ME-8040-ND-02
Lumen (lm): 4380 lm
Optic: ME
Optic value: 127°x56°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Dark Grey
Variant code: LI-30011-ME-8040-ND-03
Lumen (lm): 4380 lm
Optic: ME
Optic value: 127°x56°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: White
Variant code: LI-30011-ME-8040-ND-05
Lumen (lm): 4380 lm
Optic: ME
Optic value: 127°x56°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Matt Silver
Variant code: LI-30011-ME-8040-ND-06
Lumen (lm): 4380 lm
Optic: ME
Optic value: 127°x56°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Bronze
Variant code: LI-30011-ME-8040-ND-SU01
Lumen (lm): 4380 lm
Optic: ME
Optic value: 127°x56°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Concrete - Urban
Variant code: LI-30011-ME-8040-ND-SU02
Lumen (lm): 4380 lm
Optic: ME
Optic value: 127°x56°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Softscape - Urban
Variant code: LI-30011-ME-8040-ND-SU03
Lumen (lm): 4380 lm
Optic: ME
Optic value: 127°x56°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Stone - Urban
Variant code: LI-30011-ME-8040-ND-SU04
Lumen (lm): 4380 lm
Optic: ME
Optic value: 127°x56°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Corten - Urban
Variant code: LI-30011-ME-8040-ND-SW01
Lumen (lm): 4380 lm
Optic: ME
Optic value: 127°x56°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Oak - Woodland
Variant code: LI-30011-ME-8040-ND-SW02
Lumen (lm): 4380 lm
Optic: ME
Optic value: 127°x56°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Walnut - Woodland
Variant code: LI-30011-ME-8040-ND-SW03
Lumen (lm): 4380 lm
Optic: ME
Optic value: 127°x56°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Pine - Woodland
Variant code: LI-30011-ME-8030-DA-01
Lumen (lm): 4094 lm
Optic: ME
Optic value: 127°x56°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Black
Variant code: LI-30011-ME-8030-DA-02
Lumen (lm): 4094 lm
Optic: ME
Optic value: 127°x56°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Dark Grey
Variant code: LI-30011-ME-8030-DA-03
Lumen (lm): 4094 lm
Optic: ME
Optic value: 127°x56°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: White
Variant code: LI-30011-ME-8030-DA-05
Lumen (lm): 4094 lm
Optic: ME
Optic value: 127°x56°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Matt Silver
Variant code: LI-30011-ME-8030-DA-06
Lumen (lm): 4094 lm
Optic: ME
Optic value: 127°x56°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Bronze
Variant code: LI-30011-ME-8030-DA-SU01
Lumen (lm): 4094 lm
Optic: ME
Optic value: 127°x56°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Concrete - Urban
Variant code: LI-30011-ME-8030-DA-SU02
Lumen (lm): 4094 lm
Optic: ME
Optic value: 127°x56°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Softscape - Urban
Variant code: LI-30011-ME-8030-DA-SU03
Lumen (lm): 4094 lm
Optic: ME
Optic value: 127°x56°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Stone - Urban
Variant code: LI-30011-ME-8030-DA-SU04
Lumen (lm): 4094 lm
Optic: ME
Optic value: 127°x56°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Corten - Urban
Variant code: LI-30011-ME-8030-DA-SW01
Lumen (lm): 4094 lm
Optic: ME
Optic value: 127°x56°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Oak - Woodland
Variant code: LI-30011-ME-8030-DA-SW02
Lumen (lm): 4094 lm
Optic: ME
Optic value: 127°x56°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Walnut - Woodland
Variant code: LI-30011-ME-8030-DA-SW03
Lumen (lm): 4094 lm
Optic: ME
Optic value: 127°x56°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Pine - Woodland
Variant code: LI-30011-ME-8040-DA-01
Lumen (lm): 4380 lm
Optic: ME
Optic value: 127°x56°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Black
Variant code: LI-30011-ME-8040-DA-02
Lumen (lm): 4380 lm
Optic: ME
Optic value: 127°x56°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Dark Grey
Variant code: LI-30011-ME-8040-DA-03
Lumen (lm): 4380 lm
Optic: ME
Optic value: 127°x56°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: White
Variant code: LI-30011-ME-8040-DA-05
Lumen (lm): 4380 lm
Optic: ME
Optic value: 127°x56°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Matt Silver
Variant code: LI-30011-ME-8040-DA-06
Lumen (lm): 4380 lm
Optic: ME
Optic value: 127°x56°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Bronze
Variant code: LI-30011-ME-8040-DA-SU01
Lumen (lm): 4380 lm
Optic: ME
Optic value: 127°x56°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Concrete - Urban
Variant code: LI-30011-ME-8040-DA-SU02
Lumen (lm): 4380 lm
Optic: ME
Optic value: 127°x56°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Softscape - Urban
Variant code: LI-30011-ME-8040-DA-SU03
Lumen (lm): 4380 lm
Optic: ME
Optic value: 127°x56°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Stone - Urban
Variant code: LI-30011-ME-8040-DA-SU04
Lumen (lm): 4380 lm
Optic: ME
Optic value: 127°x56°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Corten - Urban
Variant code: LI-30011-ME-8040-DA-SW01
Lumen (lm): 4380 lm
Optic: ME
Optic value: 127°x56°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Oak - Woodland
Variant code: LI-30011-ME-8040-DA-SW02
Lumen (lm): 4380 lm
Optic: ME
Optic value: 127°x56°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Walnut - Woodland
Variant code: LI-30011-ME-8040-DA-SW03
Lumen (lm): 4380 lm
Optic: ME
Optic value: 127°x56°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Pine - Woodland

ACCESSORY

PROJECT REFERENCE (LIGHT LINEAR PT Surface facade luminaires)

SOCIAL

Facebook-f Instagram Youtube Linkedin-in Twitter Pinterest Line

NEWSLETTER

Sign up to our newsletter

Copyright © LIGMAN Lighting Co., Ltd.

Privacy Policy      Privacy Policy CCTV      Terms of use      Terms of sales
