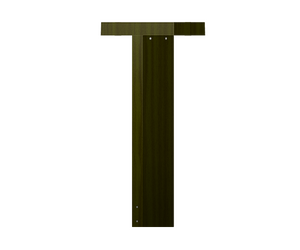

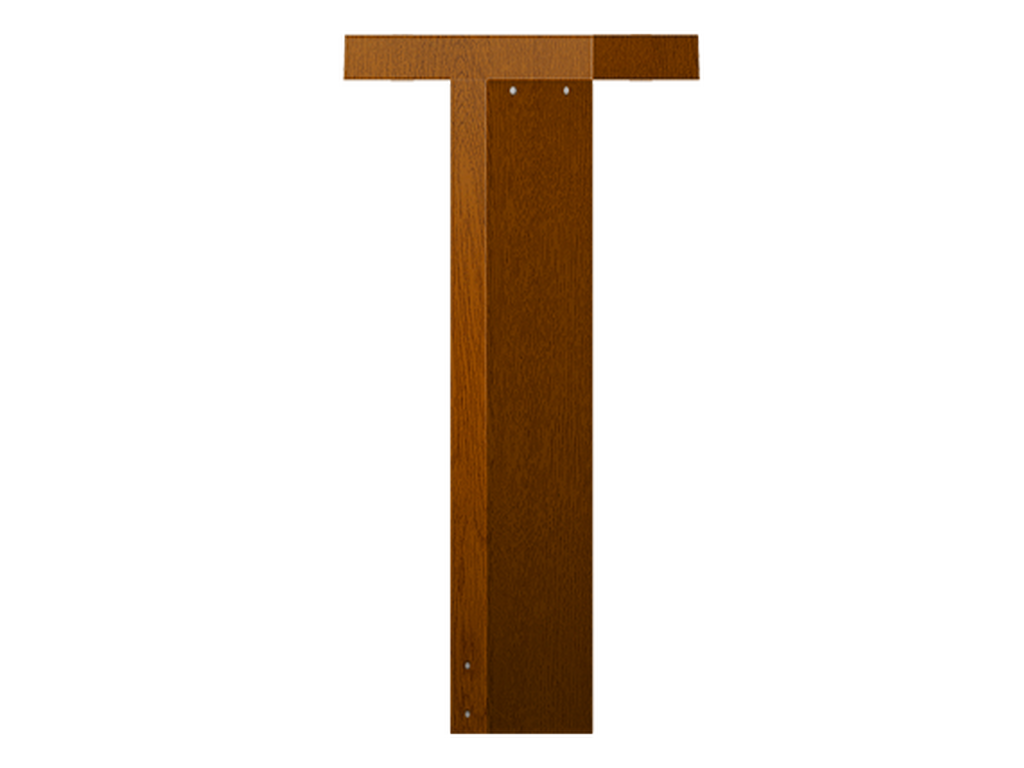

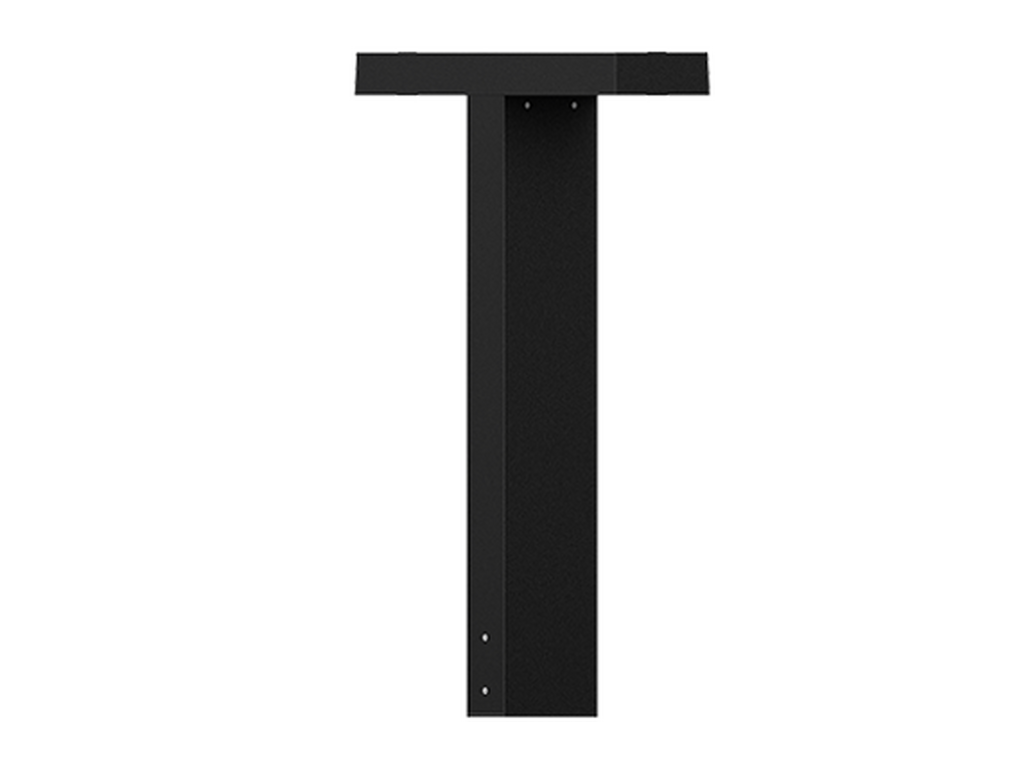

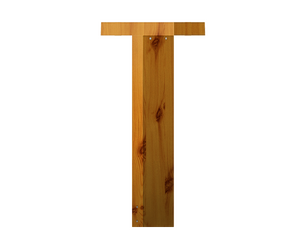

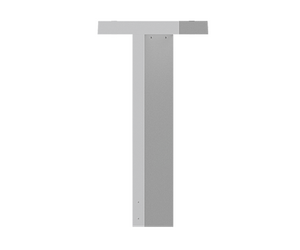

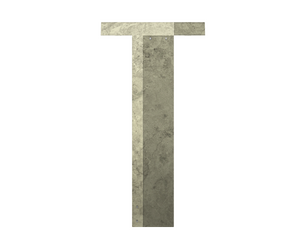

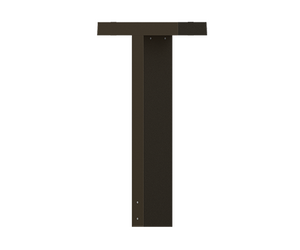

LIGHT LINEAR PT 2LI-10032LIGHT LINEAR PT
Black
Dark Grey
White
Matt Silver
Bronze

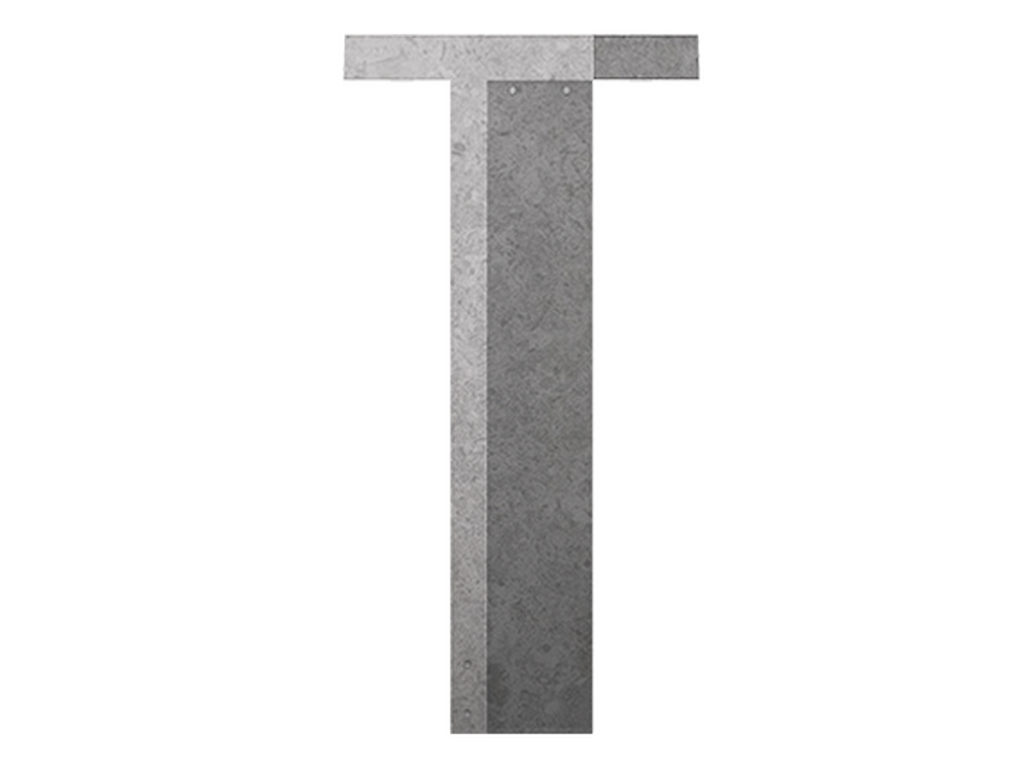

Concrete - Urban
Softscape - Urban

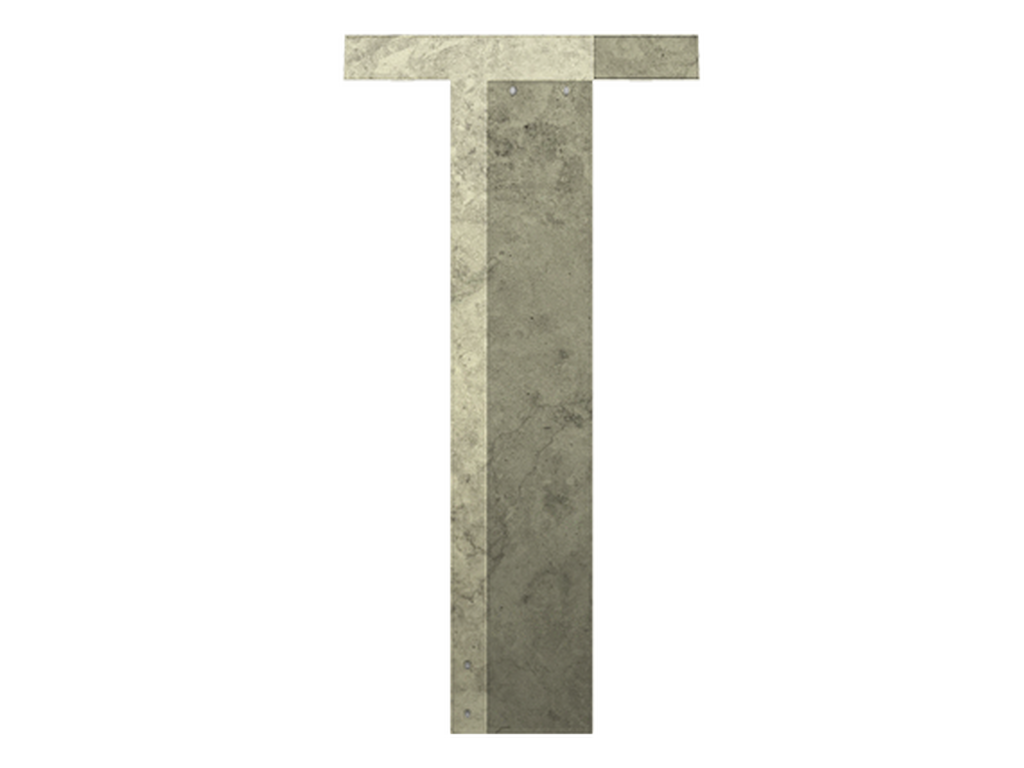

Stone - Urban

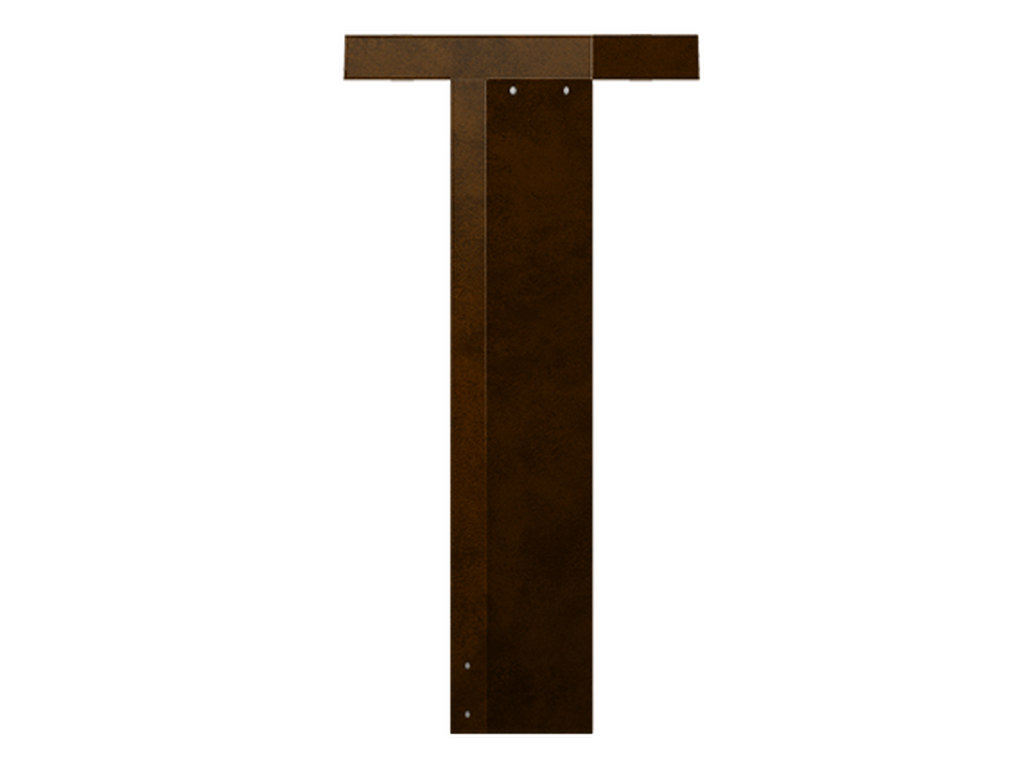

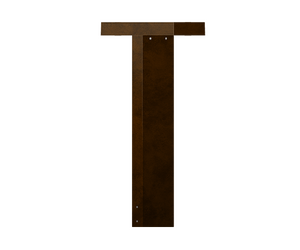

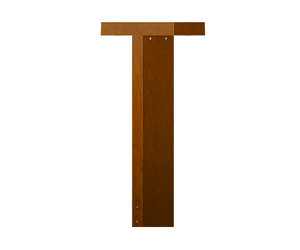

Corten - Urban

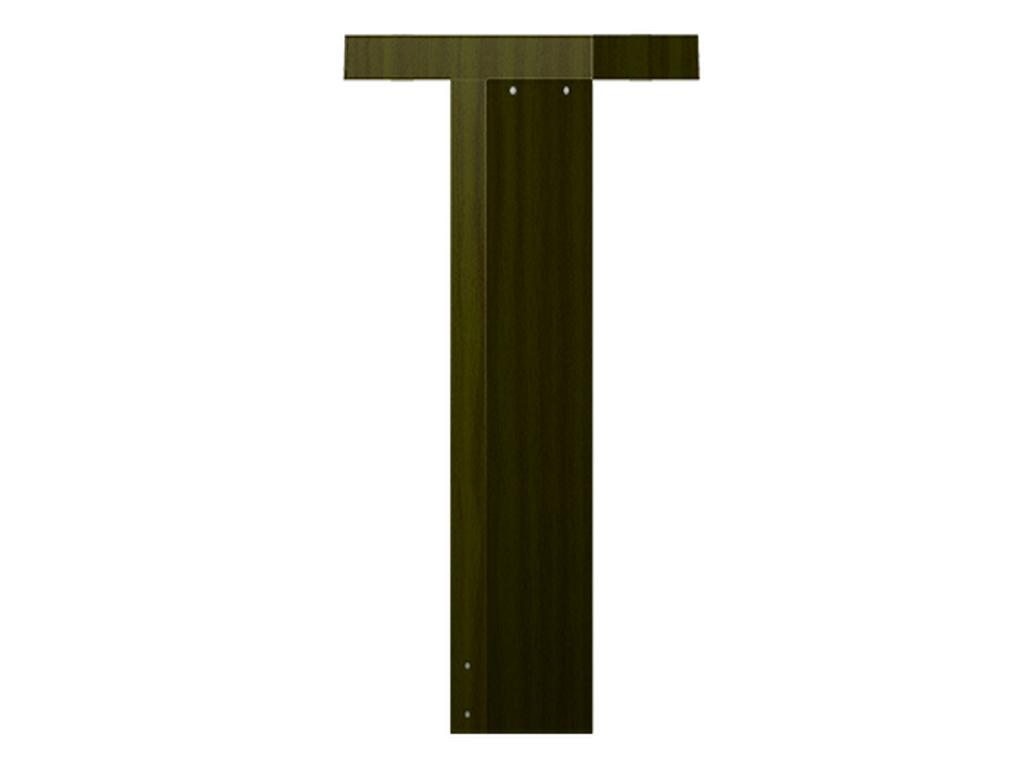

Oak - Woodland

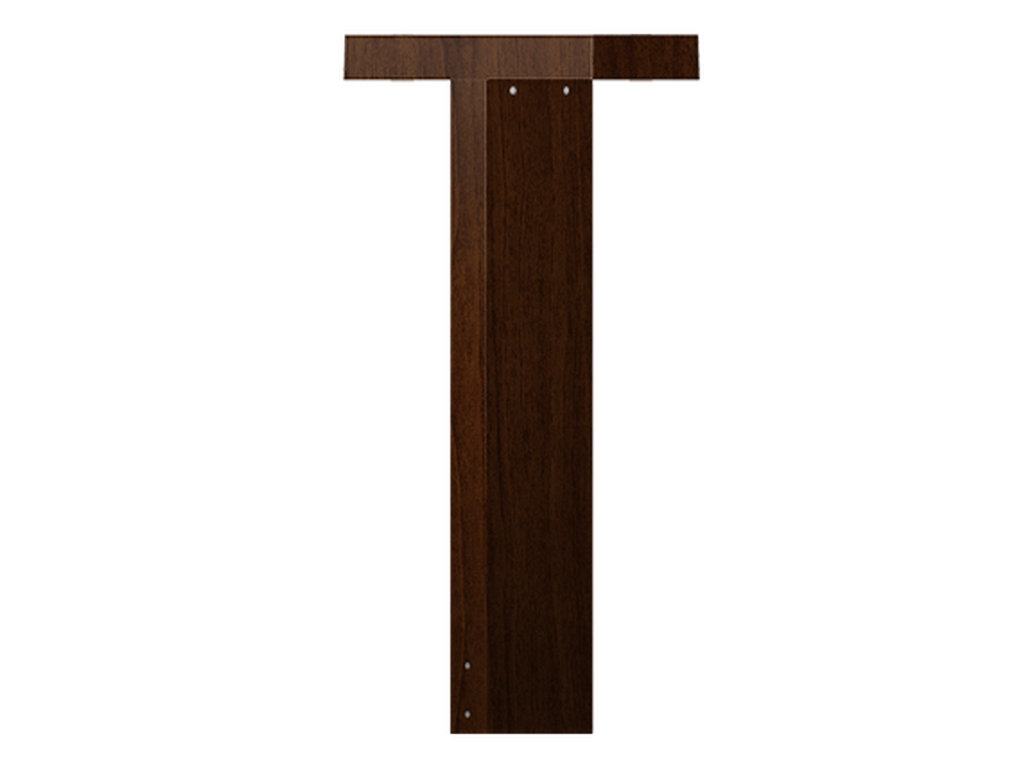

Walnut - Woodland

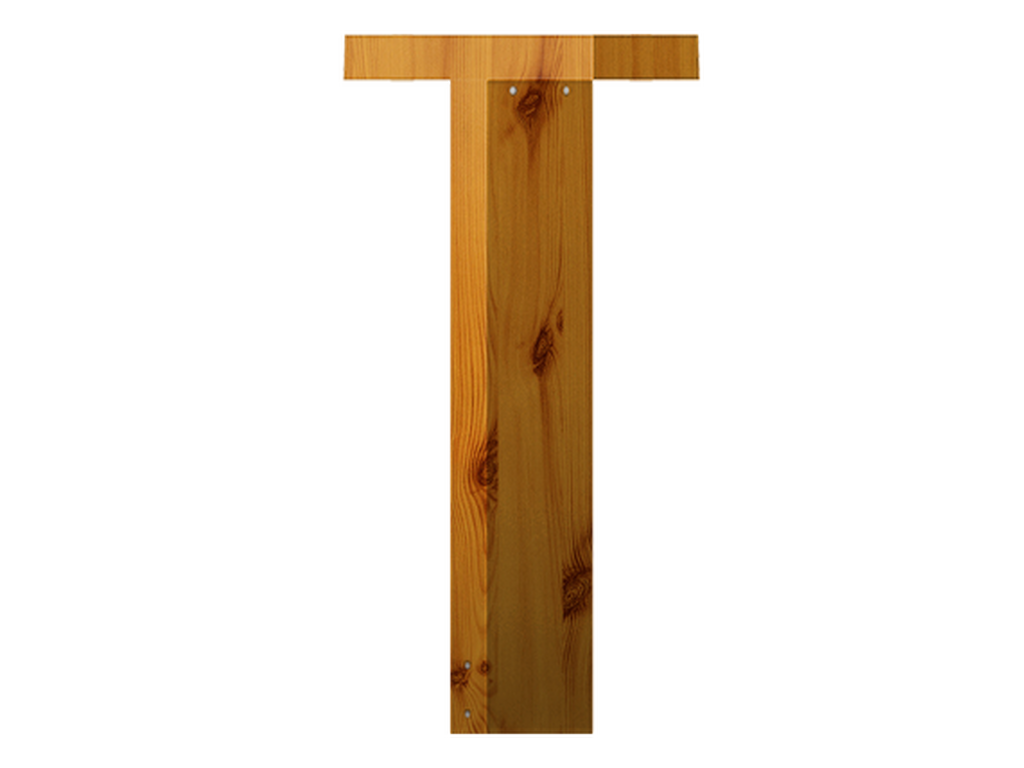

Pine - Woodland
Black

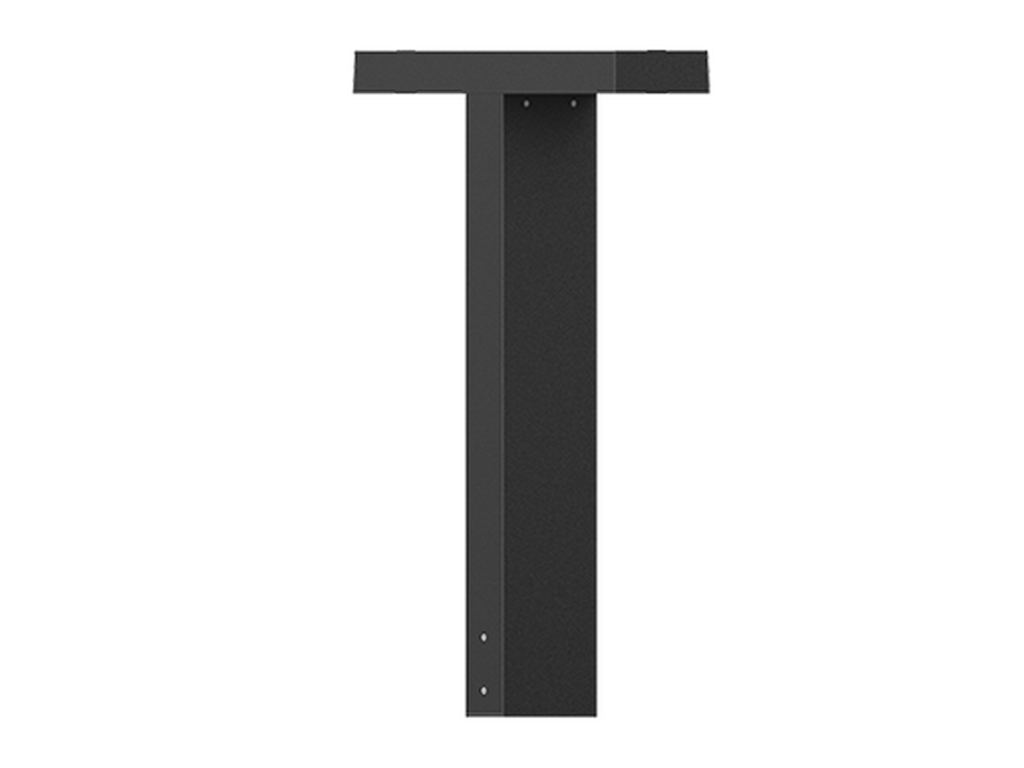

Dark Grey

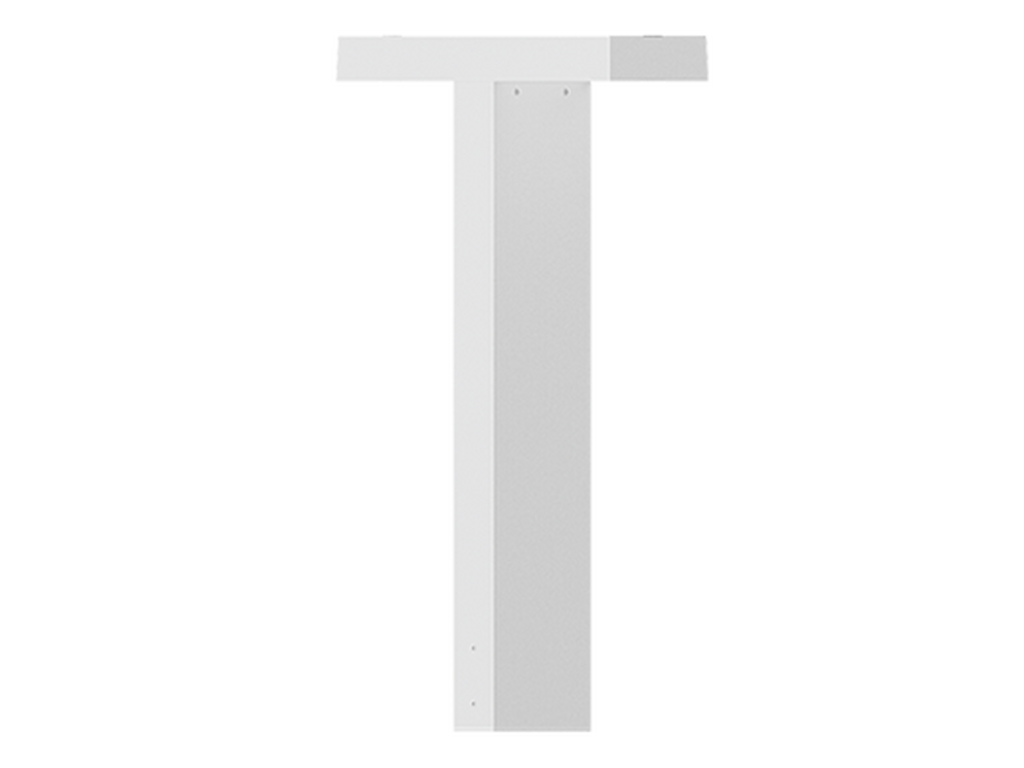

White

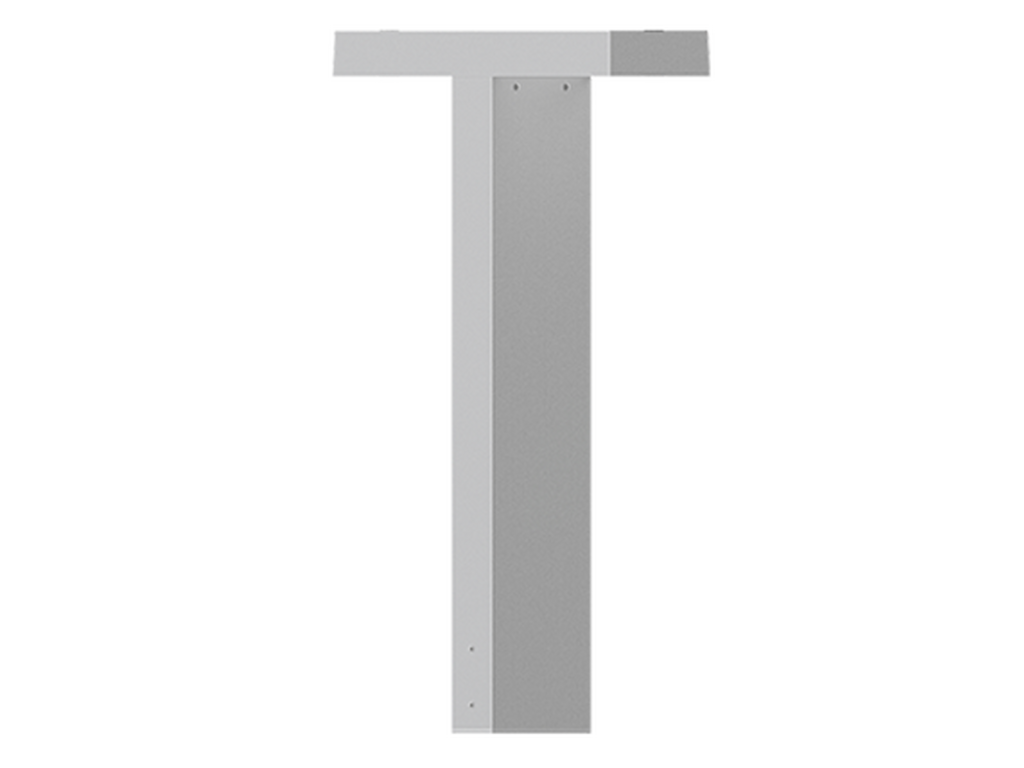

Matt Silver

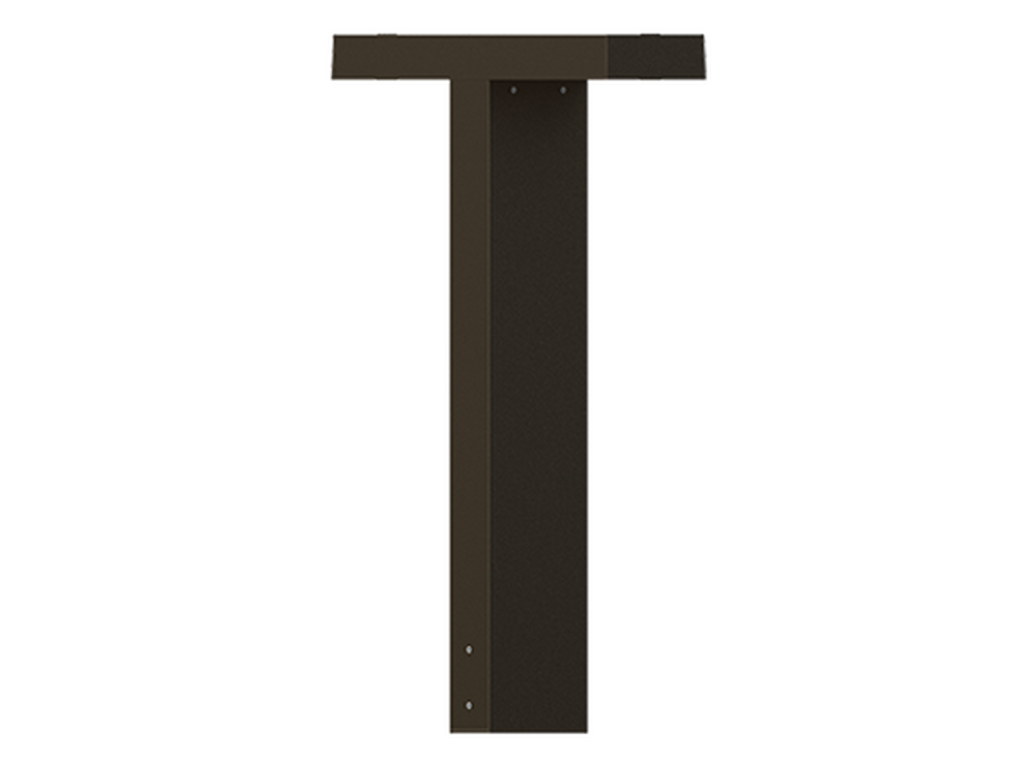

Bronze

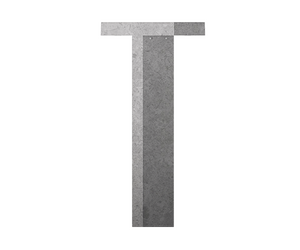

Concrete - Urban
Softscape - Urban
Stone - Urban
Corten - Urban
Oak - Woodland
Walnut - Woodland
Pine - Woodland
200x80 mm - 1000 mm - 2 sides
TECHNICAL SPECIFICATIONS
Material
Aluminium
Light source
2 x 24 LED
Power (W)
108 W
Lumen (lm)
11002 - 12386 lm
Efficacy (lm/W)
102 - 115 lm/W
Driver option
Integral control gear
Driver
Constant current (CC)
Input voltage
220-240 V 50/60 Hz
Optic
T2, T3, T4
Optic value
142°x53°, 141°x69°, 99°x79°
CCT / CRI
3000K CRI80, 4000K CRI80
Bug
B1-U0-G1, B2-U0-G2
ULR
0%
ULOR
0%
CIE flux code nº3
97, 98
Dimming type
On/Off, 1-10V, DALI
Product colours
Black, Dark Grey, White, Matt Silver, Bronze, Concrete - Urban, Softscape - Urban, Stone - Urban, Corten - Urban, Oak - Woodland, Walnut - Woodland, Pine - Woodland
Weight
15.8 kg
Operating temperature
-20 °C to 50 °C
Cable
One IP68 connector supplied with 0.2 m of 3x1.0 sqmm outdoor cable
Through wiring
Single cable entry
Lens / Reflector / Optic
Clear toughened glass, High-efficiency PMMA lens
MacAdam Ellipse
3 SDCM
Lifetime L90B10 (hours)
> 90,000
Lifetime L80B10 (hours)
> 90,000
Lifetime L80B50 (hours)
> 90,000
Variants (On/Off, 1-10V, DALI)
Compatible with EN/ IEC 60598-2-22: Suitable for emergency installations as central supply, non-maintained (Z0)
DOWNLOADS
Family spec sheet
Product spec sheet
Installation manual
Technical drawing
2D - CAD
BIM - IFC
DIALux - ULD
IES
3D view link
CE documentFor BIM files (Revit - RFA), please check the Variant code

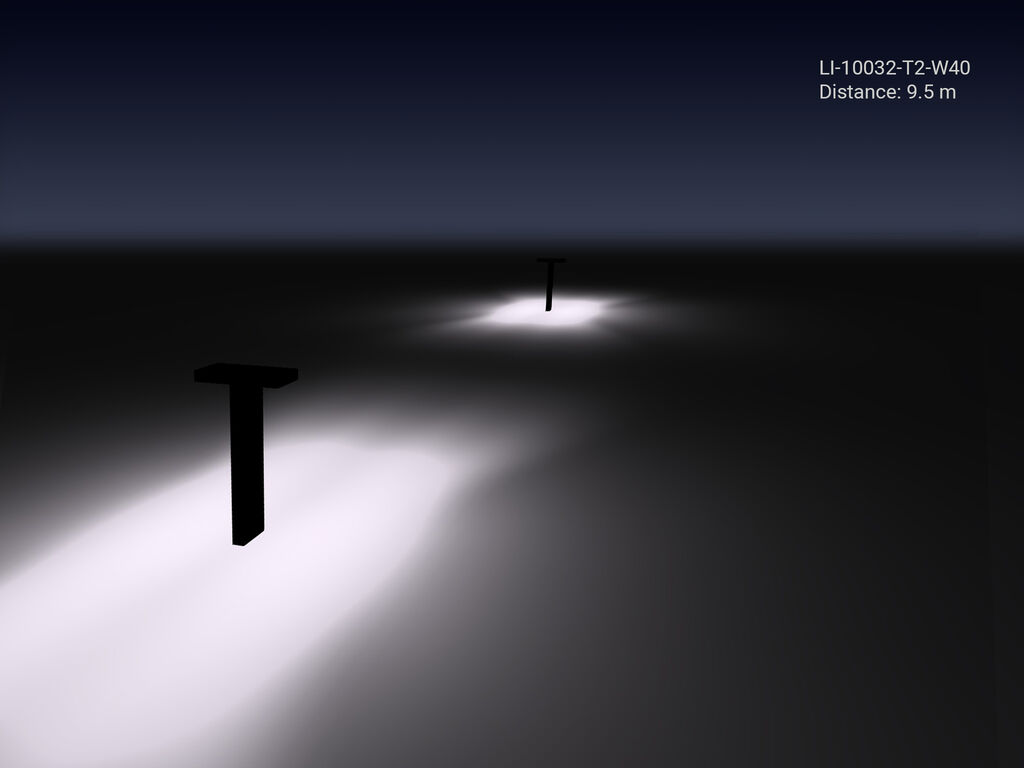

LIGHT EFFECT
