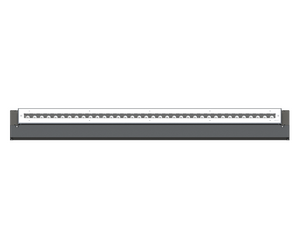

LIGHTALK 1
With recessing box - Integral control gear - 1250 mm - Class I
CERETILAPClass IIP67IK10

TECHNICAL SPECIFICATIONS

Material
Stainless Steel
Light source
36 LED
Power (W)
56 W
Lumen (lm)
3573 - 3760 lm
Efficacy (lm/W)
64 - 67 lm/W
Driver option
Integral control gear
Driver
Constant current (CC)
Input voltage
220-240 V 50/60 Hz
Optic
AS
Optic value
27°x60°
CCT / CRI
3000K CRI80, 4000K CRI80
Bug
B0-U5-G0
ULR
99%
ULOR
99% 99%, 99%
Dimming type
On/Off, 1-10V, DALI
Product colours
Stainless Steel
Weight
7.8 kg
Operating temperature
-20 °C to 40 °C
Cable
One IP67 connector supplied with 0.2 m of 3x1.0 sqmm outdoor cable
Through wiring
Single cable entry, through wiring upon request
Lens / Reflector / Optic
Clear toughened glass
Variants (On/Off, 1-10V, DALI)
Compatible with EN/ IEC 60598-2-22: Suitable for emergency installations as central supply, non-maintained (Z0)

LIGHT EFFECT

Optic
AS (27°x60°)

CODE FINDER

Lumen (lm)
Optic
Optic value
CCT / CRI
Dimming type
Product colour
Variant code
Lumen (lm)
Optic
Optic value
CCT / CRI
Dimming type
Product colour
Variant code: LA-60004-AS-8030-ND-00
Lumen (lm): 3573 lm
Optic: AS
Optic value: 27°x60°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Stainless Steel
Variant code: LA-60004-AS-8040-ND-00
Lumen (lm): 3760 lm
Optic: AS
Optic value: 27°x60°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Stainless Steel
Variant code: LA-60004-AS-8030-DI-00
Lumen (lm): 3573 lm
Optic: AS
Optic value: 27°x60°
CCT / CRI: 3000K CRI80
Dimming type: 1-10V
Product colour: Stainless Steel
Variant code: LA-60004-AS-8040-DI-00
Lumen (lm): 3760 lm
Optic: AS
Optic value: 27°x60°
CCT / CRI: 4000K CRI80
Dimming type: 1-10V
Product colour: Stainless Steel
Variant code: LA-60004-AS-8030-DA-00
Lumen (lm): 3573 lm
Optic: AS
Optic value: 27°x60°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Stainless Steel
Variant code: LA-60004-AS-8040-DA-00
Lumen (lm): 3760 lm
Optic: AS
Optic value: 27°x60°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Stainless Steel
