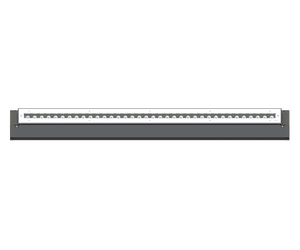

LIGHTALK 12LA-60033 (Version 1)
LIGHTALK
Without remote driver - With recessing box - Constant voltage (CV) 24 V - 1250 mm - Class III - RGBW
TECHNICAL SPECIFICATIONS
Material
Stainless Steel
Light source
36 LED
Power (W)
70 W
Lumen (lm)
1810 - 3896 lm
Efficacy (lm/W)
33 - 71 lm/W
Driver option
Remote driver (not included)
Driver
Constant voltage (CV)
Input voltage
24 VDC
Optic
N, M, W, E
Optic value
16°, 32°, 55°, 20°x30°
CCT / CRI
RGB+Amber, RGBW30, RGBW40
Dimming type
DMX, DMX/RDM
Product colours
Stainless Steel
Weight
7.8 kg
Operating temperature
-20 °C to 40 °C
Cable
Four IP67 connectors supplied with 2x0.2 m of 3x1.0 sqmm outdoor cable and 2x0.2 m of 2x0.5 sqmm outdoor shielded cable
Through wiring
Two cable entries for through wiring
Lens / Reflector / Optic
Clear toughened glass
DOWNLOADS
Family spec sheet
Product spec sheet
Installation manual
Technical drawing
2D - CAD
IES
CE documentFor BIM files (Revit - RFA), please check the Variant code
LIGHT EFFECT
Optic
N (16°)
M (32°)
W (55°)
E (20°x30°)
CODE FINDER
Lumen (lm)
Optic
Optic value
CCT / CRI
Dimming type
Product colour
Variant code
Lumen (lm)
Optic
Optic value
CCT / CRI
Dimming type
Product colour
Variant code: LA-60033-N-30-DMX-00
Lumen (lm): 3818 lm
Optic: N
Optic value: 16°
CCT / CRI: RGBW30
Dimming type: DMX
Product colour: Stainless Steel
Variant code: LA-60033-N-40-DMX-00
Lumen (lm): 3896 lm
Optic: N
Optic value: 16°
CCT / CRI: RGBW40
Dimming type: DMX
Product colour: Stainless Steel
Variant code: LA-60033-N-RGBA-DMX-00
Lumen (lm): 2598 lm
Optic: N
Optic value: 16°
CCT / CRI: RGB+Amber
Dimming type: DMX
Product colour: Stainless Steel
Variant code: LA-60033-N-30-DMXRDM-00
Lumen (lm): 3818 lm
Optic: N
Optic value: 16°
CCT / CRI: RGBW30
Dimming type: DMX/RDM
Product colour: Stainless Steel
Variant code: LA-60033-N-40-DMXRDM-00
Lumen (lm): 3896 lm
Optic: N
Optic value: 16°
CCT / CRI: RGBW40
Dimming type: DMX/RDM
Product colour: Stainless Steel
Variant code: LA-60033-N-RGBA-DMXRDM-00
Lumen (lm): 2598 lm
Optic: N
Optic value: 16°
CCT / CRI: RGB+Amber
Dimming type: DMX/RDM
Product colour: Stainless Steel
Variant code: LA-60033-M-30-DMX-00
Lumen (lm): 2684 lm
Optic: M
Optic value: 32°
CCT / CRI: RGBW30
Dimming type: DMX
Product colour: Stainless Steel
Variant code: LA-60033-M-40-DMX-00
Lumen (lm): 2714 lm
Optic: M
Optic value: 32°
CCT / CRI: RGBW40
Dimming type: DMX
Product colour: Stainless Steel
Variant code: LA-60033-M-RGBA-DMX-00
Lumen (lm): 1810 lm
Optic: M
Optic value: 32°
CCT / CRI: RGB+Amber
Dimming type: DMX
Product colour: Stainless Steel
Variant code: LA-60033-M-30-DMXRDM-00
Lumen (lm): 2684 lm
Optic: M
Optic value: 32°
CCT / CRI: RGBW30
Dimming type: DMX/RDM
Product colour: Stainless Steel
Variant code: LA-60033-M-40-DMXRDM-00
Lumen (lm): 2714 lm
Optic: M
Optic value: 32°
CCT / CRI: RGBW40
Dimming type: DMX/RDM
Product colour: Stainless Steel
Variant code: LA-60033-M-RGBA-DMXRDM-00
Lumen (lm): 1810 lm
Optic: M
Optic value: 32°
CCT / CRI: RGB+Amber
Dimming type: DMX/RDM
Product colour: Stainless Steel
Variant code: LA-60033-W-30-DMX-00
Lumen (lm): 2822 lm
Optic: W
Optic value: 55°
CCT / CRI: RGBW30
Dimming type: DMX
Product colour: Stainless Steel
Variant code: LA-60033-W-40-DMX-00
Lumen (lm): 2880 lm
Optic: W
Optic value: 55°
CCT / CRI: RGBW40
Dimming type: DMX
Product colour: Stainless Steel
Variant code: LA-60033-W-RGBA-DMX-00
Lumen (lm): 1920 lm
Optic: W
Optic value: 55°
CCT / CRI: RGB+Amber
Dimming type: DMX
Product colour: Stainless Steel
Variant code: LA-60033-W-30-DMXRDM-00
Lumen (lm): 2822 lm
Optic: W
Optic value: 55°
CCT / CRI: RGBW30
Dimming type: DMX/RDM
Product colour: Stainless Steel
Variant code: LA-60033-W-40-DMXRDM-00
Lumen (lm): 2880 lm
Optic: W
Optic value: 55°
CCT / CRI: RGBW40
Dimming type: DMX/RDM
Product colour: Stainless Steel
Variant code: LA-60033-W-RGBA-DMXRDM-00
Lumen (lm): 1920 lm
Optic: W
Optic value: 55°
CCT / CRI: RGB+Amber
Dimming type: DMX/RDM
Product colour: Stainless Steel
Variant code: LA-60033-E-30-DMX-00
Lumen (lm): 3126 lm
Optic: E
Optic value: 20°x30°
CCT / CRI: RGBW30
Dimming type: DMX
Product colour: Stainless Steel
Variant code: LA-60033-E-40-DMX-00
Lumen (lm): 3204 lm
Optic: E
Optic value: 20°x30°
CCT / CRI: RGBW40
Dimming type: DMX
Product colour: Stainless Steel
Variant code: LA-60033-E-RGBA-DMX-00
Lumen (lm): 2136 lm
Optic: E
Optic value: 20°x30°
CCT / CRI: RGB+Amber
Dimming type: DMX
Product colour: Stainless Steel
Variant code: LA-60033-E-30-DMXRDM-00
Lumen (lm): 3126 lm
Optic: E
Optic value: 20°x30°
CCT / CRI: RGBW30
Dimming type: DMX/RDM
Product colour: Stainless Steel
Variant code: LA-60033-E-40-DMXRDM-00
Lumen (lm): 3204 lm
Optic: E
Optic value: 20°x30°
CCT / CRI: RGBW40
Dimming type: DMX/RDM
Product colour: Stainless Steel
Variant code: LA-60033-E-RGBA-DMXRDM-00
Lumen (lm): 2136 lm
Optic: E
Optic value: 20°x30°
CCT / CRI: RGB+Amber
Dimming type: DMX/RDM
Product colour: Stainless Steel
