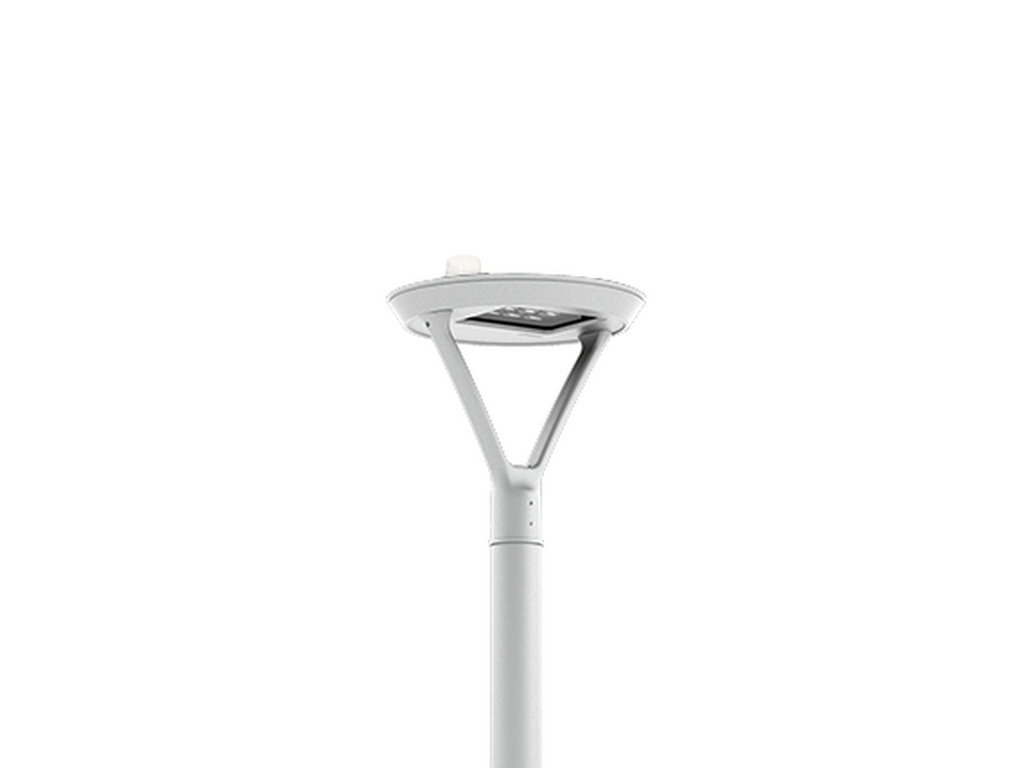

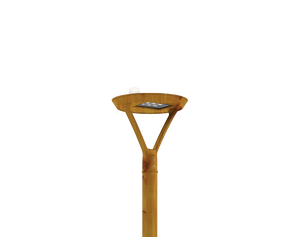

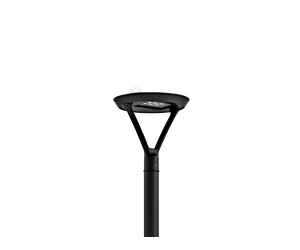

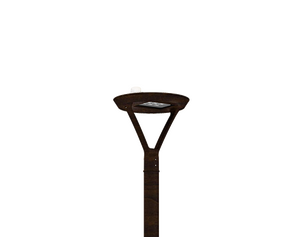

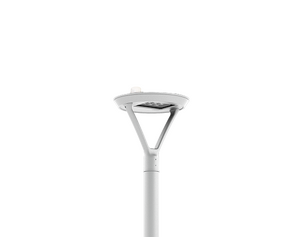

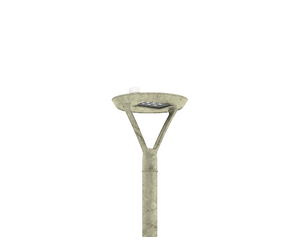

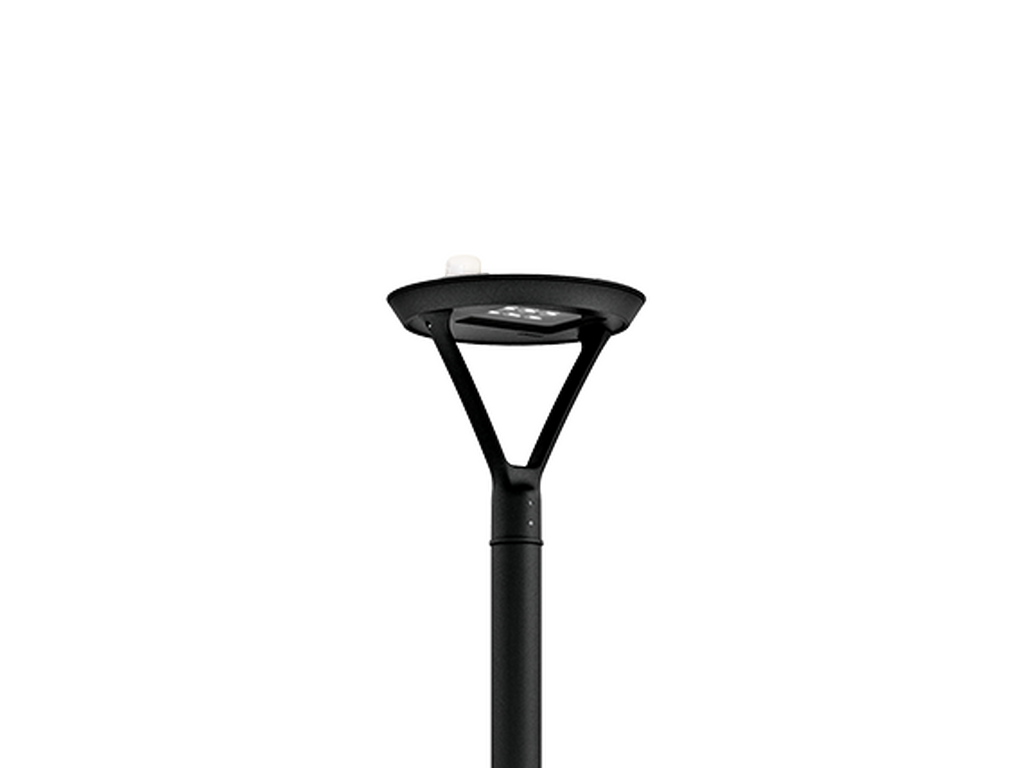

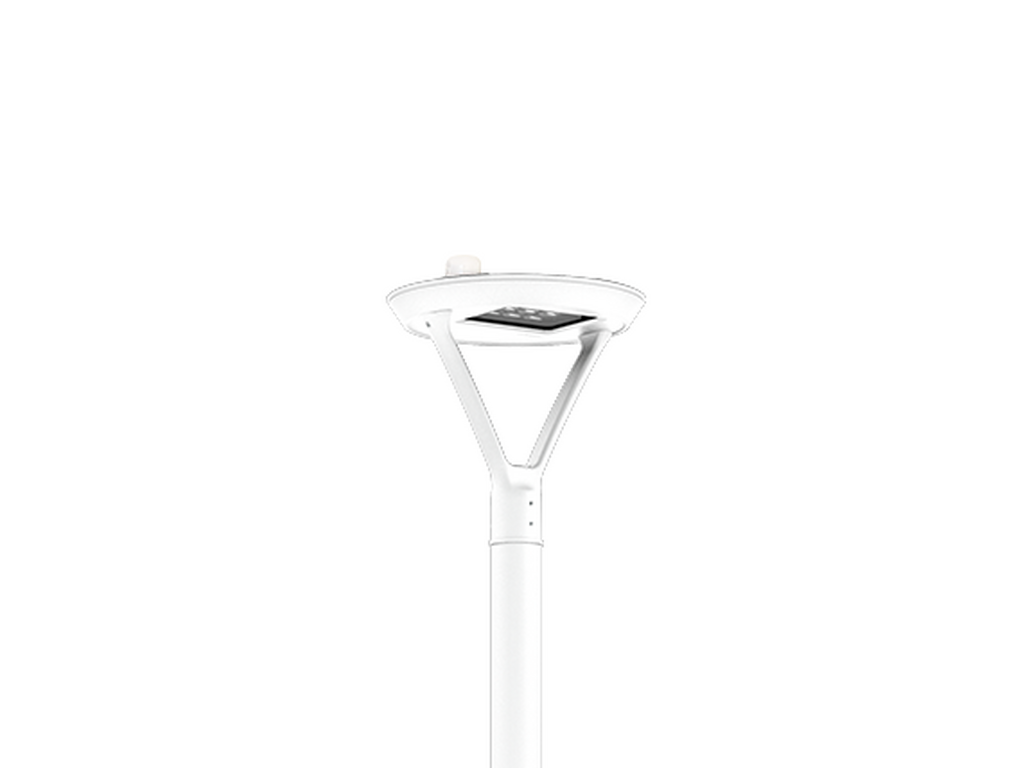

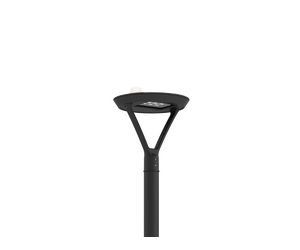

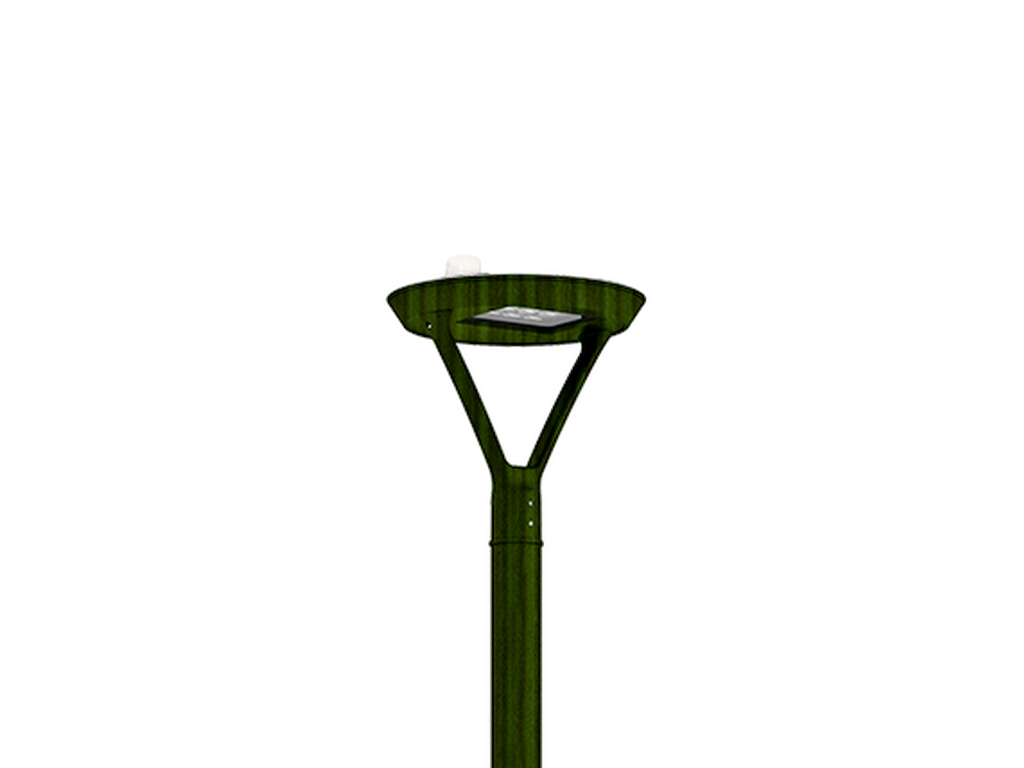

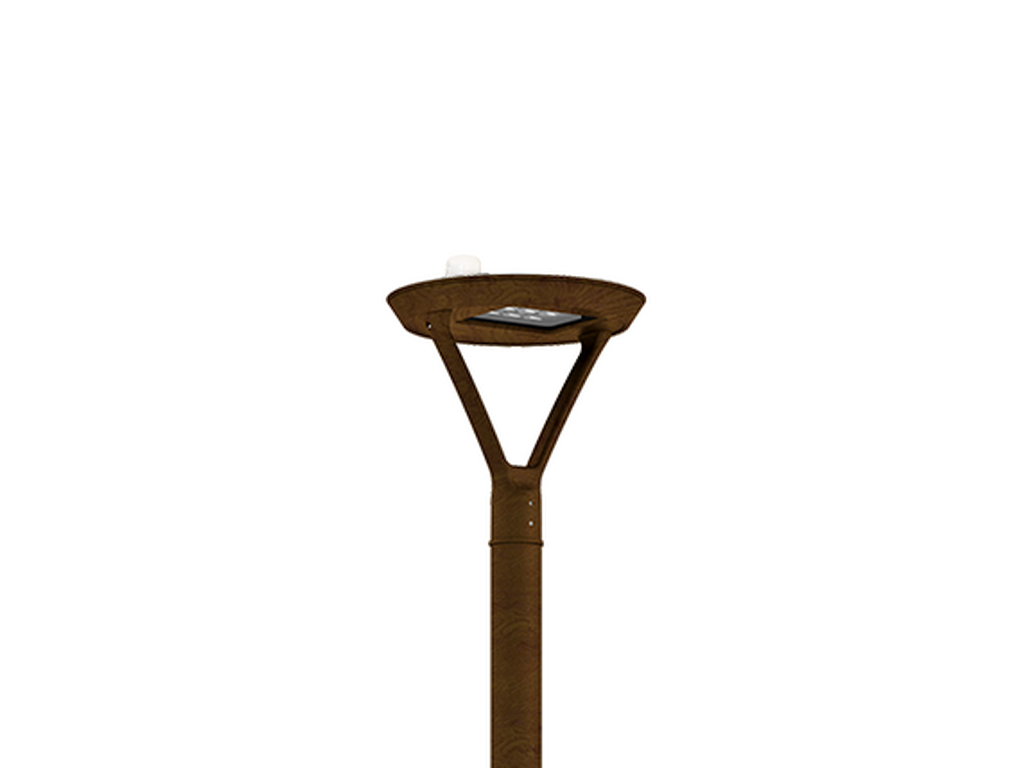

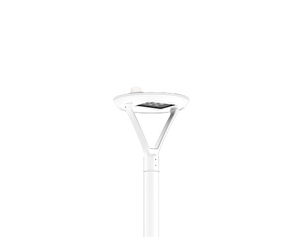

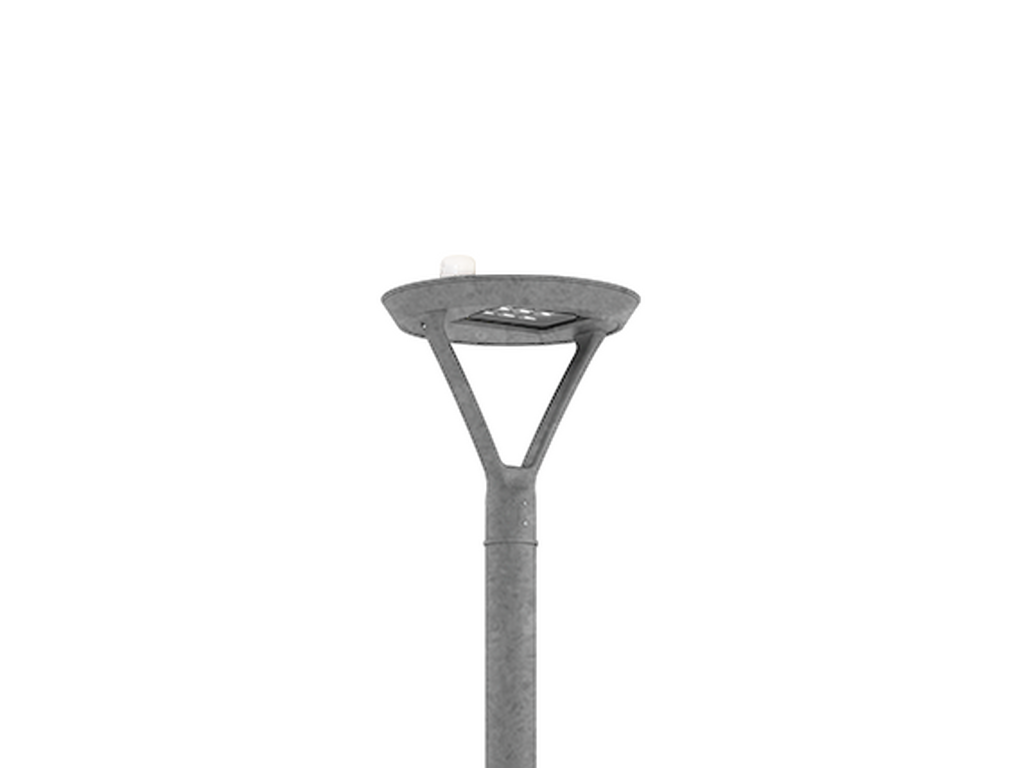

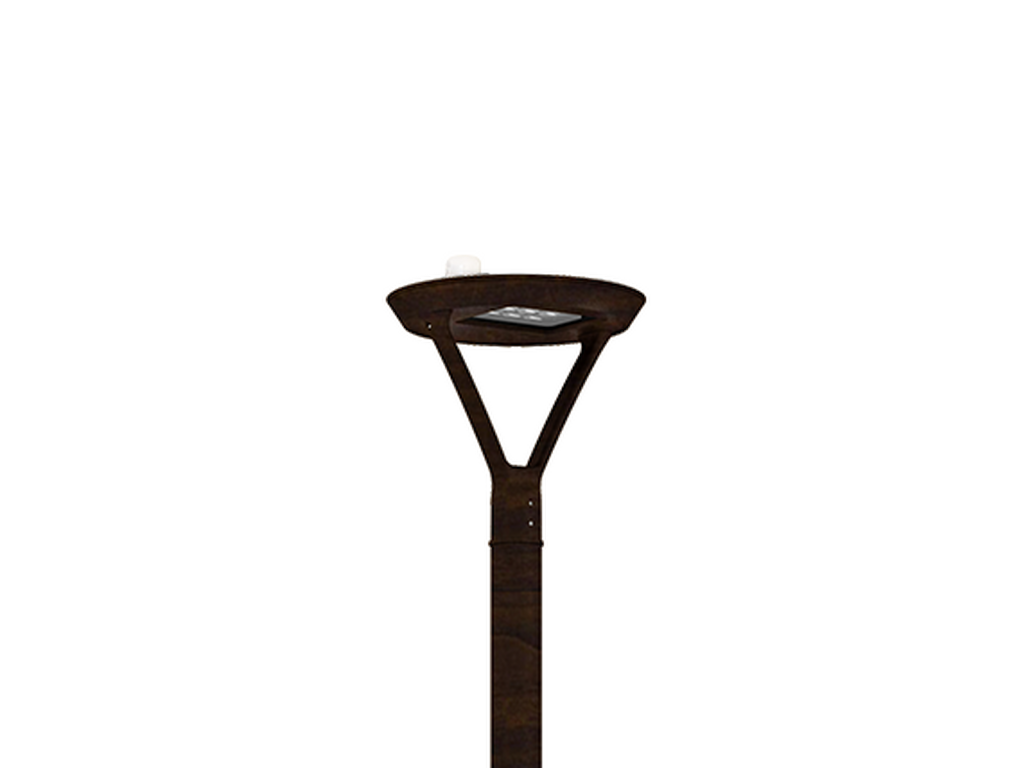

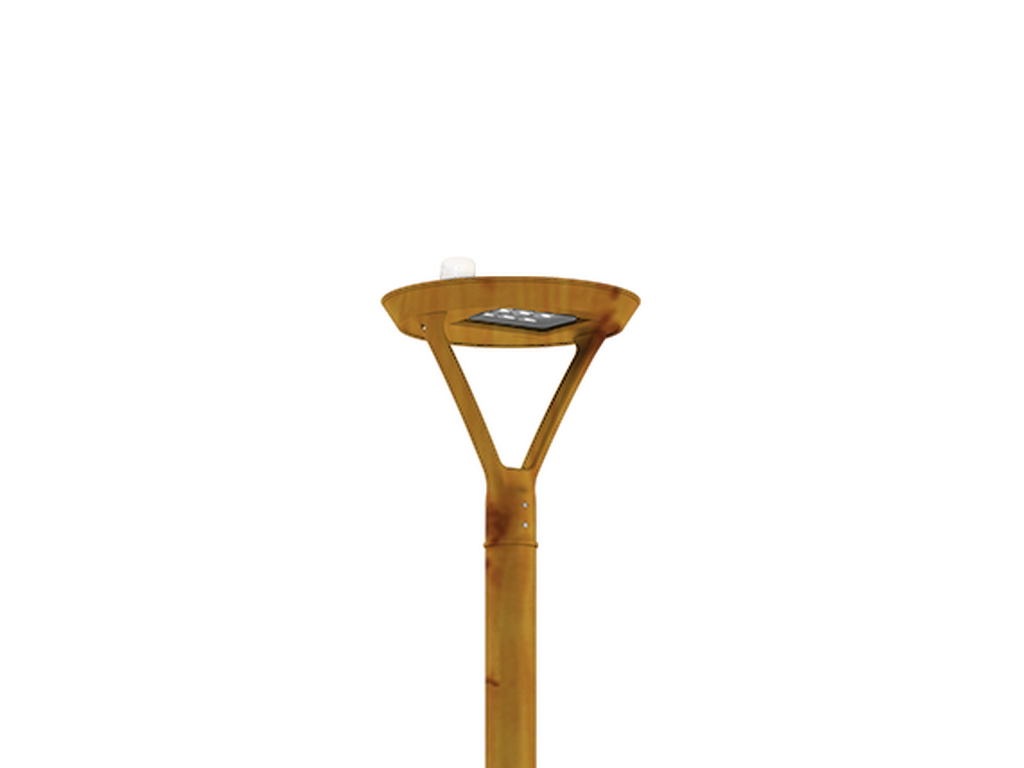

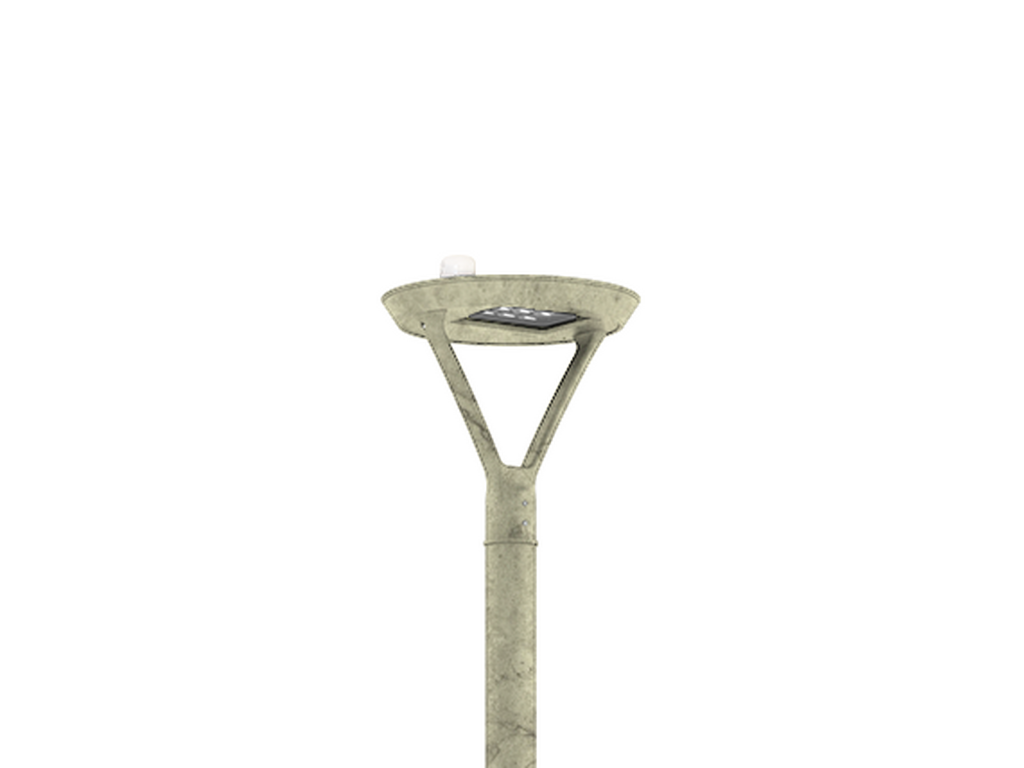

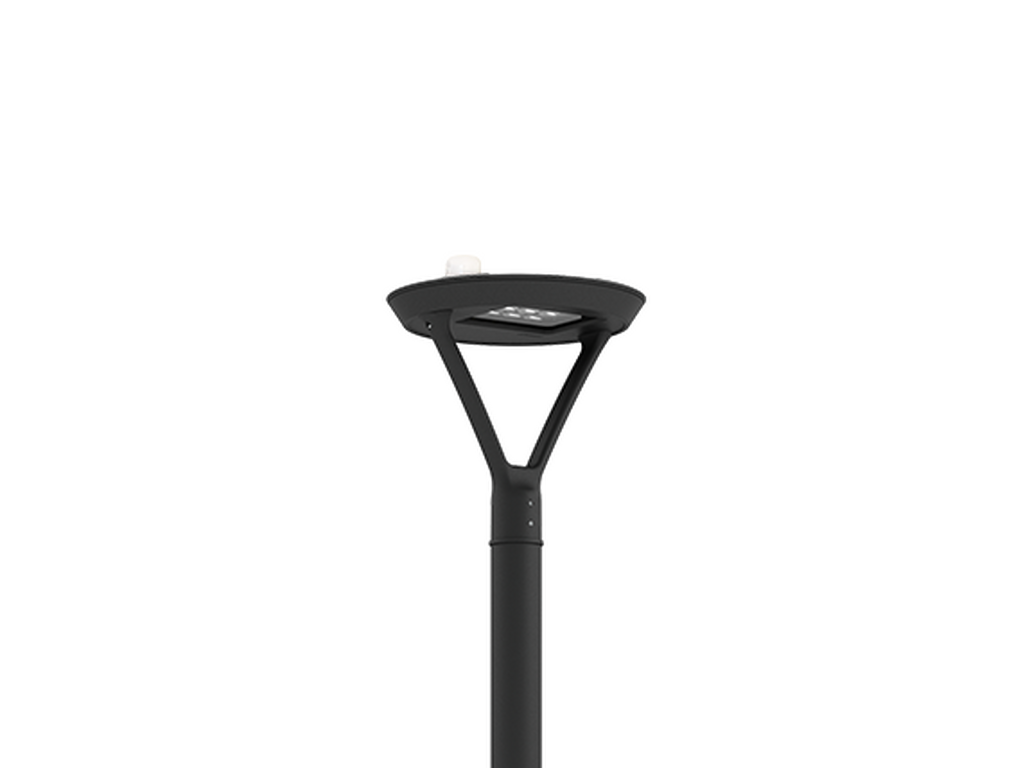

MACARON 2
LIGHTCONNECT™
CEClass IIP66IK08

TECHNICAL SPECIFICATIONS

Material
Aluminium
Lamp
2 x 24 LED
Power (Luminaire)
104 W
Lumen (Luminaire)
12434 - 14374 lm
Luminaire luminous efficacy
120 - 138 lm/W
EEC
A++
CCT
3000K, 4000K
CRI
Ra > 80
MacAdam Ellipse
3 SDCM
Optic
EW, M, ME, T2, T3, T4, W
Optic Value
102°x73°, 105°x115°, 119°x86°, 136°x51°, 136°x58°, 30°, 57°
Dimming type
DALI
Product colors
Black, Dark Grey, White, Matt Silver, Bronze
Weight
13.5 kg

CODE FINDER

Lumen
CCT
CRI
Optic
Optic Value
Dimming type
Product colors
SKU
Lamp
Power
(Lum.)
Lumen
(Lum.)
CCT
CRI
Optic
Optic
Value
Dimming
type
Product
colors
SKU: MC-20012-LC-EW-W40-DA-02
Lamp: 2 x 24 LED
Power (Lum.): 104 W
Lumen (Lum.): 14374 lm
CCT: 4000K
CRI: Ra > 80
Optic: EW
Optic Value: 105°x115°
Dimming type: DALI
Product colors: Dark Grey
SKU: MC-20012-LC-EW-W30-DA-02
Lamp: 2 x 24 LED
Power (Lum.): 104 W
Lumen (Lum.): 13412 lm
CCT: 3000K
CRI: Ra > 80
Optic: EW
Optic Value: 105°x115°
Dimming type: DALI
Product colors: Dark Grey
SKU: MC-20012-LC-EW-W40-DA-03
Lamp: 2 x 24 LED
Power (Lum.): 104 W
Lumen (Lum.): 14374 lm
CCT: 4000K
CRI: Ra > 80
Optic: EW
Optic Value: 105°x115°
Dimming type: DALI
Product colors: White
SKU: MC-20012-LC-EW-W30-DA-03
Lamp: 2 x 24 LED
Power (Lum.): 104 W
Lumen (Lum.): 13412 lm
CCT: 3000K
CRI: Ra > 80
Optic: EW
Optic Value: 105°x115°
Dimming type: DALI
Product colors: White
SKU: MC-20012-LC-EW-W40-DA-05
Lamp: 2 x 24 LED
Power (Lum.): 104 W
Lumen (Lum.): 14374 lm
CCT: 4000K
CRI: Ra > 80
Optic: EW
Optic Value: 105°x115°
Dimming type: DALI
Product colors: Matt Silver
SKU: MC-20012-LC-EW-W30-DA-05
Lamp: 2 x 24 LED
Power (Lum.): 104 W
Lumen (Lum.): 13412 lm
CCT: 3000K
CRI: Ra > 80
Optic: EW
Optic Value: 105°x115°
Dimming type: DALI
Product colors: Matt Silver
SKU: MC-20012-LC-EW-W40-DA-01
Lamp: 2 x 24 LED
Power (Lum.): 104 W
Lumen (Lum.): 14374 lm
CCT: 4000K
CRI: Ra > 80
Optic: EW
Optic Value: 105°x115°
Dimming type: DALI
Product colors: Black
SKU: MC-20012-LC-EW-W30-DA-01
Lamp: 2 x 24 LED
Power (Lum.): 104 W
Lumen (Lum.): 13412 lm
CCT: 3000K
CRI: Ra > 80
Optic: EW
Optic Value: 105°x115°
Dimming type: DALI
Product colors: Black
SKU: MC-20012-LC-EW-W40-DA-06
Lamp: 2 x 24 LED
Power (Lum.): 104 W
Lumen (Lum.): 14374 lm
CCT: 4000K
CRI: Ra > 80
Optic: EW
Optic Value: 105°x115°
Dimming type: DALI
Product colors: Bronze
SKU: MC-20012-LC-EW-W30-DA-06
Lamp: 2 x 24 LED
Power (Lum.): 104 W
Lumen (Lum.): 13412 lm
CCT: 3000K
CRI: Ra > 80
Optic: EW
Optic Value: 105°x115°
Dimming type: DALI
Product colors: Bronze
SKU: MC-20012-LC-M-W40-DA-06
Lamp: 2 x 24 LED
Power (Lum.): 104 W
Lumen (Lum.): 14341 lm
CCT: 4000K
CRI: Ra > 80
Optic: M
Optic Value: 30°
Dimming type: DALI
Product colors: Bronze
SKU: MC-20012-LC-M-W30-DA-06
Lamp: 2 x 24 LED
Power (Lum.): 104 W
Lumen (Lum.): 13382 lm
CCT: 3000K
CRI: Ra > 80
Optic: M
Optic Value: 30°
Dimming type: DALI
Product colors: Bronze
SKU: MC-20012-LC-M-W40-DA-03
Lamp: 2 x 24 LED
Power (Lum.): 104 W
Lumen (Lum.): 14341 lm
CCT: 4000K
CRI: Ra > 80
Optic: M
Optic Value: 30°
Dimming type: DALI
Product colors: White
SKU: MC-20012-LC-M-W30-DA-03
Lamp: 2 x 24 LED
Power (Lum.): 104 W
Lumen (Lum.): 13382 lm
CCT: 3000K
CRI: Ra > 80
Optic: M
Optic Value: 30°
Dimming type: DALI
Product colors: White
SKU: MC-20012-LC-M-W40-DA-05
Lamp: 2 x 24 LED
Power (Lum.): 104 W
Lumen (Lum.): 14341 lm
CCT: 4000K
CRI: Ra > 80
Optic: M
Optic Value: 30°
Dimming type: DALI
Product colors: Matt Silver
SKU: MC-20012-LC-M-W30-DA-05
Lamp: 2 x 24 LED
Power (Lum.): 104 W
Lumen (Lum.): 13382 lm
CCT: 3000K
CRI: Ra > 80
Optic: M
Optic Value: 30°
Dimming type: DALI
Product colors: Matt Silver
SKU: MC-20012-LC-M-W40-DA-02
Lamp: 2 x 24 LED
Power (Lum.): 104 W
Lumen (Lum.): 14341 lm
CCT: 4000K
CRI: Ra > 80
Optic: M
Optic Value: 30°
Dimming type: DALI
Product colors: Dark Grey
SKU: MC-20012-LC-M-W30-DA-02
Lamp: 2 x 24 LED
Power (Lum.): 104 W
Lumen (Lum.): 13382 lm
CCT: 3000K
CRI: Ra > 80
Optic: M
Optic Value: 30°
Dimming type: DALI
Product colors: Dark Grey
SKU: MC-20012-LC-M-W40-DA-01
Lamp: 2 x 24 LED
Power (Lum.): 104 W
Lumen (Lum.): 14341 lm
CCT: 4000K
CRI: Ra > 80
Optic: M
Optic Value: 30°
Dimming type: DALI
Product colors: Black
SKU: MC-20012-LC-M-W30-DA-01
Lamp: 2 x 24 LED
Power (Lum.): 104 W
Lumen (Lum.): 13382 lm
CCT: 3000K
CRI: Ra > 80
Optic: M
Optic Value: 30°
Dimming type: DALI
Product colors: Black
SKU: MC-20012-LC-ME-W40-DA-06
Lamp: 2 x 24 LED
Power (Lum.): 104 W
Lumen (Lum.): 13326 lm
CCT: 4000K
CRI: Ra > 80
Optic: ME
Optic Value: 136°x58°
Dimming type: DALI
Product colors: Bronze
SKU: MC-20012-LC-ME-W30-DA-06
Lamp: 2 x 24 LED
Power (Lum.): 104 W
Lumen (Lum.): 12434 lm
CCT: 3000K
CRI: Ra > 80
Optic: ME
Optic Value: 136°x58°
Dimming type: DALI
Product colors: Bronze
SKU: MC-20012-LC-ME-W40-DA-01
Lamp: 2 x 24 LED
Power (Lum.): 104 W
Lumen (Lum.): 13326 lm
CCT: 4000K
CRI: Ra > 80
Optic: ME
Optic Value: 136°x58°
Dimming type: DALI
Product colors: Black
SKU: MC-20012-LC-ME-W30-DA-01
Lamp: 2 x 24 LED
Power (Lum.): 104 W
Lumen (Lum.): 12434 lm
CCT: 3000K
CRI: Ra > 80
Optic: ME
Optic Value: 136°x58°
Dimming type: DALI
Product colors: Black
SKU: MC-20012-LC-ME-W40-DA-05
Lamp: 2 x 24 LED
Power (Lum.): 104 W
Lumen (Lum.): 13326 lm
CCT: 4000K
CRI: Ra > 80
Optic: ME
Optic Value: 136°x58°
Dimming type: DALI
Product colors: Matt Silver
SKU: MC-20012-LC-ME-W30-DA-05
Lamp: 2 x 24 LED
Power (Lum.): 104 W
Lumen (Lum.): 12434 lm
CCT: 3000K
CRI: Ra > 80
Optic: ME
Optic Value: 136°x58°
Dimming type: DALI
Product colors: Matt Silver
SKU: MC-20012-LC-ME-W40-DA-03
Lamp: 2 x 24 LED
Power (Lum.): 104 W
Lumen (Lum.): 13326 lm
CCT: 4000K
CRI: Ra > 80
Optic: ME
Optic Value: 136°x58°
Dimming type: DALI
Product colors: White
SKU: MC-20012-LC-ME-W30-DA-03
Lamp: 2 x 24 LED
Power (Lum.): 104 W
Lumen (Lum.): 12434 lm
CCT: 3000K
CRI: Ra > 80
Optic: ME
Optic Value: 136°x58°
Dimming type: DALI
Product colors: White
SKU: MC-20012-LC-ME-W40-DA-02
Lamp: 2 x 24 LED
Power (Lum.): 104 W
Lumen (Lum.): 13326 lm
CCT: 4000K
CRI: Ra > 80
Optic: ME
Optic Value: 136°x58°
Dimming type: DALI
Product colors: Dark Grey
SKU: MC-20012-LC-ME-W30-DA-02
Lamp: 2 x 24 LED
Power (Lum.): 104 W
Lumen (Lum.): 12434 lm
CCT: 3000K
CRI: Ra > 80
Optic: ME
Optic Value: 136°x58°
Dimming type: DALI
Product colors: Dark Grey
SKU: MC-20012-LC-T2-W40-DA-01
Lamp: 2 x 24 LED
Power (Lum.): 104 W
Lumen (Lum.): 13735 lm
CCT: 4000K
CRI: Ra > 80
Optic: T2
Optic Value: 136°x51°
Dimming type: DALI
Product colors: Black
SKU: MC-20012-LC-T2-W30-DA-01
Lamp: 2 x 24 LED
Power (Lum.): 104 W
Lumen (Lum.): 12816 lm
CCT: 3000K
CRI: Ra > 80
Optic: T2
Optic Value: 136°x51°
Dimming type: DALI
Product colors: Black
SKU: MC-20012-LC-T2-W40-DA-03
Lamp: 2 x 24 LED
Power (Lum.): 104 W
Lumen (Lum.): 13735 lm
CCT: 4000K
CRI: Ra > 80
Optic: T2
Optic Value: 136°x51°
Dimming type: DALI
Product colors: White
SKU: MC-20012-LC-T2-W30-DA-03
Lamp: 2 x 24 LED
Power (Lum.): 104 W
Lumen (Lum.): 12816 lm
CCT: 3000K
CRI: Ra > 80
Optic: T2
Optic Value: 136°x51°
Dimming type: DALI
Product colors: White
SKU: MC-20012-LC-T2-W40-DA-06
Lamp: 2 x 24 LED
Power (Lum.): 104 W
Lumen (Lum.): 13735 lm
CCT: 4000K
CRI: Ra > 80
Optic: T2
Optic Value: 136°x51°
Dimming type: DALI
Product colors: Bronze
SKU: MC-20012-LC-T2-W30-DA-06
Lamp: 2 x 24 LED
Power (Lum.): 104 W
Lumen (Lum.): 12816 lm
CCT: 3000K
CRI: Ra > 80
Optic: T2
Optic Value: 136°x51°
Dimming type: DALI
Product colors: Bronze
SKU: MC-20012-LC-T2-W40-DA-02
Lamp: 2 x 24 LED
Power (Lum.): 104 W
Lumen (Lum.): 13735 lm
CCT: 4000K
CRI: Ra > 80
Optic: T2
Optic Value: 136°x51°
Dimming type: DALI
Product colors: Dark Grey
SKU: MC-20012-LC-T2-W30-DA-02
Lamp: 2 x 24 LED
Power (Lum.): 104 W
Lumen (Lum.): 12816 lm
CCT: 3000K
CRI: Ra > 80
Optic: T2
Optic Value: 136°x51°
Dimming type: DALI
Product colors: Dark Grey
SKU: MC-20012-LC-T2-W40-DA-05
Lamp: 2 x 24 LED
Power (Lum.): 104 W
Lumen (Lum.): 13735 lm
CCT: 4000K
CRI: Ra > 80
Optic: T2
Optic Value: 136°x51°
Dimming type: DALI
Product colors: Matt Silver
SKU: MC-20012-LC-T2-W30-DA-05
Lamp: 2 x 24 LED
Power (Lum.): 104 W
Lumen (Lum.): 12816 lm
CCT: 3000K
CRI: Ra > 80
Optic: T2
Optic Value: 136°x51°
Dimming type: DALI
Product colors: Matt Silver
SKU: MC-20012-LC-T3-W40-DA-01
Lamp: 2 x 24 LED
Power (Lum.): 104 W
Lumen (Lum.): 13401 lm
CCT: 4000K
CRI: Ra > 80
Optic: T3
Optic Value: 119°x86°
Dimming type: DALI
Product colors: Black
SKU: MC-20012-LC-T3-W30-DA-01
Lamp: 2 x 24 LED
Power (Lum.): 104 W
Lumen (Lum.): 12504 lm
CCT: 3000K
CRI: Ra > 80
Optic: T3
Optic Value: 119°x86°
Dimming type: DALI
Product colors: Black
SKU: MC-20012-LC-T3-W40-DA-03
Lamp: 2 x 24 LED
Power (Lum.): 104 W
Lumen (Lum.): 13401 lm
CCT: 4000K
CRI: Ra > 80
Optic: T3
Optic Value: 119°x86°
Dimming type: DALI
Product colors: White
SKU: MC-20012-LC-T3-W30-DA-03
Lamp: 2 x 24 LED
Power (Lum.): 104 W
Lumen (Lum.): 12504 lm
CCT: 3000K
CRI: Ra > 80
Optic: T3
Optic Value: 119°x86°
Dimming type: DALI
Product colors: White
SKU: MC-20012-LC-T3-W40-DA-06
Lamp: 2 x 24 LED
Power (Lum.): 104 W
Lumen (Lum.): 13401 lm
CCT: 4000K
CRI: Ra > 80
Optic: T3
Optic Value: 119°x86°
Dimming type: DALI
Product colors: Bronze
SKU: MC-20012-LC-T3-W30-DA-06
Lamp: 2 x 24 LED
Power (Lum.): 104 W
Lumen (Lum.): 12504 lm
CCT: 3000K
CRI: Ra > 80
Optic: T3
Optic Value: 119°x86°
Dimming type: DALI
Product colors: Bronze
SKU: MC-20012-LC-T3-W40-DA-02
Lamp: 2 x 24 LED
Power (Lum.): 104 W
Lumen (Lum.): 13401 lm
CCT: 4000K
CRI: Ra > 80
Optic: T3
Optic Value: 119°x86°
Dimming type: DALI
Product colors: Dark Grey
SKU: MC-20012-LC-T3-W30-DA-02
Lamp: 2 x 24 LED
Power (Lum.): 104 W
Lumen (Lum.): 12504 lm
CCT: 3000K
CRI: Ra > 80
Optic: T3
Optic Value: 119°x86°
Dimming type: DALI
Product colors: Dark Grey
SKU: MC-20012-LC-T3-W40-DA-05
Lamp: 2 x 24 LED
Power (Lum.): 104 W
Lumen (Lum.): 13401 lm
CCT: 4000K
CRI: Ra > 80
Optic: T3
Optic Value: 119°x86°
Dimming type: DALI
Product colors: Matt Silver
SKU: MC-20012-LC-T3-W30-DA-05
Lamp: 2 x 24 LED
Power (Lum.): 104 W
Lumen (Lum.): 12504 lm
CCT: 3000K
CRI: Ra > 80
Optic: T3
Optic Value: 119°x86°
Dimming type: DALI
Product colors: Matt Silver
SKU: MC-20012-LC-T4-W40-DA-01
Lamp: 2 x 24 LED
Power (Lum.): 104 W
Lumen (Lum.): 13645 lm
CCT: 4000K
CRI: Ra > 80
Optic: T4
Optic Value: 102°x73°
Dimming type: DALI
Product colors: Black
SKU: MC-20012-LC-T4-W30-DA-01
Lamp: 2 x 24 LED
Power (Lum.): 104 W
Lumen (Lum.): 12732 lm
CCT: 3000K
CRI: Ra > 80
Optic: T4
Optic Value: 102°x73°
Dimming type: DALI
Product colors: Black
SKU: MC-20012-LC-T4-W40-DA-06
Lamp: 2 x 24 LED
Power (Lum.): 104 W
Lumen (Lum.): 13645 lm
CCT: 4000K
CRI: Ra > 80
Optic: T4
Optic Value: 102°x73°
Dimming type: DALI
Product colors: Bronze
SKU: MC-20012-LC-T4-W30-DA-06
Lamp: 2 x 24 LED
Power (Lum.): 104 W
Lumen (Lum.): 12732 lm
CCT: 3000K
CRI: Ra > 80
Optic: T4
Optic Value: 102°x73°
Dimming type: DALI
Product colors: Bronze
SKU: MC-20012-LC-T4-W40-DA-02
Lamp: 2 x 24 LED
Power (Lum.): 104 W
Lumen (Lum.): 13645 lm
CCT: 4000K
CRI: Ra > 80
Optic: T4
Optic Value: 102°x73°
Dimming type: DALI
Product colors: Dark Grey
SKU: MC-20012-LC-T4-W30-DA-02
Lamp: 2 x 24 LED
Power (Lum.): 104 W
Lumen (Lum.): 12732 lm
CCT: 3000K
CRI: Ra > 80
Optic: T4
Optic Value: 102°x73°
Dimming type: DALI
Product colors: Dark Grey
SKU: MC-20012-LC-T4-W40-DA-03
Lamp: 2 x 24 LED
Power (Lum.): 104 W
Lumen (Lum.): 13645 lm
CCT: 4000K
CRI: Ra > 80
Optic: T4
Optic Value: 102°x73°
Dimming type: DALI
Product colors: White
SKU: MC-20012-LC-T4-W30-DA-03
Lamp: 2 x 24 LED
Power (Lum.): 104 W
Lumen (Lum.): 12732 lm
CCT: 3000K
CRI: Ra > 80
Optic: T4
Optic Value: 102°x73°
Dimming type: DALI
Product colors: White
SKU: MC-20012-LC-T4-W40-DA-05
Lamp: 2 x 24 LED
Power (Lum.): 104 W
Lumen (Lum.): 13645 lm
CCT: 4000K
CRI: Ra > 80
Optic: T4
Optic Value: 102°x73°
Dimming type: DALI
Product colors: Matt Silver
SKU: MC-20012-LC-T4-W30-DA-05
Lamp: 2 x 24 LED
Power (Lum.): 104 W
Lumen (Lum.): 12732 lm
CCT: 3000K
CRI: Ra > 80
Optic: T4
Optic Value: 102°x73°
Dimming type: DALI
Product colors: Matt Silver
SKU: MC-20012-LC-W-W40-DA-01
Lamp: 2 x 24 LED
Power (Lum.): 104 W
Lumen (Lum.): 13949 lm
CCT: 4000K
CRI: Ra > 80
Optic: W
Optic Value: 57°
Dimming type: DALI
Product colors: Black
SKU: MC-20012-LC-W-W30-DA-01
Lamp: 2 x 24 LED
Power (Lum.): 104 W
Lumen (Lum.): 13016 lm
CCT: 3000K
CRI: Ra > 80
Optic: W
Optic Value: 57°
Dimming type: DALI
Product colors: Black
SKU: MC-20012-LC-W-W40-DA-02
Lamp: 2 x 24 LED
Power (Lum.): 104 W
Lumen (Lum.): 13949 lm
CCT: 4000K
CRI: Ra > 80
Optic: W
Optic Value: 57°
Dimming type: DALI
Product colors: Dark Grey
SKU: MC-20012-LC-W-W30-DA-02
Lamp: 2 x 24 LED
Power (Lum.): 104 W
Lumen (Lum.): 13016 lm
CCT: 3000K
CRI: Ra > 80
Optic: W
Optic Value: 57°
Dimming type: DALI
Product colors: Dark Grey
SKU: MC-20012-LC-W-W40-DA-05
Lamp: 2 x 24 LED
Power (Lum.): 104 W
Lumen (Lum.): 13949 lm
CCT: 4000K
CRI: Ra > 80
Optic: W
Optic Value: 57°
Dimming type: DALI
Product colors: Matt Silver
SKU: MC-20012-LC-W-W30-DA-05
Lamp: 2 x 24 LED
Power (Lum.): 104 W
Lumen (Lum.): 13016 lm
CCT: 3000K
CRI: Ra > 80
Optic: W
Optic Value: 57°
Dimming type: DALI
Product colors: Matt Silver
SKU: MC-20012-LC-W-W40-DA-03
Lamp: 2 x 24 LED
Power (Lum.): 104 W
Lumen (Lum.): 13949 lm
CCT: 4000K
CRI: Ra > 80
Optic: W
Optic Value: 57°
Dimming type: DALI
Product colors: White
SKU: MC-20012-LC-W-W30-DA-03
Lamp: 2 x 24 LED
Power (Lum.): 104 W
Lumen (Lum.): 13016 lm
CCT: 3000K
CRI: Ra > 80
Optic: W
Optic Value: 57°
Dimming type: DALI
Product colors: White
SKU: MC-20012-LC-W-W40-DA-06
Lamp: 2 x 24 LED
Power (Lum.): 104 W
Lumen (Lum.): 13949 lm
CCT: 4000K
CRI: Ra > 80
Optic: W
Optic Value: 57°
Dimming type: DALI
Product colors: Bronze
SKU: MC-20012-LC-W-W30-DA-06
Lamp: 2 x 24 LED
Power (Lum.): 104 W
Lumen (Lum.): 13016 lm
CCT: 3000K
CRI: Ra > 80
Optic: W
Optic Value: 57°
Dimming type: DALI
Product colors: Bronze
