LIGMAN MALTA 3 MAT-30023.

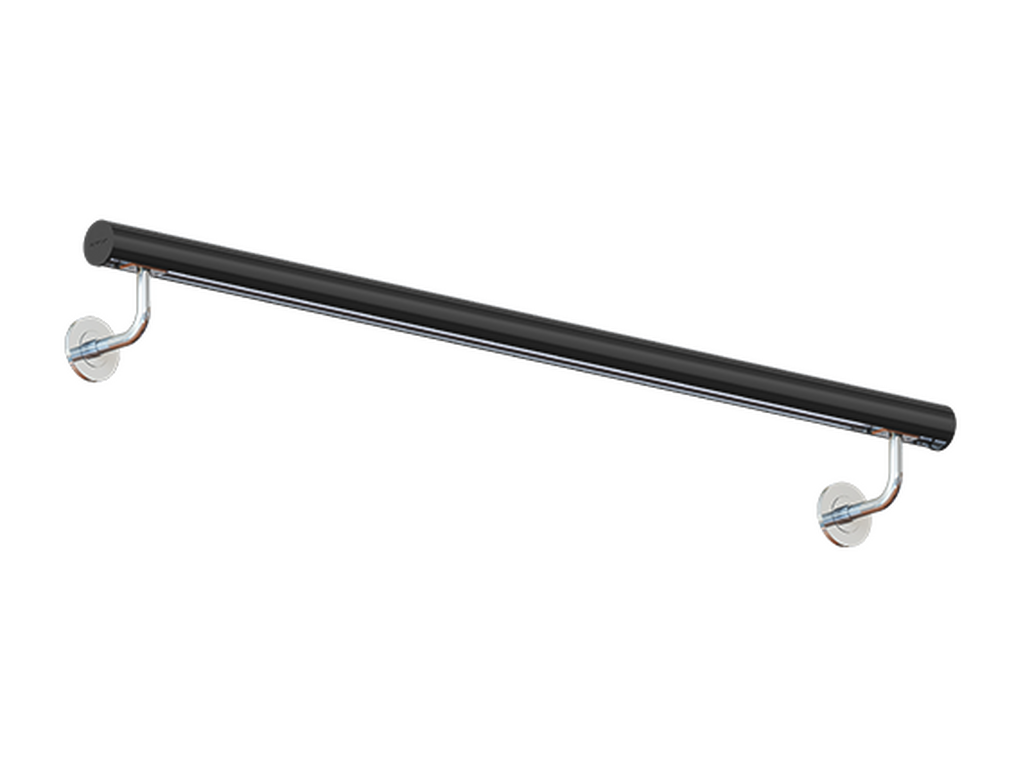

MALTA 3MAT-30023

(Version 1)

Handrail system

Send us an E-Mail or use the contact form:

I have read the privacy policy and agree to the processing of my data *

The fields marked with an * must be correctly filled.
Your request was successfully sent.

Send us an E-Mail or use the contact form:

I have read the privacy policy and agree to the processing of my data *

The fields marked with an * must be correctly filled.
Your request was successfully sent.

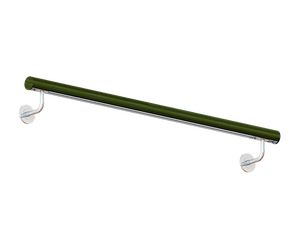

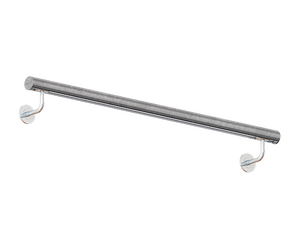

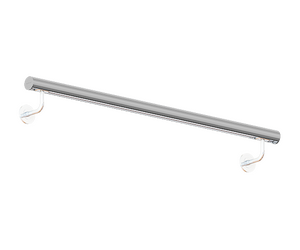

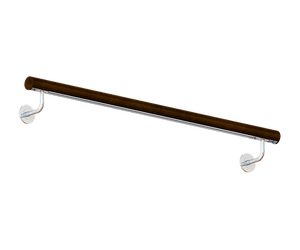

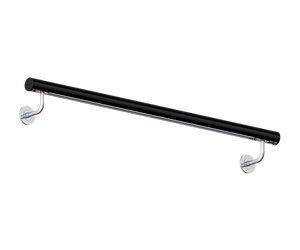

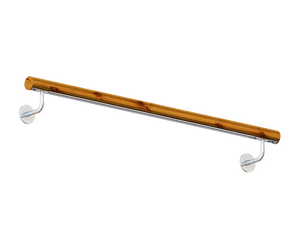

MALTA 3Black
MALTA 3Dark Grey
MALTA 3White
MALTA 3Matt Silver
MALTA 3Bronze
MALTA 3Concrete - Urban
MALTA 3Softscape - Urban
MALTA 3Stone - Urban
MALTA 3Corten - Urban
MALTA 3Oak - Woodland
MALTA 3Walnut - Woodland
MALTA 3Pine - Woodland
MALTA 3Black
MALTA 3Dark Grey
MALTA 3White
MALTA 3Matt Silver
MALTA 3Bronze
MALTA 3Concrete - Urban
MALTA 3Softscape - Urban
MALTA 3Stone - Urban
MALTA 3Corten - Urban
MALTA 3Oak - Woodland
MALTA 3Walnut - Woodland
MALTA 3Pine - Woodland
Without remote driver - Constant voltage (CV) 24 V - Aluminium - IP65 - RGBW
CEClass IIIIP65

TECHNICAL SPECIFICATIONS

Material
Aluminium
Light source
84 LED/m
Power (W)
15 W
Lumen (lm)
365 - 373 lm
Efficacy (lm/W)
24 - 25 lm/W
Driver option
Remote driver (not included)
Driver
Constant voltage (CV)
Input voltage
24 VDC
Optic
G
Optic value
60°x111°
CCT / CRI
RGBW30, RGBW40
Bug
B0-U0-G0
ULR
0%
ULOR
0%
CIE flux code nº3
98
Dimming type
DMX, DMX/RDM
Product colours
Black, Dark Grey, White, Matt Silver, Bronze, Concrete - Urban, Softscape - Urban, Stone - Urban, Corten - Urban, Oak - Woodland, Walnut - Woodland, Pine - Woodland
Weight
2.1 kg/m
Operating temperature
-20 °C to 40 °C
Cable
One cable gland supplied with 1 m of 5x0.5 sqmm outdoor cable
Through wiring
Single cable entry
Lens / Reflector / Optic
High-efficiency PMMA lens

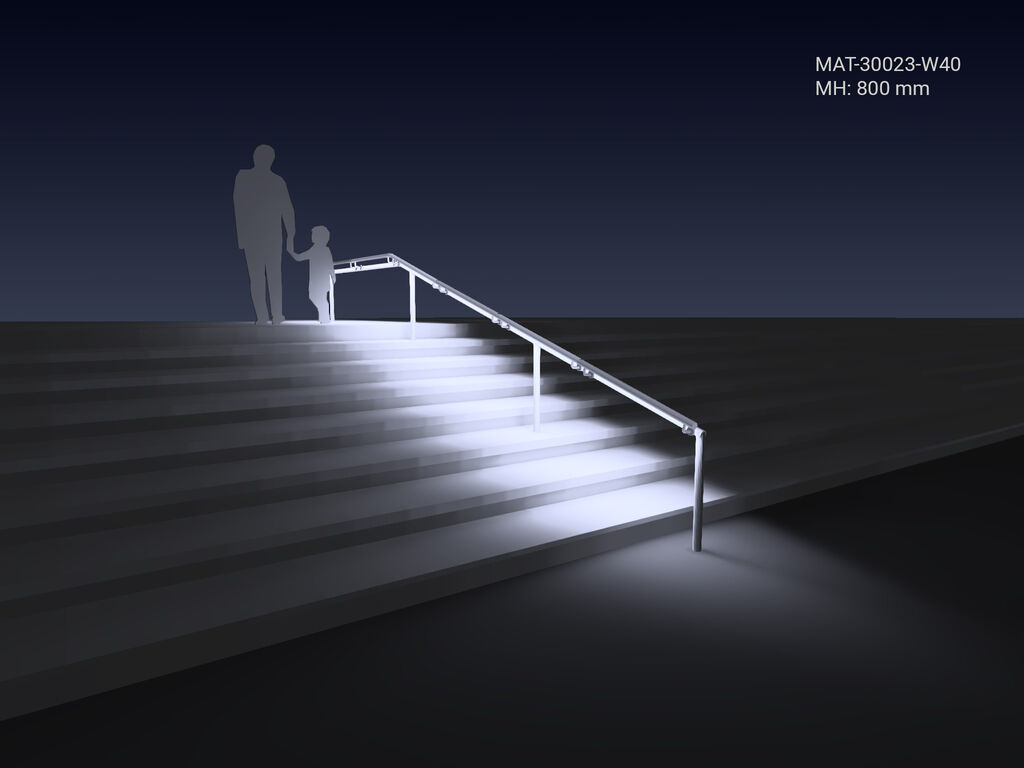

LIGHT EFFECT

Optic
G (60°x111°)

CODE FINDER

Lumen (lm)
Optic
Optic value
CCT / CRI
Dimming type
Product colour
Variant code
Lumen (lm)
Optic
Optic value
CCT / CRI
Dimming type
Product colour
Variant code: MAT-30023-G-30-DMX-01
Lumen (lm): 365 lm
Optic: G
Optic value: 60°x111°
CCT / CRI: RGBW30
Dimming type: DMX
Product colour: Black
Variant code: MAT-30023-G-30-DMX-02
Lumen (lm): 365 lm
Optic: G
Optic value: 60°x111°
CCT / CRI: RGBW30
Dimming type: DMX
Product colour: Dark Grey
Variant code: MAT-30023-G-30-DMX-03
Lumen (lm): 365 lm
Optic: G
Optic value: 60°x111°
CCT / CRI: RGBW30
Dimming type: DMX
Product colour: White
Variant code: MAT-30023-G-30-DMX-05
Lumen (lm): 365 lm
Optic: G
Optic value: 60°x111°
CCT / CRI: RGBW30
Dimming type: DMX
Product colour: Matt Silver
Variant code: MAT-30023-G-30-DMX-06
Lumen (lm): 365 lm
Optic: G
Optic value: 60°x111°
CCT / CRI: RGBW30
Dimming type: DMX
Product colour: Bronze
Variant code: MAT-30023-G-30-DMX-SU01
Lumen (lm): 365 lm
Optic: G
Optic value: 60°x111°
CCT / CRI: RGBW30
Dimming type: DMX
Product colour: Concrete - Urban
Variant code: MAT-30023-G-30-DMX-SU02
Lumen (lm): 365 lm
Optic: G
Optic value: 60°x111°
CCT / CRI: RGBW30
Dimming type: DMX
Product colour: Softscape - Urban
Variant code: MAT-30023-G-30-DMX-SU03
Lumen (lm): 365 lm
Optic: G
Optic value: 60°x111°
CCT / CRI: RGBW30
Dimming type: DMX
Product colour: Stone - Urban
Variant code: MAT-30023-G-30-DMX-SU04
Lumen (lm): 365 lm
Optic: G
Optic value: 60°x111°
CCT / CRI: RGBW30
Dimming type: DMX
Product colour: Corten - Urban
Variant code: MAT-30023-G-30-DMX-SW01
Lumen (lm): 365 lm
Optic: G
Optic value: 60°x111°
CCT / CRI: RGBW30
Dimming type: DMX
Product colour: Oak - Woodland
Variant code: MAT-30023-G-30-DMX-SW02
Lumen (lm): 365 lm
Optic: G
Optic value: 60°x111°
CCT / CRI: RGBW30
Dimming type: DMX
Product colour: Walnut - Woodland
Variant code: MAT-30023-G-30-DMX-SW03
Lumen (lm): 365 lm
Optic: G
Optic value: 60°x111°
CCT / CRI: RGBW30
Dimming type: DMX
Product colour: Pine - Woodland
Variant code: MAT-30023-G-40-DMX-01
Lumen (lm): 373 lm
Optic: G
Optic value: 60°x111°
CCT / CRI: RGBW40
Dimming type: DMX
Product colour: Black
Variant code: MAT-30023-G-40-DMX-02
Lumen (lm): 373 lm
Optic: G
Optic value: 60°x111°
CCT / CRI: RGBW40
Dimming type: DMX
Product colour: Dark Grey
Variant code: MAT-30023-G-40-DMX-03
Lumen (lm): 373 lm
Optic: G
Optic value: 60°x111°
CCT / CRI: RGBW40
Dimming type: DMX
Product colour: White
Variant code: MAT-30023-G-40-DMX-05
Lumen (lm): 373 lm
Optic: G
Optic value: 60°x111°
CCT / CRI: RGBW40
Dimming type: DMX
Product colour: Matt Silver
Variant code: MAT-30023-G-40-DMX-06
Lumen (lm): 373 lm
Optic: G
Optic value: 60°x111°
CCT / CRI: RGBW40
Dimming type: DMX
Product colour: Bronze
Variant code: MAT-30023-G-40-DMX-SU01
Lumen (lm): 373 lm
Optic: G
Optic value: 60°x111°
CCT / CRI: RGBW40
Dimming type: DMX
Product colour: Concrete - Urban
Variant code: MAT-30023-G-40-DMX-SU02
Lumen (lm): 373 lm
Optic: G
Optic value: 60°x111°
CCT / CRI: RGBW40
Dimming type: DMX
Product colour: Softscape - Urban
Variant code: MAT-30023-G-40-DMX-SU03
Lumen (lm): 373 lm
Optic: G
Optic value: 60°x111°
CCT / CRI: RGBW40
Dimming type: DMX
Product colour: Stone - Urban
Variant code: MAT-30023-G-40-DMX-SU04
Lumen (lm): 373 lm
Optic: G
Optic value: 60°x111°
CCT / CRI: RGBW40
Dimming type: DMX
Product colour: Corten - Urban
Variant code: MAT-30023-G-40-DMX-SW01
Lumen (lm): 373 lm
Optic: G
Optic value: 60°x111°
CCT / CRI: RGBW40
Dimming type: DMX
Product colour: Oak - Woodland
Variant code: MAT-30023-G-40-DMX-SW02
Lumen (lm): 373 lm
Optic: G
Optic value: 60°x111°
CCT / CRI: RGBW40
Dimming type: DMX
Product colour: Walnut - Woodland
Variant code: MAT-30023-G-40-DMX-SW03
Lumen (lm): 373 lm
Optic: G
Optic value: 60°x111°
CCT / CRI: RGBW40
Dimming type: DMX
Product colour: Pine - Woodland
Variant code: MAT-30023-G-30-DMXRDM-01
Lumen (lm): 365 lm
Optic: G
Optic value: 60°x111°
CCT / CRI: RGBW30
Dimming type: DMX/RDM
Product colour: Black
Variant code: MAT-30023-G-30-DMXRDM-02
Lumen (lm): 365 lm
Optic: G
Optic value: 60°x111°
CCT / CRI: RGBW30
Dimming type: DMX/RDM
Product colour: Dark Grey
Variant code: MAT-30023-G-30-DMXRDM-03
Lumen (lm): 365 lm
Optic: G
Optic value: 60°x111°
CCT / CRI: RGBW30
Dimming type: DMX/RDM
Product colour: White
Variant code: MAT-30023-G-30-DMXRDM-05
Lumen (lm): 365 lm
Optic: G
Optic value: 60°x111°
CCT / CRI: RGBW30
Dimming type: DMX/RDM
Product colour: Matt Silver
Variant code: MAT-30023-G-30-DMXRDM-06
Lumen (lm): 365 lm
Optic: G
Optic value: 60°x111°
CCT / CRI: RGBW30
Dimming type: DMX/RDM
Product colour: Bronze
Variant code: MAT-30023-G-30-DMXRDM-SU01
Lumen (lm): 365 lm
Optic: G
Optic value: 60°x111°
CCT / CRI: RGBW30
Dimming type: DMX/RDM
Product colour: Concrete - Urban
Variant code: MAT-30023-G-30-DMXRDM-SU02
Lumen (lm): 365 lm
Optic: G
Optic value: 60°x111°
CCT / CRI: RGBW30
Dimming type: DMX/RDM
Product colour: Softscape - Urban
Variant code: MAT-30023-G-30-DMXRDM-SU03
Lumen (lm): 365 lm
Optic: G
Optic value: 60°x111°
CCT / CRI: RGBW30
Dimming type: DMX/RDM
Product colour: Stone - Urban
Variant code: MAT-30023-G-30-DMXRDM-SU04
Lumen (lm): 365 lm
Optic: G
Optic value: 60°x111°
CCT / CRI: RGBW30
Dimming type: DMX/RDM
Product colour: Corten - Urban
Variant code: MAT-30023-G-30-DMXRDM-SW01
Lumen (lm): 365 lm
Optic: G
Optic value: 60°x111°
CCT / CRI: RGBW30
Dimming type: DMX/RDM
Product colour: Oak - Woodland
Variant code: MAT-30023-G-30-DMXRDM-SW02
Lumen (lm): 365 lm
Optic: G
Optic value: 60°x111°
CCT / CRI: RGBW30
Dimming type: DMX/RDM
Product colour: Walnut - Woodland
Variant code: MAT-30023-G-30-DMXRDM-SW03
Lumen (lm): 365 lm
Optic: G
Optic value: 60°x111°
CCT / CRI: RGBW30
Dimming type: DMX/RDM
Product colour: Pine - Woodland
Variant code: MAT-30023-G-40-DMXRDM-01
Lumen (lm): 373 lm
Optic: G
Optic value: 60°x111°
CCT / CRI: RGBW40
Dimming type: DMX/RDM
Product colour: Black
Variant code: MAT-30023-G-40-DMXRDM-02
Lumen (lm): 373 lm
Optic: G
Optic value: 60°x111°
CCT / CRI: RGBW40
Dimming type: DMX/RDM
Product colour: Dark Grey
Variant code: MAT-30023-G-40-DMXRDM-03
Lumen (lm): 373 lm
Optic: G
Optic value: 60°x111°
CCT / CRI: RGBW40
Dimming type: DMX/RDM
Product colour: White
Variant code: MAT-30023-G-40-DMXRDM-05
Lumen (lm): 373 lm
Optic: G
Optic value: 60°x111°
CCT / CRI: RGBW40
Dimming type: DMX/RDM
Product colour: Matt Silver
Variant code: MAT-30023-G-40-DMXRDM-06
Lumen (lm): 373 lm
Optic: G
Optic value: 60°x111°
CCT / CRI: RGBW40
Dimming type: DMX/RDM
Product colour: Bronze
Variant code: MAT-30023-G-40-DMXRDM-SU01
Lumen (lm): 373 lm
Optic: G
Optic value: 60°x111°
CCT / CRI: RGBW40
Dimming type: DMX/RDM
Product colour: Concrete - Urban
Variant code: MAT-30023-G-40-DMXRDM-SU02
Lumen (lm): 373 lm
Optic: G
Optic value: 60°x111°
CCT / CRI: RGBW40
Dimming type: DMX/RDM
Product colour: Softscape - Urban
Variant code: MAT-30023-G-40-DMXRDM-SU03
Lumen (lm): 373 lm
Optic: G
Optic value: 60°x111°
CCT / CRI: RGBW40
Dimming type: DMX/RDM
Product colour: Stone - Urban
Variant code: MAT-30023-G-40-DMXRDM-SU04
Lumen (lm): 373 lm
Optic: G
Optic value: 60°x111°
CCT / CRI: RGBW40
Dimming type: DMX/RDM
Product colour: Corten - Urban
Variant code: MAT-30023-G-40-DMXRDM-SW01
Lumen (lm): 373 lm
Optic: G
Optic value: 60°x111°
CCT / CRI: RGBW40
Dimming type: DMX/RDM
Product colour: Oak - Woodland
Variant code: MAT-30023-G-40-DMXRDM-SW02
Lumen (lm): 373 lm
Optic: G
Optic value: 60°x111°
CCT / CRI: RGBW40
Dimming type: DMX/RDM
Product colour: Walnut - Woodland
Variant code: MAT-30023-G-40-DMXRDM-SW03
Lumen (lm): 373 lm
Optic: G
Optic value: 60°x111°
CCT / CRI: RGBW40
Dimming type: DMX/RDM
Product colour: Pine - Woodland
