MATRIX 3MT-31416MATRIX

Send us an E-Mail or use the contact form:

I have read the privacy policy and agree to the processing of my data *

The fields marked with an * must be correctly filled.
Your request was successfully sent.

Send us an E-Mail or use the contact form:

I have read the privacy policy and agree to the processing of my data *

The fields marked with an * must be correctly filled.
Your request was successfully sent.

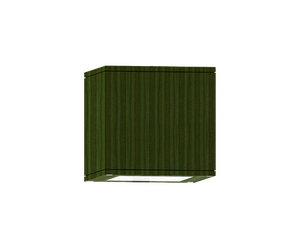

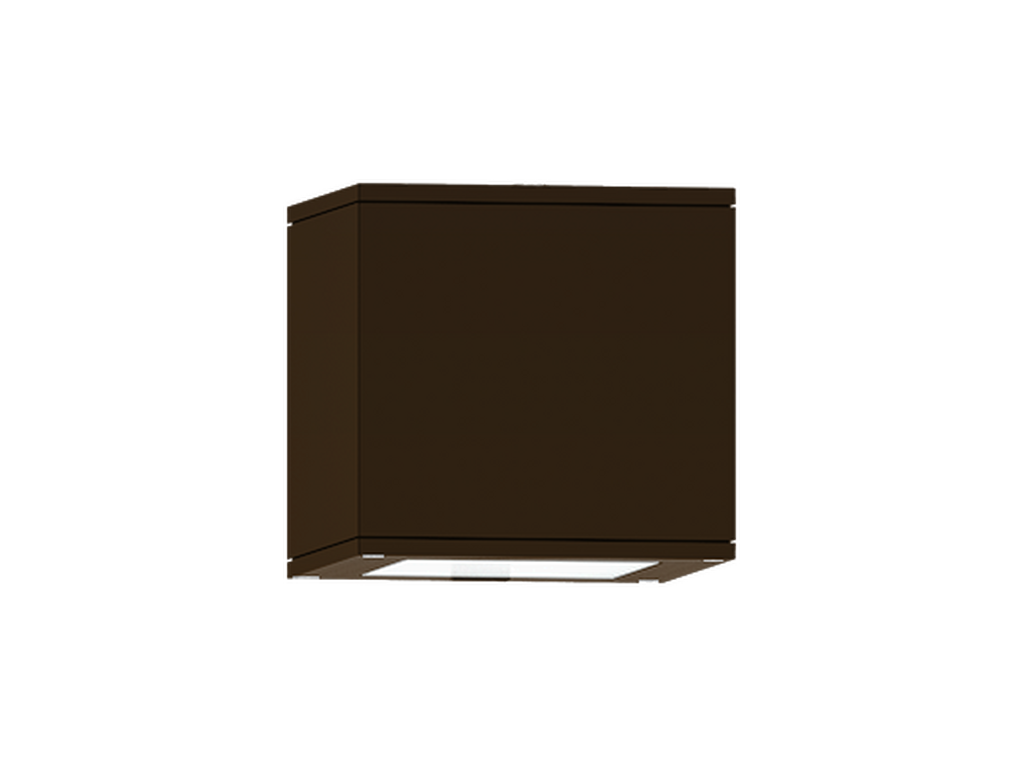

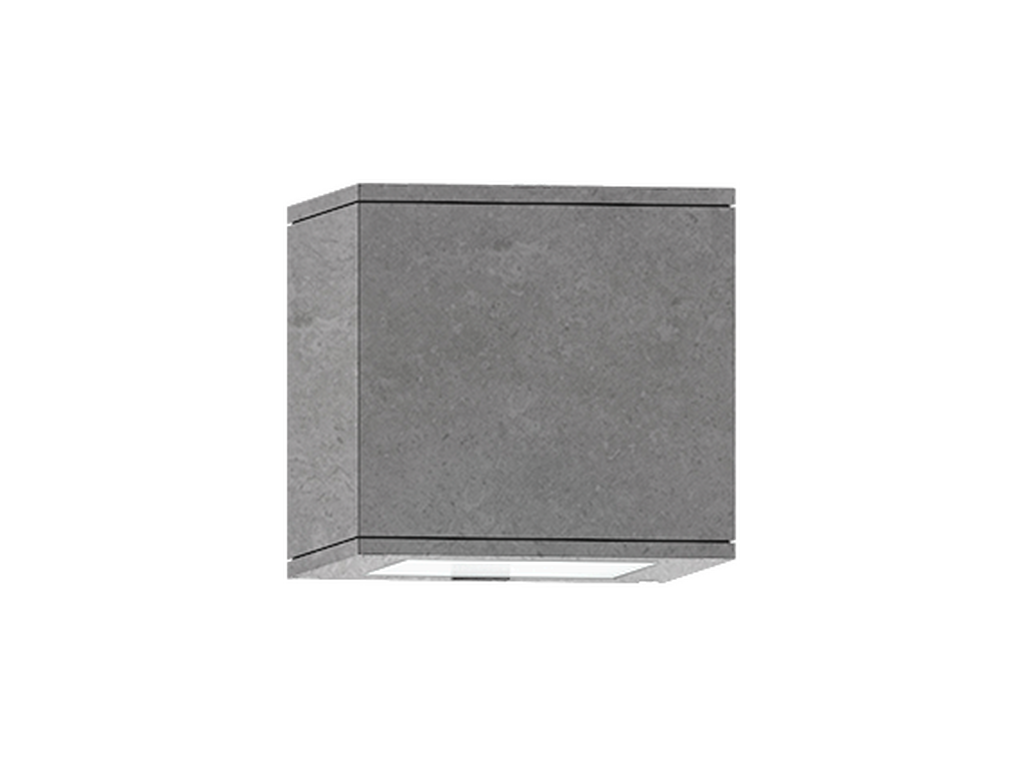

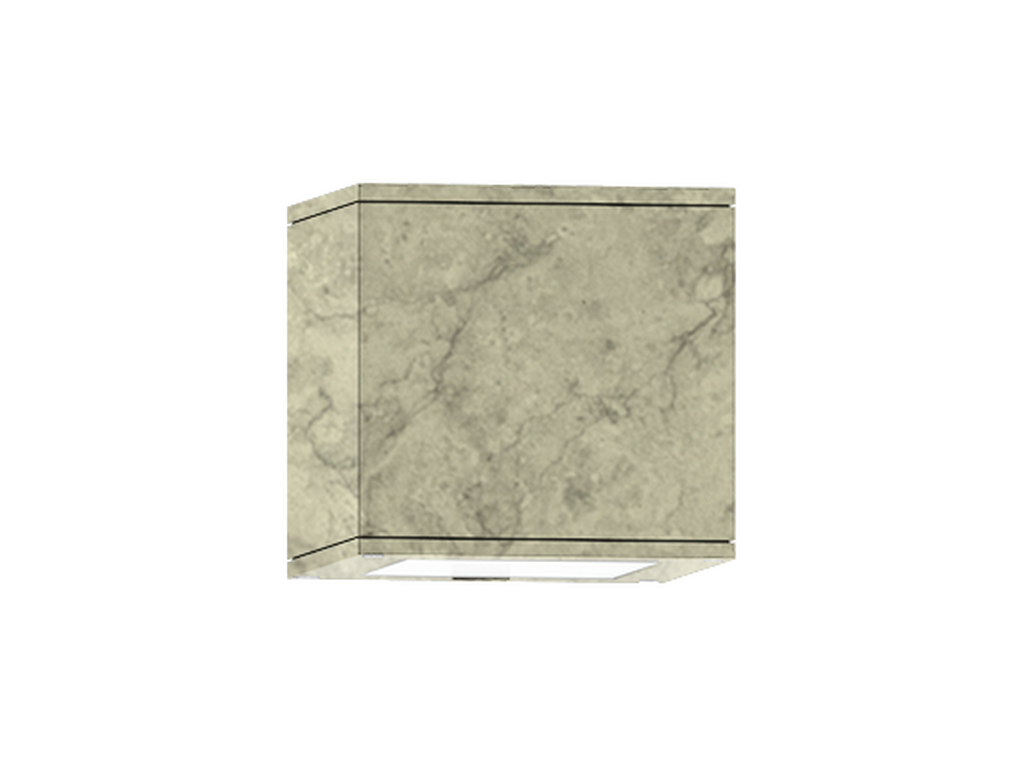

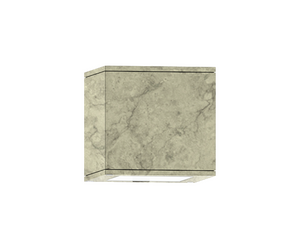

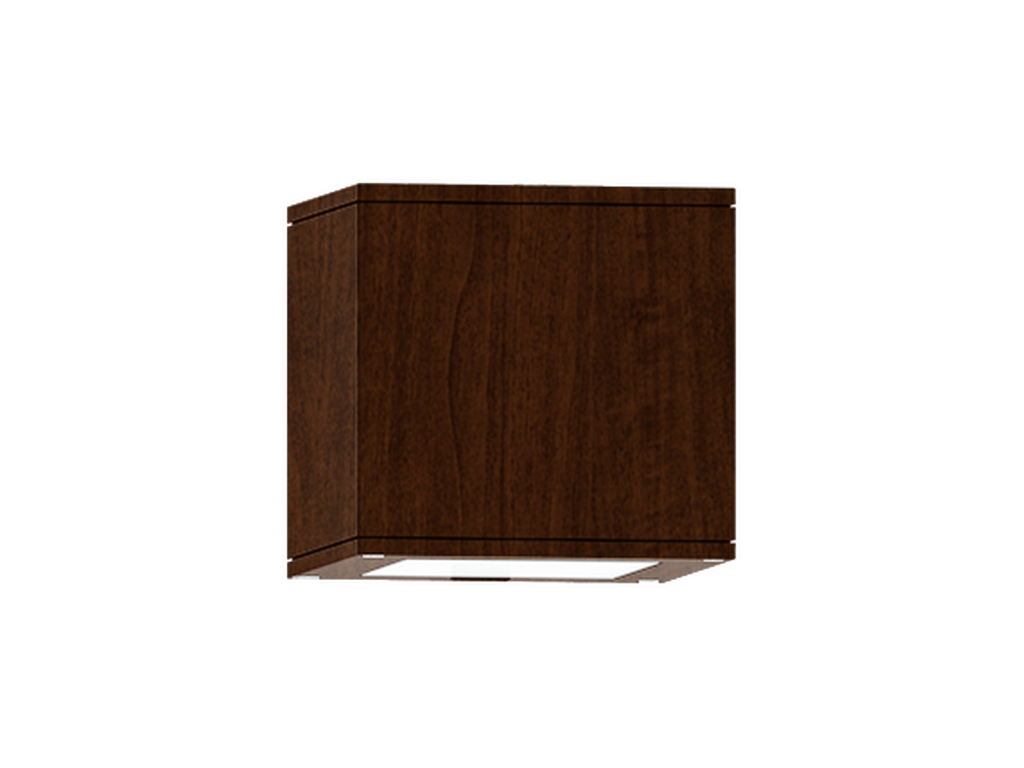

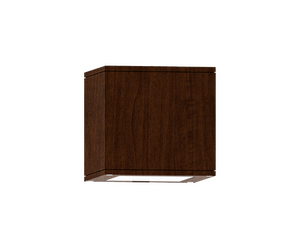

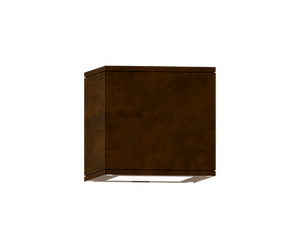

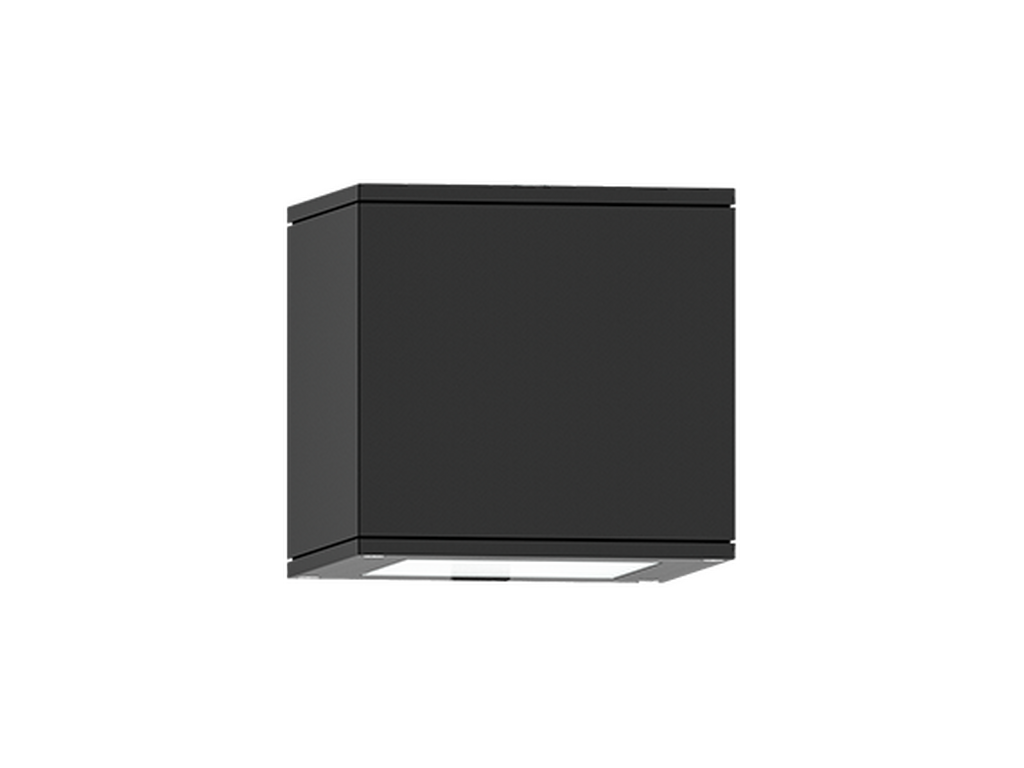

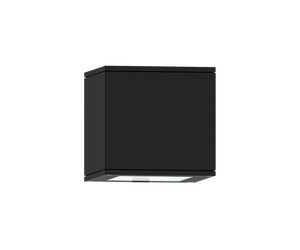

MATRIX 3Black

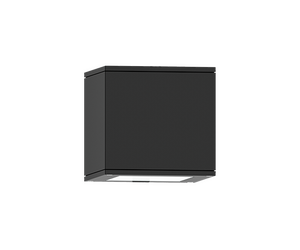

MATRIX 3Dark Grey

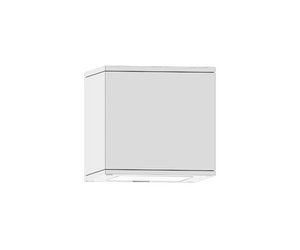

MATRIX 3White

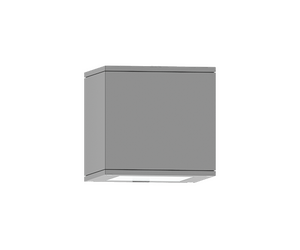

MATRIX 3Matt Silver

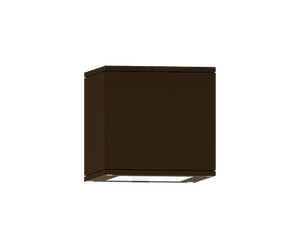

MATRIX 3Bronze

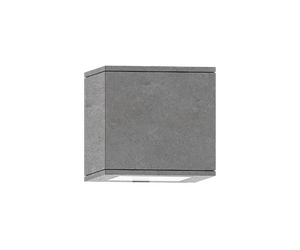

MATRIX 3Concrete - Urban
MATRIX 3Softscape - Urban
MATRIX 3Stone - Urban

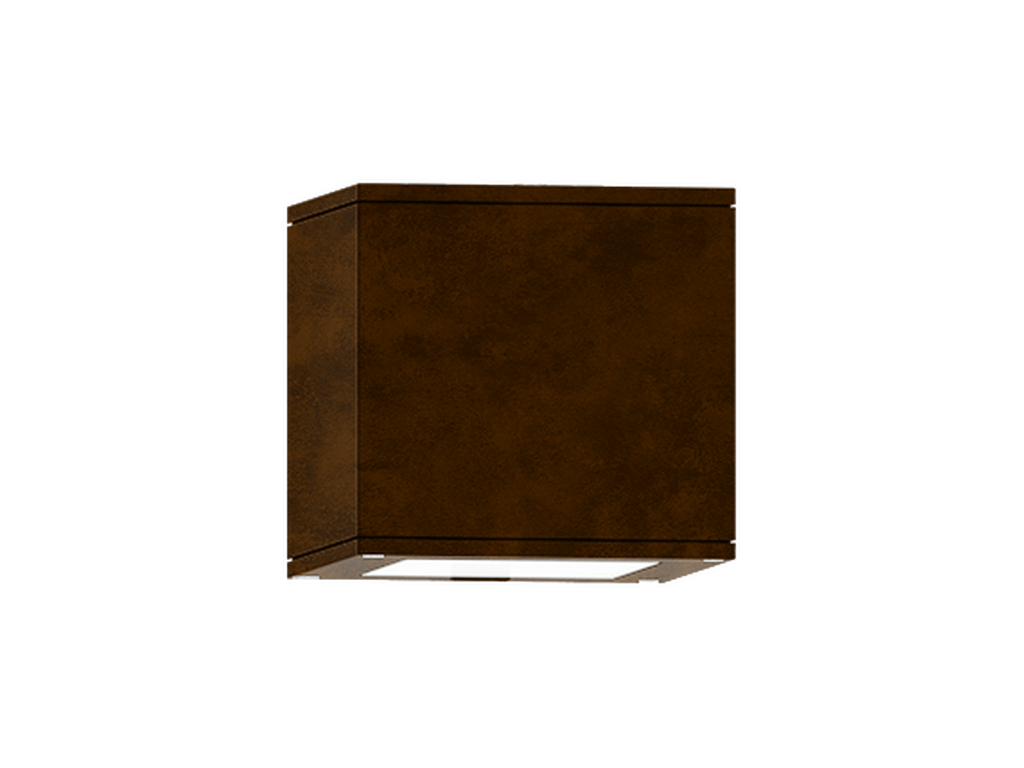

MATRIX 3Corten - Urban
MATRIX 3Oak - Woodland

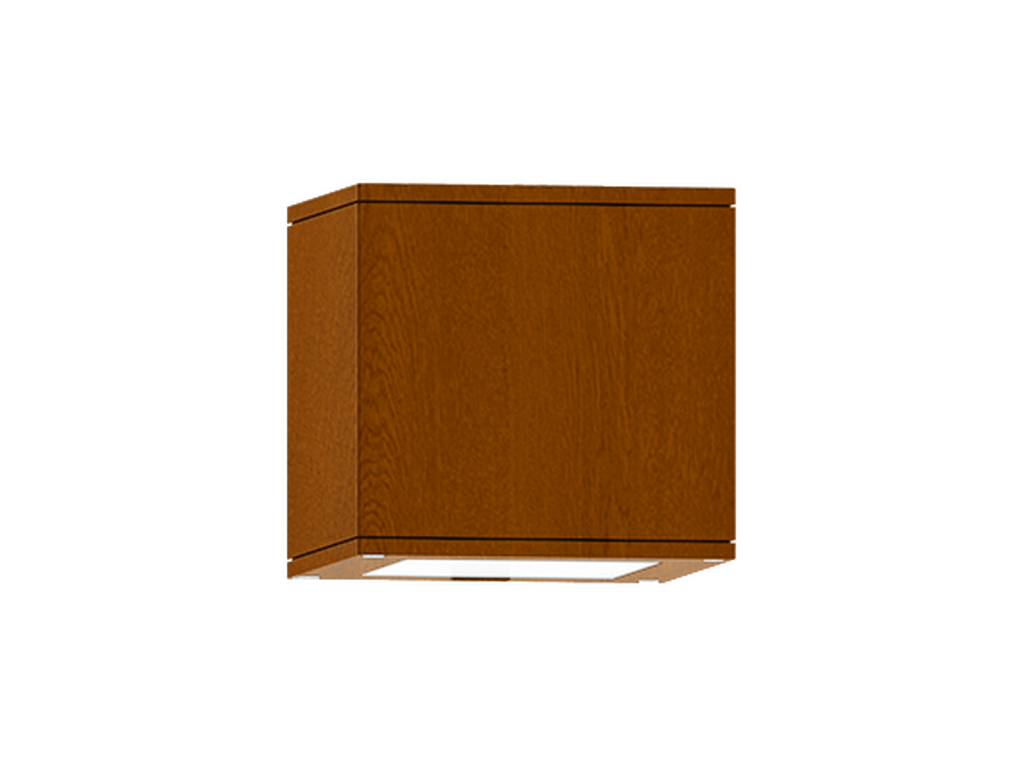

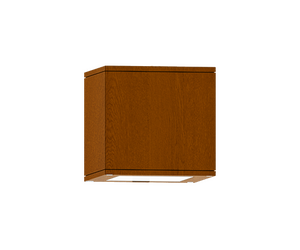

MATRIX 3Walnut - Woodland

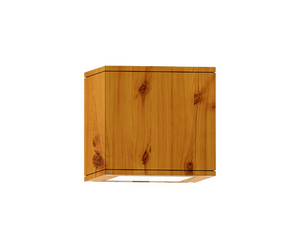

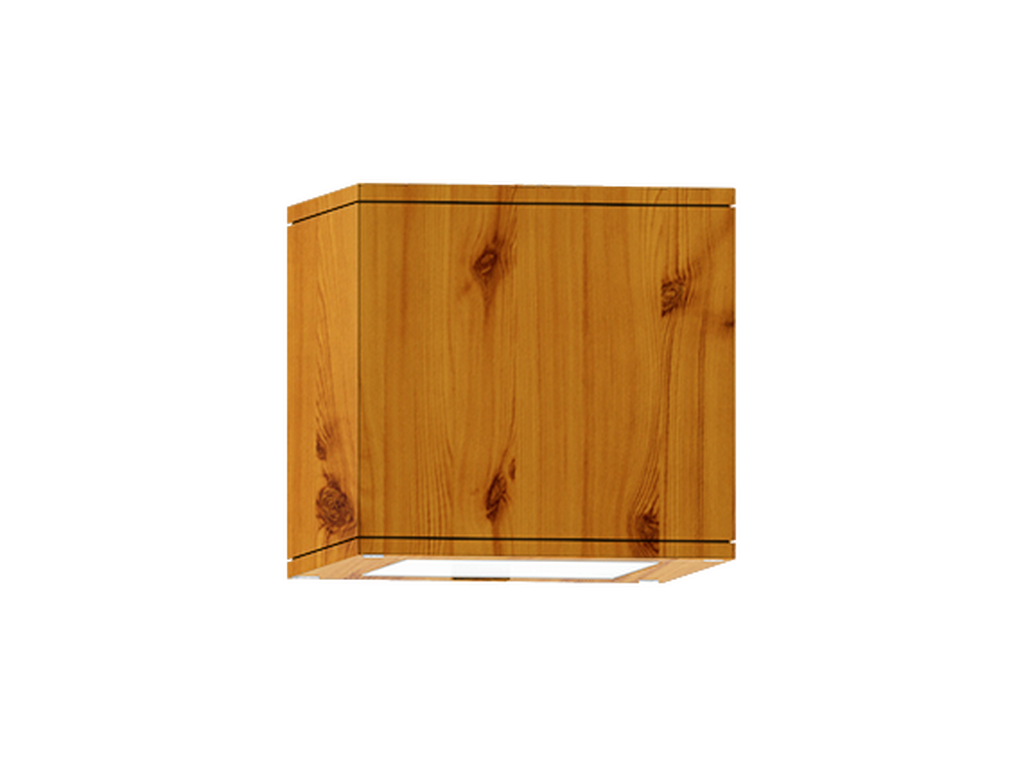

MATRIX 3Pine - Woodland
MATRIX 3Black
MATRIX 3Dark Grey
MATRIX 3White
MATRIX 3Matt Silver
MATRIX 3Bronze
MATRIX 3Concrete - Urban
MATRIX 3Softscape - Urban
MATRIX 3Stone - Urban
MATRIX 3Corten - Urban
MATRIX 3Oak - Woodland
MATRIX 3Walnut - Woodland
MATRIX 3Pine - Woodland
Down (Optic) & Up (Optic 2nd)
CERETILAPClass IIP65IK07

TECHNICAL SPECIFICATIONS

Material
Aluminium
Light source
1 & 1 COB
Power (W)
28 W
Lumen (lm)
2186 - 2256 lm
Efficacy (lm/W)
78 - 81 lm/W
Driver option
Integral control gear
Driver
Constant current (CC)
Input voltage
220-240 V 50/60 Hz
Optic
N, M, W, VW
Optic value
20°, 25°, 36°, 74°
Optic (2nd)
N, M, W, VW
Optic (2nd) Value
20°, 25°, 36°, 74°
CCT / CRI
3000K CRI80, 4000K CRI80
Dimming type
On/Off, 1-10V, DALI
Product colours
Black, Dark Grey, White, Matt Silver, Bronze, Concrete - Urban, Softscape - Urban, Stone - Urban, Corten - Urban, Oak - Woodland, Walnut - Woodland, Pine - Woodland
Weight
2.2 kg
Operating temperature
-20 °C to 40 °C
Through wiring
Single cable entry
Lens / Reflector / Optic
High-efficiency optical reflector, Clear toughened glass
MacAdam Ellipse
3 SDCM
Lifetime L90B10 (hours)
> 55,000
Variants (On/Off, 1-10V, DALI)
Compatible with EN/ IEC 60598-2-22: Suitable for emergency installations as central supply, non-maintained (Z0)

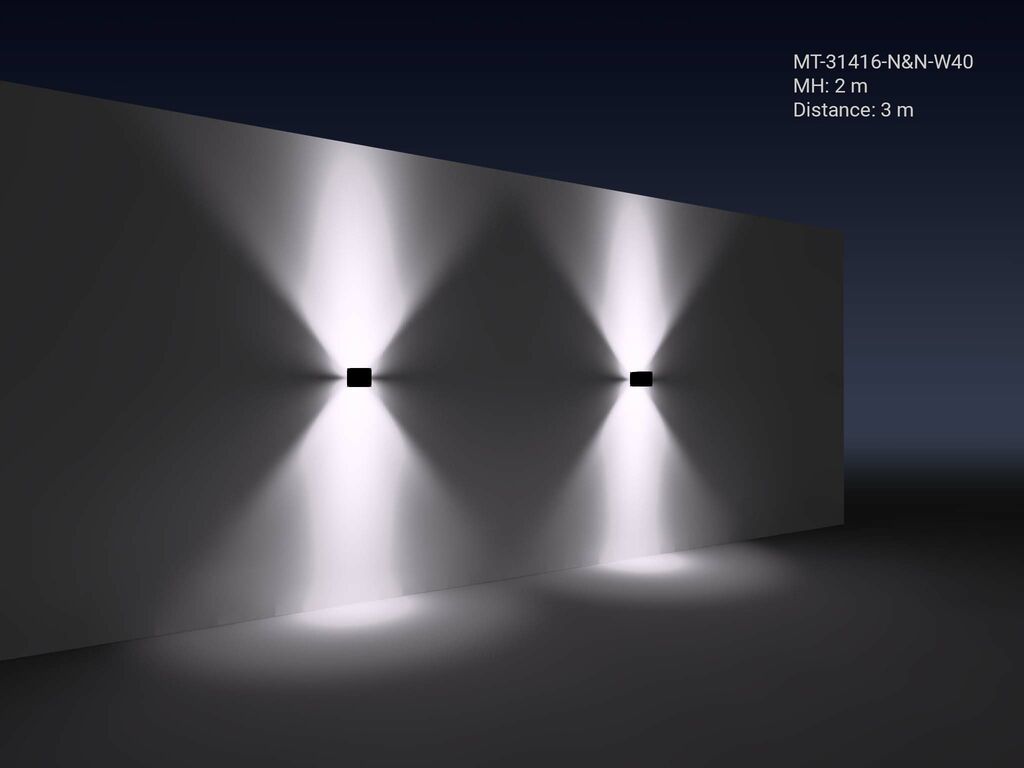

LIGHT EFFECT

Optic
N (20°) / N (20°)
N (20°) / M (25°)
N (20°) / W (36°)
N (20°) / VW (74°)
M (25°) / N (20°)
M (25°) / M (25°)
M (25°) / W (36°)
M (25°) / VW (74°)
W (36°) / N (20°)
W (36°) / M (25°)
W (36°) / W (36°)
W (36°) / VW (74°)
VW (74°) / N (20°)
VW (74°) / M (25°)
VW (74°) / W (36°)
VW (74°) / VW (74°)

CODE FINDER

Lumen (lm)
Optic
Optic value
Optic (2nd)
Optic (2nd) Value
CCT / CRI
Dimming type
Product colour
Variant code
Lumen (lm)
Optic
Optic value
Optic (2nd)
Optic (2nd) Value
CCT / CRI
Dimming type
Product colour
