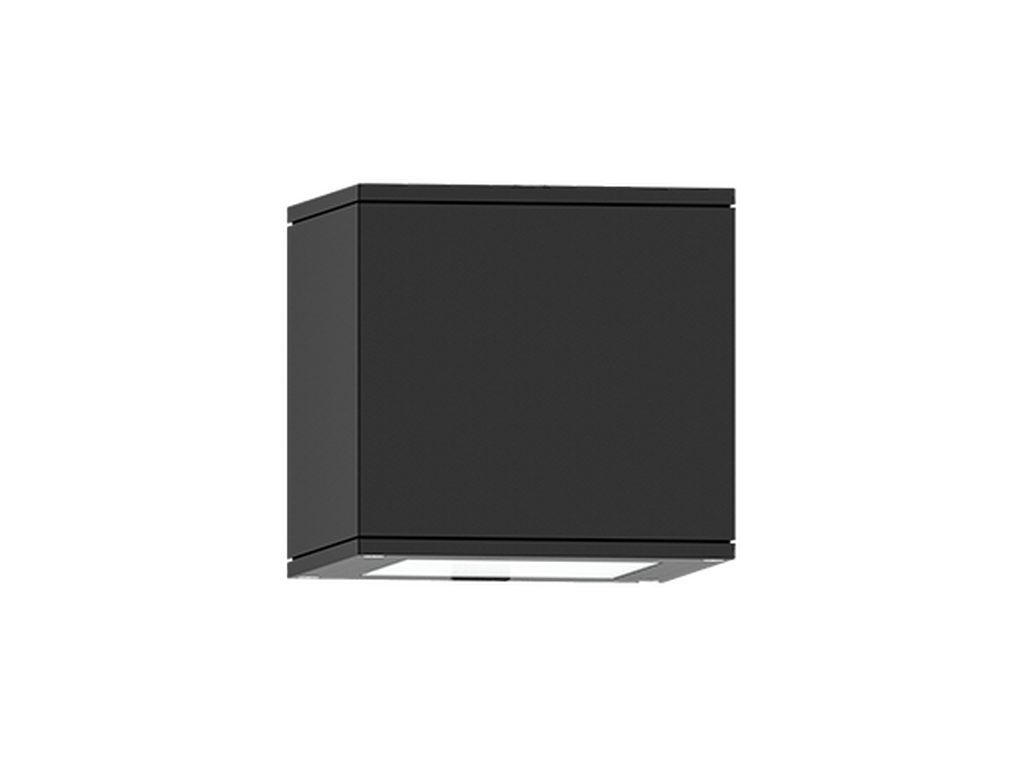

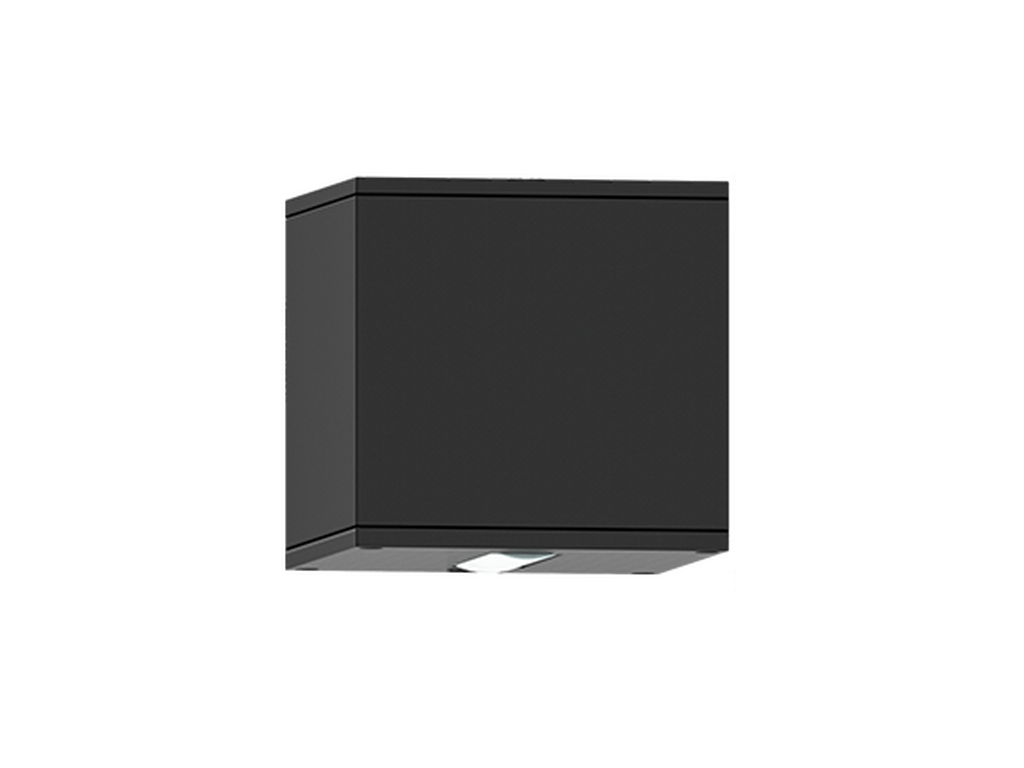

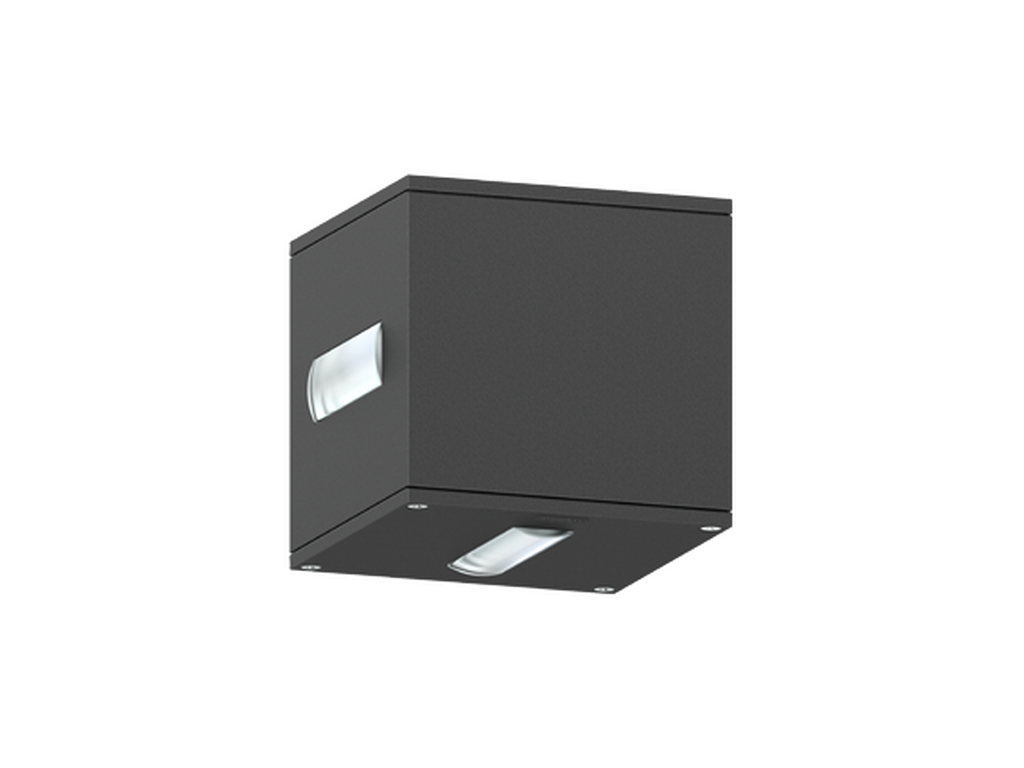

LIGMAN Product Outdoor Surface facade luminaires MATRIX Surface facade luminaires
MATRIX

MATRIXSurface facade luminaires

Square surface wall-mounted architectural lighting range. Family of lighting effects sanctioning imagination and inspiration to reign in designs.

MicroPRIM™DarkSky Approved
CERETILAPClass IIP65IK07

TECHNICAL SPECIFICATIONS

Luminaire Structure

- Die-cast aluminium housing
- Pre-treated before powder coating ensuring high corrosion resistance
- Single cable entry
- Stainless steel fasteners in grade 304 with zinc flake coating (ZFC)
- Durable silicone rubber gasket
- Clear toughened glass
- Integral control gear
- Optional surface mounting box for easy wiring or conduit connection when wiring from behind is not possible
- MATRIX luminaires with uplight and colder than 3000K CCT do not meet the IDA certification requirements

Feature

LIGMAN's high-power COBLIGMAN's single high-power LED module3000K-4000KCut-off 80° - DownlightNon-glare luminaire1-10VDALINon-dimmableLuminaire body with integral heatsink

Optic

N / N
N / M
N / W
N / VW
N / L
N / ML
N
M / N
M / M
M / W
M / VW
M / L
M / ML
M
W / N
W / M
W / W
W / VW
W / L
W / ML
W
VW / N
VW / M
VW / W
VW / VW
VW / L
VW / ML
VW
L / L
L / ML
L
L
L
L
ML / ML
ML
