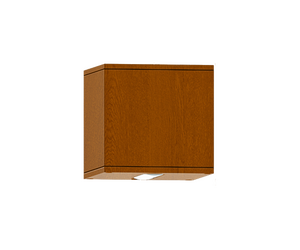

LIGMAN MATRIX 5 MT-31427.

MATRIX 5MT-31427MATRIX

Send us an E-Mail or use the contact form:

I have read the privacy policy and agree to the processing of my data *

The fields marked with an * must be correctly filled.
Your request was successfully sent.

Send us an E-Mail or use the contact form:

I have read the privacy policy and agree to the processing of my data *

The fields marked with an * must be correctly filled.
Your request was successfully sent.

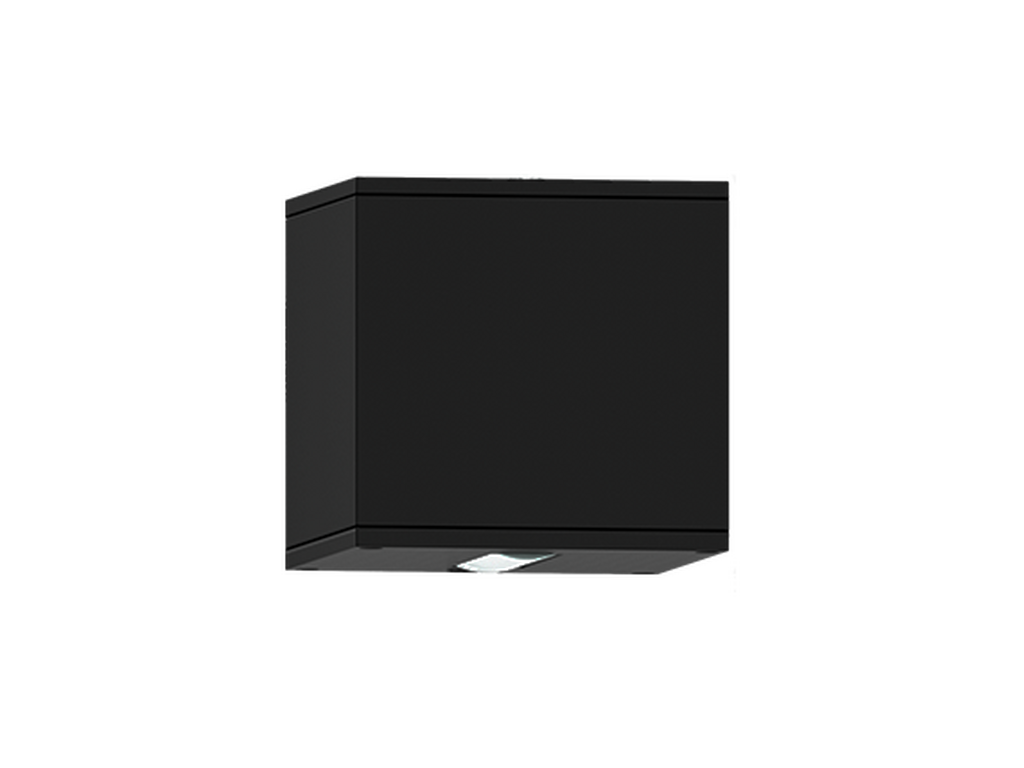

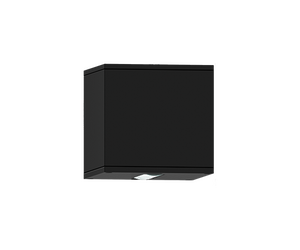

MATRIX 5Black

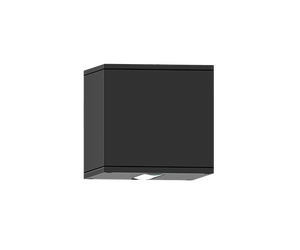

MATRIX 5Dark Grey

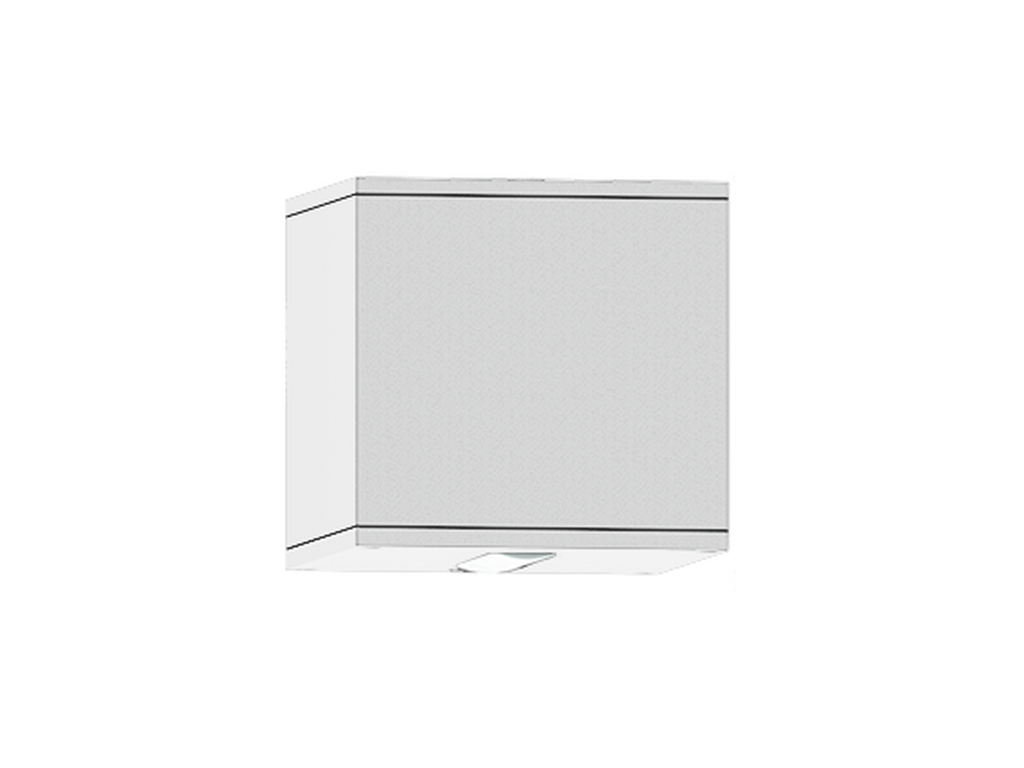

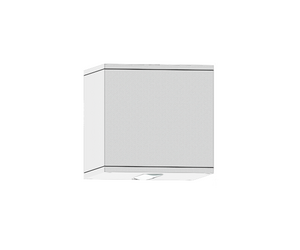

MATRIX 5White

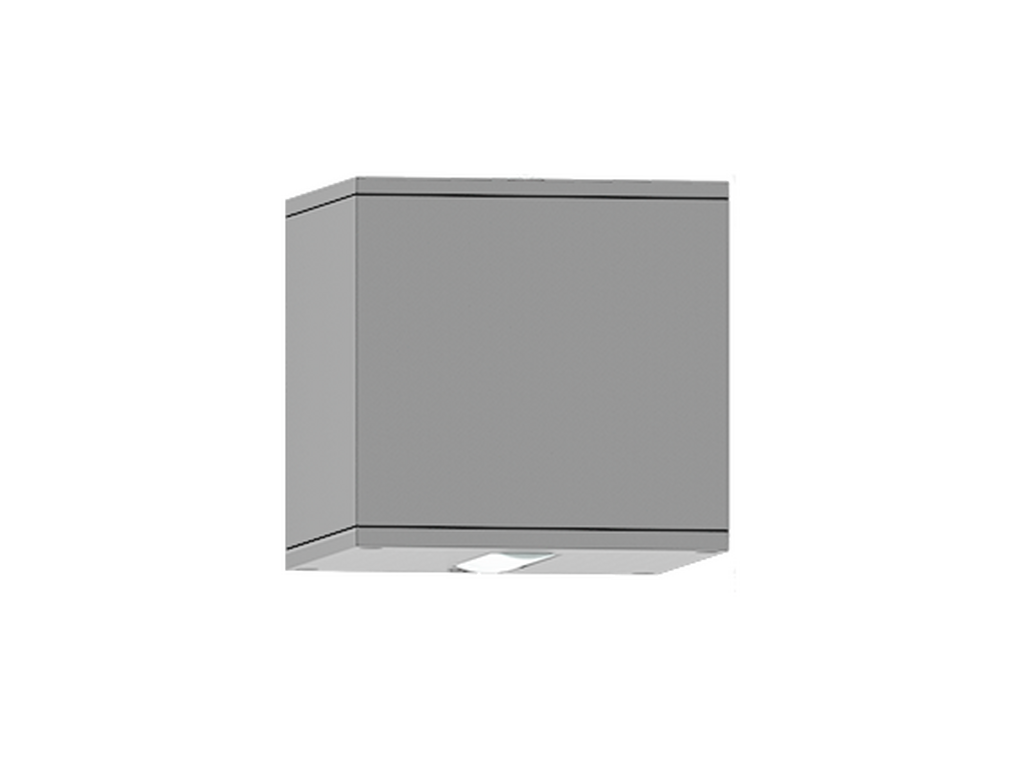

MATRIX 5Matt Silver
MATRIX 5Bronze

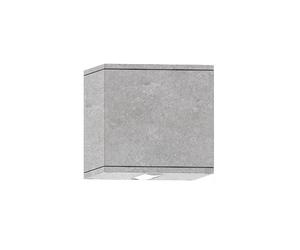

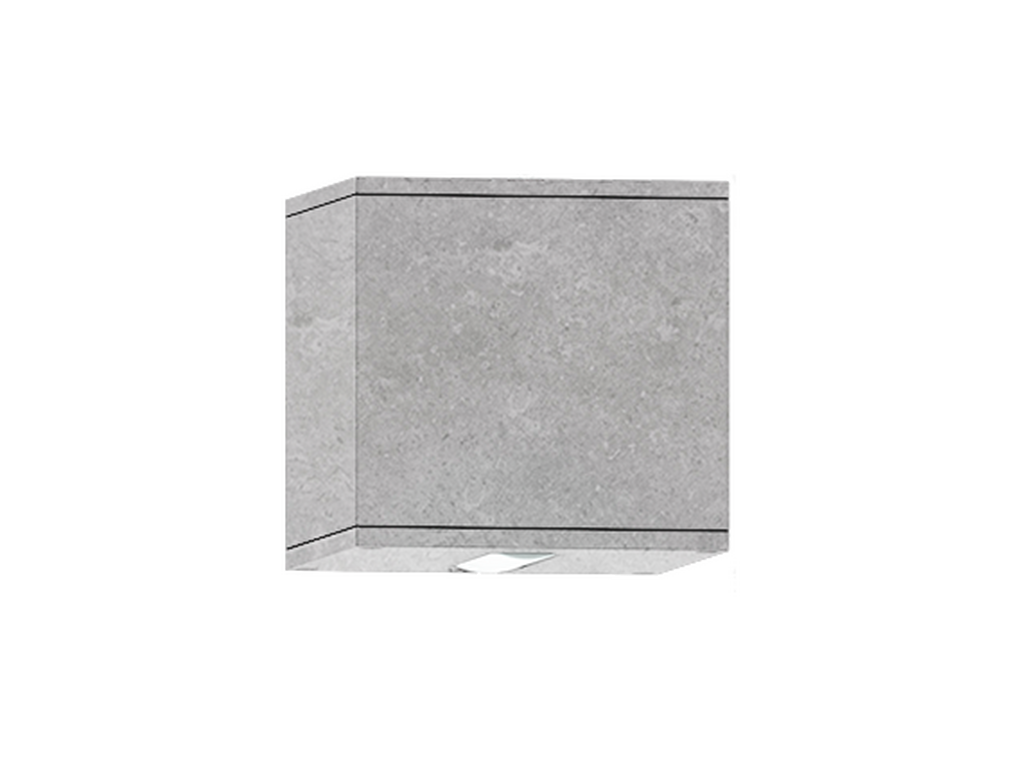

MATRIX 5Concrete - Urban

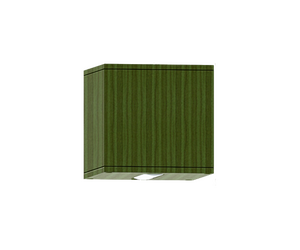

MATRIX 5Softscape - Urban

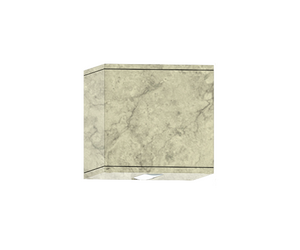

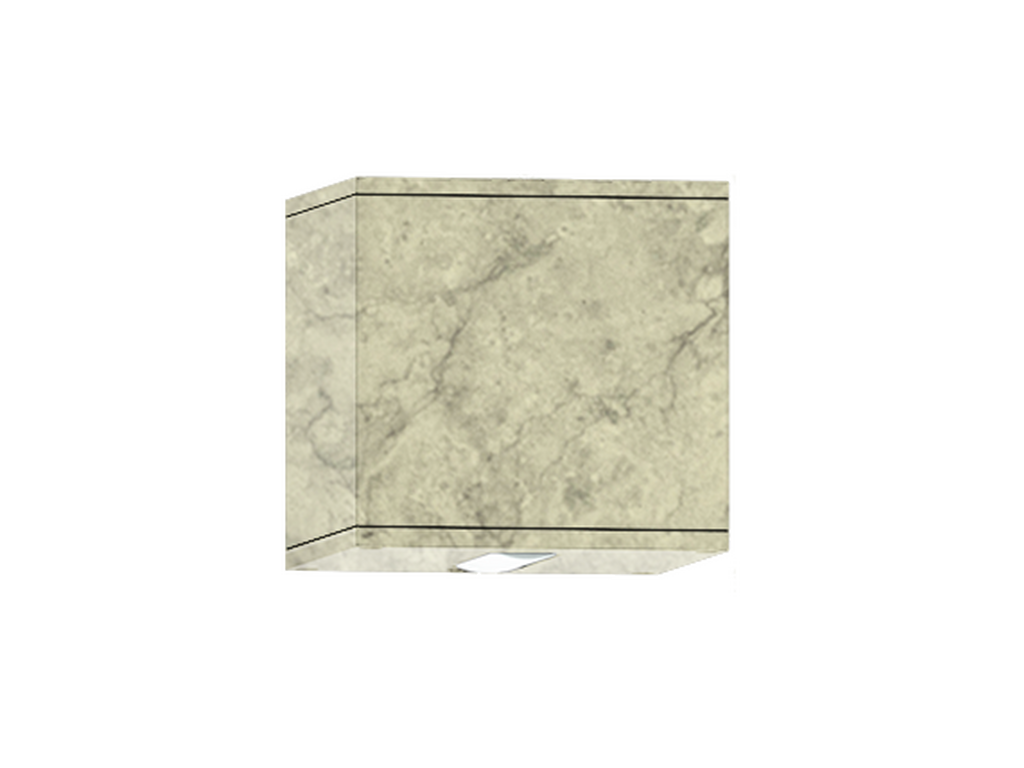

MATRIX 5Stone - Urban

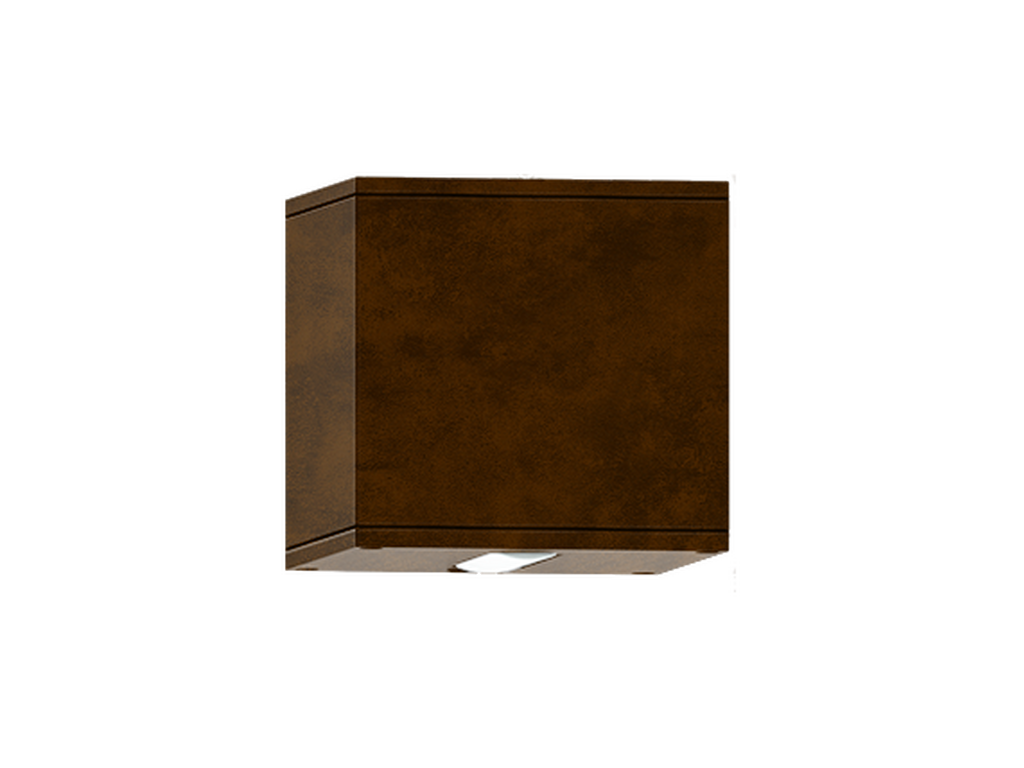

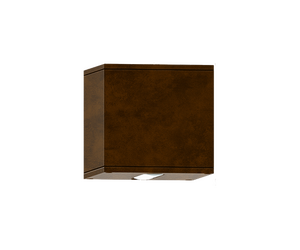

MATRIX 5Corten - Urban

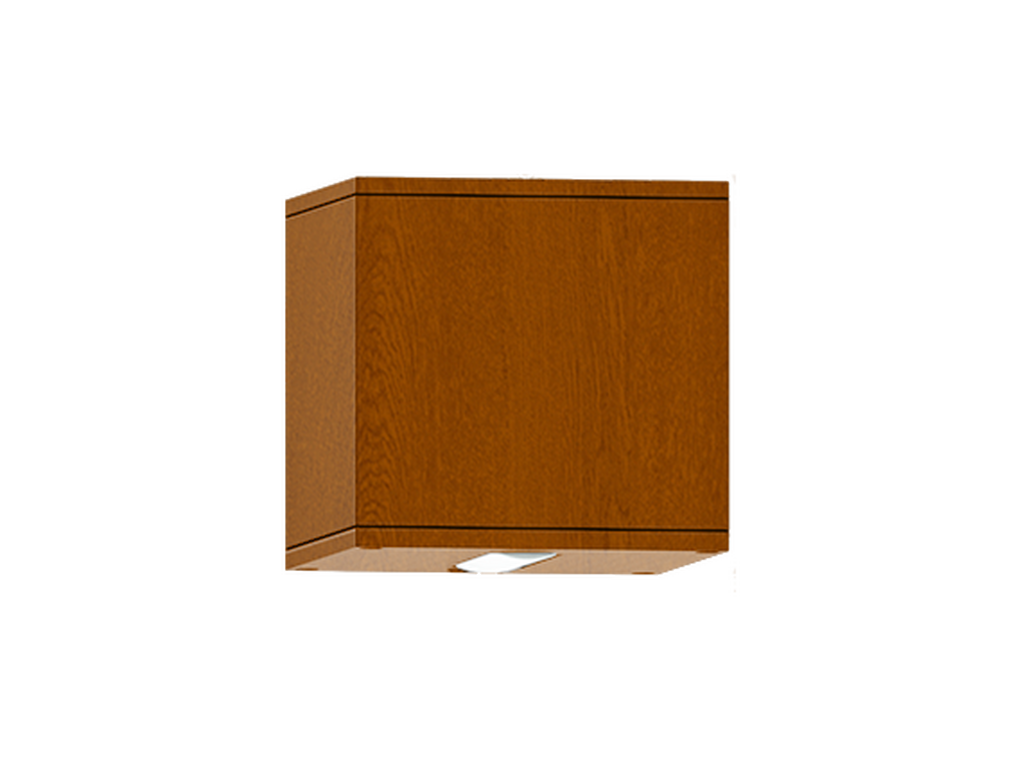

MATRIX 5Oak - Woodland

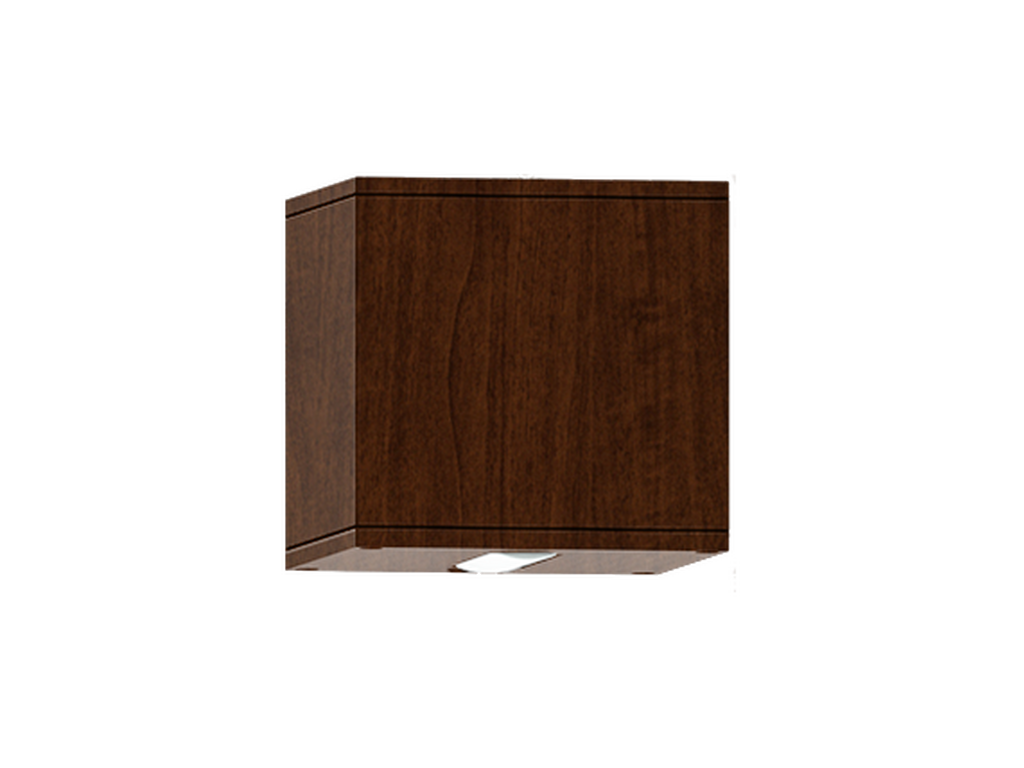

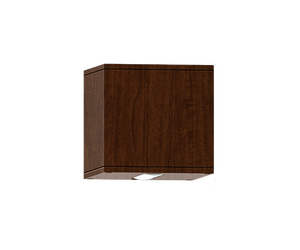

MATRIX 5Walnut - Woodland

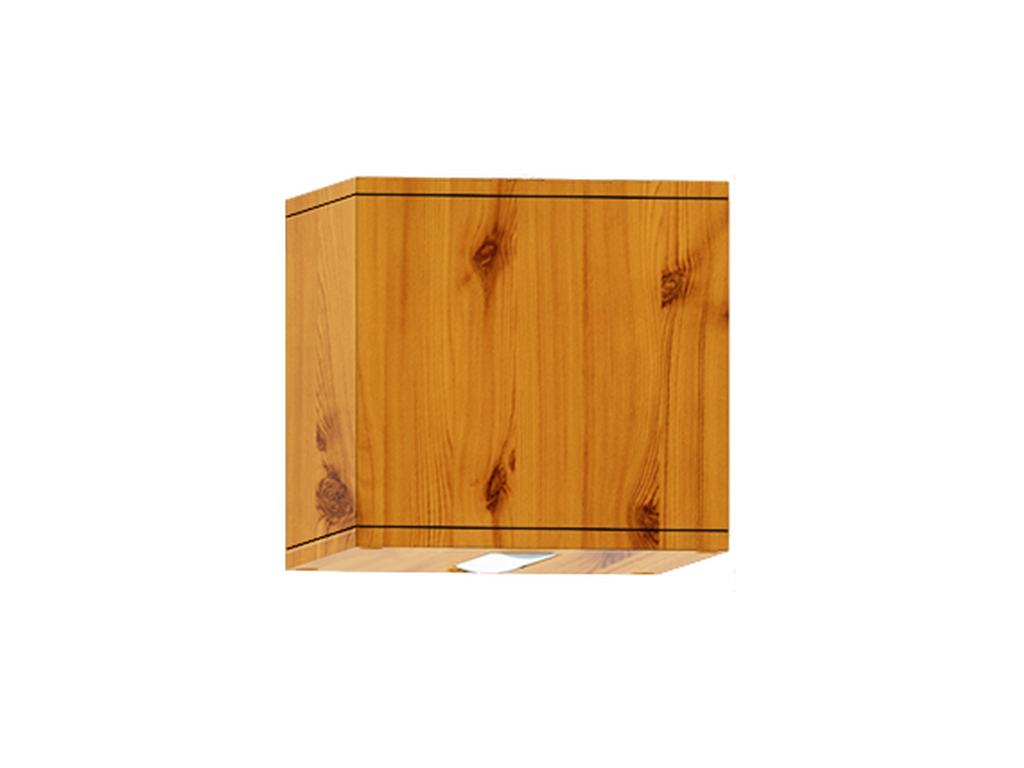

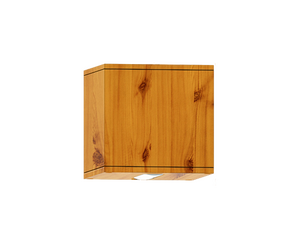

MATRIX 5Pine - Woodland
MATRIX 5Black
MATRIX 5Dark Grey
MATRIX 5White
MATRIX 5Matt Silver
MATRIX 5Bronze
MATRIX 5Concrete - Urban
MATRIX 5Softscape - Urban
MATRIX 5Stone - Urban
MATRIX 5Corten - Urban
MATRIX 5Oak - Woodland
MATRIX 5Walnut - Woodland
MATRIX 5Pine - Woodland
Down
CERETILAPClass IIP65IK07

TECHNICAL SPECIFICATIONS

Material
Aluminium
Light source
1 COB
Power (W)
6 W
Lumen (lm)
79 - 80 lm
Efficacy (lm/W)
13 lm/W
Driver option
Integral control gear
Driver
Constant current (CC)
Input voltage
220-240 V 50/60 Hz
Optic
L
Optic value
5°
CCT / CRI
3000K CRI80, 4000K CRI80
Dimming type
On/Off, 1-10V, DALI
Product colours
Black, Dark Grey, White, Matt Silver, Bronze, Concrete - Urban, Softscape - Urban, Stone - Urban, Corten - Urban, Oak - Woodland, Walnut - Woodland, Pine - Woodland
Weight
2.2 kg
Operating temperature
-20 °C to 40 °C
Through wiring
Single cable entry
Lens / Reflector / Optic
High-efficiency optical reflector, Clear toughened glass
MacAdam Ellipse
3 SDCM
Lifetime L90B10 (hours)
> 50,000
Variants (On/Off, 1-10V, DALI)
Compatible with EN/ IEC 60598-2-22: Suitable for emergency installations as central supply, non-maintained (Z0)

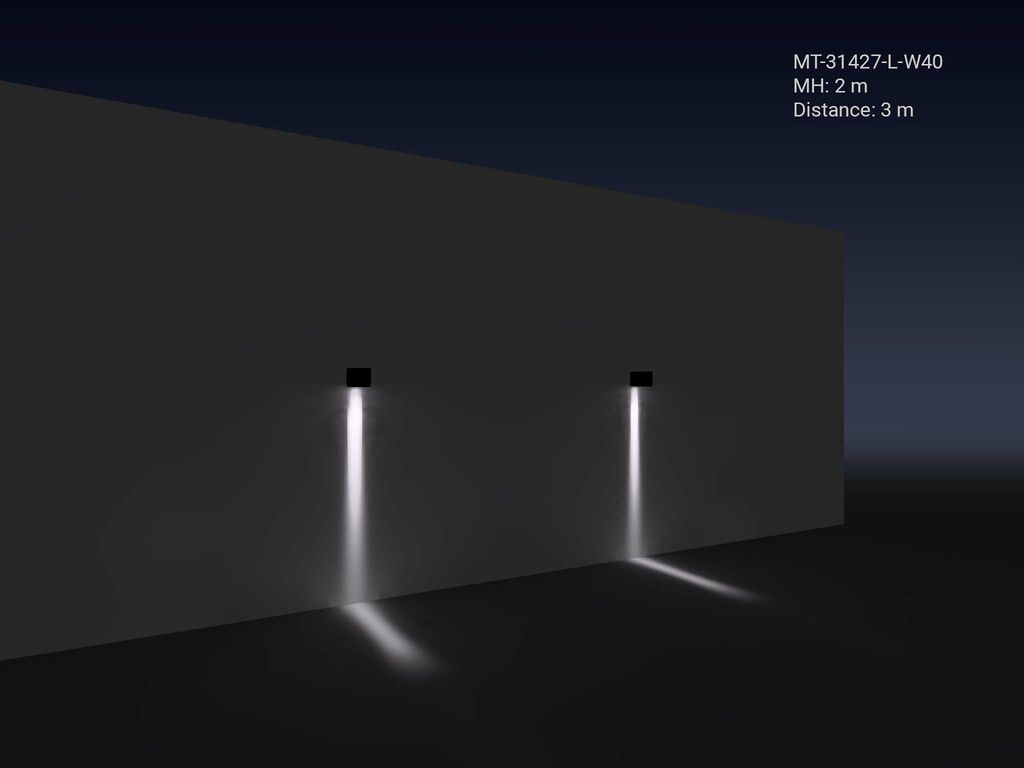

LIGHT EFFECT

Optic
L (5°)

CODE FINDER

Lumen (lm)
Optic
Optic value
CCT / CRI
Dimming type
Product colour
Variant code
Lumen (lm)
Optic
Optic value
CCT / CRI
Dimming type
Product colour
Variant code: MT-31427-L-8030-ND-01
Lumen (lm): 79 lm
Optic: L
Optic value: 5°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Black
Variant code: MT-31427-L-8030-ND-02
Lumen (lm): 79 lm
Optic: L
Optic value: 5°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Dark Grey
Variant code: MT-31427-L-8030-ND-03
Lumen (lm): 79 lm
Optic: L
Optic value: 5°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: White
Variant code: MT-31427-L-8030-ND-05
Lumen (lm): 79 lm
Optic: L
Optic value: 5°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Matt Silver
Variant code: MT-31427-L-8030-ND-06
Lumen (lm): 79 lm
Optic: L
Optic value: 5°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Bronze
Variant code: MT-31427-L-8030-ND-SU01
Lumen (lm): 79 lm
Optic: L
Optic value: 5°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Concrete - Urban
Variant code: MT-31427-L-8030-ND-SU02
Lumen (lm): 79 lm
Optic: L
Optic value: 5°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Softscape - Urban
Variant code: MT-31427-L-8030-ND-SU03
Lumen (lm): 79 lm
Optic: L
Optic value: 5°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Stone - Urban
Variant code: MT-31427-L-8030-ND-SU04
Lumen (lm): 79 lm
Optic: L
Optic value: 5°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Corten - Urban
Variant code: MT-31427-L-8030-ND-SW01
Lumen (lm): 79 lm
Optic: L
Optic value: 5°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Oak - Woodland
Variant code: MT-31427-L-8030-ND-SW02
Lumen (lm): 79 lm
Optic: L
Optic value: 5°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Walnut - Woodland
Variant code: MT-31427-L-8030-ND-SW03
Lumen (lm): 79 lm
Optic: L
Optic value: 5°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Pine - Woodland
Variant code: MT-31427-L-8040-ND-01
Lumen (lm): 80 lm
Optic: L
Optic value: 5°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Black
Variant code: MT-31427-L-8040-ND-02
Lumen (lm): 80 lm
Optic: L
Optic value: 5°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Dark Grey
Variant code: MT-31427-L-8040-ND-03
Lumen (lm): 80 lm
Optic: L
Optic value: 5°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: White
Variant code: MT-31427-L-8040-ND-05
Lumen (lm): 80 lm
Optic: L
Optic value: 5°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Matt Silver
Variant code: MT-31427-L-8040-ND-06
Lumen (lm): 80 lm
Optic: L
Optic value: 5°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Bronze
Variant code: MT-31427-L-8040-ND-SU01
Lumen (lm): 80 lm
Optic: L
Optic value: 5°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Concrete - Urban
Variant code: MT-31427-L-8040-ND-SU02
Lumen (lm): 80 lm
Optic: L
Optic value: 5°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Softscape - Urban
Variant code: MT-31427-L-8040-ND-SU03
Lumen (lm): 80 lm
Optic: L
Optic value: 5°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Stone - Urban
Variant code: MT-31427-L-8040-ND-SU04
Lumen (lm): 80 lm
Optic: L
Optic value: 5°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Corten - Urban
Variant code: MT-31427-L-8040-ND-SW01
Lumen (lm): 80 lm
Optic: L
Optic value: 5°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Oak - Woodland
Variant code: MT-31427-L-8040-ND-SW02
Lumen (lm): 80 lm
Optic: L
Optic value: 5°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Walnut - Woodland
Variant code: MT-31427-L-8040-ND-SW03
Lumen (lm): 80 lm
Optic: L
Optic value: 5°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Pine - Woodland
Variant code: MT-31427-L-8030-DI-01
Lumen (lm): 79 lm
Optic: L
Optic value: 5°
CCT / CRI: 3000K CRI80
Dimming type: 1-10V
Product colour: Black
Variant code: MT-31427-L-8030-DI-02
Lumen (lm): 79 lm
Optic: L
Optic value: 5°
CCT / CRI: 3000K CRI80
Dimming type: 1-10V
Product colour: Dark Grey
Variant code: MT-31427-L-8030-DI-03
Lumen (lm): 79 lm
Optic: L
Optic value: 5°
CCT / CRI: 3000K CRI80
Dimming type: 1-10V
Product colour: White
Variant code: MT-31427-L-8030-DI-05
Lumen (lm): 79 lm
Optic: L
Optic value: 5°
CCT / CRI: 3000K CRI80
Dimming type: 1-10V
Product colour: Matt Silver
Variant code: MT-31427-L-8030-DI-06
Lumen (lm): 79 lm
Optic: L
Optic value: 5°
CCT / CRI: 3000K CRI80
Dimming type: 1-10V
Product colour: Bronze
Variant code: MT-31427-L-8030-DI-SU01
Lumen (lm): 79 lm
Optic: L
Optic value: 5°
CCT / CRI: 3000K CRI80
Dimming type: 1-10V
Product colour: Concrete - Urban
Variant code: MT-31427-L-8030-DI-SU02
Lumen (lm): 79 lm
Optic: L
Optic value: 5°
CCT / CRI: 3000K CRI80
Dimming type: 1-10V
Product colour: Softscape - Urban
Variant code: MT-31427-L-8030-DI-SU03
Lumen (lm): 79 lm
Optic: L
Optic value: 5°
CCT / CRI: 3000K CRI80
Dimming type: 1-10V
Product colour: Stone - Urban
Variant code: MT-31427-L-8030-DI-SU04
Lumen (lm): 79 lm
Optic: L
Optic value: 5°
CCT / CRI: 3000K CRI80
Dimming type: 1-10V
Product colour: Corten - Urban
Variant code: MT-31427-L-8030-DI-SW01
Lumen (lm): 79 lm
Optic: L
Optic value: 5°
CCT / CRI: 3000K CRI80
Dimming type: 1-10V
Product colour: Oak - Woodland
Variant code: MT-31427-L-8030-DI-SW02
Lumen (lm): 79 lm
Optic: L
Optic value: 5°
CCT / CRI: 3000K CRI80
Dimming type: 1-10V
Product colour: Walnut - Woodland
Variant code: MT-31427-L-8030-DI-SW03
Lumen (lm): 79 lm
Optic: L
Optic value: 5°
CCT / CRI: 3000K CRI80
Dimming type: 1-10V
Product colour: Pine - Woodland
Variant code: MT-31427-L-8040-DI-01
Lumen (lm): 80 lm
Optic: L
Optic value: 5°
CCT / CRI: 4000K CRI80
Dimming type: 1-10V
Product colour: Black
Variant code: MT-31427-L-8040-DI-02
Lumen (lm): 80 lm
Optic: L
Optic value: 5°
CCT / CRI: 4000K CRI80
Dimming type: 1-10V
Product colour: Dark Grey
Variant code: MT-31427-L-8040-DI-03
Lumen (lm): 80 lm
Optic: L
Optic value: 5°
CCT / CRI: 4000K CRI80
Dimming type: 1-10V
Product colour: White
Variant code: MT-31427-L-8040-DI-05
Lumen (lm): 80 lm
Optic: L
Optic value: 5°
CCT / CRI: 4000K CRI80
Dimming type: 1-10V
Product colour: Matt Silver
Variant code: MT-31427-L-8040-DI-06
Lumen (lm): 80 lm
Optic: L
Optic value: 5°
CCT / CRI: 4000K CRI80
Dimming type: 1-10V
Product colour: Bronze
Variant code: MT-31427-L-8040-DI-SU01
Lumen (lm): 80 lm
Optic: L
Optic value: 5°
CCT / CRI: 4000K CRI80
Dimming type: 1-10V
Product colour: Concrete - Urban
Variant code: MT-31427-L-8040-DI-SU02
Lumen (lm): 80 lm
Optic: L
Optic value: 5°
CCT / CRI: 4000K CRI80
Dimming type: 1-10V
Product colour: Softscape - Urban
Variant code: MT-31427-L-8040-DI-SU03
Lumen (lm): 80 lm
Optic: L
Optic value: 5°
CCT / CRI: 4000K CRI80
Dimming type: 1-10V
Product colour: Stone - Urban
Variant code: MT-31427-L-8040-DI-SU04
Lumen (lm): 80 lm
Optic: L
Optic value: 5°
CCT / CRI: 4000K CRI80
Dimming type: 1-10V
Product colour: Corten - Urban
Variant code: MT-31427-L-8040-DI-SW01
Lumen (lm): 80 lm
Optic: L
Optic value: 5°
CCT / CRI: 4000K CRI80
Dimming type: 1-10V
Product colour: Oak - Woodland
Variant code: MT-31427-L-8040-DI-SW02
Lumen (lm): 80 lm
Optic: L
Optic value: 5°
CCT / CRI: 4000K CRI80
Dimming type: 1-10V
Product colour: Walnut - Woodland
Variant code: MT-31427-L-8040-DI-SW03
Lumen (lm): 80 lm
Optic: L
Optic value: 5°
CCT / CRI: 4000K CRI80
Dimming type: 1-10V
Product colour: Pine - Woodland
Variant code: MT-31427-L-8030-DA-01
Lumen (lm): 79 lm
Optic: L
Optic value: 5°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Black
Variant code: MT-31427-L-8030-DA-02
Lumen (lm): 79 lm
Optic: L
Optic value: 5°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Dark Grey
Variant code: MT-31427-L-8030-DA-03
Lumen (lm): 79 lm
Optic: L
Optic value: 5°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: White
Variant code: MT-31427-L-8030-DA-05
Lumen (lm): 79 lm
Optic: L
Optic value: 5°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Matt Silver
Variant code: MT-31427-L-8030-DA-06
Lumen (lm): 79 lm
Optic: L
Optic value: 5°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Bronze
Variant code: MT-31427-L-8030-DA-SU01
Lumen (lm): 79 lm
Optic: L
Optic value: 5°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Concrete - Urban
Variant code: MT-31427-L-8030-DA-SU02
Lumen (lm): 79 lm
Optic: L
Optic value: 5°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Softscape - Urban
Variant code: MT-31427-L-8030-DA-SU03
Lumen (lm): 79 lm
Optic: L
Optic value: 5°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Stone - Urban
Variant code: MT-31427-L-8030-DA-SU04
Lumen (lm): 79 lm
Optic: L
Optic value: 5°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Corten - Urban
Variant code: MT-31427-L-8030-DA-SW01
Lumen (lm): 79 lm
Optic: L
Optic value: 5°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Oak - Woodland
Variant code: MT-31427-L-8030-DA-SW02
Lumen (lm): 79 lm
Optic: L
Optic value: 5°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Walnut - Woodland
Variant code: MT-31427-L-8030-DA-SW03
Lumen (lm): 79 lm
Optic: L
Optic value: 5°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Pine - Woodland
Variant code: MT-31427-L-8040-DA-01
Lumen (lm): 80 lm
Optic: L
Optic value: 5°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Black
Variant code: MT-31427-L-8040-DA-02
Lumen (lm): 80 lm
Optic: L
Optic value: 5°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Dark Grey
Variant code: MT-31427-L-8040-DA-03
Lumen (lm): 80 lm
Optic: L
Optic value: 5°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: White
Variant code: MT-31427-L-8040-DA-05
Lumen (lm): 80 lm
Optic: L
Optic value: 5°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Matt Silver
Variant code: MT-31427-L-8040-DA-06
Lumen (lm): 80 lm
Optic: L
Optic value: 5°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Bronze
Variant code: MT-31427-L-8040-DA-SU01
Lumen (lm): 80 lm
Optic: L
Optic value: 5°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Concrete - Urban
Variant code: MT-31427-L-8040-DA-SU02
Lumen (lm): 80 lm
Optic: L
Optic value: 5°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Softscape - Urban
Variant code: MT-31427-L-8040-DA-SU03
Lumen (lm): 80 lm
Optic: L
Optic value: 5°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Stone - Urban
Variant code: MT-31427-L-8040-DA-SU04
Lumen (lm): 80 lm
Optic: L
Optic value: 5°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Corten - Urban
Variant code: MT-31427-L-8040-DA-SW01
Lumen (lm): 80 lm
Optic: L
Optic value: 5°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Oak - Woodland
Variant code: MT-31427-L-8040-DA-SW02
Lumen (lm): 80 lm
Optic: L
Optic value: 5°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Walnut - Woodland
Variant code: MT-31427-L-8040-DA-SW03
Lumen (lm): 80 lm
Optic: L
Optic value: 5°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Pine - Woodland

ACCESSORY

PROJECT REFERENCE (MATRIX Surface facade luminaires)

SOCIAL

Facebook-f Instagram Youtube Linkedin-in Twitter Pinterest Line

NEWSLETTER

Sign up to our newsletter

Copyright © LIGMAN Lighting Co., Ltd.

Privacy Policy      Privacy Policy CCTV      Terms of use      Terms of sales
