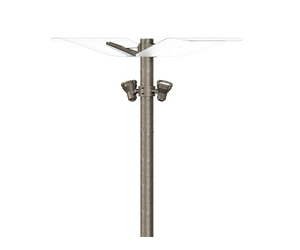

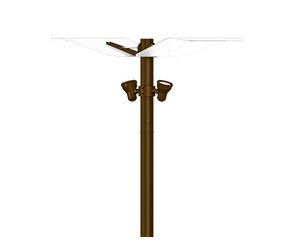

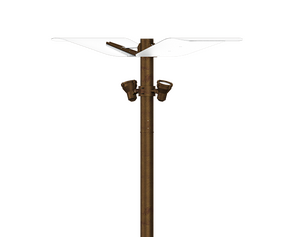

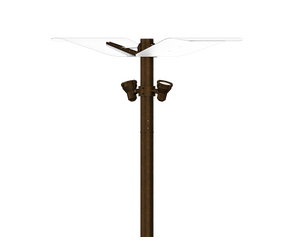

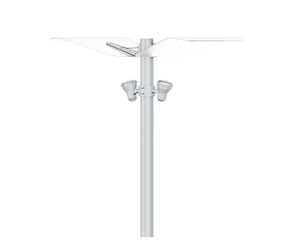

LIGMAN MIC 3 MI-21071.

MIC 3MI-21071MIC

Send us an E-Mail or use the contact form:

I have read the privacy policy and agree to the processing of my data *

The fields marked with an * must be correctly filled.
Your request was successfully sent.

Send us an E-Mail or use the contact form:

I have read the privacy policy and agree to the processing of my data *

The fields marked with an * must be correctly filled.
Your request was successfully sent.
Discontinued - 10/2022
MIC 3Black
MIC 3Dark Grey
MIC 3White
MIC 3Matt Silver
MIC 3Bronze
MIC 3Concrete - Urban
MIC 3Softscape - Urban
MIC 3Stone - Urban
MIC 3Corten - Urban
MIC 3Oak - Woodland
MIC 3Walnut - Woodland
MIC 3Pine - Woodland
MIC 3Black
MIC 3Dark Grey
MIC 3White
MIC 3Matt Silver
MIC 3Bronze
MIC 3Concrete - Urban
MIC 3Softscape - Urban
MIC 3Stone - Urban
MIC 3Corten - Urban
MIC 3Oak - Woodland
MIC 3Walnut - Woodland
MIC 3Pine - Woodland
Indirect - 2 sides
CEClass IIP65IK07

Technical information

Material
Aluminium
Light source
2 x 24 LED
Power (W)
80 W
Lumen (lm)
4296 - 4806 lm
Efficacy (lm/W)
54 - 60 lm/W
Driver option
Integral control gear
Driver
Constant current (CC)
Input voltage
220-240 V 50/60 Hz
Optic
G
Optic value
111°x 98°
CCT / CRI
3000K CRI80, 4000K CRI80
Bug
B1-U3-G1
ULR
11%
ULOR
11%
CIE flux code nº3
91
Dimming type
On/Off, 1-10V, DALI
Product colours
Black, Dark Grey, White, Matt Silver, Bronze, Concrete - Urban, Softscape - Urban, Stone - Urban, Corten - Urban, Oak - Woodland, Walnut - Woodland, Pine - Woodland
Weight
47.4 kg
Operating temperature
-20 °C to 40 °C
Lens / Reflector / Optic
Clear toughened glass
MacAdam Ellipse
3 SDCM
Lifetime L90B10 (hours)
> 120,000
Lifetime L80B10 (hours)
> 120,000
Lifetime L80B50 (hours)
> 120,000
Variants (1-10V, DALI)
Compatible with EN/ IEC 60598-2-22: Suitable for emergency installations as central supply, non-maintained (Z0)

Code finder

Lumen (lm)
Optic
Optic value
Optic (2nd)
Optic (2nd) Value
CCT / CRI
Dimming type
Product colour
Variant code
Lumen (lm)
Optic
Optic value
Optic (2nd)
Optic (2nd) Value
CCT / CRI
Dimming type
Product colour
Variant code: MI-21071-G-8030-ND-01
Lumen (lm): 4296 lm
Optic: G
Optic value: 111°x 98°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: On/Off
Dimming type: 3000K CRI80
Product colour: Black
Variant code: MI-21071-G-8030-ND-02
Lumen (lm): 4296 lm
Optic: G
Optic value: 111°x 98°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: On/Off
Dimming type: 3000K CRI80
Product colour: Dark Grey
Variant code: MI-21071-G-8030-ND-03
Lumen (lm): 4296 lm
Optic: G
Optic value: 111°x 98°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: On/Off
Dimming type: 3000K CRI80
Product colour: White
Variant code: MI-21071-G-8030-ND-05
Lumen (lm): 4296 lm
Optic: G
Optic value: 111°x 98°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: On/Off
Dimming type: 3000K CRI80
Product colour: Matt Silver
Variant code: MI-21071-G-8030-ND-06
Lumen (lm): 4296 lm
Optic: G
Optic value: 111°x 98°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: On/Off
Dimming type: 3000K CRI80
Product colour: Bronze
Variant code: MI-21071-G-8030-ND-SU01
Lumen (lm): 4296 lm
Optic: G
Optic value: 111°x 98°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: On/Off
Dimming type: 3000K CRI80
Product colour: Concrete - Urban
Variant code: MI-21071-G-8030-ND-SU02
Lumen (lm): 4296 lm
Optic: G
Optic value: 111°x 98°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: On/Off
Dimming type: 3000K CRI80
Product colour: Softscape - Urban
Variant code: MI-21071-G-8030-ND-SU03
Lumen (lm): 4296 lm
Optic: G
Optic value: 111°x 98°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: On/Off
Dimming type: 3000K CRI80
Product colour: Stone - Urban
Variant code: MI-21071-G-8030-ND-SU04
Lumen (lm): 4296 lm
Optic: G
Optic value: 111°x 98°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: On/Off
Dimming type: 3000K CRI80
Product colour: Corten - Urban
Variant code: MI-21071-G-8030-ND-SW01
Lumen (lm): 4296 lm
Optic: G
Optic value: 111°x 98°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: On/Off
Dimming type: 3000K CRI80
Product colour: Oak - Woodland
Variant code: MI-21071-G-8030-ND-SW02
Lumen (lm): 4296 lm
Optic: G
Optic value: 111°x 98°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: On/Off
Dimming type: 3000K CRI80
Product colour: Walnut - Woodland
Variant code: MI-21071-G-8030-ND-SW03
Lumen (lm): 4296 lm
Optic: G
Optic value: 111°x 98°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: On/Off
Dimming type: 3000K CRI80
Product colour: Pine - Woodland
Variant code: MI-21071-G-8040-ND-01
Lumen (lm): 4806 lm
Optic: G
Optic value: 111°x 98°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: On/Off
Dimming type: 4000K CRI80
Product colour: Black
Variant code: MI-21071-G-8040-ND-02
Lumen (lm): 4806 lm
Optic: G
Optic value: 111°x 98°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: On/Off
Dimming type: 4000K CRI80
Product colour: Dark Grey
Variant code: MI-21071-G-8040-ND-03
Lumen (lm): 4806 lm
Optic: G
Optic value: 111°x 98°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: On/Off
Dimming type: 4000K CRI80
Product colour: White
Variant code: MI-21071-G-8040-ND-05
Lumen (lm): 4806 lm
Optic: G
Optic value: 111°x 98°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: On/Off
Dimming type: 4000K CRI80
Product colour: Matt Silver
Variant code: MI-21071-G-8040-ND-06
Lumen (lm): 4806 lm
Optic: G
Optic value: 111°x 98°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: On/Off
Dimming type: 4000K CRI80
Product colour: Bronze
Variant code: MI-21071-G-8040-ND-SU01
Lumen (lm): 4806 lm
Optic: G
Optic value: 111°x 98°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: On/Off
Dimming type: 4000K CRI80
Product colour: Concrete - Urban
Variant code: MI-21071-G-8040-ND-SU02
Lumen (lm): 4806 lm
Optic: G
Optic value: 111°x 98°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: On/Off
Dimming type: 4000K CRI80
Product colour: Softscape - Urban
Variant code: MI-21071-G-8040-ND-SU03
Lumen (lm): 4806 lm
Optic: G
Optic value: 111°x 98°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: On/Off
Dimming type: 4000K CRI80
Product colour: Stone - Urban
Variant code: MI-21071-G-8040-ND-SU04
Lumen (lm): 4806 lm
Optic: G
Optic value: 111°x 98°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: On/Off
Dimming type: 4000K CRI80
Product colour: Corten - Urban
Variant code: MI-21071-G-8040-ND-SW01
Lumen (lm): 4806 lm
Optic: G
Optic value: 111°x 98°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: On/Off
Dimming type: 4000K CRI80
Product colour: Oak - Woodland
Variant code: MI-21071-G-8040-ND-SW02
Lumen (lm): 4806 lm
Optic: G
Optic value: 111°x 98°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: On/Off
Dimming type: 4000K CRI80
Product colour: Walnut - Woodland
Variant code: MI-21071-G-8040-ND-SW03
Lumen (lm): 4806 lm
Optic: G
Optic value: 111°x 98°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: On/Off
Dimming type: 4000K CRI80
Product colour: Pine - Woodland
Variant code: MI-21071-G-8030-DI-01
Lumen (lm): 4296 lm
Optic: G
Optic value: 111°x 98°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: 1-10V
Dimming type: 3000K CRI80
Product colour: Black
Variant code: MI-21071-G-8030-DI-02
Lumen (lm): 4296 lm
Optic: G
Optic value: 111°x 98°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: 1-10V
Dimming type: 3000K CRI80
Product colour: Dark Grey
Variant code: MI-21071-G-8030-DI-03
Lumen (lm): 4296 lm
Optic: G
Optic value: 111°x 98°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: 1-10V
Dimming type: 3000K CRI80
Product colour: White
Variant code: MI-21071-G-8030-DI-05
Lumen (lm): 4296 lm
Optic: G
Optic value: 111°x 98°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: 1-10V
Dimming type: 3000K CRI80
Product colour: Matt Silver
Variant code: MI-21071-G-8030-DI-06
Lumen (lm): 4296 lm
Optic: G
Optic value: 111°x 98°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: 1-10V
Dimming type: 3000K CRI80
Product colour: Bronze
Variant code: MI-21071-G-8030-DI-SU01
Lumen (lm): 4296 lm
Optic: G
Optic value: 111°x 98°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: 1-10V
Dimming type: 3000K CRI80
Product colour: Concrete - Urban
Variant code: MI-21071-G-8030-DI-SU02
Lumen (lm): 4296 lm
Optic: G
Optic value: 111°x 98°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: 1-10V
Dimming type: 3000K CRI80
Product colour: Softscape - Urban
Variant code: MI-21071-G-8030-DI-SU03
Lumen (lm): 4296 lm
Optic: G
Optic value: 111°x 98°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: 1-10V
Dimming type: 3000K CRI80
Product colour: Stone - Urban
Variant code: MI-21071-G-8030-DI-SU04
Lumen (lm): 4296 lm
Optic: G
Optic value: 111°x 98°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: 1-10V
Dimming type: 3000K CRI80
Product colour: Corten - Urban
Variant code: MI-21071-G-8030-DI-SW01
Lumen (lm): 4296 lm
Optic: G
Optic value: 111°x 98°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: 1-10V
Dimming type: 3000K CRI80
Product colour: Oak - Woodland
Variant code: MI-21071-G-8030-DI-SW02
Lumen (lm): 4296 lm
Optic: G
Optic value: 111°x 98°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: 1-10V
Dimming type: 3000K CRI80
Product colour: Walnut - Woodland
Variant code: MI-21071-G-8030-DI-SW03
Lumen (lm): 4296 lm
Optic: G
Optic value: 111°x 98°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: 1-10V
Dimming type: 3000K CRI80
Product colour: Pine - Woodland
Variant code: MI-21071-G-8040-DI-01
Lumen (lm): 4806 lm
Optic: G
Optic value: 111°x 98°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: 1-10V
Dimming type: 4000K CRI80
Product colour: Black
Variant code: MI-21071-G-8040-DI-02
Lumen (lm): 4806 lm
Optic: G
Optic value: 111°x 98°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: 1-10V
Dimming type: 4000K CRI80
Product colour: Dark Grey
Variant code: MI-21071-G-8040-DI-03
Lumen (lm): 4806 lm
Optic: G
Optic value: 111°x 98°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: 1-10V
Dimming type: 4000K CRI80
Product colour: White
Variant code: MI-21071-G-8040-DI-05
Lumen (lm): 4806 lm
Optic: G
Optic value: 111°x 98°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: 1-10V
Dimming type: 4000K CRI80
Product colour: Matt Silver
Variant code: MI-21071-G-8040-DI-06
Lumen (lm): 4806 lm
Optic: G
Optic value: 111°x 98°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: 1-10V
Dimming type: 4000K CRI80
Product colour: Bronze
Variant code: MI-21071-G-8040-DI-SU01
Lumen (lm): 4806 lm
Optic: G
Optic value: 111°x 98°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: 1-10V
Dimming type: 4000K CRI80
Product colour: Concrete - Urban
Variant code: MI-21071-G-8040-DI-SU02
Lumen (lm): 4806 lm
Optic: G
Optic value: 111°x 98°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: 1-10V
Dimming type: 4000K CRI80
Product colour: Softscape - Urban
Variant code: MI-21071-G-8040-DI-SU03
Lumen (lm): 4806 lm
Optic: G
Optic value: 111°x 98°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: 1-10V
Dimming type: 4000K CRI80
Product colour: Stone - Urban
Variant code: MI-21071-G-8040-DI-SU04
Lumen (lm): 4806 lm
Optic: G
Optic value: 111°x 98°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: 1-10V
Dimming type: 4000K CRI80
Product colour: Corten - Urban
Variant code: MI-21071-G-8040-DI-SW01
Lumen (lm): 4806 lm
Optic: G
Optic value: 111°x 98°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: 1-10V
Dimming type: 4000K CRI80
Product colour: Oak - Woodland
Variant code: MI-21071-G-8040-DI-SW02
Lumen (lm): 4806 lm
Optic: G
Optic value: 111°x 98°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: 1-10V
Dimming type: 4000K CRI80
Product colour: Walnut - Woodland
Variant code: MI-21071-G-8040-DI-SW03
Lumen (lm): 4806 lm
Optic: G
Optic value: 111°x 98°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: 1-10V
Dimming type: 4000K CRI80
Product colour: Pine - Woodland
Variant code: MI-21071-G-8030-DA-01
Lumen (lm): 4296 lm
Optic: G
Optic value: 111°x 98°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: DALI
Dimming type: 3000K CRI80
Product colour: Black
Variant code: MI-21071-G-8030-DA-02
Lumen (lm): 4296 lm
Optic: G
Optic value: 111°x 98°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: DALI
Dimming type: 3000K CRI80
Product colour: Dark Grey
Variant code: MI-21071-G-8030-DA-03
Lumen (lm): 4296 lm
Optic: G
Optic value: 111°x 98°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: DALI
Dimming type: 3000K CRI80
Product colour: White
Variant code: MI-21071-G-8030-DA-05
Lumen (lm): 4296 lm
Optic: G
Optic value: 111°x 98°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: DALI
Dimming type: 3000K CRI80
Product colour: Matt Silver
Variant code: MI-21071-G-8030-DA-06
Lumen (lm): 4296 lm
Optic: G
Optic value: 111°x 98°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: DALI
Dimming type: 3000K CRI80
Product colour: Bronze
Variant code: MI-21071-G-8030-DA-SU01
Lumen (lm): 4296 lm
Optic: G
Optic value: 111°x 98°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: DALI
Dimming type: 3000K CRI80
Product colour: Concrete - Urban
Variant code: MI-21071-G-8030-DA-SU02
Lumen (lm): 4296 lm
Optic: G
Optic value: 111°x 98°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: DALI
Dimming type: 3000K CRI80
Product colour: Softscape - Urban
Variant code: MI-21071-G-8030-DA-SU03
Lumen (lm): 4296 lm
Optic: G
Optic value: 111°x 98°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: DALI
Dimming type: 3000K CRI80
Product colour: Stone - Urban
Variant code: MI-21071-G-8030-DA-SU04
Lumen (lm): 4296 lm
Optic: G
Optic value: 111°x 98°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: DALI
Dimming type: 3000K CRI80
Product colour: Corten - Urban
Variant code: MI-21071-G-8030-DA-SW01
Lumen (lm): 4296 lm
Optic: G
Optic value: 111°x 98°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: DALI
Dimming type: 3000K CRI80
Product colour: Oak - Woodland
Variant code: MI-21071-G-8030-DA-SW02
Lumen (lm): 4296 lm
Optic: G
Optic value: 111°x 98°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: DALI
Dimming type: 3000K CRI80
Product colour: Walnut - Woodland
Variant code: MI-21071-G-8030-DA-SW03
Lumen (lm): 4296 lm
Optic: G
Optic value: 111°x 98°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: DALI
Dimming type: 3000K CRI80
Product colour: Pine - Woodland
Variant code: MI-21071-G-8040-DA-01
Lumen (lm): 4806 lm
Optic: G
Optic value: 111°x 98°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: DALI
Dimming type: 4000K CRI80
Product colour: Black
Variant code: MI-21071-G-8040-DA-02
Lumen (lm): 4806 lm
Optic: G
Optic value: 111°x 98°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: DALI
Dimming type: 4000K CRI80
Product colour: Dark Grey
Variant code: MI-21071-G-8040-DA-03
Lumen (lm): 4806 lm
Optic: G
Optic value: 111°x 98°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: DALI
Dimming type: 4000K CRI80
Product colour: White
Variant code: MI-21071-G-8040-DA-05
Lumen (lm): 4806 lm
Optic: G
Optic value: 111°x 98°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: DALI
Dimming type: 4000K CRI80
Product colour: Matt Silver
Variant code: MI-21071-G-8040-DA-06
Lumen (lm): 4806 lm
Optic: G
Optic value: 111°x 98°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: DALI
Dimming type: 4000K CRI80
Product colour: Bronze
Variant code: MI-21071-G-8040-DA-SU01
Lumen (lm): 4806 lm
Optic: G
Optic value: 111°x 98°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: DALI
Dimming type: 4000K CRI80
Product colour: Concrete - Urban
Variant code: MI-21071-G-8040-DA-SU02
Lumen (lm): 4806 lm
Optic: G
Optic value: 111°x 98°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: DALI
Dimming type: 4000K CRI80
Product colour: Softscape - Urban
Variant code: MI-21071-G-8040-DA-SU03
Lumen (lm): 4806 lm
Optic: G
Optic value: 111°x 98°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: DALI
Dimming type: 4000K CRI80
Product colour: Stone - Urban
Variant code: MI-21071-G-8040-DA-SU04
Lumen (lm): 4806 lm
Optic: G
Optic value: 111°x 98°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: DALI
Dimming type: 4000K CRI80
Product colour: Corten - Urban
Variant code: MI-21071-G-8040-DA-SW01
Lumen (lm): 4806 lm
Optic: G
Optic value: 111°x 98°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: DALI
Dimming type: 4000K CRI80
Product colour: Oak - Woodland
Variant code: MI-21071-G-8040-DA-SW02
Lumen (lm): 4806 lm
Optic: G
Optic value: 111°x 98°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: DALI
Dimming type: 4000K CRI80
Product colour: Walnut - Woodland
Variant code: MI-21071-G-8040-DA-SW03
Lumen (lm): 4806 lm
Optic: G
Optic value: 111°x 98°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: DALI
Dimming type: 4000K CRI80
Product colour: Pine - Woodland

Accessory

Project reference (MIC Discontinued)

· PATCH117 (2026-06-10): catalog hygiene v2 — live SL+web audit of all 98 PROMPT_POOL SKUs. Render cards: DUOMO 12 DU-95036-1-1 & COLUMBUS 8 CO-95026-1-1 web-Discontinued (PIM still V — governance flag) → FORREY 25 FOR-95001 / FORREY 29 FOR-95021 (verified active). Dead refs fixed in pool0 + sample arrays: CO-10001→OT-10732(OTTAWA), DU-10001→AUG-10001(AUGUSTA), KI-60446→KI-60486, SLI-10005→SLI-10001; 7 dead array entries deleted. Fake family names → PIM titles: BERN→BENTON, VARDOL→VANCOUVER, BARENTS→BAMBOO. BUG-2026-06-10-05 (regression of Card-1-only fix).
Need professional lighting expertise? Chat with our specialists.
LIGMAN.AIBETA
LIGMAN.AI Assistant
Online
Rename
