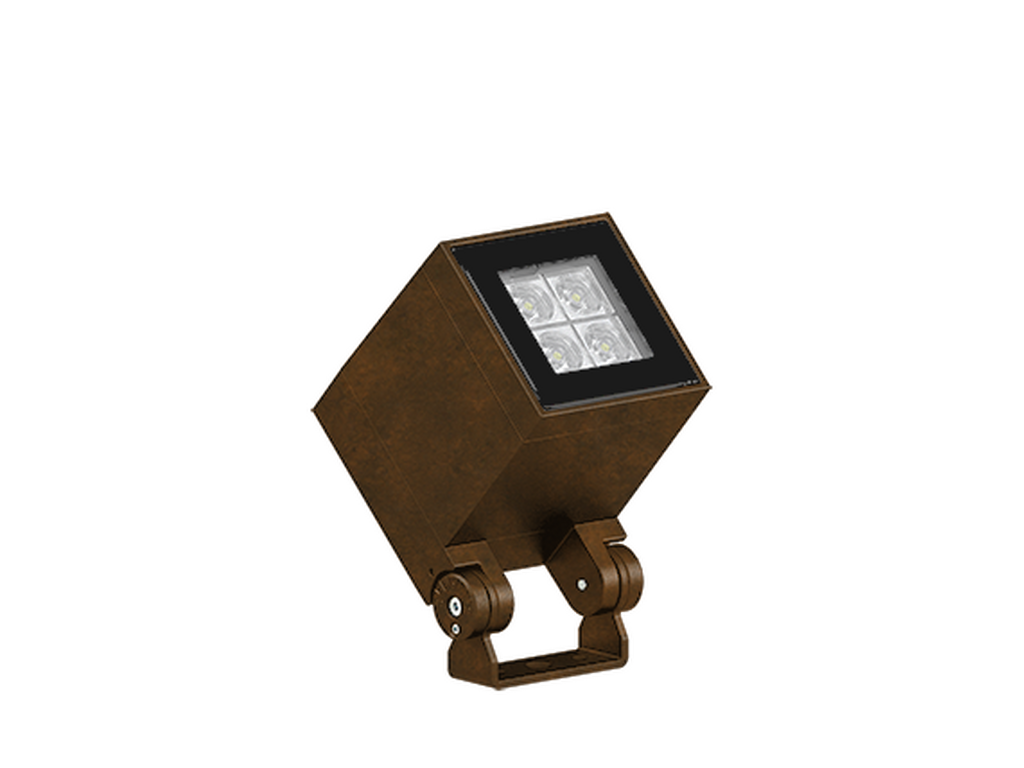

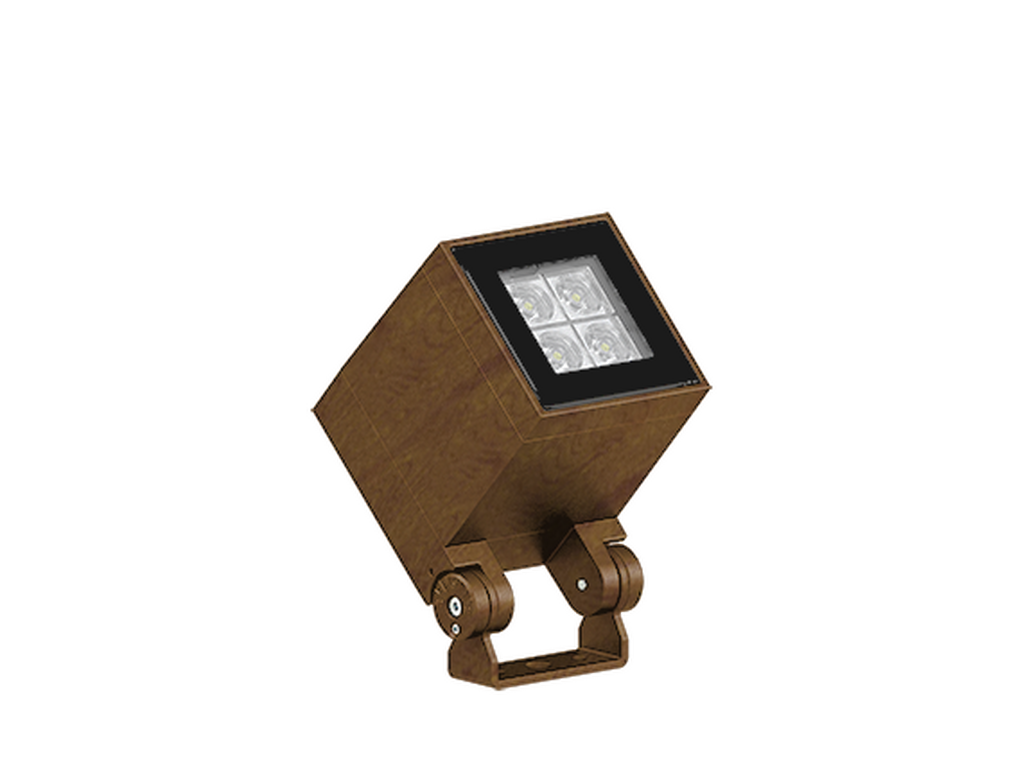

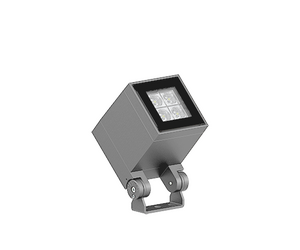

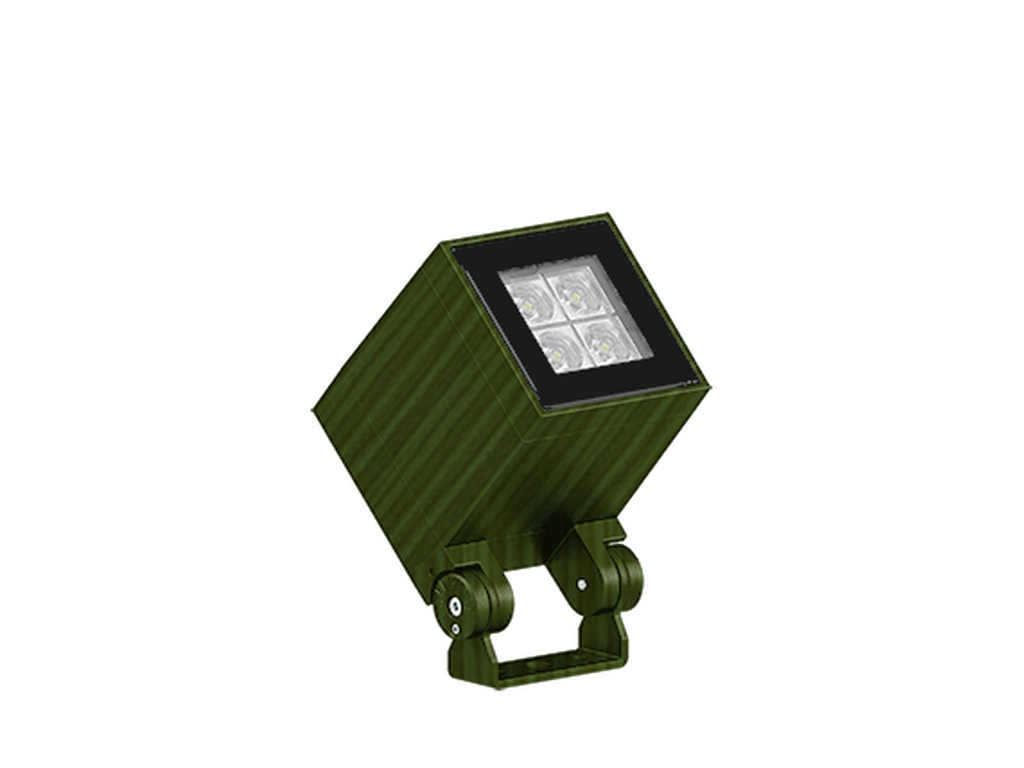

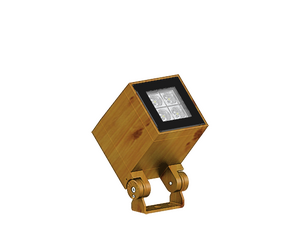

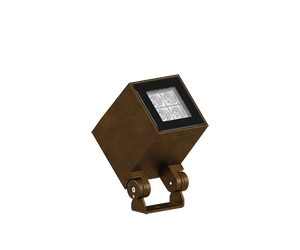

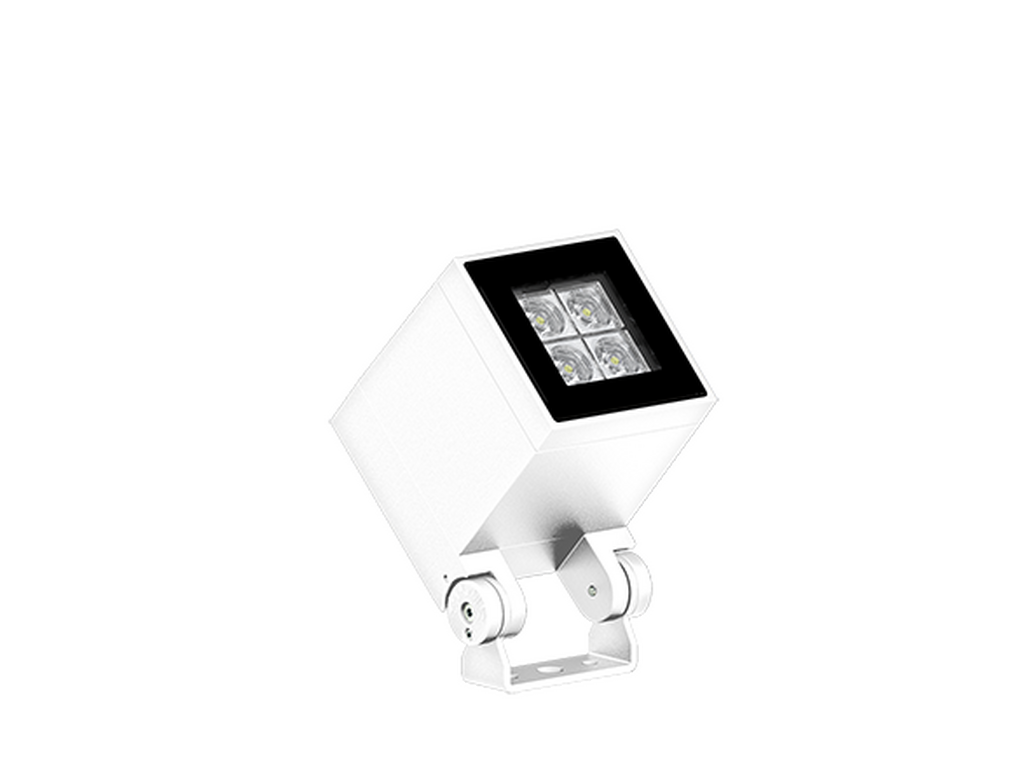

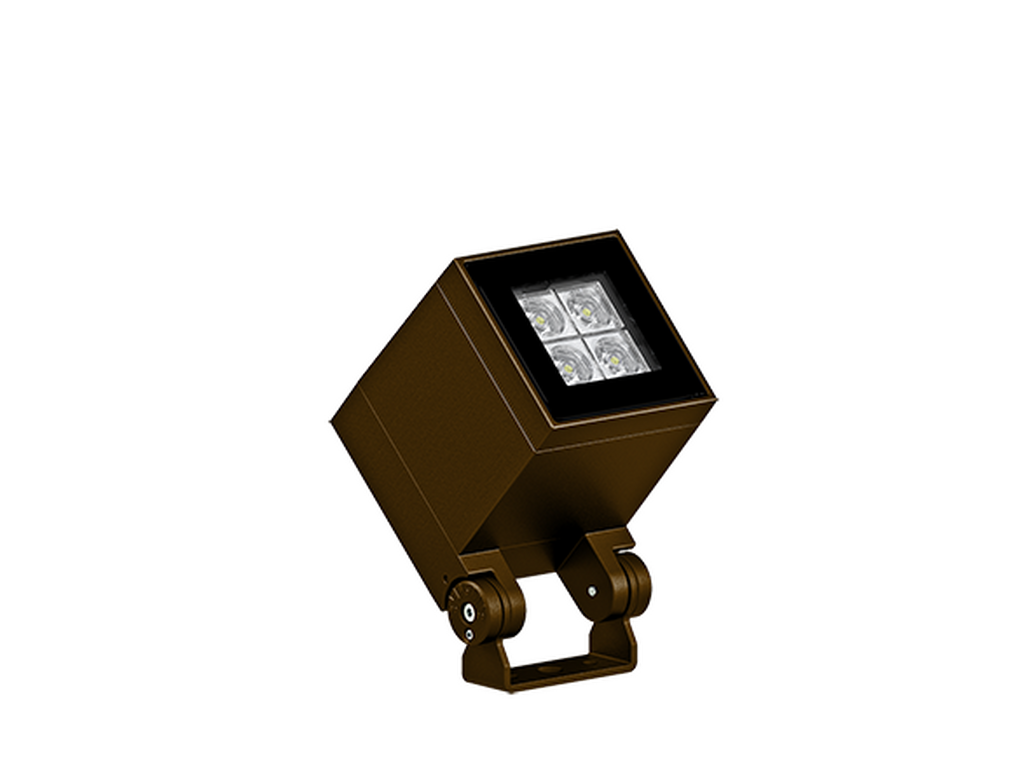

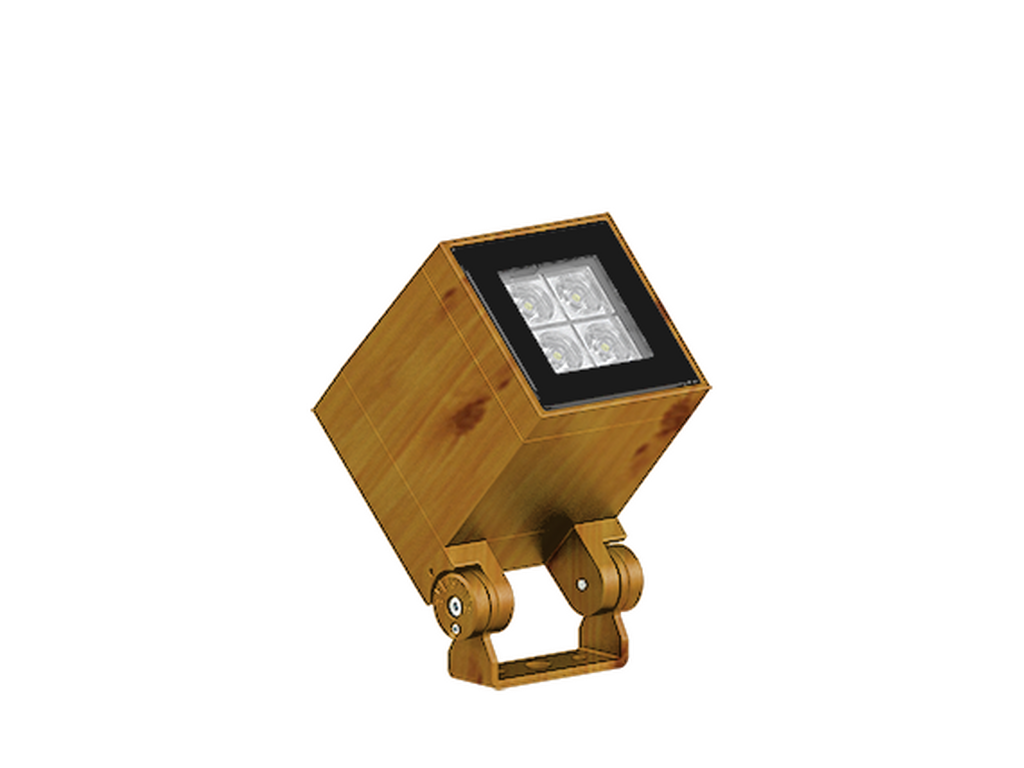

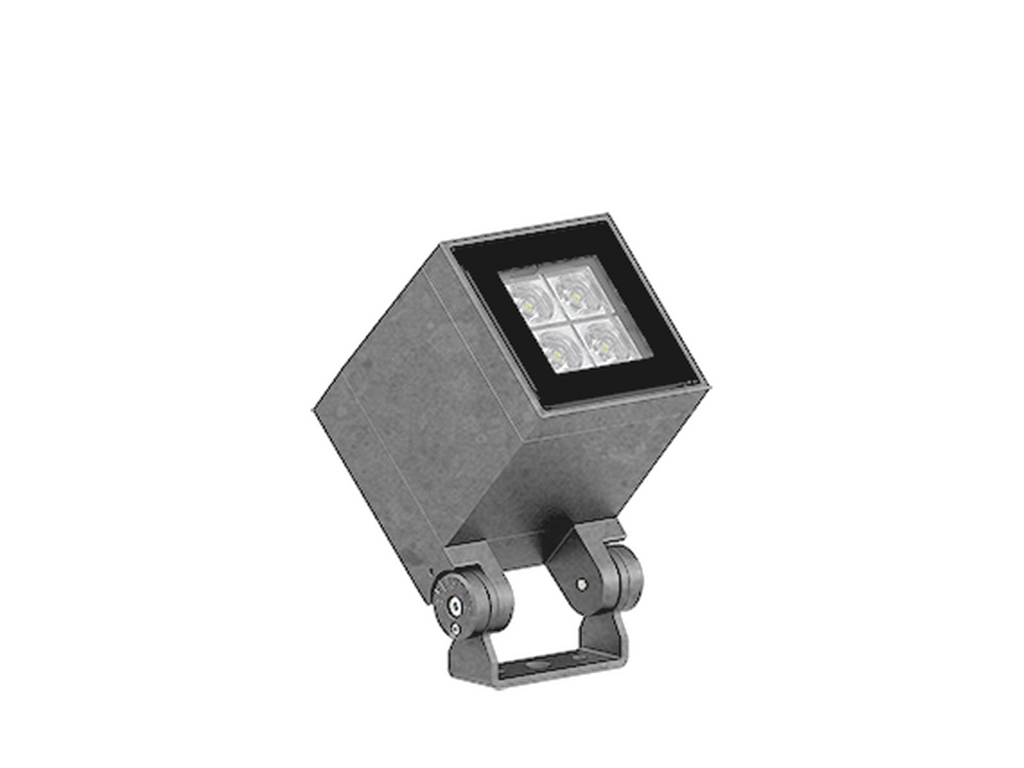

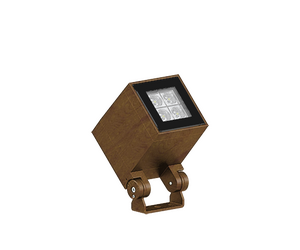

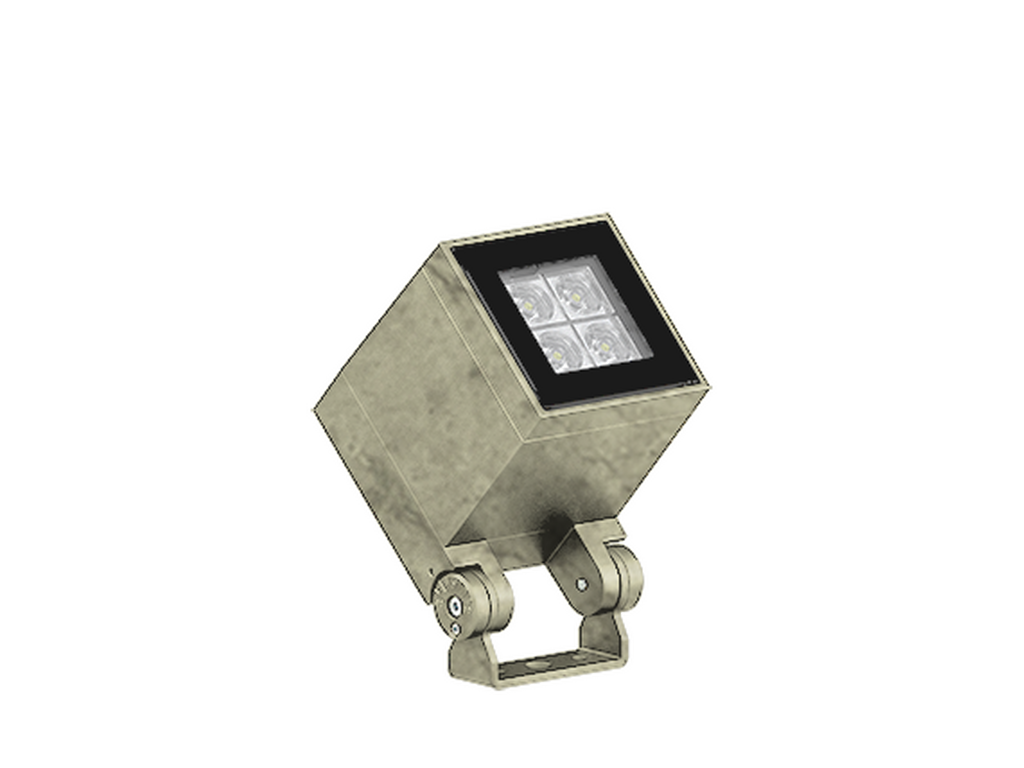

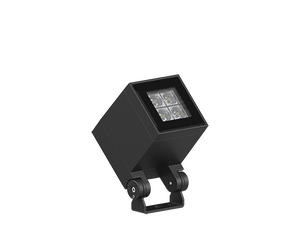

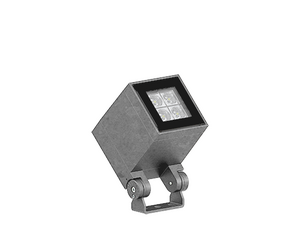

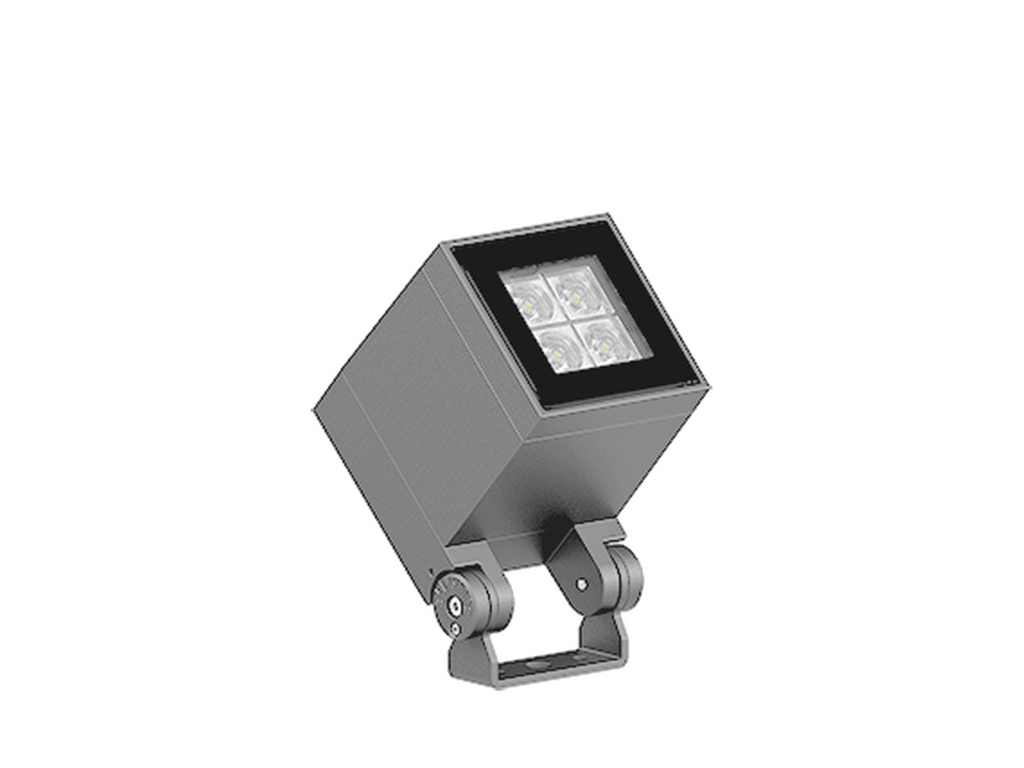

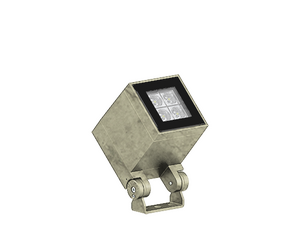

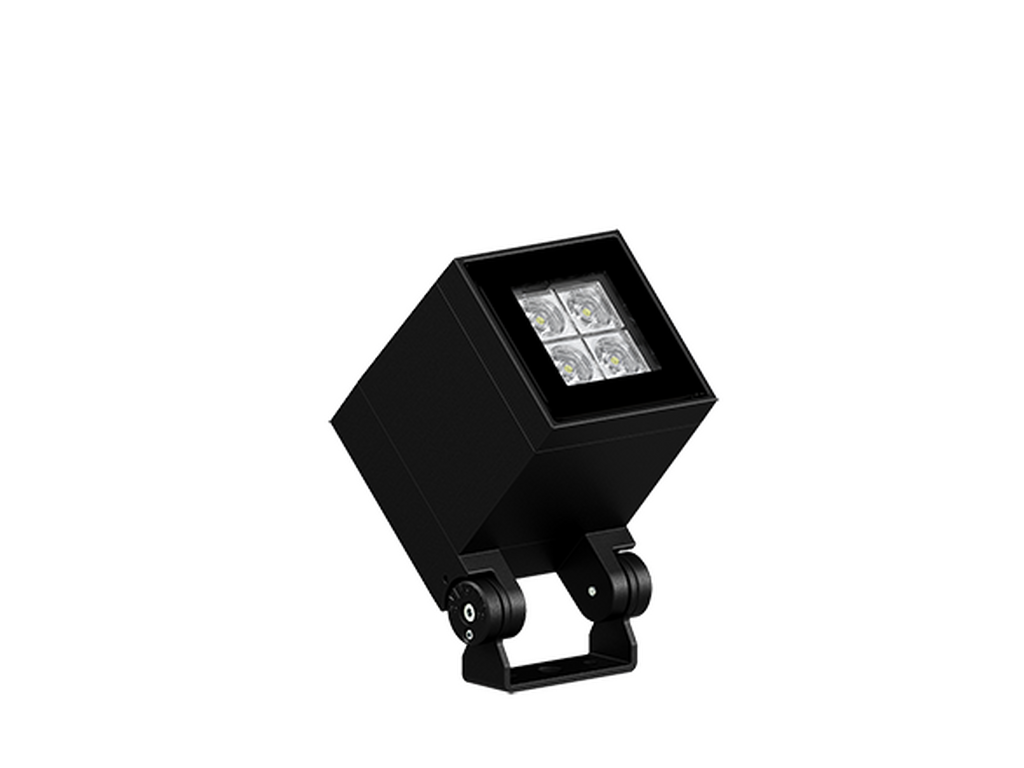

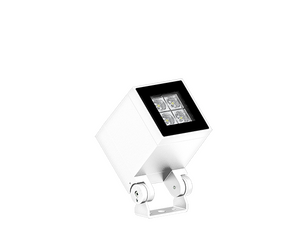

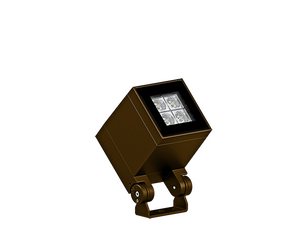

NORDSTROM 2NOD-50012 (Version 1)
Floodlights, projectors
Black
Dark Grey
White
Matt Silver
Bronze
Concrete - Urban
Softscape - Urban
Stone - Urban
Corten - Urban
Oak - Woodland
Walnut - Woodland
Pine - Woodland
Black
Dark Grey
White
Matt Silver
Bronze
Concrete - Urban
Softscape - Urban
Stone - Urban
Corten - Urban
Oak - Woodland
Walnut - Woodland
Pine - WoodlandWith remote driver IP-rated - Constant voltage (CV) 24 V - 82x82 mm - Class III - RGBW
TECHNICAL SPECIFICATIONS
Material
Aluminium
Light source
4 LED
Power (W)
13 W
Lumen (lm)
406 - 520 lm
Efficacy (lm/W)
41 - 52 lm/W
Driver option
Remote driver (included)
Driver
Constant voltage (CV)
Input voltage
24 VDC
Optic
N, M, W, VW, E
Optic value
8°, 17°, 26°, 65°, 43°x11°
CCT / CRI
RGBW30, RGBW40
Dimming type
DMX, DMX/RDM
Product colours
Black, Dark Grey, White, Matt Silver, Bronze, Concrete - Urban, Softscape - Urban, Stone - Urban, Corten - Urban, Oak - Woodland, Walnut - Woodland, Pine - Woodland
Weight
1.3 kg
Operating temperature
-20 °C to 40 °C
Cable
One IP68 connector supplied with 0.2 m of 8x0.5 sqmm outdoor cable
Through wiring
Single cable entry
Lens / Reflector / Optic
High-efficiency PMMA lens, Clear toughened glass
Variants (DMX/RDM)
Compatible with EN/ IEC 60598-2-22: Suitable for emergency installations as central supply, non-maintained (Z0)
DOWNLOADS
Family spec sheet
Product spec sheet
Installation manual
Technical drawing
2D - CAD
BIM - IFC
DIALux - ULD
IES
3D view link
AR Tracker
CE documentFor BIM files (Revit - RFA), please check the Variant code

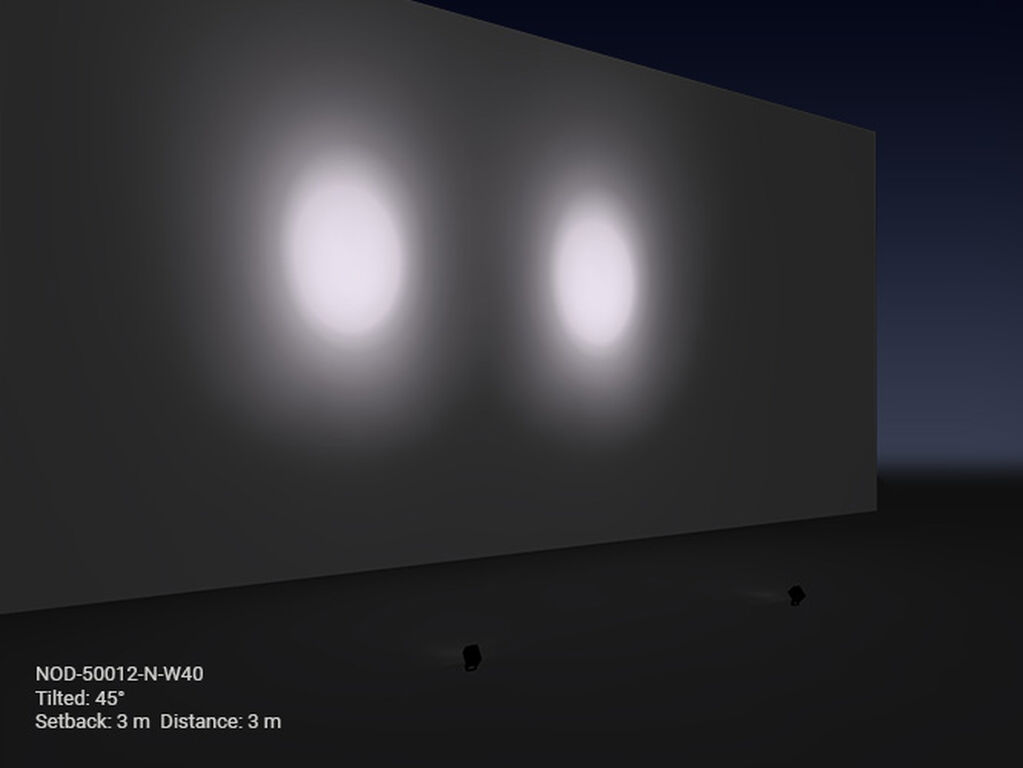

LIGHT EFFECT
Optic
N (8°)
M (17°)
W (26°)
VW (65°)
E (43°x11°)
CODE FINDER
Lumen (lm)
Optic
Optic value
CCT / CRI
Dimming type
Product colour
Variant code
Lumen (lm)
Optic
Optic value
CCT / CRI
Dimming type
Product colour
