LIGMAN ODESSA 1 OD-30001.

ODESSA 1OD-30001

(Version 2)

Cluster surface mounted projectors

Send us an E-Mail or use the contact form:

I have read the privacy policy and agree to the processing of my data *

The fields marked with an * must be correctly filled.
Your request was successfully sent.

Send us an E-Mail or use the contact form:

I have read the privacy policy and agree to the processing of my data *

The fields marked with an * must be correctly filled.
Your request was successfully sent.

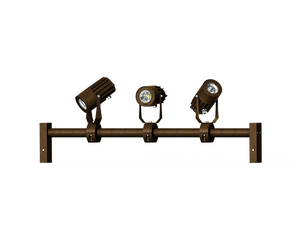

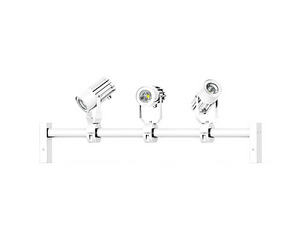

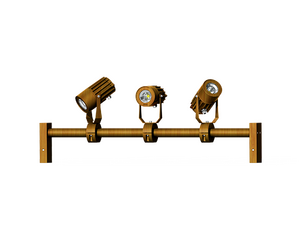

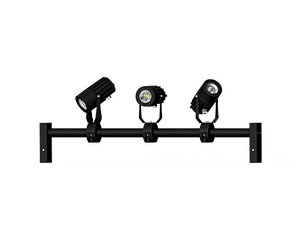

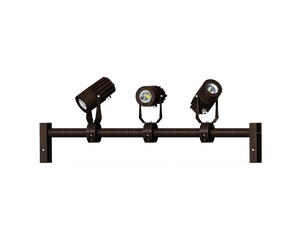

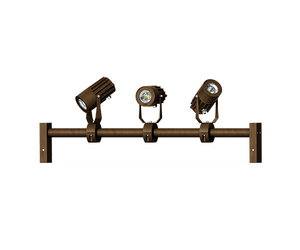

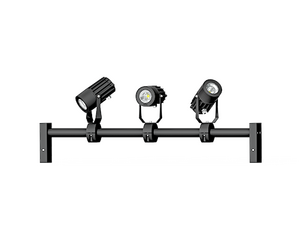

ODESSA 1Black
ODESSA 1Dark Grey

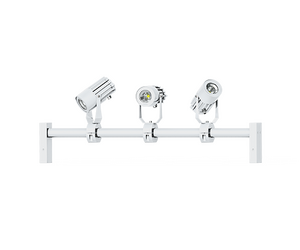

ODESSA 1White
ODESSA 1Matt Silver

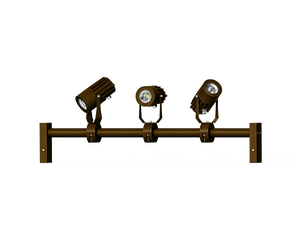

ODESSA 1Bronze
ODESSA 1Concrete - Urban
ODESSA 1Softscape - Urban
ODESSA 1Stone - Urban
ODESSA 1Corten - Urban
ODESSA 1Oak - Woodland
ODESSA 1Walnut - Woodland
ODESSA 1Pine - Woodland
ODESSA 1Black
ODESSA 1Dark Grey
ODESSA 1White
ODESSA 1Matt Silver
ODESSA 1Bronze
ODESSA 1Concrete - Urban
ODESSA 1Softscape - Urban
ODESSA 1Stone - Urban
ODESSA 1Corten - Urban
ODESSA 1Oak - Woodland
ODESSA 1Walnut - Woodland
ODESSA 1Pine - Woodland
Small
CERETILAPClass IIP66IK08

Technical information

Material
Aluminium
Light source
3 x 1 COB
Power (W)
60 W
Lumen (lm)
4371 - 4866 lm
Efficacy (lm/W)
73 - 81 lm/W
Driver option
Integral control gear
Driver
Constant current (CC)
Input voltage
220-240 V 50/60 Hz
Optic
M, W, VW, EW
Optic value
28°, 35°, 46°, 75°
CCT / CRI
2700K CRI80, 3000K CRI80, 4000K CRI80
Bug
B1-U0-G0, B2-U0-G0
ULR
<1%
ULOR
<1%
CIE flux code nº3
100
Dimming type
On/Off, 1-10V, DALI
Product colours
Black, Dark Grey, White, Matt Silver, Bronze, Concrete - Urban, Softscape - Urban, Stone - Urban, Corten - Urban, Oak - Woodland, Walnut - Woodland, Pine - Woodland
Weight
7.3 kg
Operating temperature
-20 °C to 50 °C
EPA (m2)
0.093
Cable
One IP68 connector supplied with 0.2 m of 3x1.0 sqmm outdoor cable
Through wiring
Single cable entry
Lens / Reflector / Optic
High-efficiency optical reflector, Clear toughened glass
Tilt
80°(Up)/ -55°(Down)
Rotation
350°
MacAdam Ellipse
3 SDCM
Lifetime L90B10 (hours)
> 61,000
Variants (On/Off, 1-10V, DALI)
Compatible with EN/ IEC 60598-2-22: Suitable for emergency installations as central supply, non-maintained (Z0)

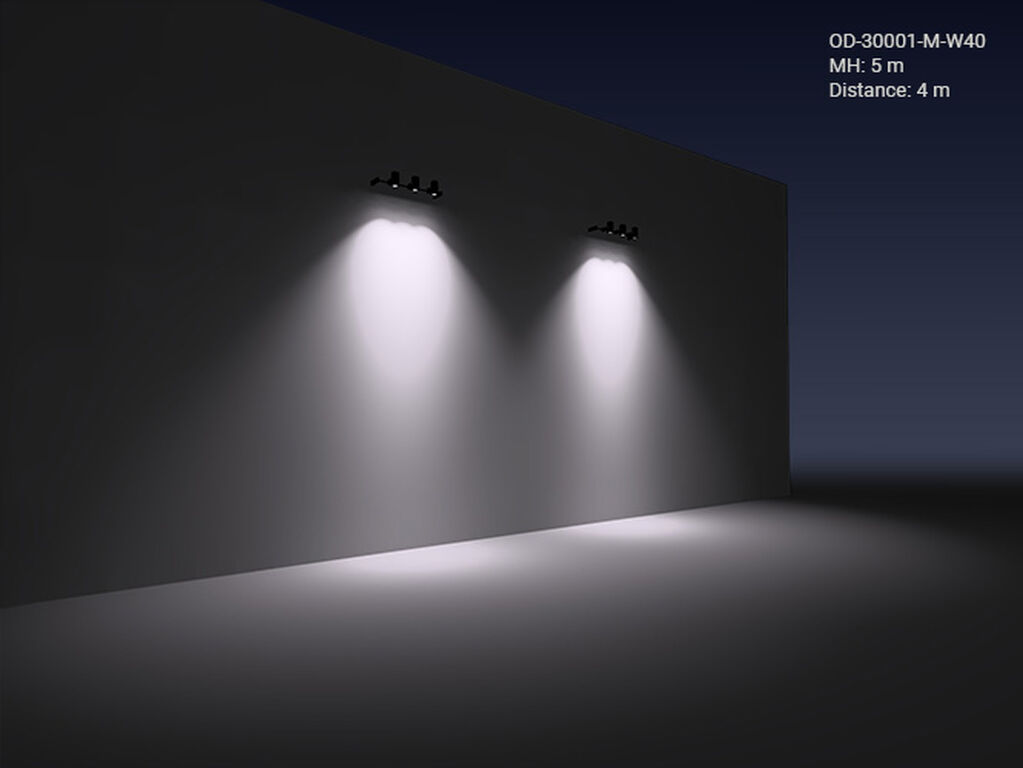

Light effect

Optic
M (28°)
W (35°)
VW (46°)
EW (75°)

Code finder

Lumen (lm)
Optic
Optic value
CCT / CRI
Dimming type
Product colour
Variant code
Lumen (lm)
Optic
Optic value
CCT / CRI
Dimming type
Product colour

Accessory

Project reference (ODESSA Cluster surface mounted projectors)
