LIGMAN ODESSA 2-GF OD-50041.

ODESSA 2-GFOD-50041Fixed-base gobo projectors

Send us an E-Mail or use the contact form:

I have read the privacy policy and agree to the processing of my data *

The fields marked with an * must be correctly filled.
Your request was successfully sent.

Send us an E-Mail or use the contact form:

I have read the privacy policy and agree to the processing of my data *

The fields marked with an * must be correctly filled.
Your request was successfully sent.

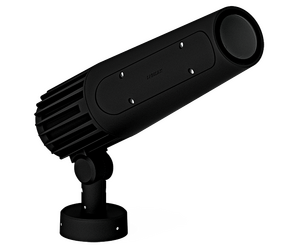

ODESSA 2-GFBlack
ODESSA 2-GFDark Grey

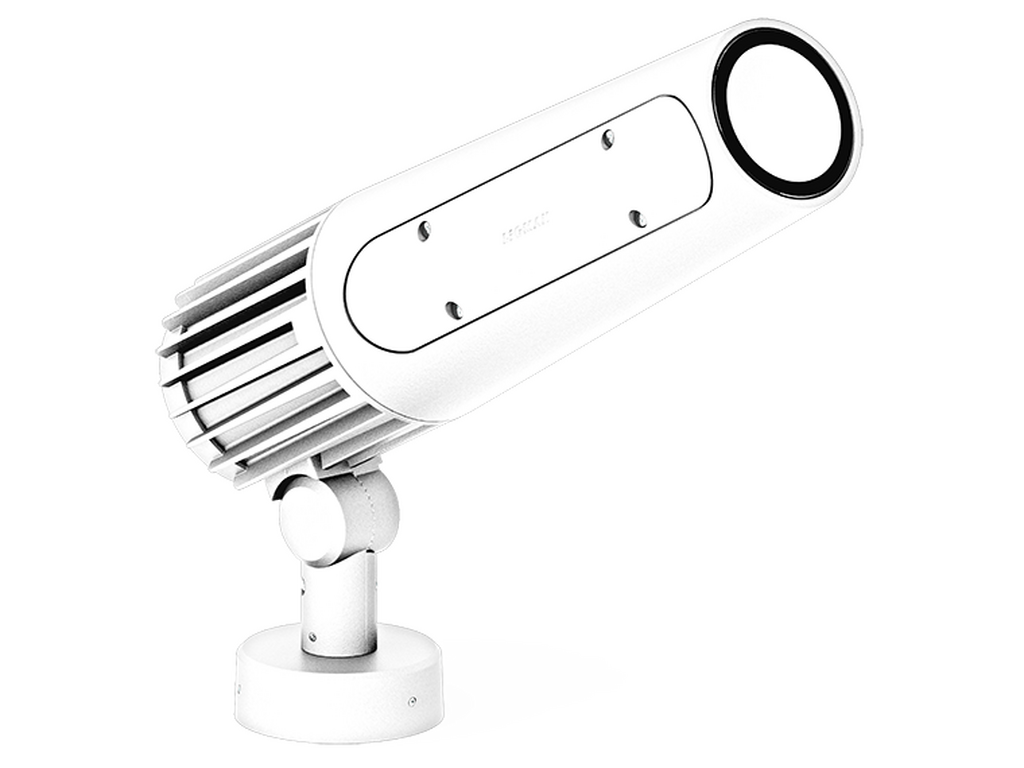

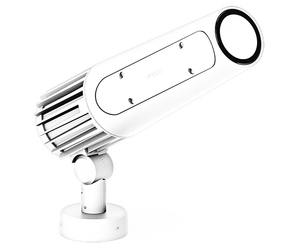

ODESSA 2-GFWhite

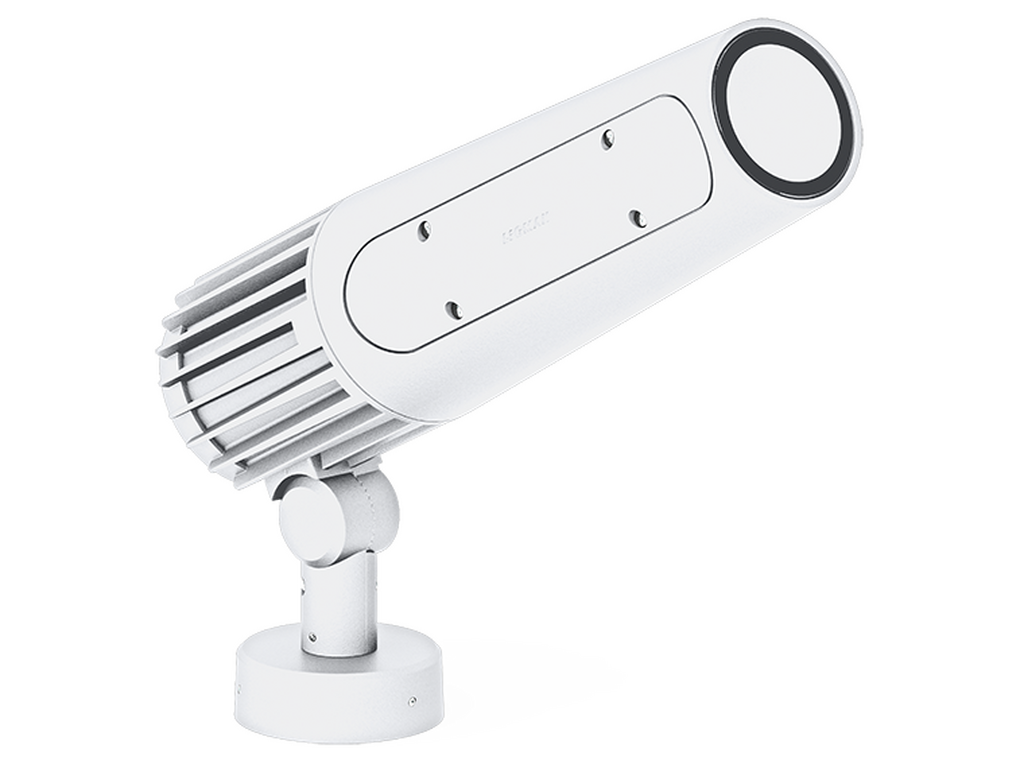

ODESSA 2-GFMatt Silver
ODESSA 2-GFBronze

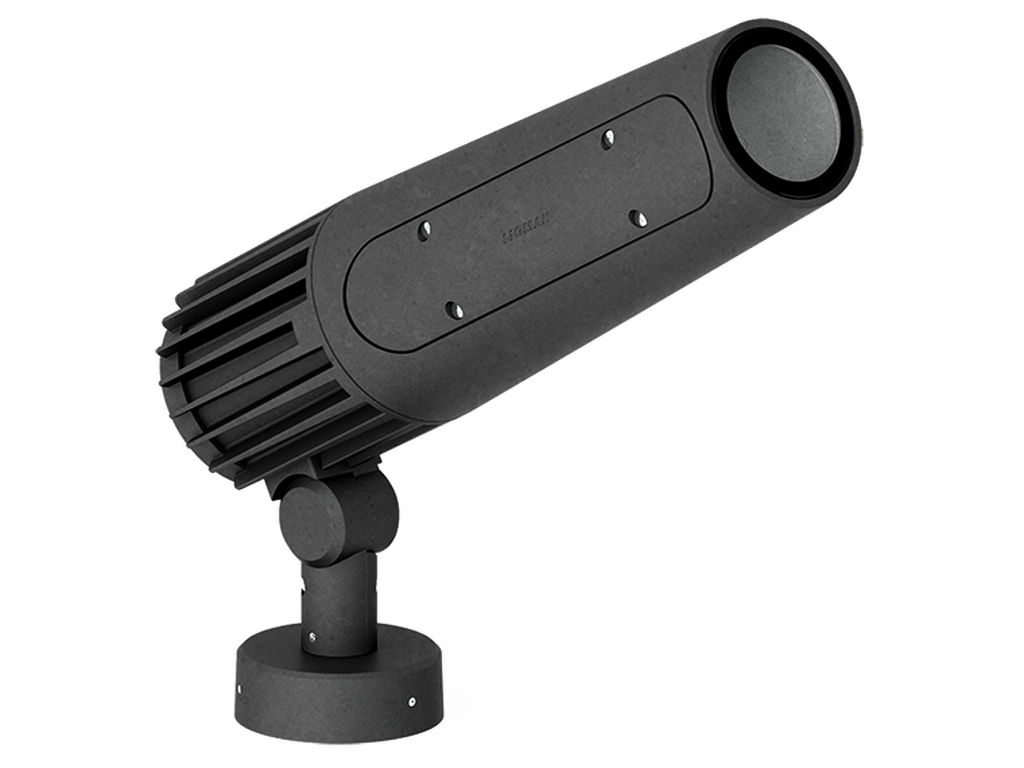

ODESSA 2-GFConcrete - Urban

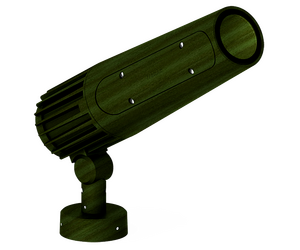

ODESSA 2-GFSoftscape - Urban

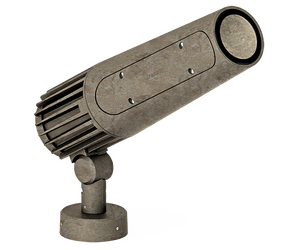

ODESSA 2-GFStone - Urban

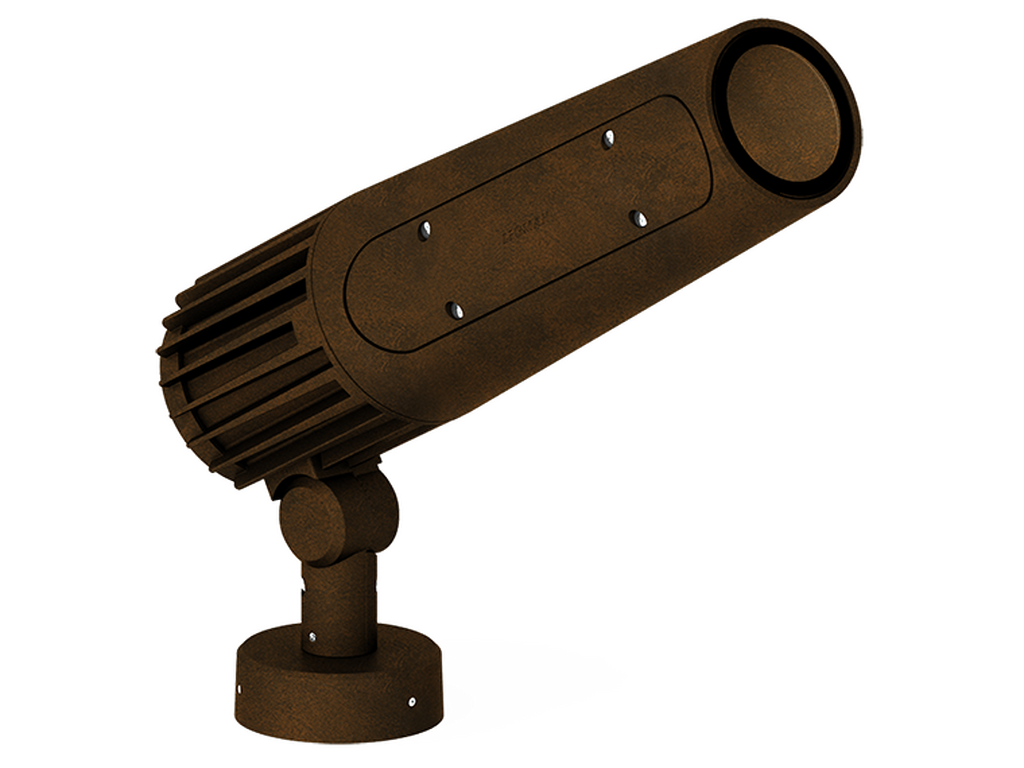

ODESSA 2-GFCorten - Urban
ODESSA 2-GFOak - Woodland

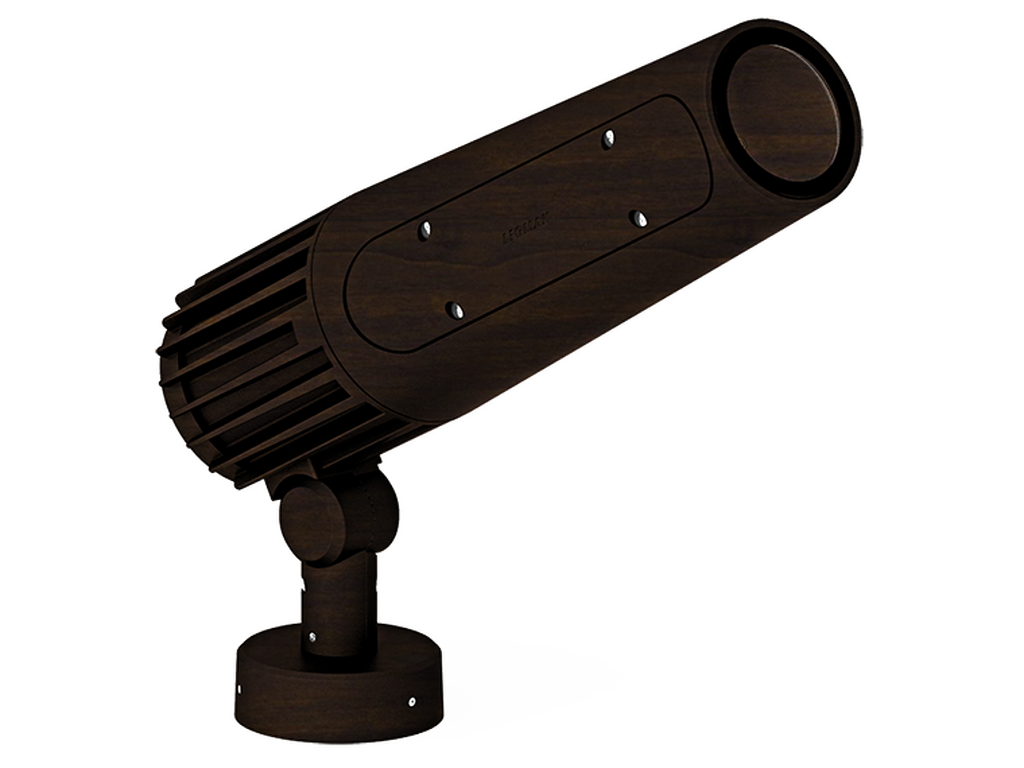

ODESSA 2-GFWalnut - Woodland
ODESSA 2-GFPine - Woodland

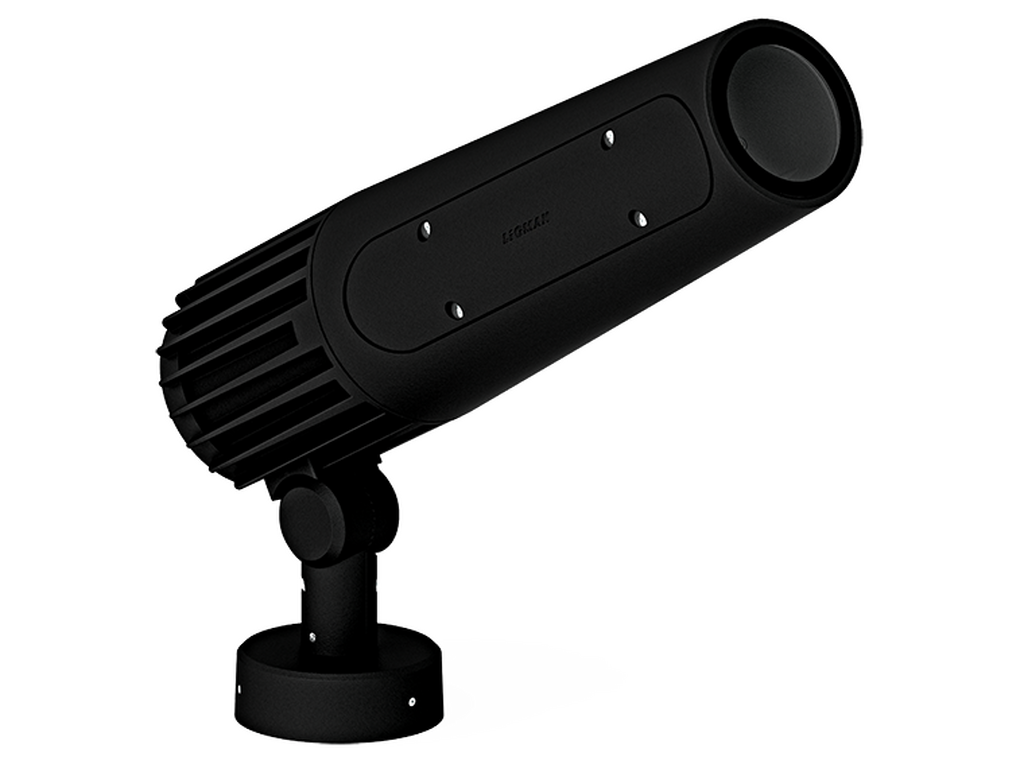

ODESSA 2-GFBlack

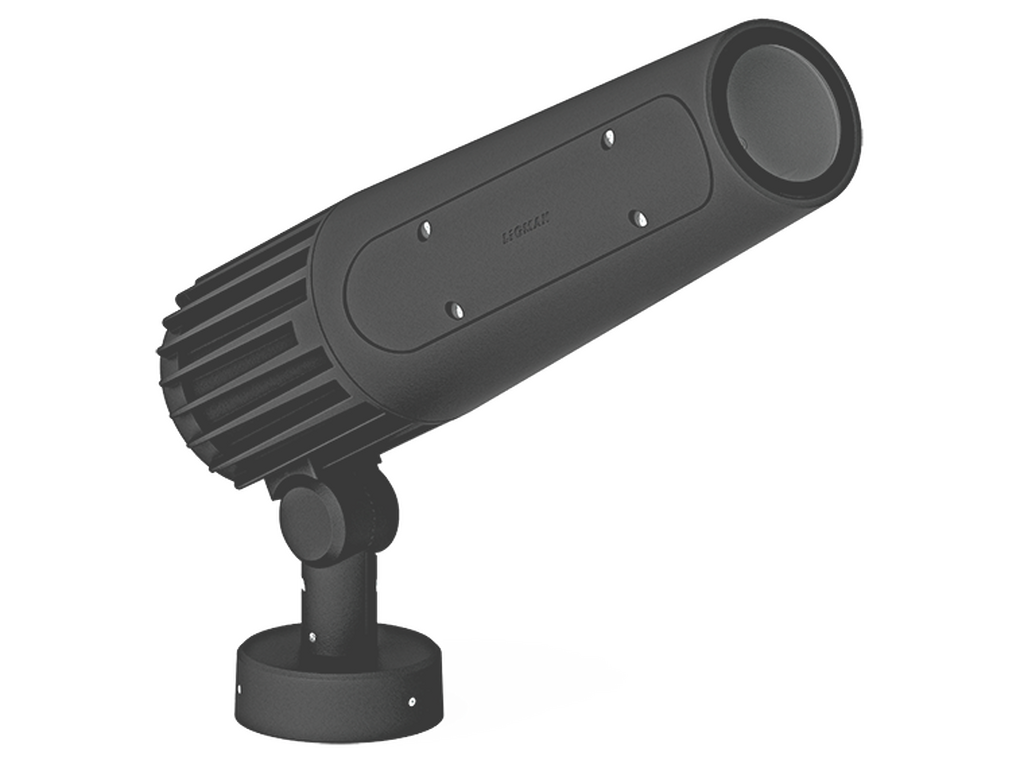

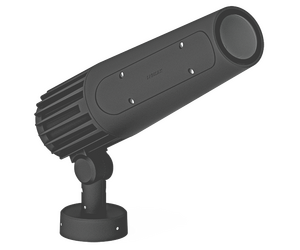

ODESSA 2-GFDark Grey
ODESSA 2-GFWhite
ODESSA 2-GFMatt Silver

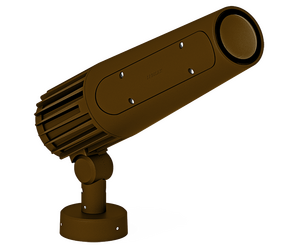

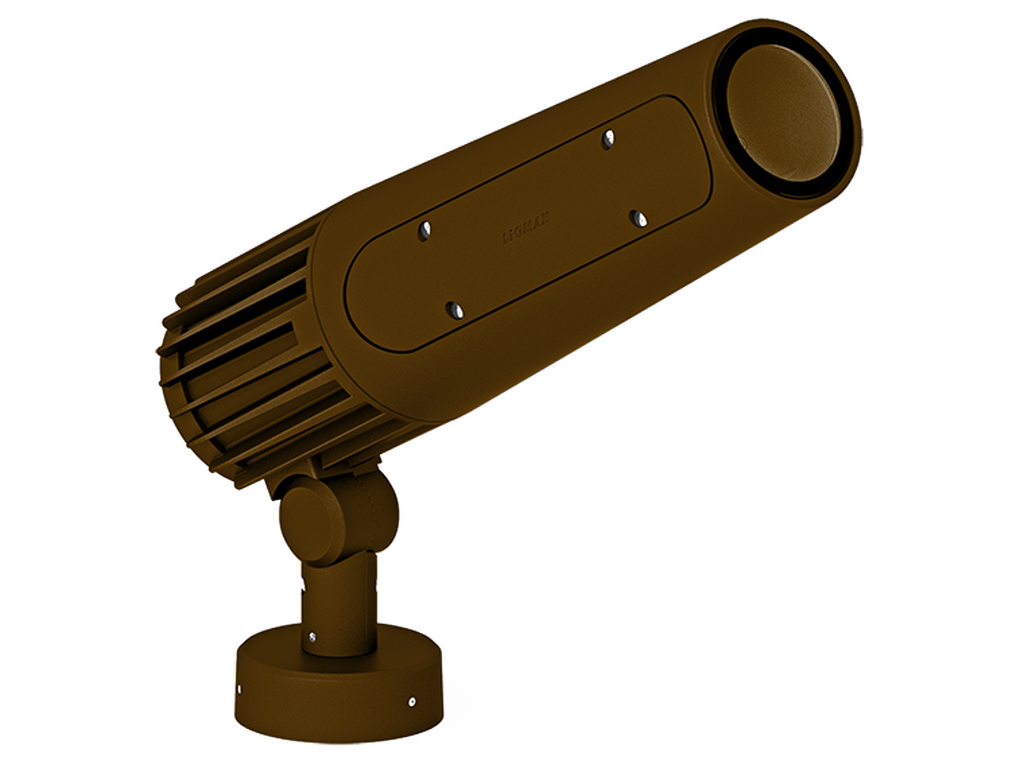

ODESSA 2-GFBronze
ODESSA 2-GFConcrete - Urban
ODESSA 2-GFSoftscape - Urban

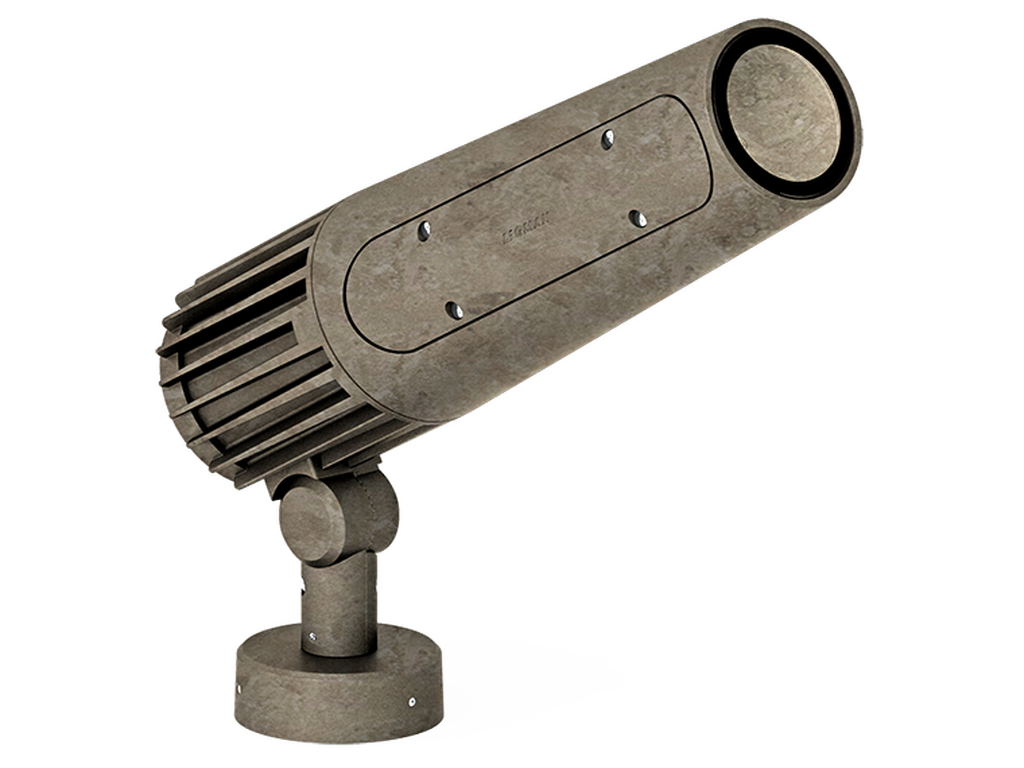

ODESSA 2-GFStone - Urban

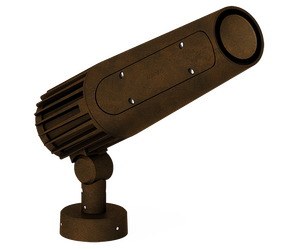

ODESSA 2-GFCorten - Urban
ODESSA 2-GFOak - Woodland

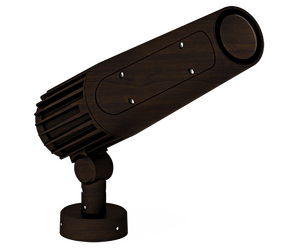

ODESSA 2-GFWalnut - Woodland

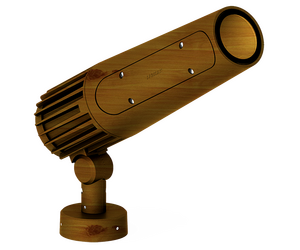

ODESSA 2-GFPine - Woodland
Fixed-base gobo projector
CEClass IIP65IK08

TECHNICAL SPECIFICATIONS

Material
Aluminium
Light source
1 LED
Power (W)
37 W
Lumen (lm)
93 - 249 lm
Efficacy (lm/W)
4 - 12 lm/W
Driver option
Integral control gear
Driver
Constant current (CC)
Input voltage
220-240 V 50/60 Hz
Optic
N, M, W
Optic value
12°, 18°, 32°
CCT / CRI
7500K CRI70
Dimming type
On/Off, DALI
Product colours
Black, Dark Grey, White, Matt Silver, Bronze, Concrete - Urban, Softscape - Urban, Stone - Urban, Corten - Urban, Oak - Woodland, Walnut - Woodland, Pine - Woodland
Weight
4.90 kg
Operating temperature
-20 °C to 40 °C
Through wiring
Two cable entries for through wiring
Lens / Reflector / Optic

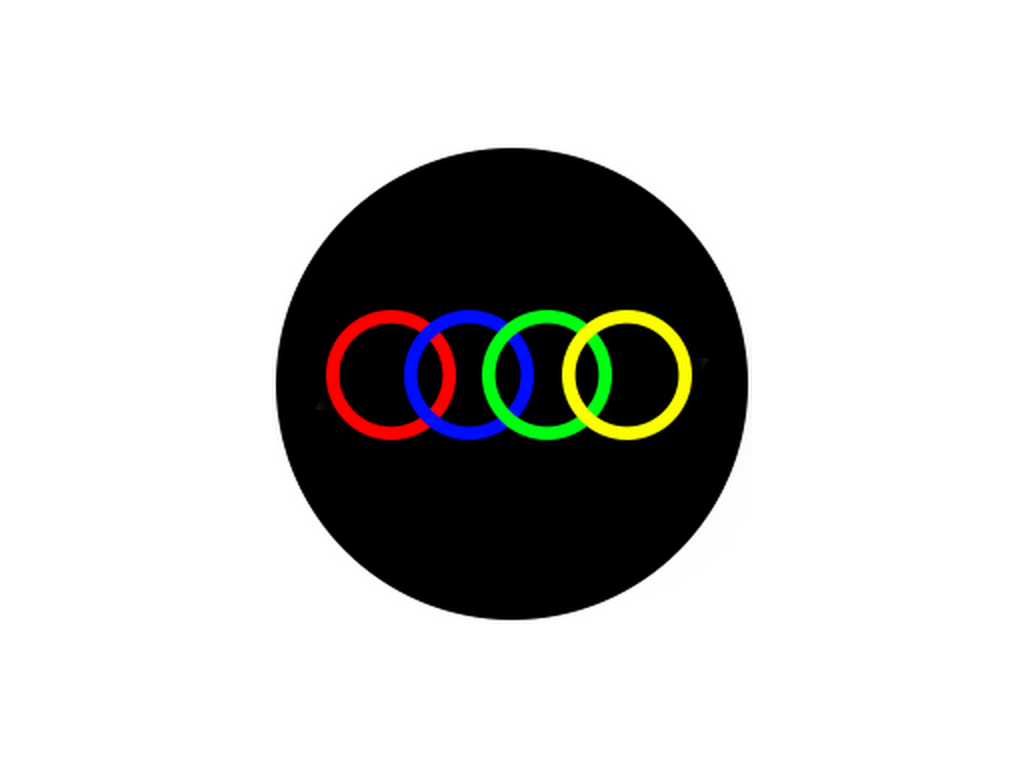

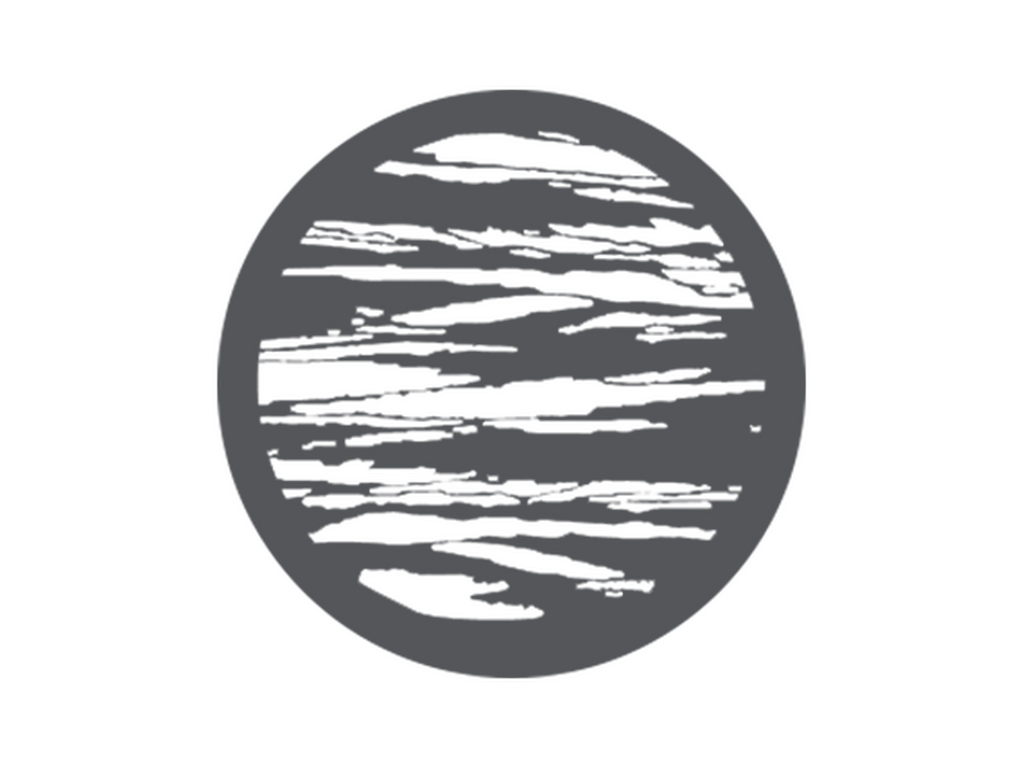

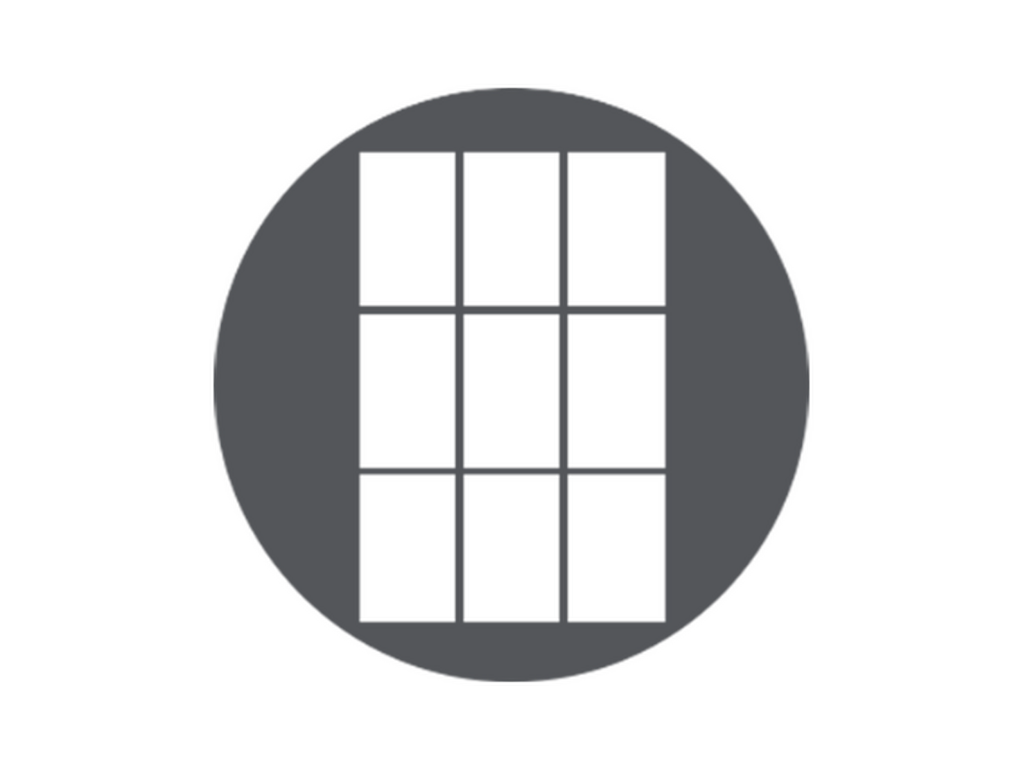

Clear toughened glass, Internal rear collimating lens, Three optional forward-lens focal lengths
Variants (DALI)
Compatible with EN/ IEC 60598-2-22: Suitable for emergency installations as central supply, non-maintained (Z0)

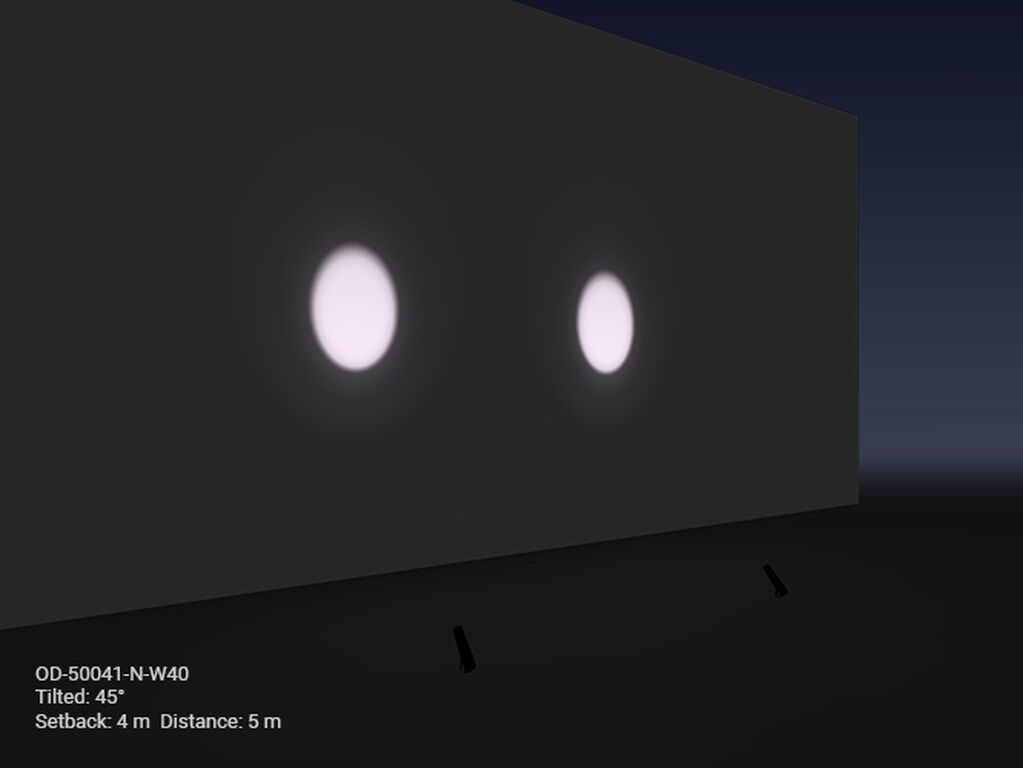

LIGHT EFFECT

Optic
N (12°)
M (18°)
W (32°)

CODE FINDER

Lumen (lm)
Optic
Optic value
CCT / CRI
Dimming type
Product colour
Variant code
Lumen (lm)
Optic
Optic value
CCT / CRI
Dimming type
Product colour
Variant code: OD-50041-N-7075-ND-01
Lumen (lm): 249 lm
Optic: N
Optic value: 12°
CCT / CRI: 7500K CRI70
Dimming type: On/Off
Product colour: Black
Variant code: OD-50041-N-7075-ND-02
Lumen (lm): 249 lm
Optic: N
Optic value: 12°
CCT / CRI: 7500K CRI70
Dimming type: On/Off
Product colour: Dark Grey
Variant code: OD-50041-N-7075-ND-03
Lumen (lm): 249 lm
Optic: N
Optic value: 12°
CCT / CRI: 7500K CRI70
Dimming type: On/Off
Product colour: White
Variant code: OD-50041-N-7075-ND-05
Lumen (lm): 249 lm
Optic: N
Optic value: 12°
CCT / CRI: 7500K CRI70
Dimming type: On/Off
Product colour: Matt Silver
Variant code: OD-50041-N-7075-ND-06
Lumen (lm): 249 lm
Optic: N
Optic value: 12°
CCT / CRI: 7500K CRI70
Dimming type: On/Off
Product colour: Bronze
Variant code: OD-50041-N-7075-ND-SU01
Lumen (lm): 249 lm
Optic: N
Optic value: 12°
CCT / CRI: 7500K CRI70
Dimming type: On/Off
Product colour: Concrete - Urban
Variant code: OD-50041-N-7075-ND-SU02
Lumen (lm): 249 lm
Optic: N
Optic value: 12°
CCT / CRI: 7500K CRI70
Dimming type: On/Off
Product colour: Softscape - Urban
Variant code: OD-50041-N-7075-ND-SU03
Lumen (lm): 249 lm
Optic: N
Optic value: 12°
CCT / CRI: 7500K CRI70
Dimming type: On/Off
Product colour: Stone - Urban
Variant code: OD-50041-N-7075-ND-SU04
Lumen (lm): 249 lm
Optic: N
Optic value: 12°
CCT / CRI: 7500K CRI70
Dimming type: On/Off
Product colour: Corten - Urban
Variant code: OD-50041-N-7075-ND-SW01
Lumen (lm): 249 lm
Optic: N
Optic value: 12°
CCT / CRI: 7500K CRI70
Dimming type: On/Off
Product colour: Oak - Woodland
Variant code: OD-50041-N-7075-ND-SW02
Lumen (lm): 249 lm
Optic: N
Optic value: 12°
CCT / CRI: 7500K CRI70
Dimming type: On/Off
Product colour: Walnut - Woodland
Variant code: OD-50041-N-7075-ND-SW03
Lumen (lm): 249 lm
Optic: N
Optic value: 12°
CCT / CRI: 7500K CRI70
Dimming type: On/Off
Product colour: Pine - Woodland
Variant code: OD-50041-N-7075-DA-01
Lumen (lm): 249 lm
Optic: N
Optic value: 12°
CCT / CRI: 7500K CRI70
Dimming type: DALI
Product colour: Black
Variant code: OD-50041-N-7075-DA-02
Lumen (lm): 249 lm
Optic: N
Optic value: 12°
CCT / CRI: 7500K CRI70
Dimming type: DALI
Product colour: Dark Grey
Variant code: OD-50041-N-7075-DA-03
Lumen (lm): 249 lm
Optic: N
Optic value: 12°
CCT / CRI: 7500K CRI70
Dimming type: DALI
Product colour: White
Variant code: OD-50041-N-7075-DA-05
Lumen (lm): 249 lm
Optic: N
Optic value: 12°
CCT / CRI: 7500K CRI70
Dimming type: DALI
Product colour: Matt Silver
Variant code: OD-50041-N-7075-DA-06
Lumen (lm): 249 lm
Optic: N
Optic value: 12°
CCT / CRI: 7500K CRI70
Dimming type: DALI
Product colour: Bronze
Variant code: OD-50041-N-7075-DA-SU01
Lumen (lm): 249 lm
Optic: N
Optic value: 12°
CCT / CRI: 7500K CRI70
Dimming type: DALI
Product colour: Concrete - Urban
Variant code: OD-50041-N-7075-DA-SU02
Lumen (lm): 249 lm
Optic: N
Optic value: 12°
CCT / CRI: 7500K CRI70
Dimming type: DALI
Product colour: Softscape - Urban
Variant code: OD-50041-N-7075-DA-SU03
Lumen (lm): 249 lm
Optic: N
Optic value: 12°
CCT / CRI: 7500K CRI70
Dimming type: DALI
Product colour: Stone - Urban
Variant code: OD-50041-N-7075-DA-SU04
Lumen (lm): 249 lm
Optic: N
Optic value: 12°
CCT / CRI: 7500K CRI70
Dimming type: DALI
Product colour: Corten - Urban
Variant code: OD-50041-N-7075-DA-SW01
Lumen (lm): 249 lm
Optic: N
Optic value: 12°
CCT / CRI: 7500K CRI70
Dimming type: DALI
Product colour: Oak - Woodland
Variant code: OD-50041-N-7075-DA-SW02
Lumen (lm): 249 lm
Optic: N
Optic value: 12°
CCT / CRI: 7500K CRI70
Dimming type: DALI
Product colour: Walnut - Woodland
Variant code: OD-50041-N-7075-DA-SW03
Lumen (lm): 249 lm
Optic: N
Optic value: 12°
CCT / CRI: 7500K CRI70
Dimming type: DALI
Product colour: Pine - Woodland
Variant code: OD-50041-M-7075-ND-01
Lumen (lm): 147 lm
Optic: M
Optic value: 18°
CCT / CRI: 7500K CRI70
Dimming type: On/Off
Product colour: Black
Variant code: OD-50041-M-7075-ND-02
Lumen (lm): 147 lm
Optic: M
Optic value: 18°
CCT / CRI: 7500K CRI70
Dimming type: On/Off
Product colour: Dark Grey
Variant code: OD-50041-M-7075-ND-03
Lumen (lm): 147 lm
Optic: M
Optic value: 18°
CCT / CRI: 7500K CRI70
Dimming type: On/Off
Product colour: White
Variant code: OD-50041-M-7075-ND-05
Lumen (lm): 147 lm
Optic: M
Optic value: 18°
CCT / CRI: 7500K CRI70
Dimming type: On/Off
Product colour: Matt Silver
Variant code: OD-50041-M-7075-ND-06
Lumen (lm): 147 lm
Optic: M
Optic value: 18°
CCT / CRI: 7500K CRI70
Dimming type: On/Off
Product colour: Bronze
Variant code: OD-50041-M-7075-ND-SU01
Lumen (lm): 147 lm
Optic: M
Optic value: 18°
CCT / CRI: 7500K CRI70
Dimming type: On/Off
Product colour: Concrete - Urban
Variant code: OD-50041-M-7075-ND-SU02
Lumen (lm): 147 lm
Optic: M
Optic value: 18°
CCT / CRI: 7500K CRI70
Dimming type: On/Off
Product colour: Softscape - Urban
Variant code: OD-50041-M-7075-ND-SU03
Lumen (lm): 147 lm
Optic: M
Optic value: 18°
CCT / CRI: 7500K CRI70
Dimming type: On/Off
Product colour: Stone - Urban
Variant code: OD-50041-M-7075-ND-SU04
Lumen (lm): 147 lm
Optic: M
Optic value: 18°
CCT / CRI: 7500K CRI70
Dimming type: On/Off
Product colour: Corten - Urban
Variant code: OD-50041-M-7075-ND-SW01
Lumen (lm): 147 lm
Optic: M
Optic value: 18°
CCT / CRI: 7500K CRI70
Dimming type: On/Off
Product colour: Oak - Woodland
Variant code: OD-50041-M-7075-ND-SW02
Lumen (lm): 147 lm
Optic: M
Optic value: 18°
CCT / CRI: 7500K CRI70
Dimming type: On/Off
Product colour: Walnut - Woodland
Variant code: OD-50041-M-7075-ND-SW03
Lumen (lm): 147 lm
Optic: M
Optic value: 18°
CCT / CRI: 7500K CRI70
Dimming type: On/Off
Product colour: Pine - Woodland
Variant code: OD-50041-M-7075-DA-01
Lumen (lm): 147 lm
Optic: M
Optic value: 18°
CCT / CRI: 7500K CRI70
Dimming type: DALI
Product colour: Black
Variant code: OD-50041-M-7075-DA-02
Lumen (lm): 147 lm
Optic: M
Optic value: 18°
CCT / CRI: 7500K CRI70
Dimming type: DALI
Product colour: Dark Grey
Variant code: OD-50041-M-7075-DA-03
Lumen (lm): 147 lm
Optic: M
Optic value: 18°
CCT / CRI: 7500K CRI70
Dimming type: DALI
Product colour: White
Variant code: OD-50041-M-7075-DA-05
Lumen (lm): 147 lm
Optic: M
Optic value: 18°
CCT / CRI: 7500K CRI70
Dimming type: DALI
Product colour: Matt Silver
Variant code: OD-50041-M-7075-DA-06
Lumen (lm): 147 lm
Optic: M
Optic value: 18°
CCT / CRI: 7500K CRI70
Dimming type: DALI
Product colour: Bronze
Variant code: OD-50041-M-7075-DA-SU01
Lumen (lm): 147 lm
Optic: M
Optic value: 18°
CCT / CRI: 7500K CRI70
Dimming type: DALI
Product colour: Concrete - Urban
Variant code: OD-50041-M-7075-DA-SU02
Lumen (lm): 147 lm
Optic: M
Optic value: 18°
CCT / CRI: 7500K CRI70
Dimming type: DALI
Product colour: Softscape - Urban
Variant code: OD-50041-M-7075-DA-SU03
Lumen (lm): 147 lm
Optic: M
Optic value: 18°
CCT / CRI: 7500K CRI70
Dimming type: DALI
Product colour: Stone - Urban
Variant code: OD-50041-M-7075-DA-SU04
Lumen (lm): 147 lm
Optic: M
Optic value: 18°
CCT / CRI: 7500K CRI70
Dimming type: DALI
Product colour: Corten - Urban
Variant code: OD-50041-M-7075-DA-SW01
Lumen (lm): 147 lm
Optic: M
Optic value: 18°
CCT / CRI: 7500K CRI70
Dimming type: DALI
Product colour: Oak - Woodland
Variant code: OD-50041-M-7075-DA-SW02
Lumen (lm): 147 lm
Optic: M
Optic value: 18°
CCT / CRI: 7500K CRI70
Dimming type: DALI
Product colour: Walnut - Woodland
Variant code: OD-50041-M-7075-DA-SW03
Lumen (lm): 147 lm
Optic: M
Optic value: 18°
CCT / CRI: 7500K CRI70
Dimming type: DALI
Product colour: Pine - Woodland
Variant code: OD-50041-W-7075-ND-01
Lumen (lm): 93 lm
Optic: W
Optic value: 32°
CCT / CRI: 7500K CRI70
Dimming type: On/Off
Product colour: Black
Variant code: OD-50041-W-7075-ND-02
Lumen (lm): 93 lm
Optic: W
Optic value: 32°
CCT / CRI: 7500K CRI70
Dimming type: On/Off
Product colour: Dark Grey
Variant code: OD-50041-W-7075-ND-03
Lumen (lm): 93 lm
Optic: W
Optic value: 32°
CCT / CRI: 7500K CRI70
Dimming type: On/Off
Product colour: White
Variant code: OD-50041-W-7075-ND-05
Lumen (lm): 93 lm
Optic: W
Optic value: 32°
CCT / CRI: 7500K CRI70
Dimming type: On/Off
Product colour: Matt Silver
Variant code: OD-50041-W-7075-ND-06
Lumen (lm): 93 lm
Optic: W
Optic value: 32°
CCT / CRI: 7500K CRI70
Dimming type: On/Off
Product colour: Bronze
Variant code: OD-50041-W-7075-ND-SU01
Lumen (lm): 93 lm
Optic: W
Optic value: 32°
CCT / CRI: 7500K CRI70
Dimming type: On/Off
Product colour: Concrete - Urban
Variant code: OD-50041-W-7075-ND-SU02
Lumen (lm): 93 lm
Optic: W
Optic value: 32°
CCT / CRI: 7500K CRI70
Dimming type: On/Off
Product colour: Softscape - Urban
Variant code: OD-50041-W-7075-ND-SU03
Lumen (lm): 93 lm
Optic: W
Optic value: 32°
CCT / CRI: 7500K CRI70
Dimming type: On/Off
Product colour: Stone - Urban
Variant code: OD-50041-W-7075-ND-SU04
Lumen (lm): 93 lm
Optic: W
Optic value: 32°
CCT / CRI: 7500K CRI70
Dimming type: On/Off
Product colour: Corten - Urban
Variant code: OD-50041-W-7075-ND-SW01
Lumen (lm): 93 lm
Optic: W
Optic value: 32°
CCT / CRI: 7500K CRI70
Dimming type: On/Off
Product colour: Oak - Woodland
Variant code: OD-50041-W-7075-ND-SW02
Lumen (lm): 93 lm
Optic: W
Optic value: 32°
CCT / CRI: 7500K CRI70
Dimming type: On/Off
Product colour: Walnut - Woodland
Variant code: OD-50041-W-7075-ND-SW03
Lumen (lm): 93 lm
Optic: W
Optic value: 32°
CCT / CRI: 7500K CRI70
Dimming type: On/Off
Product colour: Pine - Woodland
Variant code: OD-50041-W-7075-DA-01
Lumen (lm): 93 lm
Optic: W
Optic value: 32°
CCT / CRI: 7500K CRI70
Dimming type: DALI
Product colour: Black
Variant code: OD-50041-W-7075-DA-02
Lumen (lm): 93 lm
Optic: W
Optic value: 32°
CCT / CRI: 7500K CRI70
Dimming type: DALI
Product colour: Dark Grey
Variant code: OD-50041-W-7075-DA-03
Lumen (lm): 93 lm
Optic: W
Optic value: 32°
CCT / CRI: 7500K CRI70
Dimming type: DALI
Product colour: White
Variant code: OD-50041-W-7075-DA-05
Lumen (lm): 93 lm
Optic: W
Optic value: 32°
CCT / CRI: 7500K CRI70
Dimming type: DALI
Product colour: Matt Silver
Variant code: OD-50041-W-7075-DA-06
Lumen (lm): 93 lm
Optic: W
Optic value: 32°
CCT / CRI: 7500K CRI70
Dimming type: DALI
Product colour: Bronze
Variant code: OD-50041-W-7075-DA-SU01
Lumen (lm): 93 lm
Optic: W
Optic value: 32°
CCT / CRI: 7500K CRI70
Dimming type: DALI
Product colour: Concrete - Urban
Variant code: OD-50041-W-7075-DA-SU02
Lumen (lm): 93 lm
Optic: W
Optic value: 32°
CCT / CRI: 7500K CRI70
Dimming type: DALI
Product colour: Softscape - Urban
Variant code: OD-50041-W-7075-DA-SU03
Lumen (lm): 93 lm
Optic: W
Optic value: 32°
CCT / CRI: 7500K CRI70
Dimming type: DALI
Product colour: Stone - Urban
Variant code: OD-50041-W-7075-DA-SU04
Lumen (lm): 93 lm
Optic: W
Optic value: 32°
CCT / CRI: 7500K CRI70
Dimming type: DALI
Product colour: Corten - Urban
Variant code: OD-50041-W-7075-DA-SW01
Lumen (lm): 93 lm
Optic: W
Optic value: 32°
CCT / CRI: 7500K CRI70
Dimming type: DALI
Product colour: Oak - Woodland
Variant code: OD-50041-W-7075-DA-SW02
Lumen (lm): 93 lm
Optic: W
Optic value: 32°
CCT / CRI: 7500K CRI70
Dimming type: DALI
Product colour: Walnut - Woodland
Variant code: OD-50041-W-7075-DA-SW03
Lumen (lm): 93 lm
Optic: W
Optic value: 32°
CCT / CRI: 7500K CRI70
Dimming type: DALI
Product colour: Pine - Woodland

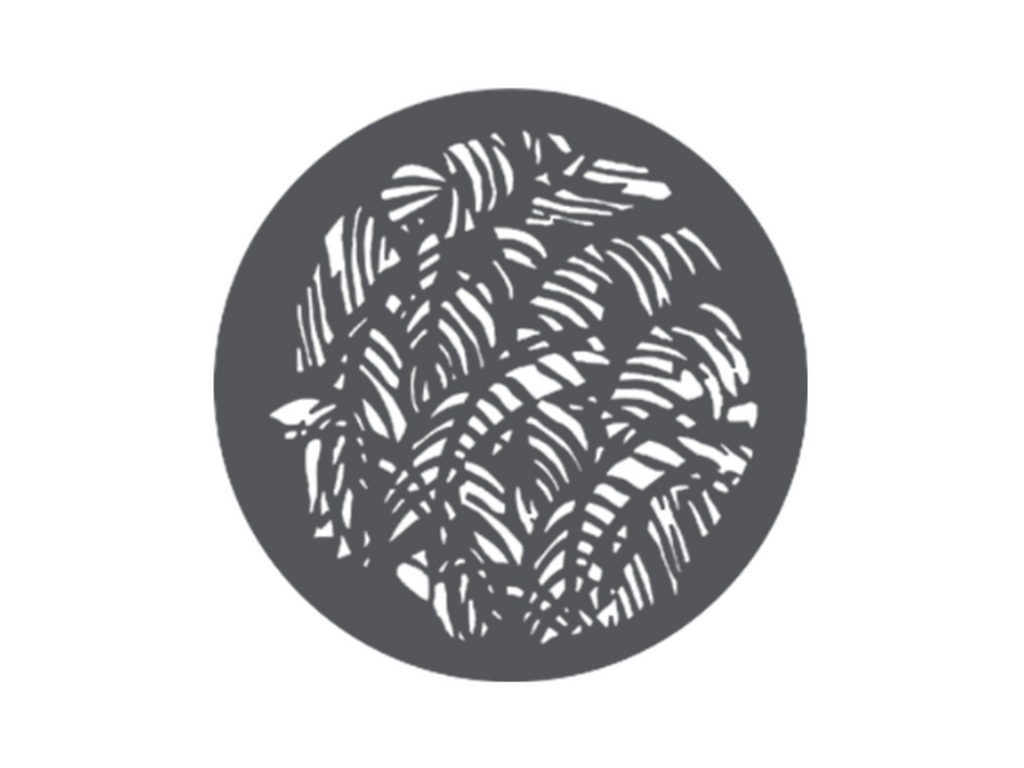

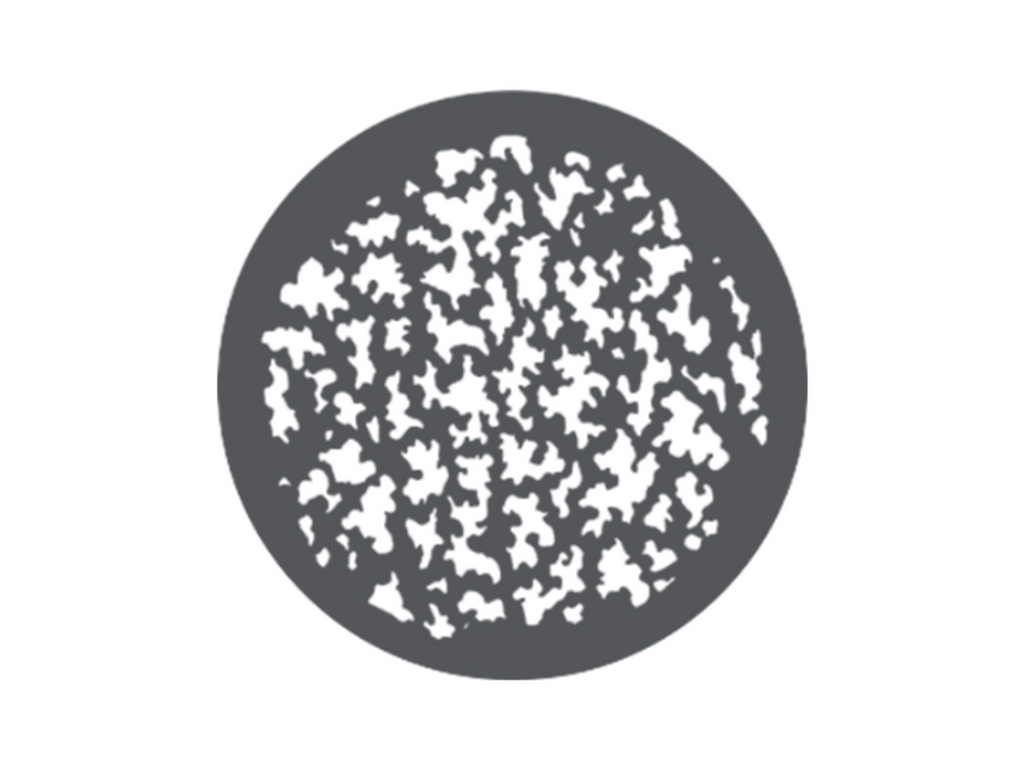

ACCESSORY

PROJECT REFERENCE (ODESSA Fixed-base gobo projectors)

SOCIAL

Facebook-f Instagram Youtube Linkedin-in Twitter Pinterest Line

NEWSLETTER

Sign up to our newsletter

Copyright © LIGMAN Lighting Co., Ltd.

Privacy Policy      Privacy Policy CCTV      Terms of use      Terms of sales
