LIGMAN OREGON 1 OR-60894.

OREGON 1OR-60894

(Version 1)

Recessed underwater projectors

Send us an E-Mail or use the contact form:

I have read the privacy policy and agree to the processing of my data *

The fields marked with an * must be correctly filled.
Your request was successfully sent.

Send us an E-Mail or use the contact form:

I have read the privacy policy and agree to the processing of my data *

The fields marked with an * must be correctly filled.
Your request was successfully sent.
OREGON 1
Without remote driver - With recessing box - Constant voltage (CV) 24 V
CERETILAPClass IIIIP68IK09

TECHNICAL SPECIFICATIONS

Material
Stainless Steel
Light source
1 LED
Power (W)
2 W
Lumen (lm)
191 - 201 lm
Efficacy (lm/W)
96 - 101 lm/W
Driver option
Remote driver (not included)
Driver
Constant voltage (CV)
Input voltage
24 VDC
Optic
N
Optic value
22°
CCT / CRI
3000K CRI80, 4000K CRI80
Bug
B0-U0-G0
ULR
<1%
ULOR
<1%
CIE flux code nº3
100
Dimming type
On/Off
Product colours
Stainless Steel
Weight
0.6 kg
Operating temperature
-20 °C to 40 °C
Cable
One cable gland supplied with 2 m of 2x1.0 sqmm outdoor cable
Through wiring
Single cable entry
Lens / Reflector / Optic
Clear toughened glass
MacAdam Ellipse
3 SDCM
Lifetime L90B10 (hours)
> 109,000
Lifetime L80B10 (hours)
> 109,000
Lifetime L80B50 (hours)
> 109,000

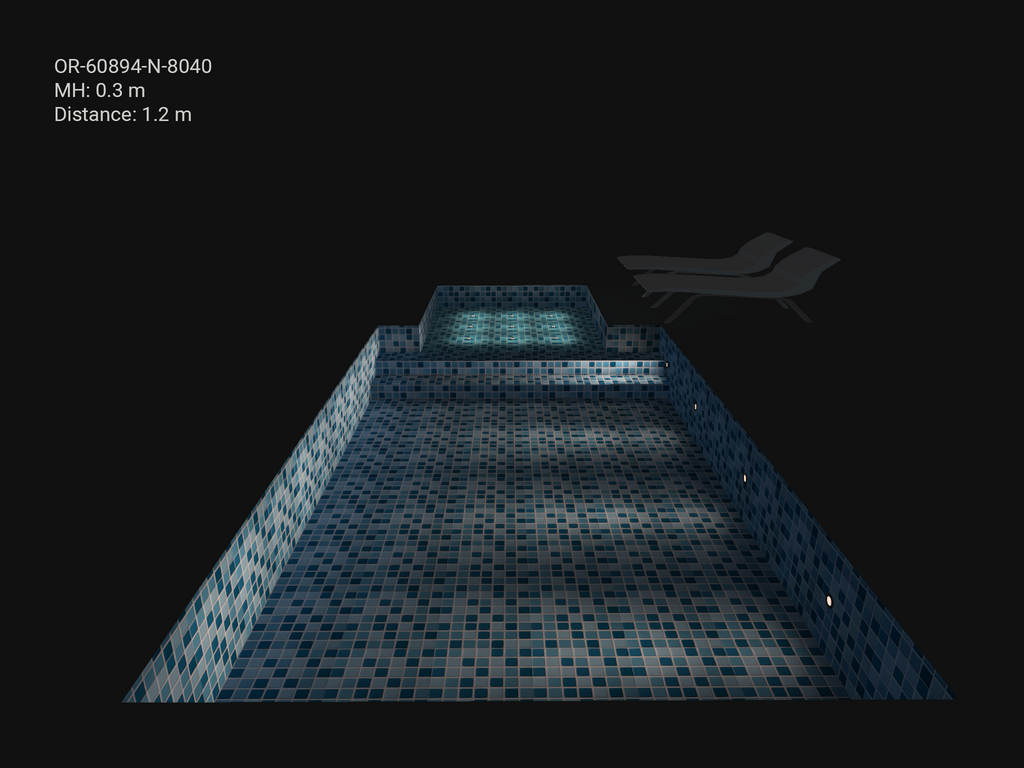

LIGHT EFFECT

Optic
N (22°)

CODE FINDER

Lumen (lm)
Optic
Optic value
CCT / CRI
Dimming type
Product colour
Variant code
Lumen (lm)
Optic
Optic value
CCT / CRI
Dimming type
Product colour
Variant code: OR-60894-N-8030-ND-00
Lumen (lm): 191 lm
Optic: N
Optic value: 22°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Stainless Steel
Variant code: OR-60894-N-8040-ND-00
Lumen (lm): 201 lm
Optic: N
Optic value: 22°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Stainless Steel

ACCESSORY

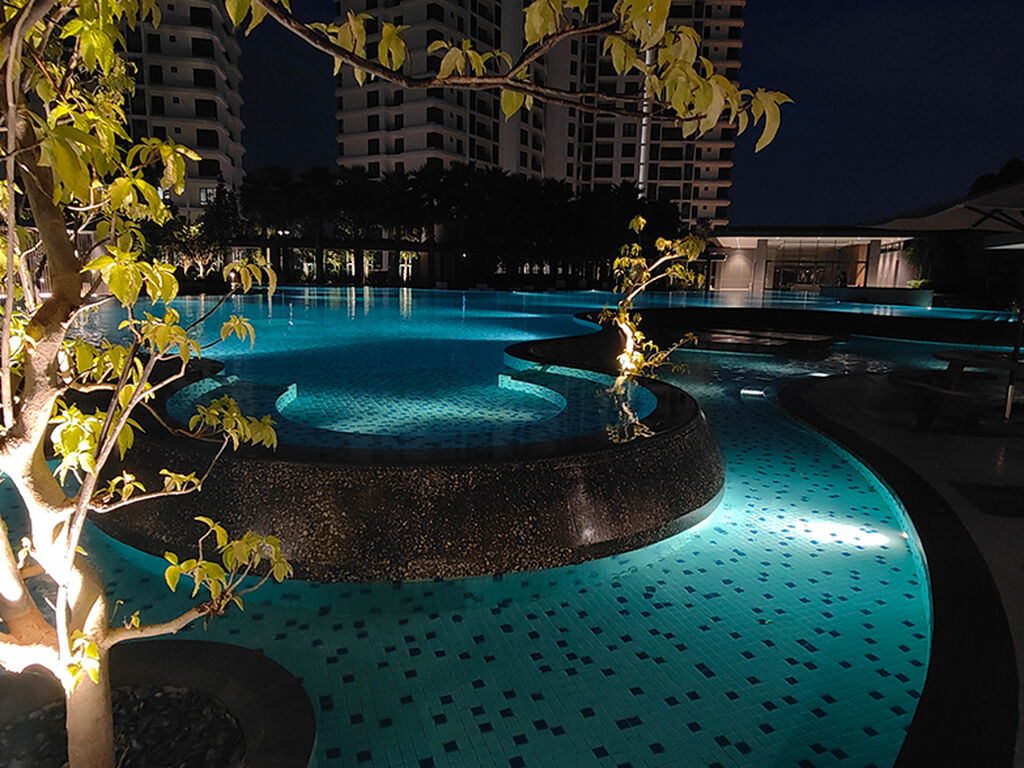

PROJECT REFERENCE (OREGON Recessed underwater projectors)
