Discontinued - 05/2024
PATCHI 2
Without remote driver - Constant voltage (CV) 24 V - RGBW dynamic programming - 16 addresses/channels - 28x42.9 mm - 500 mm
CERETILAPClass IIIIP65IK08

TECHNICAL SPECIFICATIONS

Material
Aluminium
Light source
24 LED
Power (W)
6 W
Lumen (lm)
194 - 197 lm
Efficacy (lm/W)
32 - 33 lm/W
Driver option
Remote driver (not included)
Driver
Constant voltage (CV)
Input voltage
24 VDC
Optic
EW
Optic value
130°
CCT / CRI
RGBW30, RGBW40
Dimming type
DMX
Product colours
Matt Silver
Weight
0.3 kg
Operating temperature
-20 °C to 40 °C
Through wiring
Two cable entries for through wiring
Lens / Reflector / Optic
Opal PMMA curved diffuser

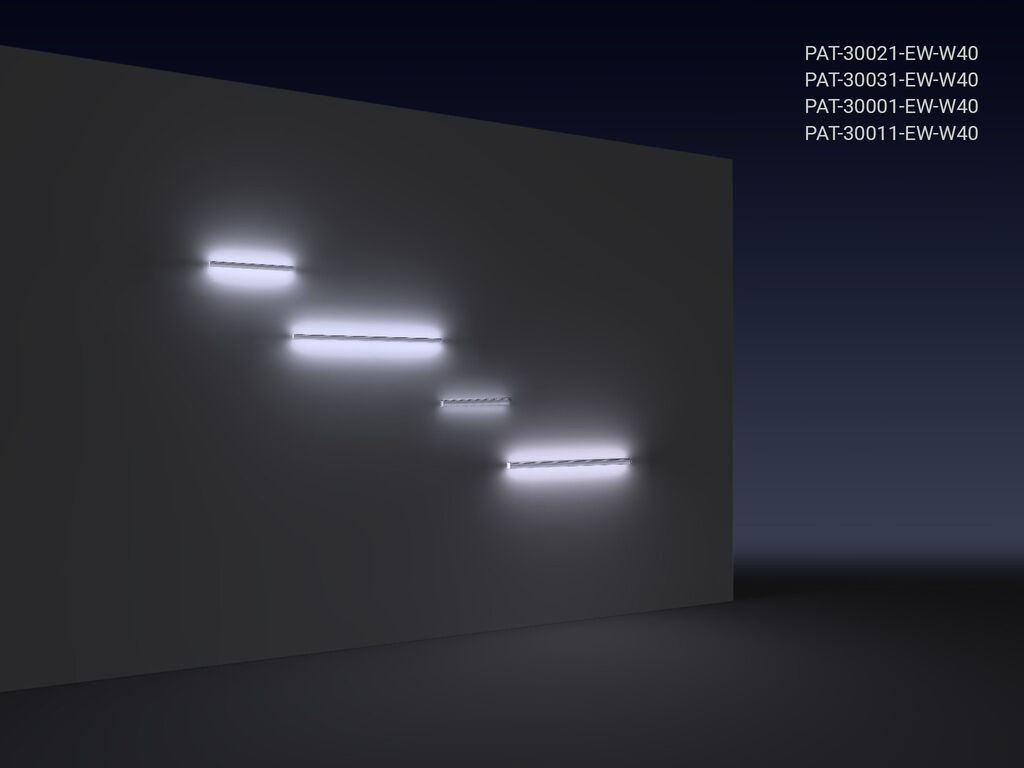

LIGHT EFFECT

Optic
EW (130°)

CODE FINDER

Lumen (lm)
Optic
Optic value
CCT / CRI
Dimming type
Product colour
Variant code
Lumen (lm)
Optic
Optic value
CCT / CRI
Dimming type
Product colour
Variant code: PAT-30021-EW-30-DMX-05
Lumen (lm): 197 lm
Optic: EW
Optic value: 130°
CCT / CRI: RGBW30
Dimming type: DMX
Product colour: Matt Silver
Variant code: PAT-30021-EW-40-DMX-05
Lumen (lm): 194 lm
Optic: EW
Optic value: 130°
CCT / CRI: RGBW40
Dimming type: DMX
Product colour: Matt Silver

ACCESSORY
