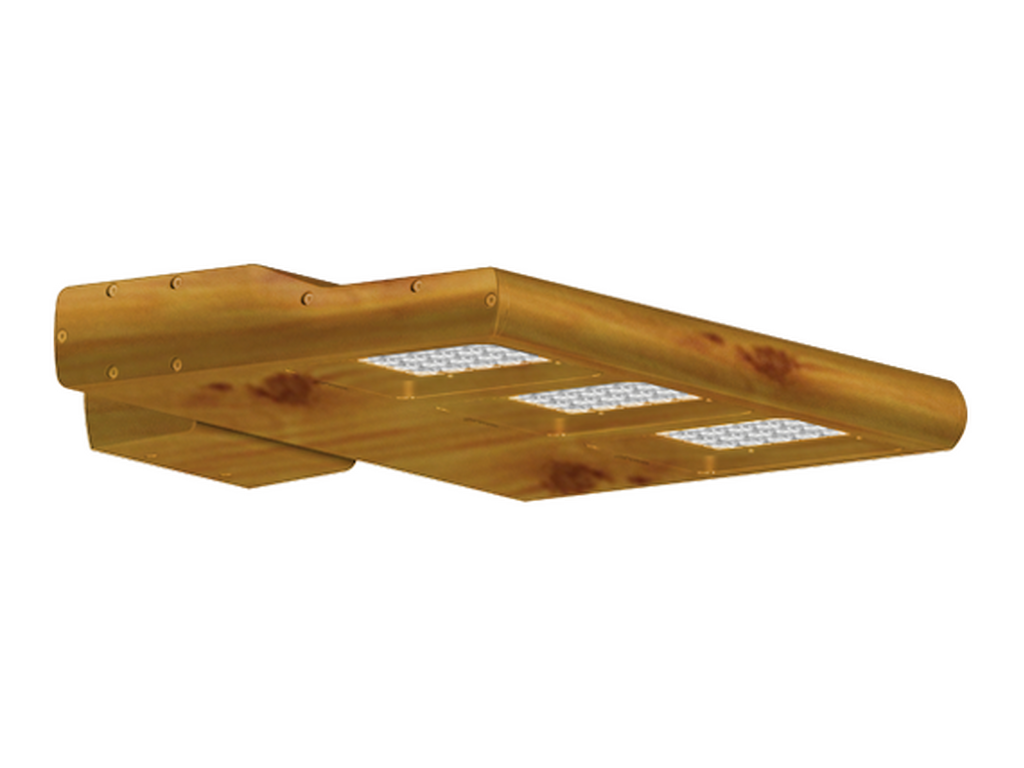

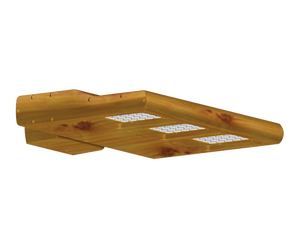

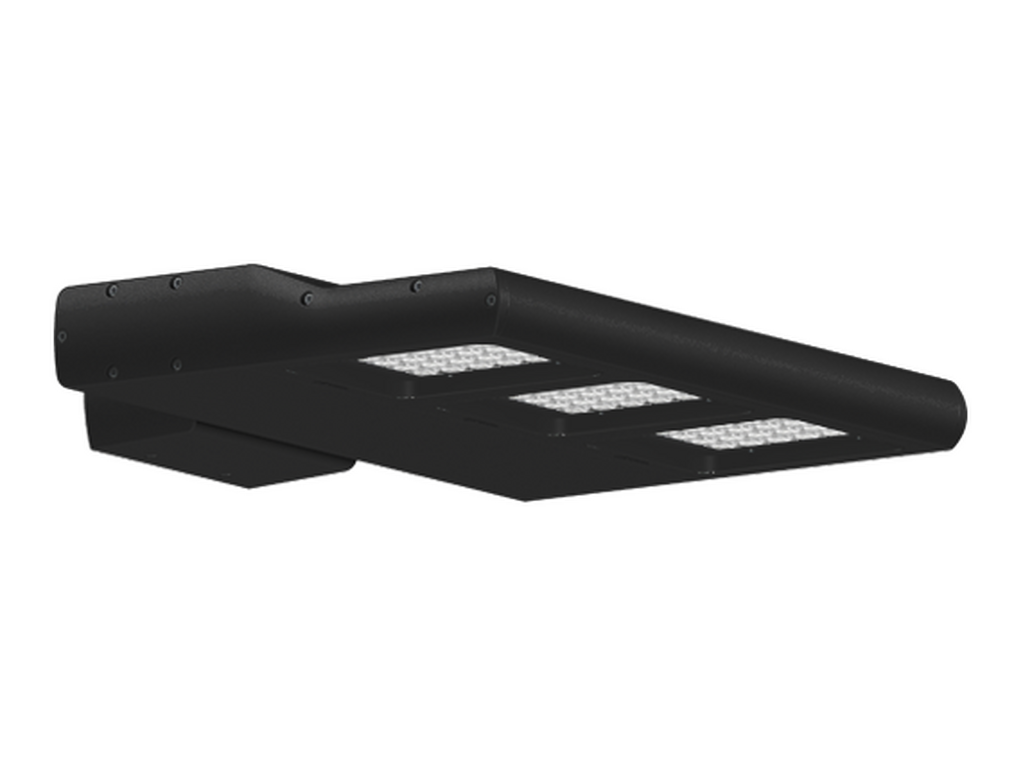

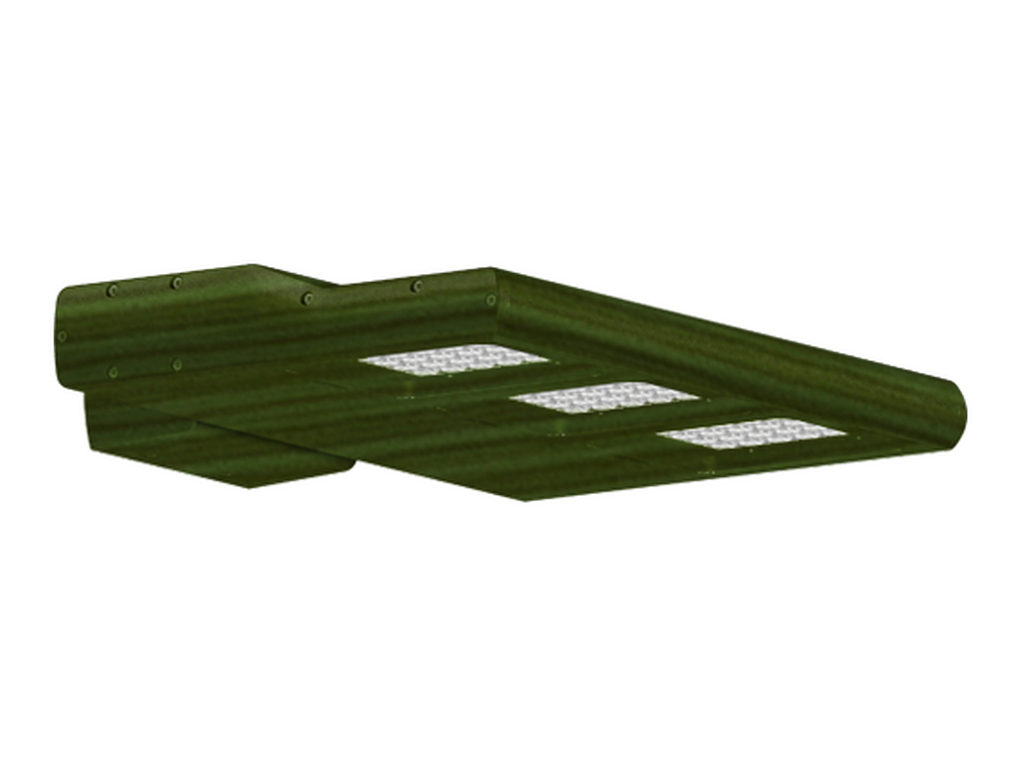

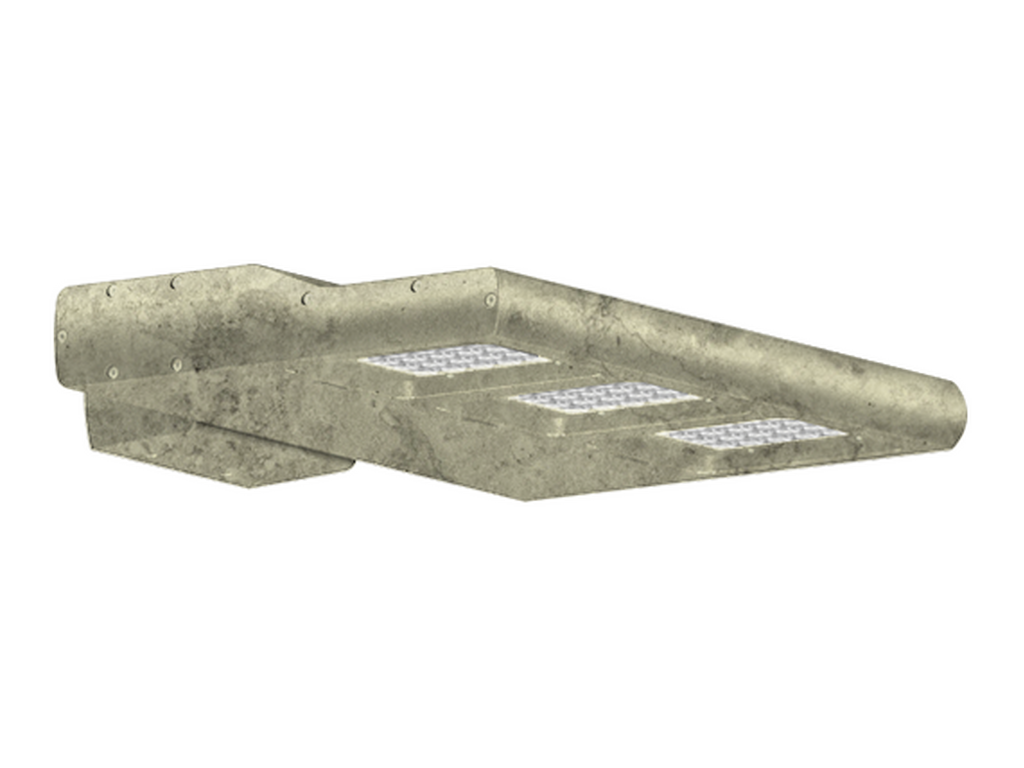

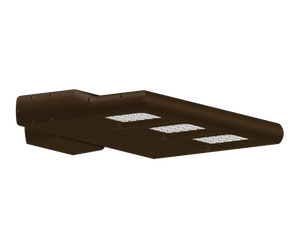

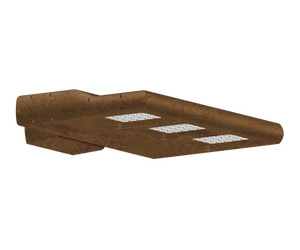

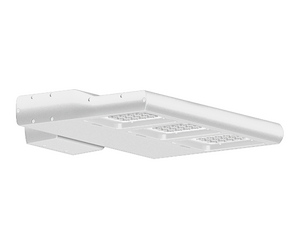

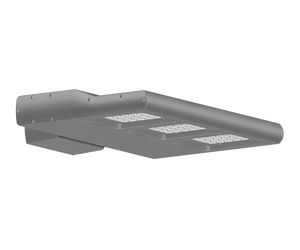

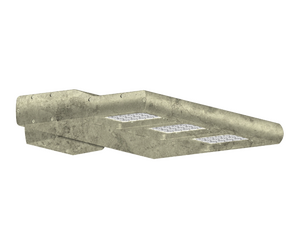

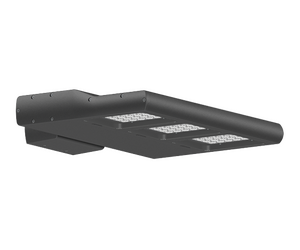

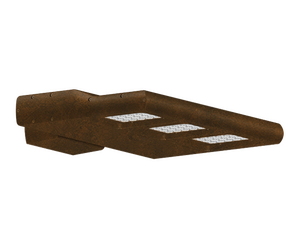

PITTSBURGH 6PIB-30024PITTSBURGH
NEW
Black
Dark Grey
White
Matt Silver
Bronze
Concrete - Urban
Softscape - Urban
Stone - Urban
Corten - Urban
Oak - Woodland
Walnut - Woodland
Pine - Woodland
Black
Dark Grey
White
Matt Silver
Bronze
Concrete - Urban
Softscape - Urban
Stone - Urban
Corten - Urban
Oak - Woodland
Walnut - Woodland
Pine - WoodlandLarge - RGBW
TECHNICAL SPECIFICATIONS
Material
Aluminium
Light source
3 x 36 LED
Power (W)
120 W
Lumen (lm)
5943 - 7606 lm
Efficacy (lm/W)
50 - 63 lm/W
Driver option
Integral control gear
Driver
Constant current (CC)
Input voltage
220-240 V 50/60 Hz
Optic
N, M, W, VW, E
Optic value
9°, 16°, 33°, 64°, 43°x10°
CCT / CRI
3000K CRI80, 4000K CRI80
Dimming type
DMX/RDM
Weight
16 kg
Operating temperature
-20 °C to 40 °C
Through wiring
Single cable entry
Lens / Reflector / Optic
Clear toughened glass, High-efficiency polycarbonate lens
DOWNLOADS
Family spec sheet
Product spec sheet
Technical drawing
2D - CAD
3D view link
AR Tracker
CE documentFor BIM files (Revit - RFA), please check the Variant code

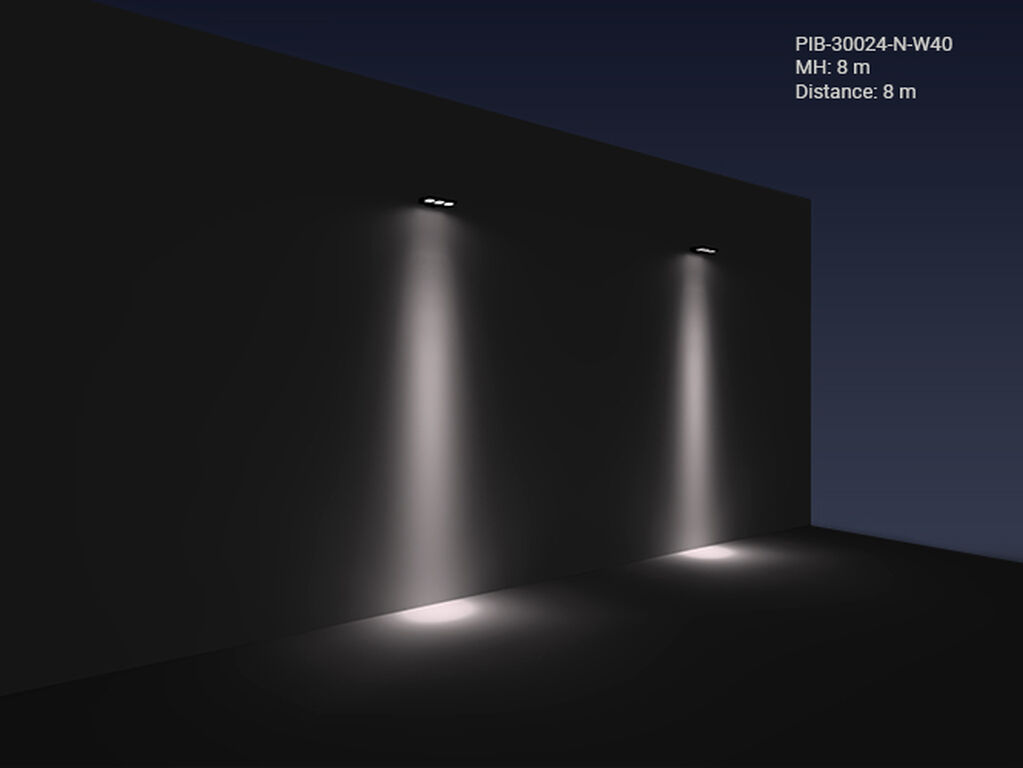

LIGHT EFFECT
Optic
N (9°)
M (16°)
W (33°)
VW (64°)
E (43°x10°)
CODE FINDER
Lumen (lm)
Optic
Optic value
CCT / CRI
Dimming type
Product colour
Variant code
Lumen (lm)
Optic
Optic value
CCT / CRI
Dimming type
Product colour
Variant code: PIB-30024-N-8030-DMXRDM
Lumen (lm): 7449 lm
Optic: N
Optic value: 9°
CCT / CRI: 3000K CRI80
Dimming type: DMX/RDM
Product colour:
Variant code: PIB-30024-N-8040-DMXRDM
Lumen (lm): 7606 lm
Optic: N
Optic value: 9°
CCT / CRI: 4000K CRI80
Dimming type: DMX/RDM
Product colour:
Variant code: PIB-30024-M-8030-DMXRDM
Lumen (lm): 6232 lm
Optic: M
Optic value: 16°
CCT / CRI: 3000K CRI80
Dimming type: DMX/RDM
Product colour:
Variant code: PIB-30024-M-8040-DMXRDM
Lumen (lm): 6364 lm
Optic: M
Optic value: 16°
CCT / CRI: 4000K CRI80
Dimming type: DMX/RDM
Product colour:
Variant code: PIB-30024-W-8030-DMXRDM
Lumen (lm): 6634 lm
Optic: W
Optic value: 33°
CCT / CRI: 3000K CRI80
Dimming type: DMX/RDM
Product colour:
Variant code: PIB-30024-W-8040-DMXRDM
Lumen (lm): 6774 lm
Optic: W
Optic value: 33°
CCT / CRI: 4000K CRI80
Dimming type: DMX/RDM
Product colour:
Variant code: PIB-30024-VW-8030-DMXRDM
Lumen (lm): 5943 lm
Optic: VW
Optic value: 64°
CCT / CRI: 3000K CRI80
Dimming type: DMX/RDM
Product colour:
Variant code: PIB-30024-VW-8040-DMXRDM
Lumen (lm): 6067 lm
Optic: VW
Optic value: 64°
CCT / CRI: 4000K CRI80
Dimming type: DMX/RDM
Product colour:
Variant code: PIB-30024-E-8030-DMXRDM
Lumen (lm): 6874 lm
Optic: E
Optic value: 43°x10°
CCT / CRI: 3000K CRI80
Dimming type: DMX/RDM
Product colour:
Variant code: PIB-30024-E-8040-DMXRDM
Lumen (lm): 7020 lm
Optic: E
Optic value: 43°x10°
CCT / CRI: 4000K CRI80
Dimming type: DMX/RDM
Product colour:
