LIGMAN PRAGUE 3 PRA-10022.

PRAGUE 3PRA-10022

(Version 2)

PRAGUE

Send us an E-Mail or use the contact form:

I have read the privacy policy and agree to the processing of my data *

The fields marked with an * must be correctly filled.
Your request was successfully sent.

Send us an E-Mail or use the contact form:

I have read the privacy policy and agree to the processing of my data *

The fields marked with an * must be correctly filled.
Your request was successfully sent.

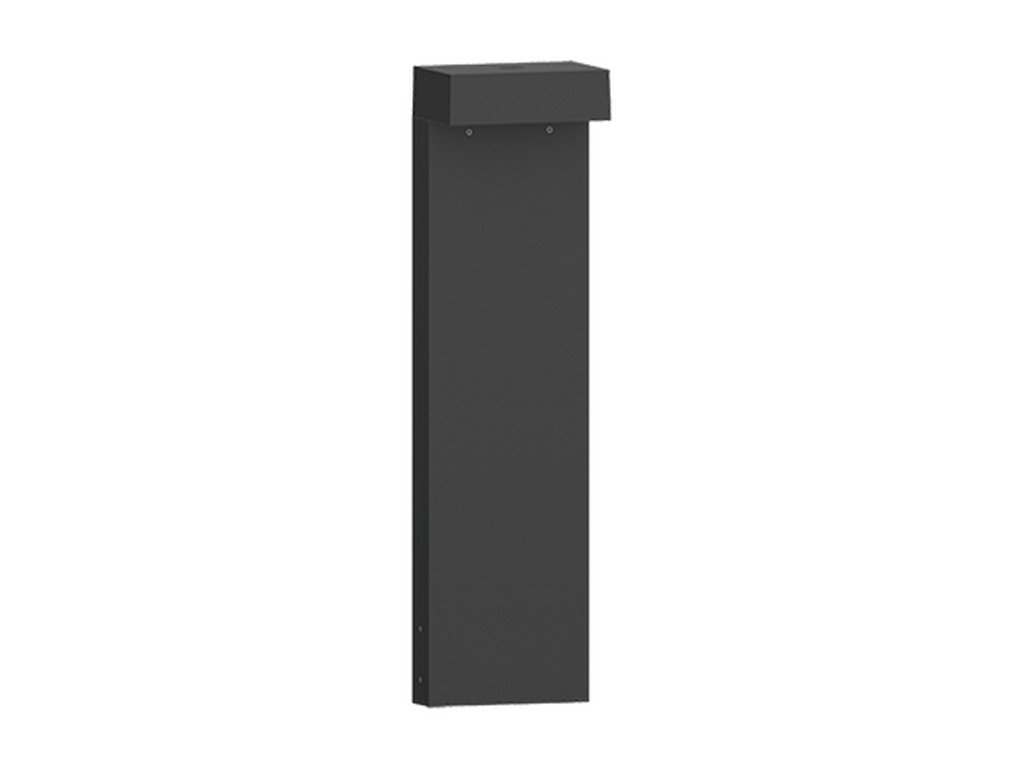

PRAGUE 3Black
PRAGUE 3Dark Grey

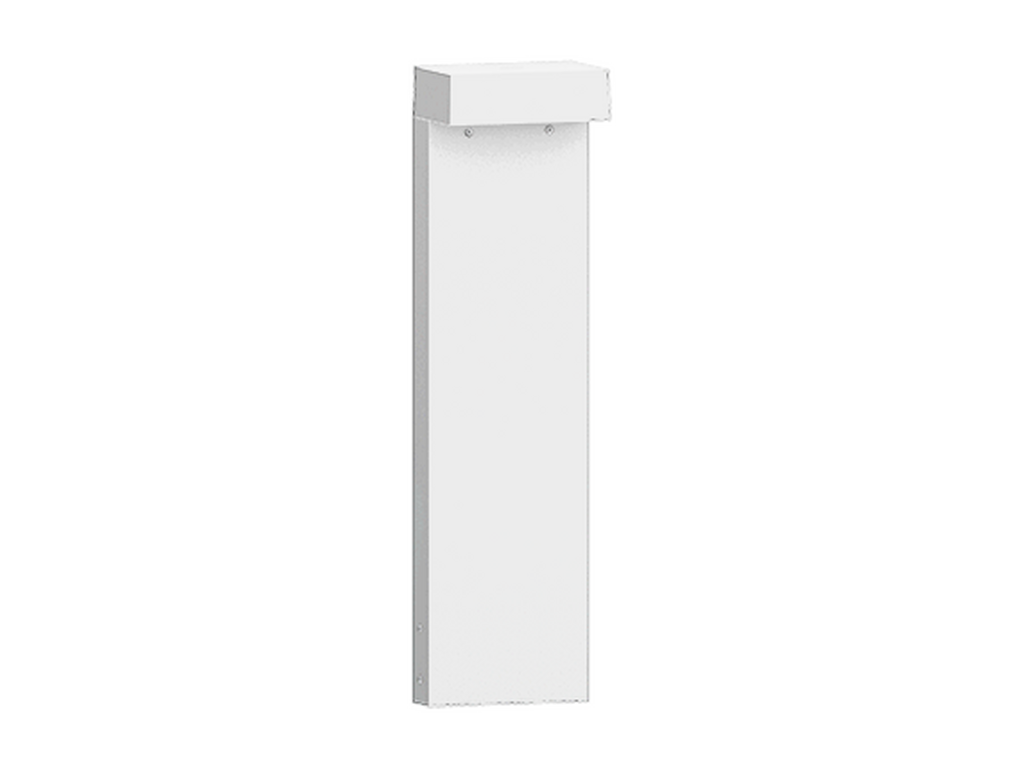

PRAGUE 3White

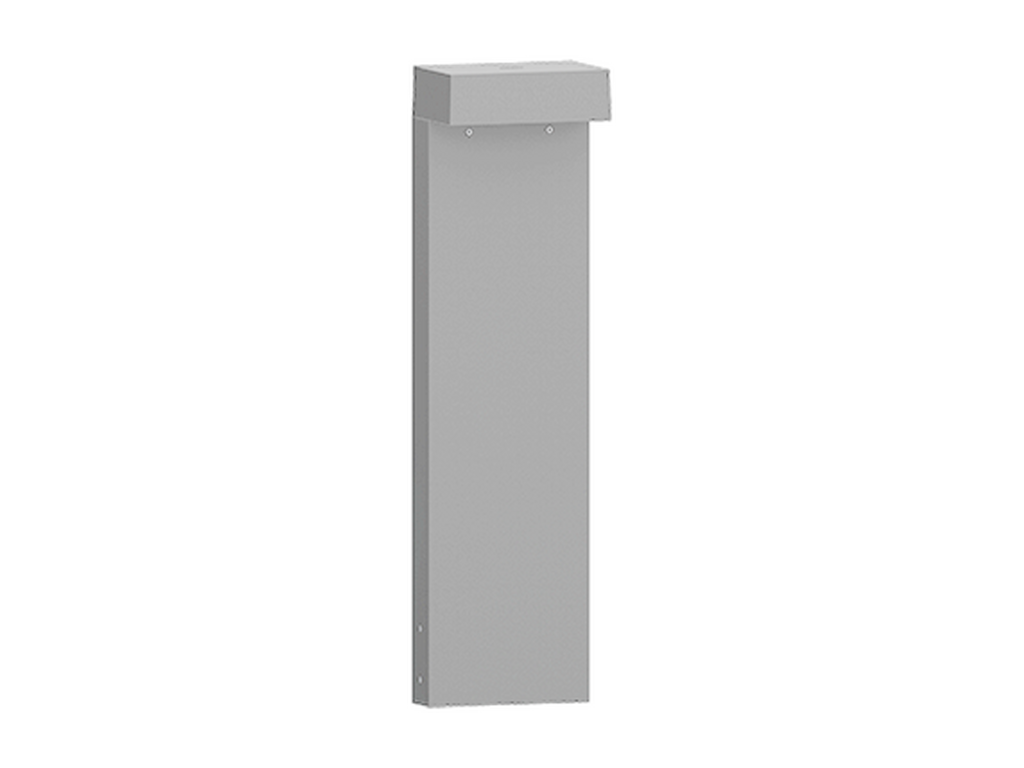

PRAGUE 3Matt Silver

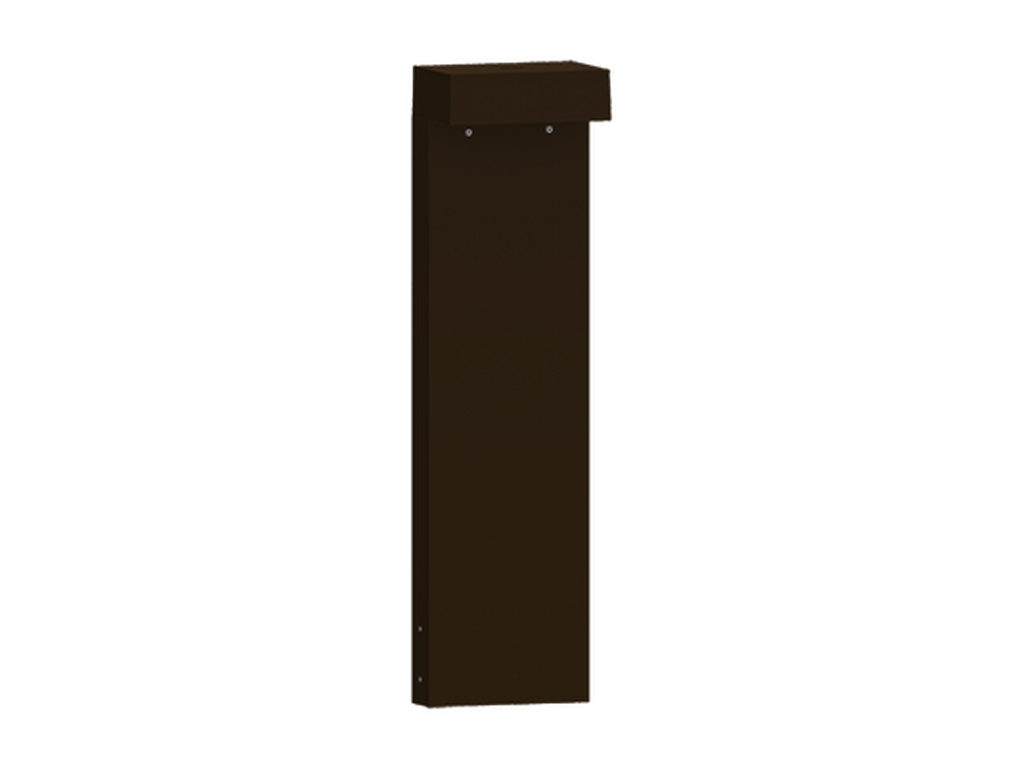

PRAGUE 3Bronze

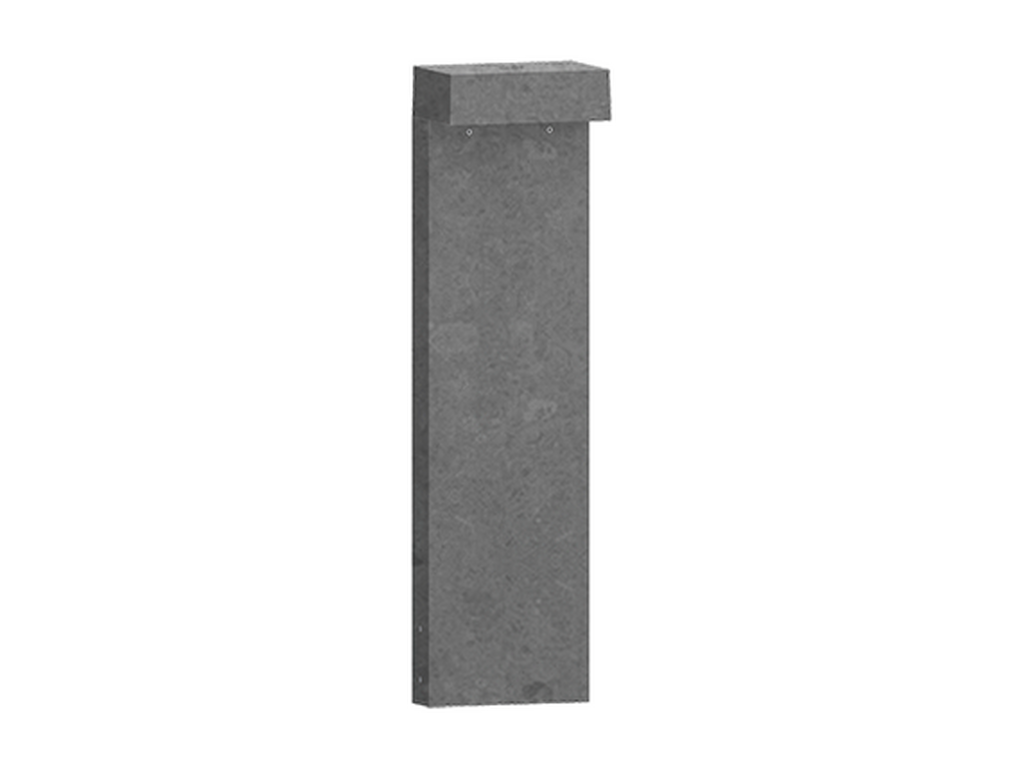

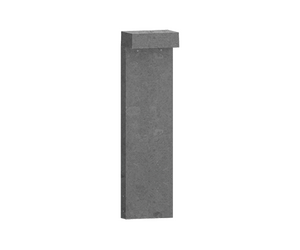

PRAGUE 3Concrete - Urban
PRAGUE 3Softscape - Urban
PRAGUE 3Stone - Urban

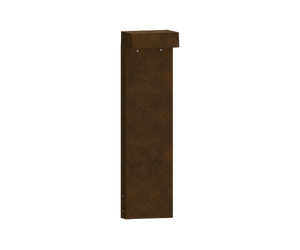

PRAGUE 3Corten - Urban
PRAGUE 3Oak - Woodland

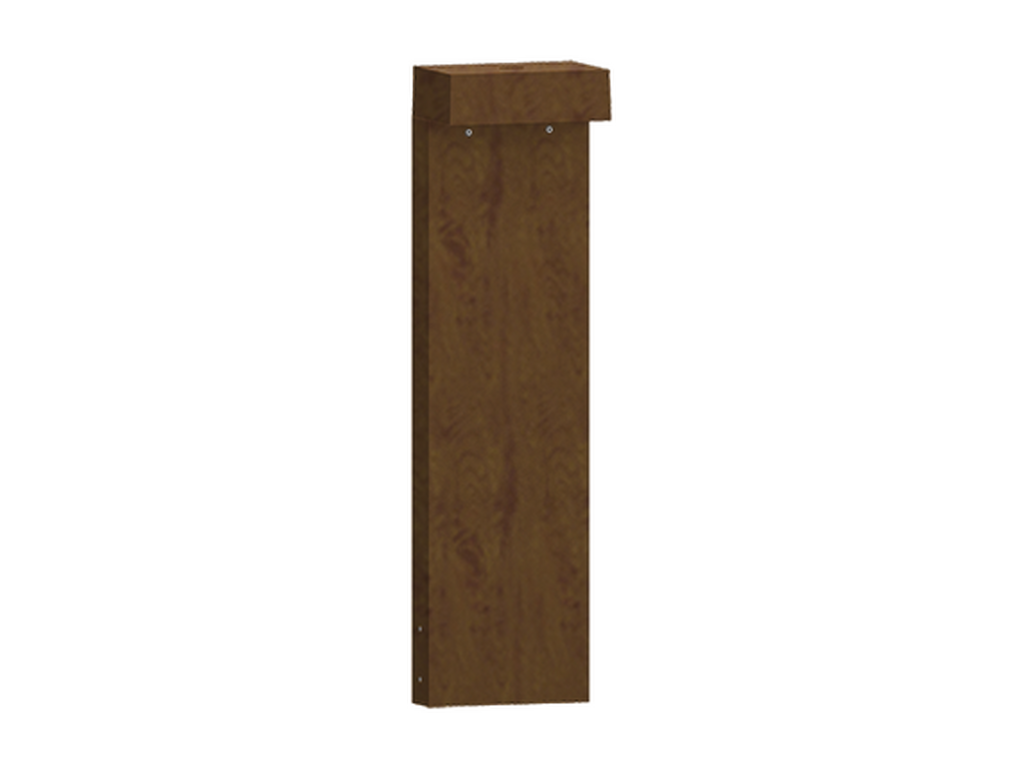

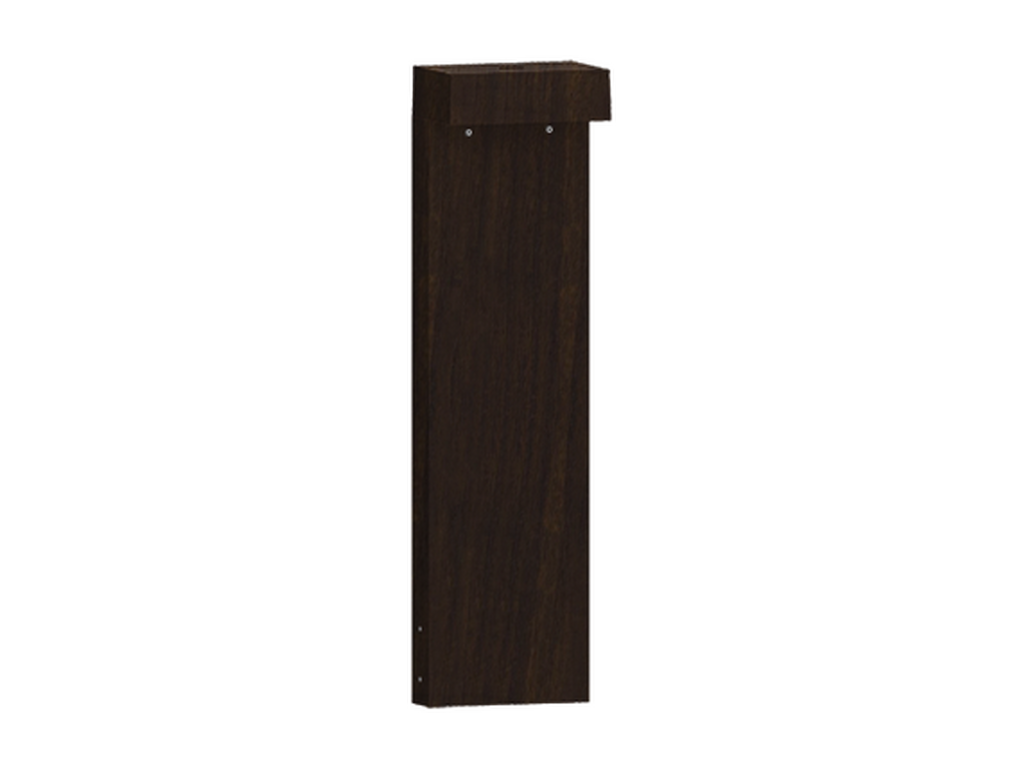

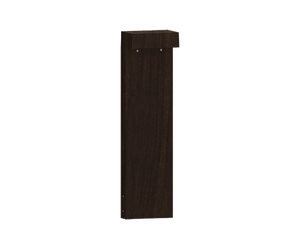

PRAGUE 3Walnut - Woodland

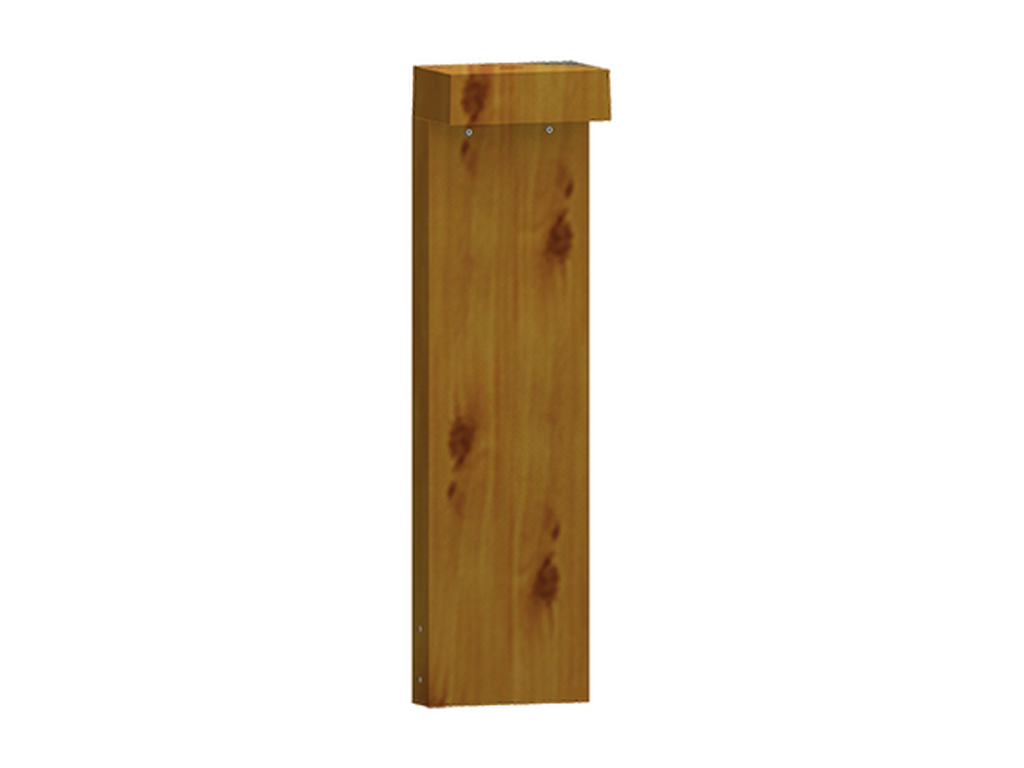

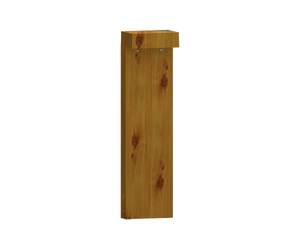

PRAGUE 3Pine - Woodland
PRAGUE 3Black
PRAGUE 3Dark Grey
PRAGUE 3White
PRAGUE 3Matt Silver
PRAGUE 3Bronze
PRAGUE 3Concrete - Urban
PRAGUE 3Softscape - Urban
PRAGUE 3Stone - Urban
PRAGUE 3Corten - Urban
PRAGUE 3Oak - Woodland
PRAGUE 3Walnut - Woodland
PRAGUE 3Pine - Woodland
260x75 mm - 1000 mm - IK10
CERETILAPClass IIP65IK10

TECHNICAL SPECIFICATIONS

Material
Aluminium
Light source
12 LED
Power (W)
20 W
Lumen (lm)
1938 - 2391 lm
Efficacy (lm/W)
102 - 126 lm/W
Driver option
Integral control gear
Driver
Constant current (CC)
Input voltage
220-240 V 50/60 Hz
Optic
M, W, EW, T2, T3, T4, ME
Optic value
30°x20°, 54°x33°, 104°x66°, 139°x56°, 126°x65°, 103°x68°, 137x57°
CCT / CRI
2700K CRI80, 3000K CRI80, 4000K CRI80
Bug
B0-U2-G1, B0-U3-G1, B1-U3-G1
ULR
2%, 3%, 7%, 8%, 9%, <1%
ULOR
0.03, 2%, 3%, 7%, 8%, 9%
CIE flux code nº3
95, 97
Dimming type
On/Off, 1-10V, DALI
Product colours
Black, Dark Grey, White, Matt Silver, Bronze, Concrete - Urban, Softscape - Urban, Stone - Urban, Corten - Urban, Oak - Woodland, Walnut - Woodland, Pine - Woodland
Weight
10.4 kg
Operating temperature
-20 °C to 40 °C
Cable
One IP68 connector supplied with 0.2 m of 3x1.0 sqmm outdoor cable
Through wiring
Single cable entry
Lens / Reflector / Optic
Clear toughened glass, High-efficiency PMMA lens
MacAdam Ellipse
3 SDCM
Lifetime L90B10 (hours)
> 90,000
Lifetime L80B10 (hours)
> 90,000
Lifetime L80B50 (hours)
> 90,000
Variants (On/Off, 1-10V, DALI)
Compatible with EN/ IEC 60598-2-22: Suitable for emergency installations as central supply, non-maintained (Z0)

LIGHT EFFECT

Optic
M (30°x20°)
W (54°x33°)
T2 (139°x56°)
T3 (126°x65°)
T4 (103°x68°)
ME (137x57°)

CODE FINDER

Lumen (lm)
Optic
Optic value
CCT / CRI
Dimming type
Product colour
Variant code
Lumen (lm)
Optic
Optic value
CCT / CRI
Dimming type
Product colour

ACCESSORY

PROJECT REFERENCE (PRAGUE Bollards)
