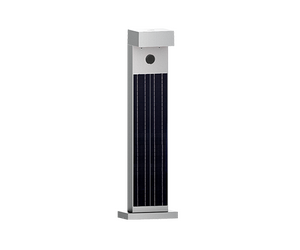

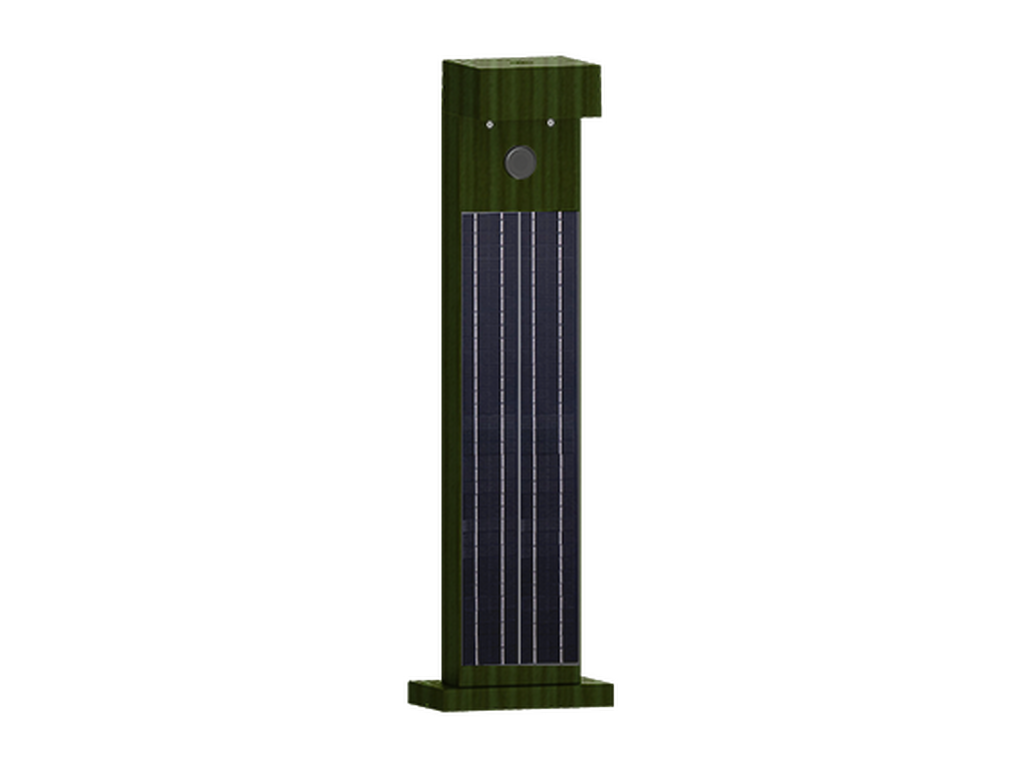

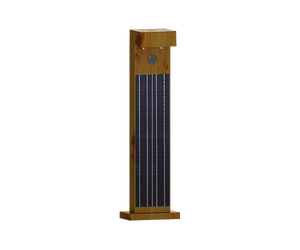

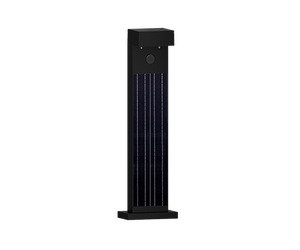

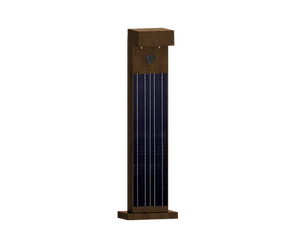

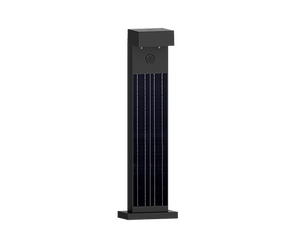

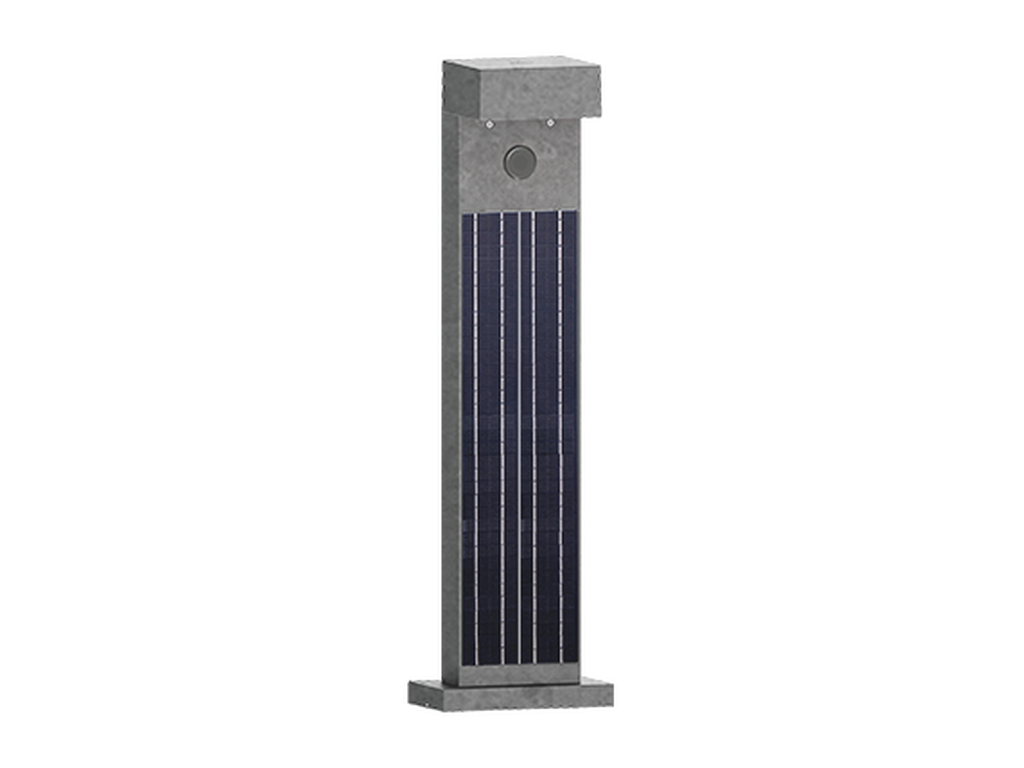

PRAGUE 7PRA-10061Solar integrated bollards
Black
Dark Grey
White
Matt Silver
Bronze

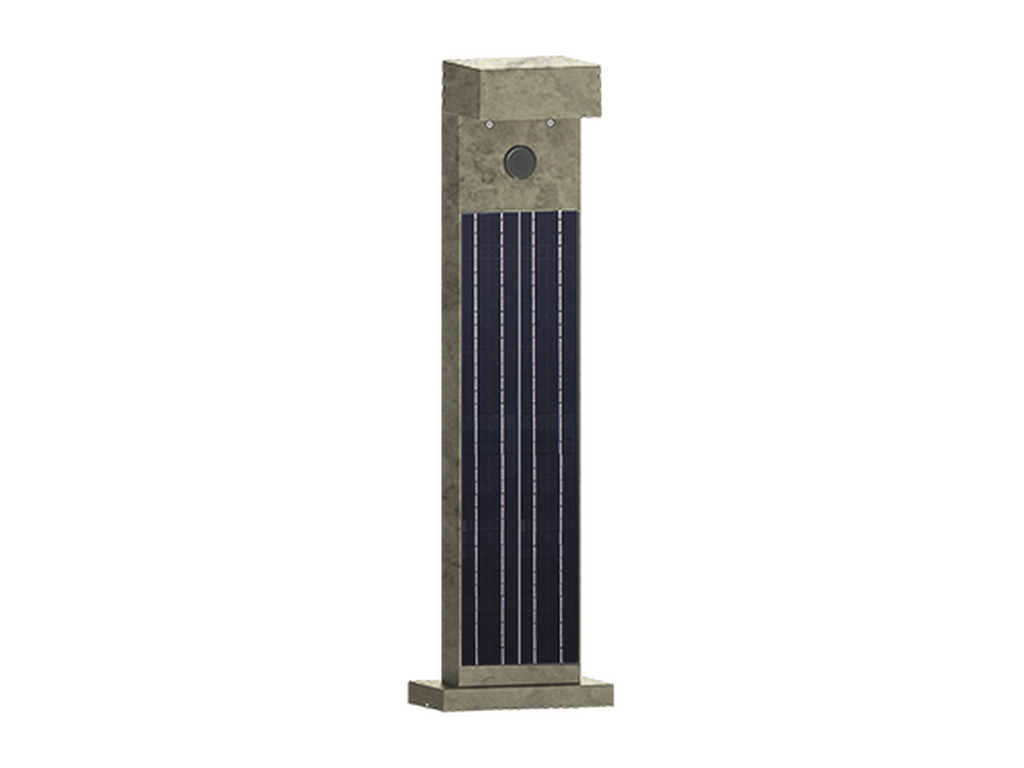

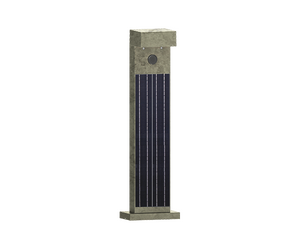

Concrete - Urban
Softscape - Urban
Stone - Urban

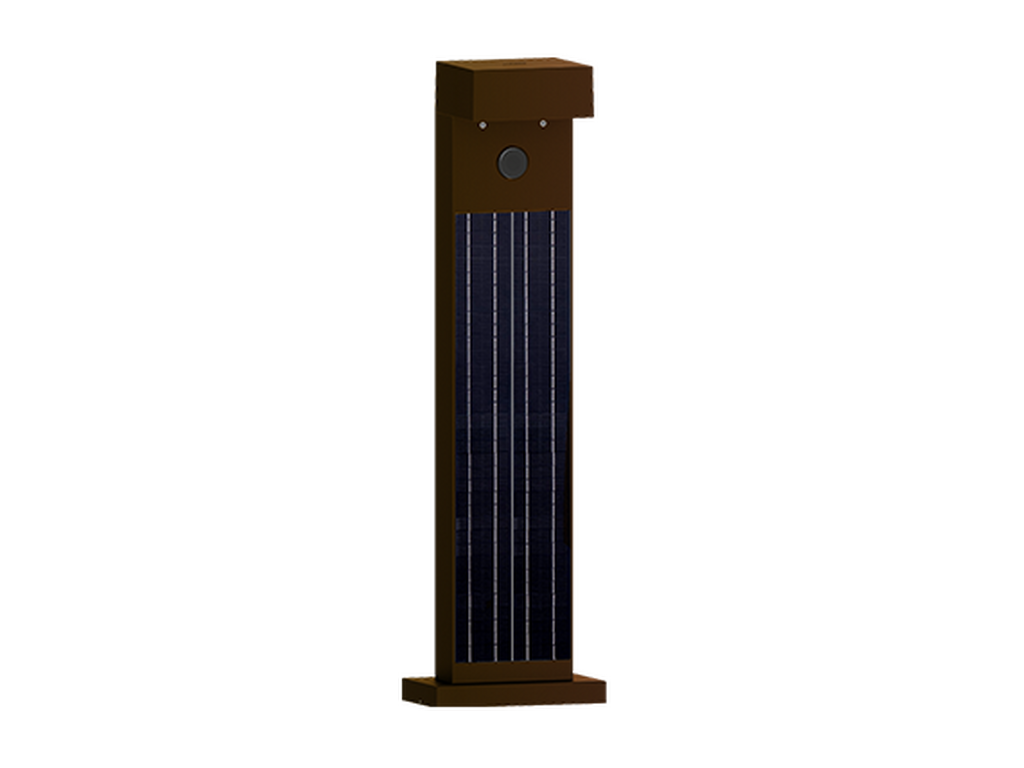

Corten - Urban
Oak - Woodland

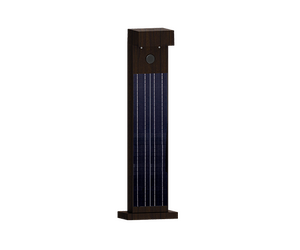

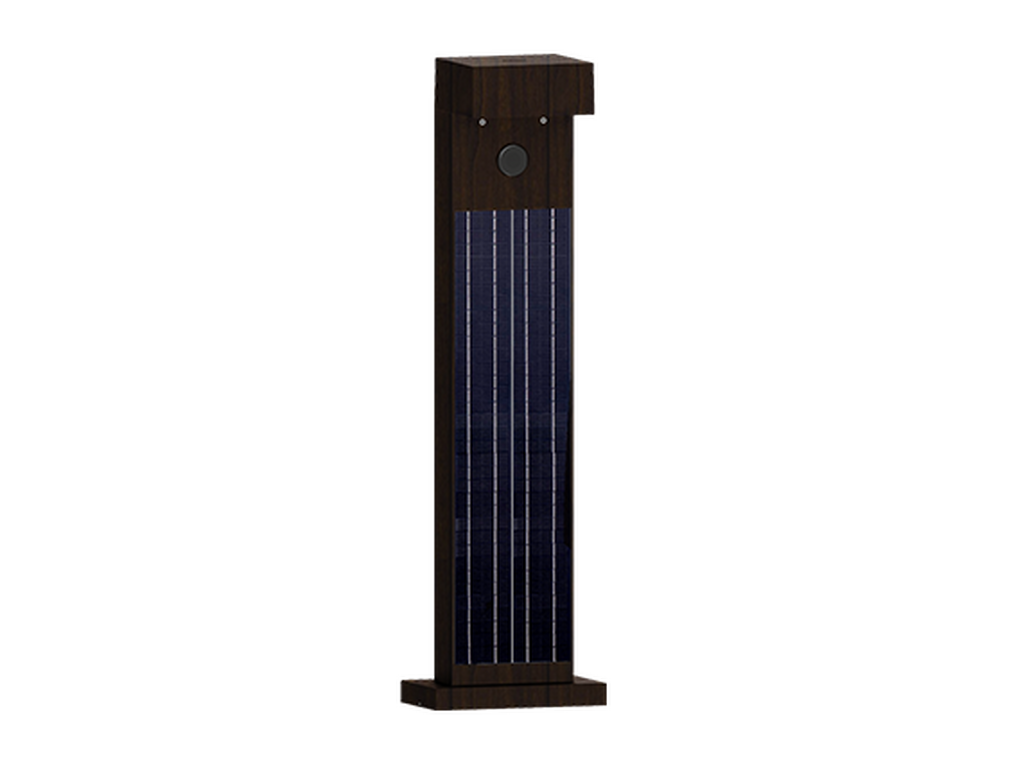

Walnut - Woodland
Pine - Woodland
Black
Dark Grey
White
Matt Silver
Bronze
Concrete - Urban
Softscape - Urban
Stone - Urban
Corten - Urban
Oak - Woodland
Walnut - Woodland
Pine - Woodland
200x80 mm - 1000 mm - 27 hours of operation time (Dimming with motion sensor override) - 5 days of autonomy
TECHNICAL SPECIFICATIONS
Material
Aluminium
Light source
8 LED
Power (W)
2 W
Lumen (lm)
206 - 236 lm
Efficacy (lm/W)
103 - 118 lm/W
Driver option
Integral control gear
Driver
Constant current (CC)
Input voltage
Solar
Optic
T2, T3, T4, ME
Optic value
138°x55°, 122°x76°, 103°x68°, 136x56°
CCT / CRI
3000K CRI80, 4000K CRI80
Bug
B0-U1-G0
ULR
<1%
ULOR
0.01, 0.02, 0.03
CIE flux code nº3
96, 97, 98
Dimming type
Dusk to Dawn, 2 Step dimming with motion sensor override, Solar Custom
Product colours
Black, Dark Grey, White, Matt Silver, Bronze, Concrete - Urban, Softscape - Urban, Stone - Urban, Corten - Urban, Oak - Woodland, Walnut - Woodland, Pine - Woodland
Weight
16.2 kg
Operating temperature
-20 °C to 40 °C
Lens / Reflector / Optic
Clear toughened glass, High-efficiency PMMA lens
MacAdam Ellipse
3 SDCM
Lifetime L90B10 (hours)
> 90,000
Lifetime L80B10 (hours)
> 90,000
Lifetime L80B50 (hours)
> 90,000
DOWNLOADS
Family spec sheet
Product spec sheet
Installation manual
Technical drawing
2D - CAD
BIM - IFC
DIALux - ULD
IES
CE documentFor BIM files (Revit - RFA), please check the Variant code
LIGHT EFFECT
Optic

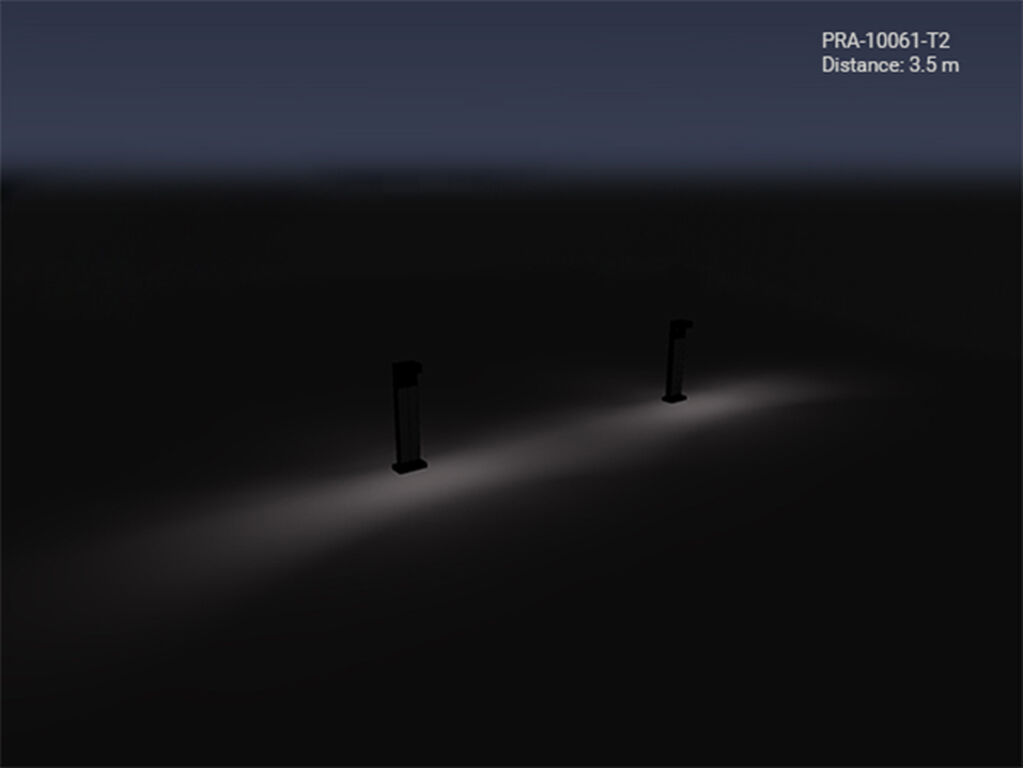

T2 (138°x55°)
T3 (122°x76°)
T4 (103°x68°)
ME (136x56°)
